Name: KEYDIY KD Prog Mini with C2 Adapter
Description:
KEYDIY KD Prog Mini with C2 Adapter for reading dashboard data support VW MQB for All Keys Lost working with KEYDIY KD Mate & KEYDIY KD Max.
KEYDIY KD Prog Mini and C2 Adapter is working with KEYDIY Mate and KD Max to add key, can also add for key all lost, it is a necessary tool for locksmiths.
Operation Steps:
1. Select connection diagram according to the dashboard model(connection diagram can be found in mobile KD APP: lMMO Programming-KD Mini Prog), weld the cable harness to the corresponding position of the instrument according to the wiring diagram.

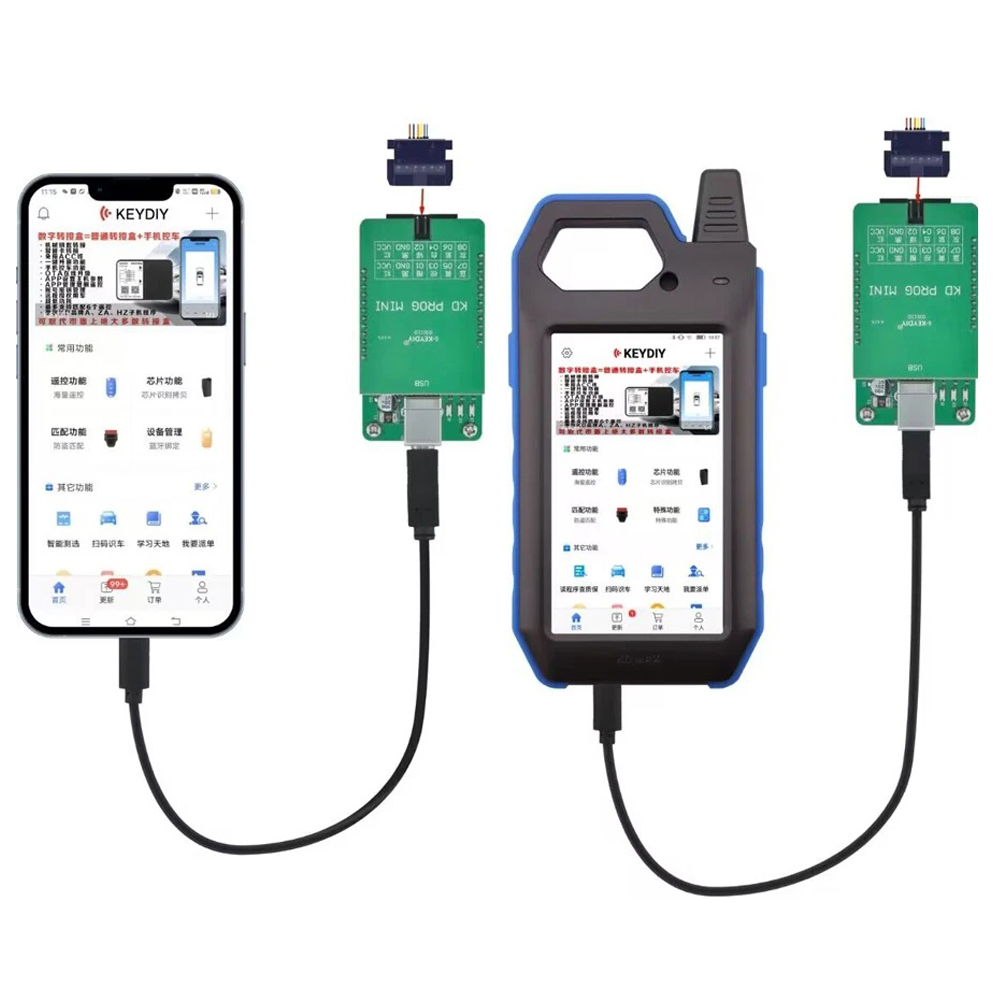

2. Insert the connecting cable to KD MINI PROG port, connect KD MINI PROG to KD-MAX(or Android phone/tablet which support OTG).
3. Open the mobile KD APP, enter the menu of IMMO Programming KD Mini Prog to read data, it may need 5-10 seconds.
Notice:
1. MQB function needs to be activated from APP.
2. Please make sure KD-MAX or mobile phone does have enough power to avoid reading failure.
3. Disclaimer: Before use, please carefully read the product manual and strictly follow the steps described in the manual for installation and use; If personal or property damage is caused by improper use, our company shall not be responsible.

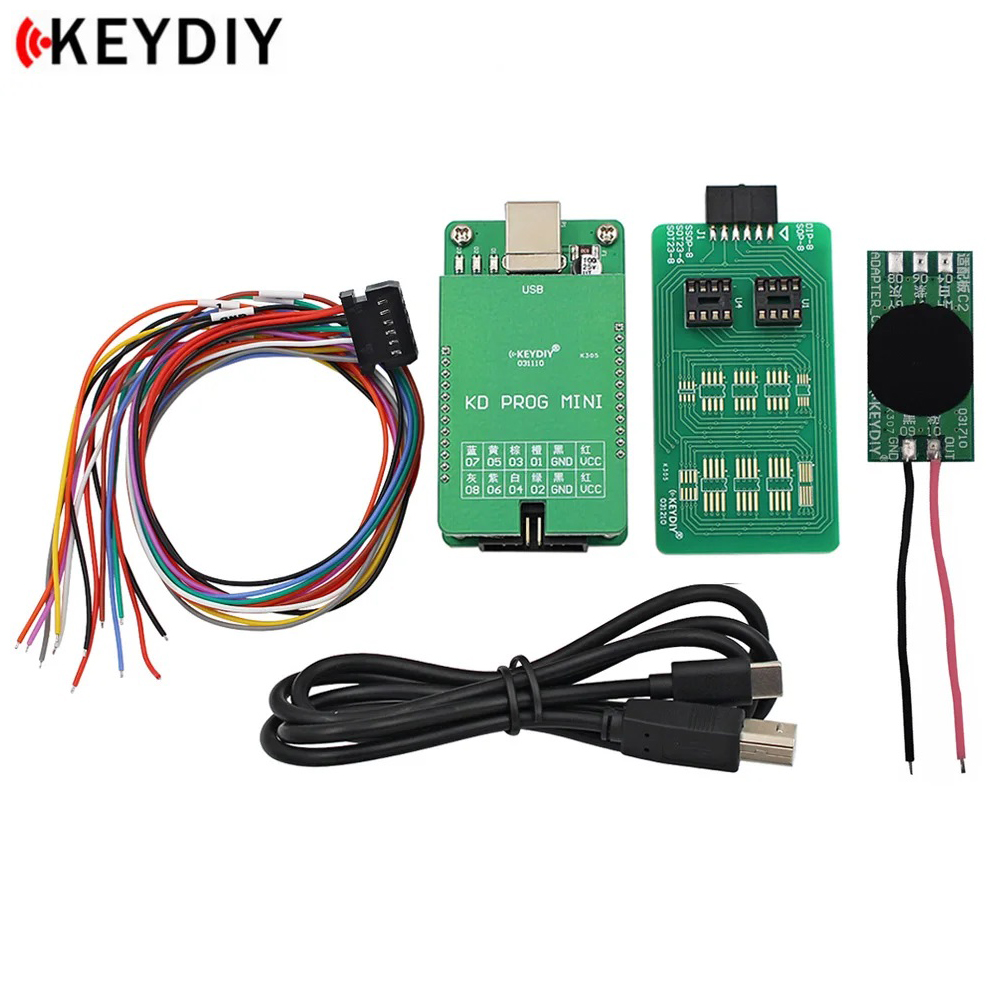

Packing List:

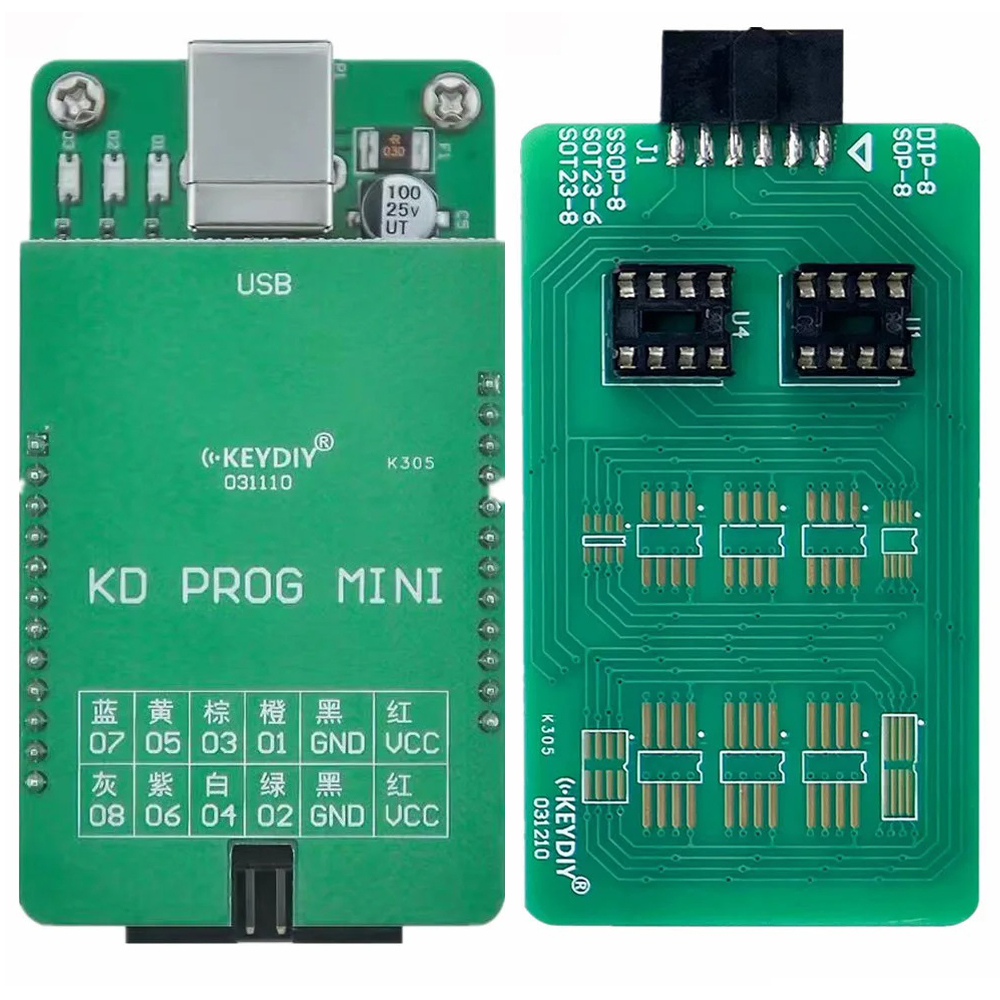

KEYDIY KD Prog-Mini

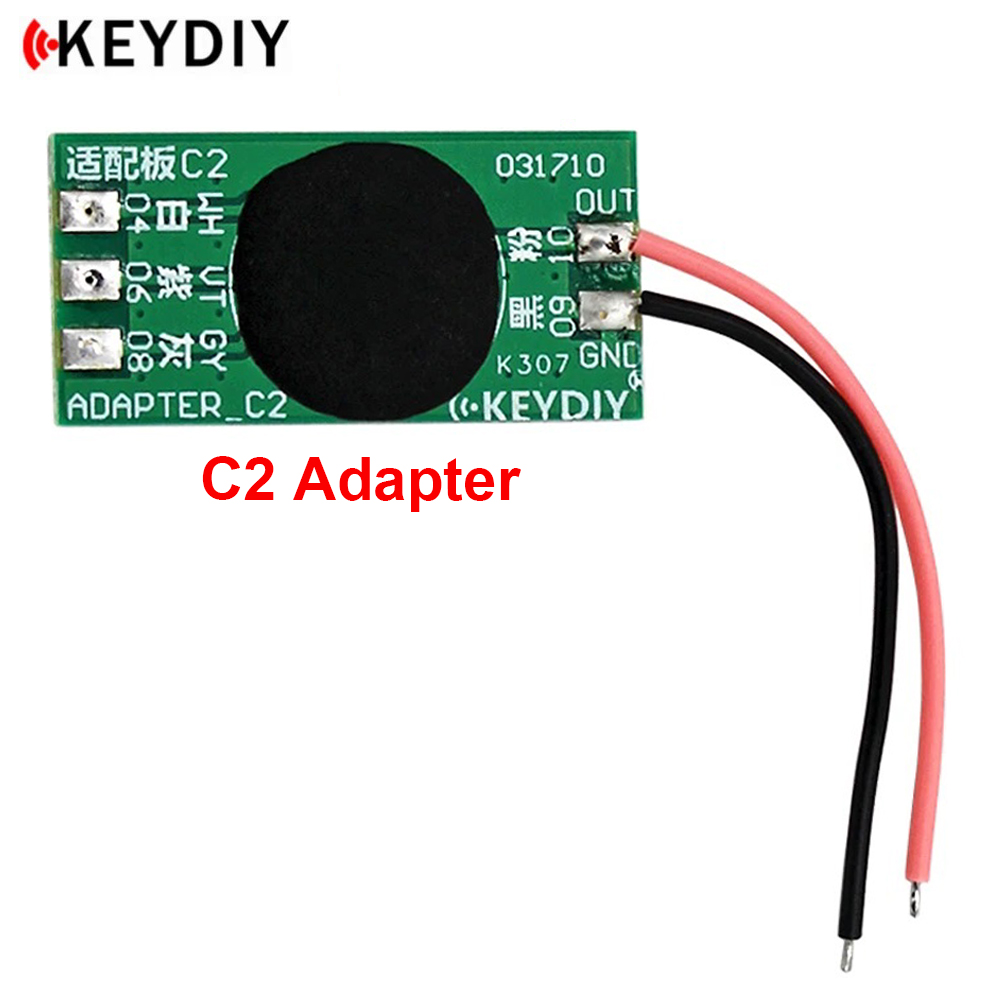

C2 Adapter
Adapter Board
Connecting Cable

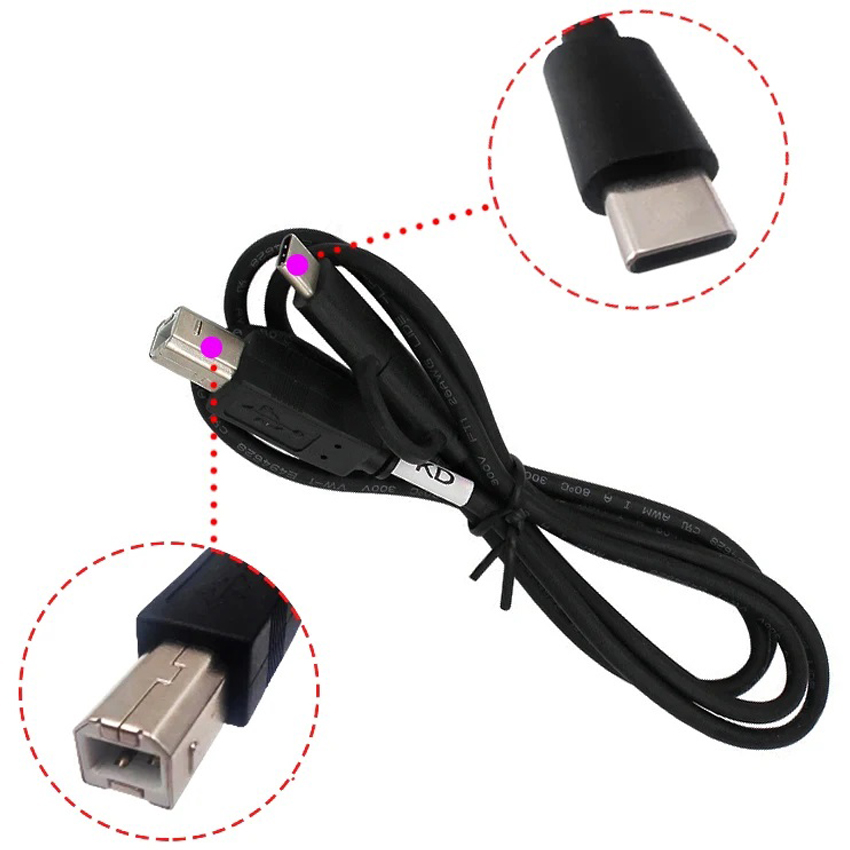

OTG USB Cable
Packing Box
|
