Description:

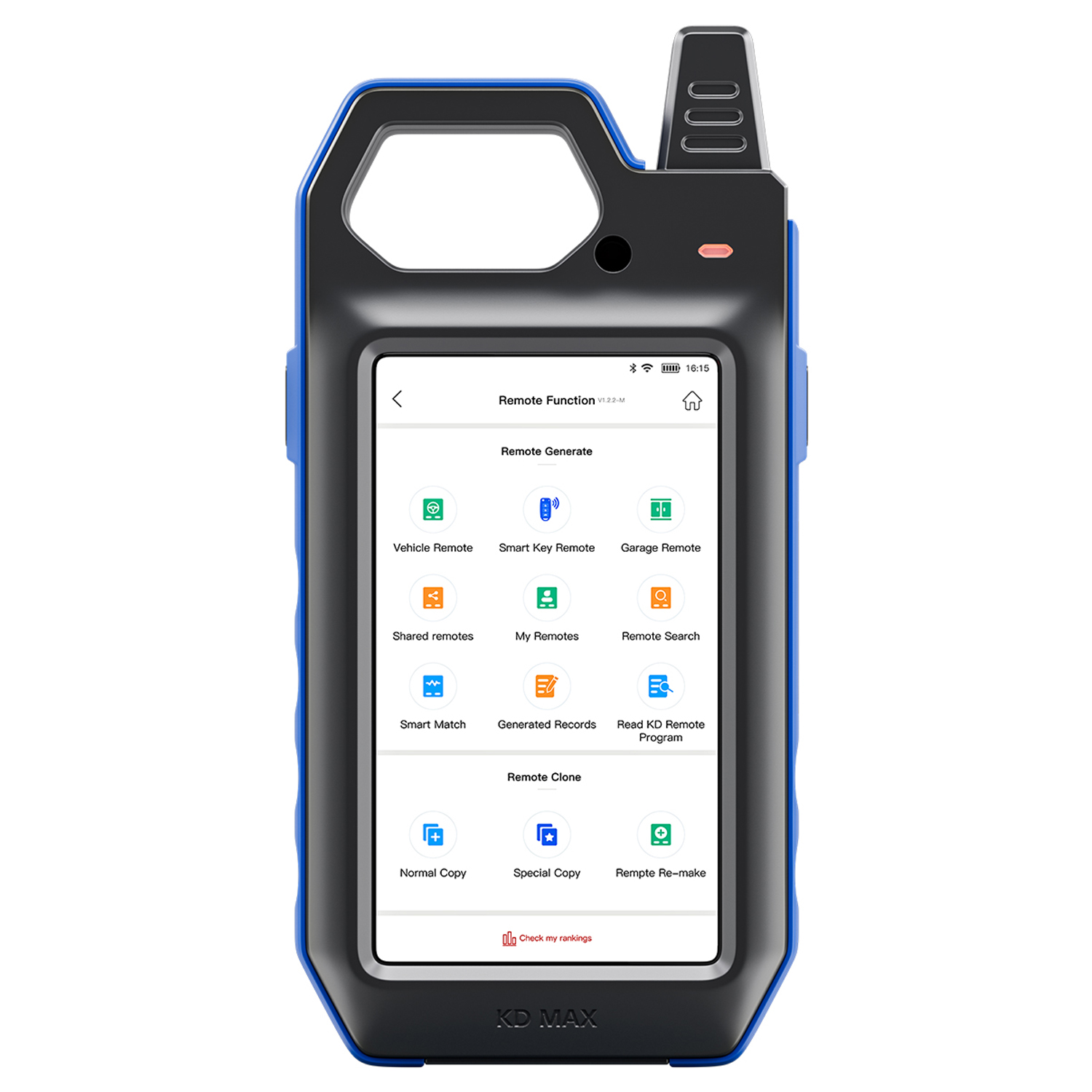

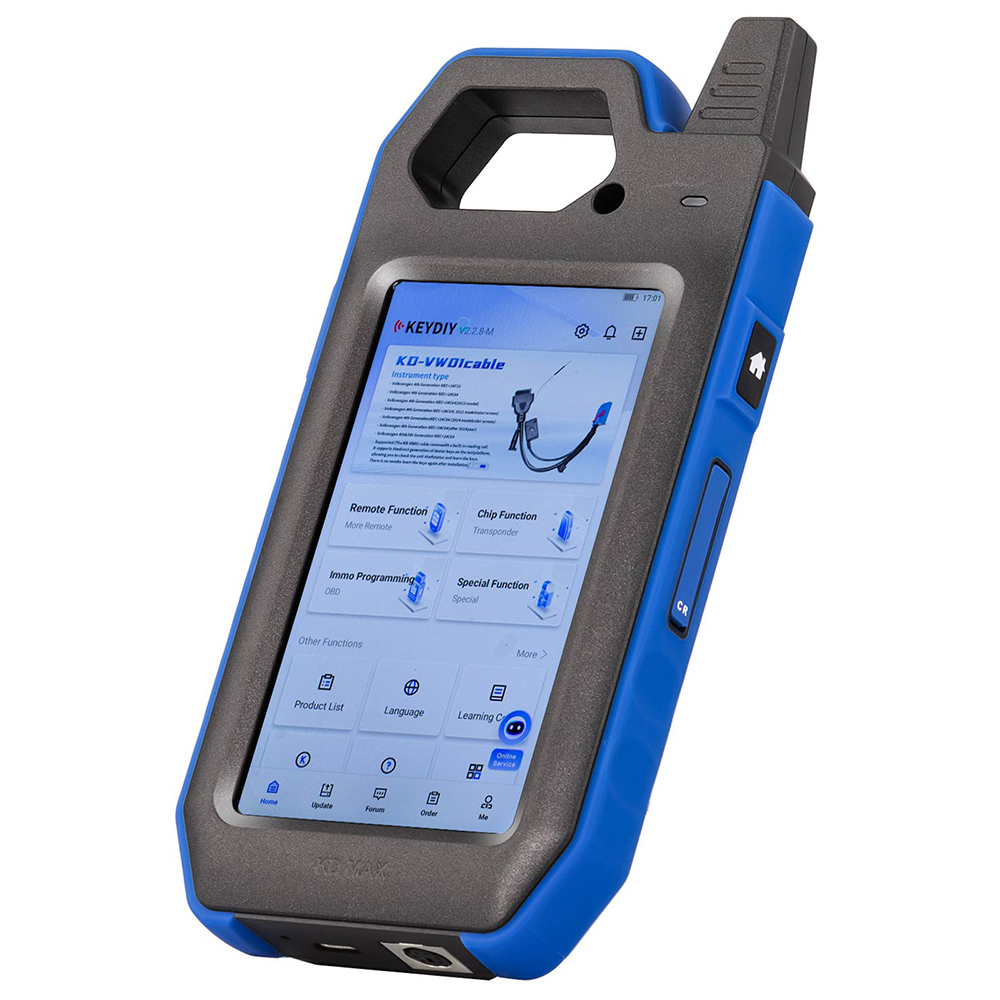

KEYDIY KD Max Remote Key Maker is a professional multi-function smart device. It works with the Android operating systems with a easy to use interface. It is equipped with Bluetooth / WiFi / 5 inch LCD screen.

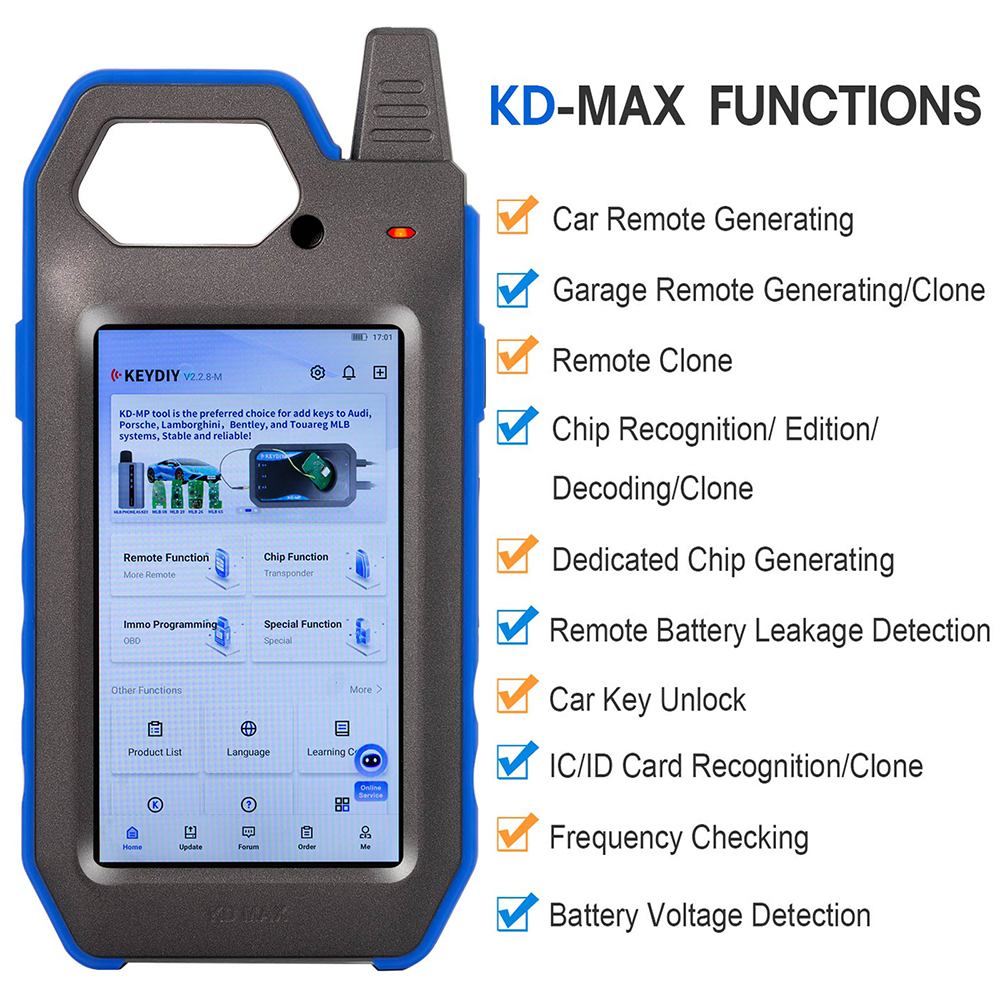

Functions:



Car Remote Generating

Garage Remote Generating / Clone

Remote Clone

Chip Recognition / Edition / Decoding / Clone Dedicated Chip Generating

Remote Battery Leakage Detection Car Key Unlock

IC/ID Card Recognition / Clone Frequency Checking

Battery Voltage Detection



Supported Languages:



English, French,  Deutsch, Spanish, Portuguese, Portuguese(Brasil), Russian, Turkish, Italian, Arabic,  Romanian, Polish, Persian, Slovenian, Vietnamese, Hebrew

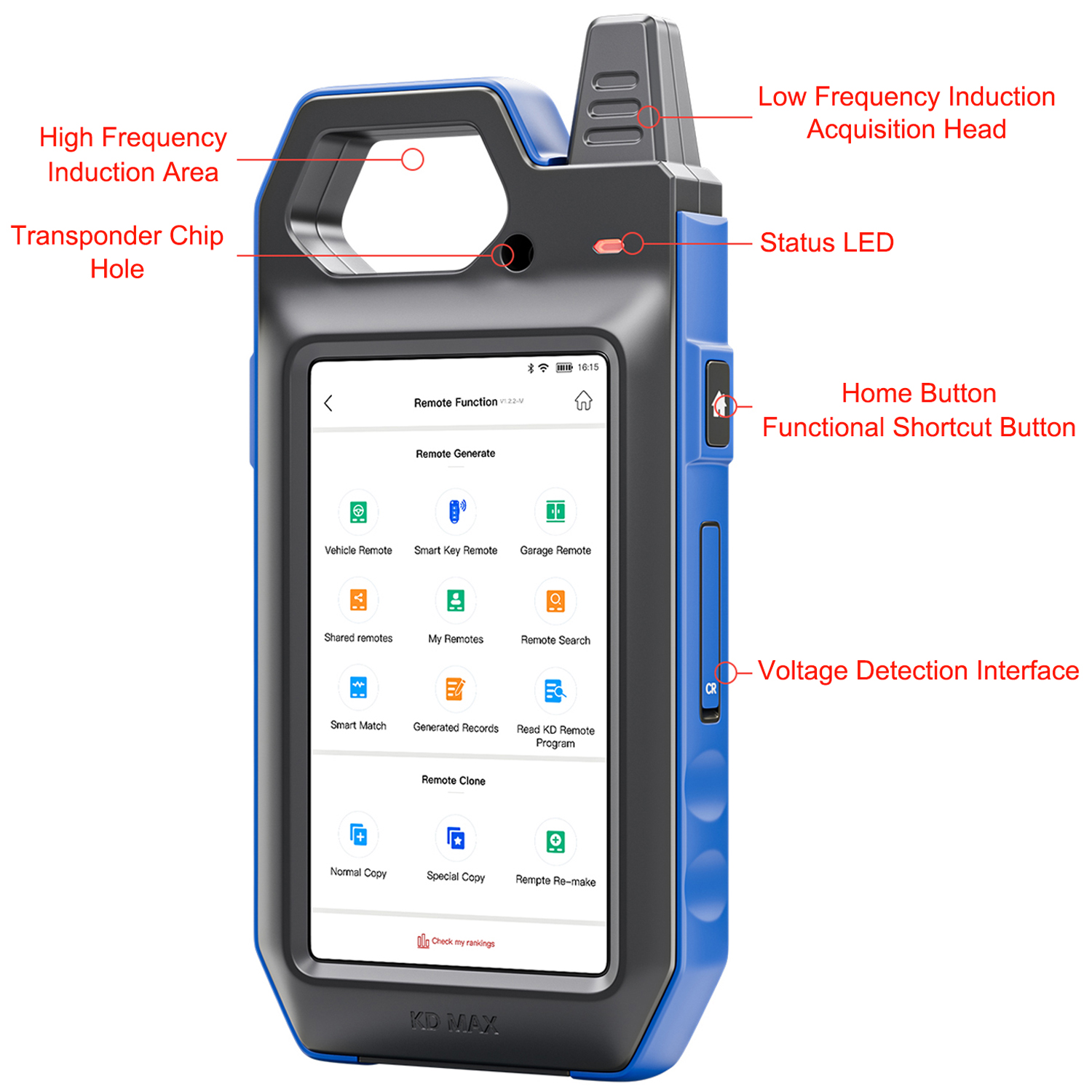

Button Definition:

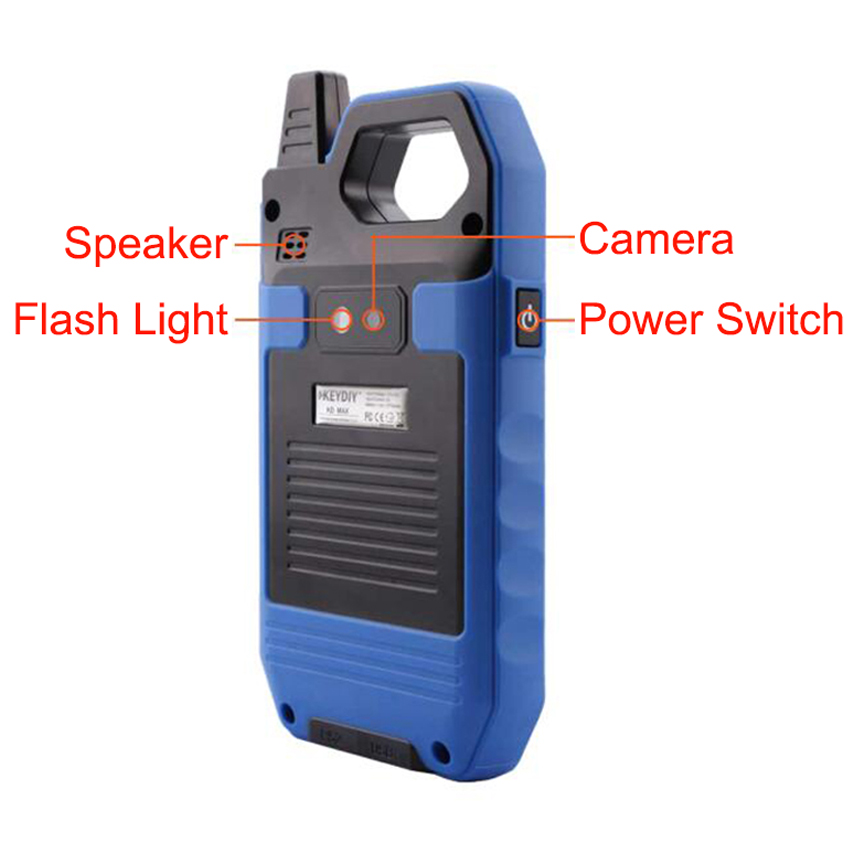

1. Switch:

When the device is power off, hold the switch button for 2 seconds to start it.When it is power on, hold switch button 2 seconds will see 3 options: Power Off / Restart / Screenshot. When the screen is on, press the switch button once, the device will turn off the screen for standby; When the screen is off, press the switch button once to light up the screen;



2. Home:

Press the HOME button once to pop up the shortcut button function list, andthen press the home key once to exit;



3. Compulsory Resetting Button:

Insert the card taking pin to the hole on the bottom left to reset the devicecompulsorily.

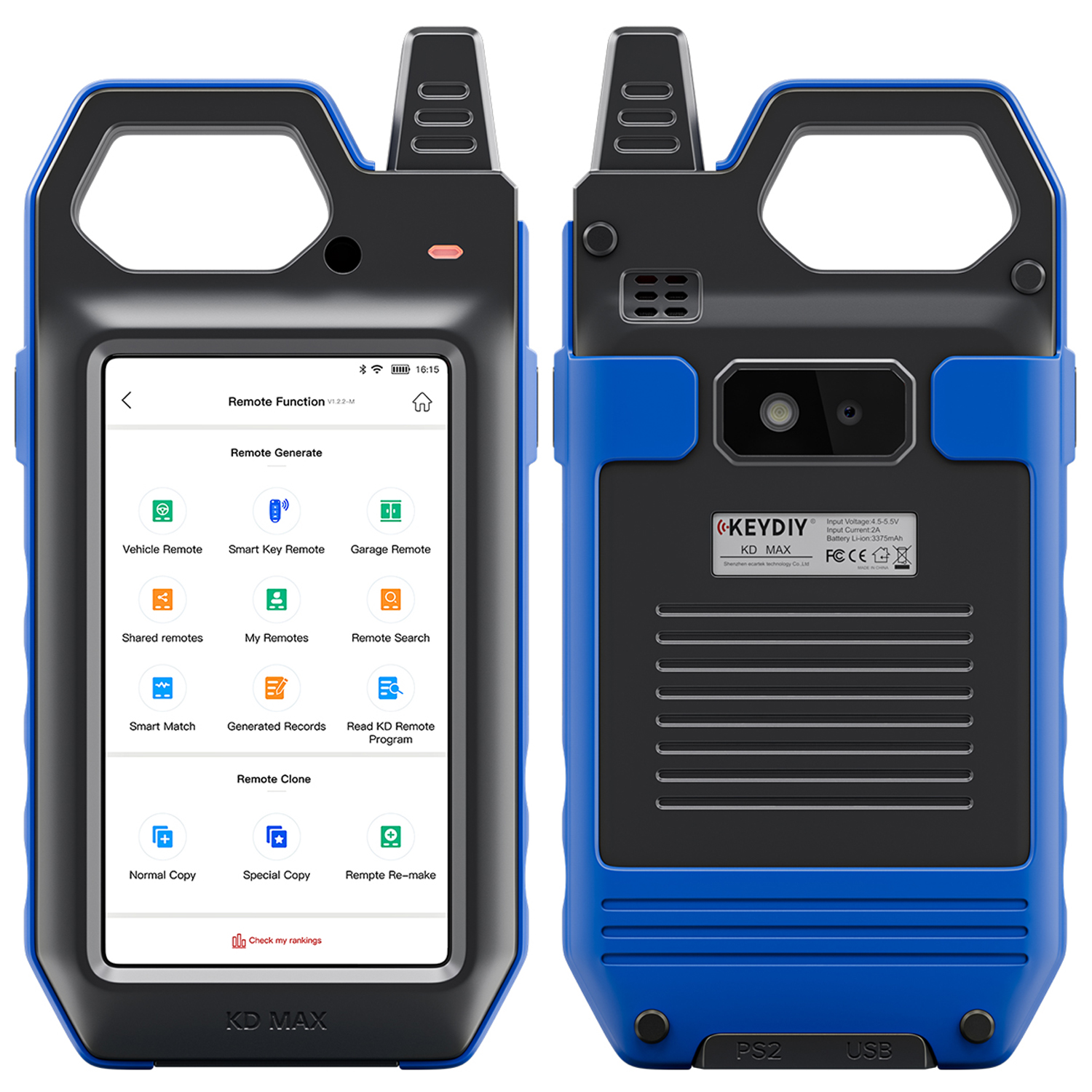

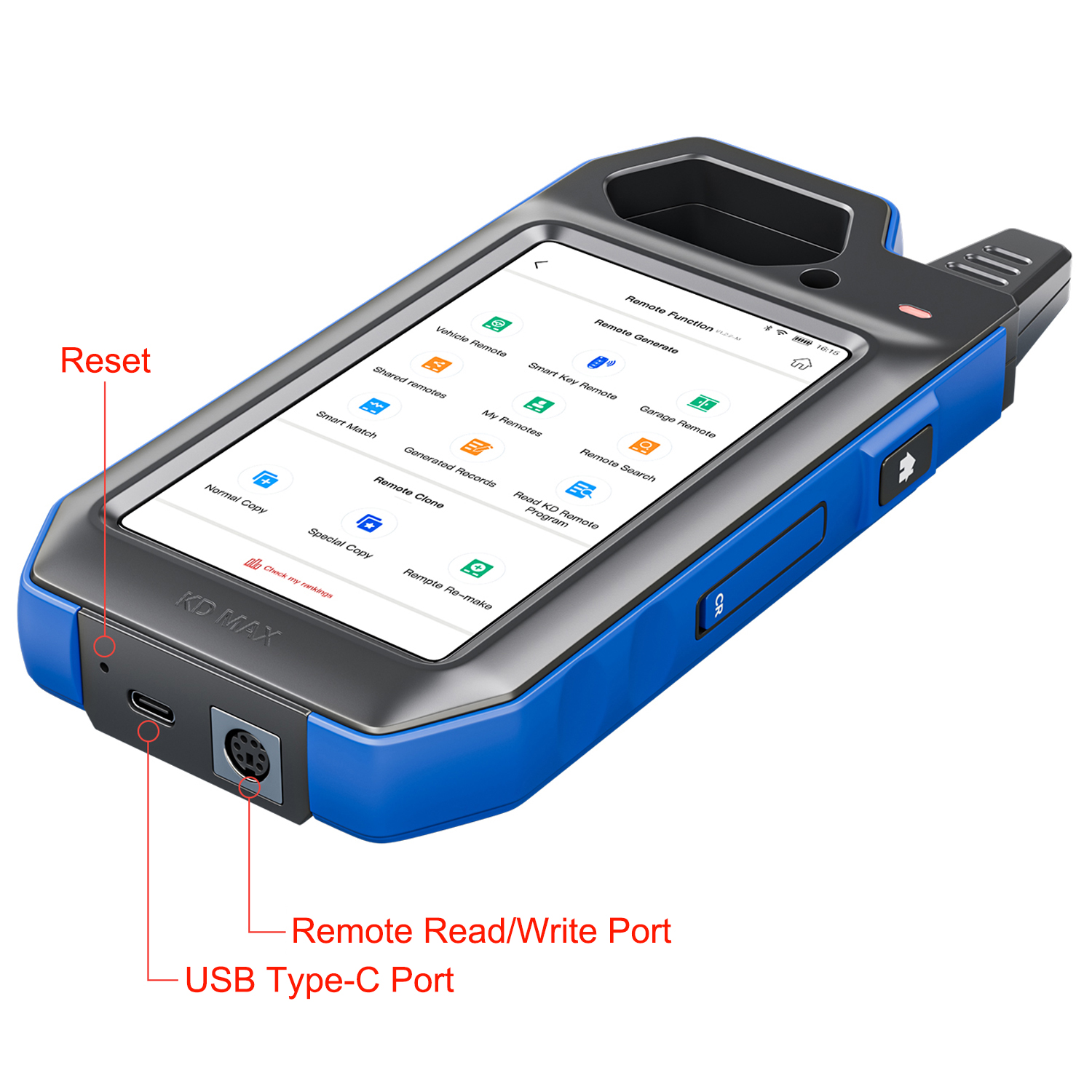

Port Definition:



1. Type-C Charging Port

Please use 4.5-5.5V/2A charging plug to connect Type-C cable to charge. When charging is finished, the device will stop charging automatically to protect the battery.



2. PS2 Burning Port

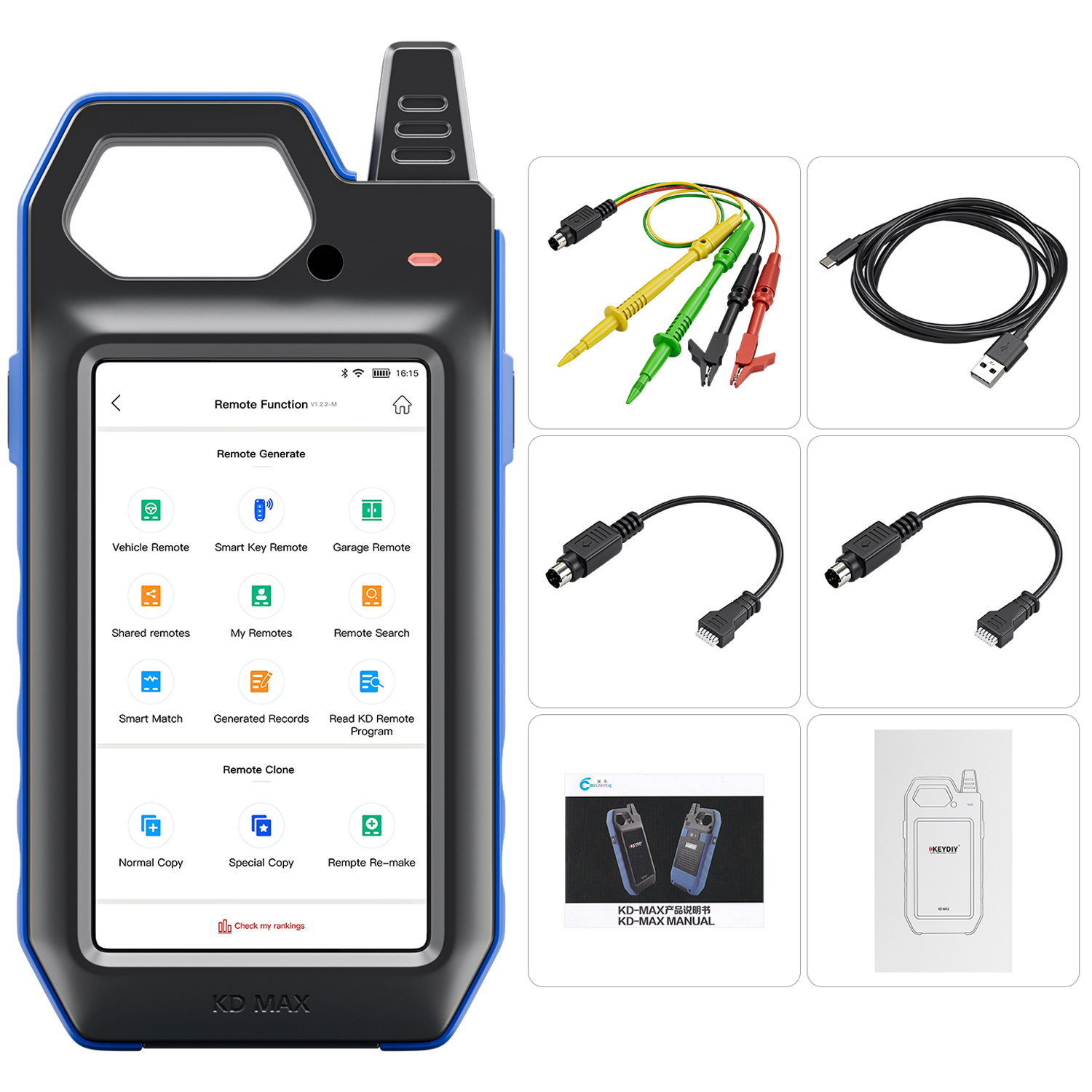

1) lnsert remote generate cable(6P cable) to generate remote;

2) Insert unlock cable to unlock remotes;

3) Insert unlock cable, enter the Battery Leakage Detectionmode, connect the red cable to the positive side on the remote board, and black one to negative side to detect battery leakage. ( Remove the remote battery first)



3. Voltage Detection Interface

lnsert battery to the CR port( Pay attention to the positive and negative poles), enter Voltage Detection mode to detect battery voltage.

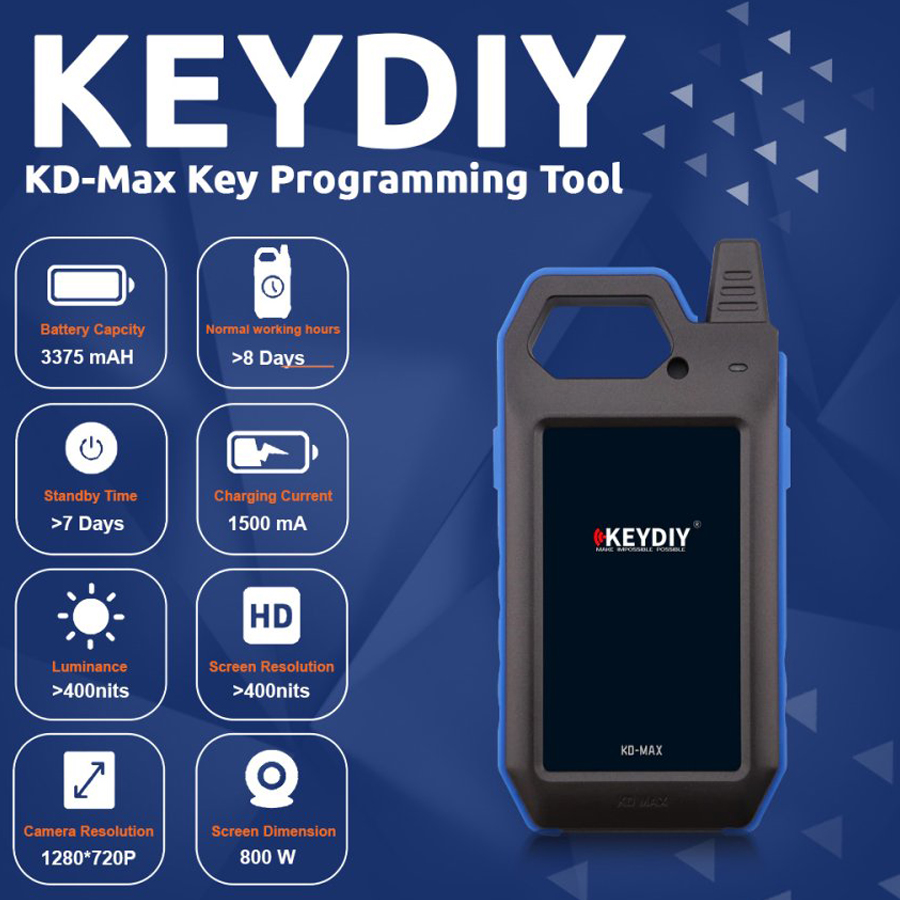

Specifications:



Screen Size: 5 inch

Screen Resolution: 1280*720P

Screen Luminance: >400nits

Camera Resolution: 8MP

Normal Working Hours: >8 hours

Standby Time: >7 days

Charging Current: 1500mA

Battery Capacity: 3375mAh

Safety Precautions:



1. Please keep it from water, dust and falling;

2. Do not store or use the device in the environment of high temperature, high humidity, flammability, explosion and strong magnetic field;

3. Do not use a charger with mismatched specifications to charge the device;

4. Do not disassemble the device or change the internal parts of the device without permission, otherwise you will bear the adverse consequences;

5. Please protect the display screen, camera and other key components to prevent damage caused by sharp objects.
