Description:

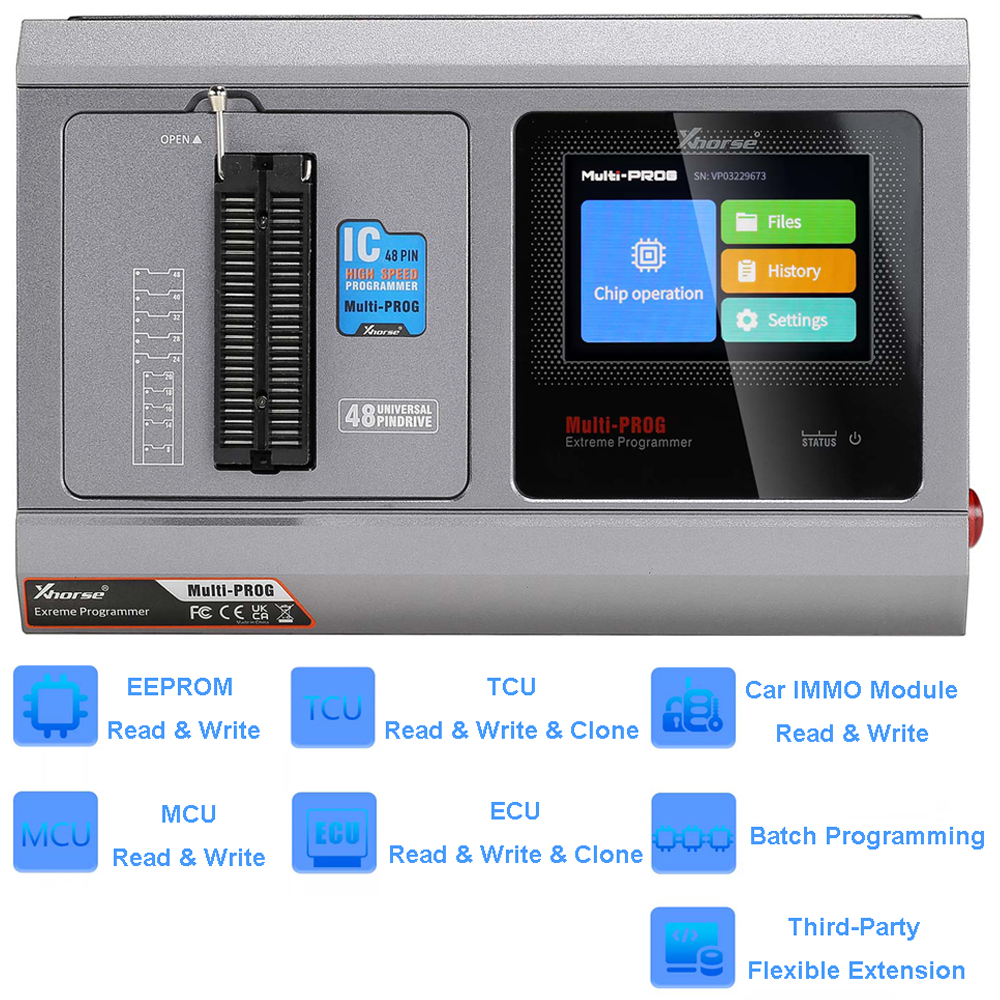

XHorse Multi-Prog Programmer is updated generation of XHorse VVDI Prog Programmer. XHorse Multi Prog ECU TUC Programmer supports to Read / Write / Clone ECU / Read / Write / Clone TCU, Read / Write MCU, Read / write IMMO Module, Read / Write EEPROM, Read / Write Vehicle Dashboard.



XHorse MULTI-PROG Pro-Level Programmer is a reading and writing device for automotive chips, electronic modules, especially ECU modules. It integrates the programming, reading, writing and cloning functions of common automotive MCUs, automotive memory chips, common electronic modules and automotive ECU boards.



Multi-PROG Pro-Level Programmer supports batch writing of chips, and batch writing of chips is often used in factories when production requires large-scale writing of chips. The types of writes supported are common memory series and common microcontroller series. For the specific usage of batch writing, please refer to the documentation of the factory usage mode that comes with the software.



Batch Programming Function: XHose Multi PROG Extreme Programmer supports factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be realized.



Software Version: V1.0.9



Hardware Version: V1.1.5

Highlights:



1. Fully Replace VVDI Prog:

XHorse Multi-PROG Extreme Programmer support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.



The main difference between XHorse VVDI PROG and XHorse Multi-Prog: Multi-Prog has the batch programming function but VVDI PROG programmer doesn't.



2. With Free MQB48 License and BMW Ben Read ISN.

Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too



3. Add Vehicle Engine Data Calculation and Processing (MED17, EDC17 etc).



4. Support checksum function.


Functions:



1. Read, Write, Clone ECU

BMW B48/B58 reading ISN

BMW MSD80/81 /85/87/MSV90

Mercedes-Benz SIM271

BMW MSV80

VW BOSCH MED17 Series ECU

BMW N13/N20/N55/B38/TC17X

Support Marelli, Siemens, Delphi and other ECU manufacturers.

With FREE MQB48 License. Bind Multi-Prog and VVDI2 Full Version to the same XHorse APP account to use MQB48 NEC35XX Function.

Compatiable with XHorse MQB Solder-Free Adapters



2. Read, Write, Clone TCU

Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.

Porsche DL501 TCU

Ford Dodge and other MPS6 series TCU

BMW DKG, Mercedes-Benz VCS and other models TCU



3. Vehicle Engine Data Calculation and Processing

MEDl 7/EDC17 data processing



4. Support Flexible Extension of Third-Party Plug-ins

Support the development of third-party plug-ins and provide data processing and modification services



5. Read & Write MCU

Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.

Support certain encrypted chip reading and writing



6. Read & Write Vehicle IMMO Module

Support Porsche, Land Rover, Mercedes-Benz EZS, VOLVO,

VW MQB dashboard, AUDI BCM2, etc.

Support modules including BMW EWS, CAS1 \CAS2\CAS3\CAS4+, FEM BDC, etc.

Support other common IMMO modules

Note: Compatible with XHorse Solder-Free Adapters and Cables



7. Read & Write EEPROM

Support EEPROM and FLASH



8. Read & Write Vehicle Dashboard

Support dashboard of VW, Honda, Hyundai, Kia, etc.

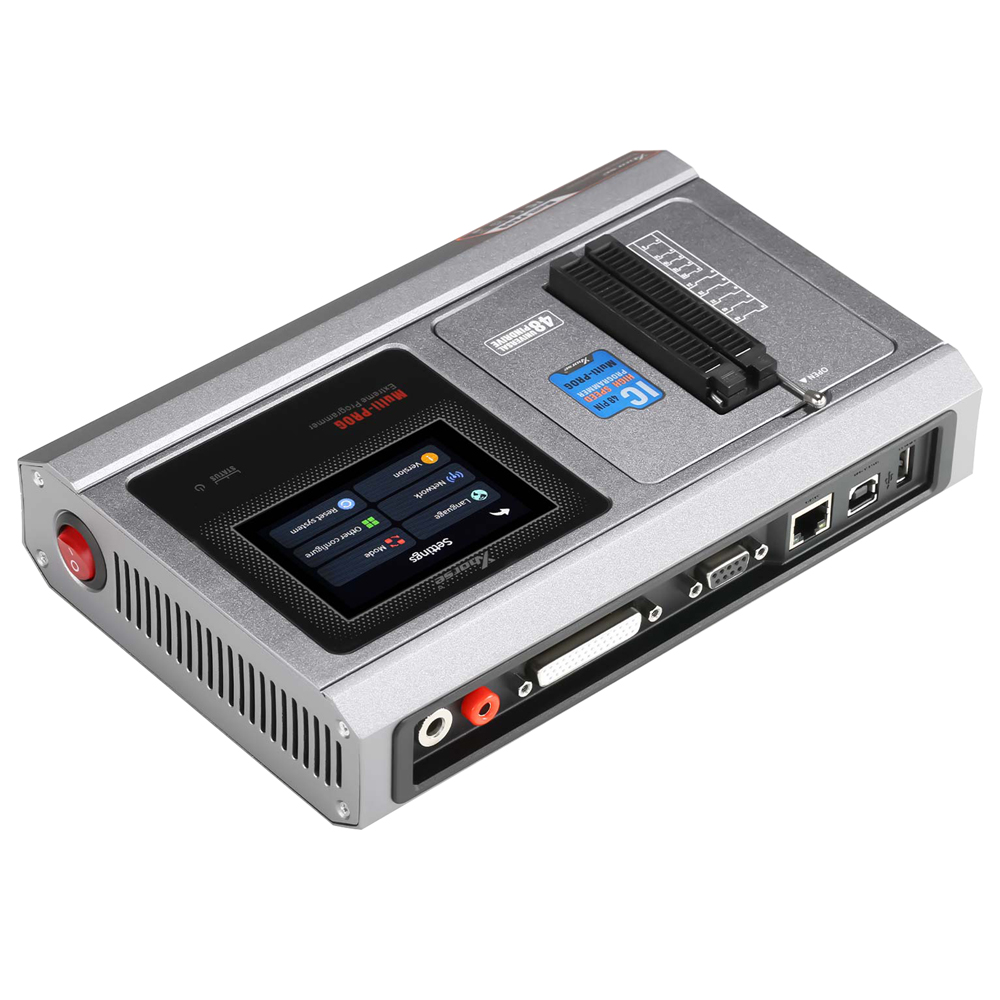

Specifications:



Operating System: Linux

Processor: ZYNQ7020 dual-core Cortex A9 +FPGA

Memory: 256M*2 DDR+64M NOR FLASH

Display: 3.5-inch

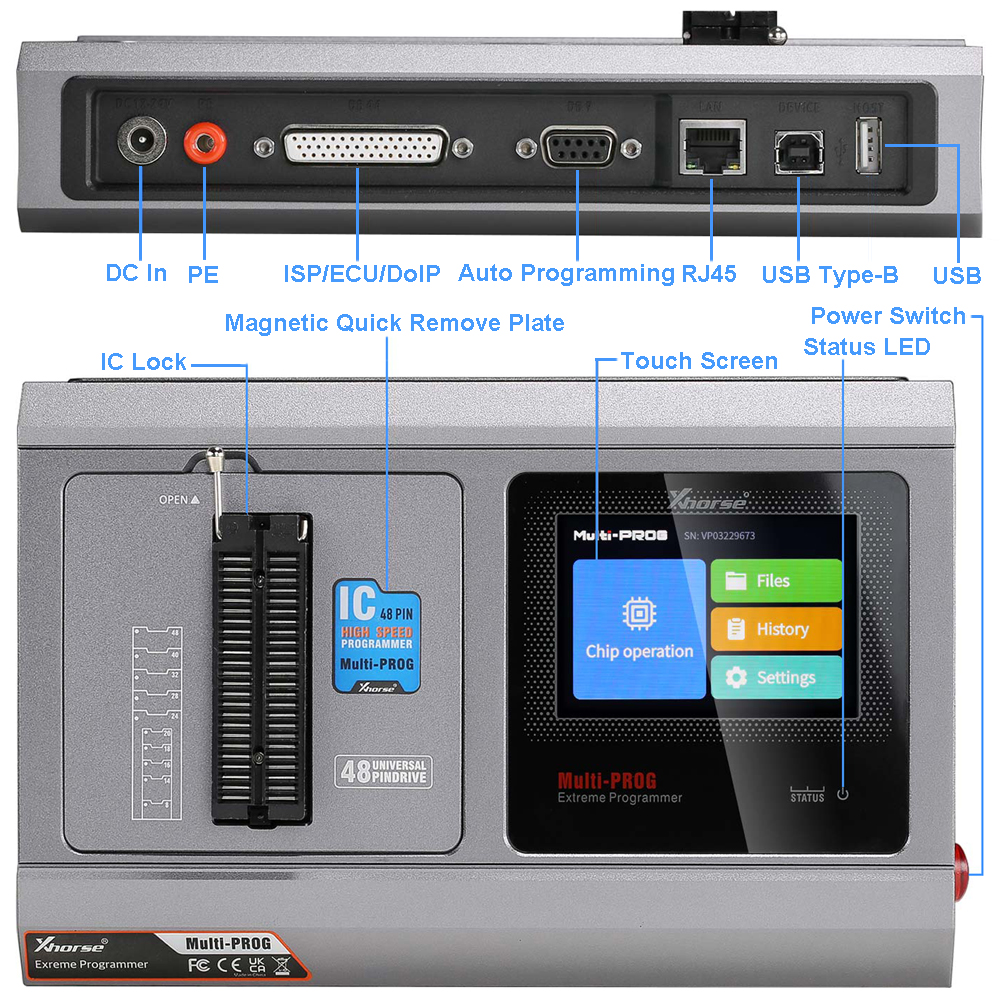

External Interface: USB/RJ45

Input Voltage/Current: 15V/4A

Working Current: 300mA(14V)

Working Temperatures: -20 to 50 degree centigrade

Storage Temperatures: -30 to 65 degree centigrade

Dimensions: 233*150*54mm

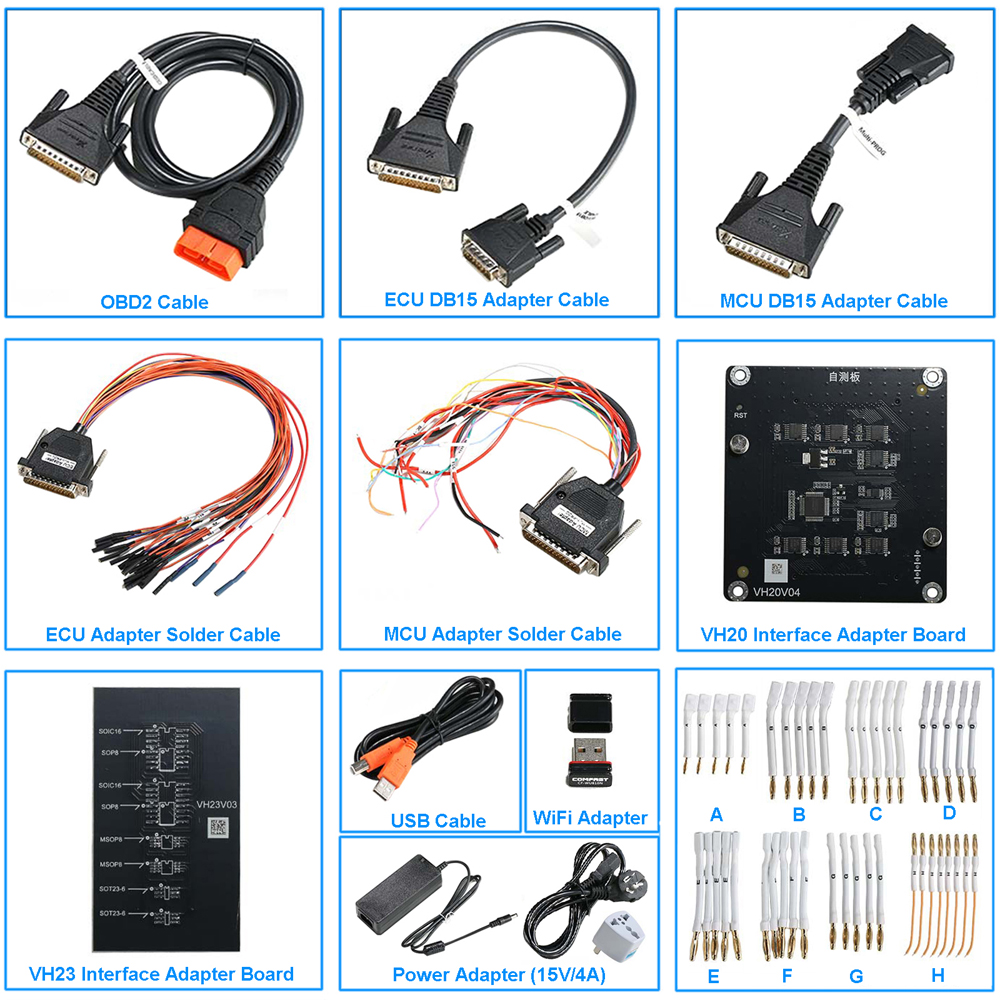

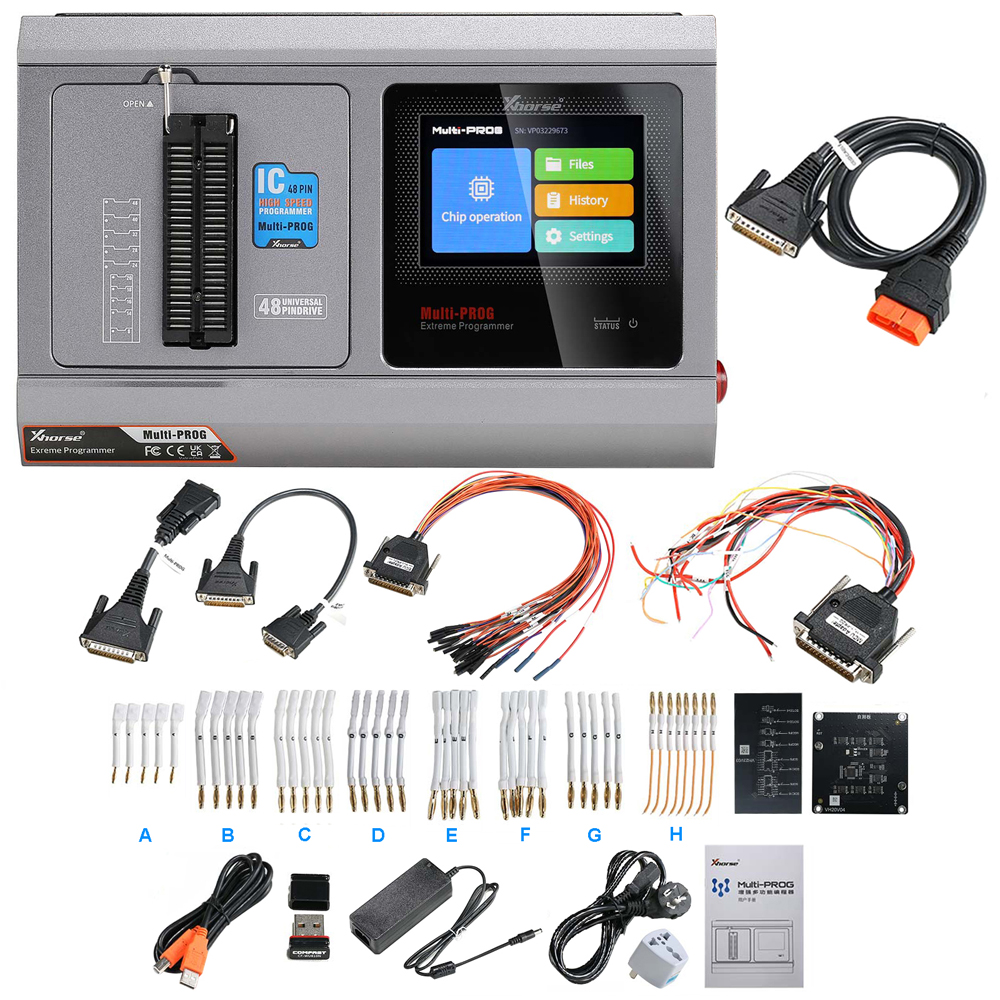

Packing List:



XHorse Multi Prog Programmer Pro-Level ECU TCU Programmer + VH13 Adapter
OBD2 Cable



Supported ECU and TCU List (Keep Updating):



ECU (Bench Mode):



VAG

1. SIMOS PCR2.1, EDC17c64

2. BOSCH: MG1CA811

3. BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25

4. BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05

5. BOSCH: MG1CS002-SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011_SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004-SPC5777, MG1 CS111-SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP

6. CONTINENTAL: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X



BMW

1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90

2. BOSCH: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299

3. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56

4. BOSCH: MEI 7.2.1

5. BOSCH: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K



6. OSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1



Mercedes Benz

1. CONTINENTAL: SIM271 DE, SIM271 KE

2. BOSCH: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8

3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60

4. BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1 797

5. BOSCH: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP



GM

1. DELPHI: DCM3.7AP

2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98



Nissan

1. DENSO: 23740-3Nxxx_Gen1 SH72531

2. BOSCH:EDC17C84



Hyundai/Kia

1. BOSCH: ME17.9.11, MEI 7.9.11.1



2. BOSCH:EDC17C53

3. BOSCH: MEG17.9.1 2_ECU



Ford

1. BOSCH: EDC17C70, EDC17CP65

2. BOSCH: ME17.0.3, ME17.8.5



Volvo

BOSCH: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22



Other

1. AM_ME1 7.8.5,DOO_ME17.8.5

2. BOSCH: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52

3. BOSCH: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81

4. BOSCH: MEVD1 7.8.4

5. BOSCH: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767

6. BOSCH: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088

7. CONTINENTAL: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx



ECU (Boot Mode):



VW

1. SIMOS PCR2.1, EDC17c64

2. BOSCH: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25

3. BOSCH: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05

4. BOSCH: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X



BMW

1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90

2. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56

3. BOSCH: ME1 7.2.1

4. BOSCH: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K

5. BOSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1



Mercedes Benz

1. CONTINENTAL: SIM271 DE,SIM271 KE

2. BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8

3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60

4. DELPHI: CRD2.x_MPC556x



Nissan

BOSCH: EDC17C84



GM

1. DELPHI: MT80.MT80.1

2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98



Hyundai/Kia

1. DELPHI: MT86

2. DELCO: DCM6.2AP



Other

1. CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310

2. SDI21.1 ,SDI21.2,SDI21.3

3. BOSCH: ME1 7.3.0

4. MARELLI: 8DF, MM10JA



TCU (Bench Mode):



VW

DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250



Exx/Fxx BMW

GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2



Mercedes Benz

VGS-FDCT, VGS2-FCVT, VGS2-FDCT



Ford

1. ETRAG MPS6GETRAG

2. DPS6, DC4



TCU (Boot Mode)



Ford

DPS6, DC4



Other

ZF 9HP
