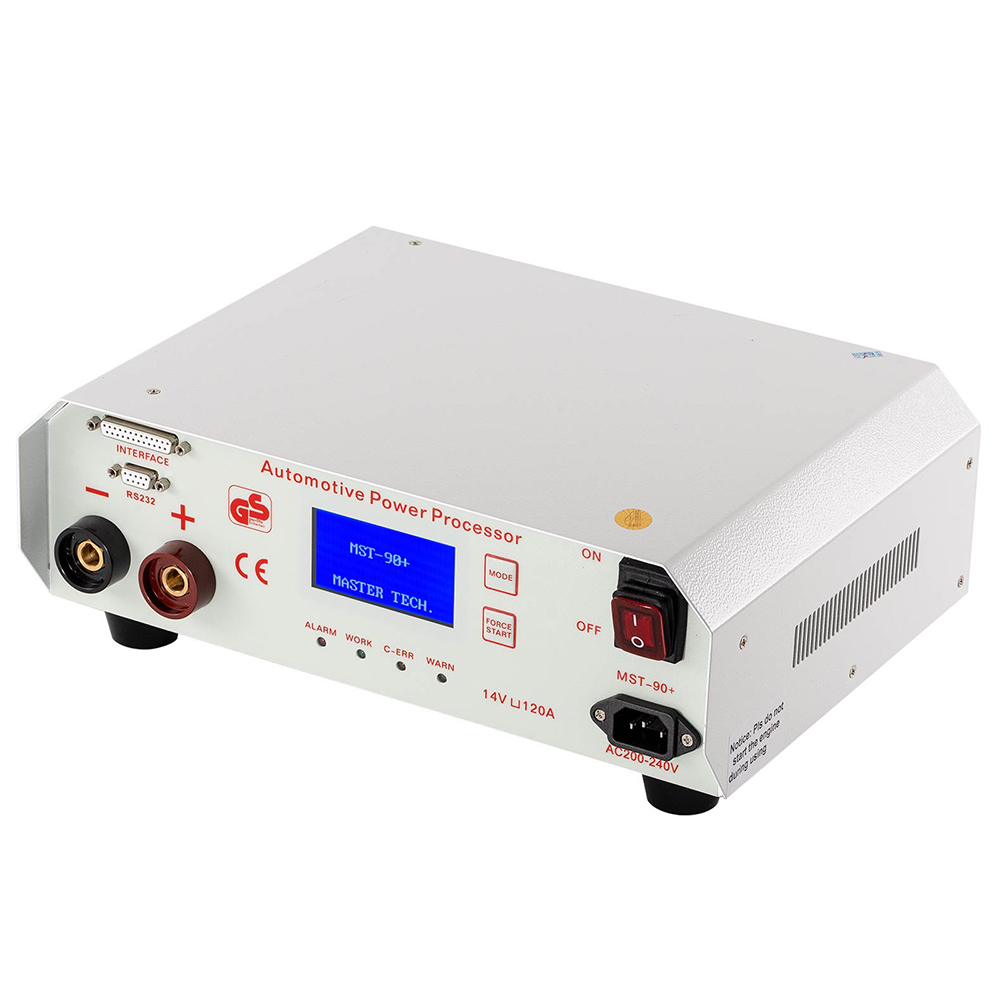

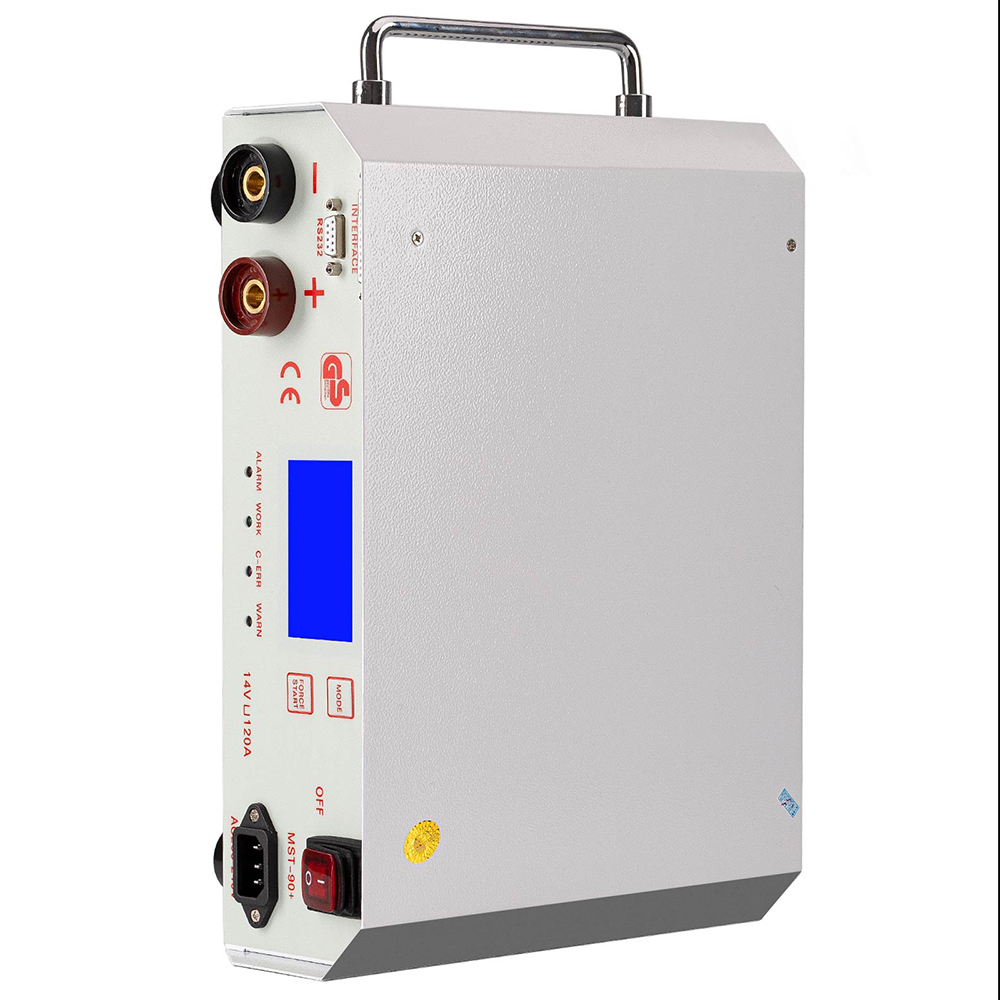

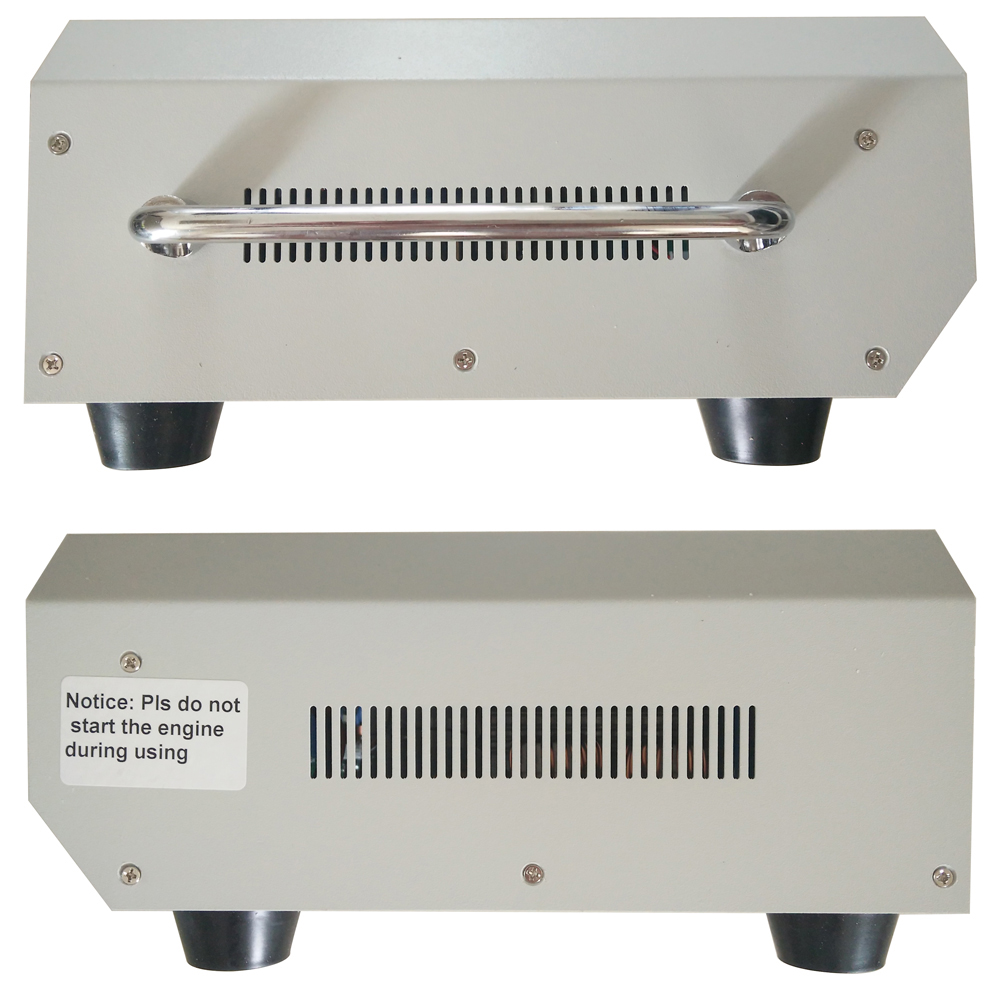

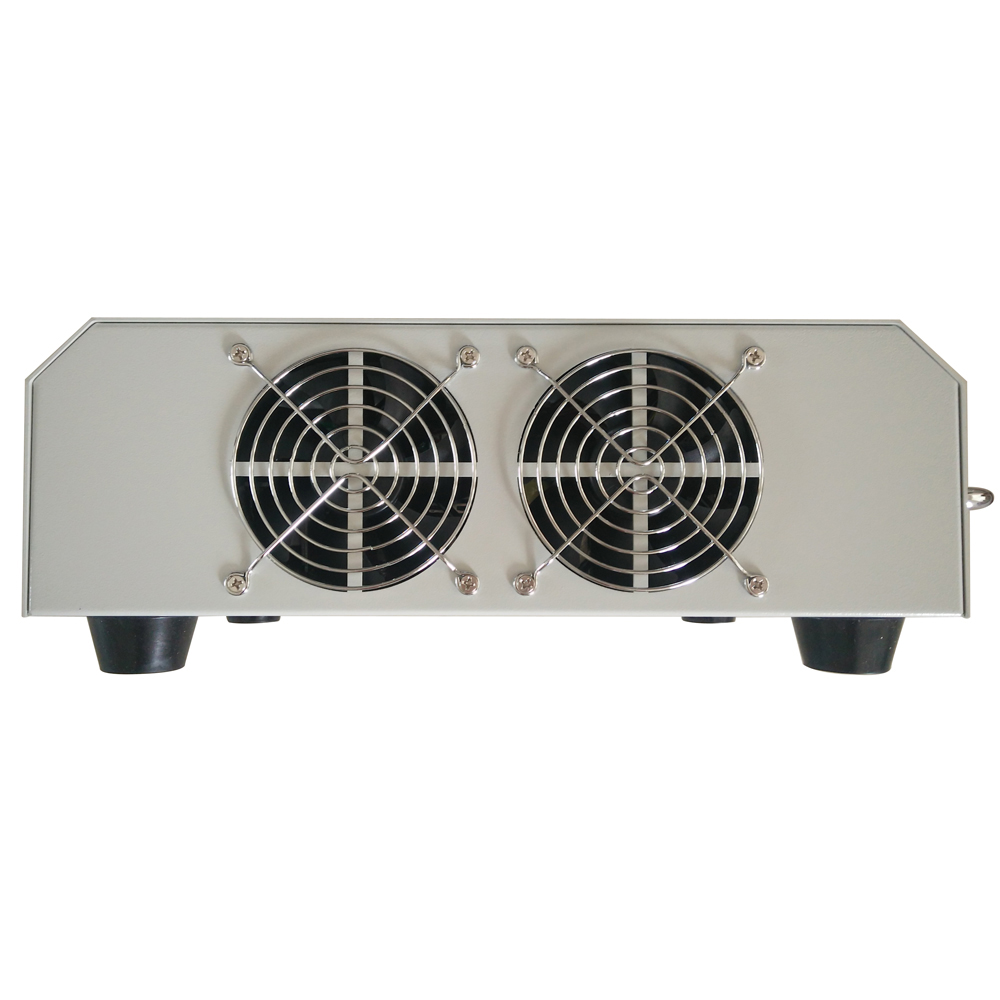

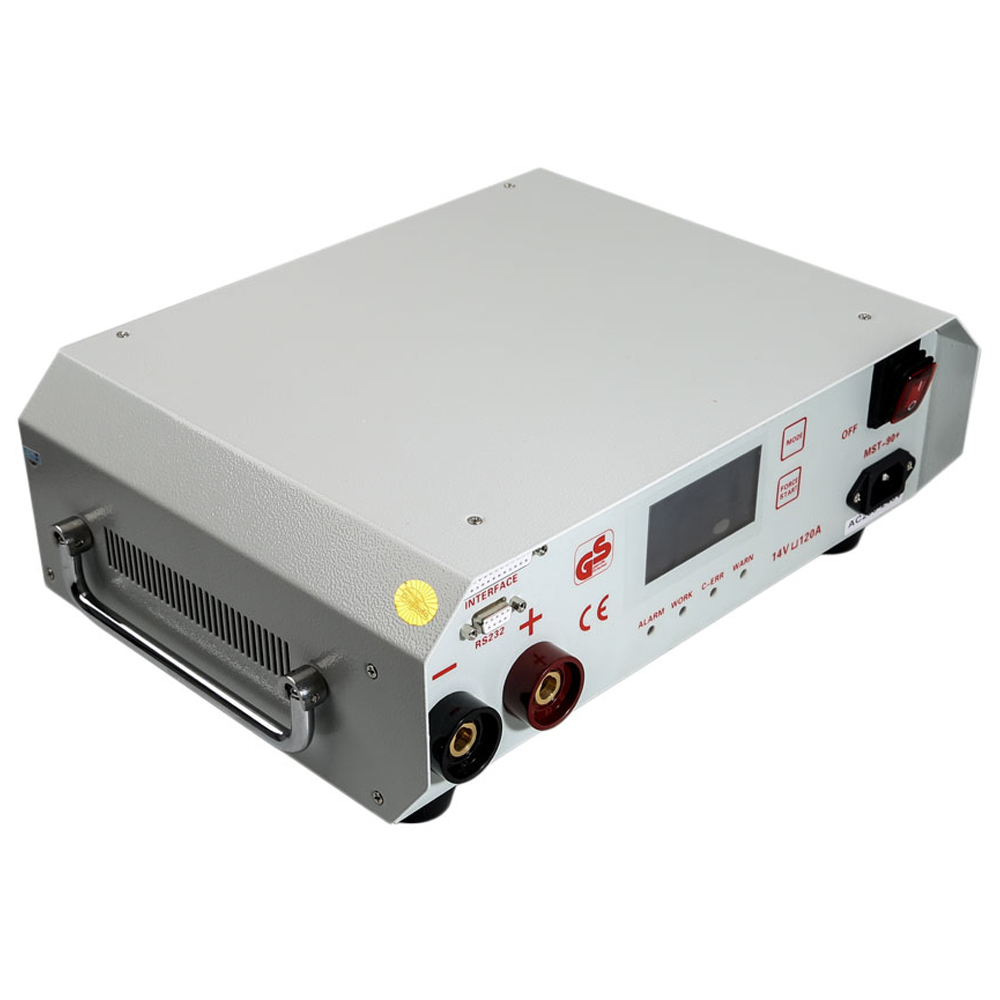

Name: BMW Benz Audi Porsche Car Programming Power Regulator MST-90+

Description:

The car ECU is so easily to be damaged once the battery voltage is unstable while you are doing the ECU programming of your vehicle. Professional intelligent programming charger ZLP100A can be used to protect your ECU safety.

MST90+ Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications (Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.)

Benz BMW Porsche Audi Car Programming Power Regulator can prevent equipment damage from voltage fluctuations and transient surge.

Functions:

1. Smart car program
2. High temperature alarm.
3. Charging dedicated power
4. Short circuit and reverse polarity protection
5. Intelligent charger for motor vehicles starter battery
6. Extensive protection functions and self-protection functions
7. Intelligent charger for motor vehicles starter battery
8. Input Voltage: 220V only, Output Voltage: 14V/120A. (110V input voltage can be customized)

Protective Function:

1. Reverse polarity protection
2. Overheating protection
3. Safety cut-off
4. Safety circuit

Applications:

1. Standard charging mode: provide power supply during diagnosis
2. Auto programmed smart charging mode, suitable for Benz, BMW, Porsche, Audi...
3. Adopt active inverter technology to realize fast charge.

Applicable Cars:

Mercedes-Benz, BMW, Porsche, Audi, VW, Volvo, General Motors...

Input Specifications:

1. Efficiency: 85%
2. Power Factor: 0.95
3. Frequency Range: 40-60Hz
4. Rated Input Voltage: 110V / 220V (+/-20%)

Output Specifications:

1. DC Voltage: 14.7V
2. Rated Current: 0-120A
3. Rated Maximum Power: 1700W
4. Ripple and Noise: 100mVp-p

Protection Specifications:

1. Over-voltage: 15V
2. Working Temperature: -40 to 85 degree centigrade
3. Safety: UL60950, TUV EN60950-1
4. Overload: 90-110% of rated output power
5. Withstand Voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
6. Insulation Resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH
7. EMC: complies with EN55022, EN61000

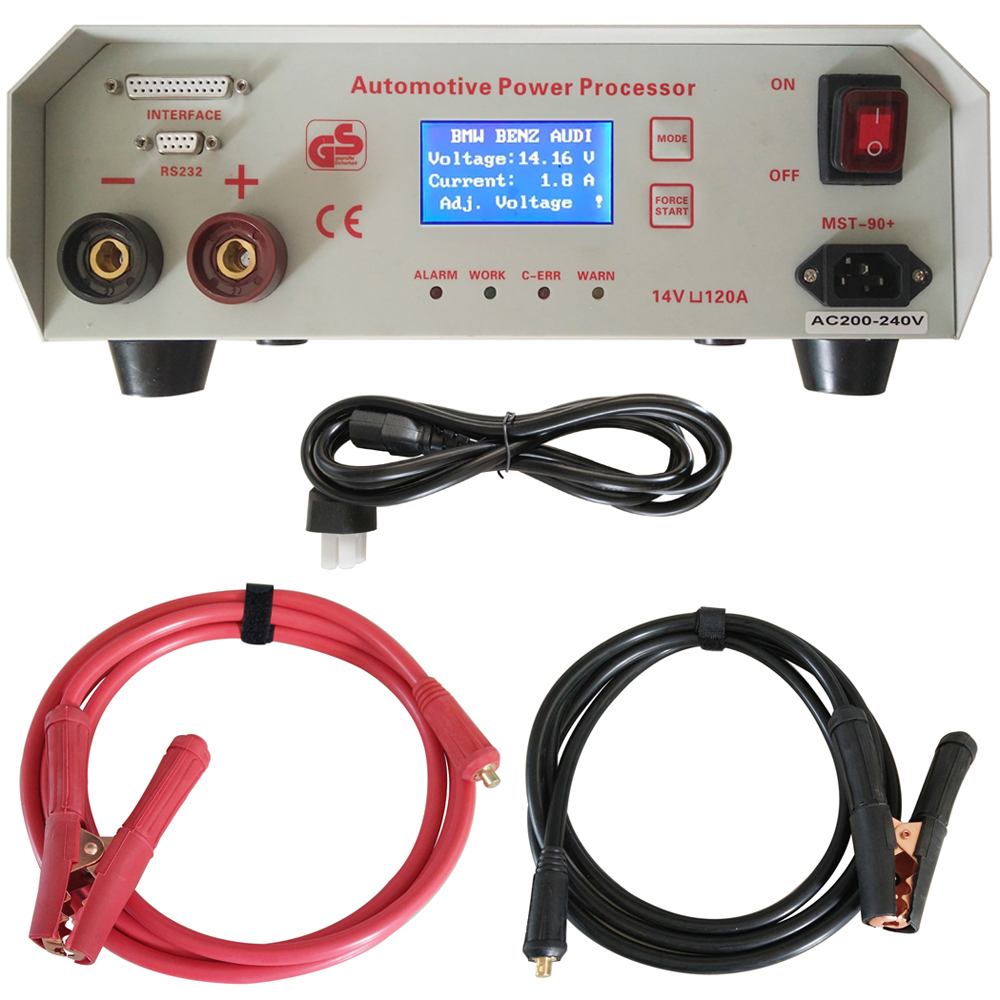

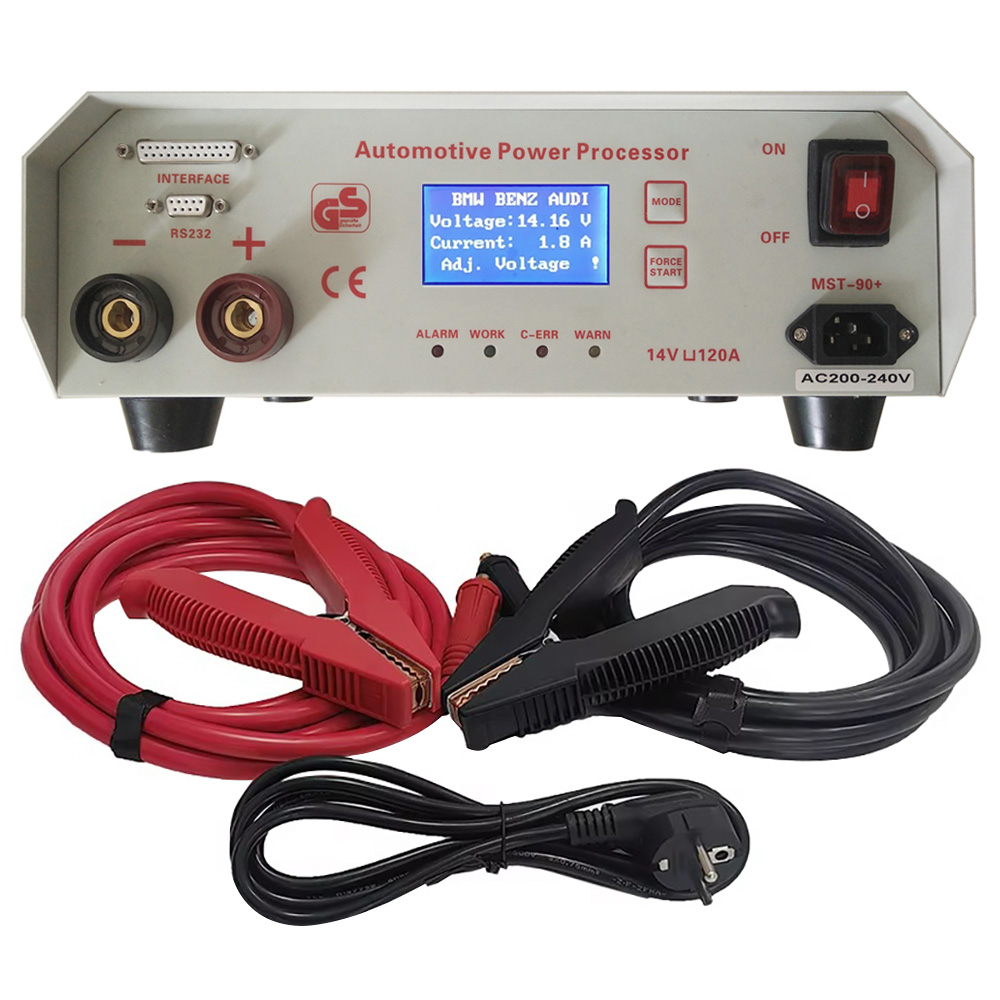

Packing List:

Porsche BMW Benz Audi Automotive Power Processor MST 90+
Battery Clip(2 pcs)
Power Supply Cable
User Manual
Packing Box
