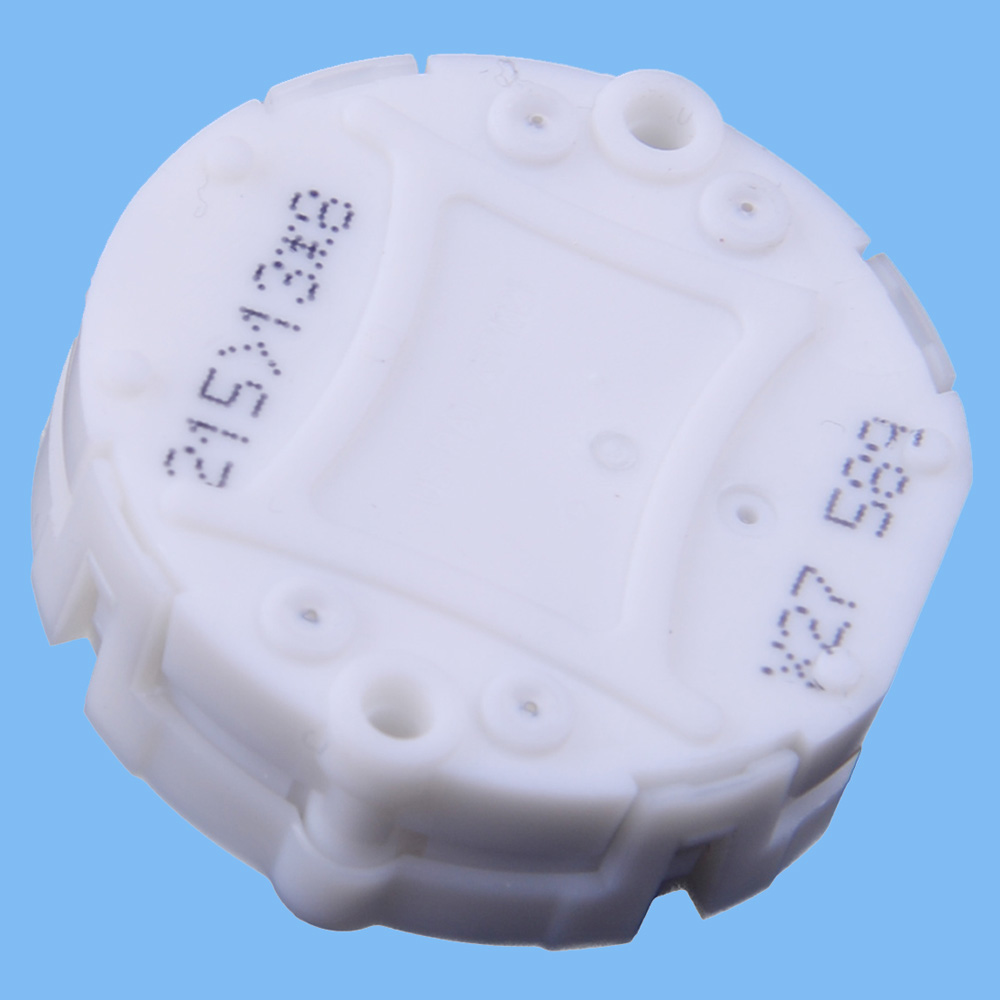

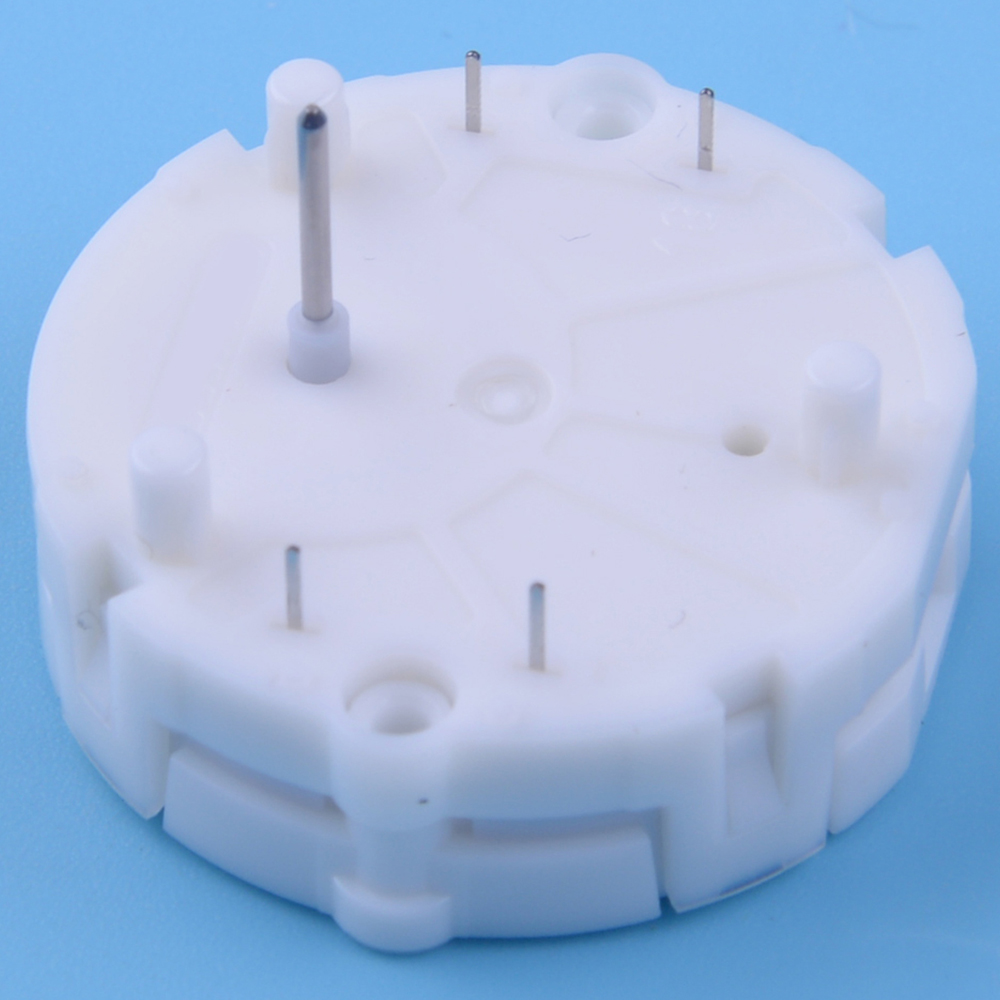

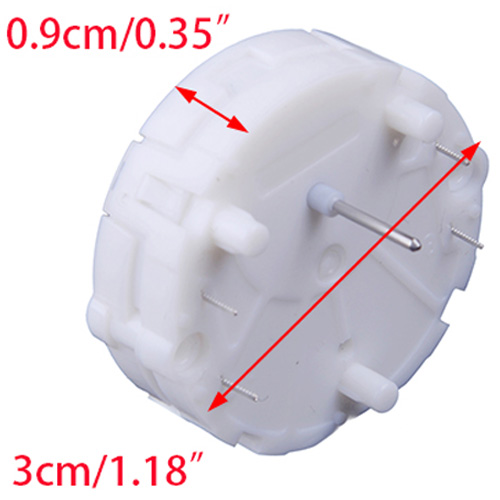

Name: Stepper Motor X25.589  / Stepper Motor X27.589 (10 pcs)

Description:

The miniature Stepper Motor X25.xxx was primarily developed as an indicator drive for dashboard instrumentation and other indicator equipment. The x25.xxx can operate directly from a digital driving signal to move and position a pointer to visualize any parameter required.

Its inherent properties of torque, low current consumption, small size, light weight, etc... , extend its use also to other applications.

The motor principle is based on a three poles synchronous motor designed and patented for a bidirectional watch stepper motor. Its simple structure with few components and its efficiency allowed a highly reliable and cost effective design.

The miniature stepper motor consists of a motor and gear train with a reduction ratio of 1/180.
