Name: VAS 6154 ODIS with WiFi ODIS Firmware 1.9.4.2

Description:

WiFi VAS 6154 is the latest VAG full system diagnostic and programming interface for VW/Audi/Skoda.

It can read and clear code, dynamic data flow, programming, coding and personalized settings including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc.

It supports WiFi and USB connection, supports multi-language, also it can work with VAS 6150 and VAS 6160A.

Features:

1. Latest diagnostic and programming interface for the applications VAG ODIS-S (Service) and ODIS-E (Engineering), can replace the VAS 5054A and VAS 5055.

2. Available for Off-board Diagnostic Information Engineering from V6.2 onward and Off-board Diagnostic Information Service from V3.0.3 onward.

3. Supports all VW Audi Skoda vehicles from 2000 onward including new & future models under production.

4. Supports WiFi & USB connection: With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface.

Both of WiFi & USB connection are available for following countries:

Australia, Bosnia and Herzegovina,  Brazil, Canada, Switzerland, Cyprus, Czech, Danmark, Estonia, Finland, Greece, Hongkong China, Israel, India, Ireland, Italy, Lativia, Mexico, Netherland, New Zealand, Poland, Russia, Argentina, Korea, Singapore, Slovenia, Turkish, Ukraine, UAE, United States, United Kingdom

If country is not in above list, you just can use USB connection.

Supported Languages:

English, French, German, Spanish, Portuguese, Turkish, Russian, Greek, Italian, Croatian, Romanian, Dutch, Polish, Danish, Swedish, Finnish, Slovenian, Czech, Japanese, Korean, Chinese

Supported Cars: VW, VW Commercial Vehicles, Audi, Skoda, Bentley, Lamborghini

VAS6154 Infrastructure Mode:

In infrastructure mode, several network-capable devices can be connected together (network subscribers).
For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

VAS6154 Point-to-Point Connection:

With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154.

VAS 6154 is configured using the web-based user interface.

ODIS 4.13 Software New Functions:

1. Estimated remaining times are shown for ECU flash operations.
2. Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view, used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
3. The measured value display has been improved.
4. Documents in GFF are displayed in separate windows.
5. One message box will be shown at the beginning of the test drive mode.
6. GFF hotfixes can be integrated during diagnostic sessions.
7. Danger messages have been revised.
8. Stopping of diagnostic sessions may be interrupted.
9. Automatic deletion of autosave diagnostic protocols after successful transmission.
10. Selection of PassThru diagnostic hardware has been improved.
11. ODIS Service Software update has been stabilized.

Specifications:

Dimensions: 136*48*25mm
Weight: 150g
Power Supply: 8-18V via vehicle
Output: 5W
Operation Temperature: -20 to 40 degree centigrade
Storage Temperature: -20 to 85 degree centigrade
PC Interface(USB): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
PC Interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)

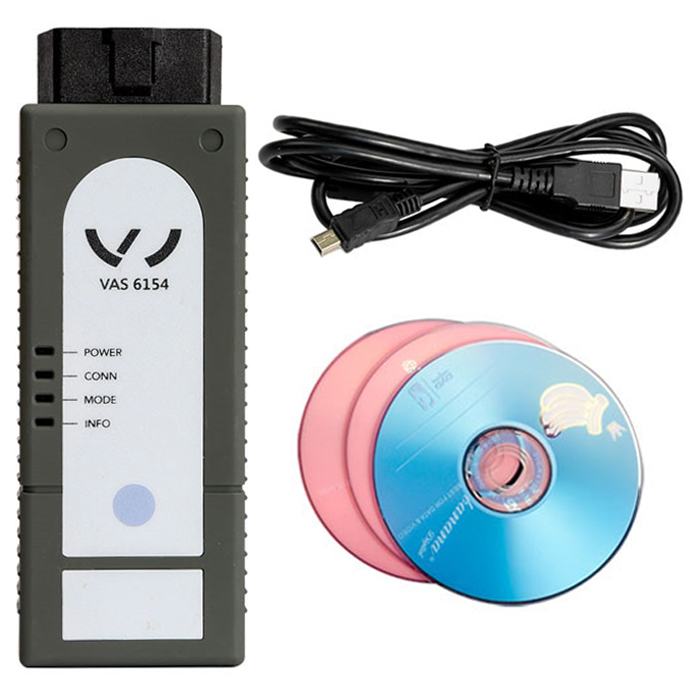

Packing List:

VAS 6154
USB cable
ODIS software CD
Packing Box
