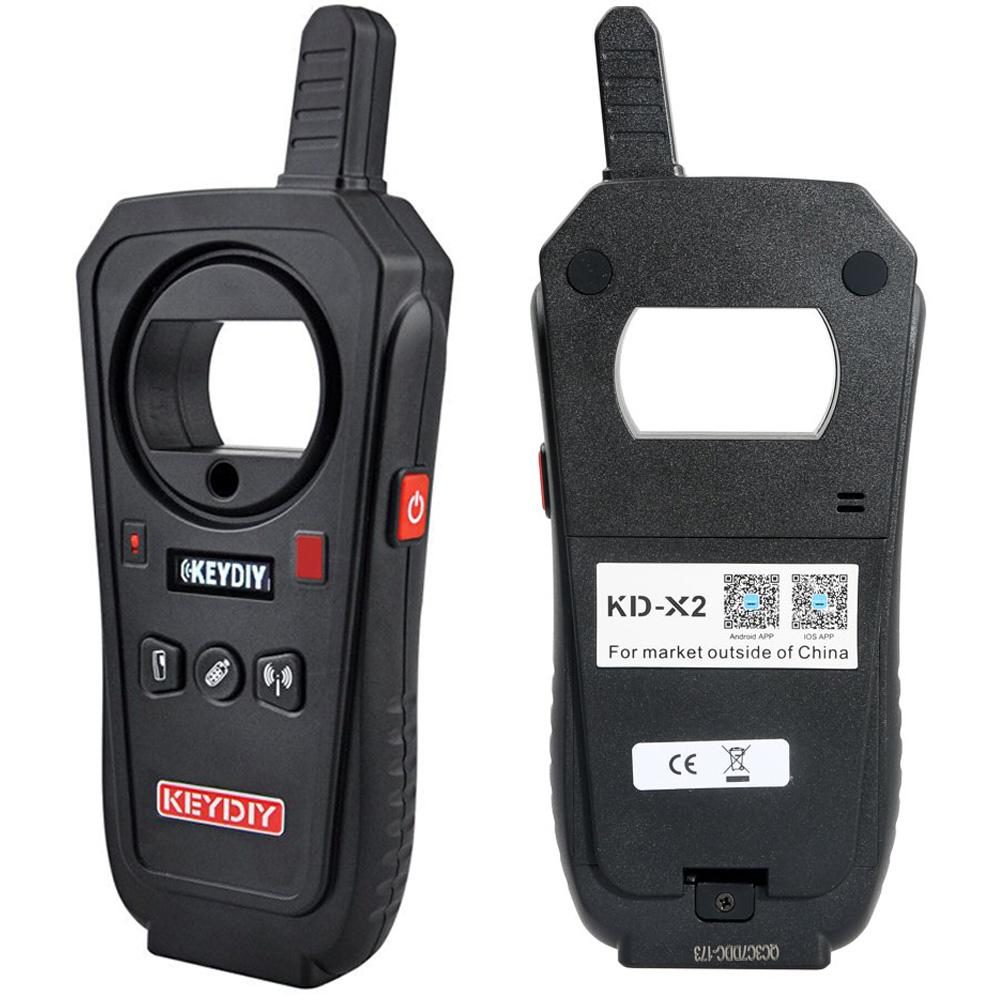

Name: KEYDIY KD-X2 Remote Maker Unlocker and Generator
Description:
KEYDIY KD-X2 Remote Maker with 96bit 48 Transponder Copy Function works with PC software by USB-B connection, and work with Android phone or tablet by OTG connection.
Features:

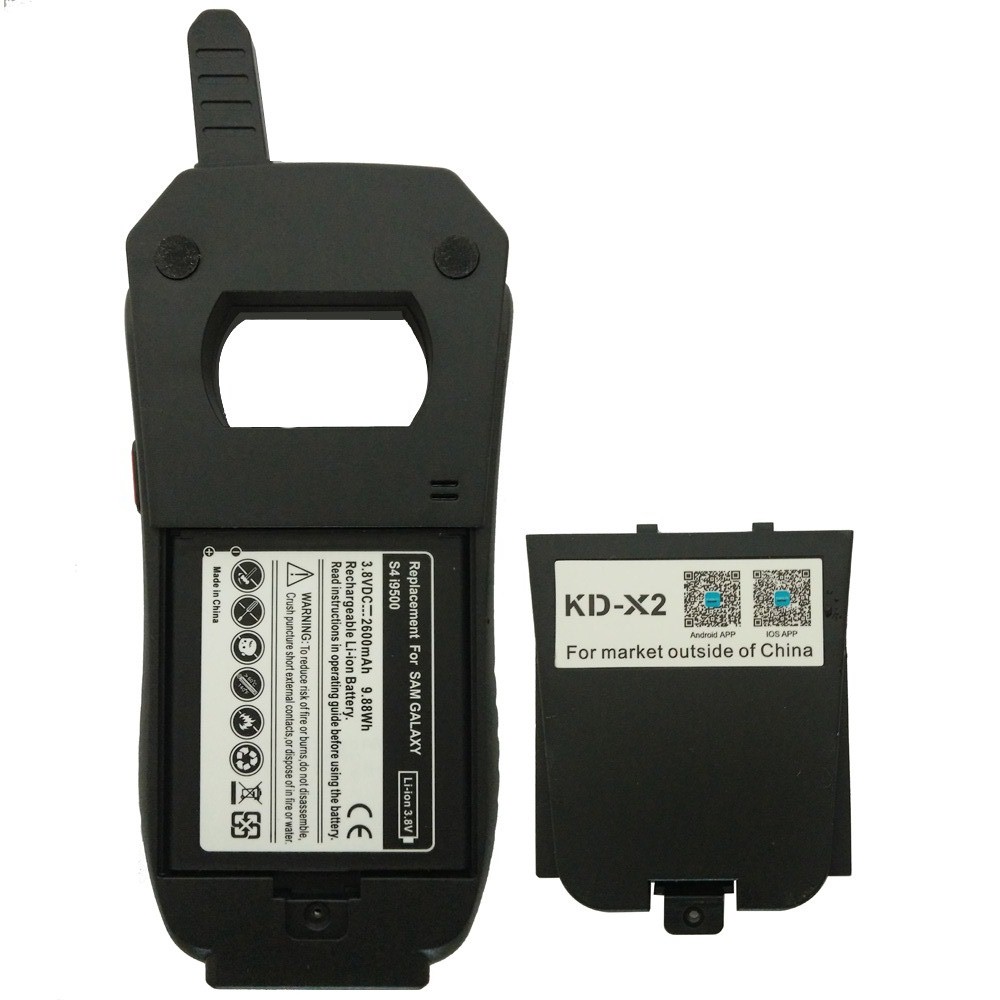

1. Power supply: 2600mAh lithium battery; Charge Way: USB 5V/1A
2. 0.91 inch OLED display screen.
3. Bluetooth BLE4.0 inside, works with mobile KD app via Bluetooth connection.
4. Can work with PC software by USB-B connection, and work with Android phone or tablet by OTG connection.
5. With PS-2 interface for connecting remotes to generate.
6. 3 Functional Shortcut Buttons: Chip Identification, Remote Identification, Frequency Detection.
Function List:
1) Wired Generation.
2) Wireless Generation.
3) Mobile Phone Simulation.
4) Garage Door Generation.
5) Proximity Key Unlock.
6) Frequency Detection.
7) Infrared Detection.
8) Access Card Copy.
9) Fixed Code Remote Copy
10) Online HCS Remote Copy.

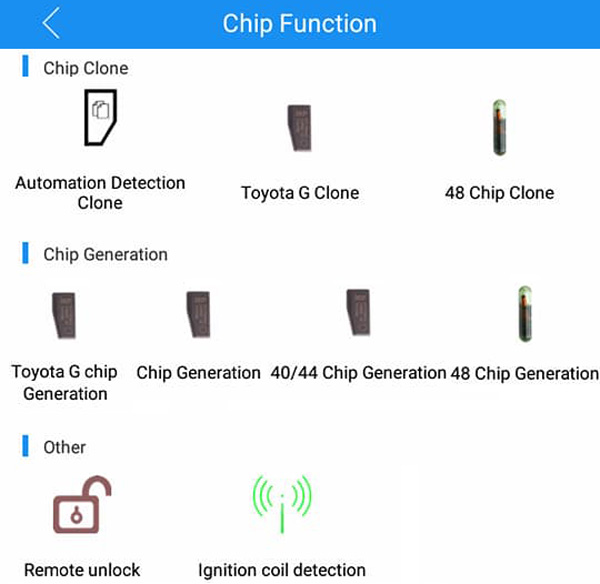

11) Online Chip Copy (96 bit 48 chip, 46 chip, 4D chip, Toyota chip etc.)
12) Chip Generation.
13) Chip Editing.
14) Chip Simulation.
15) Ignition Coil Detection.
16) Remote Data Backup.
17) Free Activation of 96 bits 48 transponder copy (no token required)
18) Additional Functions will be available in future.
New Version 5.0.0 with More New Options:
1. Upgrade remote data service;
2. Improve the stability of remote upgraded;
3. Improve downloading speed and stability of the third party remote;
4. Generate the remote can get the KD-coins;
5. Use KD NB remotes to copy chips can get KD-coins;
6. Support to generate garage door remote.
Supported Cars:
Audi, Baojun, Brilliance, Benjin Auto, Benz, Besturn, BMW, BYD, Cadillac, Chang an, Changfeng Motors, Changhe, Chevrolet, Chrysler, Citroen, Daihatsu, Dongfeng, FAW, Fiat, Ford, Garage, Geely, GMC, Great Wall Automobile, HaiMa, Hawtai Motor, Honda, Hyundai, Isuzu Iveco, Jaguar, Jianghua, Kia, Land Rover, Lincoln, Mahindra, Mazda, MG, Mitsubishi, Nissan, Opel, Peugeot Citroen DS, Porsche, Proton, Renault, Saipa, Samand, Seat, Skoda, Ssangyong, Subaru, TATA, Toyota, Lexus, Volvo, VW, Zhongxing
Functions:

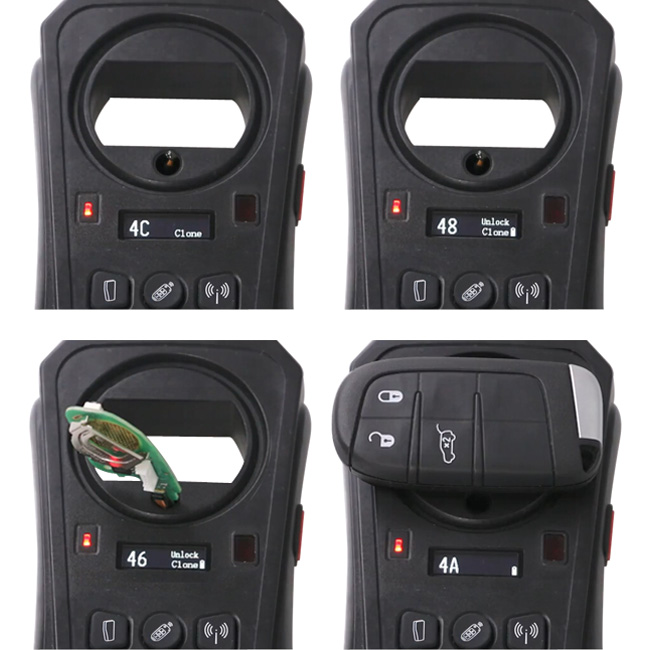

1. Transponder Identification: KD X2 can read and identify the following transponder types:
• Fixed code ID 11, 12, 13, 33 and 4C
• Philips Crypto 40, 41, 42, 44, 45, 46, 47, 49 and 4A
• Megamos 48, 48 CAN BUS
• Texas Crypto 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C and 8E
• Most smart keys
2. Transponder Cloning: KD X2 offers an extensive cloning range with the built-in snoop for ID46 and ID48 cloning.
Currently, the KD-X2 can clone keys for:
• 4D/ 4C / 46 / 11 / 12 / 13 / 33 transponder clone
• ID48 (96 Bit) Only
• Fixed code (T5) – ID 11, 12, 13 & 33 using a carbon T5 chip
• Texas TX 4C
• Texas Crypto TX/CR 4D
• Philips Crypto PH/CR 46
• Toyota 80 Bit
• Megamos Crypto
3. Transponder Production: KD X2 also has a good range of transponder production (image generator functions) included.
The transponder production coverage includes:
• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G 4C transponder
• ID48 type: Seat TP22 / VAG TP23 / Skoda TP24 / Audi TP25 / Seat TA22 / VAG TA23 / Skoda
• TA24 / Audi TA25 / Fiat ID48 / Jetta ID48
• ID46 type: Great Wall (STEC) / Zotye (STEC) / Ha/ma (STEC) / Maple (STEC) / Geely (SETC) /
• Cherry (STEC) / Zhonghua230 / Zhonghua530 / VW46 (2007-2008) / X-Trail (2008-2009)
• Renault (Maste.II) / Renault (Trafic II) / Opel (Vivaro) / Opel (Movano) / Renault (Espace IV)
• Renault (Laguna II) / Renault (Velsatis) / Renault (Twingo) / Citroen / Fiat / Lancia / Peugeot (206/307)
Transponder Production coverage continued…
• Mitsubishi / Cruze / Siemens / Changhe / Suzuki / GM / Beidouxing
• T5 type: 11 / 12 / 13 / 33
• ID47 type: Honda
• Id63 ford 80 bit
4. Signal Test: KD X2 can check a remote frequency as well as identify type (i.e. ASK or FSK), including:
• Frequency Test (remote, ASK/FSK)
• ECU Signal Test (check if the coil works or not)
5. Simulator: KD X2 allows you to simulate the key before you clone it, to ensure working correctly prior to cloning a chip on:
• ID46
• ID4D
6. Transponder Edit: KD X2 allows you to read, write and edit chip data on 4D / 46 / 48 / 47 / 4D DST/8A etc
ID48 Activation is FREE ready to use on your new KD-X2:
To use the ‘Copy’ function, this is FREE* or Packs can be Ordered**
FREE* (150 Key DIY Coins are needed for use to clone 1x ID48 chip)
To use the ‘Copy’ ID48 (96bit) function for FREE, you need to use KD Coins, which are obtained every time you use the machine to generate.
• The more you use the machine – the more FREE KD Coins you received to copy ID48 (96bit)
• Every first time you generate a “ B “ Remote you receive Free 20 KD Coins
• Every first time you generate a “ NB “ Remote you receive Free 10 KD Coins
Example 1, for every 7 x “NB” plus 1 * “B” first time generation you receive 150 FREE Coins equal to 1 x FREE to copy ID48 (96bit)
Example 2, for every 8 x “NB” first time generation you receive 160 FREE Coins equal to 1 x FREE to copy ID48 (96bit) with 10 spare KD Coins
Example 3, for every 15 x “B” first time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
Packs can be Ordered** (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
If you need to use this function in cases where you cannot wait to generate remotes to receive your FREE to use Copy ID48 (96bit) function, you can purchase KD Coins.
• Purchase x1 use Copy ID48 (96bit) for £9.99 each + VAT (equal to 150 Key DIY Coins)

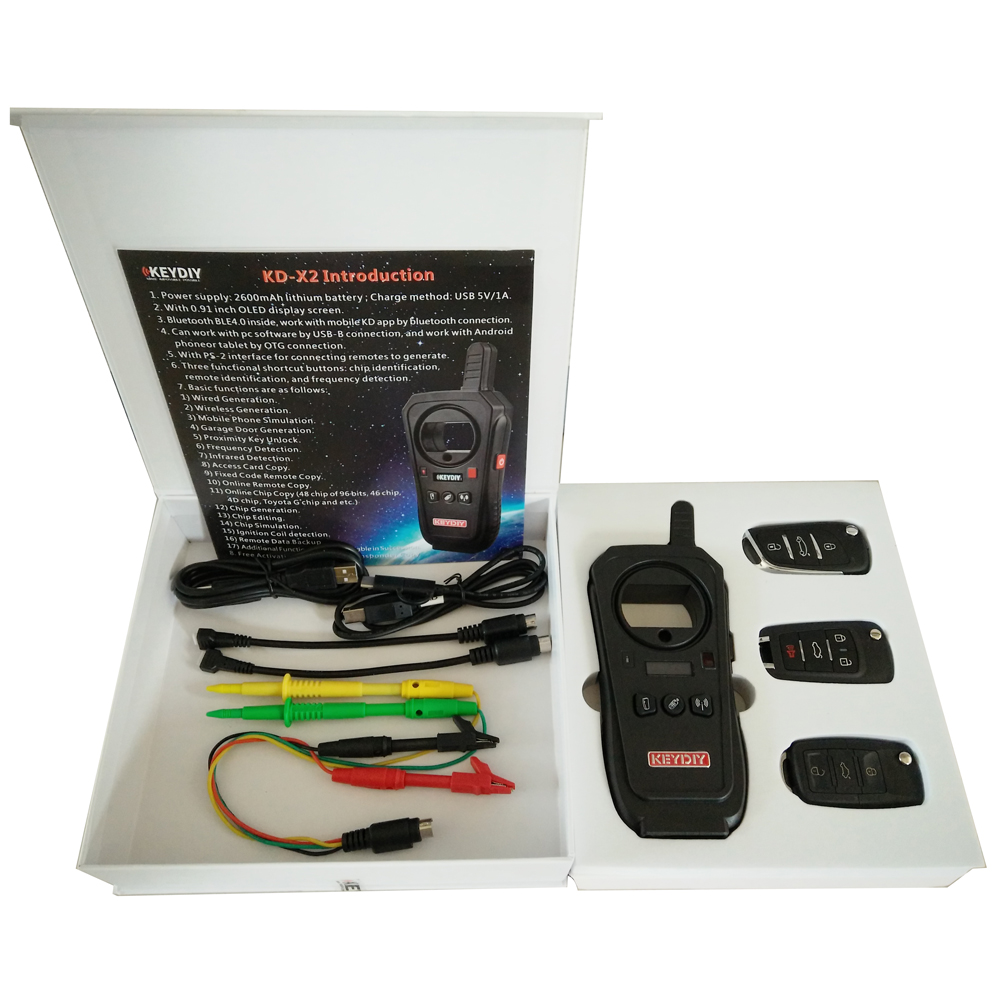

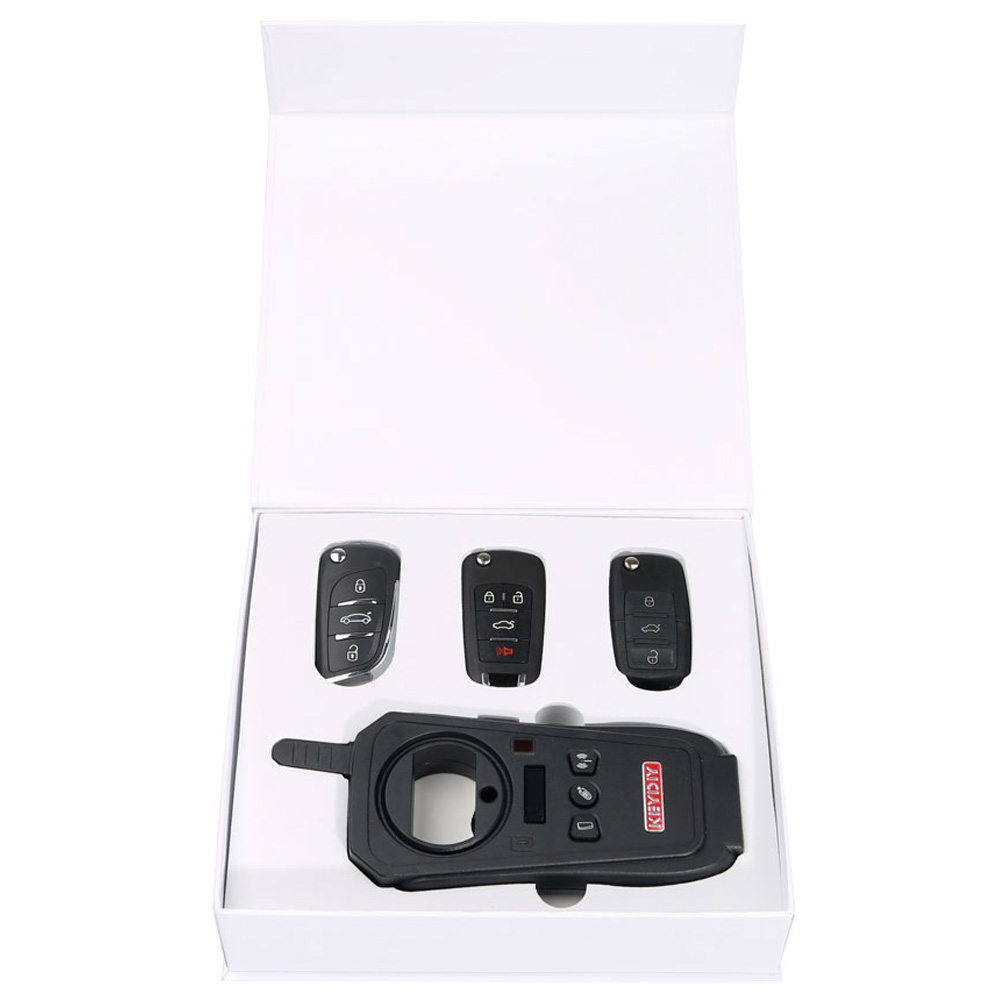

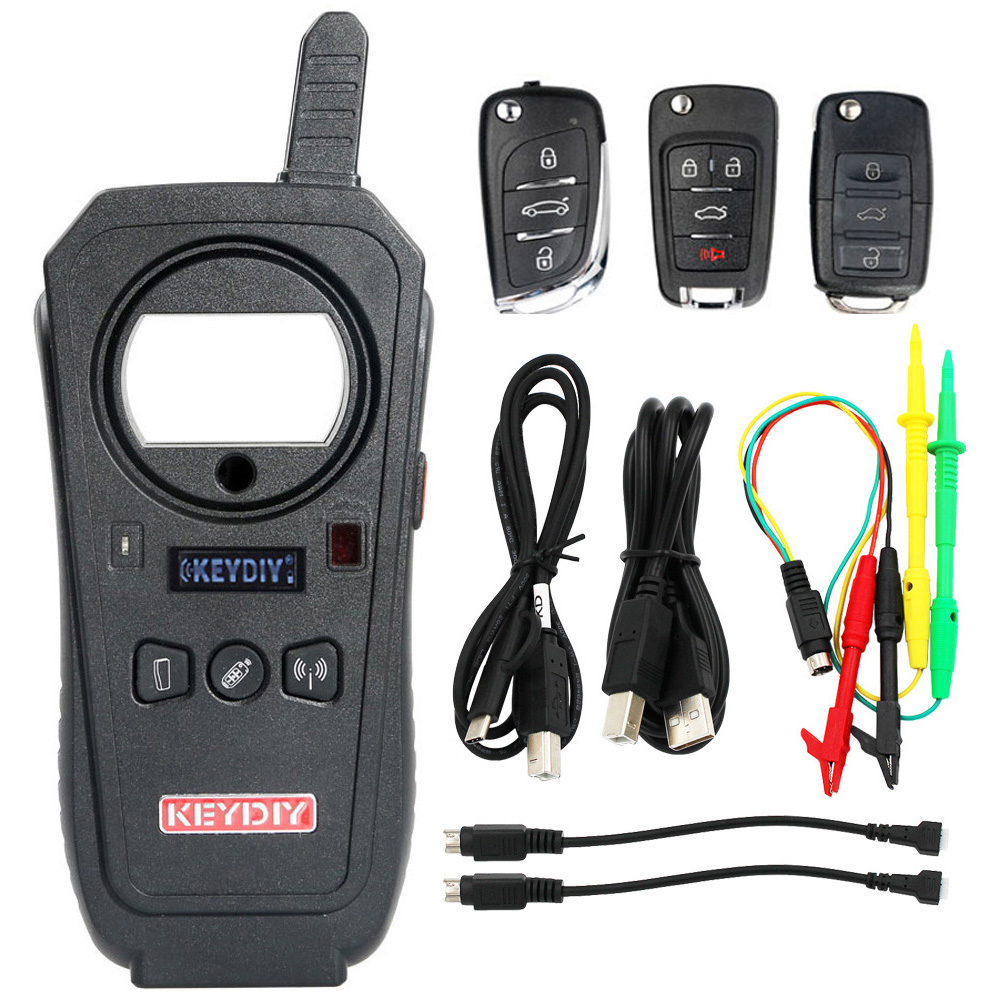

Packing List:

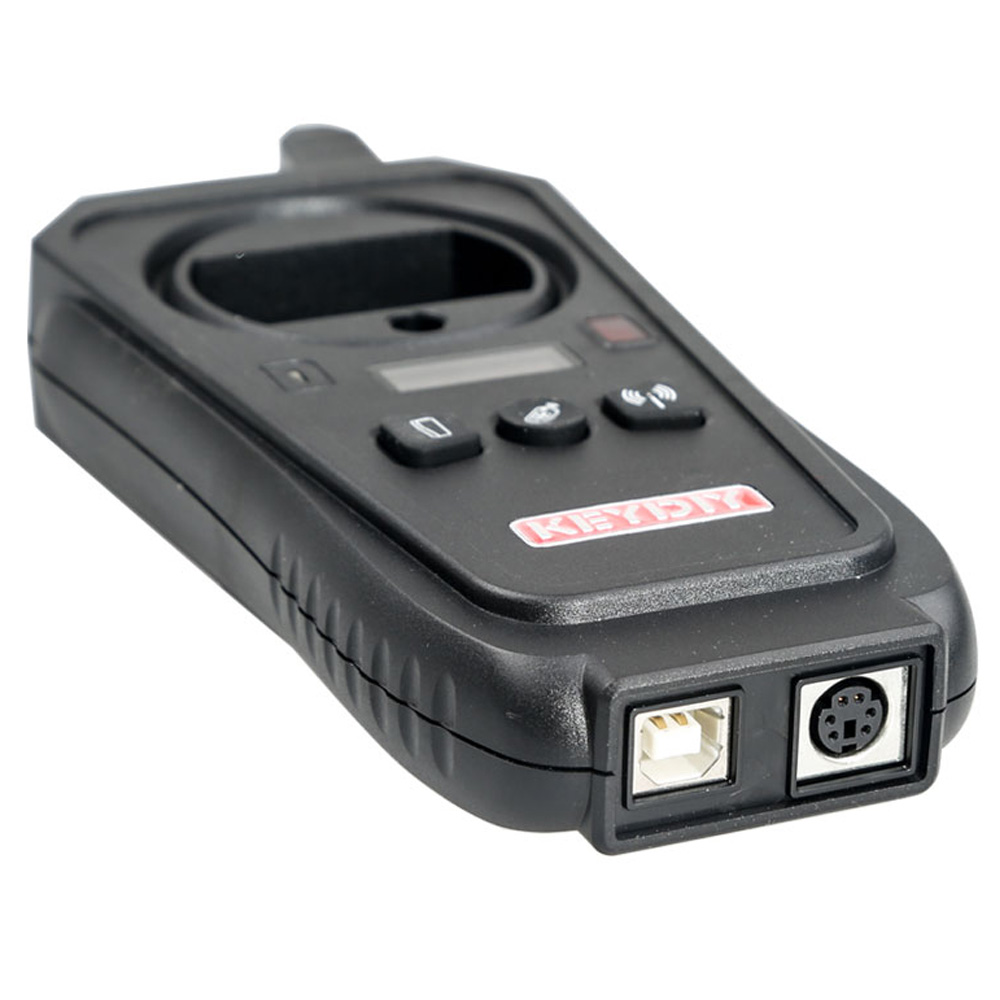

KEYDIY KD-X2 Remote Maker
USB Cable (2 pcs)

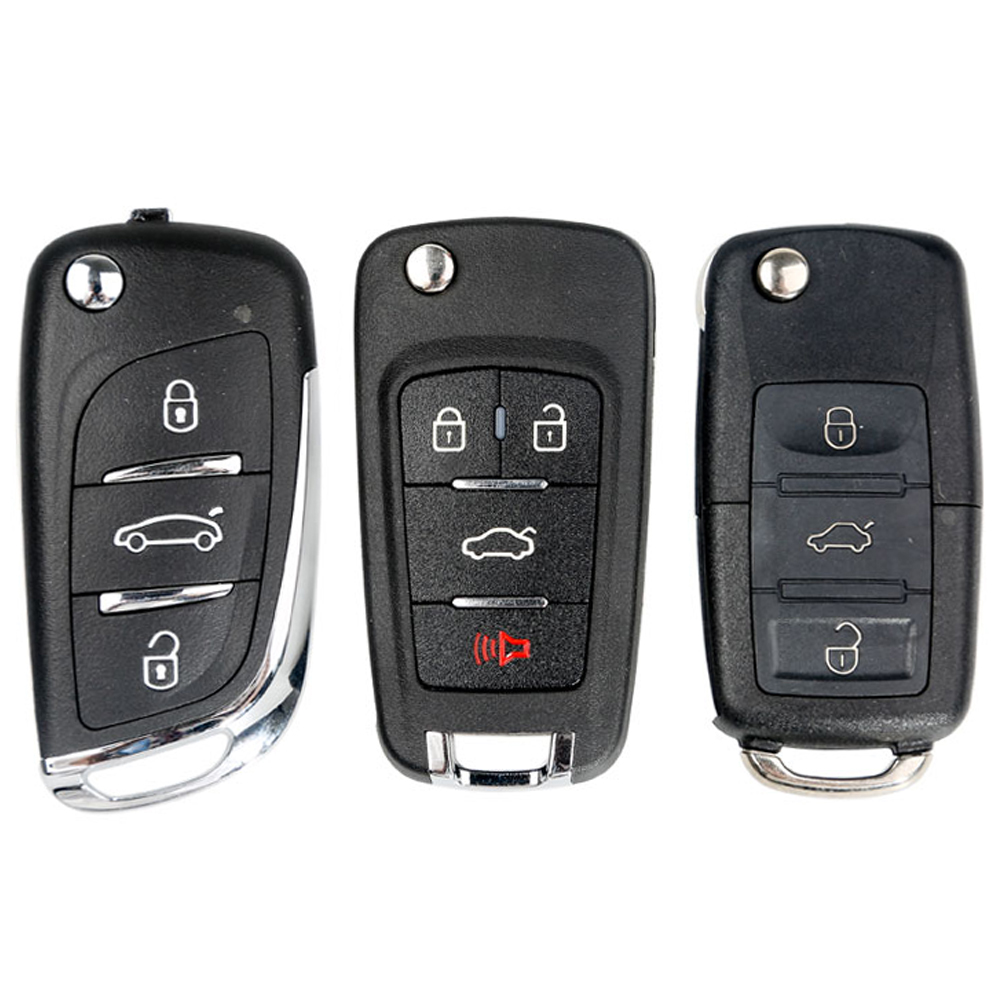

Common Remotes(3 pcs)

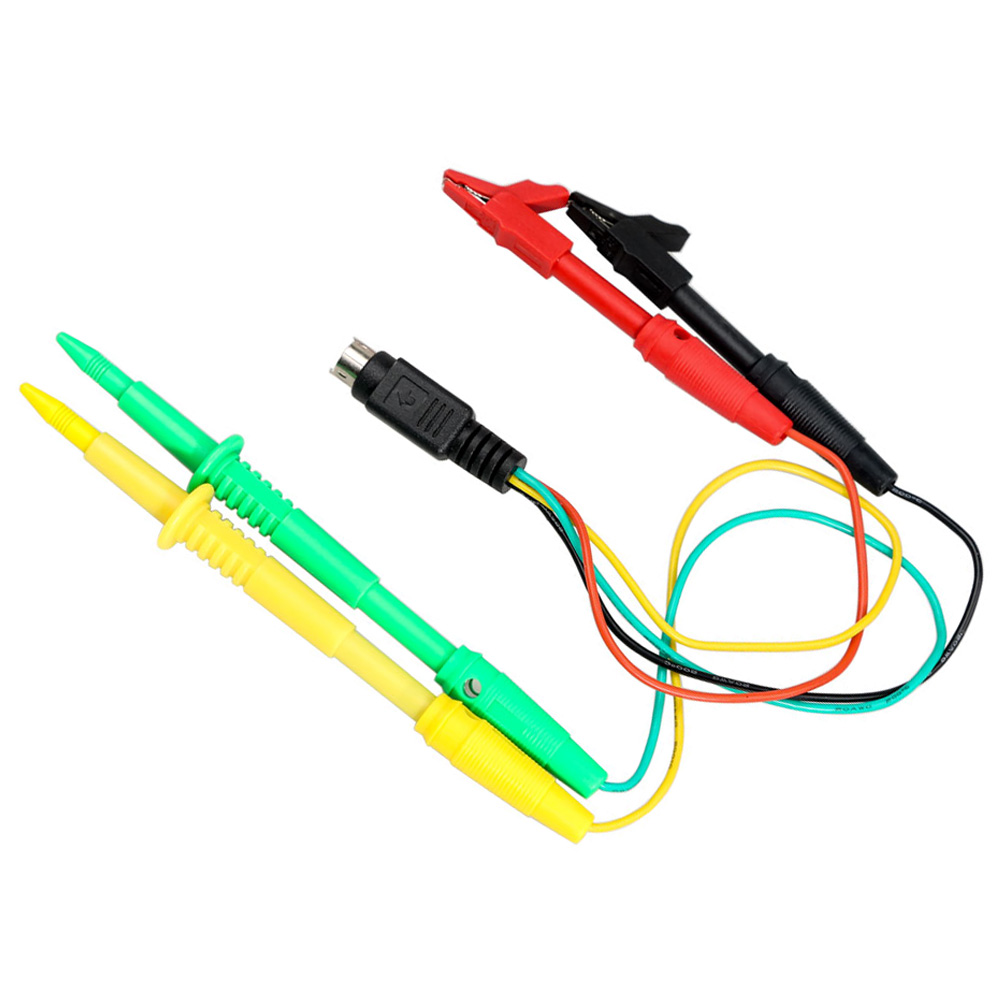

Remote Data Cable
Spare Remote Data Cable
Packing Box
|
