Description:

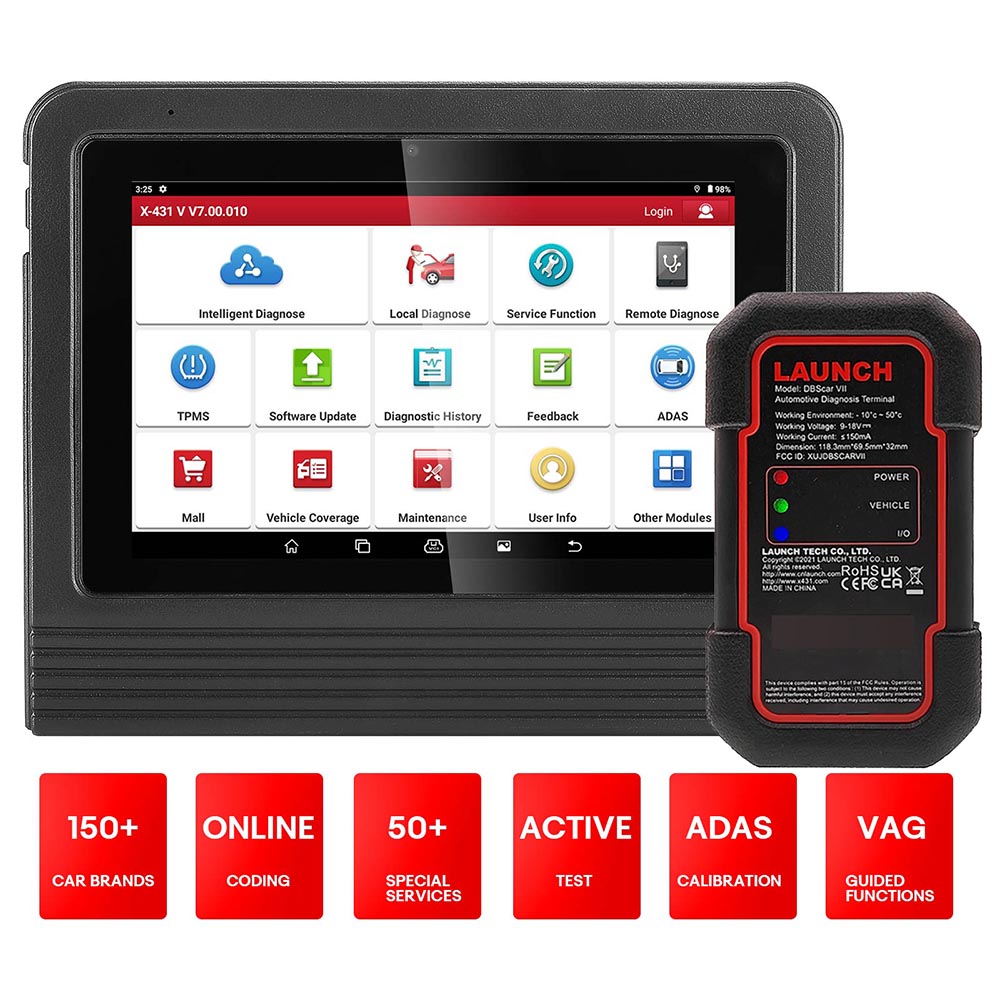

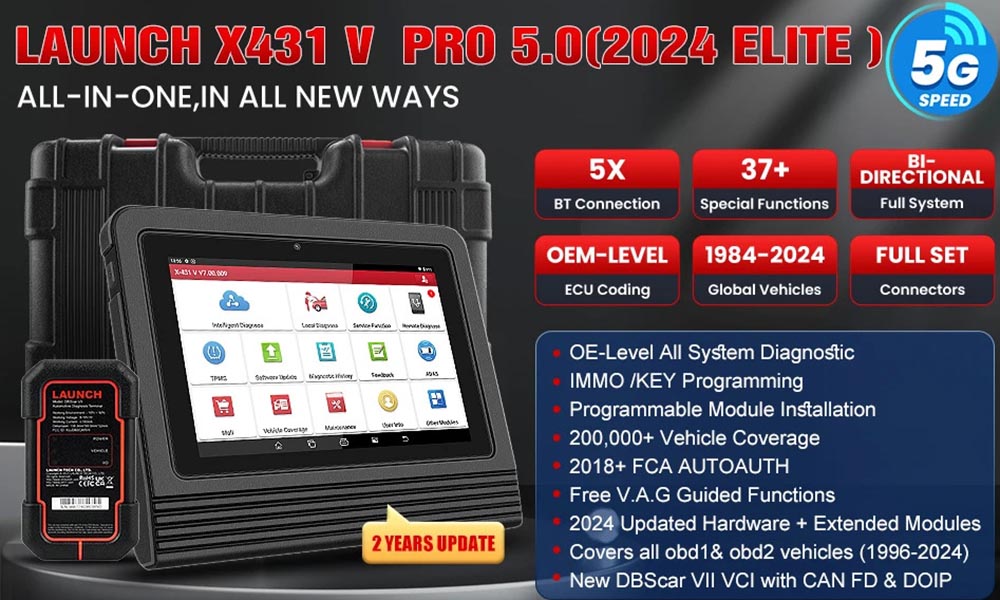

Launch X431 V 5.0  (X431 Pro 5.0 ) is a new generation of 8-inch smart car diagnostic equipment developed based on Android 10.0 system. The host hardware is strongly upgraded, surrounded by industrial-grade protection, and has super battery life. It is equipped with a 2.0GHz 4-core efficient processor and 4GB RAM + 64GB ROM large storage to run faster, more stably, and last longer.



Version:



EU Version: for UK/EU markets

Global Version: for global market except UK and EU



Software Update: free update online for 2 years



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Turkish, Arabic, Dutch, Greek, Hungarian, Polish, Danish, Persian, Romanian, Serbian, Finnish, Swedish, Czech, Japanese, Korea



Features:



1. Communication: Support WiFi and Bluetooth

2. Supports functions such as anti-theft programming with X-PROG3

3. Multiple expansion modules support: X-Prog 3, Endoscope, BST-360, Oscilloscope, Sensor Box, Wifi Printer

4. Supports 37 Special Functions such as Maintenance Light Reset, Throttle Matching, Steering Angle Reset, Brake Pad Reset, Tire Pressure Reset, etc.

5. Supports VIN code intelligent identification function to quickly enter diagnosis.

6. I tis update version of Launch X431 V. Comes with DBscar VII connector. supports CAN FD and DoIP.

7. Easy to Update: Support online one-click update.



Functions:



1. All System Diagnosis

1). Full Diagnostic Function: X431 V V5.0 can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.



Supported Systems: ABS, Engine, SAS, TPMS IMMO system , Battery, Oil Service , SRS, ect.





2). Diagnostic Functions: Read DTCs, Clear DTCs, Read Datastream, Special Function, etc.



3).  Bi-Directional Control:Bi-Directional Control which is used to request information or command a module to perform specific tests and functions.



4). Actuation Test: It can send information to and receive information from a vehicles control module.



5). Remote Assistance: Launch X-431 V V5.0 support remote diagnosis, if you need help from other mechanic, open the remote control function.



6). Diagnostic Report Print: X431 V V5.0 can automatically generate a diagnostic report when diagnostic work is successfully finished.Generated diagnostic report will be saved and sent to the email box then print the report on PC.



2. Active Test ( Bi-Directional Control)

Requests a module to perform a specific test and function. (Turn on and off actuators to determine whether there are problems with sensors and actuators)



Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable, Fuel Injector Tests, Injector Buzz Test, Injector Kill Tests, Injector Cut Out Test, A/C Compressor Clutch Relay On/Off, EVAP Tests, EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test, Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/Off Front and Rear Side ACM Solenoid, Turning the Fuel Pump On and Off,Oil Pressure Control Test, Inlet and Outlet Valve Tests, High Beam Test, Interior Lighting Test...



3. ECU Coding

ECU Coding is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use X431 V V5.0 (X431 Pro V5.0) to stimulate all the possibilities of the vehicles.



After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.



1. ) Recode Changed Modules

2). Optimize Vehicle Performance

3). Re-Flash/Hidden Functions

4). Renew ECUs Coordination

5). Reprogram/Adaptive Data

6). Improve Fuel Efficiency

7.) Reduce Power Loss

8). Improve the Durability of Mechanical Parts



4. 37+ Special Reset Service Functions

1). Steering Angle Reset

Reset the steering angle to zero to keep the car running straight.



2). Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.



3). Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.



4). Oil Reset

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



5). IMMO Service

Disable any lost keys and add new keys. (ONLY for cars with an easy IMMO system.)



6). Injector Coding

Write the new injector code into the car system for the correct cylinder injection quantity.



7). TPMS Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.



8). Battery Reset (BAT Match)

Register the battery after replacement.



9). ABS Bleeding

Help exhaust the air after repair the ABS pump system.



10). Throttle Matching

Initialize the throttle actuators to the default state.



11). DPF Regeneration

Especially works for DPF system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



12). Suspension Reset

Adjust the vehicle body height sensor for level calibration.



13). AFS Headlamp Reset

Initialize the adaptive headlamp system.



14). Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.



15). Gearbox Learn

Help complete the gearbox self-learning to improve gear shifting quality.



16). Reset EGR

EGR Adaption is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.



17). Language Change

This function is used to change system language of vehicle center console.



18). A/F Reset

This function is applied to set or learn air fuel ratio parameters.



19). Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.



20). NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.



21). Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.



22). Stop Start Reset

This function is used to open or close the automatic Start Stop function via setting the hidden function in ECU (The precondition is vehicle equipped with hidden function and hardware support).



23). Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.



24). Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.



25). Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.



26). AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.



27). A/C Relearn

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.



28).  Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.



29). Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.



30). Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.



31). High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.



32). Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.



33). Reset ECU

34). Reset FRM

35. Reset Clutch

36). Reset Turbo

....keep updating



Notice:



Please note that different reset function supports different cars, also supports partial cars, not for all cars.



5. Auto VIN Scan for Quick Diagnosis

Once this diagnostic tool and the given car are properly connected, this diagnostic tool LAUNCH X431 V 5.0 stars auto-detected process. With only one click, you can scan your car’s detailed version information, also all diagnostic trouble codes and live data stream of full electrical control units. If needed, you can only view the diagnostic information of the selected systems in the forms of checks.



Note:



Auto VIN Scan is not applicable to all models, you can manually select the vehicle model for diagnosis (This feature is more precise: click "Local Diagnose" to select the vehicle software.)



6. VAG Guide Functions (Compatible with Volkswagen / Audi / Skoda / Seat)

Teach step by step how to use. For various systems such as engine, gearbox, brake, airbag, instrument, air conditioner, and more.


7. AutoAuth for FCA SGW (Need to pay extra.)

Use the latest software update function AutoAuth to provide diagnosis, active testing, etc., making the diagnostics more secure. Applicable to FCA vehicles (Chrysler, Dodge, Fiat, etc. after 2017) equipped with a Security Gateway Module (SGW).



8. All in One Graphic Data Stream Analysis in Graph

Displays live data in text, graph for easy data review and analysis, record and playback live data to pinpoint troubles of sensors and components.



9. Vehicle Health Report Generate, Share and Print

With Launch X-431 Pro V5.0 , you can generate a full system Diagnostic Report by one-click. The reports can be E-mailed to the office or directly to your customer. You can also print out the vehicle health report card. What is more, you can customize your name, your address and other information on this report.



10. Various Compatible Modules:

1). X431 ADAS Mobile/PRO:

When the Adaptive Cruise Control Module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.



2). VSP600-Videoscope:

Helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with Launch X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.



3). Launch X431 TSGUN:

A professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and programming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.



4). X-PROG & X-PROG3 Immobilizer:

Turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive key programming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level anti-theft systems; also to have completed IMMO & Key Programming(Read & Write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.



5). X431 WiFi Printer:

Print out diagnostic data/ reports



6). O2-1 ScopeBox, Oscilloscope:

To quickly acquire the circuit signal, and slowly display the waveform for better data analysis.



7). BTS360 Bluetooth Battery Tester

With Launch BST360 automotive battery tester, we can check the overall health of the battery.works for all 6V and 12V lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA). Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and even golf carts.



8). Launch Motorcycle Connector Kt:

Diagnose motorcycles.

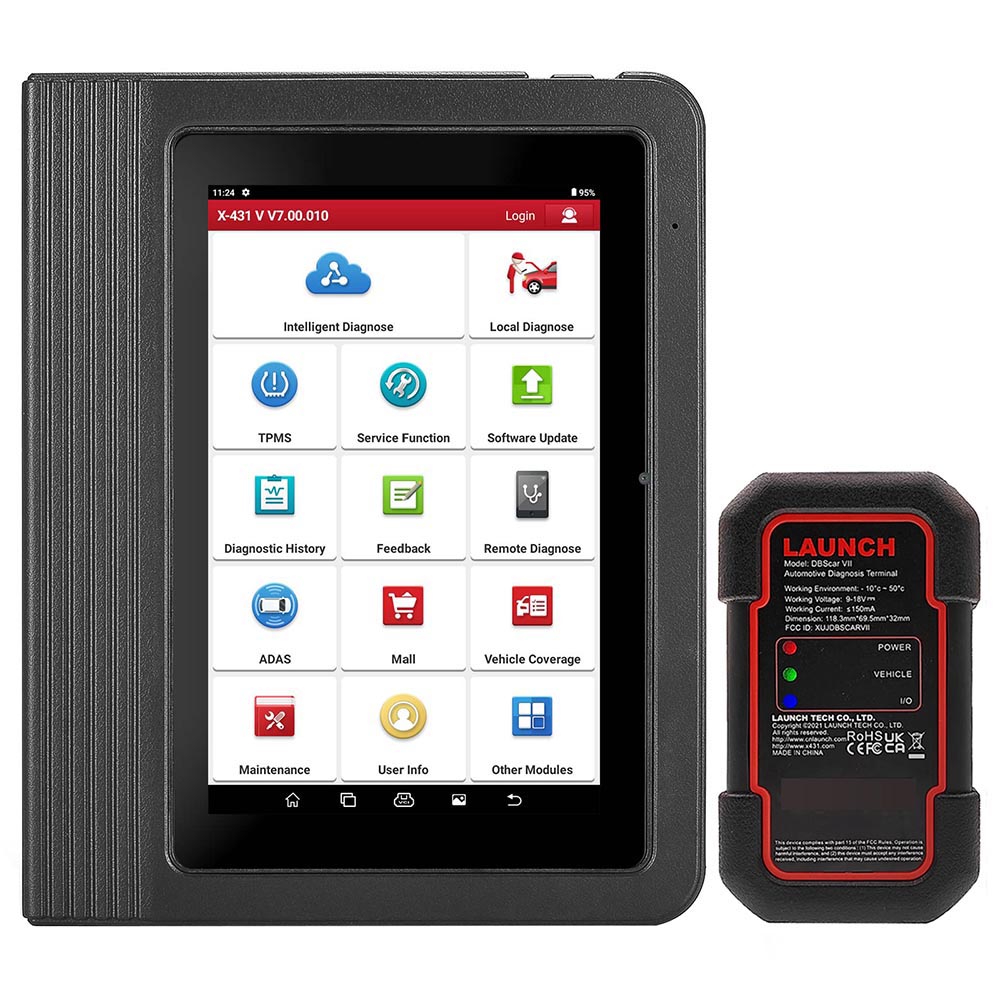

Newly Updated DBScar VII VCI for More Stable Communication:



Launch X431 V V5.0 has a newly updated DBScar VII VCI that directly works on CAN FD & DoIP communication (DoIP needs to purchase an extra testing adapter.). Compared to traditional BT connectors, DBScar VII VCI supports USB connection and wireless BT dual communication to achieve more stable, safer, and more effective data transmission.



1. CAN FD:

CAN FD with a flexible data rate overcomes the limitations of the classical CAN BUS in terms of data transfer rate. The application of CAN FD protocol achieves 6 times faster data transmission of the Launch scanner. CANFD Connector makes your Launch X431 PRO V5.0 work with a wider range of vehicle models: post-2019 GM models. (Users don’t need to separately buy a CAN FD adapter.)

2. DoIP: Launch DBScar VII VCI is compatible with the DoIP protocol. DoIP can save the cost and the effort of integrating the DoIP protocol stack in every electronic control unit for cars separately. The protocol applies to 2018+ Volvo, 2017+ Land Rover, and Jaguar, and supports for BMW F and G chassis models. (Needs to purchase an extra DoIP testing adapter.)



Supported Cars:



America

BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLN, GM（BRAZIL, TESLA



Europe

ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI,CITROEN , DACIA, DR, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTHAFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, BORGWARD, ASTON MARTINA,



Asia

ACURA, DAEWOO, DAIHATSU, HM, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, IKCO, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, MVM, NISSAN, GTR(NISSAN, PERODUA, PERODUA(MALAYSIA, PROTON, PROTON(MALAYSIA, SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN, TLISUZU, TOYOTA, UNITED PAKISTAN, VINFAST



China

BRILLIANC, BYD, CHANGAN, CHANGAN-FORD, , CHANGHE, CHBUICK, CHCADILLAC, CHCHEVRO-KET, CHERY, CHSUZUKI, DFCIROEN, HONDA(DF), DFNISSAN, DFEUGEOT, ECUAID, FAW(TIANJIN, FOTON, GOLDEN(XIAMEN, GONOW, MITSUBISHI(GAC, GREAT WALL, HONDA(GAC, HAFEI, HAIMA, HCBMW, JAC, JIANGHUAI, JMC, JOYLONG, LIFAN, LYNKCO, MG(SAIC, NJFIAT, QOROS, MAXUS, SGM, TOYOTA(CHINA, VENUCIA, WULING, XINKAI, YQMAZDA, ZHONGGSHUN, ZHONGXING, ZOTYE, SOUEAST, ROEWE(SAIC), JIQING(FAW), HUANGHAI, LANDWIND, EXEEDTY, NISSAN(ZHENGZHOU), DFPV, JETOR, DFFX, CHERY EV

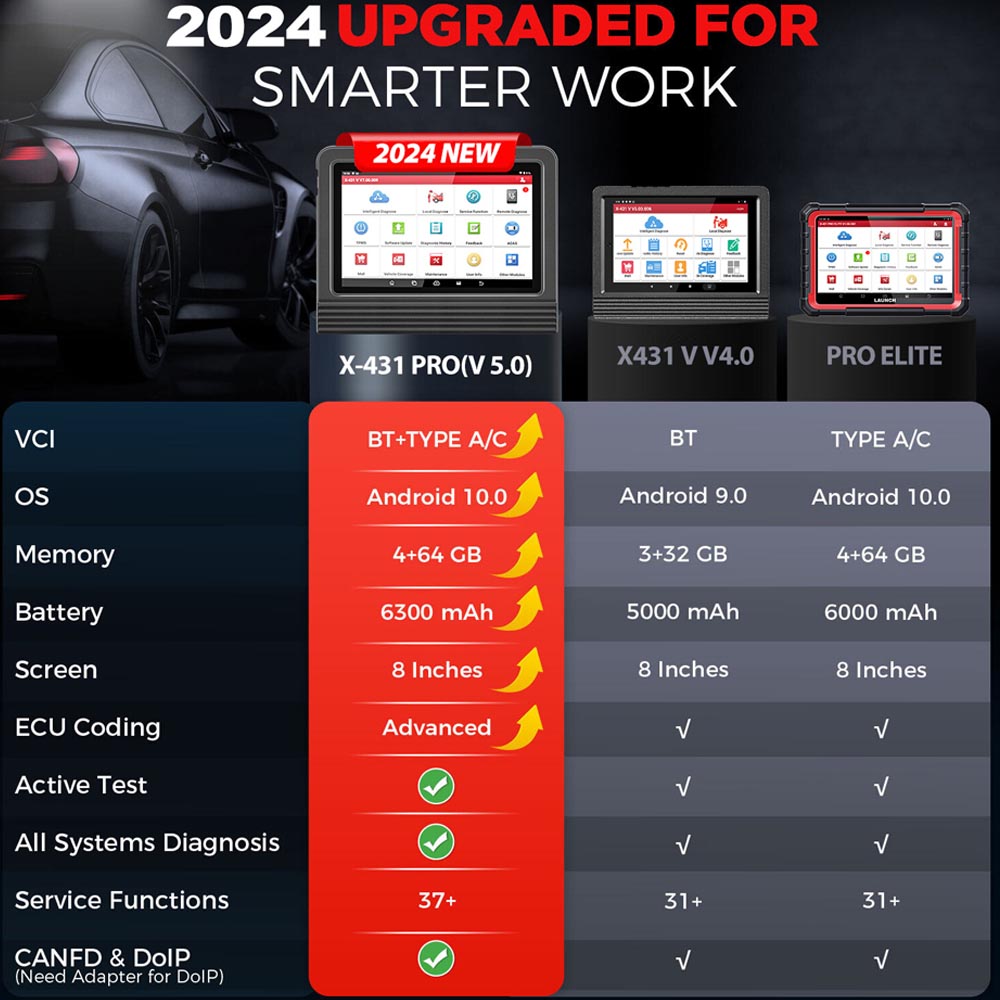

Specifications:



OS: Android 10.0

CPU: Quad-core 2.0GHz

RAM: 4GB

Storage: 64GB

Display: 8 inch touch screen with 1280*800 resolution

Camera: 5 megapixels front & 8 megapixels rer

Wi-Fi: 2.4GHz/5GHz(Dual Frequency)

Ports: USB Type A & USB Type-C

Battery: 7.6V/6300mAh

Working Temperature: 0℃~50℃

Dimensions: 234*166*39.5 mm

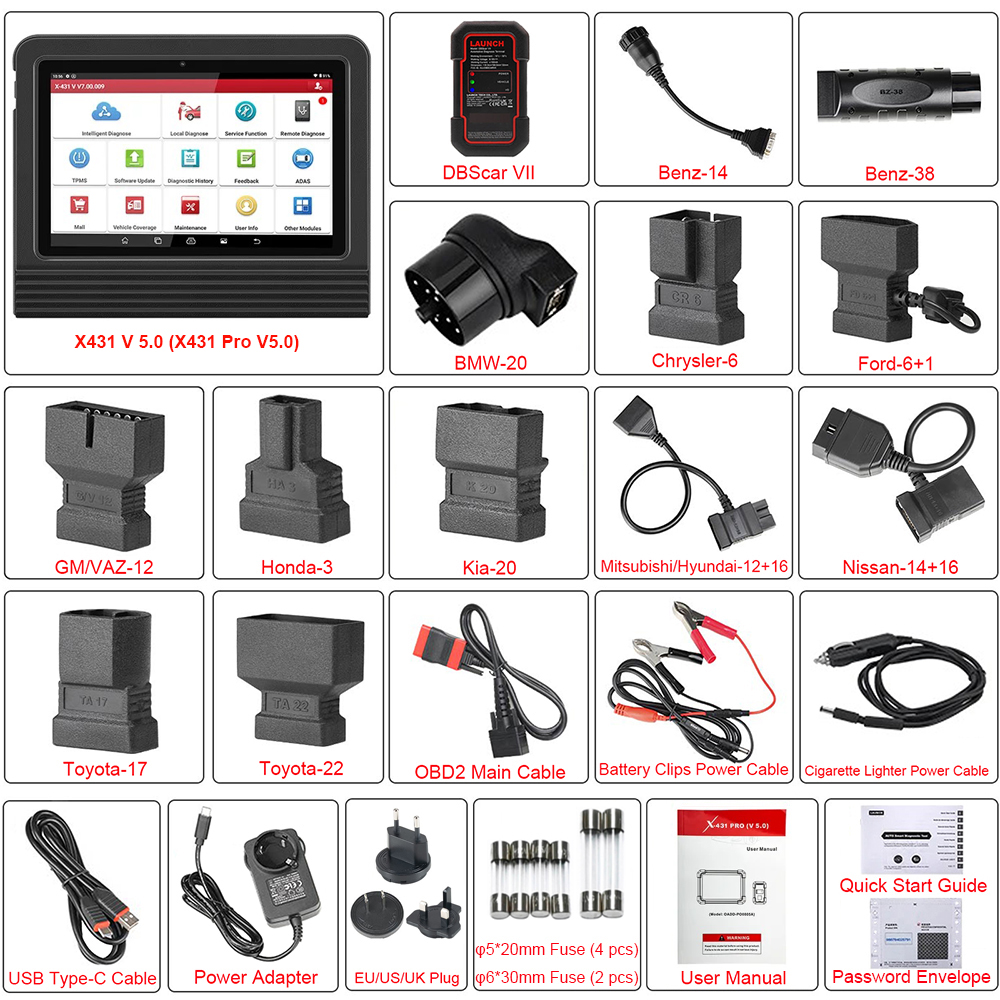

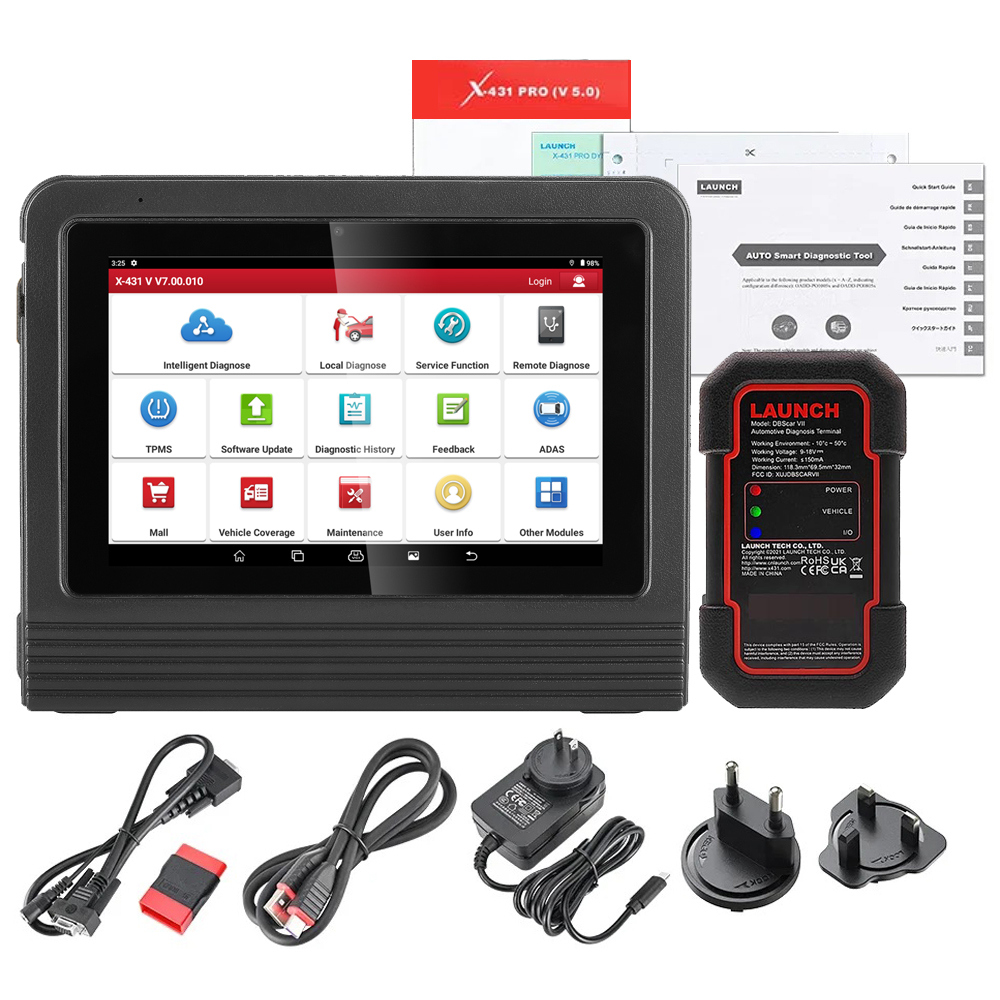

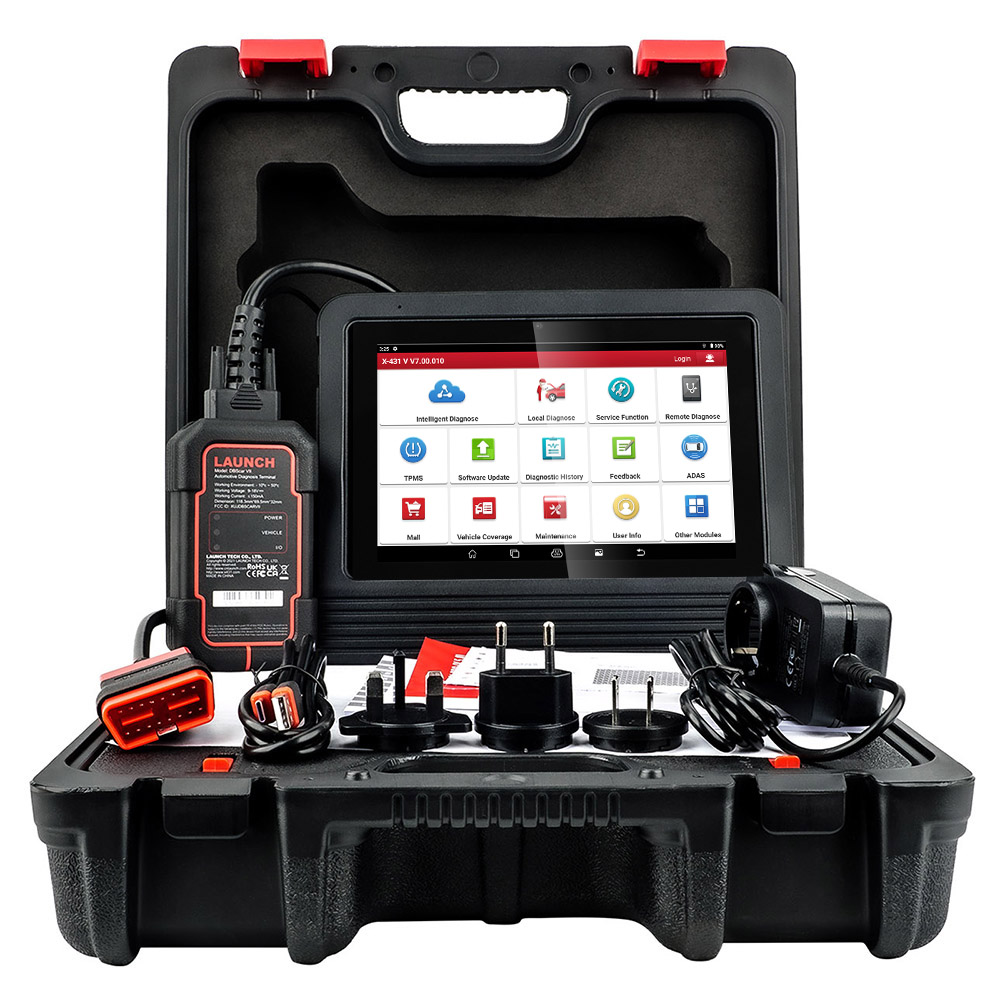

Packing List:



Launch X-431 V V5.0 (Launch X-431 Pro V5.0) Tablet Scanner

DBScar VII

Main Diagnostic Cable

OBD2 Connector

USB Type-C Cable

Power Supply Adapter

EU Power Plug

US Power Plug

UK Power Plug

User Manual

Quick Start Guide

Password Envelope

Packing List

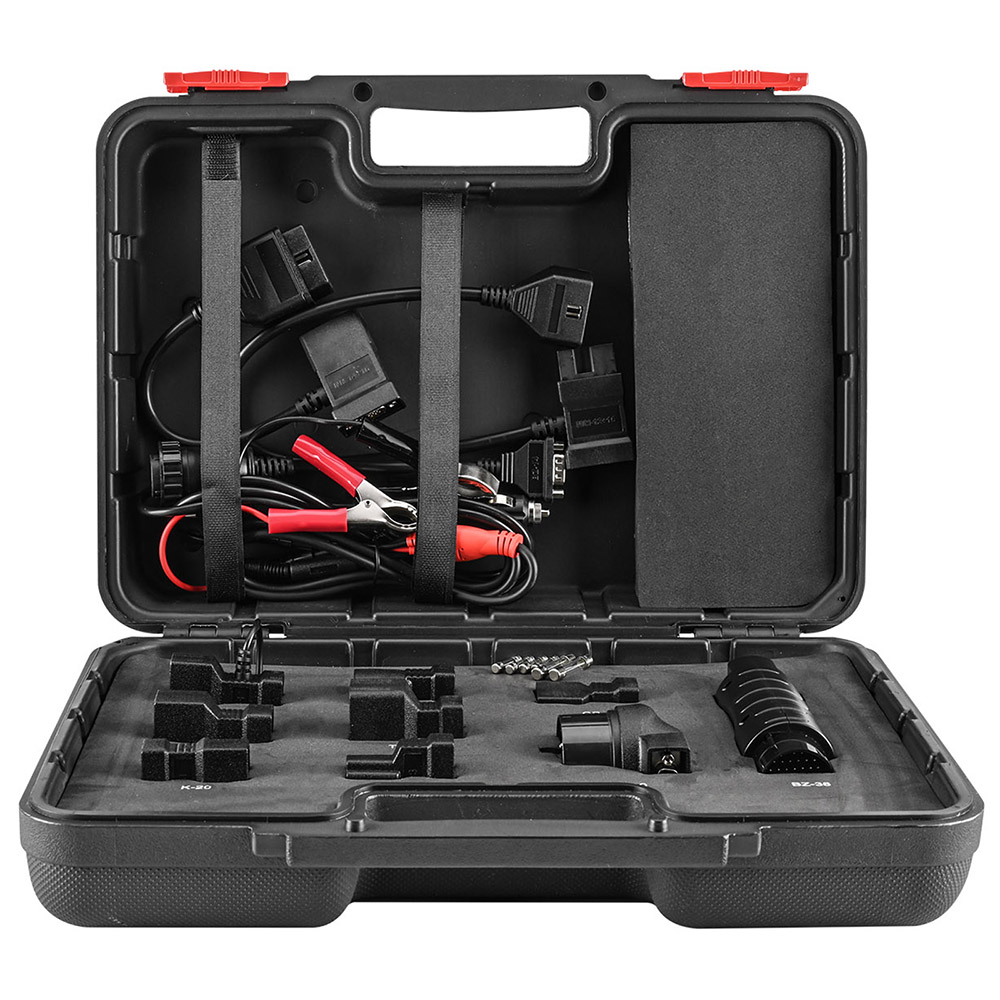

Plastic Toolbox

Packing Box

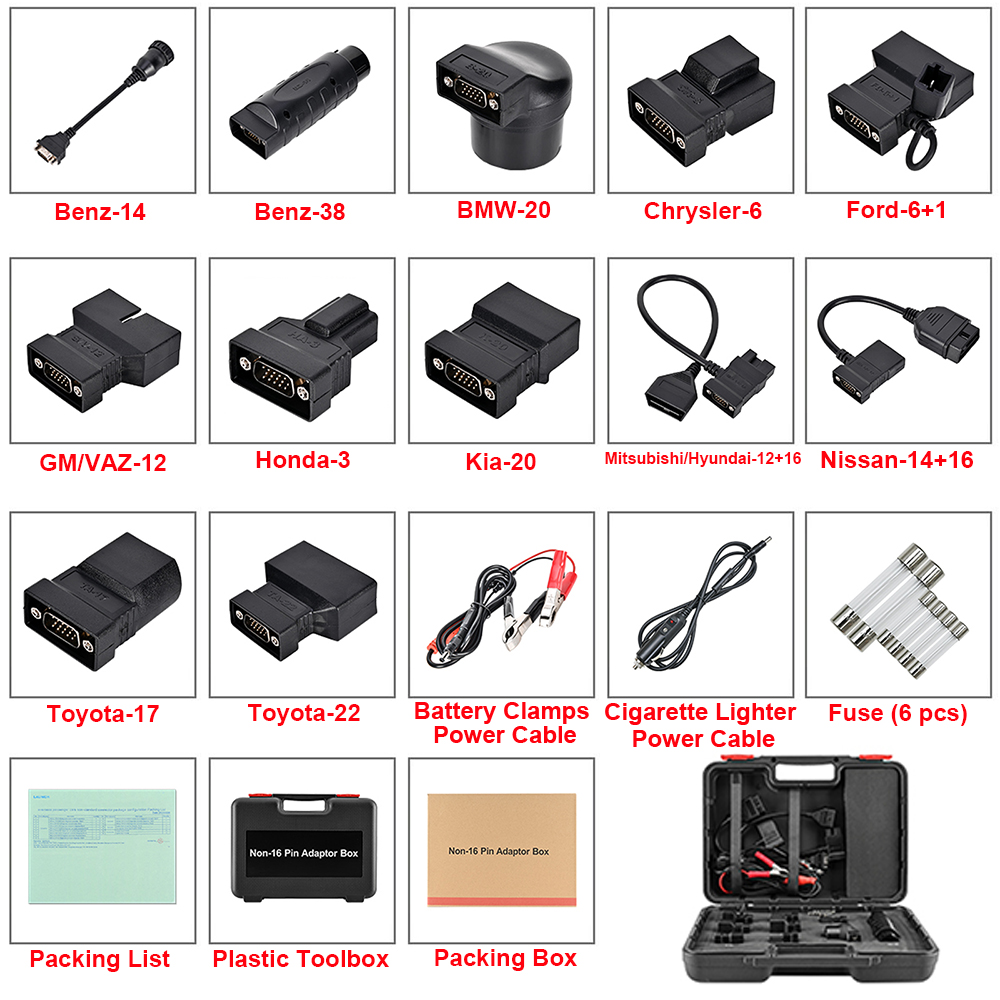

Benz-14 Connector

Benz-38 Connector

BMW-20 Connector

Chrysler-6 Connector

Ford-6+1 Connector

GM/VAZ-12 Connector

Honda-3 Connector

Kia-20 Connector

Mitsubishi/Hyundai-12+16 Connector

Nissan-14+16pin Connector

Toyota-17 Connector

Toyota-22 Connector

Battery Clamps Power Cable

Cigarette Lighter Power Cable

φ5*20mm Fuse (4 pcs)

φ6*30mm Fuse (2 pcs)

Packing List

Plastic Toolbox

Packing Box
