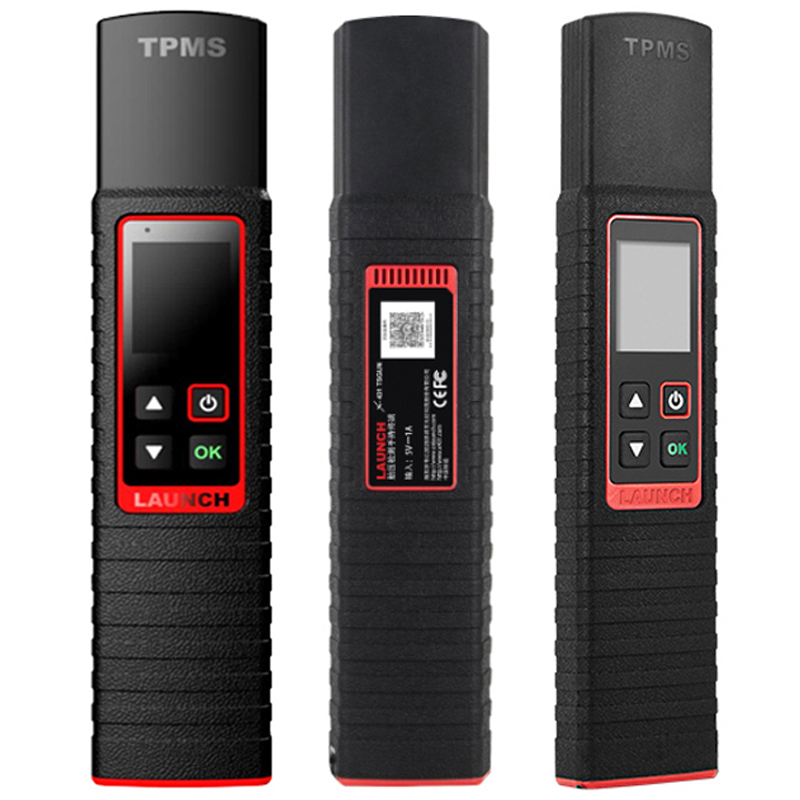

Name: LAUNCH X431 TSGUN



Description:



Launch X-431 TSGUN TPMS Tire Pressure Detector is a portable, affordable and formidable powerful TPMS tools!



It is designed to work with Launch X431 V, X431 V+, X431 Pro3, X431 Pro3S+, X431 Pro5, X431 PAD III, X431 PAD V, X431 Pad VII to expand new functions and generate new benefits for Launch X-431 users.

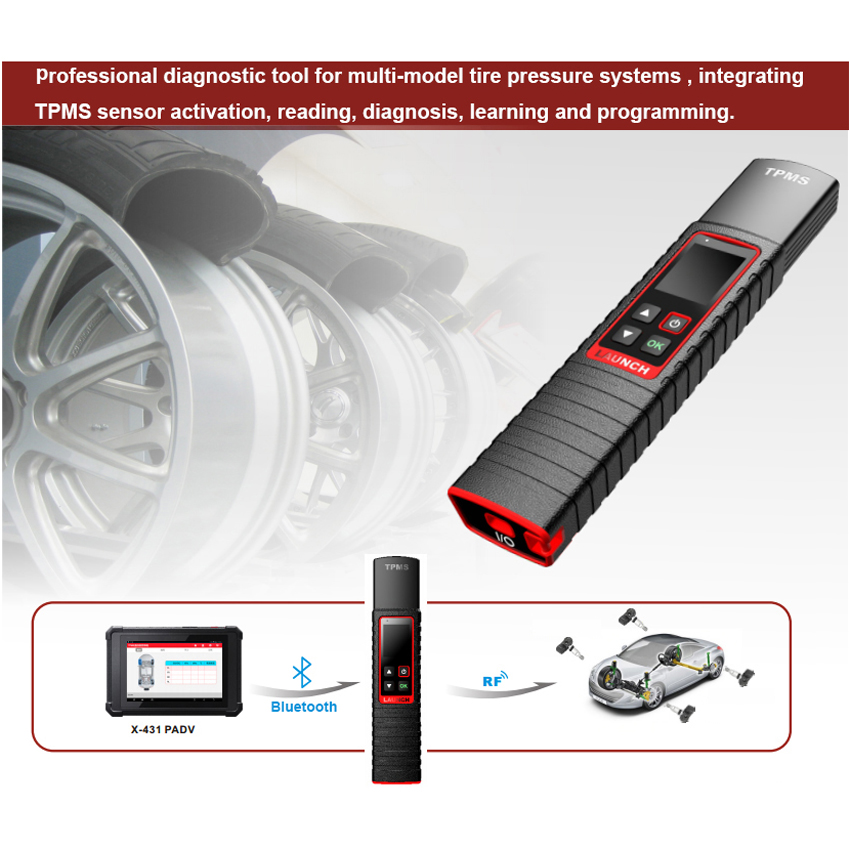

Launch X431 TSGUN is equipped to undertake advanced functionality such as TPMS Sensor Activation, Reading, Diagnosis, Relearns and Programming when changing tire sizes on a vehicle.

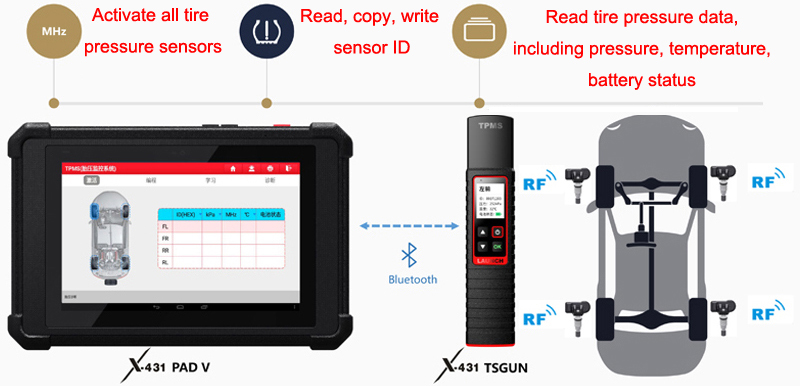

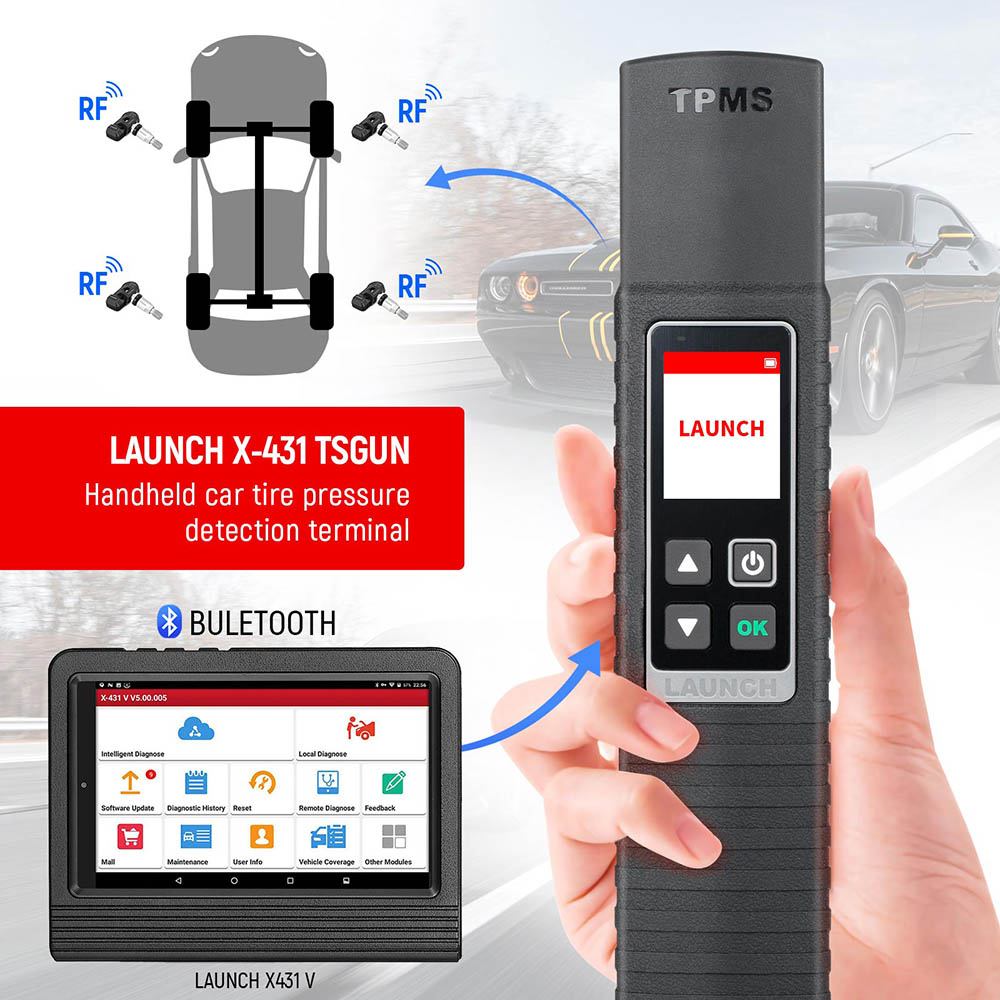

Launch X431 TSGUN is a Bluetooth TPMS add-on module, working together with Launch X431 diagnostic scanners, with extensive vehicle coverage of Euro, Asian and Domestic for TPMS function only.



Features:



1. 1.77 inch color screen

2. Instantly read tire pressure, tire temperature and battery status

3. Diagnose tire pressure fault, including read DTC, clear DTC, etc.

4. Activate and match all 315MHz or 433MHz sensors

5. Read, copy and write the sensor ID quickly

6. Reprogram Launch sensors with unlimited times

7. Built-in tire pressure learning instruction makes operation easier.

8. Cover 98% global vehicles with tire pressure system

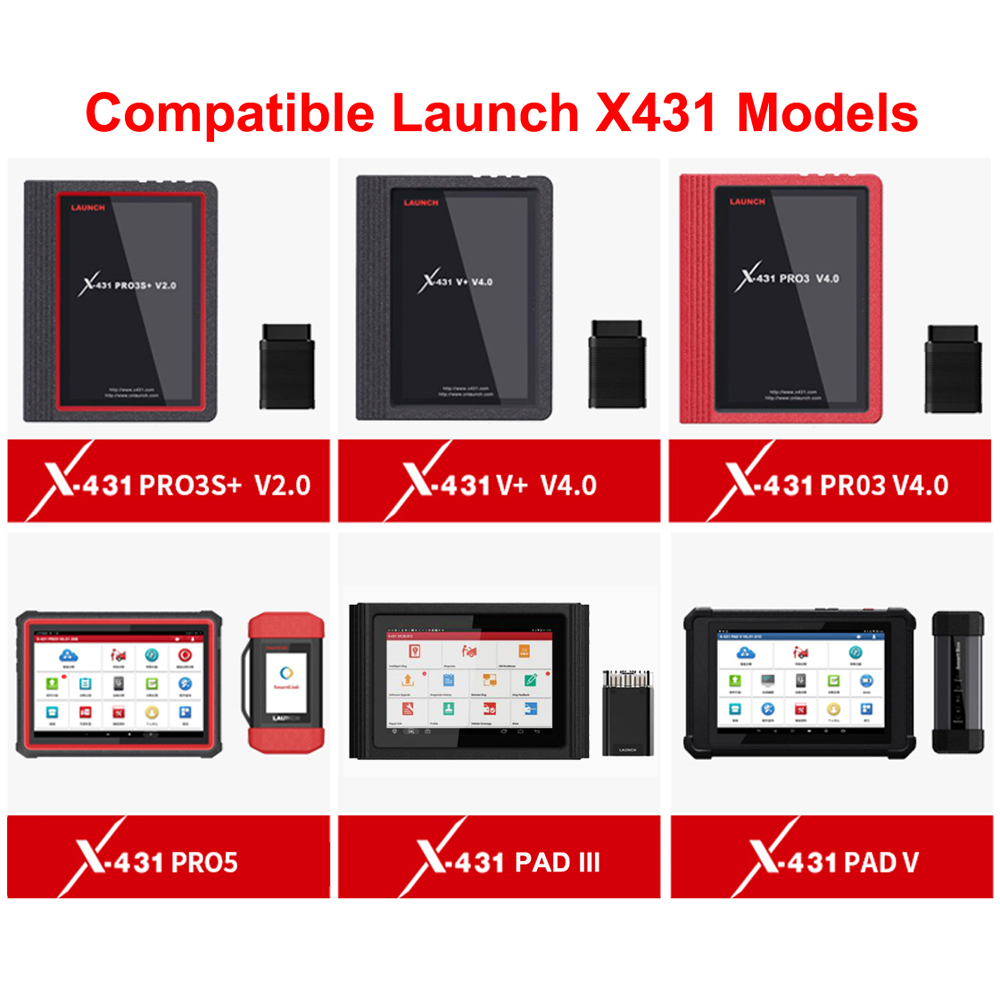

9. Works together with Launch X431 V, X431 V+, X431 Pro3, X431 Pro3S+, X431 Pro5, X431 PAD III, X431 PAD V.



Supported Cars:



ACURA, ALFA ROMEO, ASTON MARTIN, AUDI, BAO JUN, BENTLEY, BMW, BUGATTI, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CMC, DODGE, FERRARI, FIAT, FISKER, FORD, FOTON, FREIGHTLINER, GEELY, GENESIS, GMC, GREAT WALL, HONDA MOTOBIKE, HUMER, HYUNDAI, HUMMER, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, THAT, LAMBORGHINI, LAND ROVER, LINCOLN, LOTUS CARS, MASERATI, MAXUS, MAYBACH, MAZDA, MCLAREN, MERCEDES, MERCURY, MINI, MITSUBISHI, NISSAN, PLYMOUTH, PONTIAC, PORSCHE, RAM, RENAULT, ROLLS ROYCE, SAAB, SATURN, SCION, SGMW, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, VOLKSWAGEN, VOLVO, VPG



How to Bind Launch TSGUN with Launch X431？



1. Tap TPMS on the Job menu of the diagnostic tool.

2. Tap Bind X-431 TSGUN.

3. Input TSGUN Serial Number and Activation Code, tap Bind.



Specifications:

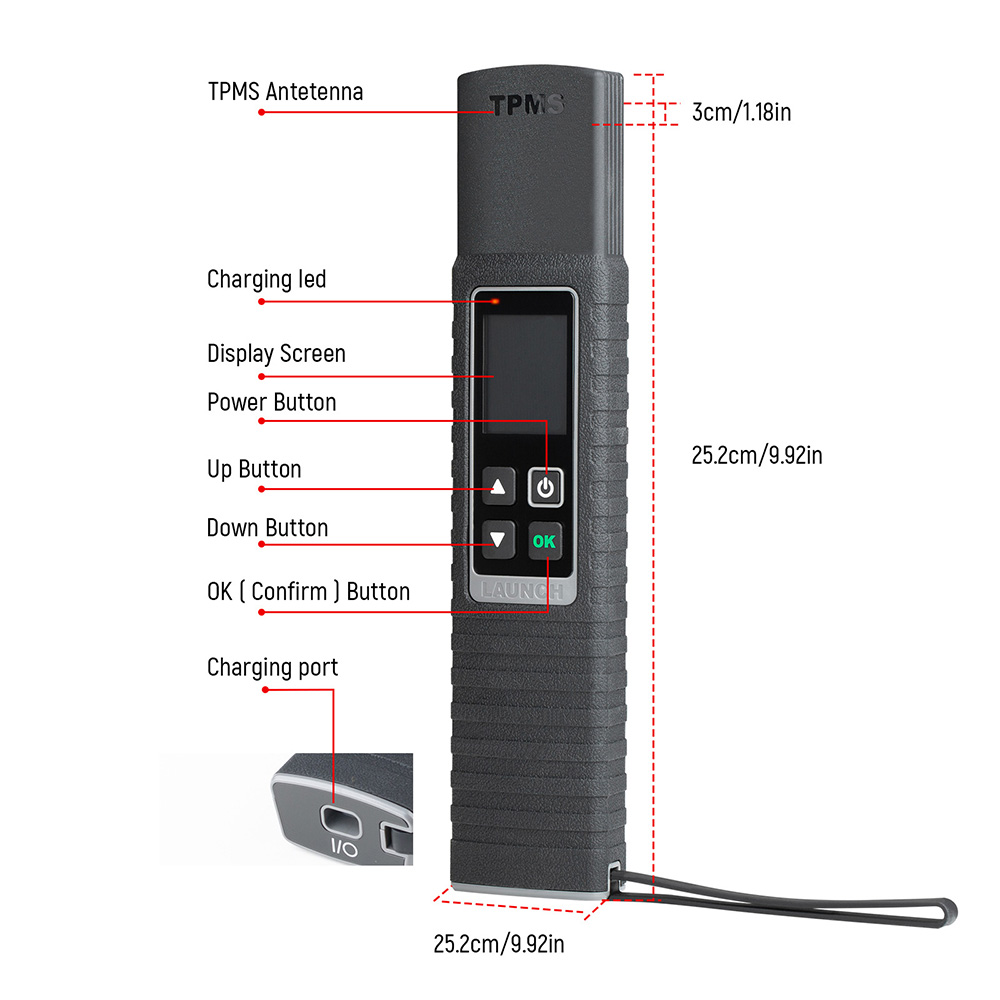

Display: 1.77 inch color screen

Resolution: 168*128 pixel

Battery: 3000mAh

Input Voltage: DC 5V

Working Current: ≤1A

Working Temperature: -10 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Size: 252*54*30mm

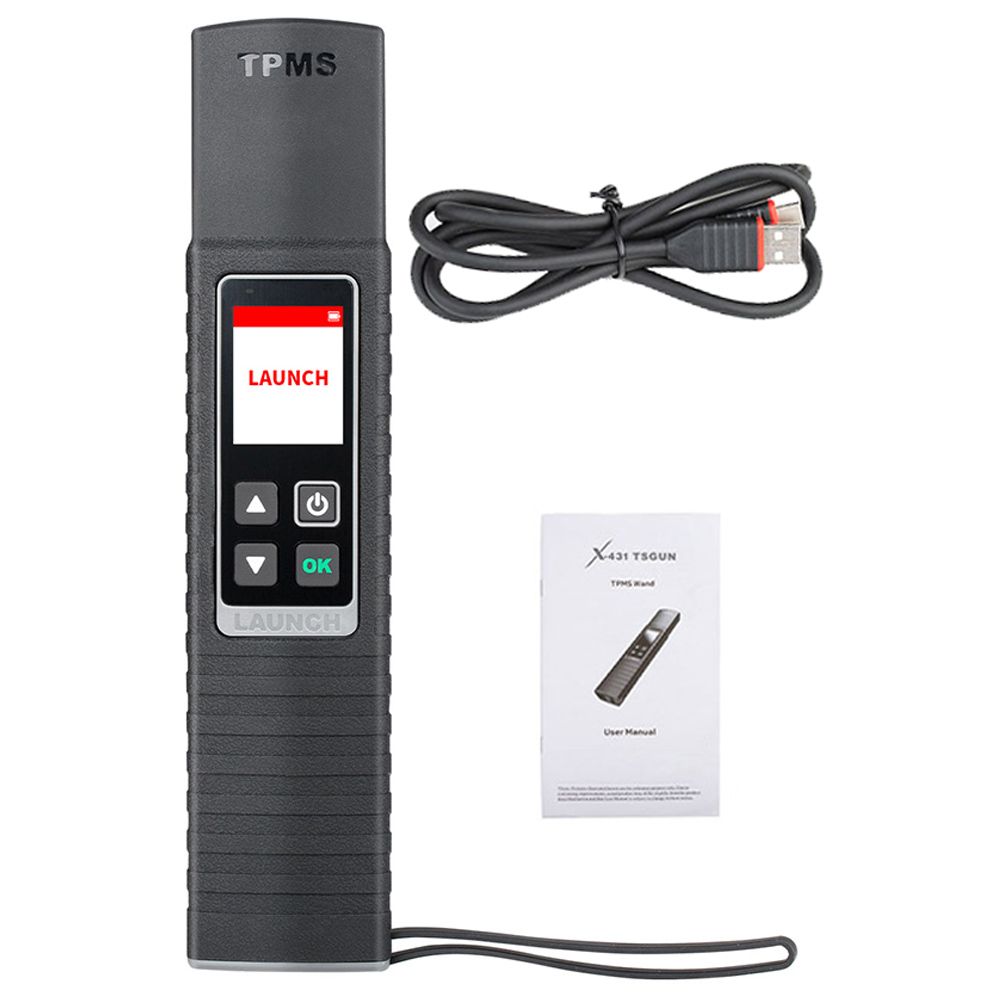

Packing List:



Launch X-431 TSGUN Wand

USB Cable

Password Envelope

Packing Box
