Description:

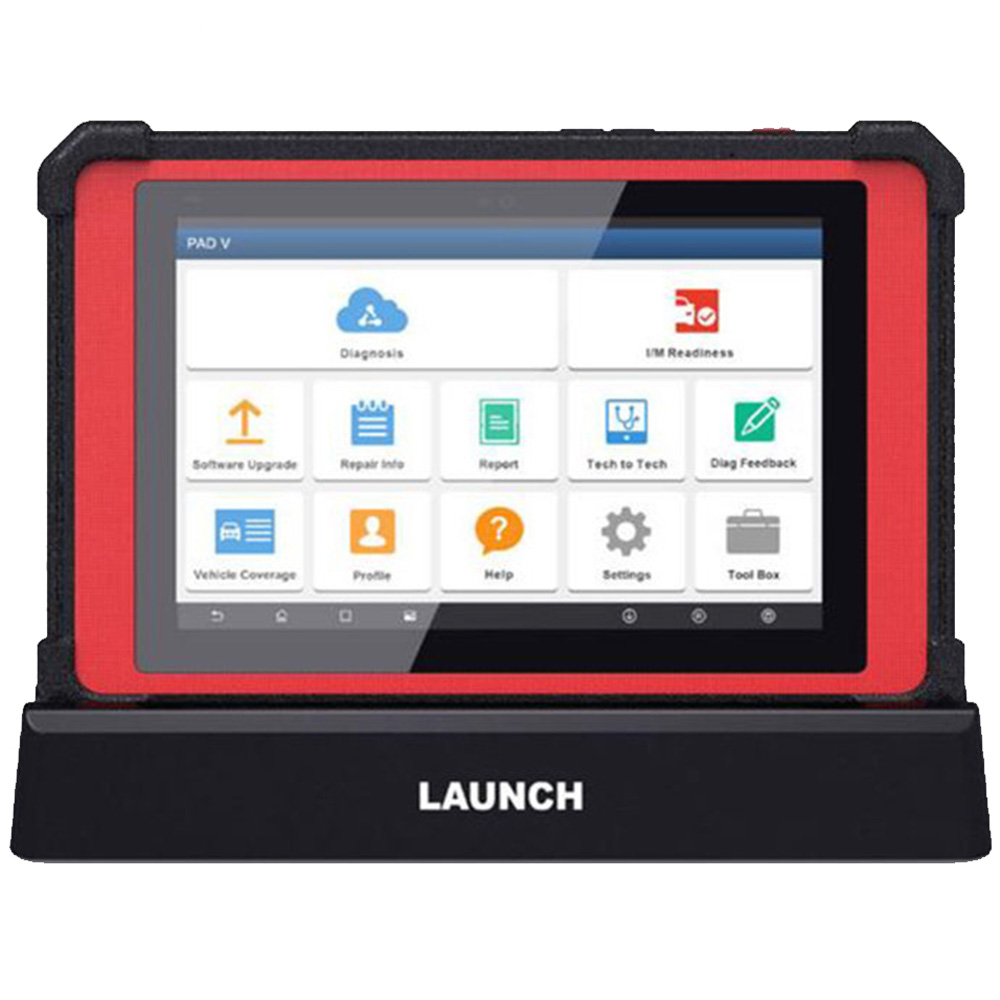

Launch X431 PAD V is Launch latest top-end car comprehensive diagnostic scan tool based on the Android 7.1 system. It inherits Launch many advantages in car fault diagnostic technologies, including large car model coverage, powerful functions, a large number of special functions, and accurate test data.



With its new advanced SmartBox 3.0, X-431 PAD V could diagnose the passenger and heavy duty vehicles (software and adapters are optional) with one single dongle.



And to make it better, it also have the built-in J2534 adapter to make the X-431 PAD V one of the most powerful scan tool in the market. X-431 PAD V also supports LAUNCH extension module applications for oscilloscopes, sensors, endoscopes, multimeters and battery detection etc.



Its operation is easier and more intuitive, it includes a package of "Full" vehicle brands (more than 80 brands), with the most important European, Asian and American vehicle manufacturers, together with the full potential of LAUNCH diagnostic software. Launch X431 PAD 5 is able to diagnose cars, commercial vehicle and also industrial vehicle (12V and 24V). Launch PAD V is compatible with the J2534 and ISO22900 (PassThru) communication protocols, in this way you can connect to the manufacturer server and perform programming among many other functions.



Software Update: 3 years free update online



Highlights:

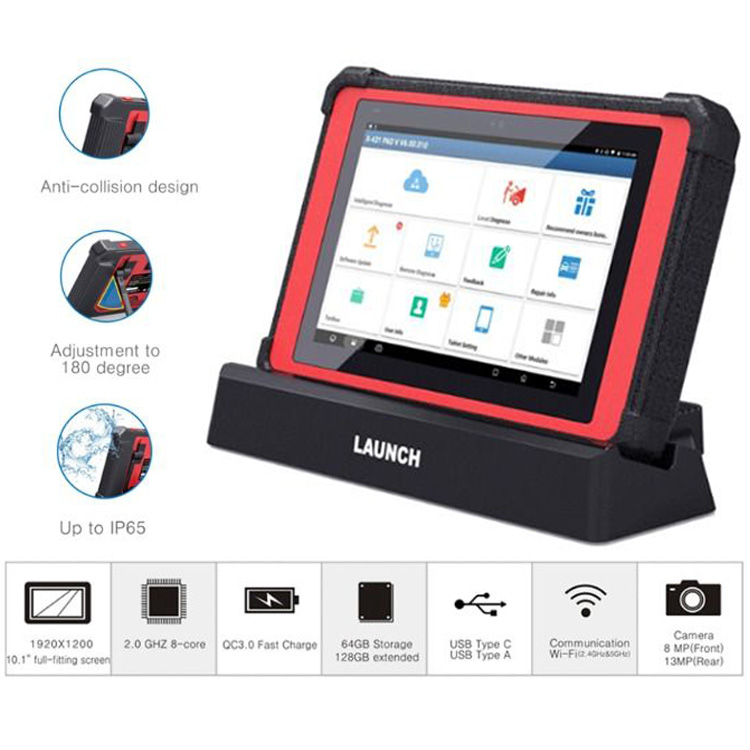

1. 10.1″ full-fitting, sunlight readable screen (Gorilla Glass) screen (multi-point touch screen)

2. 1920*1200 high-resolution, 9360mAh battery, QC3.0 fast-charge

3. Real time remote diagnosis function via WiFi

4. Support commercial vehicle and passenger car diagnose. Support J2534, CAN FD, DoIP.

5. 8 core 2GHz CPU; 4G RAM, 64G memory; 10.1 inch full-fitting, sunlight readable screen (Gorilla Glass) and IP65 protection.

6. Special Functions Supported: Immobilizer/Key, Injector, Electronic Throttle Relearn, Reset Brake Bleed, Reset TPMS, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS



Advantages:



It has a charging dock, front / rear camera, non-OBD connectors and a large 10.1-inch touch screen. Its battery is Lithium to work for more than 8 hours intensively, and includes a 180 degree adjustable handle on the back with 3 positions to hang, use as a steering wheel support and transport standard. Launch PAD 5 is manufactured with degree of protection IP65 , which protects it from splashes, bumps and dust.



Launch PAD V is capable of diagnosing passenger cars, commercial vehicles and industrial vehicles (12 and 24 V) and is compatible with DoIP communication protocols , new CAN networks FD and J2534 and ISO22900 (PassThru), with the latter you can connect to the manufacturer server and make programming among many other functions. It also includes the software for vehicles with Advanced Driving Assistance System (ADAS) and is compatible with the static calibration accessory X-431 ADAS Pro.



Its main difference with PRO 1 and 3 models is that it allows you to attach different optional accessories such as a 4-channel oscilloscope, battery tester, endoscope and sensor simulator. Its Internet connectivity is total to offer an infinite number of services, such as the sending of technical bulletins, tele-diagnosis, online technical information (Data LAUNCH), automatic updates and the possibility of communicating with other LAUNCH equipment for the help between workshops (cooperation remote). It is compatible with golo telematic devices.



Features:



1. Android 7.1 customized system, Qualcomm 8-core processor, 10.1 inch capacitive touch screen, support QC3.0 fast charging.



2. 2.4GHz & 5GHz dual-frequency Wi-Fi, the transmission rate is faster than the previous generation.



3. Camera: front 8 megapixels; rear 13 megapixels，display I/M readiness status



4. Fifth-generation Wi-Fi technology, theoretically, the transmission rate is 4 times faster than the previous generation



5. Wide vehicle model coverage, powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions;

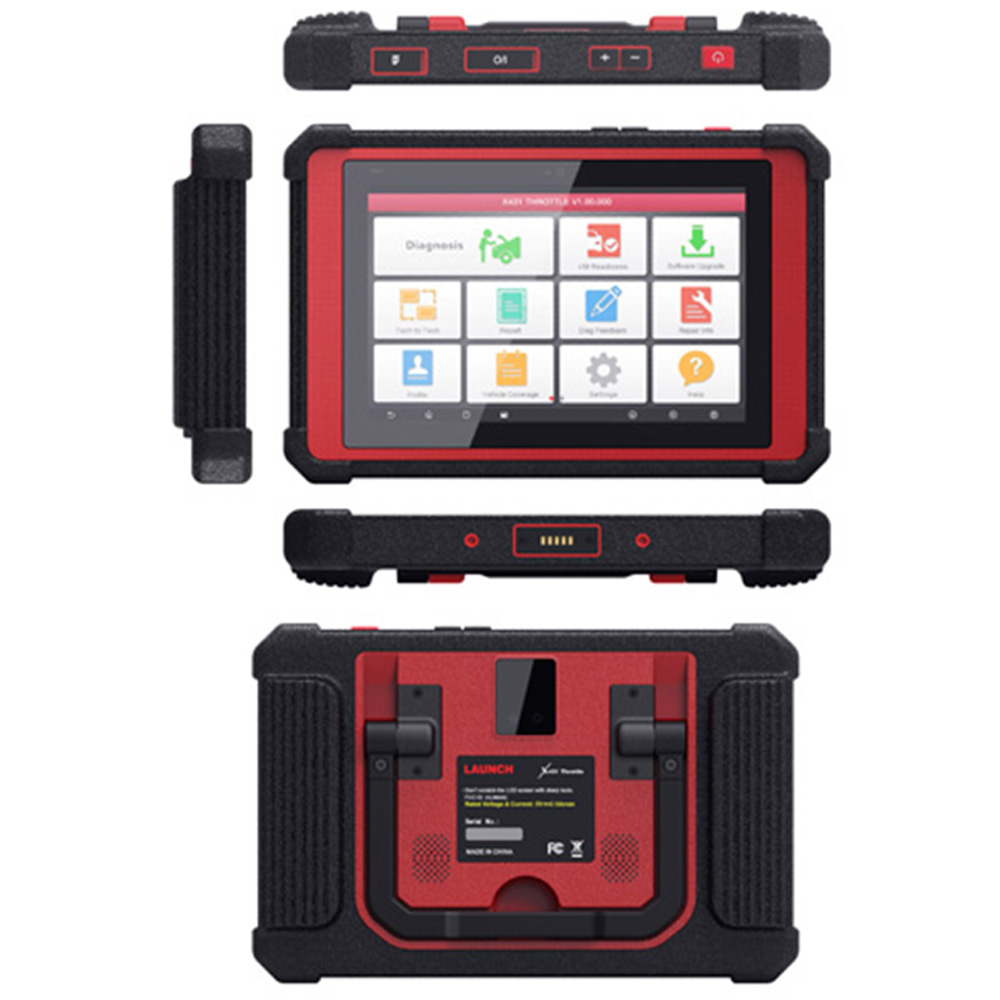

6. Brand new industrial design, with soft rubber sheath on the four corners of the product, to effectively prevent collision; damping shaft, free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.



Functions:



1. Comprehensive Diagnosis:

Support full-make, full-system, full-function rapid diagnosis, read DTC, clear DTC, read data stream, actuation test, etc.



2. Intelligent Diagnose:

Support intelligent VIN identification and cloud-based diagnostic record query, making the diagnostics more intelligent and efficient.



3. Local Diagnose:

When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.



4. Remote Diagnose:

Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.



5. Special Function:

Support total 16 special functions, including service lamp reset, throttle adaptation, steering angle reset, brake pad reset, tire pressure reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching, EGR Adaptation.



6. Software Upgrade:

Support one-click upgrade of operation system, client side, car model software and firmware.



7. Diagnostic Feedback:

For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.



8. My Report:

View comprehensive diagnostic report, remote diagnostic report, and data stream playback.



9. Software Setup:

Contains my connector, diagnostic connector connection management, connector activation, firmware repair, etc.



10. Extended Module:

Support oscillograph, sensor, battery test, endoscope, Wi-Fi printer, etc.



11. Read Data Stream:

Support diverse data stream display modes and user-defined standard data stream.



12. Traditional Diagnosis:

When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.



Supported Vehicles:



Supported Passenger Vehicles:



Australian:  AU Holden, AU Ford



Asian:

Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti



European:

 Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/Abarth/Lancia, Rover, Land Rover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar



USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep



Chinese: Changcheng(Great Wall), Geely, Qirui_TY (Cherry), Futian, Changan, Changhe, Haifei…



Others: EOBD, Demo



Supported Special Functions:



Immobilizer/Key

Injector

Electronic Throttle Relearn

Reset Brake Bleed

Reset TPMS

Reset DPF

Reset SAS

Reset Oil

Reset Brake

Reset BMS



Supported Heavy Duty Vehicles:



Software Coverage:

Nissan (Diesel), Mitsubishi (Diesel), USA Ford Diesel, Kenworth Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel, Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty, Iveco Heavy Duty, JAC Heavy Duty, Mack, MAN, OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty, WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty, Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine, Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck, Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International, HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software, IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD, Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine



Powerful Special Functions:



Component Replacement

Cylinder Compression Test

Injector Cut Out Test

DPF Regeneration

Communicates with ABS & Transmissions from Bendix

Wabco and Allison

Tech to Tech remote communication function



Optional Extension Modules:



1. Oscilloscope and ignition analyzer

2. Endoscope

3. Battery tester

4. Scope box

5. Sensor box: Sensor tester and simulator + Multimeter.

6. Static calibration accessory X-431 ADAS Pro.

7. DATA LAUNCH technical information.

8. Optional accessories: furniture for stabilizer and diagnosis MB 90 and MB 80.



Specifications:



PAD V Parameters



Processor: 8 core Cortex-A53 2.0GHz

RAM: 4GB

Memory: 64GB, 128G extended

System: Android 7.1

Screen: 10.1 inch full-fitting, sunlight readable screen (Gorilla Glass)

Resolution: 1920*1200

WiFi: Support 2.4GHz & 5GHz dual frequency

Camera: rear 13 megapixels, front 8 megapixels

Diagnostic Mode: Wi-Fi

Working Temperature: -10 to 50 degree centigrade



SmartBox 3.0 Parameters:



CPU: dual processor: Cortex – A7 + Cortex – M7

System: Linux

Memory: 256M

Storage: 8GB

Power Supply: DC 9 to 36V

USB: Type B USB 2.0

Bluetooth: BLE 4.0 + EDR

WiFi: Support 2.4G/5GHZ dual-band

Indicator Lamp: 5 multi-functions LED

Vehicle Connection: J1962 16-pin

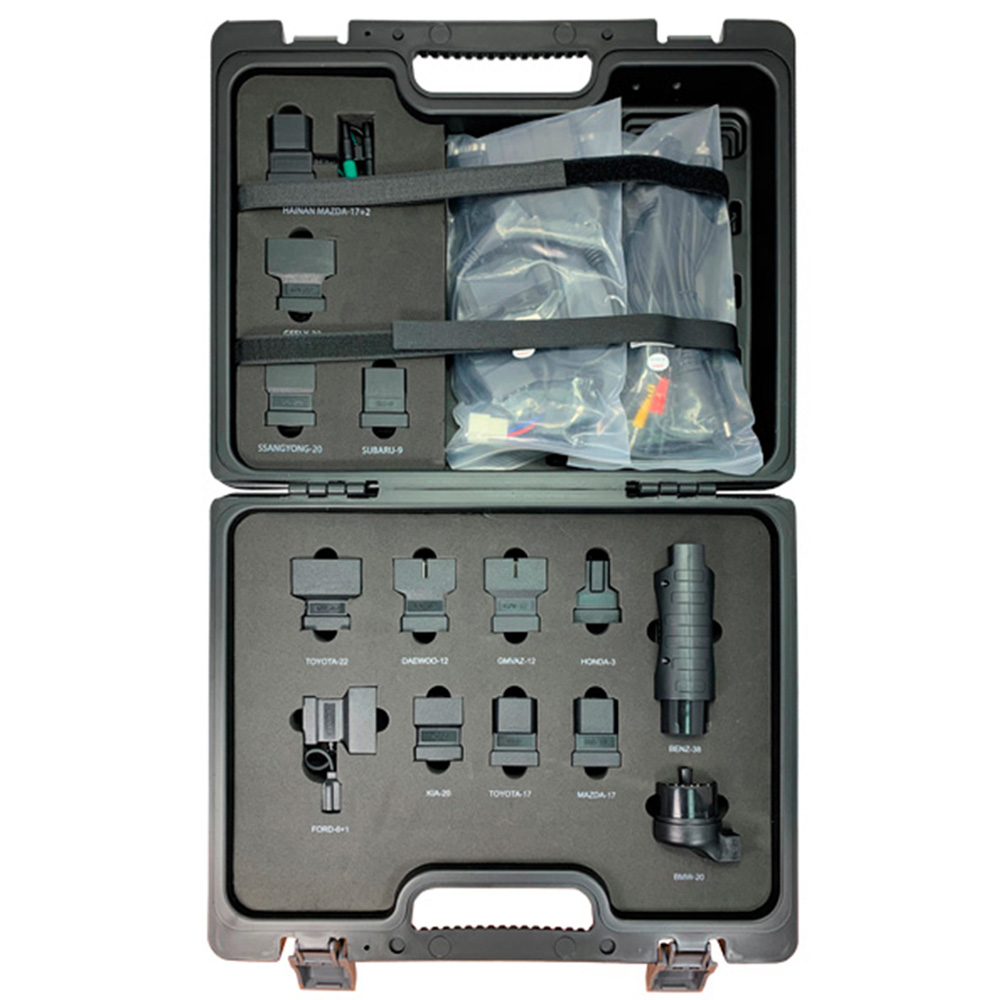

Packing List:



Launch X-431 PAD V

X-431 PAD V Charging Dock

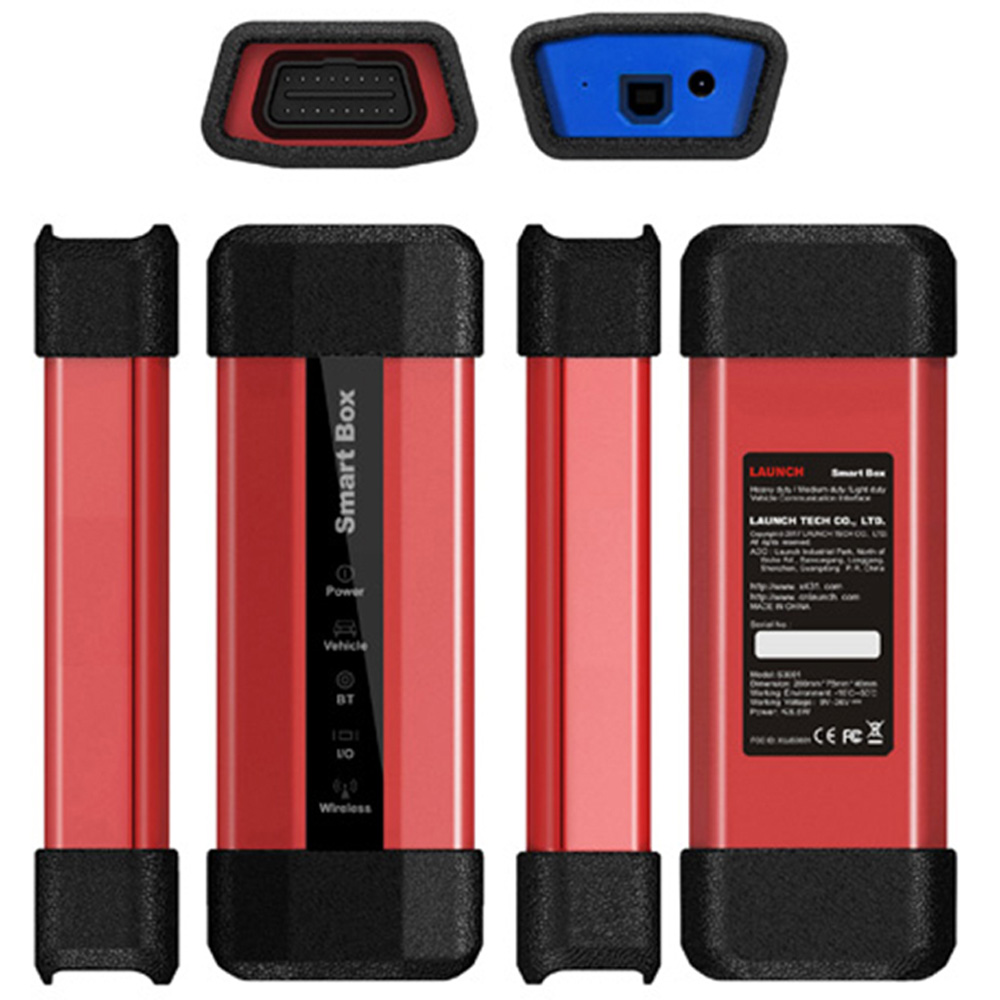

SmartBox 3.0 Diagnostic Connector

OBD-II Extension Cable

Non-16 pin Connector Converting Cable

Non-16 pin Connectors Kit

Micro USB Cable

Cigarette Lighter Cable

Battery Clamps Cable

5V DC Power Adapter

Password Envelope

Plastic Toolbox

Packing Box



How to Update Launch X431 Pad V?



Run "SmartBox Tool 3.0" on the Windows desktop after installing "SmartBox_3.0_Setup".



1 Firmware Upgrade Function

SmartBox 3.0 can be upgraded through SmartBox Tool 3.0. Please select "M7 Upgrade" for the upgrading of lower programs and "A7 Upgrade" for the upgrading of the system. Click "Browse" to select the path for storing upgrading files and click "Upgrade".



Note: Restart the software and SmartBox 3.0 upon completion of the upgrade. You can check the version to confirm whether the upgrade is successful.



2 Log View Function

When necessary, you can enable "Write Log File" or "Window Print Information" function to record the test status of SmartBox 3.0 and the process. To avoid software errors due to overlarge log files, do not enable the function if it is not necessary. The log files are saved under the root directory of disk C by default.



Steps: The corresponding J2534Log information can be generated by ticking the "Write Log File" option after clicking "View Log" in the upper left corner of the software interface, as shown below:



Note: Please restart the diagnostic software!

Note: If the log printing function is enabled, the log files may be very large as the information is accumulated. Please enable this function when necessary, such as development and debugging. In other cases, please do not activate this function option at will.



The default storage path of the log file "J2534Log" generated is: C:\Program Files\SmartBox 3.0\SmartBox 3.0\Log\ J2534_LOG.txt, as shown below:



Also note: In some computer systems, users have no write permission to this file folder, resulting in unsuccessful log file generation. It is necessary to modify the permissions of this folder (requiring administrator privileges), as shown below:



Right-click the "Log" folder, select the "Attribute" option and find the "Security" attribute, select current user, click "Edit", select the corresponding user name again, and tick all the "Allow" options in the permission column (requiring administrator rights), and click "OK" to go back.



Smartbox 3.0-J2534 Operation Manual:



One end of SmartBox3.0 is connected to the USB cable: one port of the USB cable is connected to SmartBox3.0; the other port is connected to a USB port of a computer;



The other end of Smartbox3.0 is connected to the OBD-II Extension Cable, and the other port of the OBD-II Extension Cable is connected to the car OBD connector.



How to Install Launch X431 PAD V Software Package and Driver?



Attention: Please ensure that the computer user has administrator rights and SmartBox3.0 has been connected to a PC before installation.



Installation Steps of Software Package:



Step 1: Open "SmartBox_3.0_Setup.exe", and select the installation path according to prompts

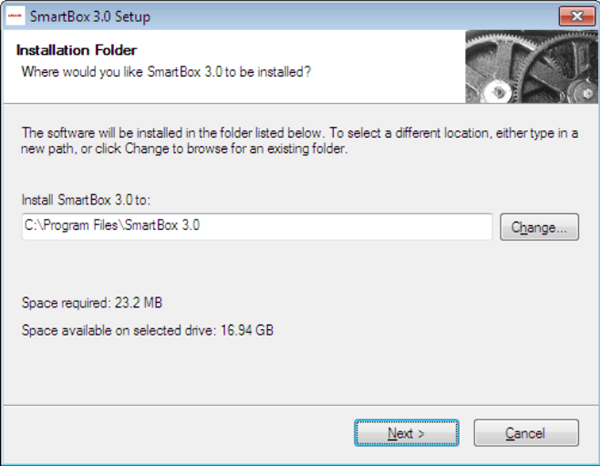

Step 2: Click 'Change' to select the installation path, and then click 'Next'

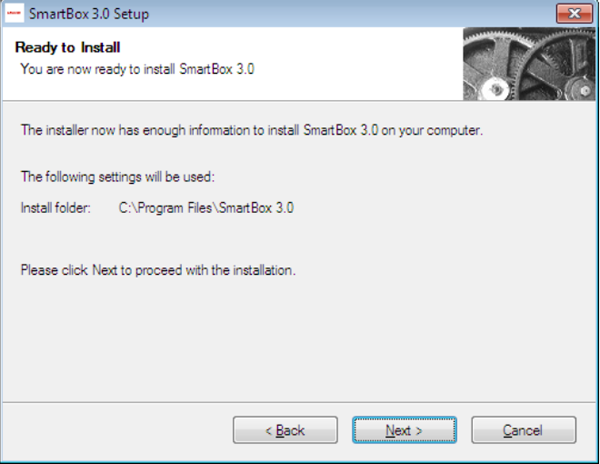

Step 3: After confirming the installation path, click 'Next'

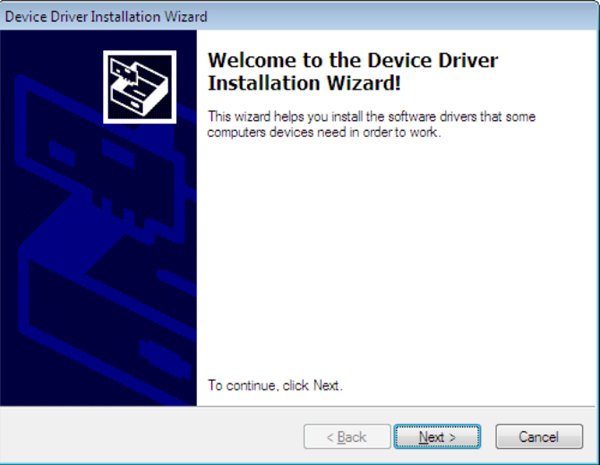

Step 4: Click 'Next' to start to install the driver. It is recommended to have the device connected before installing the driver. The software shall install by itself.

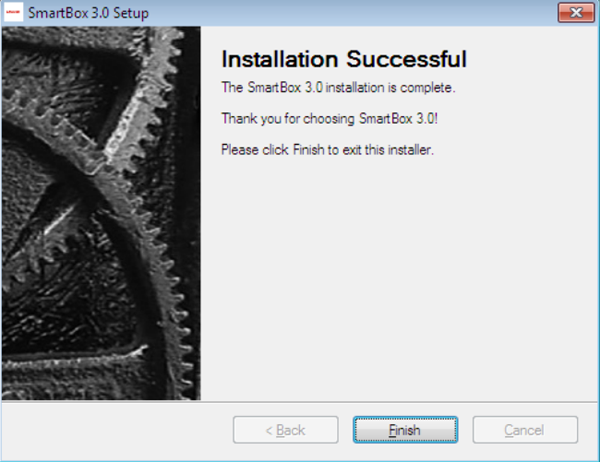

Step 5: Click 'Finish'. Drivers installed!

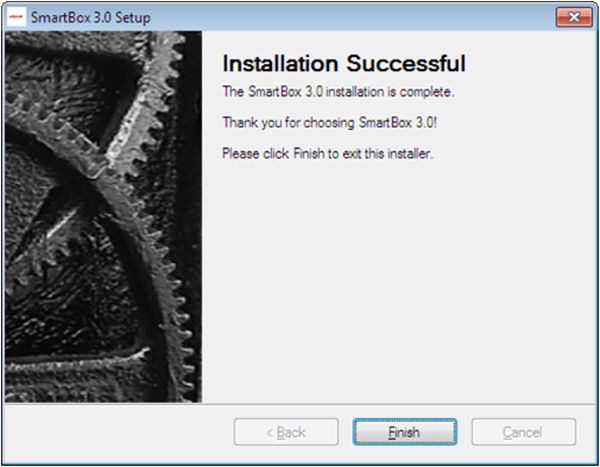

Step 6: Click 'Finish' again. Software installed!



J2534 Registry Information View (Reserved):

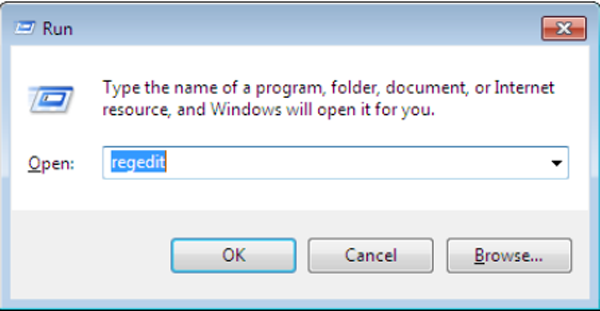

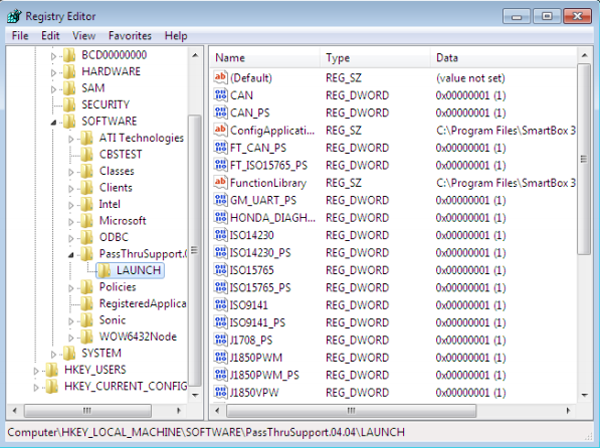

After installing the software, LAUNCH's corresponding registration information about J2534Dll can be seen in the registry. Open "Run" window (shortcut "Windows+R"); enter the command "regedit", as shown below:



Enter the registry, and find LAUNCH's J2534 DLL registration information according to the  following path: HKEY_LOCAL_MACHINE\SOFTWARE\PassThruSupport.04.04

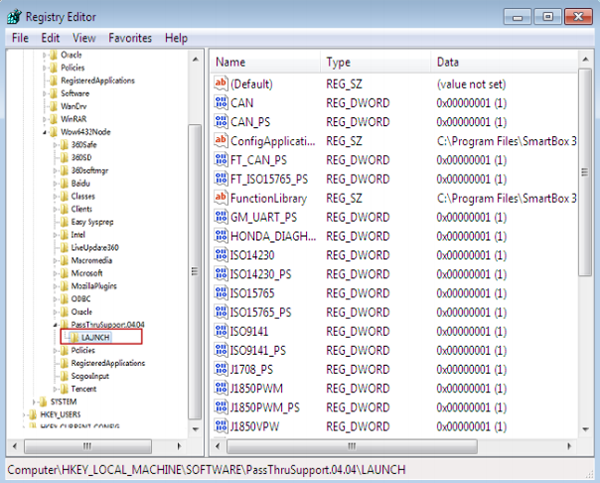

Note: It may be because of the 64-bit operating system, if you cannot view the registration information. You can find it according to the following path:

HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\PassThruSupport.04.04
