Description:



OTOFIX EvoScan Ultra is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful Qualcomm SM6225 octa-core processor, and a 10.4-inch touchscreen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask capable Android operating system, OTOFIX EvoScan Ultra organizes information with test instrumentation to help you diagnose symptoms easily, quickly and efficiently and is an ideal product for repair shops to achieve easy diagnosis.



Features:



ECU Programming & Coding

Supports J2534 / RP1210 / D-PDU & CAN-FD / DoIP

40+ Reset Services & Active Tests

Guided Function & AutoAuth

Optimal User Experience

Remote Expert & Cloud Report



Software Update: 2 years free update online



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Polish, Czech, Swedish, Thai, Vietnamese, Indonesian, Cambodian, Korean, Japanese, Simplified Chinese



Highlights:



1. OE-Level Diagnosis for 10,000+ models from US domestic, Asian, and European, including super cars.



2. OE-Level Programming for many BMW and Benz models; ECU Coding available for VW, Audi and BMW; Activate Hidden Functions for VW, BMW and Guided Functions for VAG group vehicles.



3. New protocols to support the vehicles of today and tomorrow: DoIP, CAN-FD, D-PDU, J2534, RP1210. There is no need to buy specialized adapters.



4. 3X Faster AutoVIN 2.0 Scan Recognition for vehicle identification; builds all system communication and detects system malfunction in seconds.



5. New Topology Module Mapping with color-coded module status for faster full-system diagnostic results.



6. Get the Remote Expert by your side to help fix any complex repairs (send serial number to activate).



7. Report Management can view, save, print and share report on phones, tablets, and computer browsers.



8. Complete Code, Live Data, ECU Information, Active Test, 40+ Special Functions.



9. Display live in text, graph, analog and digital gauges for easy data review and analysis.



10. MaxiFix is more efficient than ever, search multiple options of DTC-based repair advice by relevant cases or repair tips, video and document libraries, providing direct access to top-ranked repair recommendation from industry pros.



Advantages:



For Benz:

1. Supports all Benz models till 2022, including C (206), S(223), SLK (232), much faster;

2. Supports 10% more special functions than others, including GPF, Instrument Cluster Replacement, AdBlue Reset, and more.

3. Supports all system diagnostics and common special functions like Oil Rest, EPB, GPF on all Benz DoIP models.

4. Supports Active Test on Engine, Instrument component of A (177), GLE/GLS (167) after 2019.

5. 4X faster scanning speed within 40 seconds.



For BMW:

1. Supports all BMW models till 2022, including E67/G26/G42/G83/G18.

2. 3X faster scanning speed within 10 seconds.



For VAG:

1. Supports all VAG models till 2022, including Audi Q4 e-tron 2022, Audi Q5 e-tron 2022, DM-Lingdum 2022, E5-ID.6 X, E6-ID.6 Crozz, E2/E3-ID.3, 0A-Teramont PA 2021, CS-Taigo 2022 and more, which other car diagnostic tools don’t support.



2. Leading amount of data for online coding, online parameterization, online matching, and calibration functions.

3. Leading support for flashing hidden functions.

4. Features more options of Guided Functions.

5. 3X faster scanning speed. For models after 2015, the scanning will complete within 10 seconds.



For GM:

1. Supports all GM models till 2023.

2. Leading active tests & special functions capabilities.

3. 3X faster scanning speed within 8 seconds.



For Ford:

1. Supports all Ford models till 2022.

2. Supports all commonly-used & advanced special functions on models before 2018.

3. 5X faster scanning speed within 10 seconds.



Functions:



1. J2534 ECU Programming: Full Control of ECUs:

J2534 ECU Programming is only featured in top-ranking diagnostic scanners. Without this feature, your workshop may not able to diagnose and repair many of the electronic control issues that are common in today's cars. With J2534-1&-2 Pass-Thru OTOFIX V1 Flash, you can:



1). Program the ECU with specific settings and configurations that are unique to each vehicle. This process is necessary to ensure that the ECU is properly calibrated to the vehicle's specific engine and other components.



2). Repair a specific issue that has been unforeseen when the vehicle was manufactured.



3).Update the software and firmware of the ECU to improve driving quality, fix bugs, and address safety issues, without using expensive OE tools.



2. Advanced ECU Coding: Get More Shop Profits:

OTOFIX EvoScan Ultra also features the advanced ECU Coding. You can address the following issues:



1). Recognize new CPU replacement to make it match the current settings of your vehicle.



2). Make adaptive data for specific components after repairs are made, providing ways to solve major car issues.



3). Make the car customized to your own tastes (personalization), for example: recode your lighting setting, which includes changing the brightness levels or even the indicator flashing intervals; set optical or acoustic signals on the vehicle and different warning signals, such as a seat belt reminder.



4). In addition, close some functions that you probably won't need like the auto start & stop system.



The Advantages of ECU Coding for Benz:

1). SCN Coding: The compatibility and accuracy are leading among diagnostic scanners, e.g. make SCN coding on the host, seats, doors, sunroof, etc. of the A (177).



2). Supports coding multiple modules or components of a vehicle simultaneously, ensuring that they are all programmed with the same data and settings. This can help to improve the overall functionality of the vehicle, and reduce the risk of errors or inconsistencies between different components.



3). Supports transmission coding data backup & restore functions.



The Advantages of ECU Coding for BMW:

Supports the easy one-touch operation of modification, and activates hidden car functions.



3. 40+ Service Functions: Double Your Business

OTOFIX knows how to boost your business and put 40+ commonly-used service functions in this OTOFIX EvoScan Ultra for you to effectively work on a variety of daily service and maintenance duties. The coverage and number are surpassing many other car diagnostic scanners. Some typical functions are:



Oil Reset, EPB, TPMS (indirect), BMS, Brake Bleed, Aftertreatment, IMMO Keys (basic), VIN, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, FRM Reset, Transport Mode, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABSSRS, Cylinder, VGT Learn, HV Battery, ACC, Speed & PTO, Clutch, Trans Adaptation, Airbag Reset, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, A/C, Rain/Light Sensor ...



Here are applications of the most-popular service functions:



Oil Reset: Help to read and reset the oil light.

SAS: Reset the steering angle to zero to keep the car running straight.

Injector Coding: Write the adaptive injector code into car system to achieve the optimum in lowering emissions and provide smooth running.

EPB: Help replace and reset the brake pad.

BMS Reset: register the battery after replacement.

ABS Bleeding: Help exhaust the air in ABS in an easy way.

Throttle Adaptation: Initialize the throttle actuators to the default state.

TPMS Reset (indirect): Reset the tire pressure.

IMMO(basic): No longer worry about high costs of lost keys. OTOFIX EvoScan Ultra supports to add/delete keys easily on most Asian cars and <3.5th gen. VAG.

Gear Learning: Help to complete the gearbox self-learning to improve gear shifting quality.

Sunroof Reset: Initialize the sunroof when to be locked off, or closed.

Suspension Reset: Adjust the vehicle body height sensor for level calibration.

AFS Headlamp Reset: Initialize the adaptive headlamp system.

Gearbox Reset: Help to complete the gearbox self-learning to improve gear shifting quality.



Notice:



OTOFIX regular upgrades will ensure all the above service functions will be compatible with newly-launched vehicles to help you double the business.



4. 3X Faster AutoVIN 2.0 Technology:

The next-generation AutoVIN 2.0 technology works on most cars made after 2006. Compared to standard AutoVIN featuring in other scan tools, the AutoVIN 2.0 can 3X faster pull detailed VIN information like “manufacturer, make, model, type, fuel type, engine info, etc.”, then scan all diagnosable ECUs and execute system testing. The whole procedure needs only seconds to complete. This is a huge leap forward in diagnostic technology.



This feature is compatible with VW, Audi, Skoda, Seat, Mercedes-Benz, G.M, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc. and all CAN-compatible models (regardless of the made year).



FAQ:



Q: Why AutoVIN function doesn’t work?



A: Make sure the car is made after the year 2006. Check if there is a poor network connection. AutoVIN 2.0 doesn’t work on all cars. You may go with manual input for a precise scan.



5. OE-Level All System Diagnostics:

OTOFIX EvoScan Ultra can build a communicating bridge to 99% OBD2 cars’ accessible computers and modules. You don’t need specialized diagnostic tools to access the car system you need to diagnose:



1). Decode not only generic but also OE-specific codes.

2). Delete code quickly after retrieving DTCs; reset kinds of dashboard error lights.

3). Display live data in graphics that can be merged.

4). Obtain ECU information to find the matched replacement for proper repairs.

5). Support Actuation Tests.

6). It can fully access to Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments, Self Leveling Suspension Systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tire Pressure, Rain Sensors, 4WD System… depending on vehicle’s make, model and year.



6. Bi-Directional Active Tests

With this bi-directional scanner, you can accurately figure out whether a specific system, component, or subsystem in vehicles goes well, and locate the problem by interactively operating and testing the vehicle’s related actuators. This will save you loads of time; play easy to time-consuming troubleshooting. It is compatible with most vehicle models on the market. Note that the function menu will vary by vehicle make/model/year.

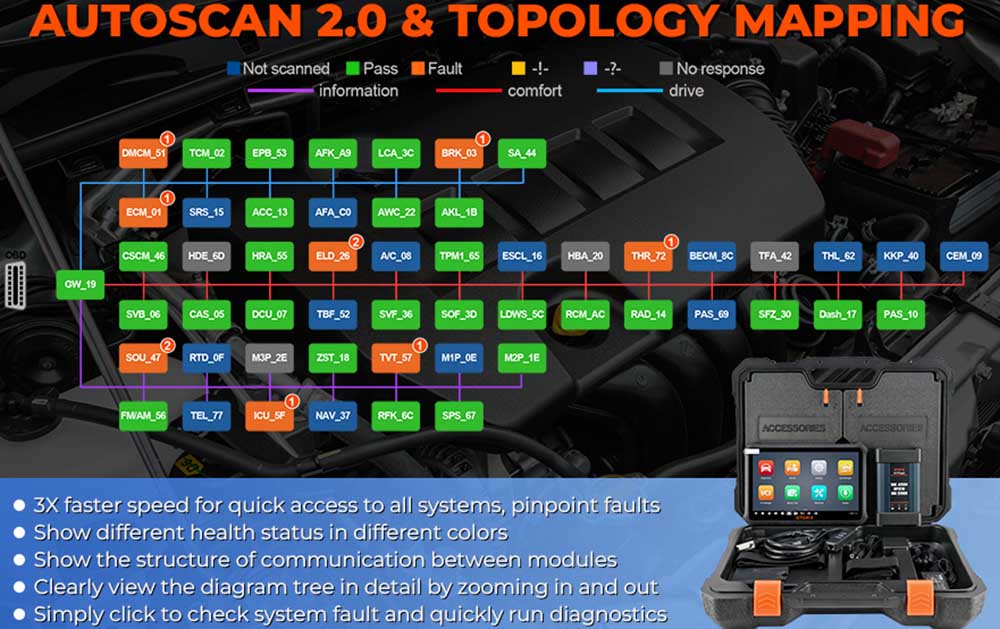

7. Topology Mapping Technology:

OTOFIX EvoScan Ultra scanner offers a visual representation of the elements within a communications network. It empowers you to:



1). Instantaneously get a glance of crucial information such as the number of systems, scanned systems, and corresponding scan results.



2). Directly access the current status of each module, including the presence and number of DTCs.



3). Filter out healthy and faulty systems with distinct colors for easy analysis.



4). Systematically present the communication structure between each module.



5). Zoom in and out to obtain a clear and detailed view of the system diagram tree.



6). Compatible with VW, Honda, Hyundai, Toyota, Land Rover, Peugeot, GM, Volvo, Benz.



8. VAG Guided Functions

If you're tired of searching for the right Security Access Code and Channel Number when working with Audi, Volkswagen, Skoda, Seat vehicles, look no further than this car diagnostic scanner's VAG Guided Function. This feature streamlines the process and provides step-by-step guidance for matching, calibration, and basic settings on VAG Group vehicles. Witht OTOFIX EvoScan Ultra OBD2 scanner, even beginners can easily navigate the process and get the job done right.



9. FCA AutoAuth

OTOFIX EvoScan Ultra adds FCA AutoAuth to connect FCA server and get authorized to diagnose your vehicles: for Chrysler, Jeep, Dodge, Fiat etc.(FCA after 2018). Please first tap”Update” icon to update version to V2.42.



Specific Update Steps get FCA AutoAuth: Account-Activation-Access!



1). Authorized OEM Access Account Registration;

2). Confirm Compatible Diagnostic Platform;

3). Immediate Authorized Secure Gateway Access. (Note: FCA AutoAuth only available for US, Canada,Mexico.)



10. IMMO Keys / Key Fob Programming

OTOFIX EvoScan Ultra car diagnostic tool has IMMO Keys function(Key Fob Programming). It can clear information of lost keys, key relearn and perform key fob/remote programming to add new keys for a family and perform key button tests to test key functions, so as to prevent your cars from being stolen.



Note:



This IMMO Keys function is mainly for vehicles that comes with low-grade anti-theft systems, not intended for Audi, Benz, BMW, VW and any other vehicles that has more advanced IMMO systems that involves disassembling of IMMO modules. To check compatibility, please refer to Q/A or message system.



11. Cloud Report Management

Save diagnostic reports to the OTOFIX cloud server and share them via QR codes, E-mails or text messages. Your customers can then access the reports on their own devices, and gain a better understanding of the current issues. Plus, with precise and accurate repair data, you can easily seek expert advice without any confusion or hassle. This is a pro-level feature only available on the most-advanced diagnostic scan tools for all vehicles.



12. Work with 3 Service Modules

OTOFIX EvoScan Ultra can work with optional endoscope Autel MaxiVideo MV105 & MV108, get free access to lots of narrow hard-to-reach areas like engine, fuel tank, braking system, etc., and have their crystal-clear images. You can also use it with Autel MaxiBAS BT506 to test and analyze the condition of a vehicle's 6V/12V battery, and perform diagnostic tests on the charging/starting systems. Note that all service modules are sold separately.



Advanced Hardware Features:



1. Mature and highly-refined Android 11.0 O.S. boasts of fast boot-up and multitasking.



2. The easy and self-explanatory interface displayed on the super-large 10.4", 2000*1200 touchscreen; get a stunning view of all data and scan results.



3. Faster analysis and expanded data storage: 4GB SSD and up to 128GB expansion.



4. Meet busy repair demands with a substantial battery capacity: 7250mAh lithium-polymer battery, 8+ hours continuous operation.



5. HD dual cameras capture every detail: read 8 Megapixel, Autofocus with Flashlight; front, 5 Megapixel.



6. Wi-Fi 5 wireless network offers simultaneous connection for faster diagnostics.



7. Easy and intuitive navigation makes finding what you need simple and fast.



8. The compact, durable design fits perfectly in your palms.



Top-Ranking Worldwide Car Coverage:



With its industry-leading database that covers more than 90% of vehicles from diverse brands and models, OTOFIX EvoScan Ultra is an excellent car diagnostic scanner for auto shops and professional mechanics. This car scanner diagnostic for all cars even covers luxury and super cars like Ferrari, Lamborghini, Maserati, and Aston Martin, making it a versatile diagnostic scanner that can handle a wide range of vehicles without requiring additional scan tools:



The wide vehicle coverage, with more regular software updating frequency released over 1 year ahead of competitors, and the fastest support for new vehicles.



Supports 80+ vehicle brands across the different countries on earth, with coverage for 10,000+ vehicle models that are made in 1996-2022 with OBD2 protocols (J1850 PWM, CAN, ISO9141, J1850 VPW, KWP2000)



OTOFIX V1 Flash supports diagnostic and communication protocol of CAN-FD & DoIP, compatible with new models from GM, BMW & Land Rover. No need to buy separate adapters.



Supports J2534, RP1210 and D-PDU protocols, working with OE-manufacture software to make factory-level settings and upgrades.



Different from snap on scanner, this car diagnostic scanner can be the licensed scan tool to get diagnostic access to FCA SGW-equipped cars: 2018-2023 Fiat, Chrysler, Alfa Romeo, Dodge, Jeep, etc.



And continuously updated to cover the latest year models.

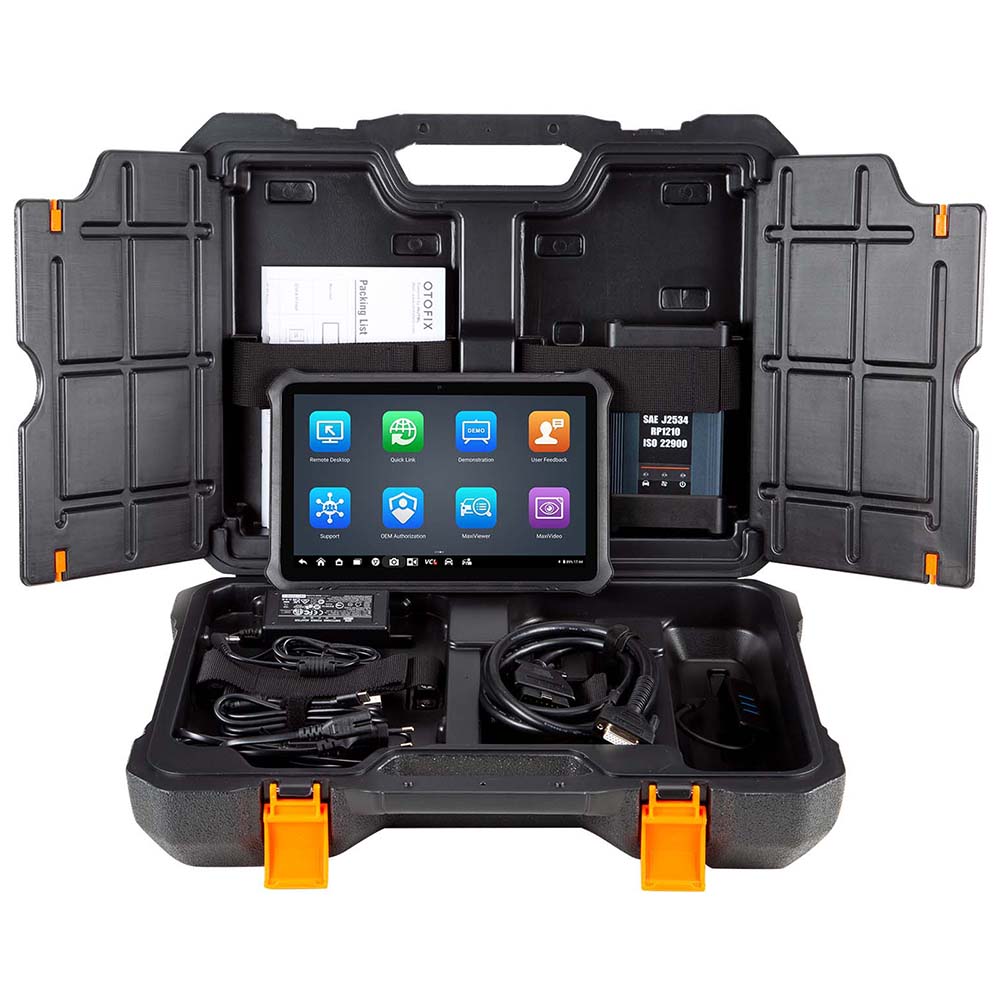

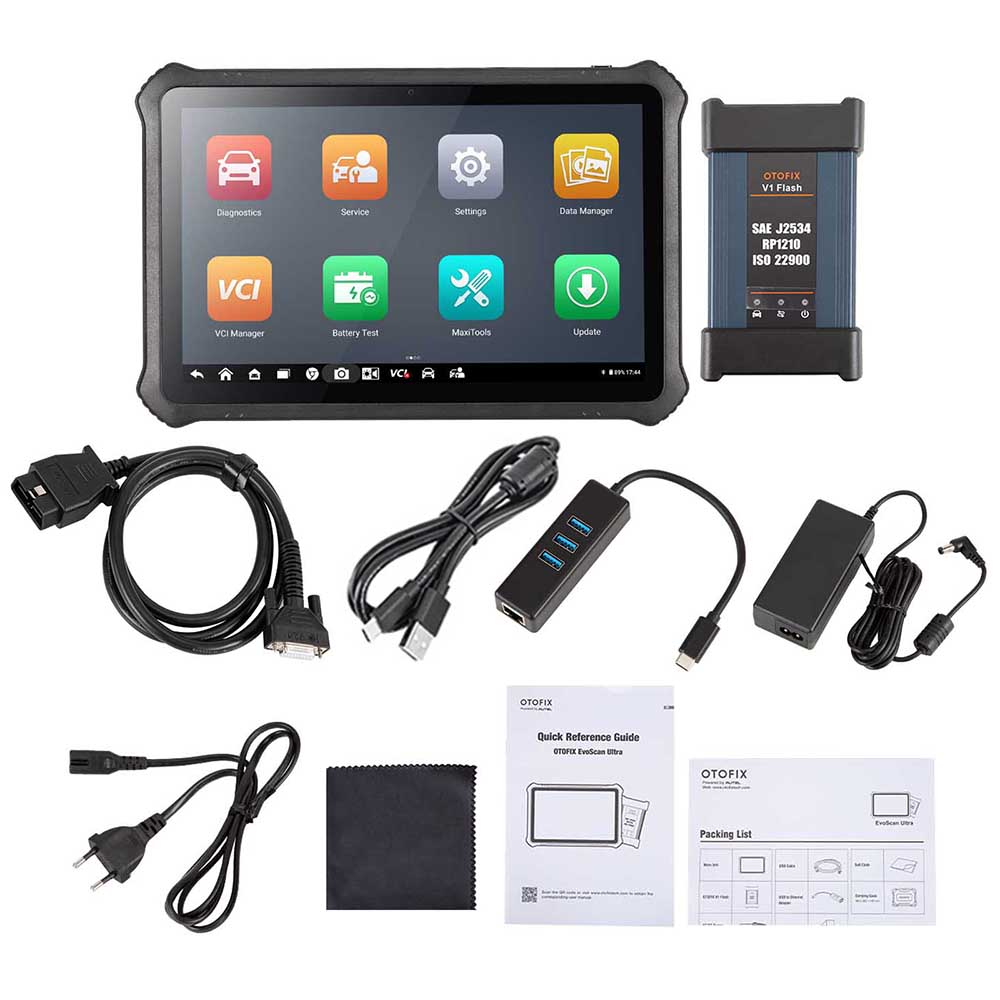

Packing List:

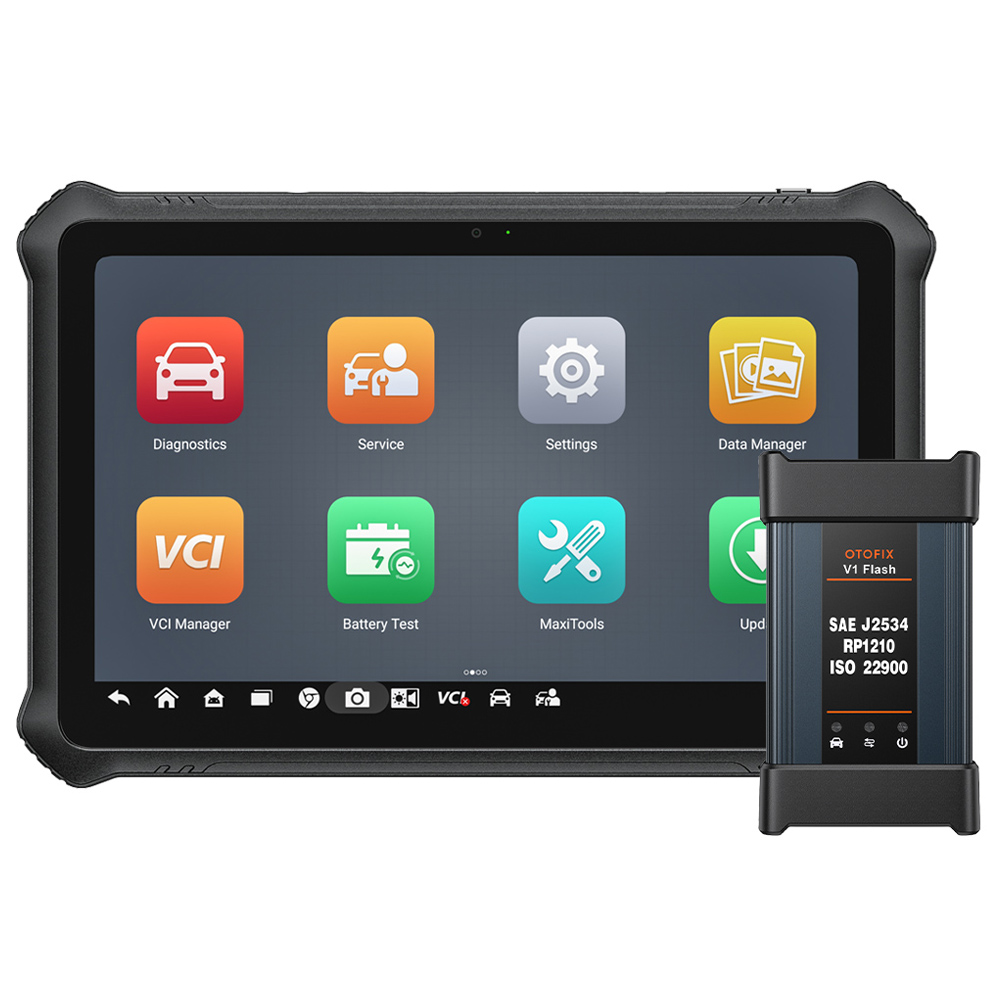

OTOFIX EvoScan Ultra Tablet Scanner

OTOFIX V1 Flash

Main Cable V2.0

USB Type-C Cable

USB to Ethernet Adapter

12V AC/DC Power Adapter

Soft Cloth

Quick Reference Guide

Packing List

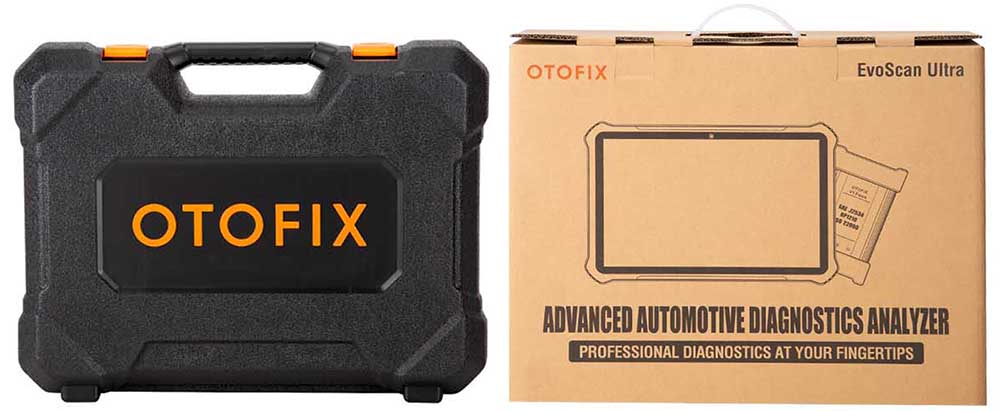

Plastic Toolbox

Packing Box
