Description:

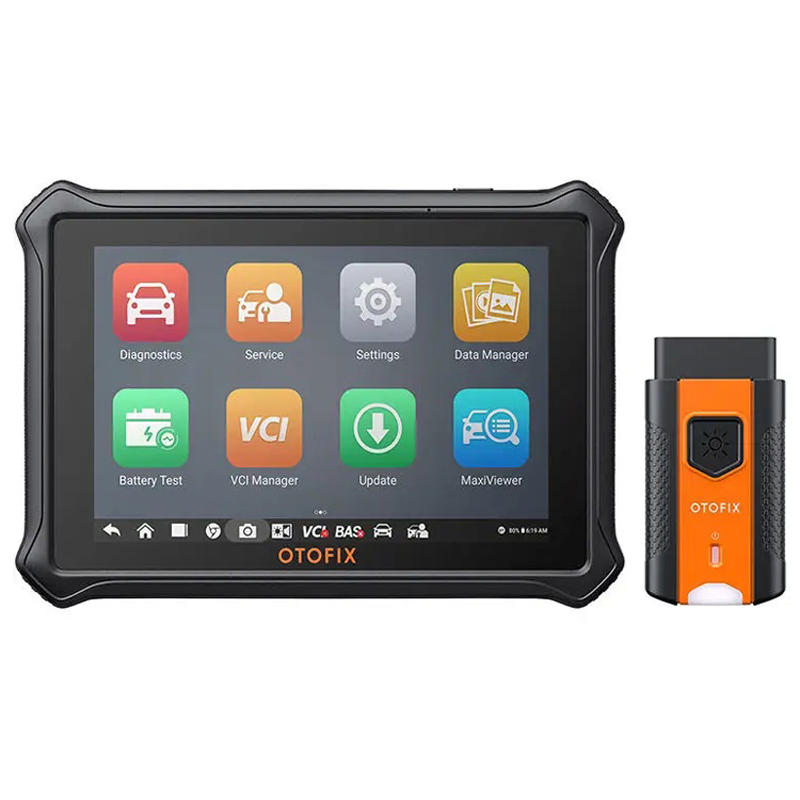

OTOFIX D1 Pro is a 10.1-inch touchscreen advanced bi-directional diagnostic tool that can do FCA Secure Gateway Access with AutoAuth subscription, Online Coding, Refresh Hidden Functions, and Guided Functions on supported vehicles.



With advanced diagnostic functions, 10000+ car models coverage, affordable budget, OTOFIX D1 PRO can be the top 1 cost-effective car scanner among professional diagnostic tools Powered by matured technology and fully updated CPU configuration & memory storage, this OTOFIX automotive scanner deeply checks every accessible vehicle system and runs 3x faster diagnostic speed than other scanners (via the updated V1 VCI ), without slow response and lagging.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Czech, Thai, Vietnamese, Indonesian, Cambodian, Japanese,  Korean



Software Update: 2 years free update online



Features:



1. ECU Coding:

Help to match the car with component control modules after replacing new ECUs. Online Coding for VW/Skoda/Peugeot/Citroen + Personalization for VW/Audi/Skoda + Offline Coding for 25 models.



2. 40+ Reset Services:

Serve for component reset/match/calibration and 99% of vehicle repair. Include Oil Reset, EPB Reset, TPMS Reset, BMS Reset, Brake Bleeding, IMMO, Injector Coding, SAS Reset, Sunroof, Throttle Matching, WIN DR ROOF, Seat Reset, Aftertreatment, Lang Change, etc.



3. Personalization:

Customize vehicle settings and activate high-end functions to improve vehicle safety or driving experience. Such as deactivating the auto start-stop, activating auto door locking/unlocking, disabling vehicle chimes, etc.



4. VAG Guided Functions:

Provide onscreen operation instruction for complex ECU coding, component matching and calibration.



5. All System Diagnostics:

Do full vehicle system check, Read Fault Codes, Clean DTCs, View Live Data, Read ECU Information, Freeze Frame, and turn off the annoying “check engine” light, etc.



6. Bi-Directional Control:

For quick problems location, you can widely apply OTOFIX scanner para autos to vehicle doors, windows, sunroof, wipers, headlights, radiator fans, etc.



7. Programmable Module Installation:

Relearn data to a new module and introduce it to the car system. Compatible with Ford, Mazda, etc.



8. New CAN FD/DoIP Protocol:

V1 VCI is compliant with CANFD (for GM models) and DoIP (for BMW/Land Rover/Benz/Volvo/GM/VW/Audi) that automatically identifies vehicle information and accelerate data transmission. OTOFIX D1 PRO gives you a wider range of model support.



9. Auto Scan 2.0:

Automatically identify the vehicle and scan all systems to get accurate diagnostics in seconds once connecting VCI with the vehicle , without manually inputting the VIN, improving 3 times faster efficiency. Compatible with VW, Audi, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Nissan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc



10. Cloud Report Management:

All the diagnostic reports can be well-managed via a cloud server and don’t take up extra memory space. It can be shared by mail, message, and QR code to customers.



11. FCA SGW Vehicle Access & Renault Security Gateway Function:

Allow you to secure visit FCA vehicles (for Fiat, Chrysler, Dodge, and Alfa Romeo 2017 later) & Renault models (Renault software needs to upgrade to V2.0 version) and skip the gateway limitation.



12. Wider Vehicle Coverage:

Work well on 150+ car makes and 10000+ models worldwide (from 1996 to 2023), including the FCA vehicles (Fiat, Chrysler, Dodge, Alfa Romeo, etc.) after 2018 and Renault models.



Functions:



1. Advanced ECU Coding - Customize the Vehicle Settings

More and more vehicle repairs are involved in electric module replacement or changing codes to improve vehicle behaviors, within the vehicle system, such as the engine, transmission, brakes, and suspension. However, only expensive car scanners with coding/programming capability can solve ECU-related issues.



OTOFIX D1 PRO automatic scan tool comes with advanced ECU Coding functions, Online Coding, Personalization, Programmable Module Installation (for Ford), etc., and performs the same repair as high-end diagnostic scanners.



1). ECU Online Coding:

No need for manually input code, OTOFIX D1 PRO scanner can connect to the online server to automatically get/reprogram the code after replacing a new ECU module. Compatible with VW, Skoda, Peugeot, Citroen, DS, etc.



2). ECU Offline Coding:

OTOFIX D1 PRO car scanner helps technicians to read the code from the original modules and match/reset/relearn the newly replaced ECU modules for 25+ models, such as Subaru, Land Rover, Jaguar, Peugeot, Citroen, DS, VW, Audi, Skoda, VW CV, Bentley, Bugatti, Lamborghini, Man LD, Seat, LT3, Opel, Vauxhall, Mitsubishi, Porsche, etc.



3). Personalization/Flash Hidden Functions:

Maximizing the vehicle owners’ preferences and customizing the vehicle’s pre-programmed settings as needed. This OTOFIX scan tool won’t change the software and only help to activate high-end functions or disable some unneeded functions for Au-di, VW, Skoda models. Such as deactivating the auto start/stop, mirrors automatic folding and unfolding, activating daytime running lights, etc.



Note:



ECU Coding is NOT universally compatible with all vehicles, and varies by make, model, and year.



2. 40+ Maintenance Functions

OTOFIX D1 PRO is a professional diagnostic tool for almost 99% of vehicle models, including passenger cars, SUVs, Sedans, and Pickups, which supports 40+ maintenance functions for all common repair needs. The vehicle model coverage (from 1996-2023) and diagnostic accuracy have gone far beyond other brand auto scanners. The high-frequency updating also leads you to act high-speed diagnostic way and get the new software data.



Oil Reset: Reset the oil life system and turn off the oil light to start a new cycle.



EPB Reset: Reset the calipers, brake discs or pads after replacing the electronic parking brake system.



TPMS Reset: Reset the tire pressure system and turn off the MIL light.



BMS Reset: Re-match the battery control module and motoring sensor.



Brake Bleeding: Help empty the air after changing the brake pad, brake pad sensor, brake pump, ABS pump, etc.



IMMO Reset: Disable the lost k~eys and add new k~eys & remote control for vehicles with low-grade anti-theft systems.



Injector Coding: Code the in~jector after replacing or adjusting it to correct the fu~el injection volume of each cylinder more accurately.



Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.



Sunroof Reset: Reset sunroof lo~cking & closing, closing on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.



Throttle Matching: Initialize the throttle actuators to the default situation.



Windows Calibration: Perform door window matching to recover ECU original mode.

Seat Calibration: Calibrate the memory in replaced or repaired seats.



Lang Change: Change the instrument displaying language.



Headlamp: Initialize the adaptive headlamp system.



CHG Tire Size: Reset the tire system after retrofitting the tire with different sizes.



Speed & PTO: Set the vehicle’s highest speed and power.



Clutch Reset, Trans Adaptation, Airbag Reset, VIN, FRM Reset, Transport Mode, Rain/Light Sensor, ABSSRS, Cylinder, VGT Learn, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, HV Battery, ACC, AC...



Note: Available functions vary by model, make, year, etc.

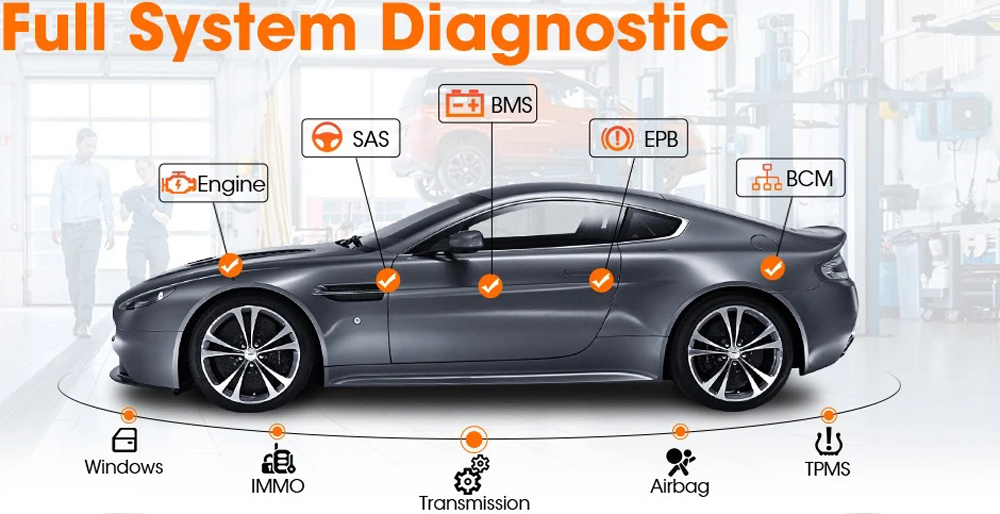

3. All System Diagnostics

OTOFIX D1 PRO is a new generation of full system diagnostic scanner. It supports Reading Codes, Viewing Live Data, Checking ECU Version Information, Clearing Faulty Codes, etc., which can not check Engine, Transmission, ABS, SRS, Throttle, TPMS, Battery, IMMO system, but also detect all parts of the vehicle ECU. Other diagnostic tools only work on the specific brand vehicle. OTOFIX D1 PRO can serve VW, Audi, Skoda, Renault, Hyundai, Volvo, Ford, Benz, etc.



4. Bi-Directional Control

OTOFIX D1 PRO is a bi-directional scan tool featuring various active tests that can send commands to check vehicle system is in good condition or not. Bi-directional control brings you an effective diagnostics to locate vehicle problems within 10 minutes. It can work on most ECUs such as windows, doors, wipers, headlamps, rear lights, actuators, pumps, valves etc., and operate compression test, door locking test, sound horn test, etc., saving you more time and cost.



5. VAG Guided Functions

Designed for VAG vehicles (for Audi, VW, Skoda, Seat, Porsche, etc), guided functions can skip over the security access/channel number to reduce the vehicle authority limitation and ease your diagnostics process. This scanner for all cars also provides OE-level tips & step-by-step instructions for reference and simplifies complicated diagnostics.



6. Auto Scan 2.0

Once you upgrade the VCI to the newest version, Auto Scan 2.0 empowers OTOFIX D1 PRO car diagnostic scanner to automatically identify vehicle information, get VIN code, and quickly operate all-system full-function diagnostics with 3x faster speed, without any manual selecting & inputting. Compatible with CAN vehicles, VW, Audi, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Nissan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, Mini, etc.



7. Programmable Module Installation

Program data to a new module and introduce it to the car system. Compatible with Ford, Mazda, etc.



8. Online IMMO

Read online PIN codes for Au-di, VW, etc.



9. Access to FCA Vehicles & Renault Models

OTOFIX D1 PRO automotive scanner provides access to secure visit FCA vehicles (for Fiat, Chrysler, Dodge, and Alfa Romeo 2017 later) & Renault models in North American Regions (USA, Canada, Mexico). It empowers you to perform diagnostic functions without restriction like bi-directional tests, clearing fault codes, calibrations, etc.



10. New Pre-Post Scanning

Pro-Post Scanning will clearly record the vehicle status before and after the diagnostics, which can facilitate the mechanic to know the problems and develop a suitable repair plan, and also let the customer know the repair project and cost. The Pre & Post reports can be saved, printed, or mailed to the customers.



11. Cloud Report Management

All the diagnostic reports can be stored in the Cloud Server and save your tablet storage space. Once you need to print or share these reports (by QR code, sending a message, and sending mails.), just download them from the cloud server and connect the PC and printer for paper archive or analysis.

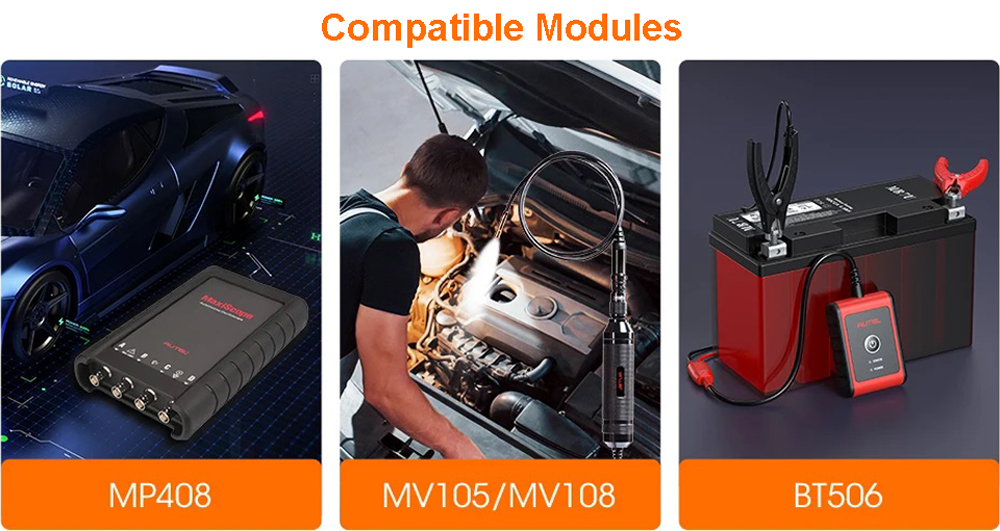

12. Support Add-on Modules

OTOFIX D1 PRO car scan tool extends diagnostic capacity by working with a Videoscope Autel MaxiVideo MV105/MV108 & OTOFIX BT1 Lite Battery Tester. The more checks for narrow crevices & vehicle batteries, the more accurate the diagnostic results and the easier the problems are solved. (Note: The add-on tools are sold separately.)

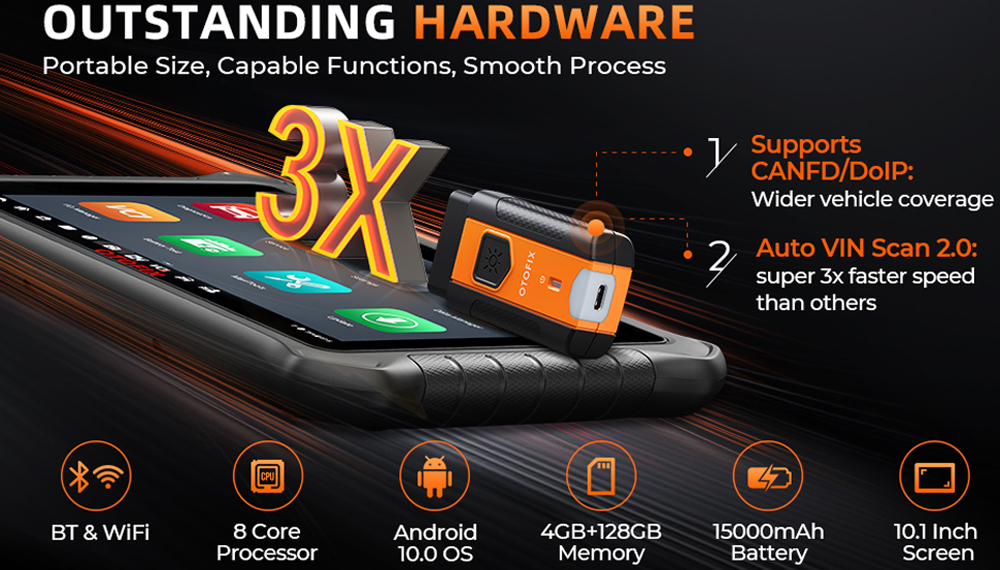

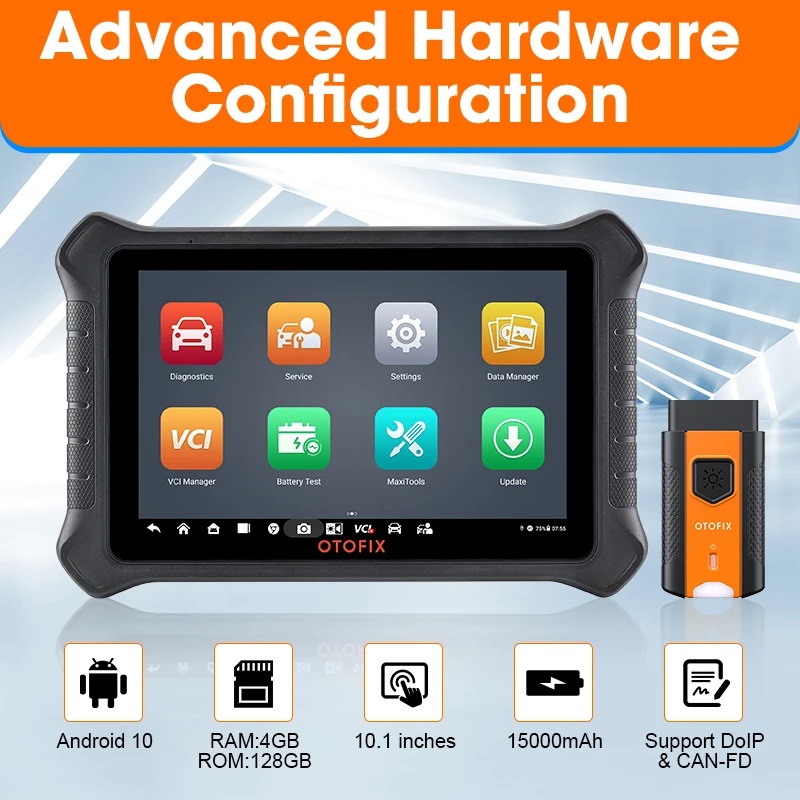

Outstanding Hardware Configuration:



1. Personalized Appearance Design:

Light weight & portable size is molded to fit comfortably flexible movement in/out of the car.



2. Core Processor & Android 10.0 OS:

Process multi-tasks quickly and smoothly.



3. HD 10.1-Inch Screen:

Large touchscreen with 1920*1200 resolution offers a clearer view and smooth operation experience.



4. 15000mAh Battery:

One full charge works comfortably for a long-lasting use period of over 15 hours.



5. Bigger 4GB+128GB Memory:

Extended memory capacity (from 64GB to 128GB) allows you to save all diagnostic reports and resources without caring for narrow storage.



6. BT & WiFi Connection:

Establish more stable communication with the vehicles to perform diagnostics.



7. V1 VCI:

Featuring new Auto Scan 2.0 that runs automatic vehicle identification and 3 times faster system diagnostics. Plug to communicate with vehicles, no more need for extra adapters. Compatible with BMW, Mercedes-Benz, VW, GM, Ford, Chrysler, Nissan, Hyundai, Kia, Renault, PSA, etc.



8. CAN FD & DoIP:

Compatible with DoIP & CAN FD protocols, OTOFIX D1 PRO diagnostic scan tool can run faster speed data transfer and diagnostics, which can serve more models like BMW, Land Rover, Mercedes-Benz, Volvo, VW, etc.



Supported Protocols:



ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-Speed/Middle-Speed/Low-Speed/Single-Wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN



Specifications:



Processor: Qualcomm 660 octa-core processor (1.8GHz quadcore processor A53 + 2.2GHz quad-core processor A73)

RAM: 4GB

Storage: 128 GB

Display: 10.1-inch capacitive touch screen TFT-LED with 1920*1200p resolution

Connectivity: Wi-Fi (802.11 a/b/g/n/ac) / USB 2.0 / Bluetooth V2.1 + EDR / HDMI

Power and Battery: 15,000mAh / 3.7 V lithium-polymer battery charging via 12V AC/DC power supply

Input Voltage: 12 V

Power Consumption: 6.5 W

Operating Temperature: 0 to 50 degree centigrade

Storage Temperature : -10 to 60 degree centigrade

Dimensions (W*H*D) 300*220*50mm

Net Weight: 1.24Kg

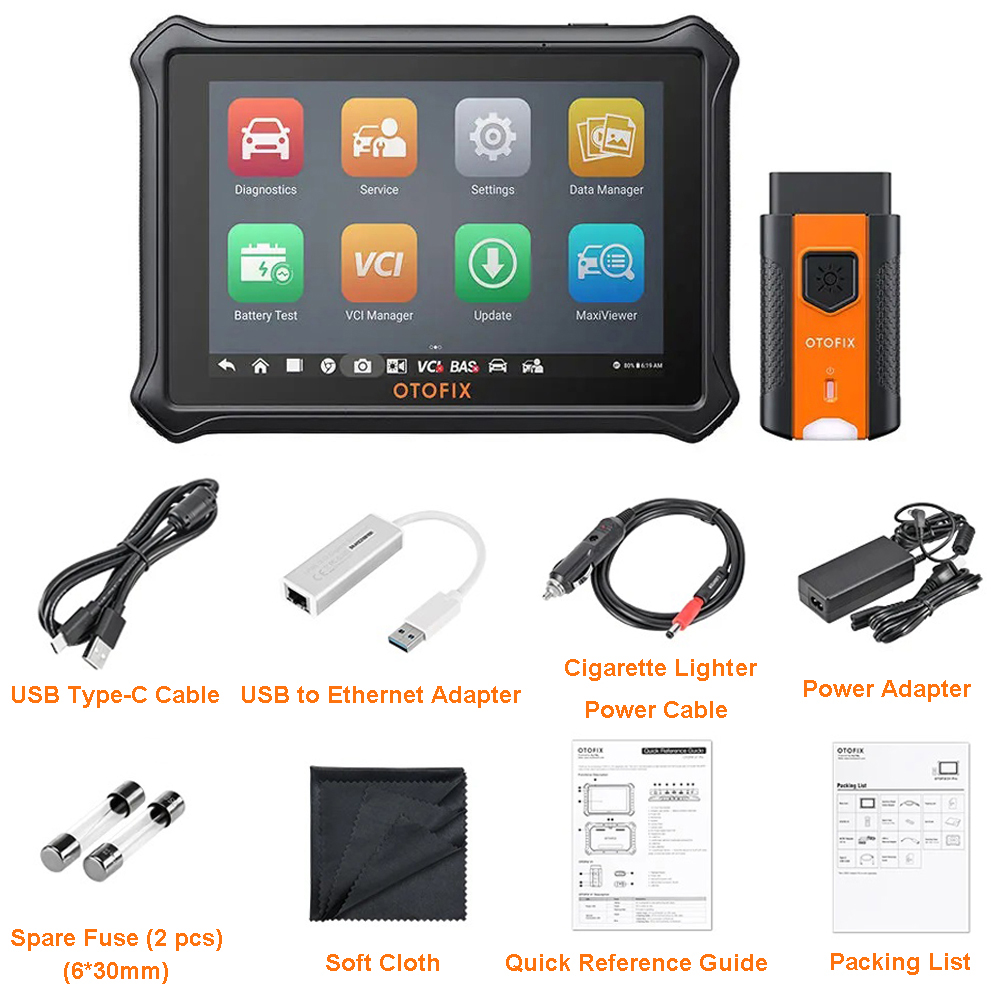

Packing List:



OTOFIX D1 Pro

V1 VCI

Type C USB Cable

USB to Ethernet Adapter

Cigarette Lighter Power Cable

Power Adapter

6*30mm Fuse (2 pcs)

Soft Cloth

Quick Reference Guide

Packing List

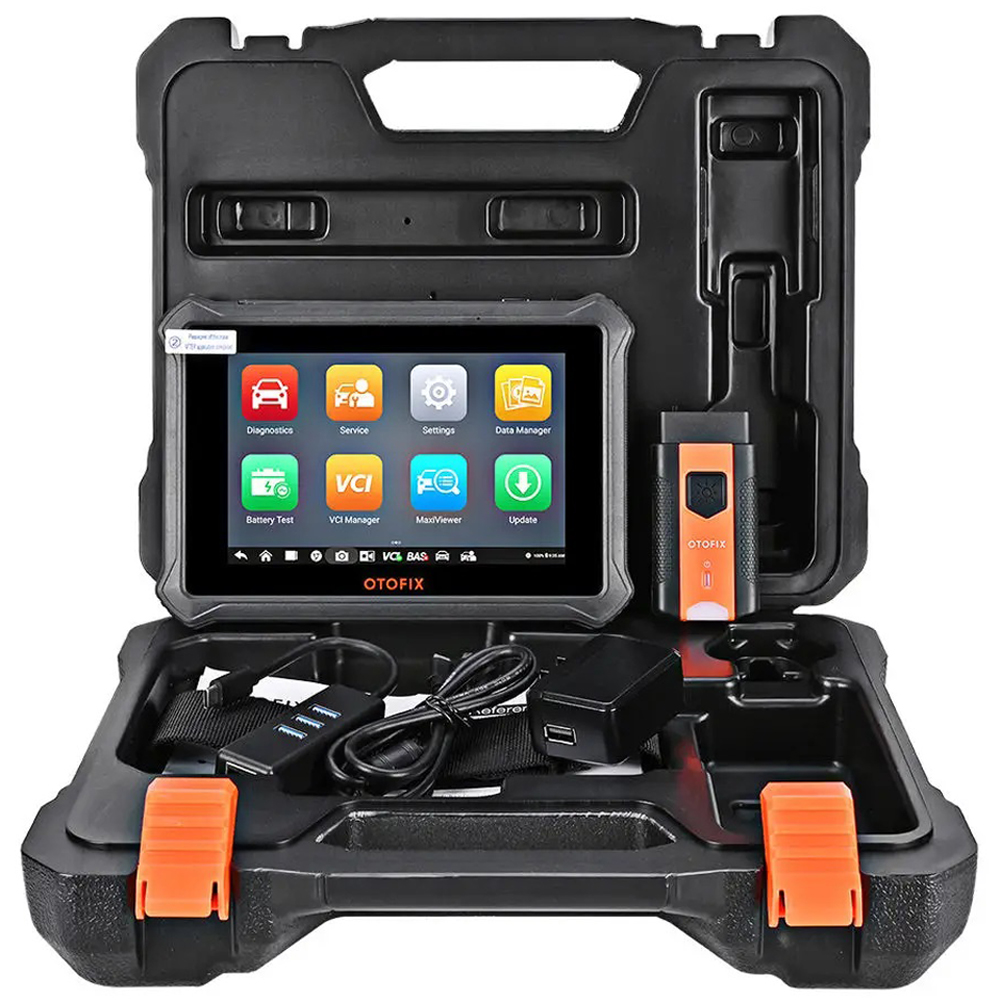

Plastic Toolbox

Packing Box
