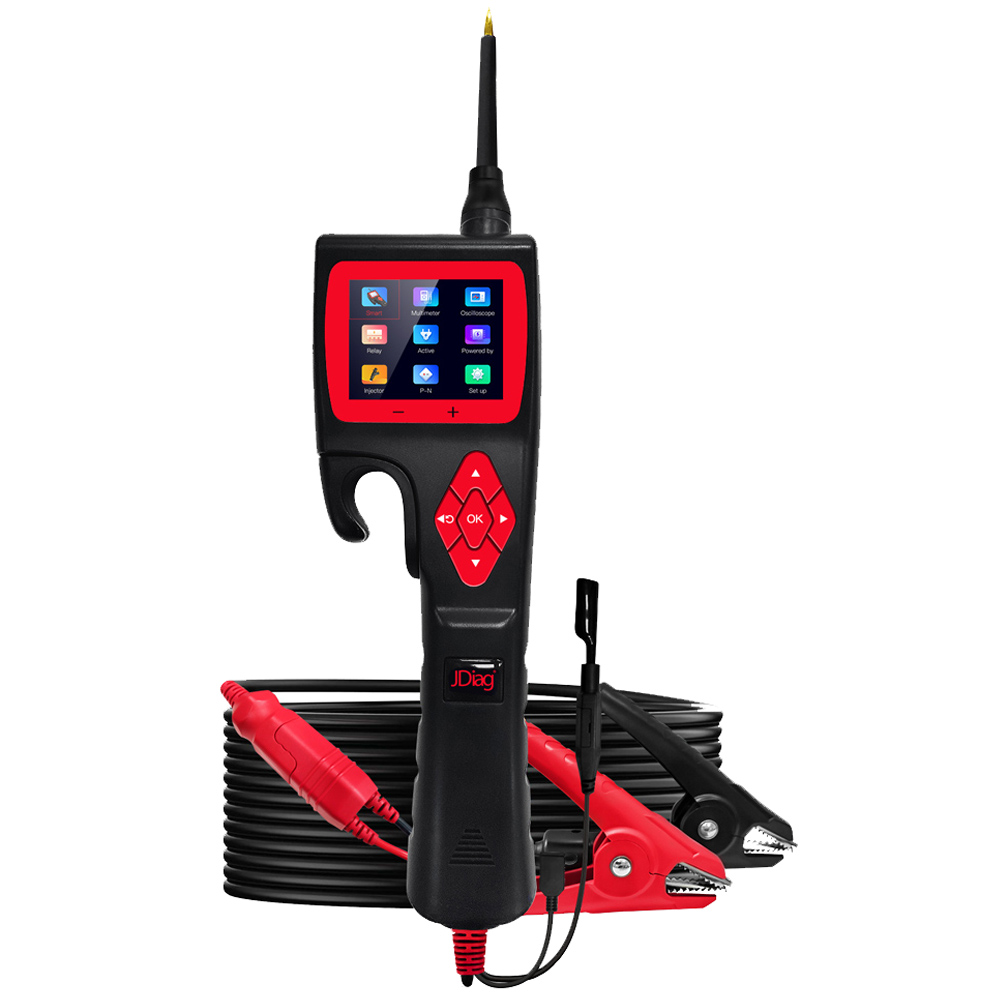

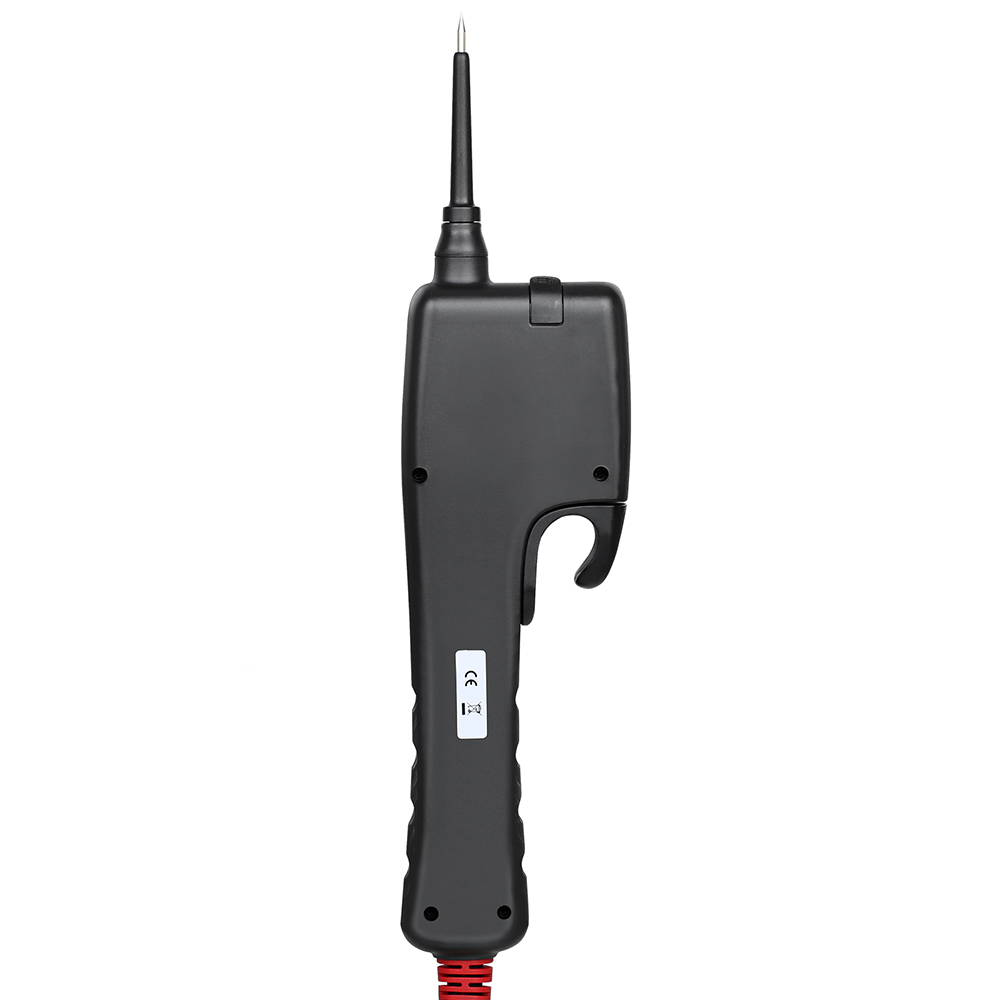

Name: JDIAG P200 Smart Hook Powerful Probe
Description:
JDIAG P200 Smart Hook Powerful Probe is the new generation of intelligent circuit analyzer. It is the only circuit tester that can be upgraded in the market.
TopDiag P200 Smart Hook Intelligent Electrical System Circuit Tester can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!

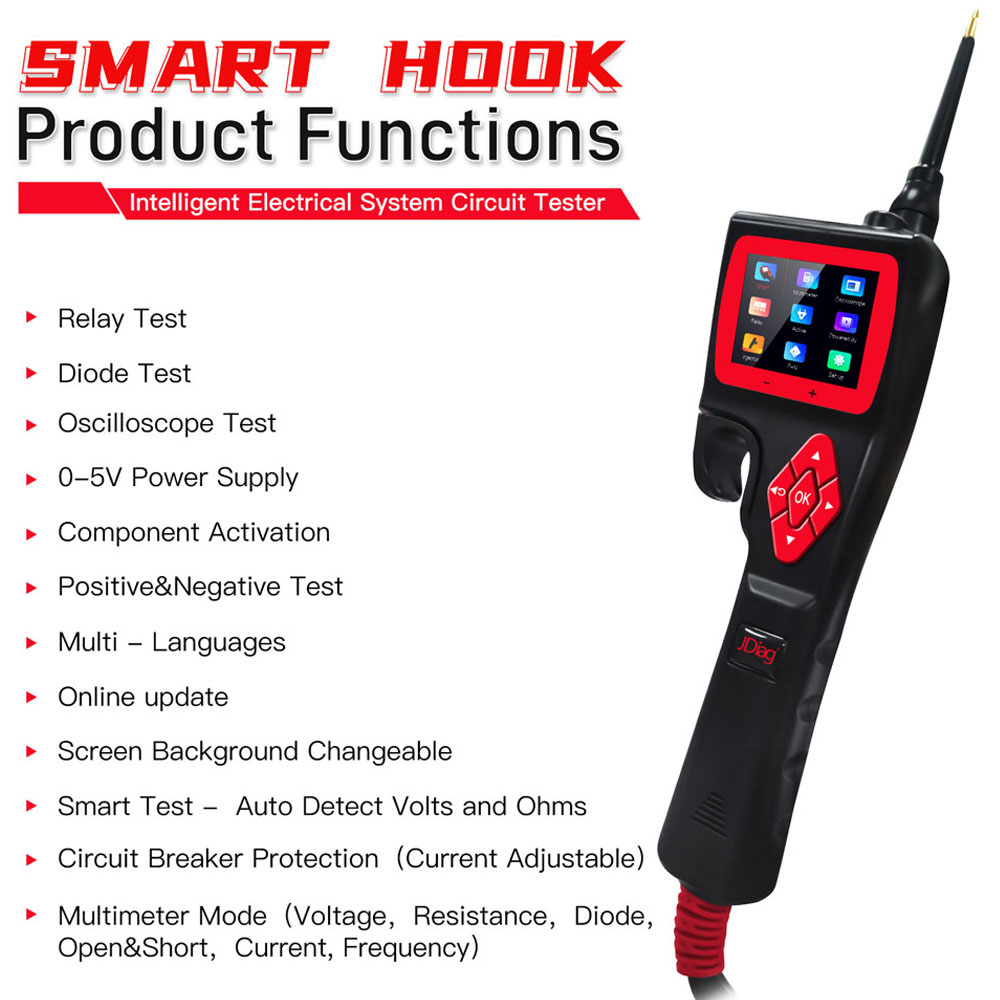

Features:
1. Intelligent identification of voltage/resistance

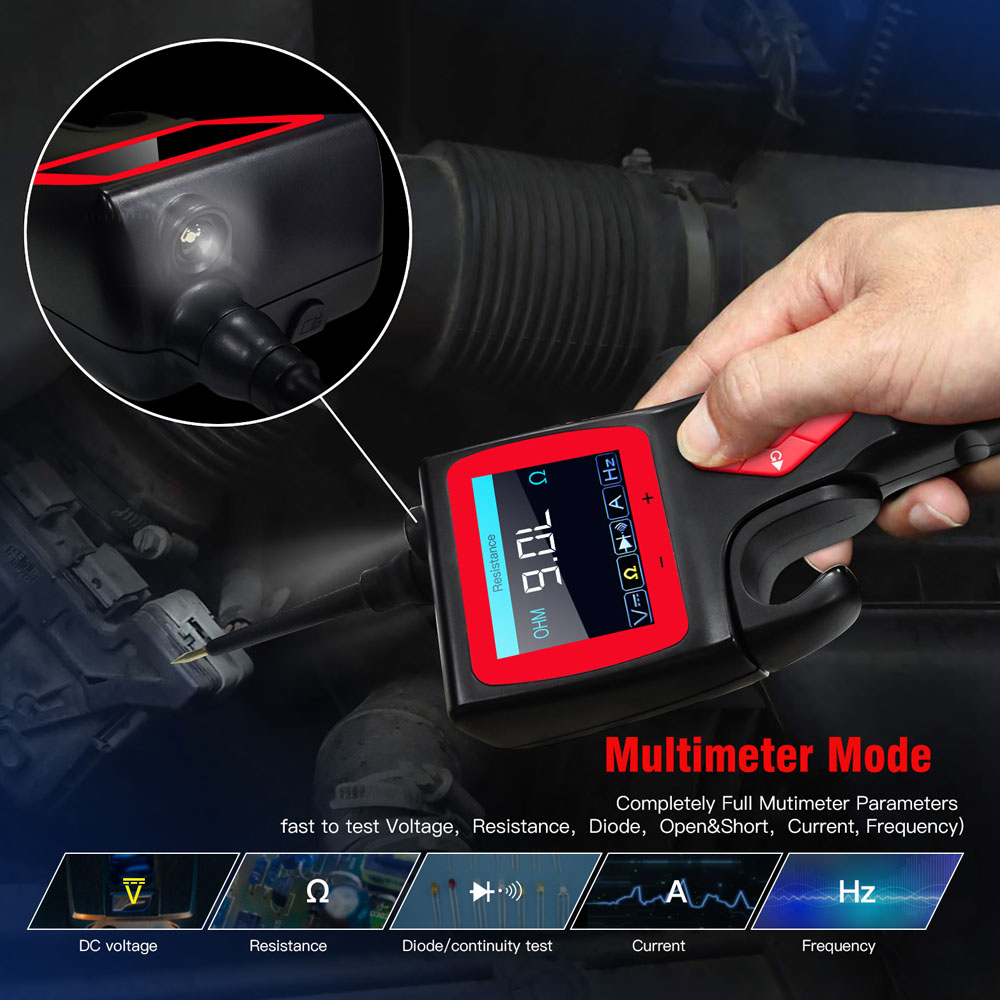

2. Multimeter mode (Measures voltage, resistance, diode, continuity, current and frequency.)
3. Relay test
4. Injector test
5. Diode test

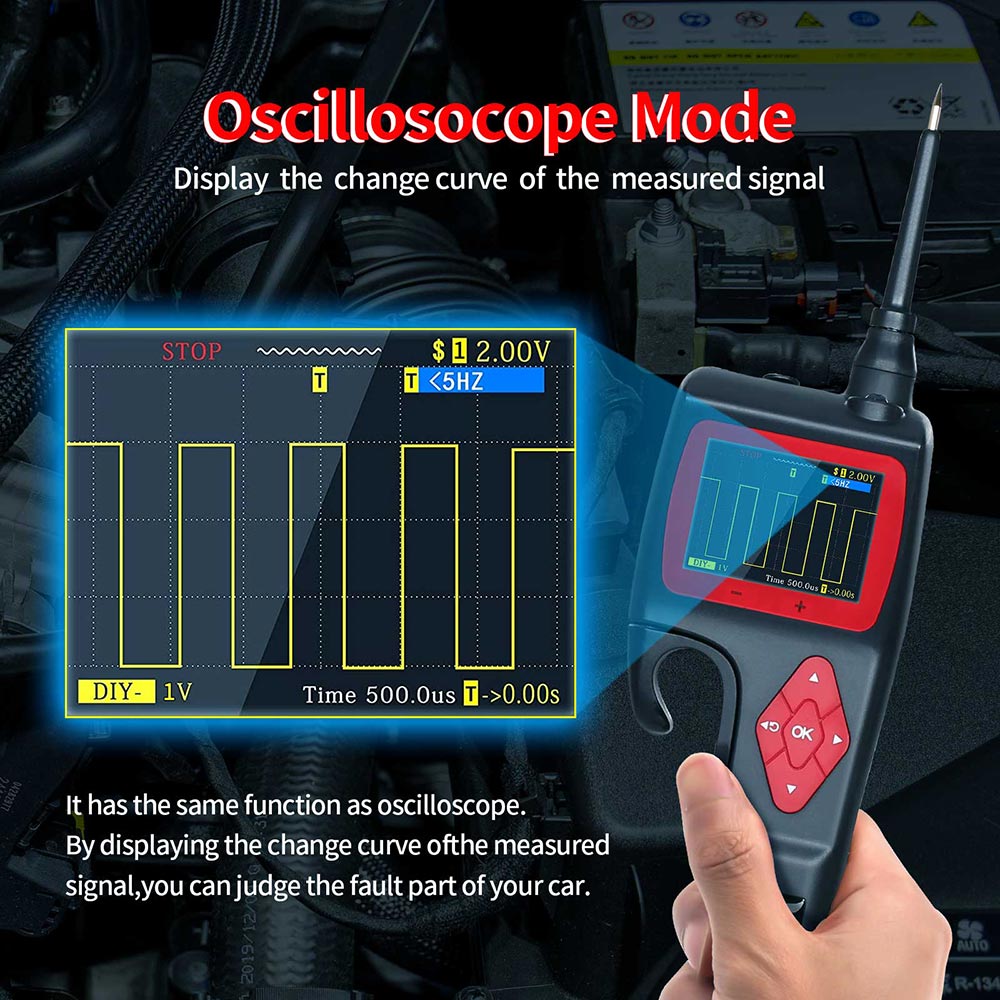

6. Oscilloscope function
7. 0-5V adjustable power supply
8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. It can be upgraded online
13. Built-in multi-lingual settings
Specifications:

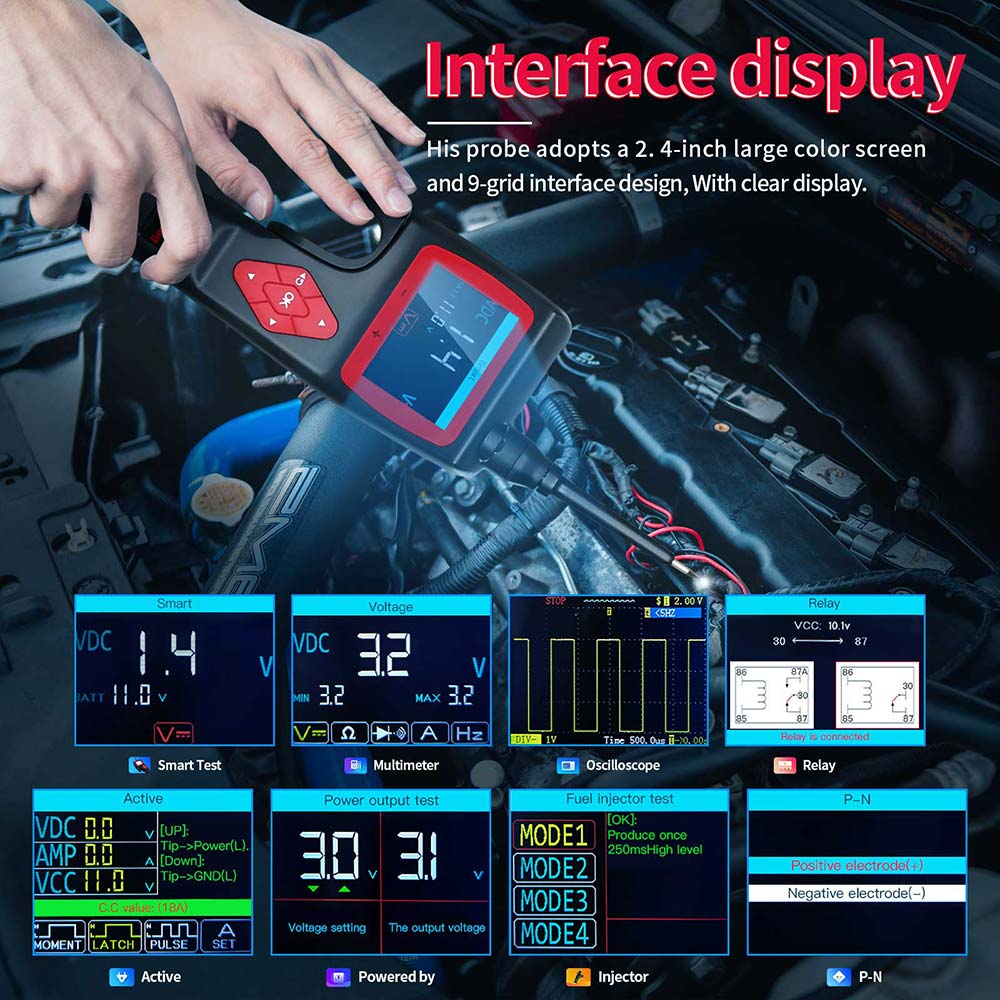

Display: 320*240 DPI TFT true color display
Working Temperature: 0-60 degree centigrade
Storage Temperature: 40-70 degree centigrade
External Power Supply: 12V or 24V powered by battery
Maximum Measuring Voltage: 150V
Minimum Measuring Voltage: 0.1V
Current Measuring Range: 0 to 18A
Maximum Continuous Current: 18A
Resistance Measurement Range: 1ohm to 200K ohm
Minimum Working Voltage: 9V
Maximum Working Voltage: 30V

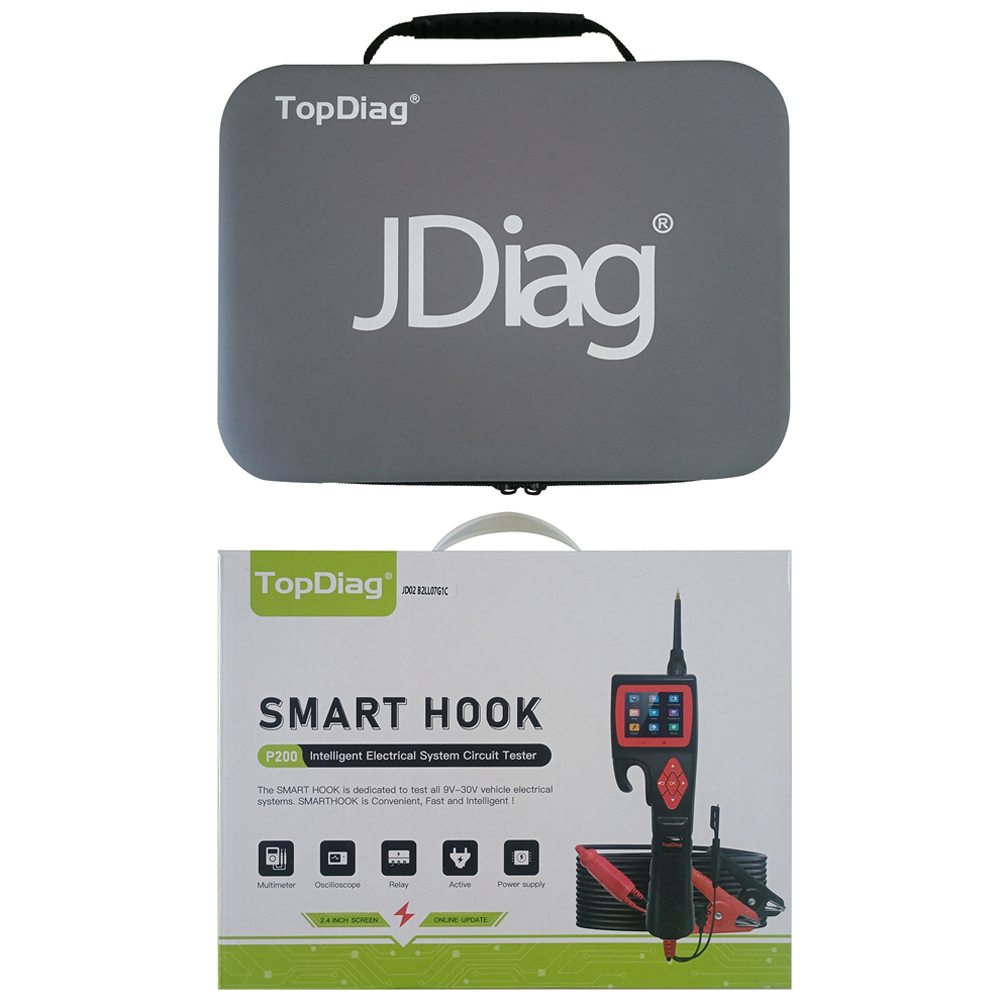

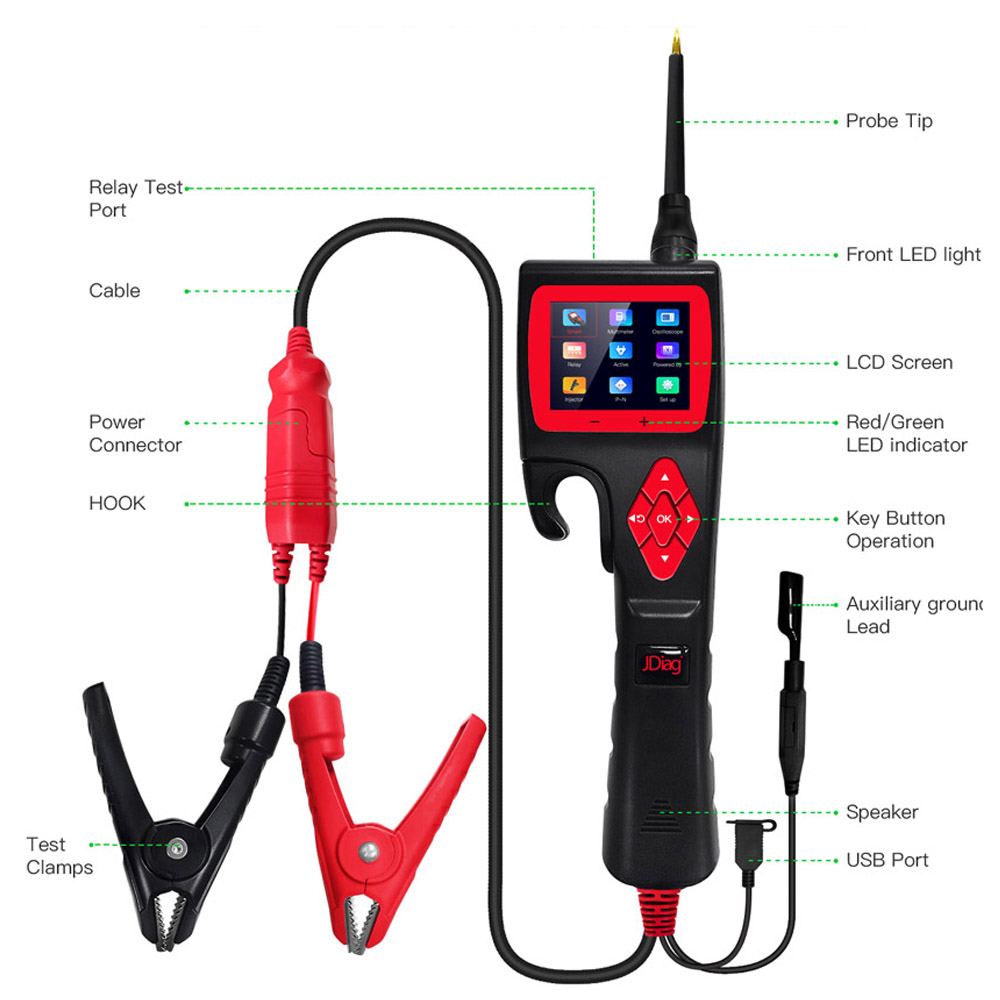

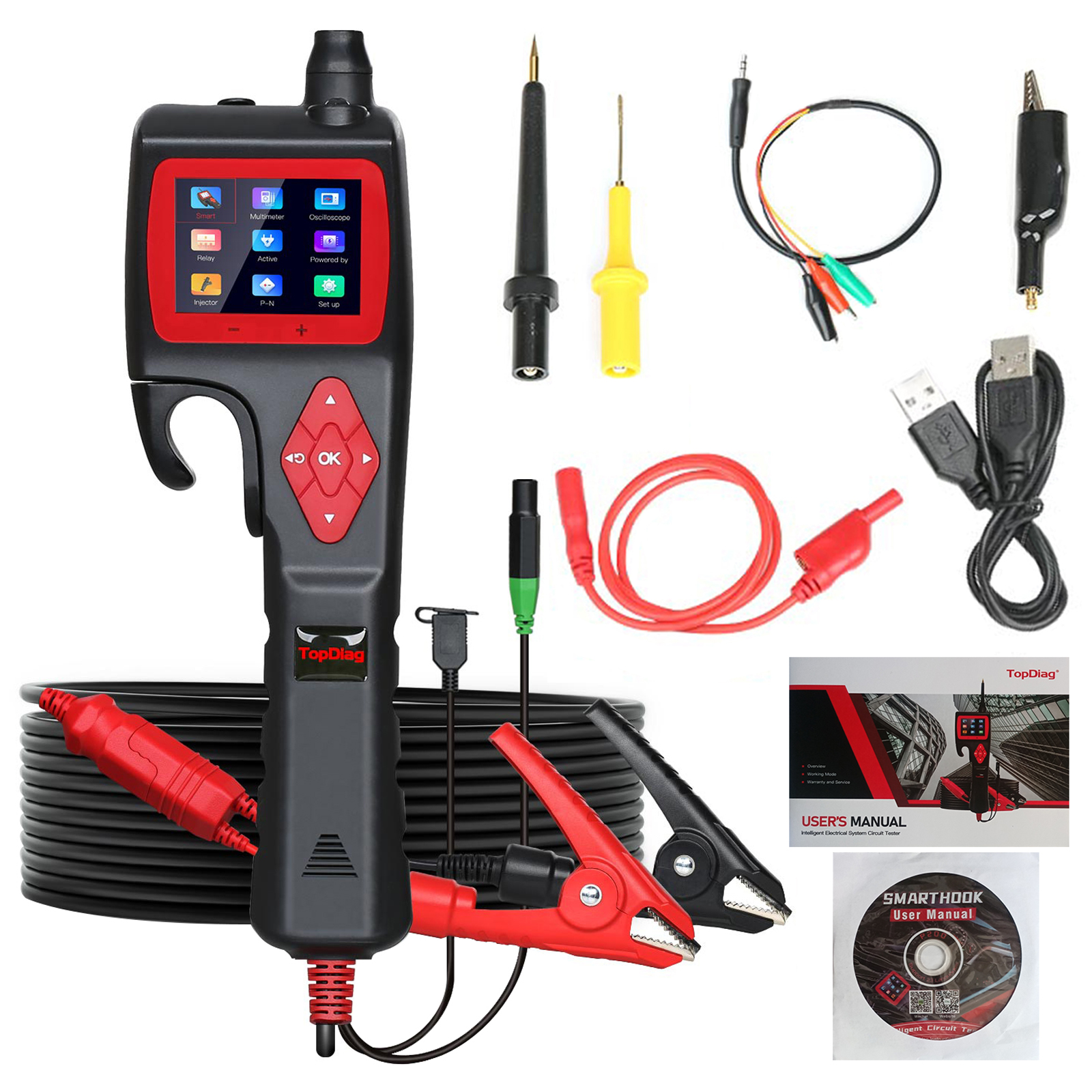

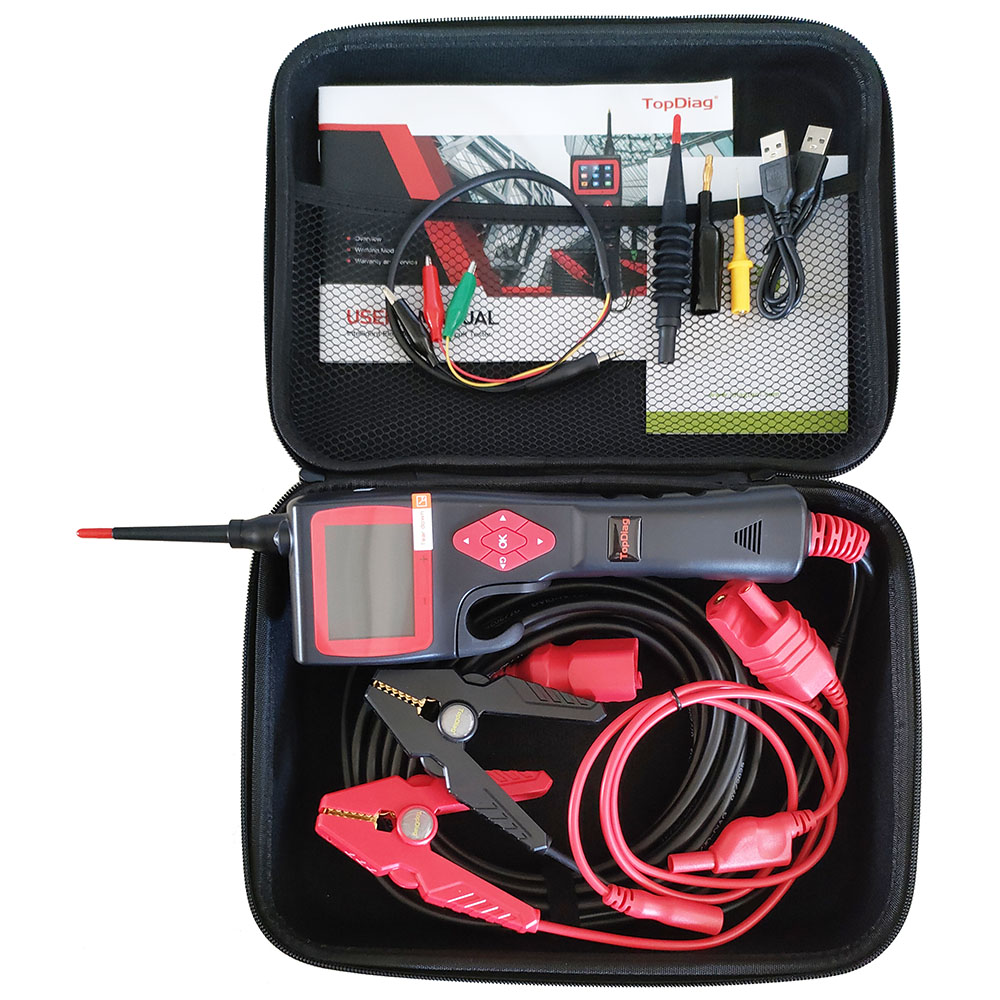

Packing List:
TopDiag P200 Smart Hook Powerful Probe
Solid Copper Test Probe Tip
Extension Connection Cable
Alligator Battery Clip
Relay Test Line
Probe Adapter
USB Cable
User Manual

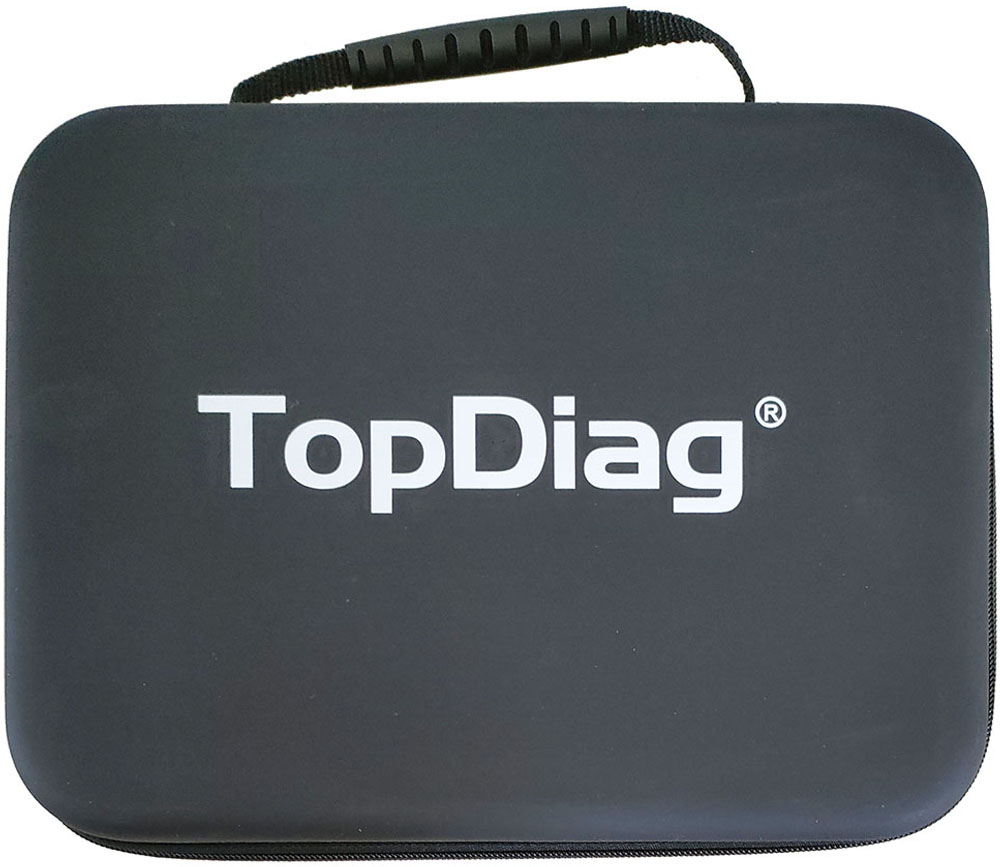

Carrying Pouch

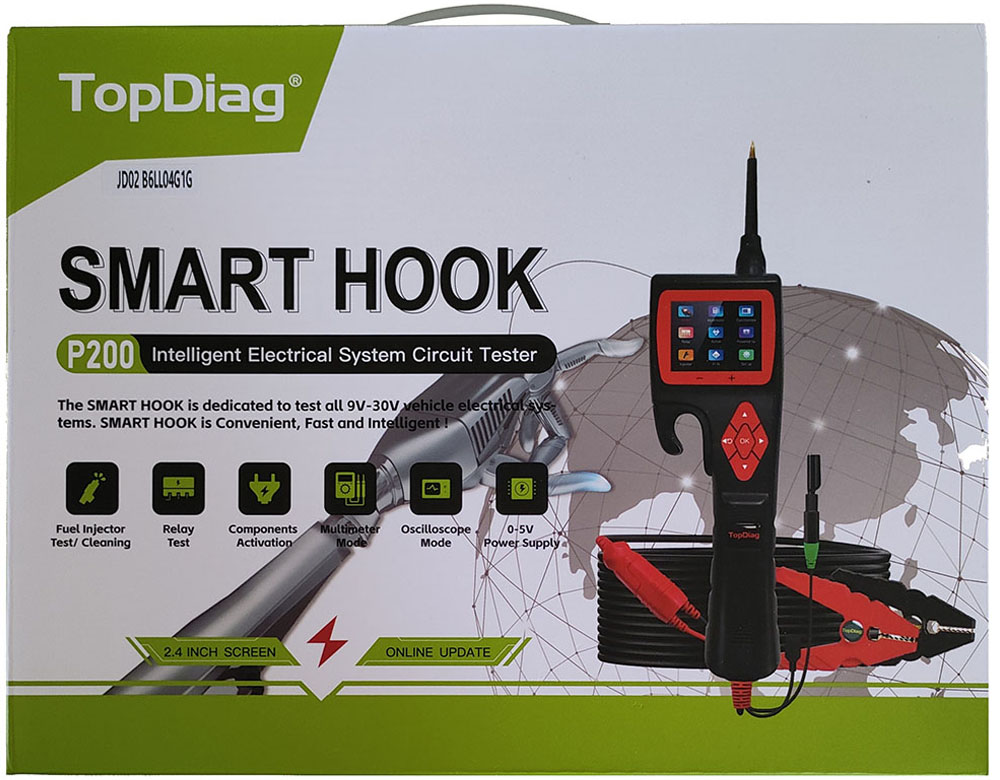

Packing Box
|
