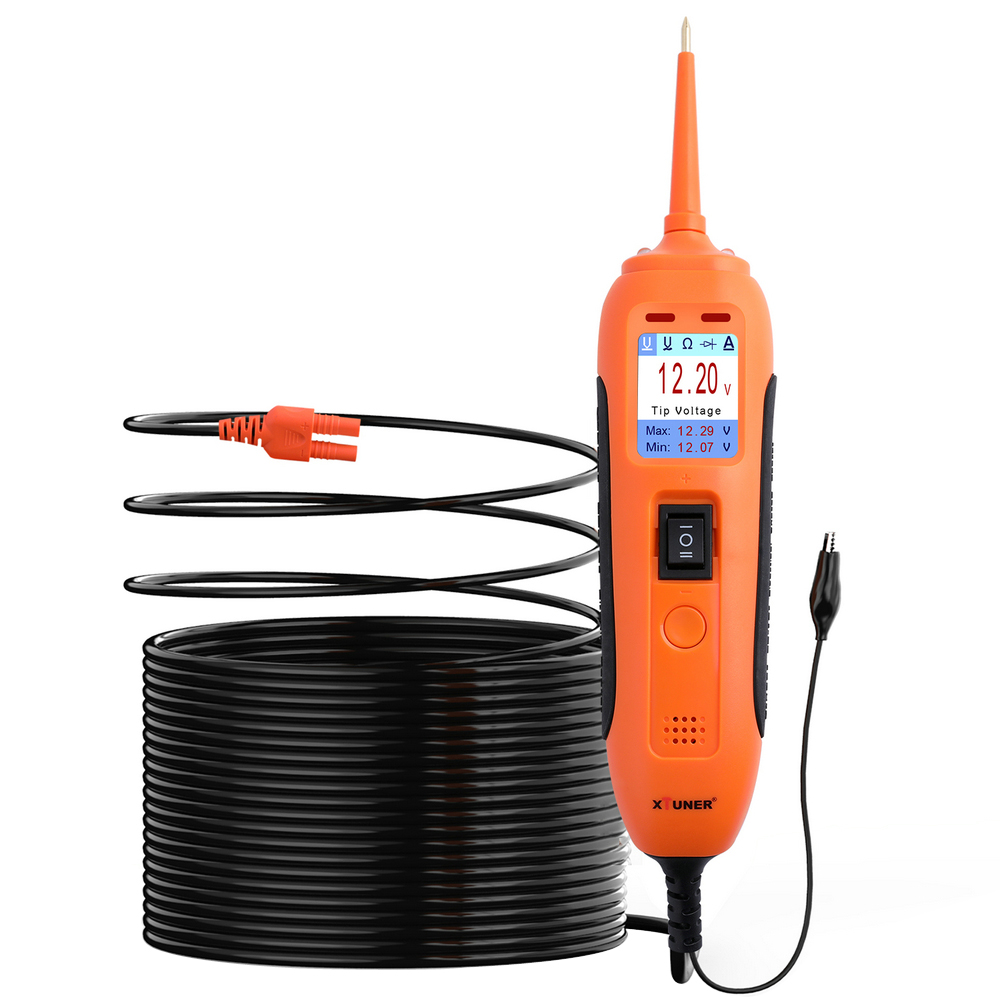

Name: XTUNER PT101 Circuits Tester
Description:
XTUNER PT101 Circuit Tester works as an AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator. It provides great simplicity for users to check circuitry condition.
Features:
Protection design for safety
Read results on the LCD screen
Read results on the LCD screen
Circuit tester with multi-function
Four diagnostic modes for 12V / 24V
Support multiple vehicles and after-sales warranty
Large and colorful LCD screen, easy to navigate the user menu
Supply power and ground for functional component test
AC-RMS, AC Peak to peak, frequency and pulse width for signal test
Digital voltmeter with min/max voltage capturing
Displays up to 60 volts and resolution of 0.01 volt
8 amp circuit breaker protection, automatically reset, no button to push
20 foot power lead and extra 20FT extension cable
Ergonomic housing design with rugged and water resistant specification
Parameters:
DC Voltage Range: 0 to 40V
Resistance Range: 0 Ohms to IM Ohms
Rating Current: 1-8 amp
Frequency Response of Tone: 40Hz to 20KHz
Test Standard: -100% current: Hold > I hour
-500% current: trip in one hour
-200% current: trip in 3 - 30 seconds
-300% current: trip in 0.5 - 4.0 seconds

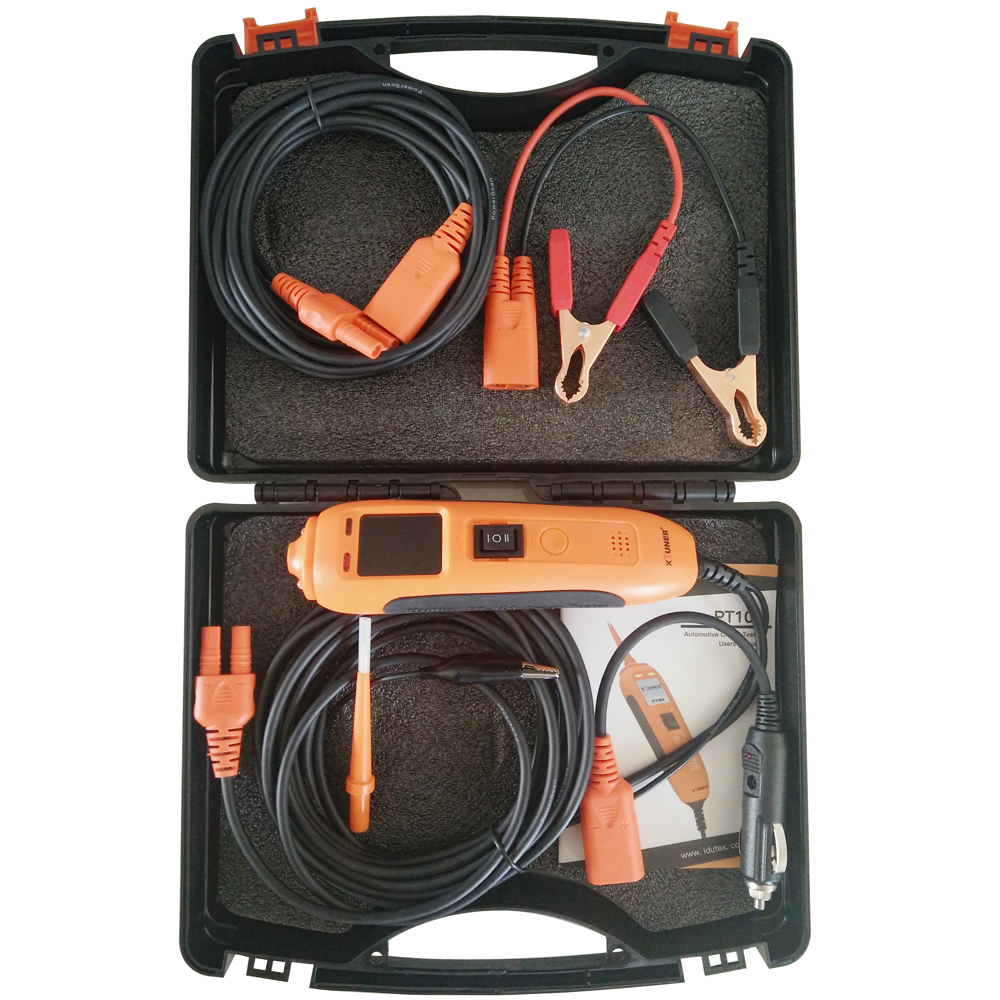

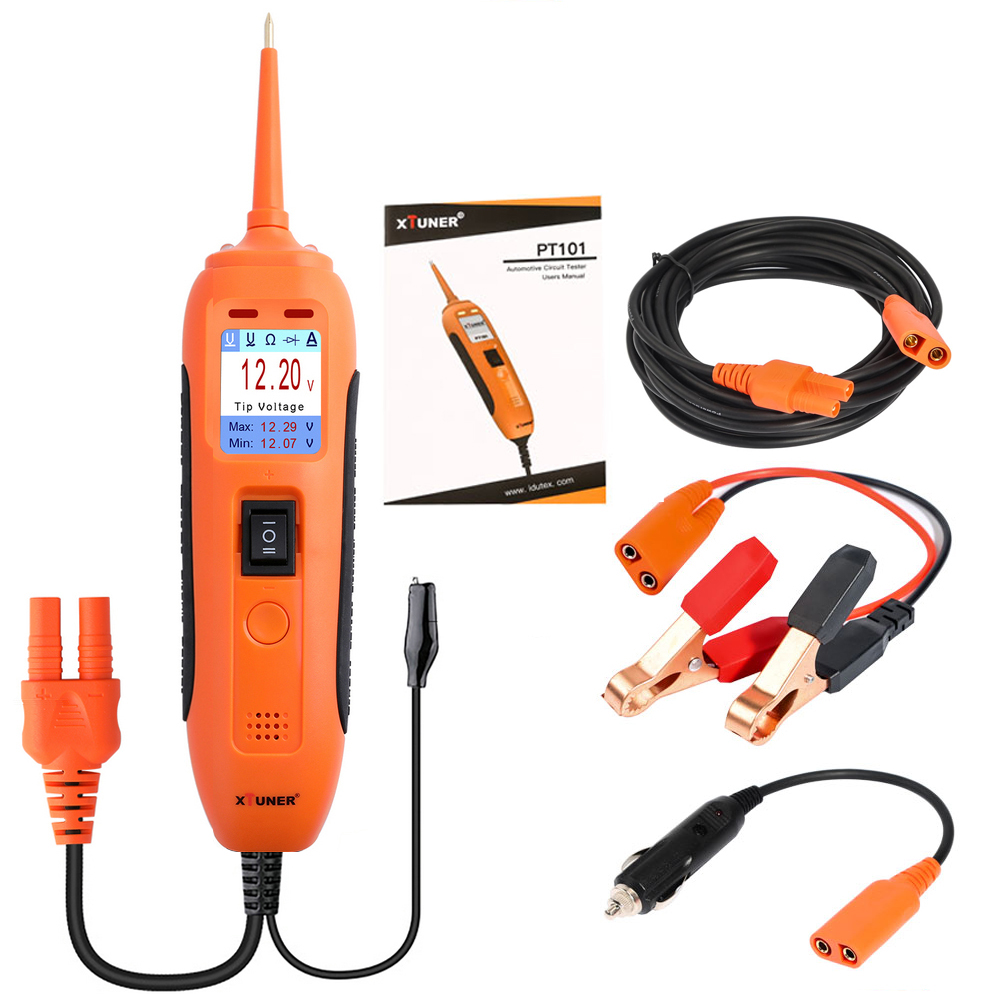

Packing List:
XTUNER PT101 Circuits Tester
Probe Tip
Extension Cable(20 feet)
Cigarette Lighter Adapter
Battery Hookup Clips
User Manual
Plastic Toolbox
Packing Box
