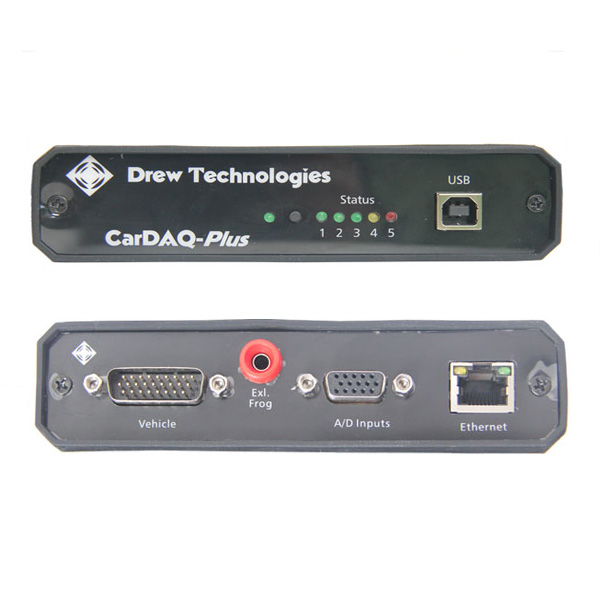

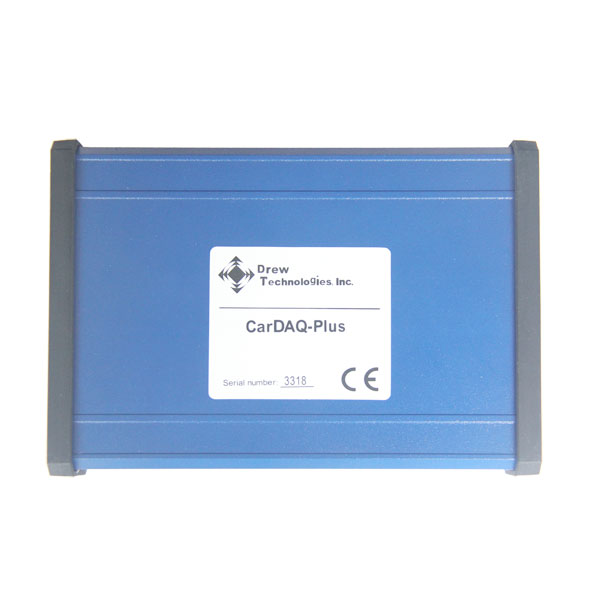

Name: CarDAQ Plus J2534 Device for Diagnostic / Reprogramming

Description:

CarDAQ-Plus J2534 Device is used for Diagnosing / Reprogramming on cars.

CarDAT Plus can work with Honda, Toyota, BMW, Jaguar, Land Rover, VW, Audi, Seat, Skoda, Bentley, Lamborghini, Volvo..

It supported 12V cars ONLY, not supports 24V trucks.

CarDAQ Plus is the most validated and accepted J2534 device in the world. It has been on the market longer than any other J2534 device. It has been approved by more automakers than any other product, and has been called the "golden standard" by customers and competitors alike.

Features:

Connects laptop via USB cable, has no WiFi function.
USB Cable and OBD2 Cable (cables for old car is optional)
1 year warranty for the main unit, not repair, just replace new one
Update: Online update via Internet for 1 year.
Software on 160GB SATA HDD, software are preinstalled on Windows 7 system or Windows XP system, it suits most laptops which can run SATA HDD.
Supports J2534-1 and J2534-2 protocols.

Technical Specifications:

CAN BUS (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)

PC Interfaces
USB
Wired RJ45 Ethernet

Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004)
Compliant to ISO 22900-1 MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash slot (must be configured when ordering)
Optional external Compact Flash slot

Customers Usages:

J2534 Independent Repair Facility tool
Bench top ECU reprogramming
In-Vehicle ECU reprogramming
Diagnostics using 3rd party applications *
In-vehicle pass-thru data logging
Standalone data logging or monitoring
Fleet or public transportation data acquisition
OEM Engineering
OEM calibration reprogramming
End-of-Line testing
Dealer Service Tools
The third party integrated solutions

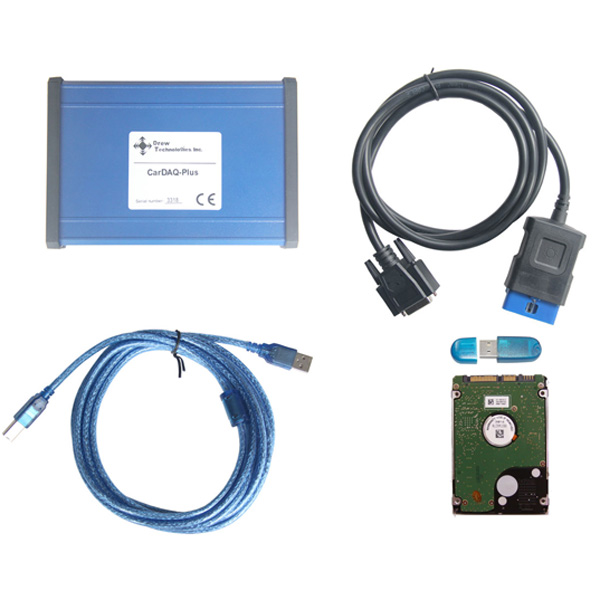

Set Includes:

1. CarDAQ Plus
2. Main cable
3. USB cable
4. Software HDD
5. USB dongle
6. Carryin case

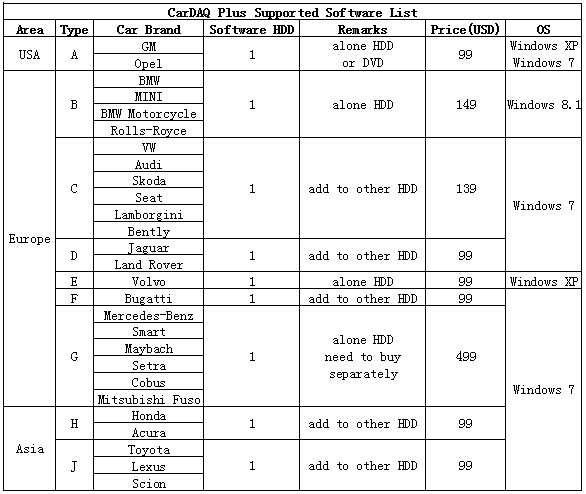

Software Configuration:

USD1439 standard package comes with 1 of following software except Type G, if you want to add extra software, please refer to following prices:

Configuration 1: CARDAQ Plus + 1 of 8 software(A/B/C/D/E/F/H/J) = 1439USD
Configuration 2: CARDAQ Plus + 2 of 8 software(A/B/C/D/E/F/H/J) = 1538USD
Configuration 3: CARDAQ Plus + 3 of 8 software(A/B/C/D/E/F/H/J) = 1637USD
Configuration 4: CARDAQ Plus + 4 of 8 software(A/B/C/D/E/F/H/J) = 1736USD
Configuration 5: CARDAQ Plus + 5 of 8 software(A/B/C/D/E/F/H/J) = 1835USD
Configuration 6: CARDAQ Plus + 6 of 8 software(A/B/C/D/E/F/H/J) = 1934USD
Configuration 7: CARDAQ Plus + 7 of 8 software(A/B/C/D/E/F/H/J) = 2033USD
Configuration 8: CARDAQ Plus + 8 of 8 software(A/B/C/D/E/F/H/J) = 2132USD
