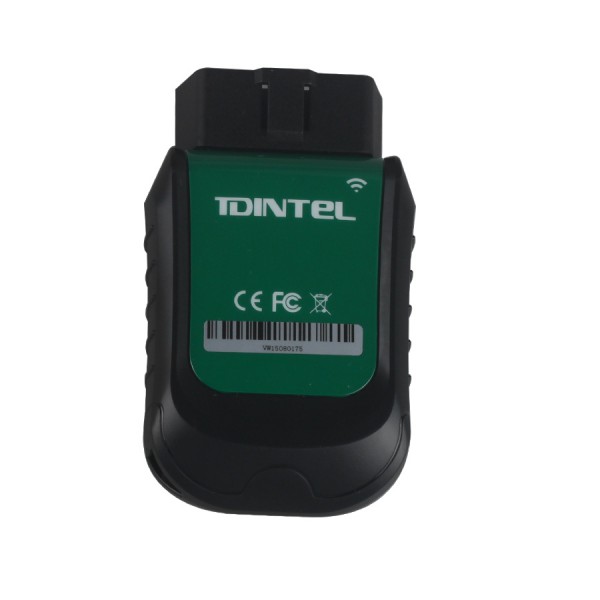

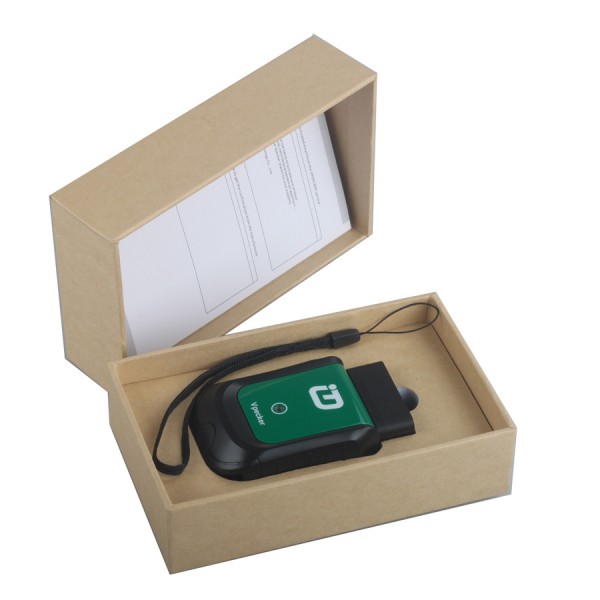

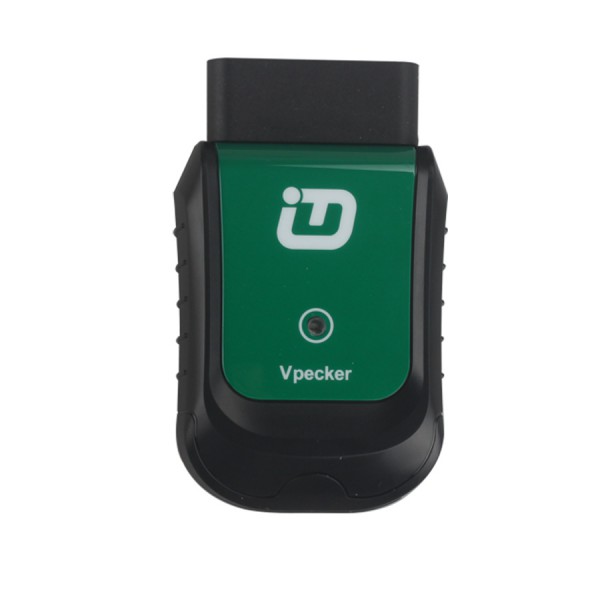

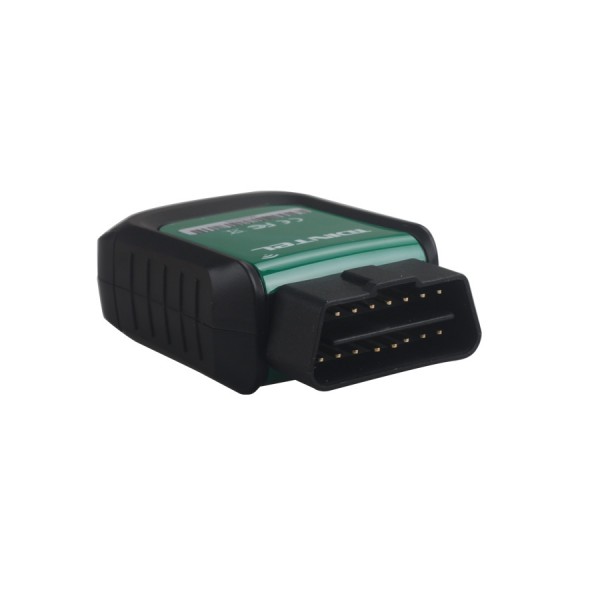

Name: Vpecker EasyDiag OBD2 Diagnostic Tool with WiFi

Description:

Vpecker EasyDiag - 2015 best wireless OBD-II diagnostic tool.
Supports total 78 brand vehicles from Europea, Aisa, America, contain lots of Chinese vehicle brand.
One OBD-II Adapter, software is completely free downloading, support online update.

Supported Languages: English, Spanish, French

Warranty: 2 years free replacement for Vpecker hardware and lifetime maintenance.

Features:

1. Complete function capability including live data, ECU programming and so many others.
2. Unparalleled OBD-II functionalities-support ALL 5 OBD-II protocols and ALL 10 test modes.
3. Automatic WiFi updates available in new software releases. WiFi internet capability allows for wireless access throughout the workshop.
4. Can check out the year and model of the vehicles automatically and quickly.
5. Can work stably in high and low temperature environment, and work well.
6. The genuine Windows XP to Windows10 operating systems allows for more stable performances, better compatibility and expandability.

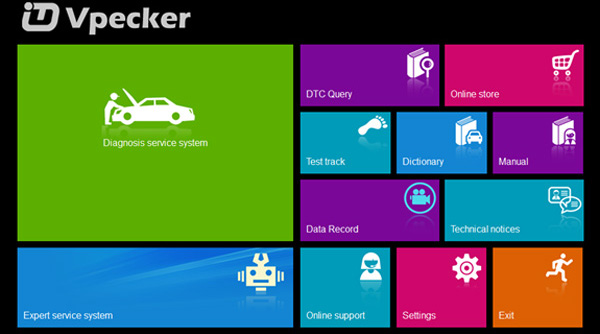

7. Extremely easy-to-use with touch-screen operation and intuitive operation in the windows.
8. Software support online update.
9. Hardware architecture uses a new design with multiple protection, interference and stability. Built-in over voltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
10. Extensive vehicle coverage for more than 70 US domestic, Europe, Asia, Australia and Chinese vehicles makes.

Specifications:

Operating System: Windows XP - Windows 10
Processor: ARM 32-bit Cortex processor
Connection: 802.11 b/g Wireless LAN
Input Voltage: DC 8-18V
Operating Temperature: -10 to 70 degree centigrade, Relative Humidity: <90%
Storage Temperature: -30 to 120 degree centigrade, Relative Humidity: <90%
Dimension: 150* 94* 40mm
Unit Weight: 0.07Kg
GW: 0.166Kg

Supported Protocols:

UDS, ISO 9141-2, K/L lines, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO 15765-4, High speed, Middle Speed, Low Speed and Single Wire CAN.

Functions Coverage:

Quick Test
Read ECU Info
Read DTCs
Erase DTCs
Clear Learning Value
Data Stream
Actuations
Read Freeze Frame Data
Read/Write VIN
Basic Reset
Control Unit Adaptations
Throttle Adaptations
Air Bleeding
Level Calibration
Theft Alarm Reset
Key Programming
Oil Change
Idle Speed Learning
Idle Speed Adjustment
Ignition Timing Adjustment
Camshaft Timing Control Learning
Maintenance Functions
ECU Initial Startup
ECU Initialization

System Coverage:

ME-Motor Electronics
CDI-Common Rail Diesel Injection
ETC-Electronic Transmission Control
ESM-Electronic Selector Module
SBC- Sensotronic Brake Control
ESP-Electronic Stability Program
BAS-Brake Assist Suspension
TPC-Tire Pressure Monitor
Airbag
CGW-Central Gateway
EIS-Electronic Ignition Switch
OCP-Overhead Control Panel
UCP-Upper Control Panel
XALWA-Xenon Headlamp
HRA-Headlamp Range Control
ATA-Anti-theft Alarm System
IC-Instrument Cluster
ASSYST-Active Service System
SCM-Steering Column Module
EPS-Electrical Power Steering
PTS- Parktronic System
EPB-Electric Parking Brake
COMAND/AUDIO
CD/DVD
TV Tuner
CTEL-Cellular Telephone
DCM-Door Control Module
ESA Driver-Electric Seat Adjustment Driver
ESA Passenger-Electric Seat Adjustment Passenger
AAC-Air Conditioning
WSS-Weight Sensor System
SVMCM-Special Vehicle Multifunction Control Module

Supported Cars:

1. USA

Chrysler, Ford, USA GM, Jeep, Scion

2. European:

Abarth, Para Alfa, Para Aston, Audi, Bentley, Mercedes Benz, BMW, Bugatti, Para Citroen, Dacia, Ferrari, Fiat, Ford EU, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, MINI Cooper, Opel, Peugeot, Porsche, Renault, SAAB, Seat, Skoda, Elegante, Vauxhall, Volvo, VW

3. Asia:

Acura, Asia GM, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Para Mazda, Mitsubishi, Nissan, Perodua, Proton, Ssangyong, Subaru, Suzuki, Toyota

4. Australia:

Holden, Ford (Australia)

5. Chinese:

BYD, Changan, Changhe, Chery, Emgrand, Englon, Foton, Geely, GLEAGLE, GWM, HBSH, Huachen, Lifan, Wuling, De Yuanes

6. OBD-II:

Chrysler, Ford, USA GM, Toyota, Lexus, Honda, Hyundai, Kia, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Abarth, Aston Martin, Bugatti, Ferrari, Lamborghini, Maserati, Benz, BMW,
VW, Audi, Seat, Skoda, Porsche, Jaguar, Land Rover, Volvo, SAAB, Alfa
