Name: JCB Service Master Diagnostic Electronic Service Tool Agricultural Construction Excavator Diagnostic Scanner Tool
Description:
1. JCB Service Master is a gateway application allowing a large number of Vehicle Support Applications to be linked using one familiar interface.
2. JCB Electronic Service Tool acts as a graphical tool for selecting the target vehicle from a groups of Vehicle Families and triggering the particular Service Tool Application desired.
3. This removes the need for a user to 'remember' every individual service tool available and select which one if intended for a particular machine.
4. The JCB Service Master also provides several key features that will accompany all JCB projects, a Multi-Language editing tool that provides a means of individual text string translation for all JCB Applications and a means to select a localised language translation for the each JCB Application.
Software Version: V26.5.2
Supported Language: English, French, German, Spanish, Portuguese, Italian
Features:
1. Reads fault codes and ranks them in order of importance.
2. Calibrates, parameterize ECM and program blocks.
3. Conducts dropping service intervals.
4. Compatible with software JCB Service Master 4 (2019).
5. It works with CAN protocol in OBD II system.
6. It is provided with instructions for use, repair and diagnostics of vehicles JCB engines and Isuzu, Deutz, Cummins.
7. Full original JCB repair and service manuals and bulletins
8. JCB spare parts for all markets
9. Programming special parameters (order separately)
Support List:
Construction Machines:
1. Backhoe Loaders
2. AMS/DECU Machines (Tracked (JS/JZ/JZ70), Wheeled)
3. Compact Excavators (Mini/Midi) (801-8065, 8080-8085,65R1-86C1)
4. Telescopic Handlers (2007-, 2007+, Tier 4, 525-60 Compact Loadall)
5. Skidsteer Loaders (Robot, Other), Teletrucks (Tier 4)
6. Wheeled Loading Shovels (Large, Large 2012+, Compact (Tier 4 CWLS), Medium (411, 413 ,417, 418S Tier 4i))
7. Telemasters (TM180/220, TM310, TM320))
8. Articulated Dump Trucks, Vibratory Compactors (Tier 3, Interim Tier 4, VMT380/430)
9. Rough Terrain Forklifts (Tier 2/3 RTFL, Tier 4 RTFL), 10. Teletruks (Tier 4)
Agricultural Machines:
1. Fastrac Tractors (2000-3000, 3000 Series 2, 3000 Series 3, 3000 Series 4, 7000 Series, 8250 Series 1, 8250 Series 2, 8000 Series 3)
2. Telescopic Handlers (2007-, 2007+, Tier 4, 525-60 Compact Loadall)
3. Wheeled Loading Shovels (Large, Large 2012+, Compact (Tier 4 CWLS), Medium (411, 413 ,417, 418S Tier 4i)
4. Telemasters (TM180/220, TM310, TM320)
Engines:
1. Dieselmax and Dieselmax 672 (IPU, OEM Base, G Drive)
2. Ecomax (IPU, OEM Base, G Drive), Kohler TCR Engine.
3. Generators: G46X/QX, G141X/QX, G165S/QS, G200S/QS, G220S/QS.
Waste Models:
Telescopic Handlers (Tier 3, Tier 4).

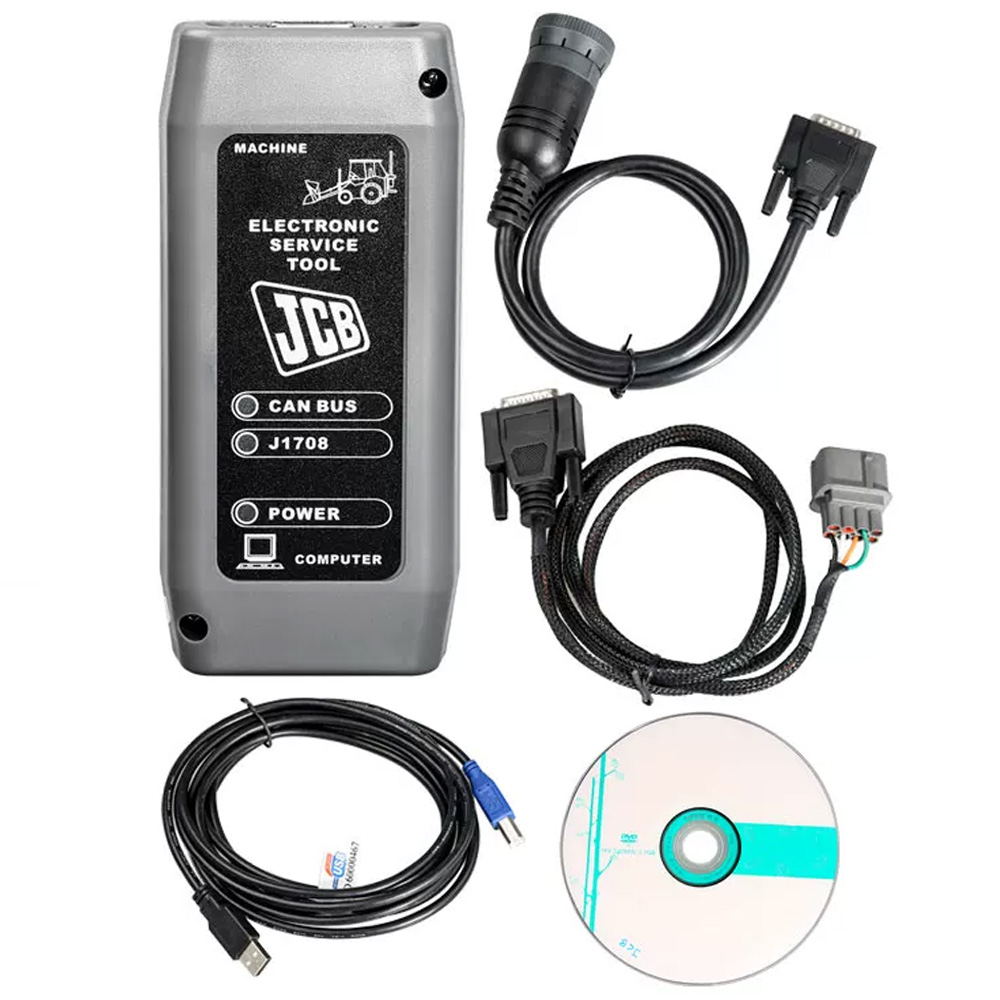

Packing List:

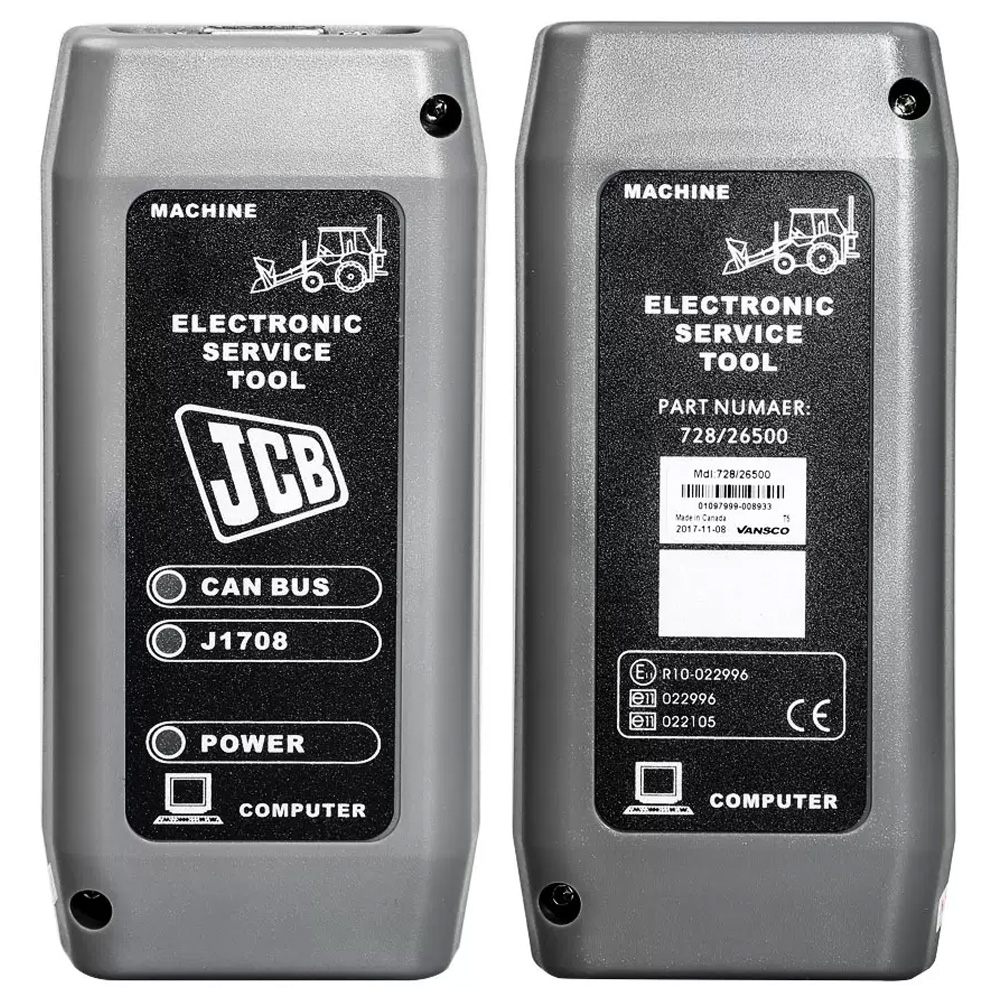

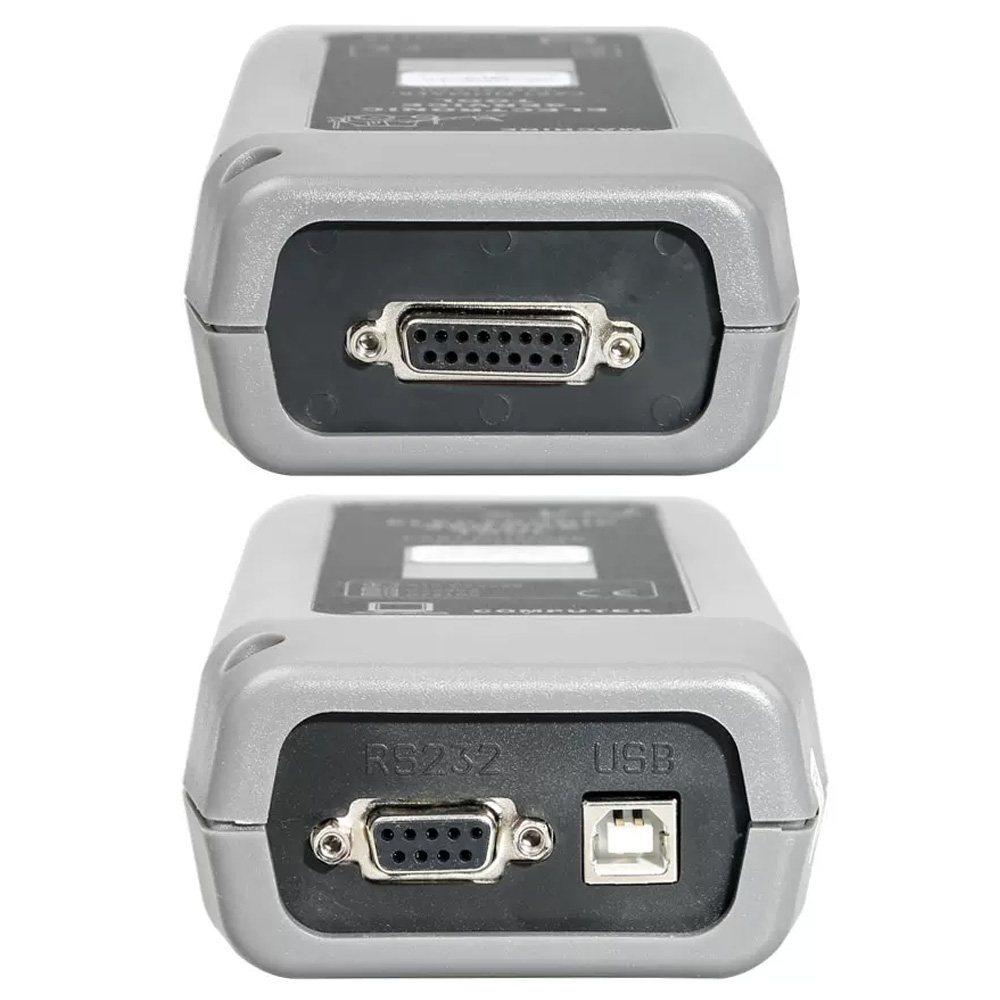

JCB Electronic Service Tool Interface

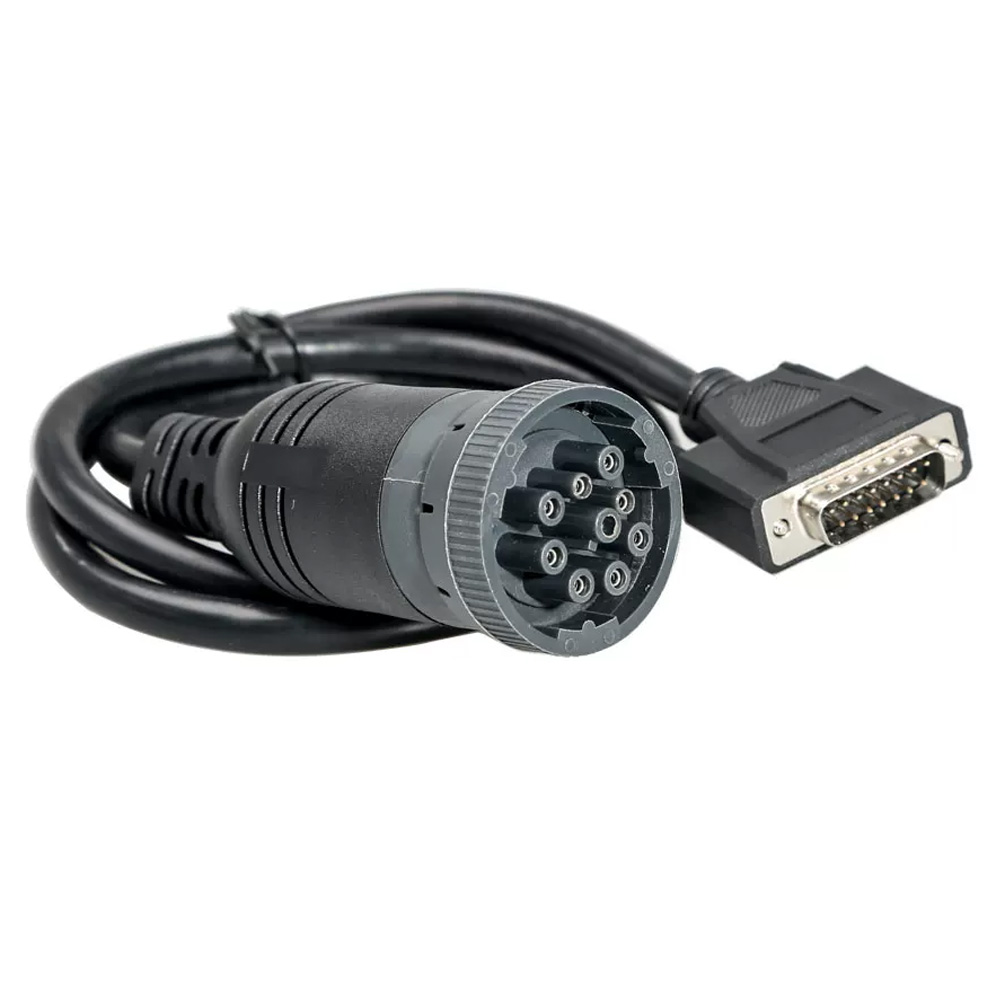

9-Pin Diagnostic Cable

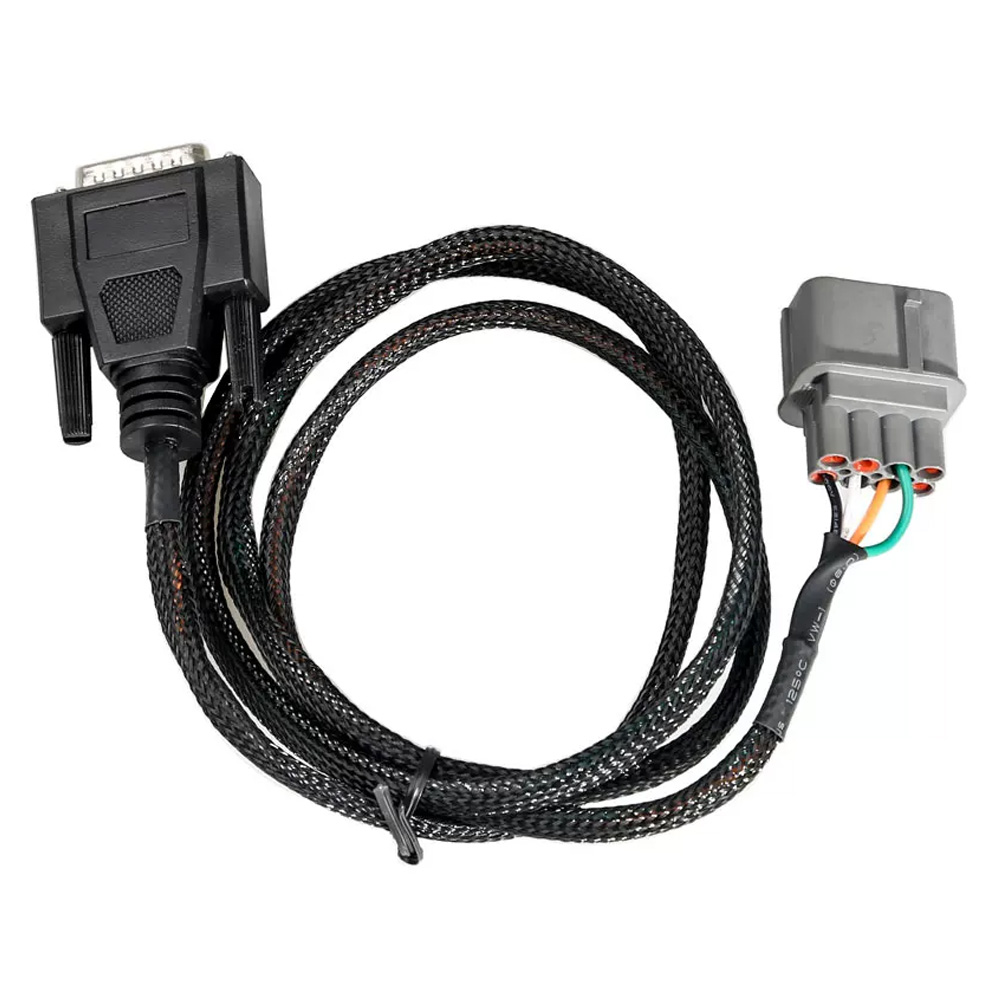

6-Pin Diagnostic Cable
USB Type-B Cable

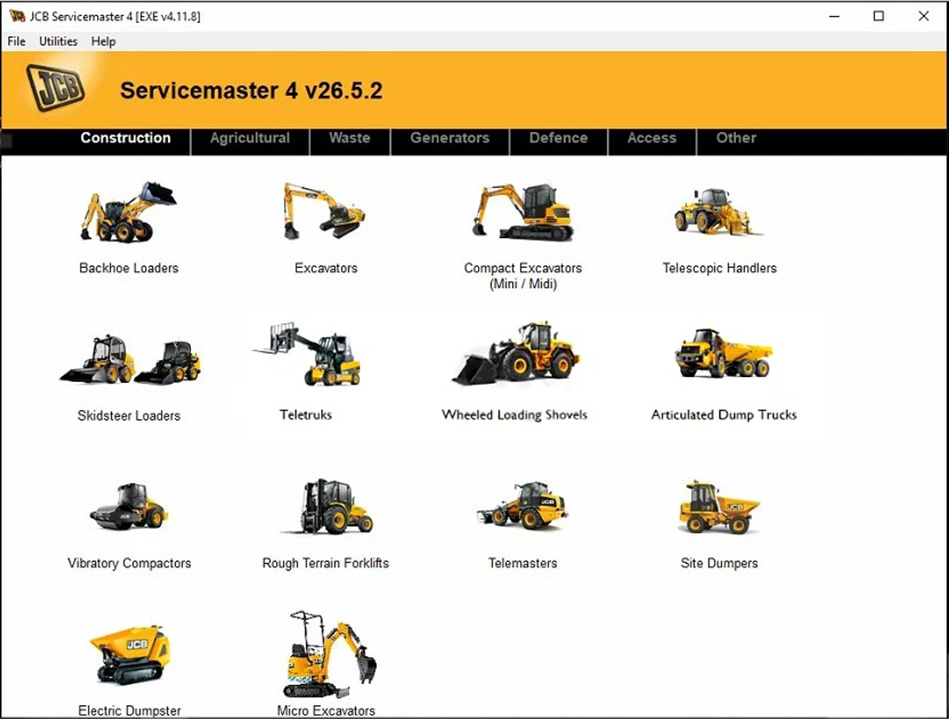

JCB Service Master Software SM4 V26.5.2

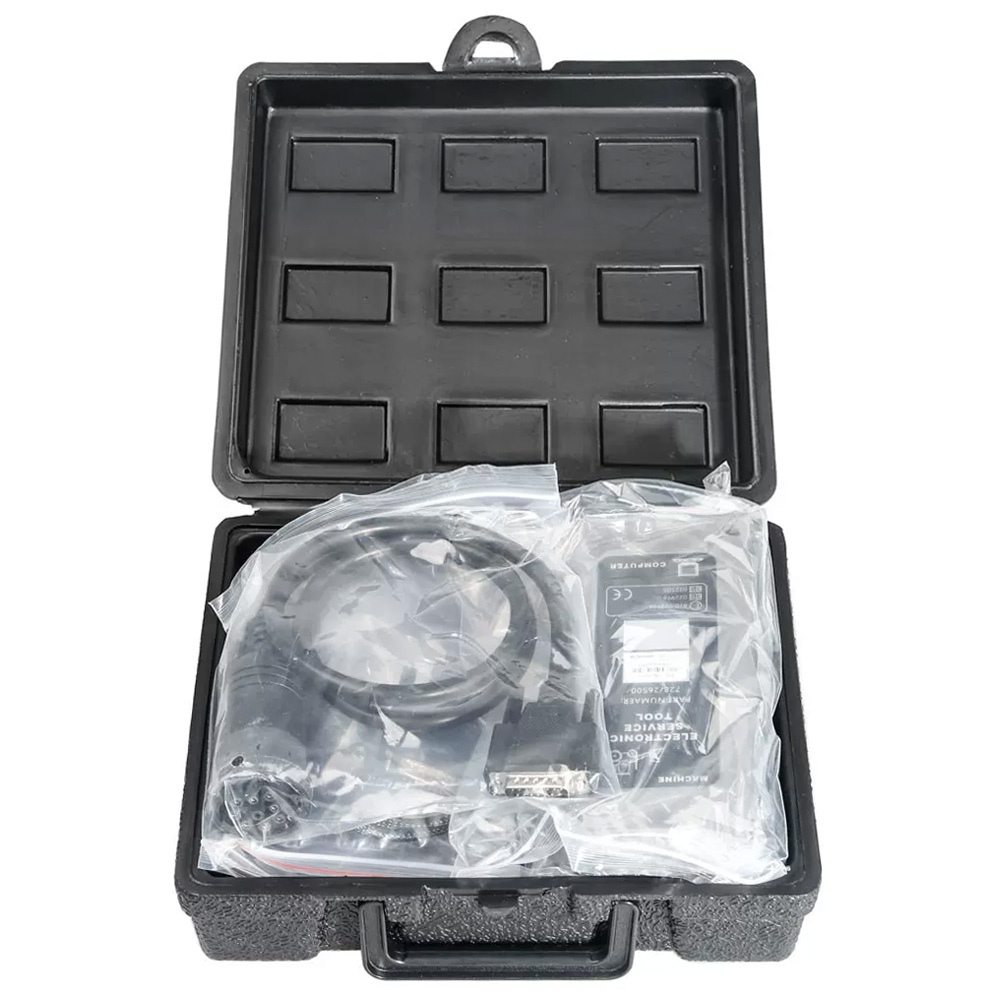

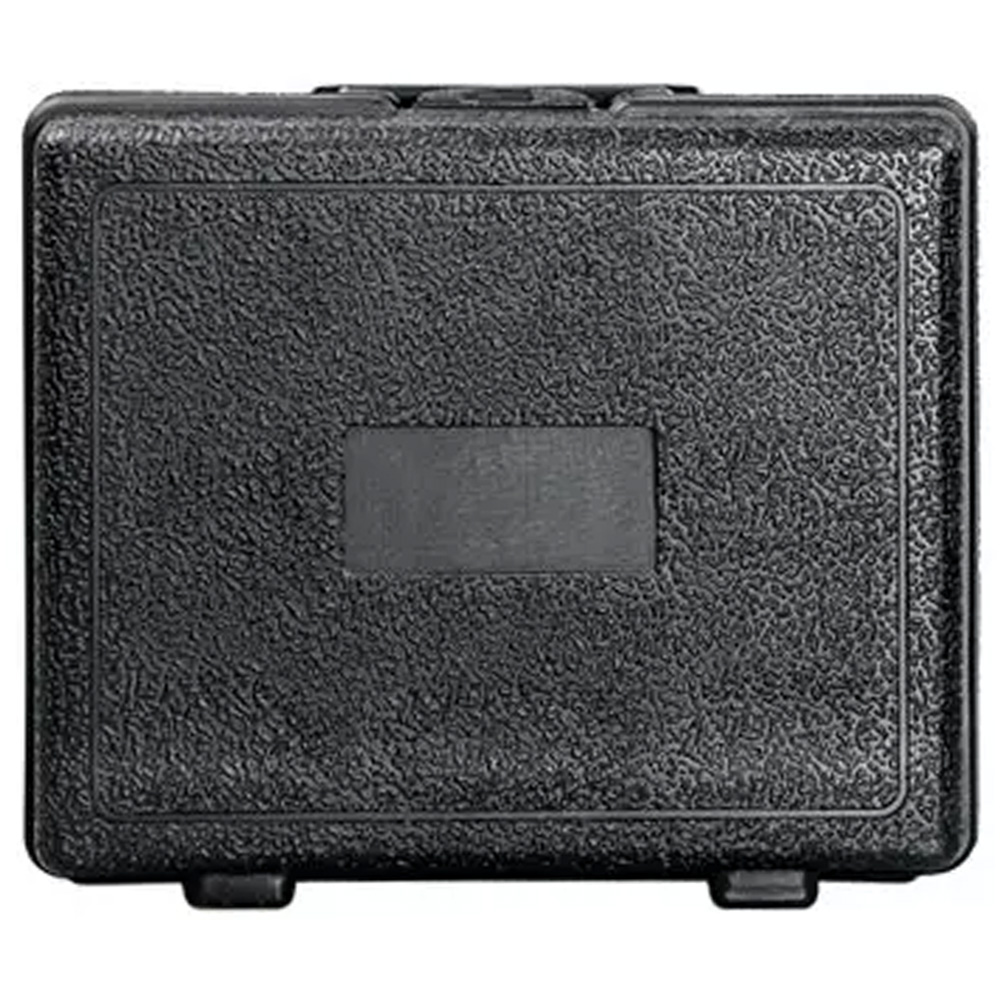

Plastic Toolbox
Packing Box
 |
