Description:



GODIAG GT113 Universal Fuel Injector Tester & Cleaner Kit offers users 6 sizes of adapters and 8 pulse modes for them to test almost all kinds of fuel injectors.



Features:



1. Upgrade 6 Sizes of Cleaning Adapters

GODIAG GT113 Fuel Injector Test Kit contains 6 cleaning adapters of different sizes, suitable for 12V and below 12V injectors, such as EFI, GDI, FSI, MPFI, SPFI, TBI, CFI, L-JET, LPG, K-Jetronic, coil-type direct, motorcycle injectors, etc. This tester kit is the most powerful and adapter-rich injector tester kit on the market, which can help you accurately detect the performance of the injector, diagnose faults, and ensure the normal operation of the engine.

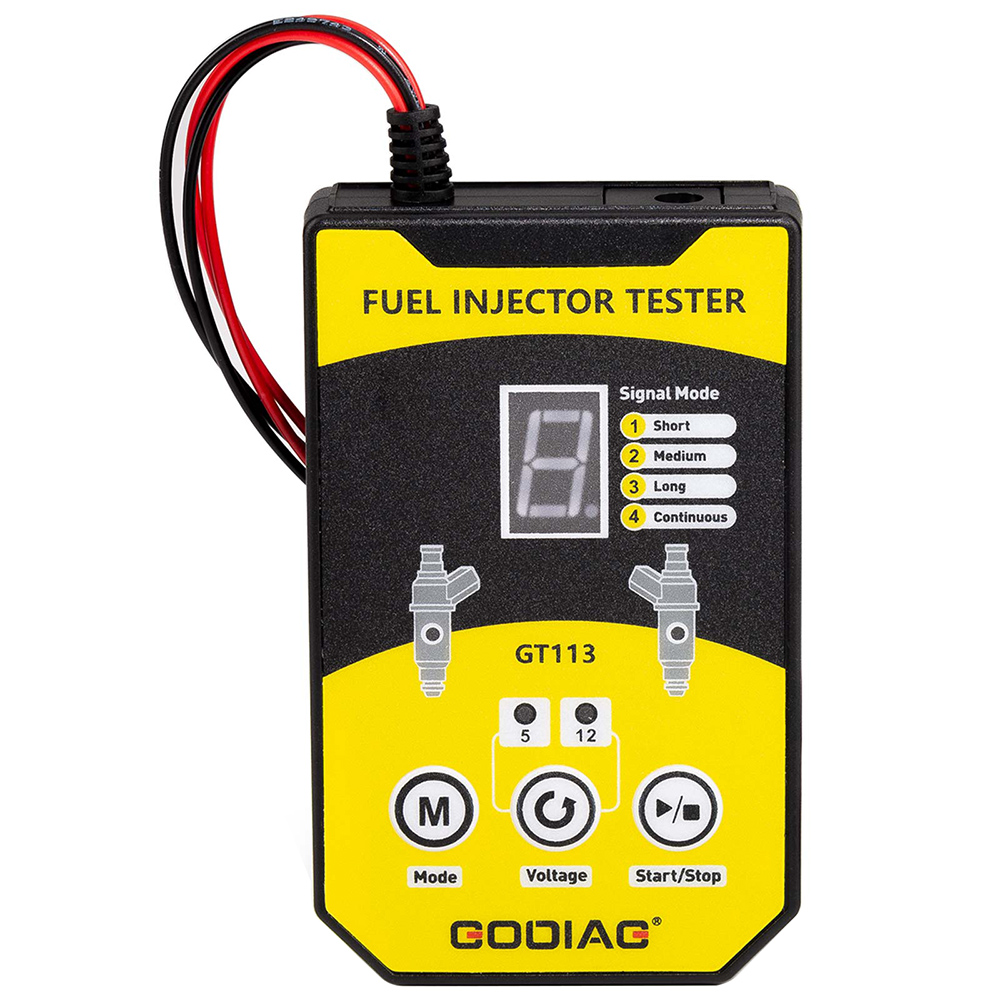

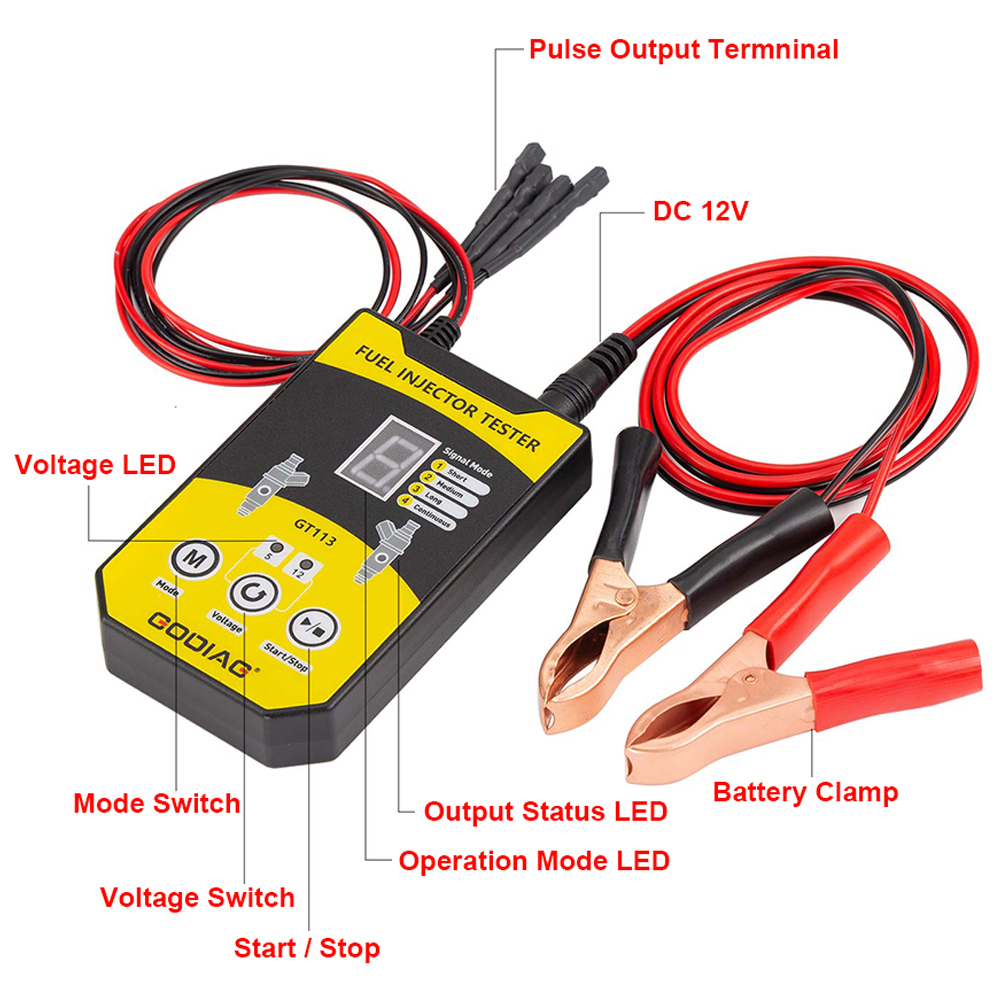

2. 8 Pulse Modes & LCD Display & Indicator Ligh

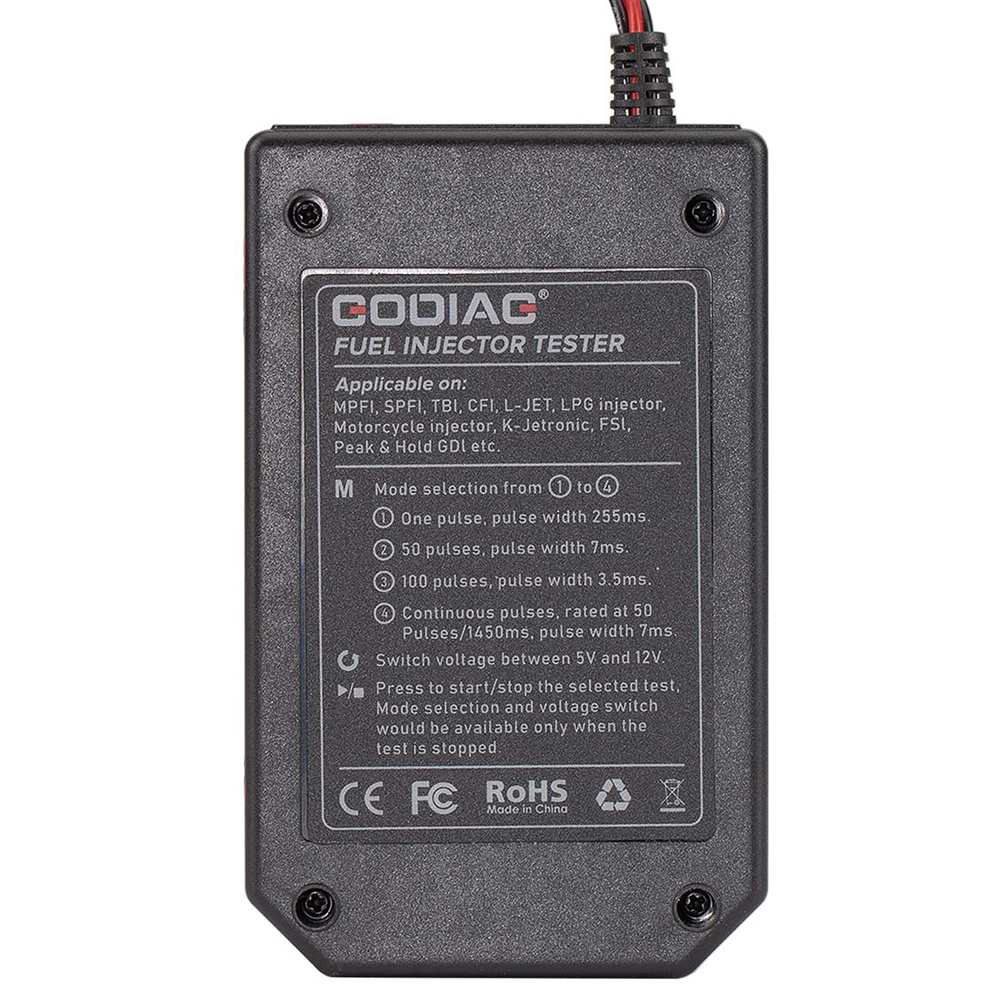

GODIAG GT113 Fuel Injector Tester Kit has 8 pulse modes, consisting of 4 pulse signal output modes and 2 output voltage levels: short/medium/long/continuous pulse mode + high/low (12V/5V) power drive mode. The LCD will clearly display the pulse mode you selected, and the two indicator lights will flash quickly to indicate the pulse output status.

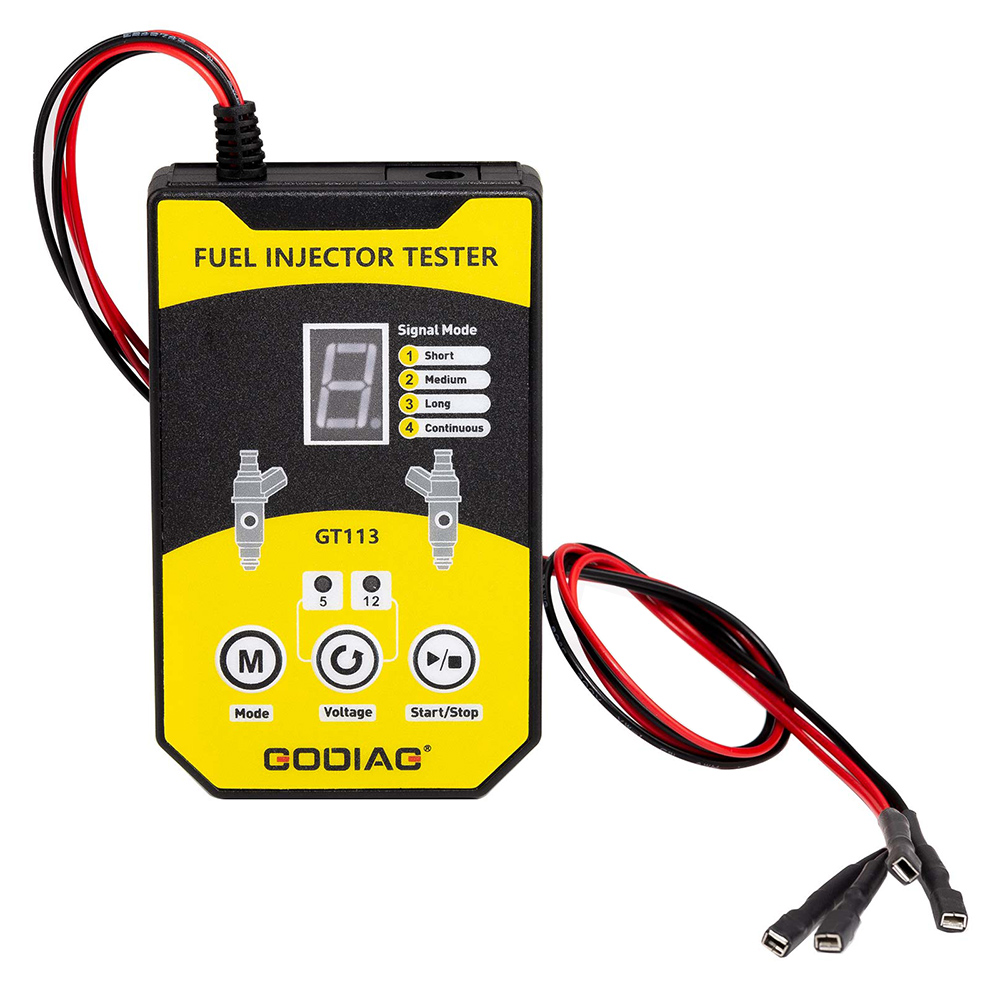

3. Test Two Injectors Simultaneously

GODIAG GT113 Fuel Injector Tester Kit and Cleaner Kit has a special 4 pulse output terminals (two pairs of test leads) that can test two fuel injectors at the same time. The test lead length is 47cm/18.5 inches and the power cord is 85cm/33.5 inches, which improves the convenience and efficiency of testing. Both the test leads and the power cord are made of high-quality silicone, which has better high and low temperature resistance.



4. Reverse Polarity Protection & Short Circuit Protection

When the battery clamp is incorrectly connected to the positive and negative poles of the power supply, the protection circuit inside the tester can prevent the current from flowing in the wrong direction, thereby effectively protecting the safety of the tester and the user. If the two ends of the output terminal are connected together or two red/black wires are used to connect the injector, the fuel injector cleaner kit will not operate.



5. Power Supply and Precautions

GODIAG GT113 Fuel Cleaner Kit is powered by a 12V vehicle battery or an external DC 12V(recommended at least 1.5A) power adapter.



Note:



1. It can be used with any fuel pressure tester.

2. The package does not include a power supply and injector cleaner.

3. Only suitable for gasoline engines, not for diesel engines.



Advantages:



GODIAG GT113 Fuel Cleaner & Tester Kit contains 6 cleaning adapters of different sizes, suitable for 12V and below 12V injectors, such as EFI, GDI, FSI, MPFI, SPFI, TBI, CFI, L-JET, LPG, K-Jetronic, coil-type direct, motorcycle injectors, etc.



Multiple pulse modes of the injector tester can detect the performance of the injector more accurately and comprehensively.



Supports testing two injectors at the same time, saving time, and you can also visually observe the differences in parameters such as injection volume, injection time, and other parameters of the two injectors under the same test conditions.



The fuel injector tester cleaner kit is powered by a 12V vehicle battery or an external DC 12V(recommended at least 1.5A) power adapter.



The test cables and power cords are made of silicone materials, so they have good flexibility and higher abrasion resistance. And it will not soften at high temperature, and it will not break at low temperature.



Note:



The electrical plugs are designed for use in the US. GODIAG GT113 may require an adapter or converter for use when use in different countries. Please check compatibility before purchasing.



Packing List:



GODIAG GT113 Fuel Injector Tester and Cleaner Kit

Battery Clamps Cable (2 pcs)

Cleaning Adapters (6 pcs)

User Manual

Carrying Pouch
