Description:

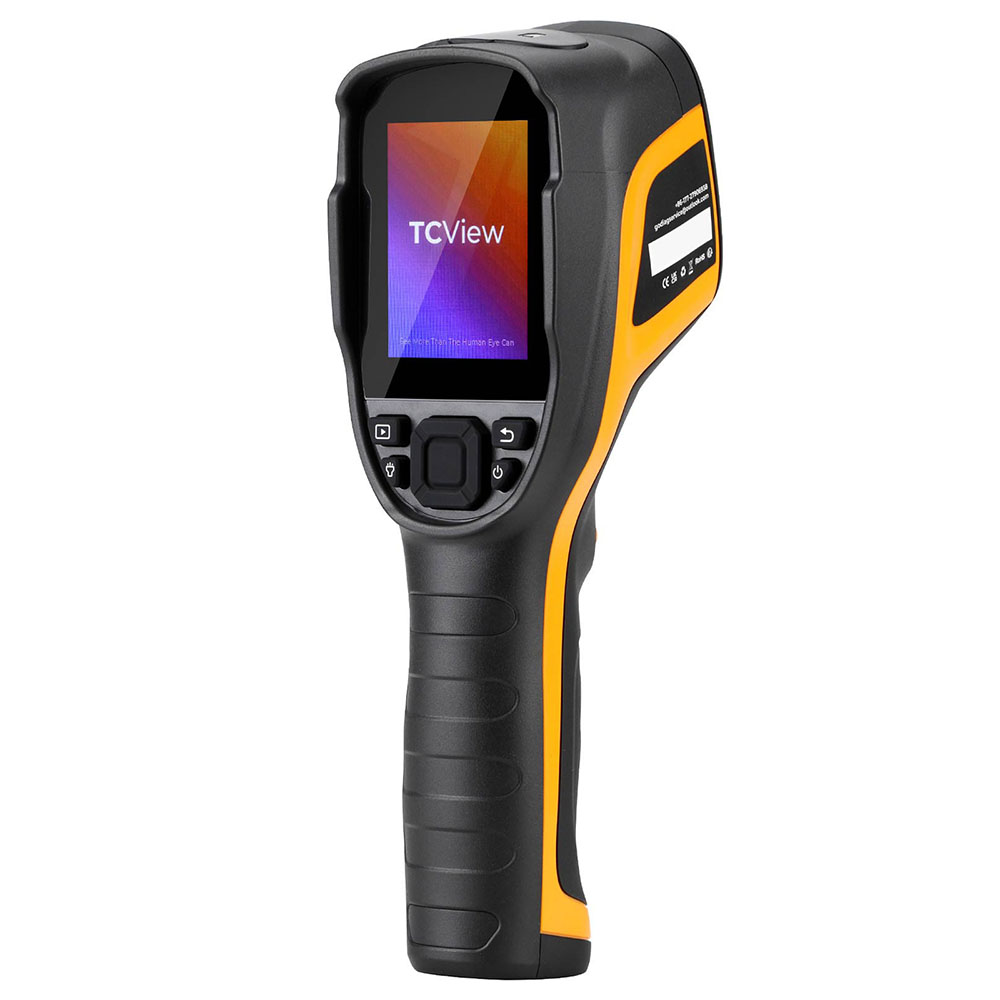

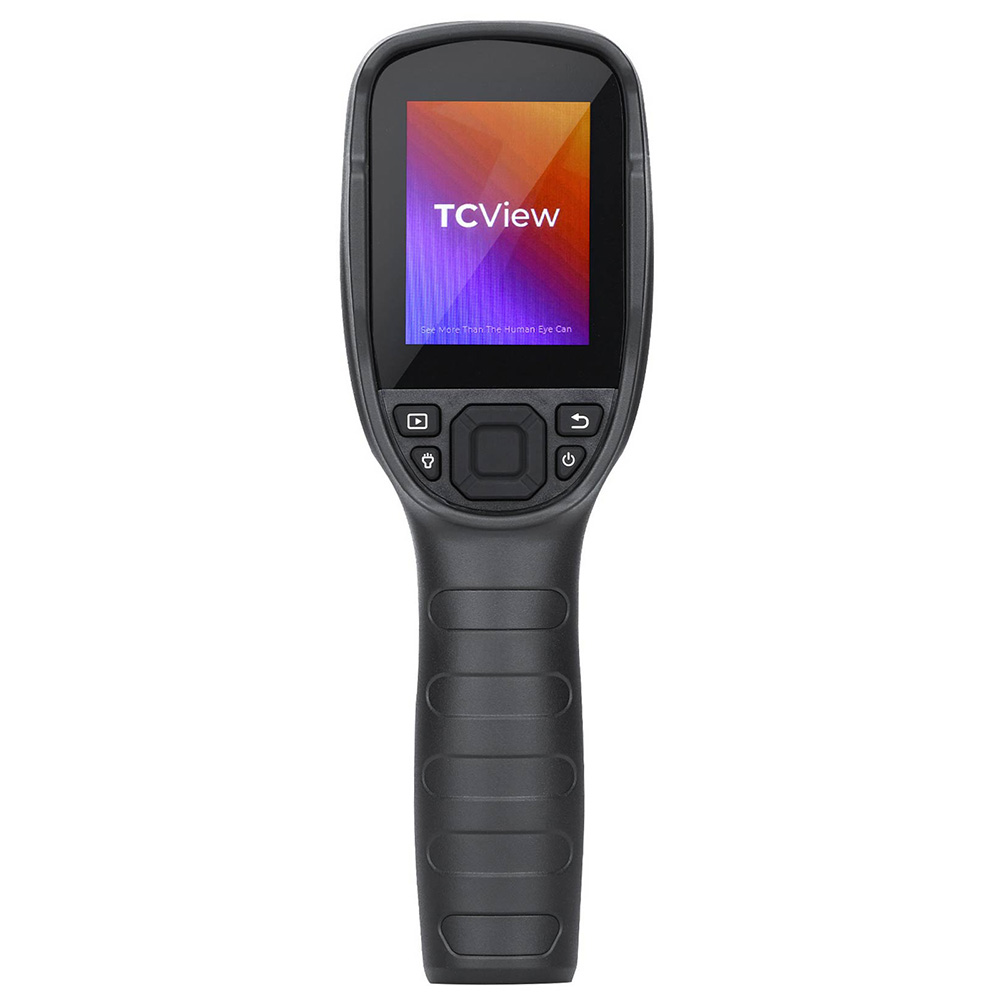

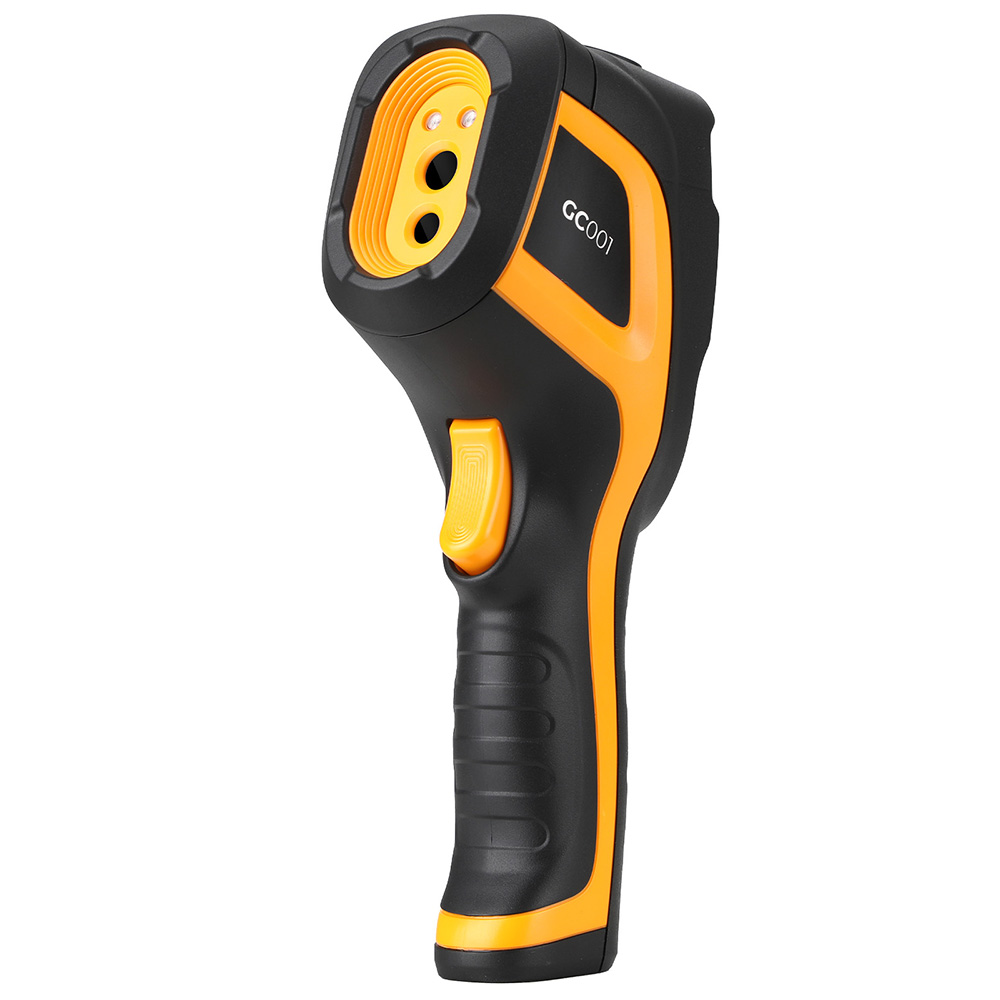

GODIAG GC001 Handheld Thermal Imaging Camera supports PC Analysis & Video Recording.



GODIAG GC001 Thermal Imaging Camera has 256*192 IR high resolution to provide users accurate measurement.  32GB SD card.



Features:



1. High Resolution, Accurate Measurement

The GODIAG GC001 Thermal Camera features a 256*192 ultra-high resolution, thermal sensitivity <40mk, temperature resolution up to ±1°F, with center point, maximum, and minimum temperature measurement modes. It has a 20Hz frame rate and a temperature range of -4°F to 662°F, ensuring accurate detection and diagnosis



2. Free PC Software Upgrade

Connect the GODIAG GC001 to a Windows PC via USB for online analysis and real-time temperature changes. It supports 3D imaging, point-line surface temperature measurement, and data export. And offline temperature analysis capabilities



3. Support Video Recording, 12 Hours Long Battery Life

Offer one-touch photo and video recording. 5000mAh rechargeable Li-ion battery supports up to 12 hours of continuous use, making it ideal for various inspection scenarios. Moreover, it comes with a 32GB memory card, expandable memory.



4. Multiple Functions, More Professional

High and low-temperature alarms, four color palettes (white hot, black hot, iron red, rainbow), LED work light, and automatic shutdown. Designed for durability with an ergonomic grip, 1/4 adapter tripod screw hole, and 2-meter drop resistance.

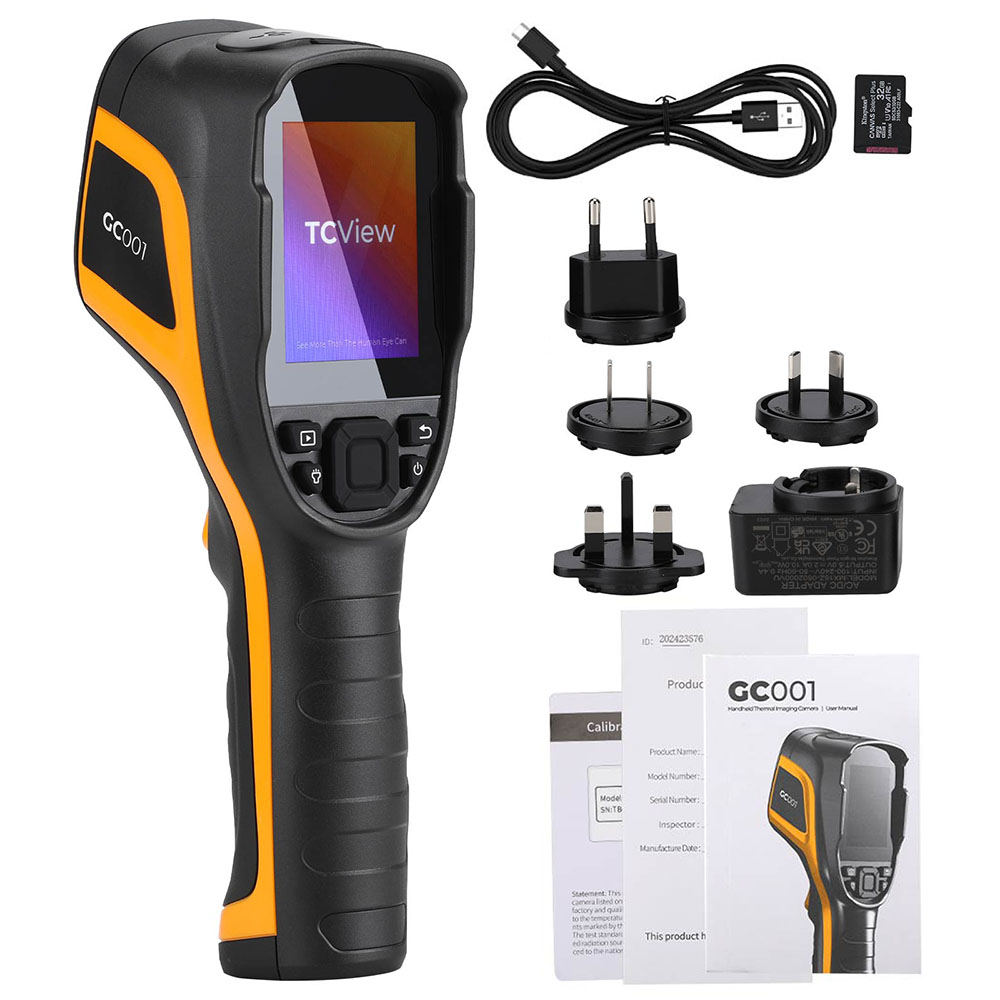

Packing List:



GODIAG GC001 Thermal Imager Camera

32GB SD Card

USB Cable

Power Adapter

EU Plug

US Plug

UK Plug

Other Plug

User Manual

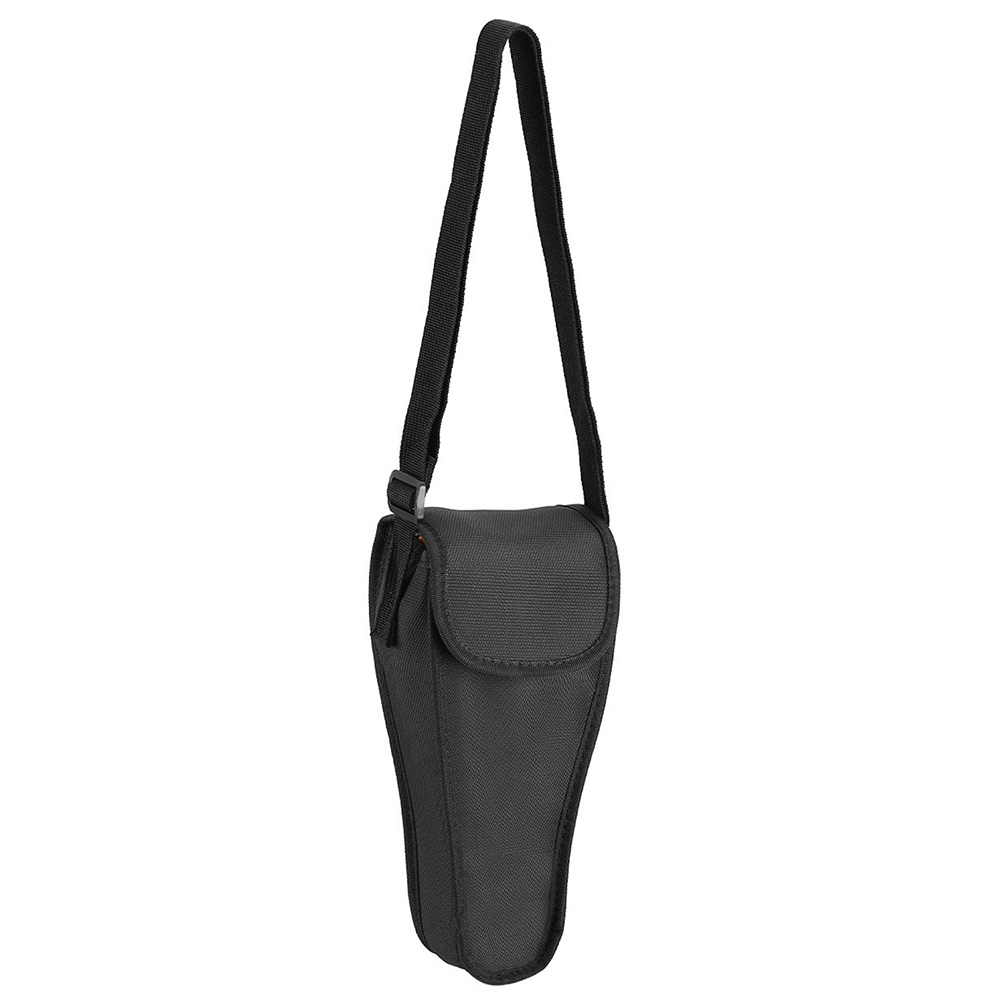

Protection Pouch

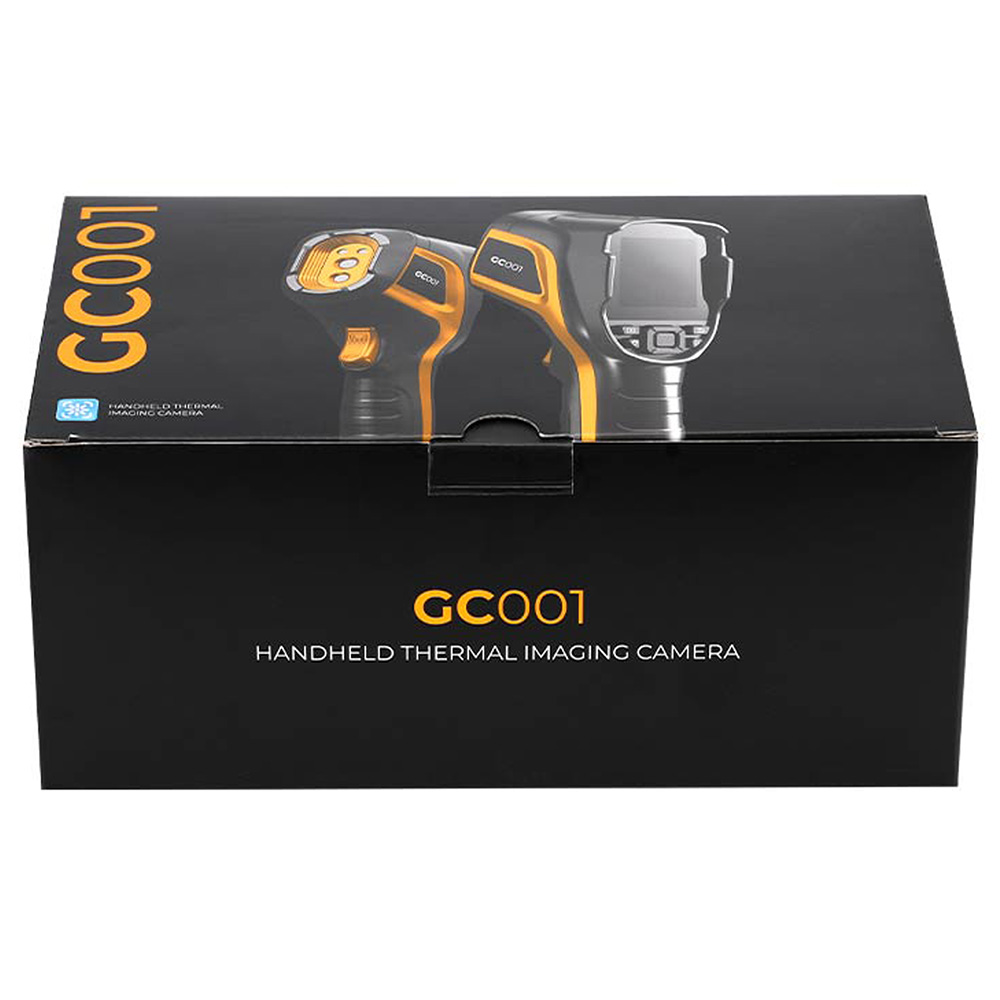

Packing Box
