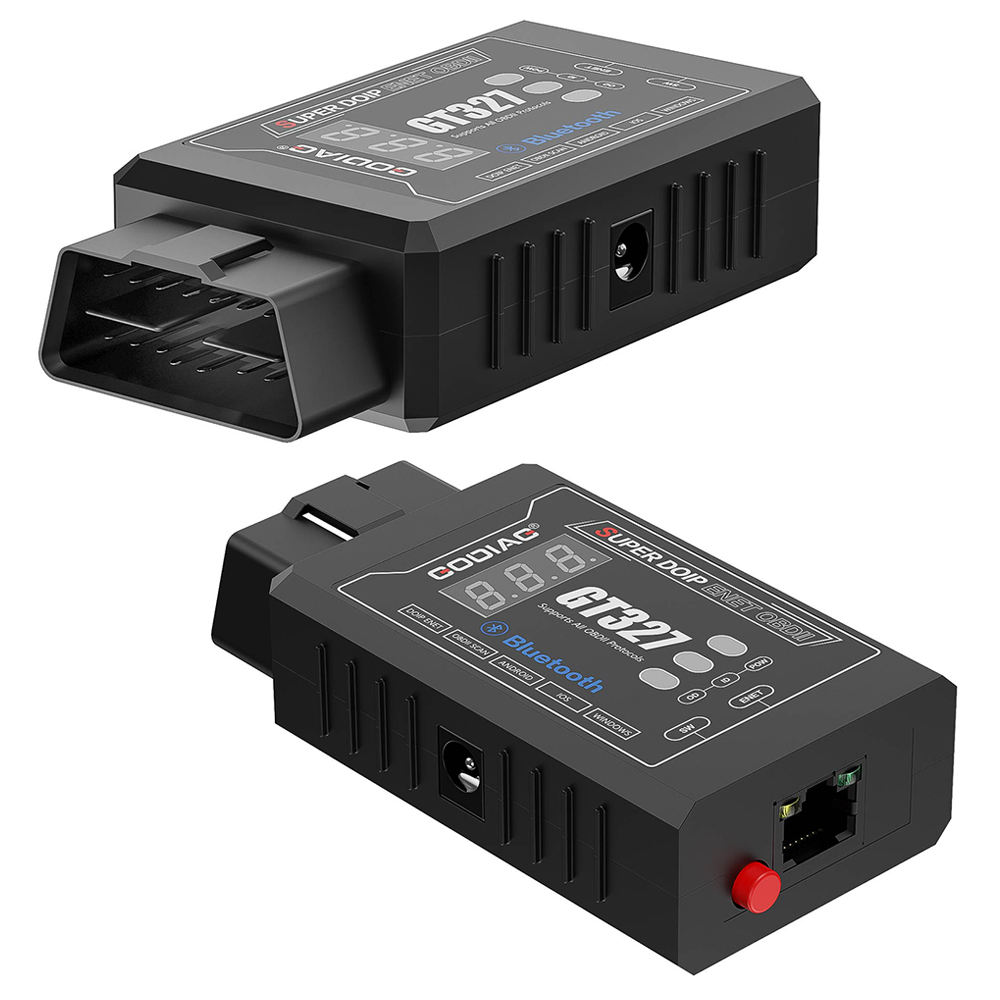

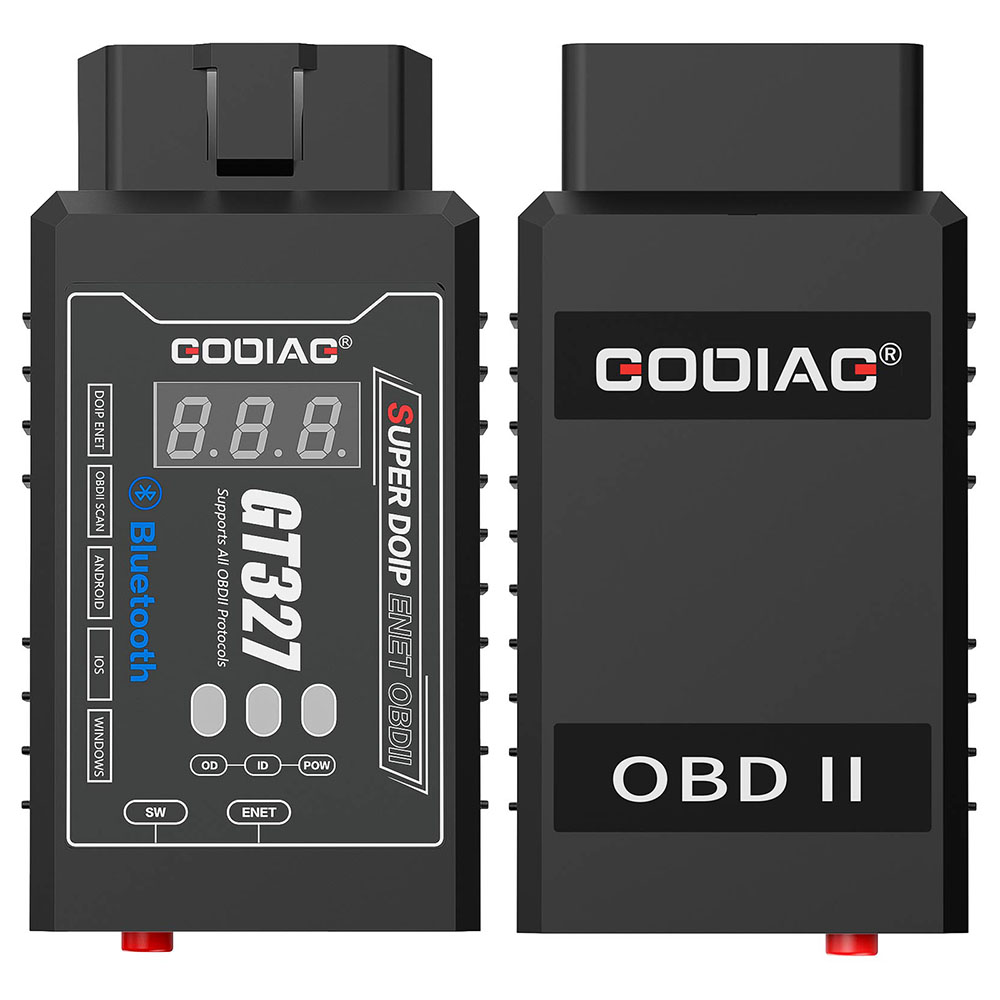

Name: GODIAG GT327 Super DoIP ENET ELM327 Scanner for iOS/Android/Windows
Description:
GODIAG GT327 Super DoIP ENET ELM327 V1.5 Bluetooth 4.0 OBD-II Scanner with Voltage Display for iOS/Android/Windows.
GODIAG GT327 Super DoIP ENET OBD2 ELM327 v1.5 full scanner is specially developed for car maintenance technicians, DIY maintenance personnel. The product supports Bluetooth and it adopts ARM core dual-mode Bluetooth communication.
GODIAG GT327 ELM327 Bluetooth Scanner supports Android and iPhones to connect to the device via Bluetooth for car OBD-II diagnosis. It can also be connected to a computer via an Ethernet cable, and used with DoIP and ENET vehicle-specific diagnostic software to perform diagnostic programming and coding operations.
Note:
1. No software is included.
2. This device only supports Bluetooth. Please note that WiFi or dedicated device software cannot be used with this device.
Features:
1. Supports diagnosis / programming / coding for vehicles with DoIP ENET communication.
2. Support 9-30V motorcycles, cars, trucks, commercial vehicles and SUVs.
3. Supports Android phones [Bluetooth Name: OBD II]
4. Supports iPhones [Bluetooth name: OBD BLE]
5. Supports Windows OS.
6. Display the current vehicle diagnostic interface voltage.
7. Alarm when the vehicle voltage is lower than 11V.
If the voltage is lower than 11V, the device will sound an alarm and the user needs to charge the car battery with a dedicated car battery charger. After hearing the alarm, users should not diagnose or program the vehicle, let alone try to start the vehicle to avoid damaging the battery due to excessive discharge.
Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
10. DoIP ENET (supported by Ethernet cable connection)
Operation Steps:

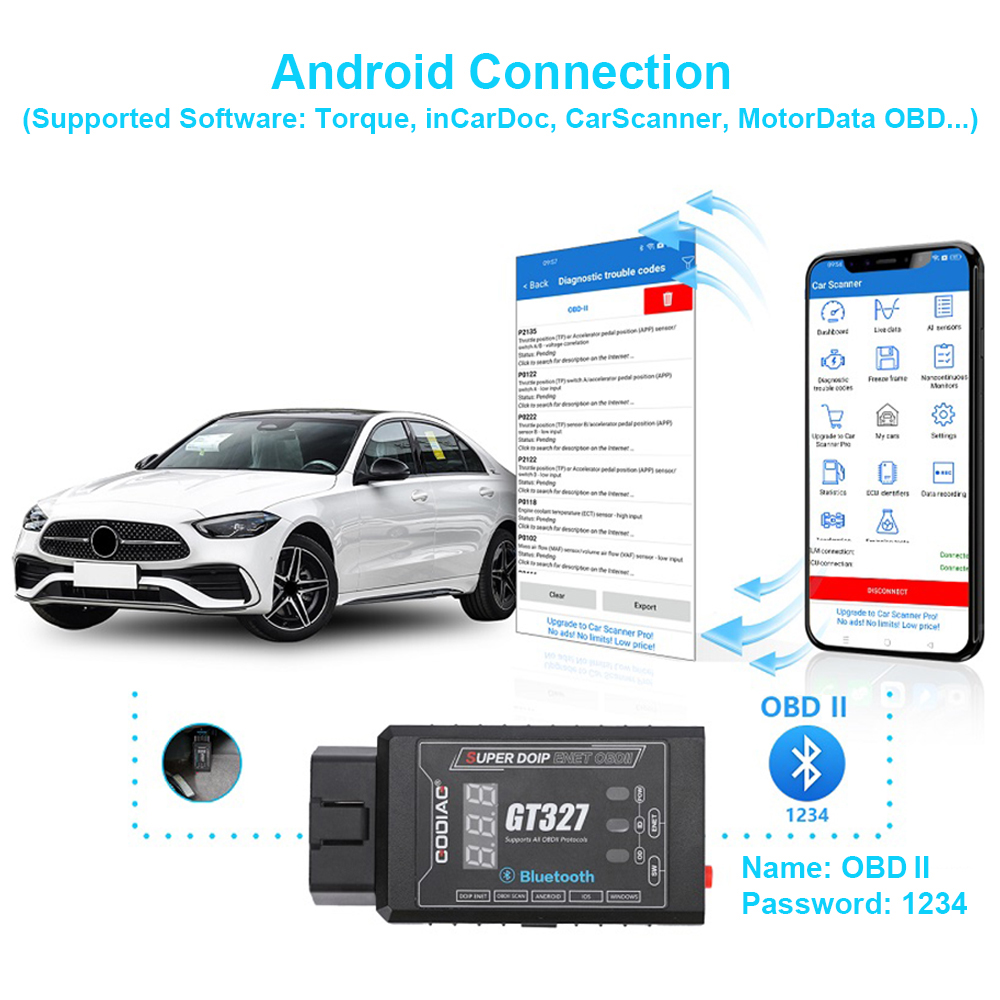

1. For Android Phone:
Supported Software: Torque, inCarDoc, CarScanner, MotorData OBD, DashCommand, OBD Car Doctor, Auto Doctor, MiniOBDI, EOBD...etc.
1). Download and install the diagnostic software on your mobile phone (Torque, CarScanner, MotorData OBD are recommended). The DoIP ENET switch of the device pops up and is in the off state. Do not connect the Ethernet cable. (The Ethernet cable can only be used for DoIP ENET computer-specific software.)
2). Connect device to the vehicle diagnostic interface, and the voltage display screen shows the current OBD-II diagnostic interface voltage. The power indicator light is on. If the voltage is lower than 11V, the device will sound an alarm and the user needs to charge the car battery with a dedicated car battery charger.
3). Open the phone settings - turn on Bluetooth - search Bluetooth - select the Bluetooth [Name: OBD II] and the password is 1234 or 0000 - enter the software after successful matching.
4). For software settings, please refer to the recommended software matching settings video. (Note: The settings for different software are also different.)

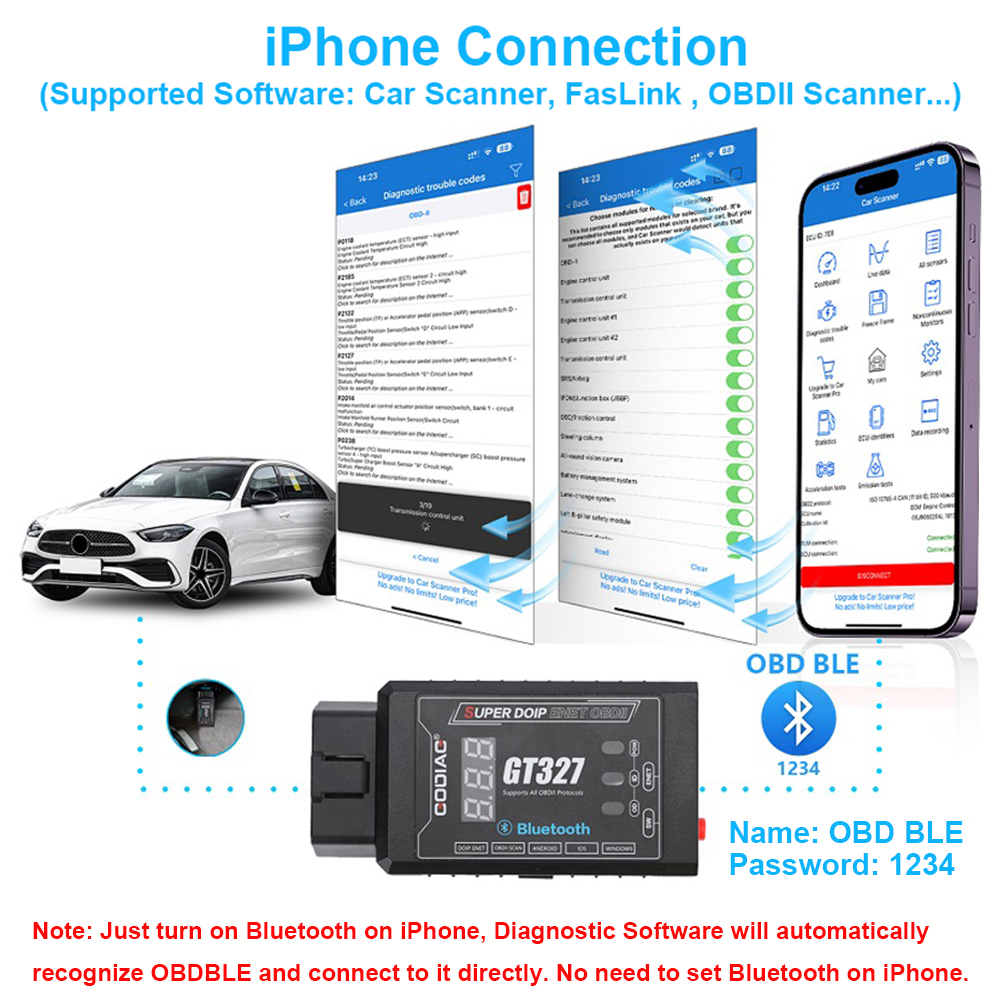

2. For iPhone:
Supported Software: Car Scanner, FasLink X, OBDII Scanner, ELM327...
1). Download and install diagnostic software on your iPhone (CarScanner and FasLink X are recommended). The DoIP ENET switch of the device pops up and is in the off state. Do not connect the Ethernet cable. (The Ethernet cable can only be used for DoIP ENET computer-specific software.)
2). Connect device to the vehicle diagnostic interface, and the voltage display screen shows the current OBD-II diagnostic interface voltage. The power indicator light is on. If the voltage is lower than 11V, the device will sound an alarm and the user needs to charge the car battery with a dedicated car battery charger.
3). Open the phone settings - turn on Bluetooth. (Note: iPhone cannot select Bluetooth for connection and matching in the phone settings.)
4). Open the settings of the software on the iPhone, select the OBD BLE Bluetooth and the password is 1234 or 0000. Refer to the recommended software matching settings video. (Note: The settings for different software are also different.)

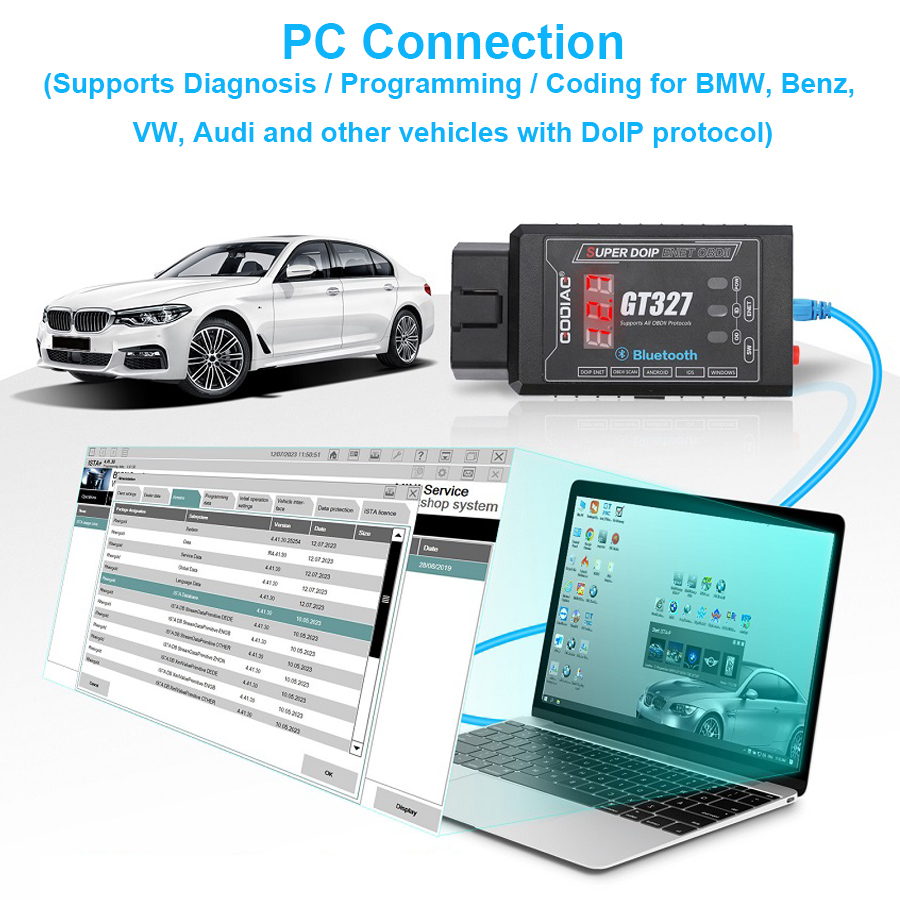

3. Super DoIP ENET Connection to Computer:
1). It supports diagnosis / programming / coding for BMW, Benz, Volkswagen, Audi and other vehicles that support DoIP protocol. (No software is provided.)
2). It can be used for diagnostic programming and coding of Land Rover, Bentley, Lamborghini, Jaguar, Volvo, Geely vehicles that support DoIP communication. (No software is provided.)

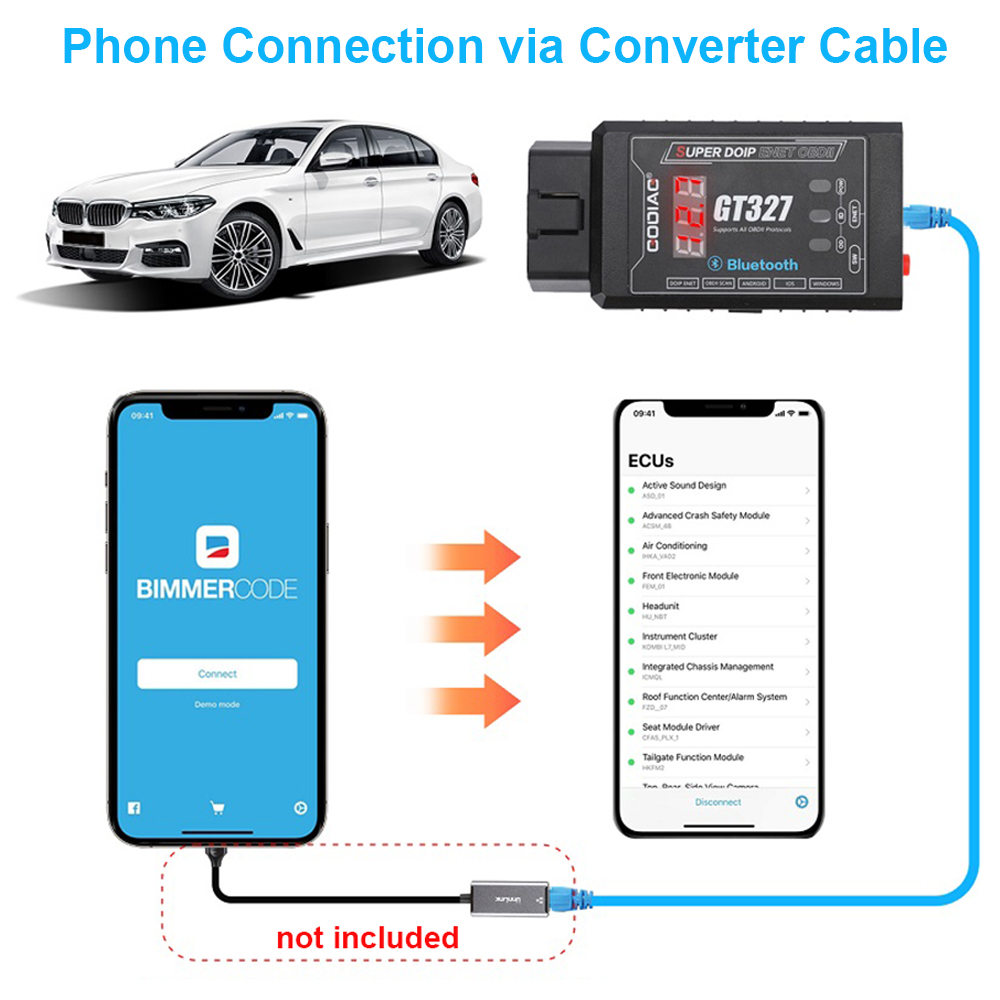

4. Super DoIP ENET Connection to Mobile Phone:
Note: DoIP ENET vehicle diagnostics can only be connected via an Ethernet cable.
Packing List:
GODIAG GT327 Super DoIP ENET OBD-II Scanner
ENET Ethernet Cable (3 meters)
Packing Box
|
