  OBDSOS PRODUCTS Car Universal Diagnostic Tool XTool

Product ID SP449
Product Name XTool D9 EV Electric Vehicles Diagnostic Tool Supports DoIP and CAN-FD
Product Price USD2200
Actual Weight (Kg) 7
Volumetric Weight (Kg) 7
Package Size (cm) 53*16*37
Related Download
Order Quantity:
In Stock



Description

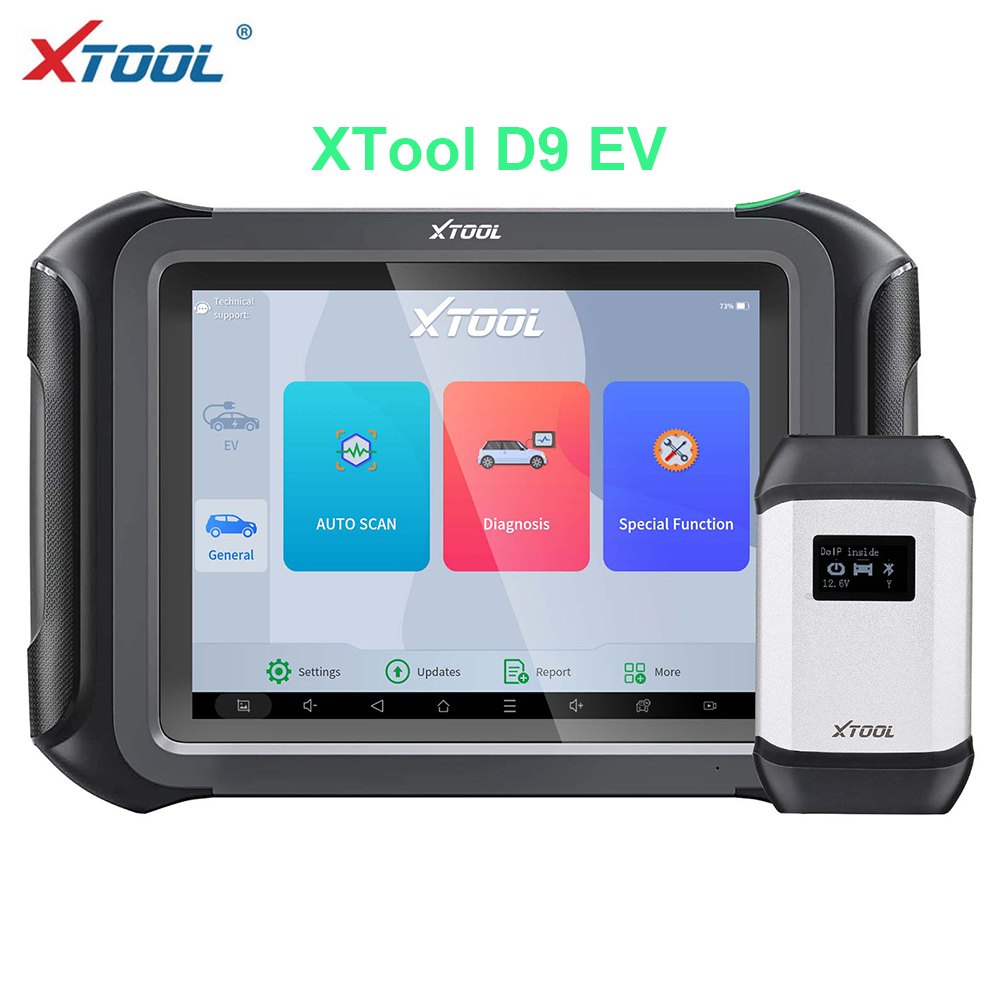

Name: XTool D9 EV Electric Vehicles Diagnostic Tool Supports DoIP and CAN-FD

Description:

XTool D9 EV is a top diagnostic system designed specifically for electric vehicles. Equipped with a high-performance, 9.7-inch touch screen tablet, XTool D9EV is both powerful and durable. With Bluetooth communication capabilities and support for DoIP and CAN-FD protocols, XTool EV D9 is compatible with most EV models on the market.

XTool D9 EV comes equipped with easily updatable software, including the APP, diagnostic software, and operating system, simplifying maintenance for users. With its broad diagnostic capabilities and support for the IMMO function, this tool is a comprehensive solution for both EV owners and mechanics alike.

Supported Languages:

English, French, German, Spanish, Portuguese, Italian, Russian, Arabic, Polish, Finnish, Vietnamese, Japanese, Korean, Traditional Chinese

Software Update: 3 year free update online (3 years free update for car system, 2 years free update for EV system)

Highlights:

1. Programmable Module Installation(PMI):
When you replace or initialize a new/used module for Ford/Lincoln/Mazda, XTool D9 EV allows you to copy the data from the original module and install it to the new unit to finish the module re-placement.

2. ECU Coding:
XTool D9 EV Coding Tool comes with advanced coding capabilities to customize car settings through flash hidden functions and disable annoying functions, to reprogram the adaptive data for certain components after replacement to enhance vehicle performance.

3. Intelligent Full System Diagnostics with Topology Mapping:
XTool D9 EV is an OE-level full diagnostic scanner as it can scan in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read/clear codes, view the live data from each available system, perform active tests to check the work status of modules, providing you with a Dealership- Level only diagnosis, getting the accurate and in-depth results across all automotive systems. And it will provides a color-coded topology display for all vehicle systems' relationship on one page, helping you better analyze the system faults.

4. Smart Auto Vin & Auto Scan+BT Connection+Cable Connection:
XTool D9 EV provides you with more efficient diagnosis work. You just need to plug the VCI into the OBD2 port, within a working range of 33 feet(10m), you can use the D9 EV to communicate with the vehicle through BT connection, providing you with higher mobility. Use AutoVin to automatically read the vehicle identification number, or access the OBD-II menu to use Auto Scan to perform a comprehensive scan of all available modules to shorten the diagnosis time.

5. Commonly-Used 43+ Reset Services:
XTool D9 EV car service tool is designed for mechanics and workshop, garages. Along with the standard service functions like Oil Reset, EPB, SAS Adjustment, DPF Regeneration, Throttle Relearn and Injector Coding, IMMO, ABS Bleeding, TPMS Reset, BMS Reset, etc. Contains the most comprehensive services on 98% of vehicles

6. Bi-Directional Control/Active Tests:
XTool D9 EV is a bi-directional scan tool allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle to perform active tests without using the vehicle's controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That is helpful for DIY mechanics, speeding up the troubleshooting process when it is time to make repairs.

7. Support Newest DoIP and CAN FD Protocols:
D9 EV can works for the DoIP and CAN FD protocols. CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm(CRC field is extended to 21 bits).

8. 85+ Brands / 10000+ Cars Coverage & 14 Languages:
XTool D9 EV car diagnostic scanner can work on more than 85+ US domestic, European, and Asian makes, more than 10000 car models, the extensive vehicle coverage can provide you with almost every diagnostic option a mechanic could need. With a multilingual menu, you can easily switch between languages, allowing mechanics to avoid language barriers and focus on their vehicle data.

9. Optimized High-Eed Hardware Configurations:
9.7-inch large touch screen tablet scanner based on Andoird 9.0 OS. One screen can display 15 data stream (Graphic and Textual) for easy navigation. 10000mAh rechargeable battery(up to 20 hours continuous use) to avoid frequent charging. 2GB RAM+128GB storage to save more vehicle documents and customer data. 1.8GHz 8-core CPU processor performs diagnostics quickly and efficiently.

10. Other Extended Functions:
Compressor Detection / OBC Detection(need to work with XTool M812 which is not included in the package) / DCDC Detection / 48V Motor Detection.

Functions:

1. OE Level Full Diagnosis
XTool D9 EV automotive diagnostic computer is capable of in-depth OE level diagnostics that is previously available to dealer-tool only. It can access and scan all available vehicle modules like ABS, SRS(Airbag), TCM, PCM, BCM, IMMO, Chassis, Suspension, Parking Brake System, HVAC, Lighting System, Radio Systems, etc. to pinpoint fault locations for efficient car repair or component replacement, turn off warning lights and reset monitors.

1). Read & Clear Codes:
Show DTC definitions, turn off Check Engine Light(MIL), ABS/Airbag/Transmission warning lights, reset monitors.

2). Show 8 Live Data Stream in 1 Text or Graph:
Like misfire data, engine rpm, transmission oil temperature, mass airflow sensor data, long/short fuel trim, fuel pressure, actual fuel temperature vs desired fuel temperature, cylinder balance rates and etc; Retrieve freeze frame data to show the parameters when a DTC is recorded.

3). Perform Active Tests:
Like EVAP test, idle relearn, injector test, ABS motor pump cycling, car window, doors, sunroof, wipers tests.

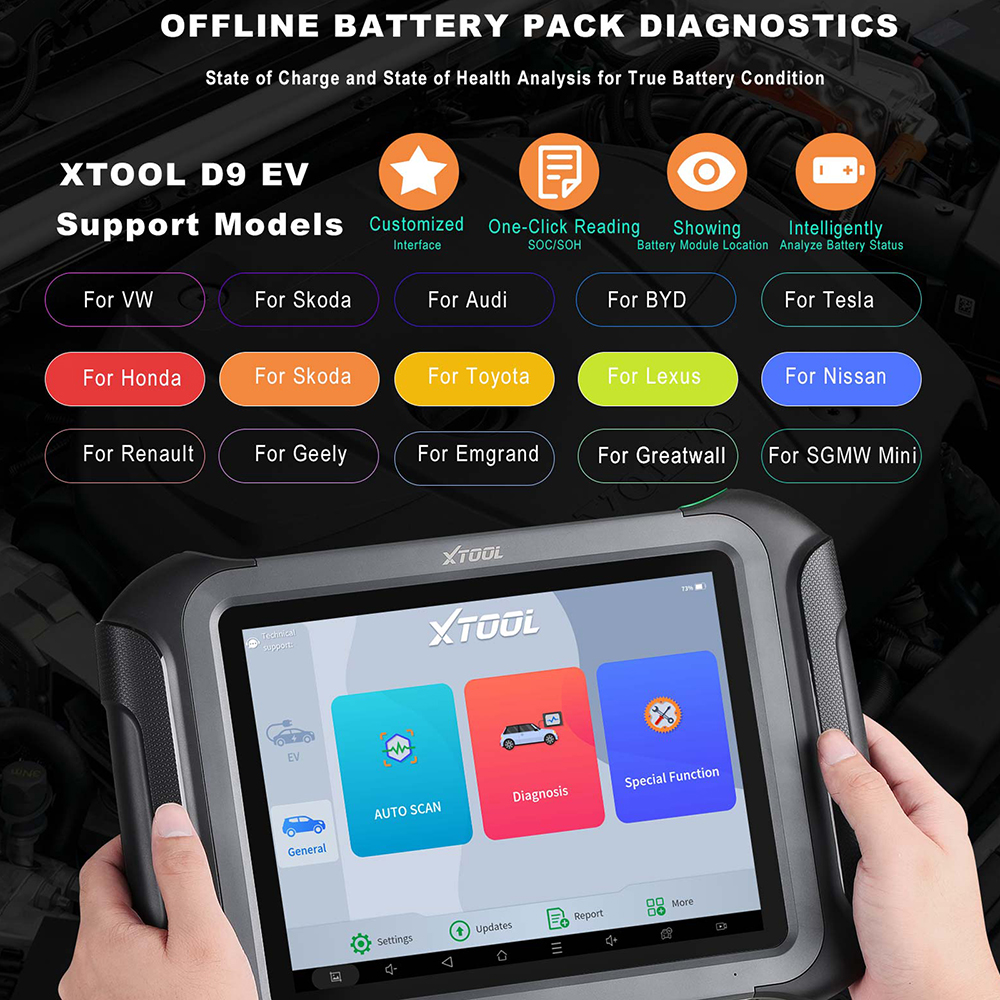

2. Battery Pack Diagnostic for New Energy Vehicles
The car structure of EVs is different from fuel cars: Unlike fuel vehicles, the problems of new energy vehicles are not scattered among the various systems but are mainly focused on the electronic control system and the battery. Traditional diagnostic scanners are unable to conduct comprehensive problem troubleshooting for electric vehicles.

Traditional scanners cannot diagnose EVs: They cannot diagnose the high-voltage system of EVs; obtain detailed information on each module of the battery pack and locate faults, or diagnose electric control modules such as motors.

Insufficient experience in EV diagnostics: Due to the high technical requirements for mechanics and the danger of the operation, there are currently few mechanics who can perform the diagnostics for EVs. In this way, we have developed the D9 EV scanner and a set of adapters to meet the diagnostic needs of new energy vehicles, diagnose the high-voltage system and perform battery pack analysis. It will show:

1). Total voltage
2). Max. Voltage and Module Locations
3). Min. Voltage and Module Locations
4). Voltage Difference of Each Battery
5). Probs Temperature

One-stop information source for all these vehicles with detailed battery information, including battery brand and module locations, and system block diagram with component introduction and connection and socket diagram.

3. Advanced ECU Coding
XTool D9 EV comes with advanced ECU Coding capabilities to reprogram the adaptive data for certain components after replacement to enhance vehicle performance and flash hidden functions to customize car settings and disable annoying functions.

1). ECU Coding & Online Coding, Guided Functions
Online ECU Coding for VW, Audi, Skoda, Benz, BMW
Online Calibration
Online Parameterization
Components Matching
Guide Functions for VAG Vehicles

2). Flash Hidden Functions & Customize Car Settings
Rear-View Mirror Folding
Disable Daytime Running Light
Disable Seat Belt Alarm Beep
Remove Maximim Speed Limiter

3). Programmable Module Installation
Work on specific for Ford, Lincoln, Mazda to reset adaptive values and install newly replacement modules.

4. Full Bi-Directional Control & Various Active Tests:
1). Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable
2). Cylinder Deactivation
3). A/C Compressor Clutch Relay On/Off
4). Cycling ABS Pump Motor
5). EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal...
6). Switch On/Off Car Wipers
7). Rolling Up/Down Car Windows/Doors/Sunroof
8). Cooling Fan Motor Command
9). Interior Lighting Test
10). High Beam Test

5. 43+ Service Functions:
Oil Reset: Perform reset for a new countdown of engine oil life system once changed the oil.
EPB Reset: Reset brake pads to maintain the electronic braking system safely and effectively.
SAS Calibration: Erase fault SAS memories&make calibration for Steering Angle Sensor.
BMS Reset: Register the newly replaced car battery into the car computer.
Gearbox Match: Matching the gearbox/transmission after replacement.
ABS Bleed: Bleed the air out of the ABS system for firm brake pedals.
Key Programming: Add new keys, disable lost keys, remote learning.
Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.

Other Special Functions:

Throttle Relearn, Suspension Calibration, Trans Adaptation(Gearbox Match), TPMS Reset, ABS Initialization, Seat Calibrations, Zero Point Calibration(of yaw rate sensor/seat weight sensor, etc), Window/Door/Sunroof, Headlight Adjustment, Airbag Reset(airbag reset and clear airbag crash data), Idle Relearn, Power Balance, Transport Mode, Tire Upgrade, Tooth Learning, VGT Learn(VGT Turbo Calibration), Fuel Trim Reset, Fuel Alcohol Composition Reset, Air/Fuel Reset, Start/Stop Reset, Language Change, and continuously growing.

Note: Special Functions vary across vehicle makes, models, year.

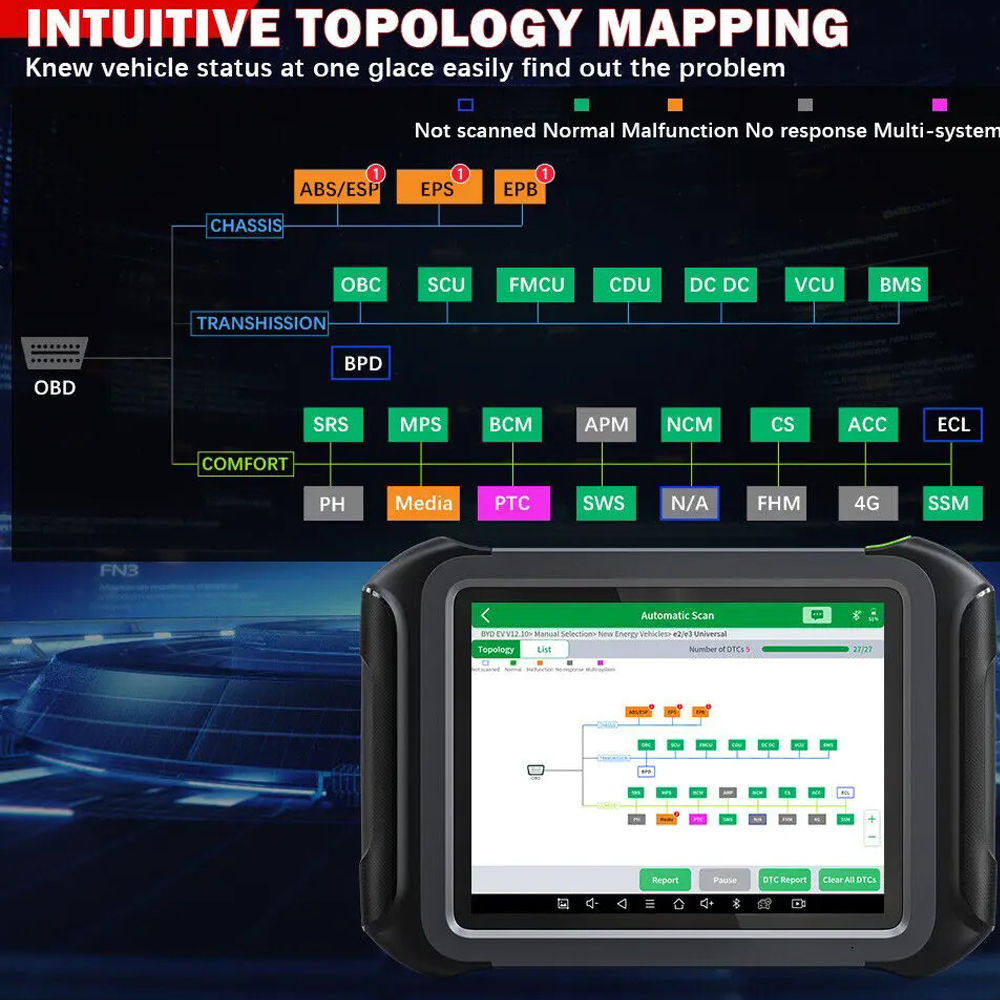

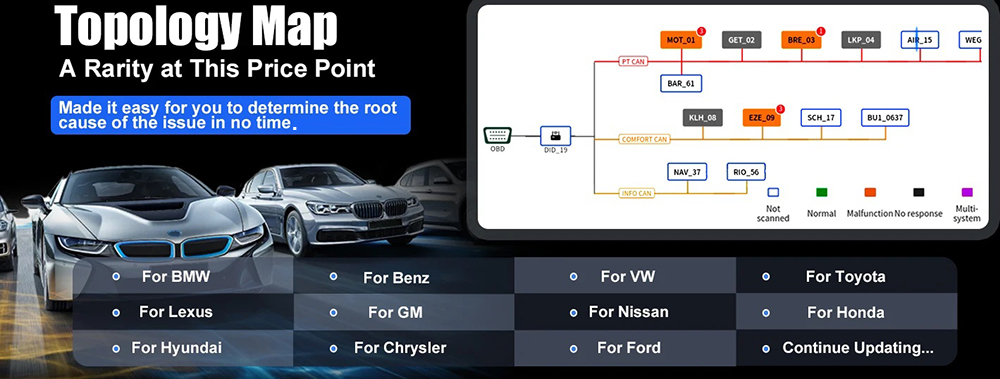

6. Intelligent Topology Mapping
XTool D9 EV is equipped with color coded module status for faster full system diagnostic results.

1). View the communication structure between modules clearly with all the situation of each system.

2). One click to display the fault code and enter the system exCar Motive function directly.

Note:

1). Topology Map is suitable for GM, Chrysler, Jeep, Dodge, Ford, Toyota, Nissan, Honda, BMW, Benz, Hyundai, Mazda (more coming soon).

2). It is NOT available for all vehicle makes. Please contact us for compatibility check.

7. Professional Key Programming Tools
Supports Read PIN Info / Program New Key Fobs/ Add Keys / Remote Learning, which is a more affordable option for experienced DIYers who also need diagnostic function, helping you program the key to power the car on.

When works with XTool KC100/KC501 to expand the key programming for higher-security brand cars such as BMW/Benz... to achieve its additional value.

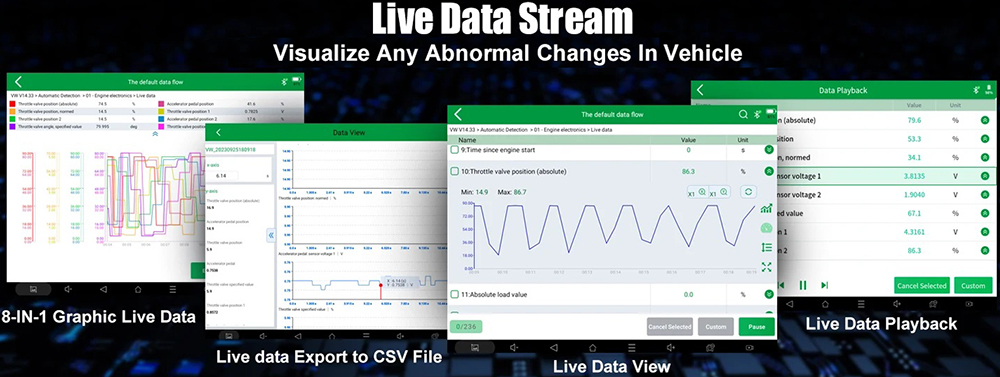

8. 8-In-1 Graphing
8-In-1 Graphing may be not enough, XTool D9EV combines 8 PIDs in one graphing to get accurate analysis.
Please try: Live Data>Select up to 8 PIDs>Custom>Graph

9. Diagnostic for Tesla
XTool D9EV comes with the special adapter for Tesla for making your diagnostic easier!
Supports DTC Reading & Clearing, Live Data for Tesla Model 3 /X/Y/S.

10. Highlights in Detection Learning:
1). Compressor Detection:
This function supports the off-vehicle drive of the compressor module. After the compressor module is repaired, it does not need to be tested back on the vehicle. First, connect to the power supply according to the voltage identification on the compressor nameplate, and then connect to VCI according to the jumper diagram. By doing this, you can achieve one-key start of the compressor.


2). OBC Detection:
This function enables the off-vehicle drive of the OBC module. After the OBC module is repaired, it does not need to be tested back on the vehicle. First, connect the M812 box and VCI in series, and then connect the OBC and M812 box according to the jumper diagram. After connecting AC power and load to OBC, you can achieve one-key start of OBC.

3). DCDC Detection:
This function realizes the off-vehicle drive function of the DCDC module. After the DCDC module is repaired, it does not need to be tested back on the vehicle. After connecting to VCI according to the jumper diagram, you can achieve one-key start of DCDC.

4). 48V Motor Detection:
This function allows you to do the off-vehicle drive for Audi’s 48V motor module. After the 48V motor is repaired, it does not need to be tested back on the vehicle. Just connect the power supply and then connect to VCI according to the jumper diagram. This way, you can achieve one-key start of the motor.

Wide Coverage:

1. Support DolP Protocol for BMW E and F Chassis and Land Rover/Jaguar models.

2. Support CAN FD Protocol for 2020+ GM models.

3. Support for Tesla Model S/X, Volvo EV, Acura EV, BMW, Tesla, BYD, GM, Audi, Toyota, etc.

4. Support VAG Guided Functions: Save time and make diagnostics quick and straightforward.

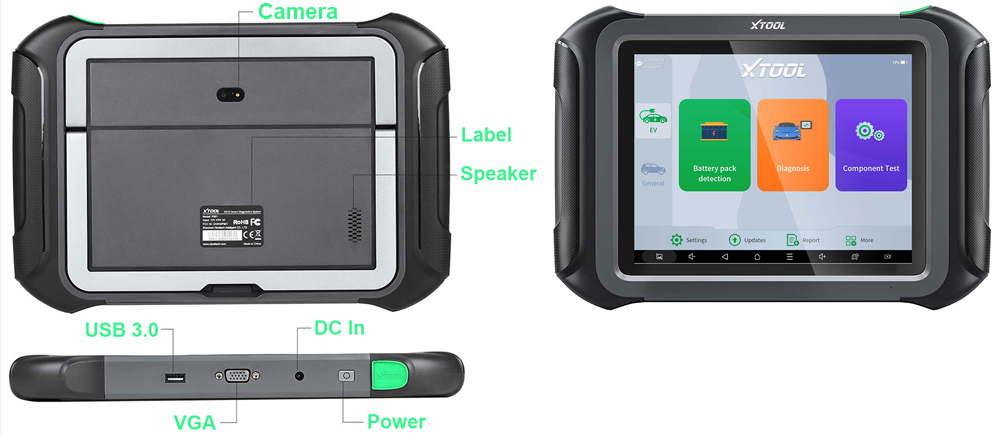

Specification:

Operating System: Android 10
Processor: 4 Core 1.80GHz
RAM: 2GB
Storage: 128GB
Display: 9.7-inch capacitive touch screen with 1024*768P resolution
Connectivity: BT / WIFI 2.4G & 5GHz / USB / Bluetooth / wired
Camera: 8.0 Megapixel rear camera with AF and flashlight
Sensors: gravity accelerometer, ambient light sensor
Auto Input/Output: microphone / dual speakers
Battery: 10000mAh / 3.7V lithium-polymer battery
Working Voltage: 9V ~ 36V
Input Voltage: 12V DC
Working Hours: 12 hours
Operating Temperature: -10 to 50℃
Storage Temperature: -20 to 60℃
Humidity: <90%
Dimension(L*W*H): 313*218*30mm

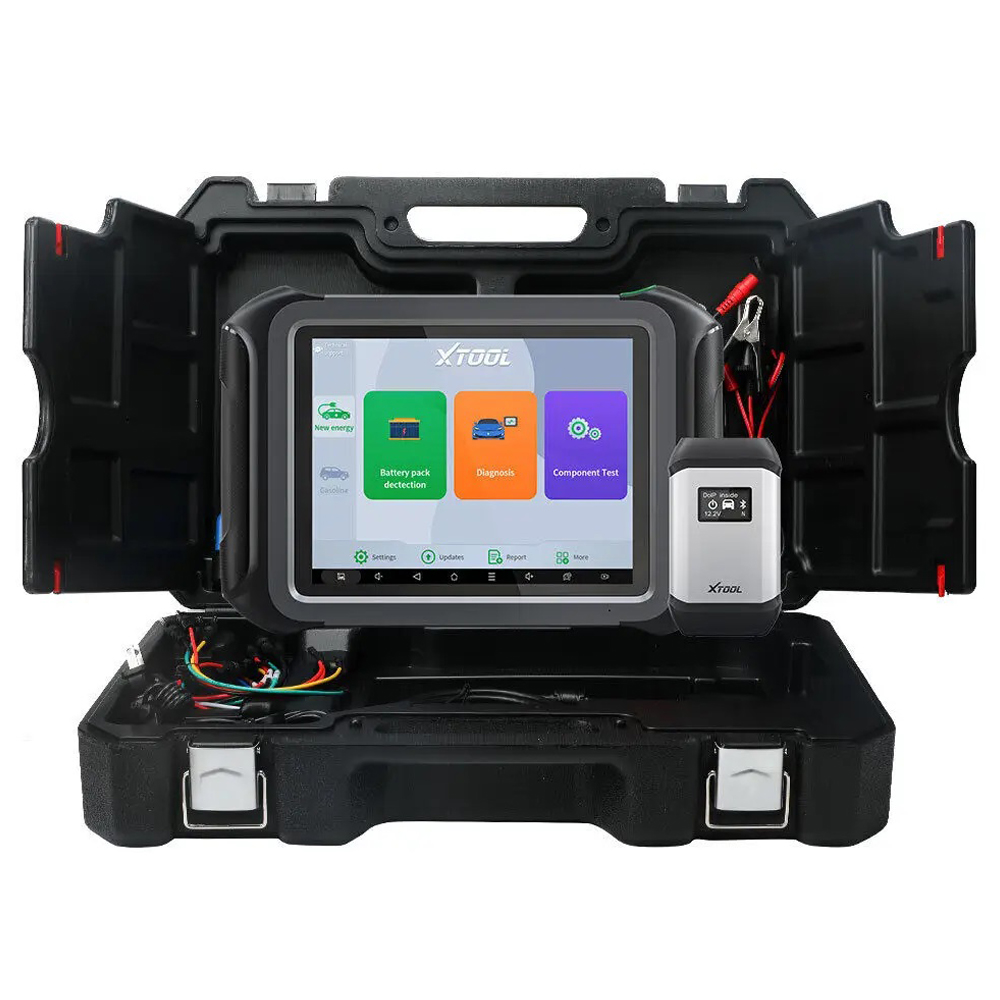

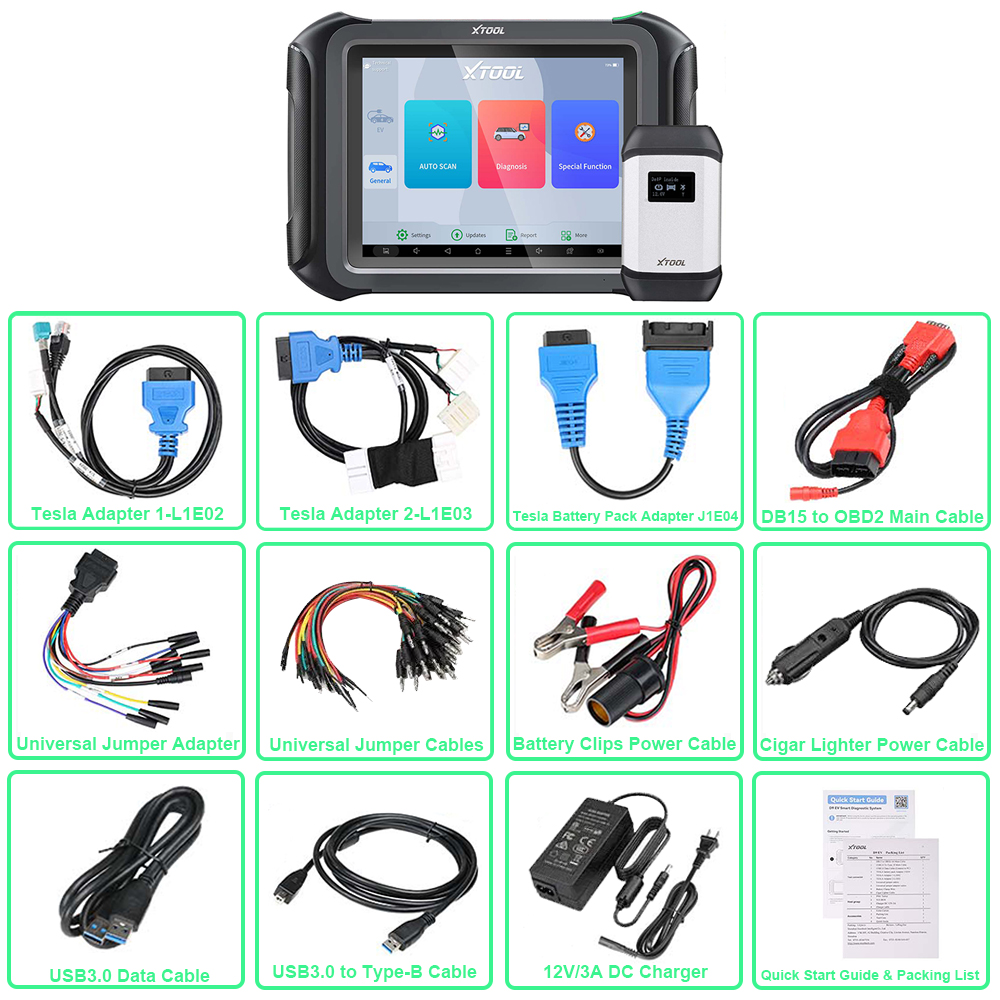

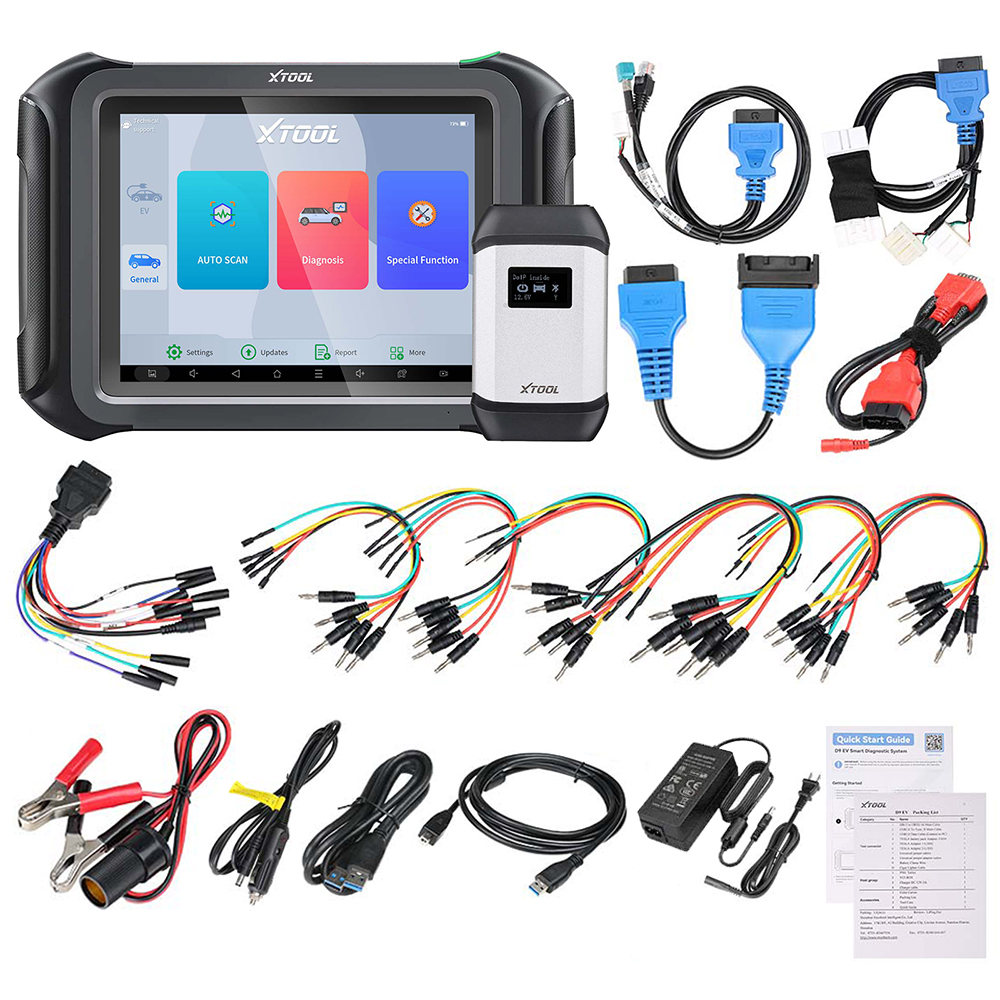

Packing List:

XTool D9 EV Tablet Scanner
Bluetooth VCI
DB15 to OBD2 16-Pin Main Cable
Tesla Adapter 1-L1E02
Tesla Adapter 2-L1E03
Tesla Battery Pack Adapter J1E04
Universal Jumper Adapter
Universal Jumper Cable Kit
Battery Clips Power Cable
Cigar Lighter Power Cable
USB3.0 Data Cable
USB3.0 to Type-B Cable
12V/3A DC Charger
Quick Start Guide
Certificate of Quality
Packing List
Plastic Toolbox
Packing Box
