Name: XHorse Dolphin XP009C Key Cutting Machine for Single-Sided and Double-Sided Keys
Description:

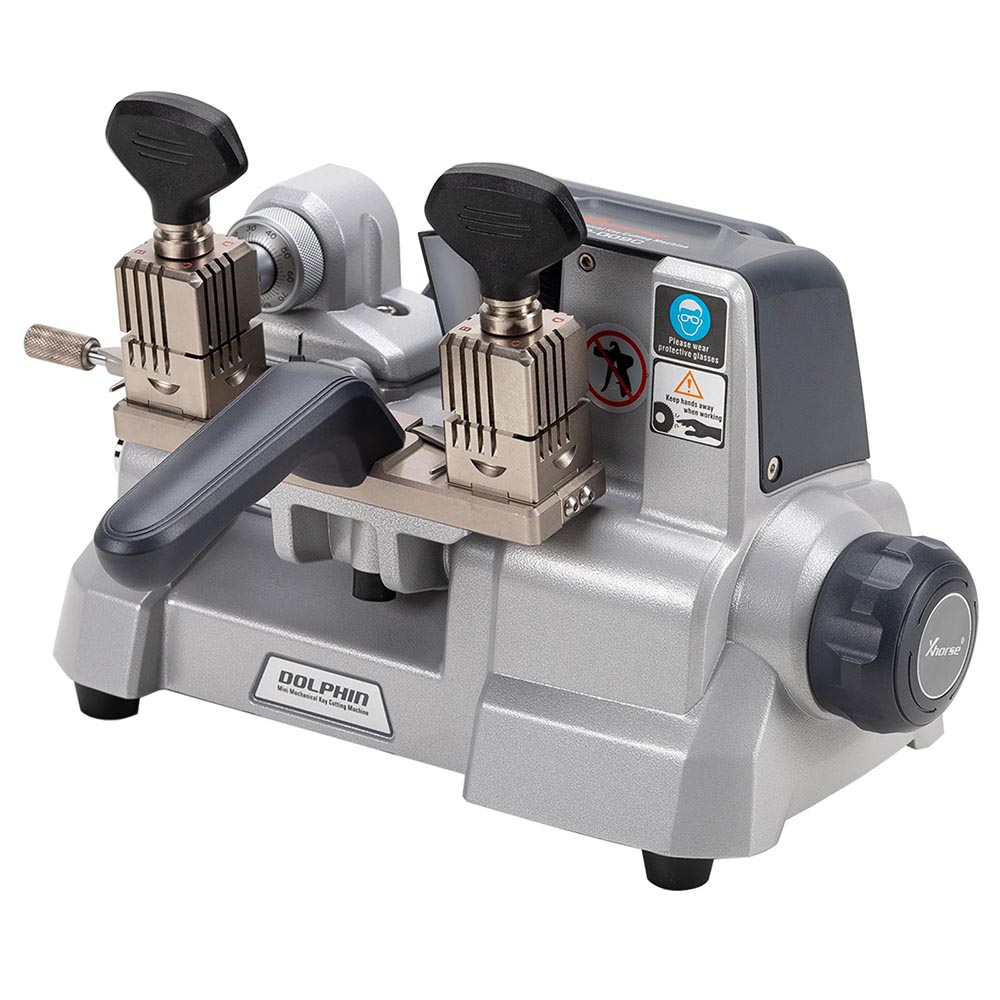

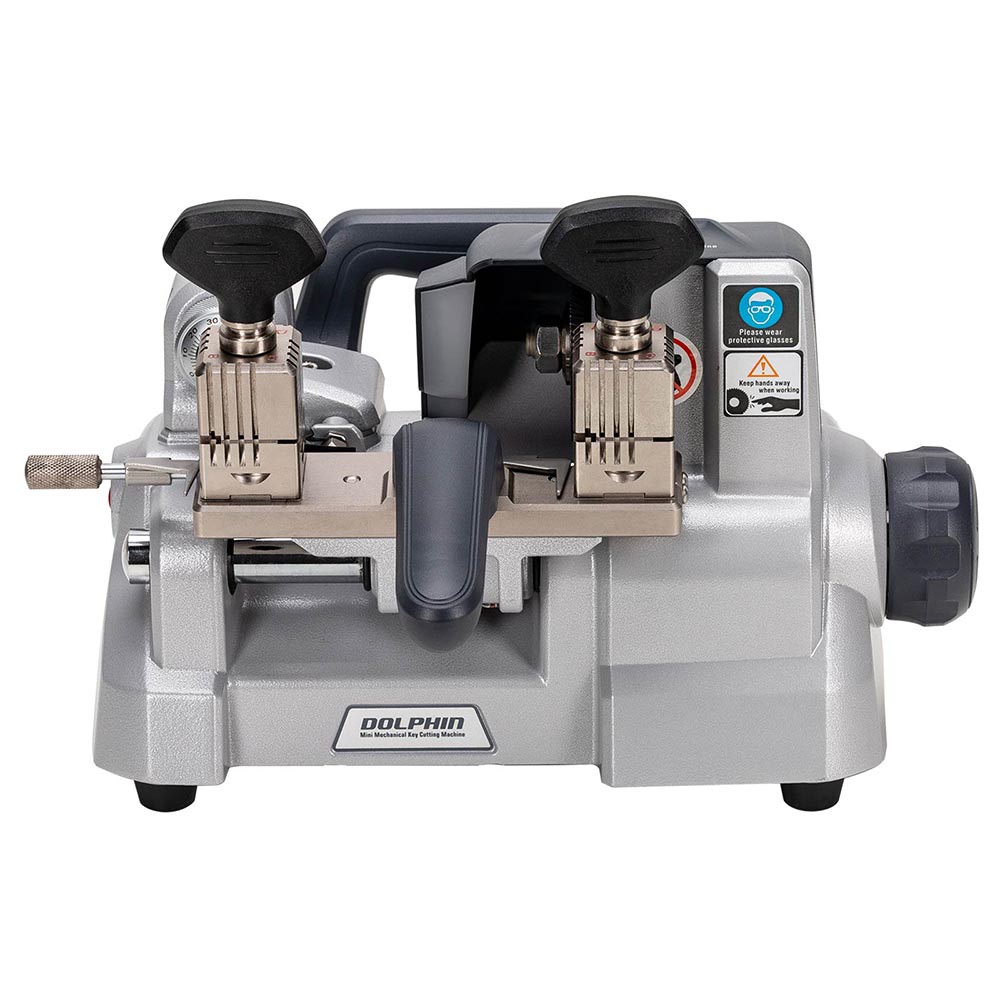

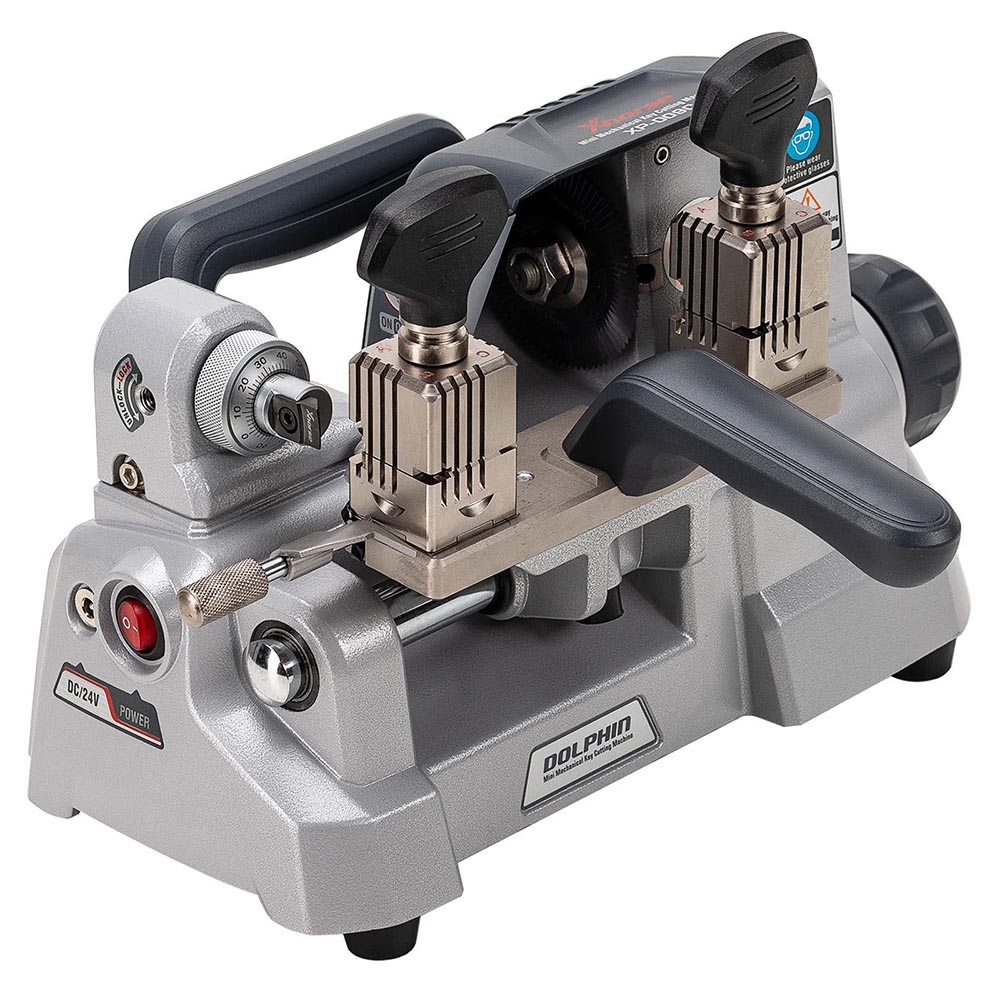

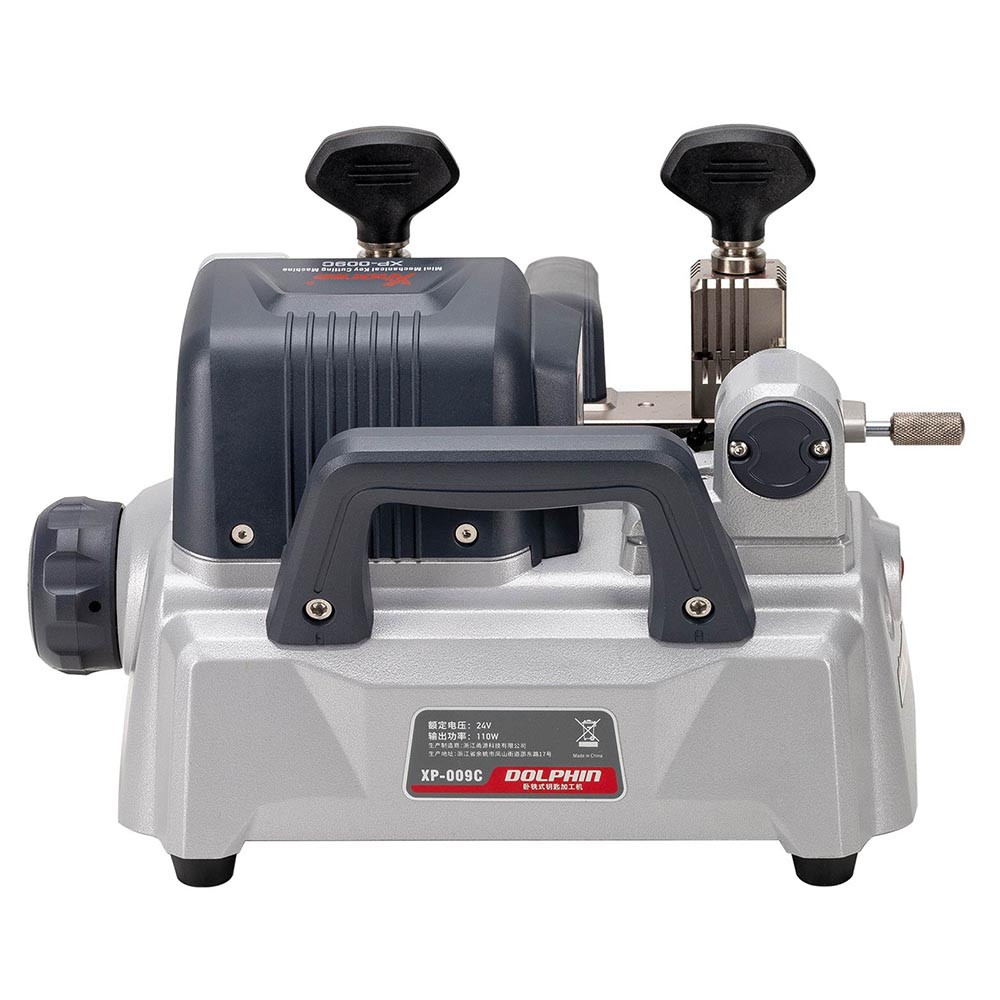

XHorse Dolphin XP-009C Mini Mechanical Key Cutting Machine is a portable high-performance key duplicating machine specially designed for global locksmiths to cut standard single-sided keys and double-sided keys. It is small in volume, light in weight and easy to carry.
XHorse Dolphin XP-009C Key Cutting Machine is a high-standard 1-cutter key cutting machine which can quickly and accurately copy and process variety of automobile and resident mechanical key types.
Highlights:
1. Only 10.8Kgs, can be a perfect tool for small shops, vans, and outdoor services.
2. The 4-sided revolving clamp to switch freely, providing you wider applicability, thanks to these two multi-purpose clamps, the auxiliary clamp on the left to place the original key, and the main clamp on the left to place the blank key.
3. The status indicator LED light is ideal for checking key cutting status clearly, and also ensuring the regular works in the dark.
4. The durable revolving hand wheel makes you feel comfortable while controlling.
5. Ergonomic lifting handle, smooth and effortless.
6. The emergency switch is able to turn off the power in an emergency.
7. The space between two clamps is 95mm, which is able to cut long keys.
Features:
1. The first horizontal cutting machine.
2. Lighter weight, about 10Kgs, small volume, easier to take out.
3. Two configurations with multiple options.
4. 4 directions fixture to switch freely.
5. Beautifully designed, full of modernity and technology.
6. Integrated casting, aluminum structure, durable.
7. Ergonomics designed, more comfortable, simple and convenient.
8. Micro-adjusted guide for high-precision cutting requirements.
Specifications:
Power: 110W
Power Input: 12V - 18V DC / 3A
Input Frequency: 47 - 63Hz
Spindle Speed: 900rpm
Motor Torque: 1.2Nm
Motor Rotation Speed: 1800rpm
Clamp Spacing: 95mm
Table Travel: 46mm
Working Temperature: 0 - 50℃
Humidity: 10-90%
Net Weight: 10.8Kgs
Machine Dimensions: 285*175*200mm

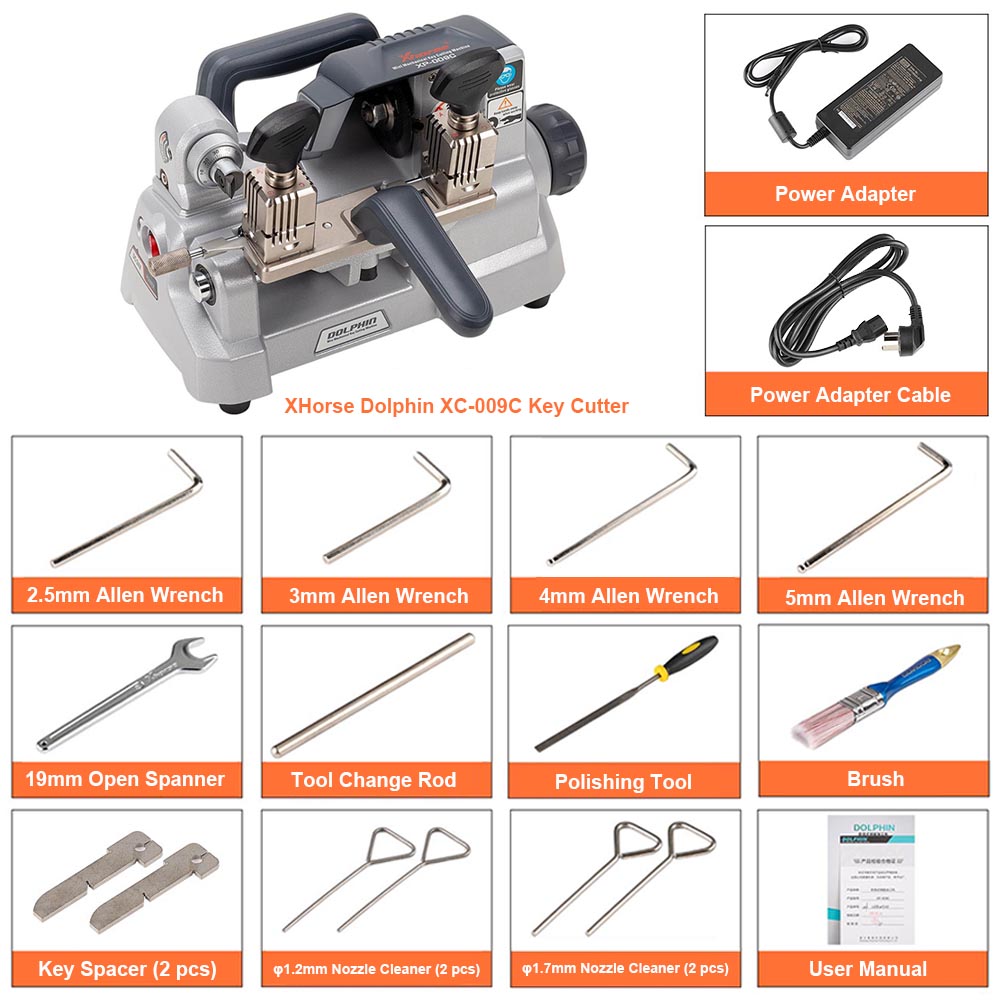

Packing List:
XHorse Dolphin XP009C Key Cutter (PN: XP0900CH)
2.5mm Allen Wrench
3mm Allen Wrench
4mm Allen Wrench
5mm Allen wrench
19mm Open Spanner
Tool Change Rod
Polishing Tool
Brush
Key Spacer (2 pcs)
φ1.2mm Nozzle Cleaner (2 pcs)
φ1.7mm Nozzle Cleaner (2 pcs)
Power Adapter
User Manual
Packing Box
|
