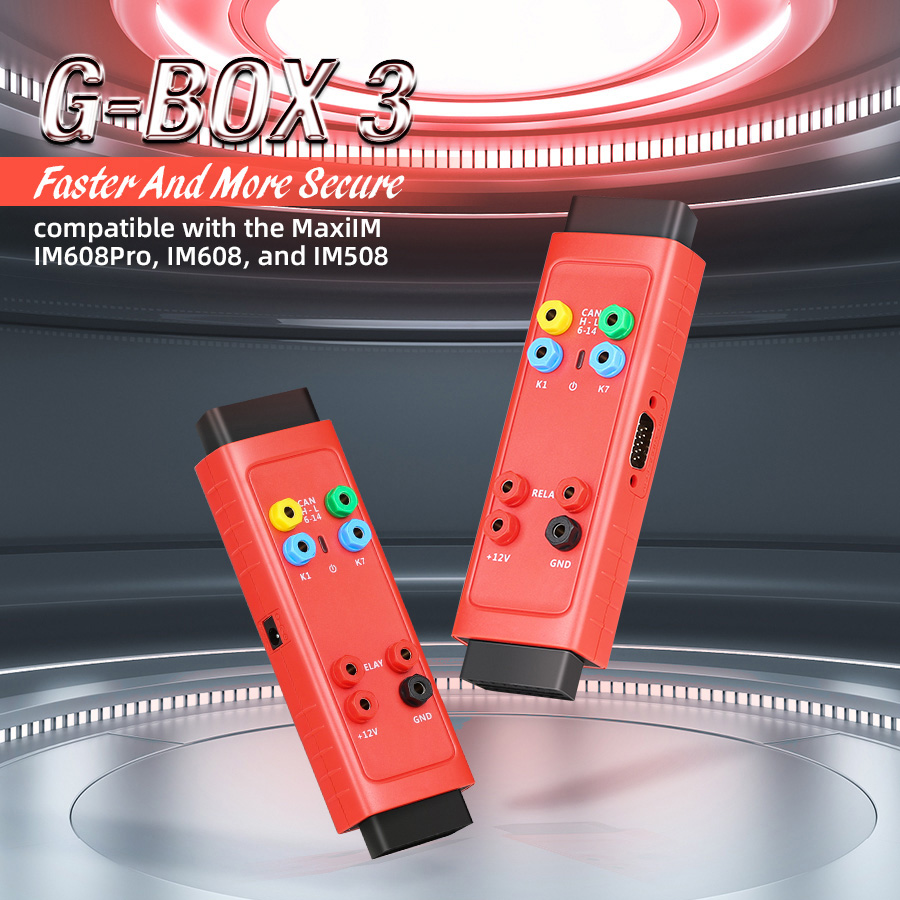

Name: Autel GBOX 3 Benz & BMW Adapter for Benz All Keys Lost
Description:

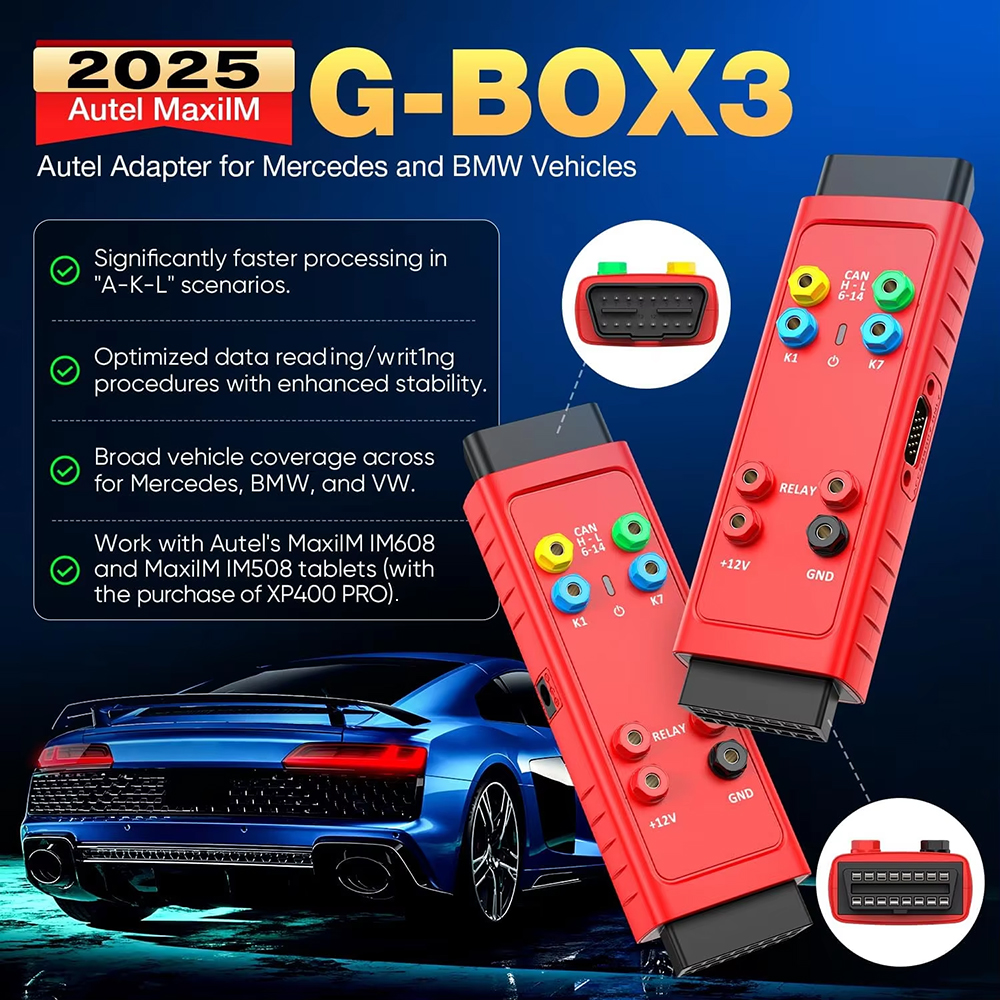

Autel G-BOX 3 Adapter is update version of Autel G-BOX 2. It is working with Autel MaxiIM IM608 / IM608PRO / IM508 for supporting Benz All Keys Lost.
Autel GBOX3 Adapter offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on-vehicle and on-bench Fast Mode in Mercedes-Benz All Keys Lost.
What is New in Autel G-Box3?
1. Faster and more secure.
2. Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS.
3. Bosch engine ECU read and write on BMW F-chassis, PSA group and Volkswagen MQB vehicles.
Autel G-BOX2 vs Autel G-BOX3:
GBox2 makes Mercedes All Keys Lost faster. GBox3 makes it 4 times / 8 times faster.
GBox3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.
Features:

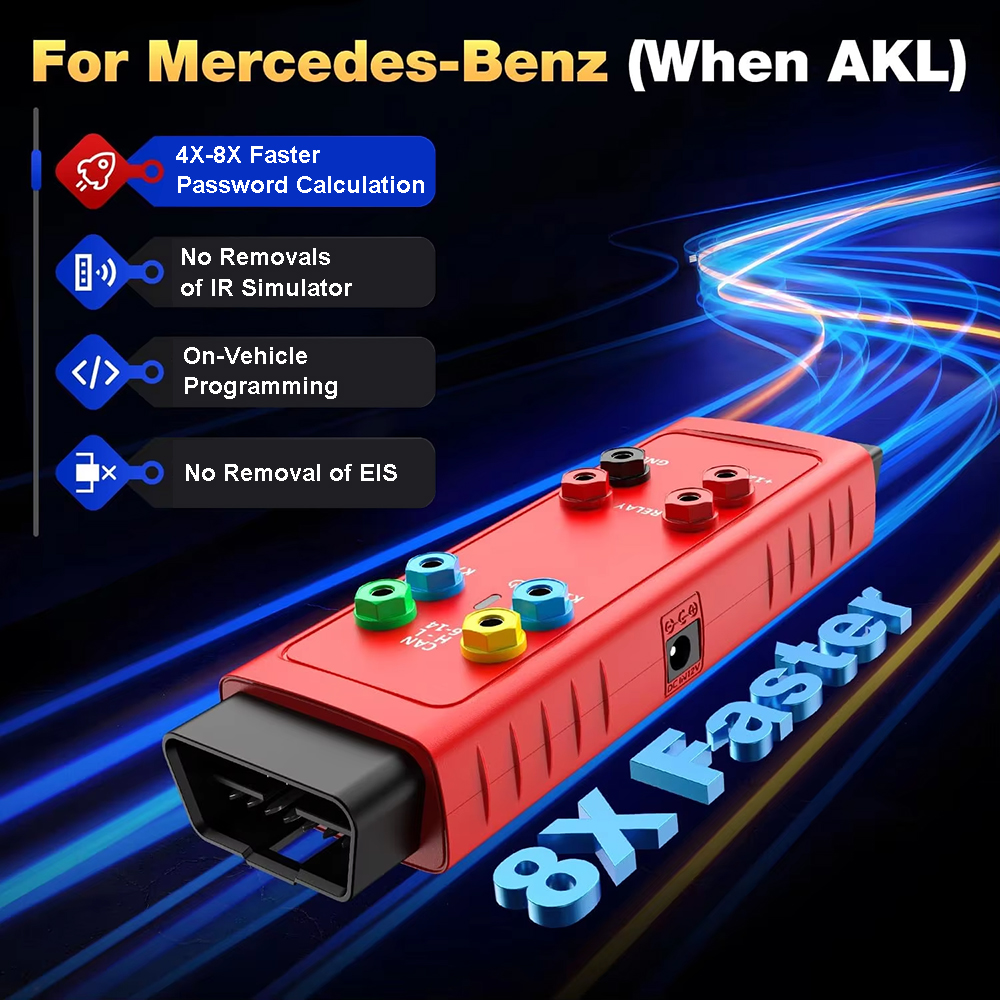

1. Faster password calculation for Mercedes-Benz All Key Lost.
2. 8 times faster password calculation for Mercedes-Benz W172, W204 and W207 ElS types.
3. 4X faster password calculation for Mercedes-Benz W209 and W211 ElS types.
4. BMW ME/DDE ISN reading for 20 types of ECUs, including EDC17, MEVD17, MSV90, and MSD87.
5. Volkswagen CM IMMO data reading and data synchronization for 18 types, including MQB EDC17 and MED17 ECUs.
6. Bosch engine ECU read and write on Volkswagen, BMW, and PSA group vehicles.
Functions:
1. Compatible with Autel IM608, IM6O8 PRO and IM508 (with an additional purchase of XP400).
2. Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS.
3. Bosch engine ECU read and write on BMW F-chassis and Volkswagen MQB vehicles.
4. Engine ECU reading/writing for BOSCH MD1/MG1(VAG,BMW,PSA,OPEL,etc)

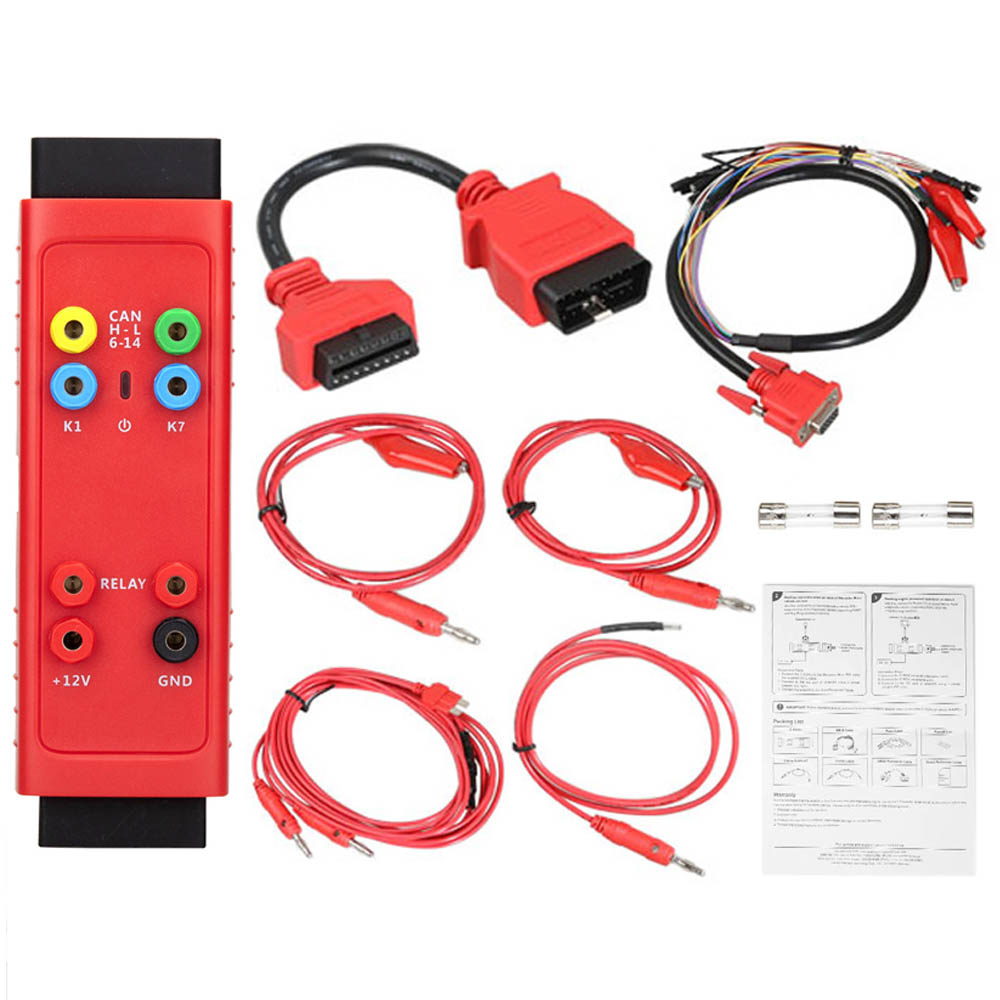

Packing List:
Autel G-BOX 3 Adapter for Mercedes Benz All Keys Lost
DB15 Cable
OBD2 Extension Cable
K-Line Cable
Fuse Cable
Clamp Cable (2 pcs)
5A Fuse (2 pcs)
Quick Reference Guide
Packing Box

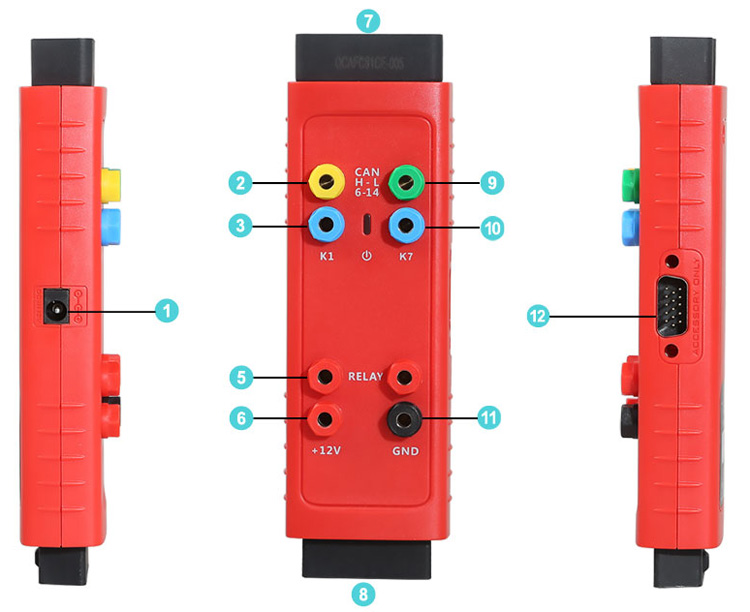

1. DC Port - for 12 DV power supply
2. CAN-H Port - universal CAN BUS interface, connects with OBD2 Pin 6
3. K1 Port - universal K-line interface connects with OBD2 Pin 1
4. Status Indicator - indicates the current operating status
5. Relay Port - connect with dedicated relay cables
6. +12V Power Port - universal power input/output port
7. OBD-II Male Connector - connects to the vehicle OBD2 directly or via a dedicated extension cable
8. OBD-II Female Connector - connects to the main cable of Autel Diagnostic Tablet
9. CAN-L Port - universal CAN BUS interface, connects with OBD2 Pin 14
10. K7 Port - universal K-line interface connects with OBD2 Pin 7
11. GND Port - universal power input/output port
12. DB15 Port – for dedicated BD15 cable for reading and writing multiple types of ECUs
|
