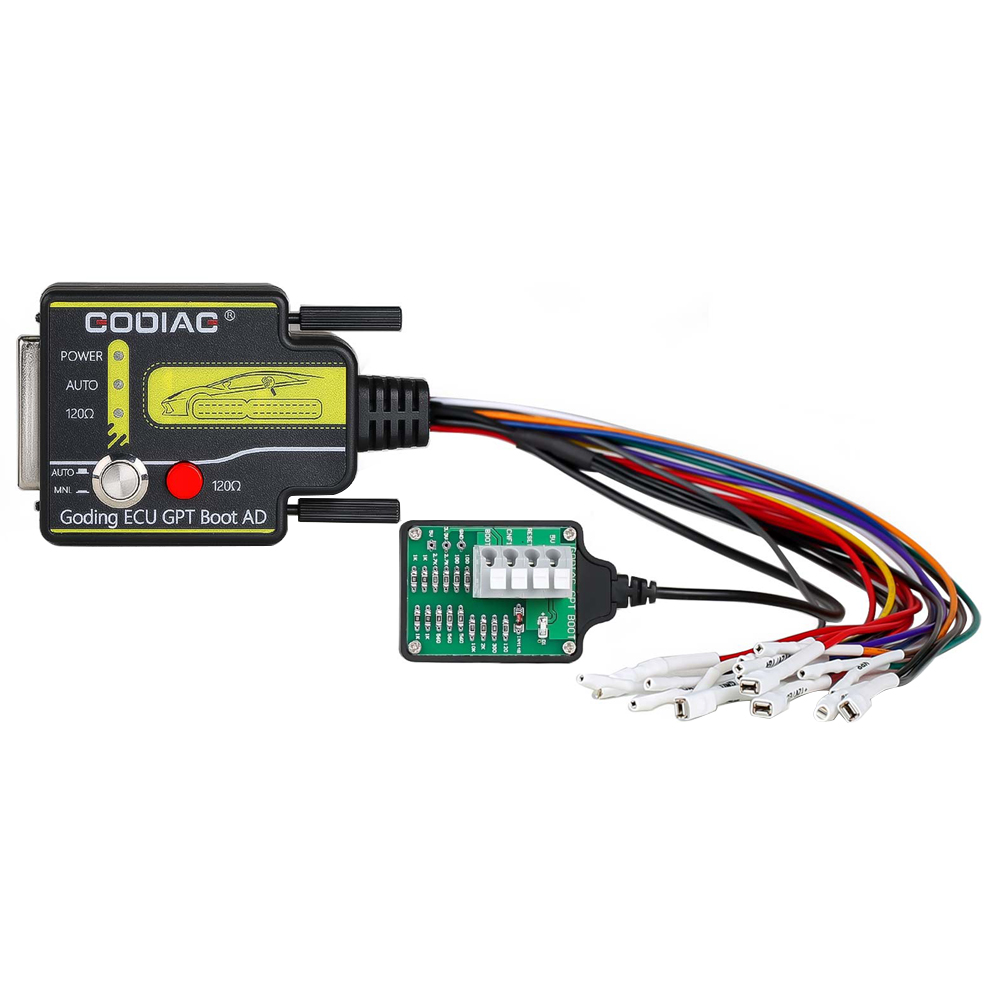

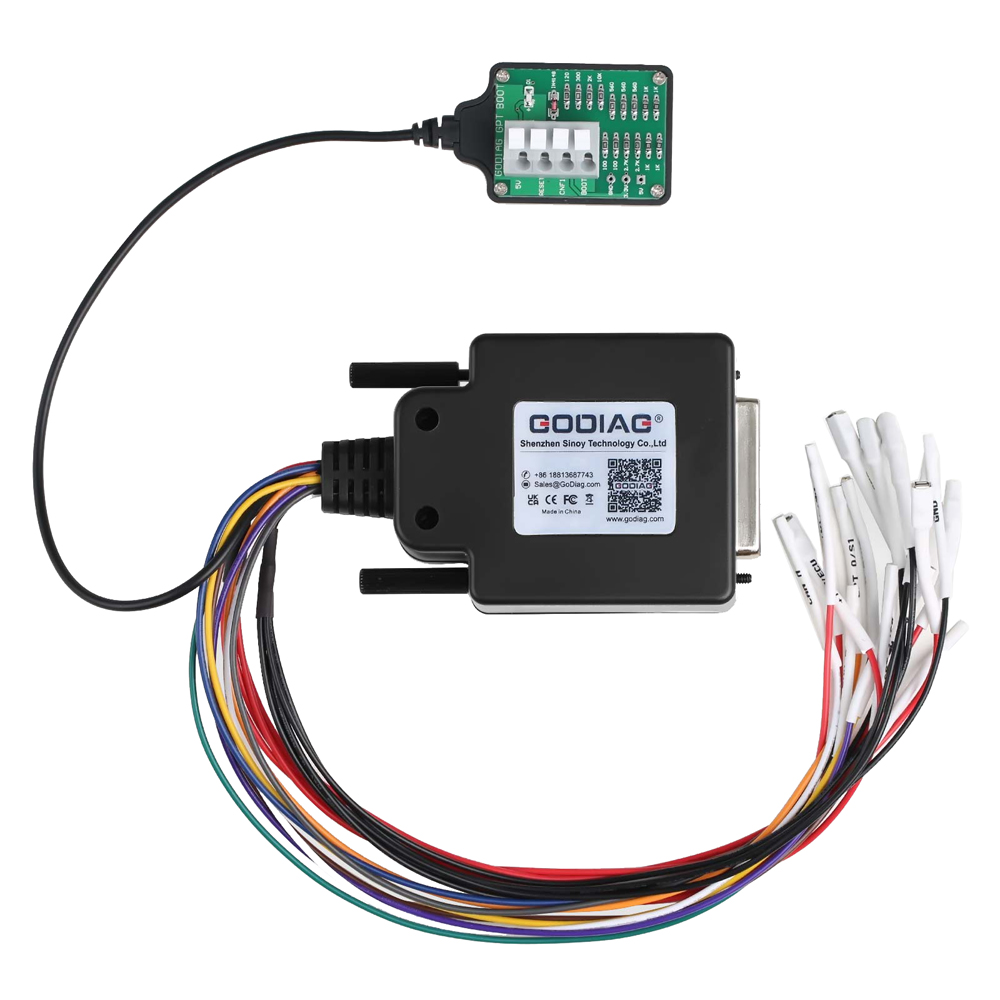

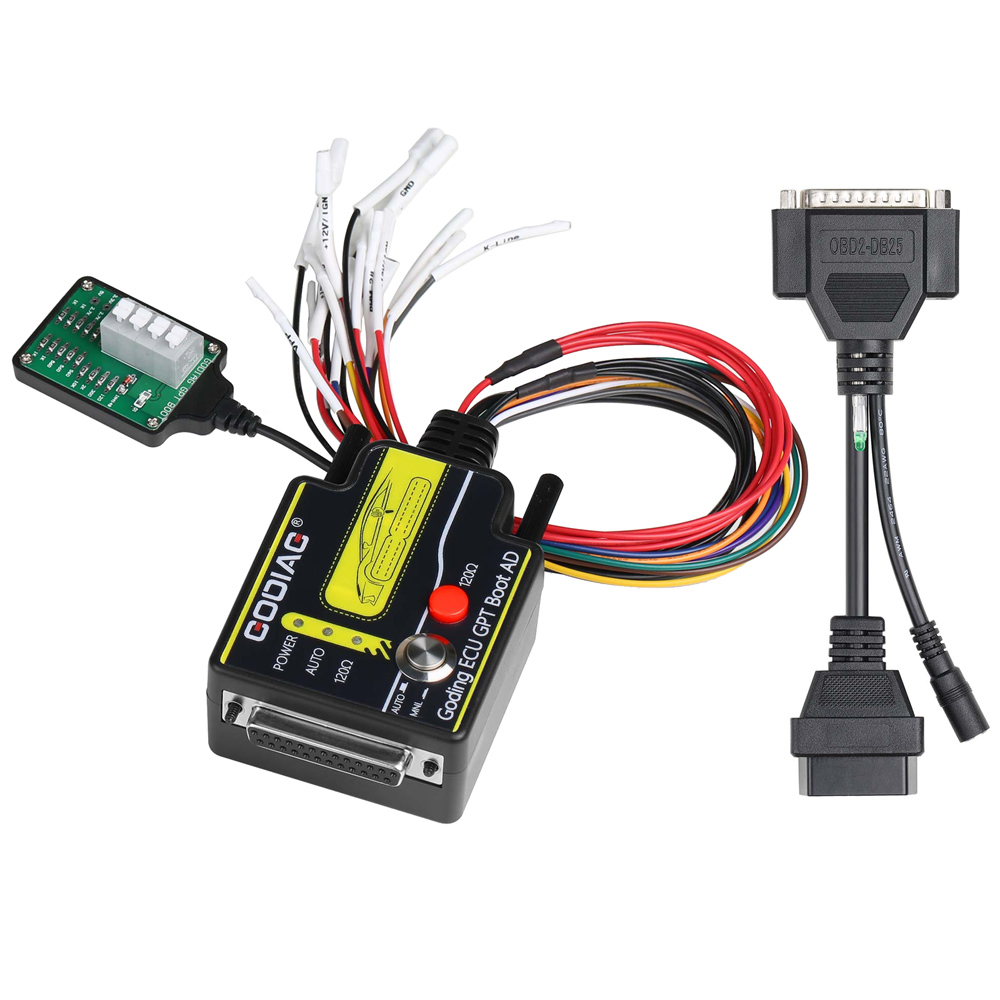

Name: GODIAG ECU GPT Boot AD ECU Connector for ECU Reading Writing
Description:
GODIAG ECU GPT Boot AD ECU Connector for ECU Reading Writing. No need Disassembly and compatible with J2534 / Openport / PCMFlash / foxFlash...

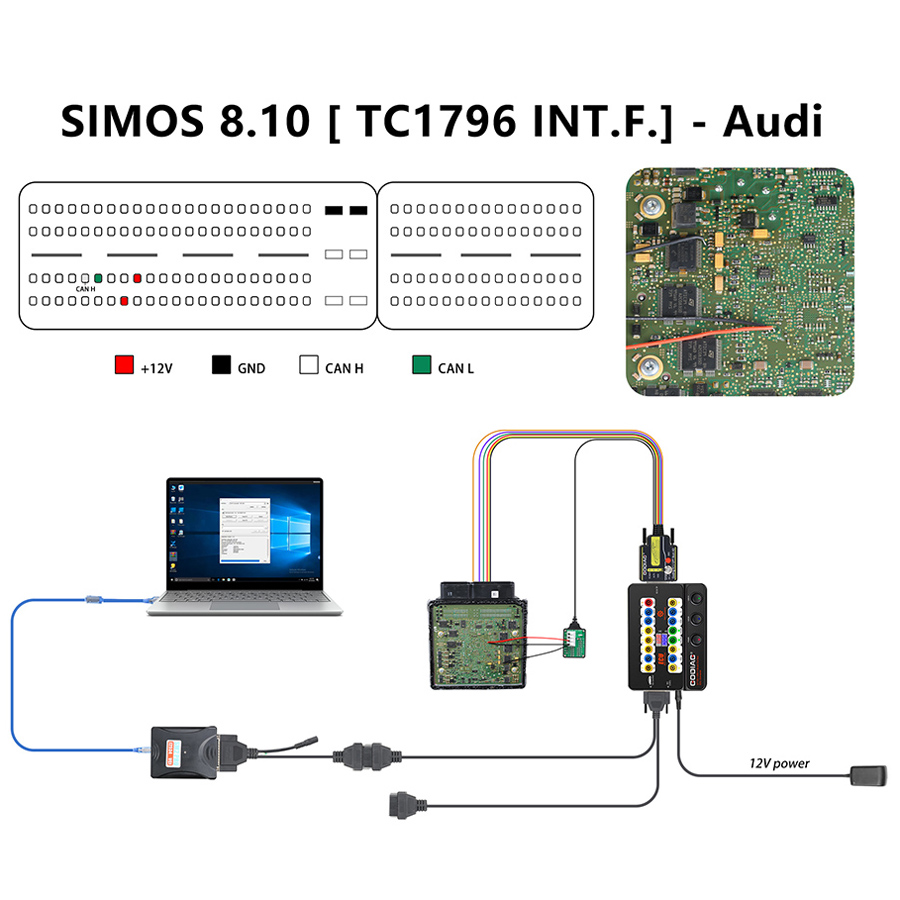

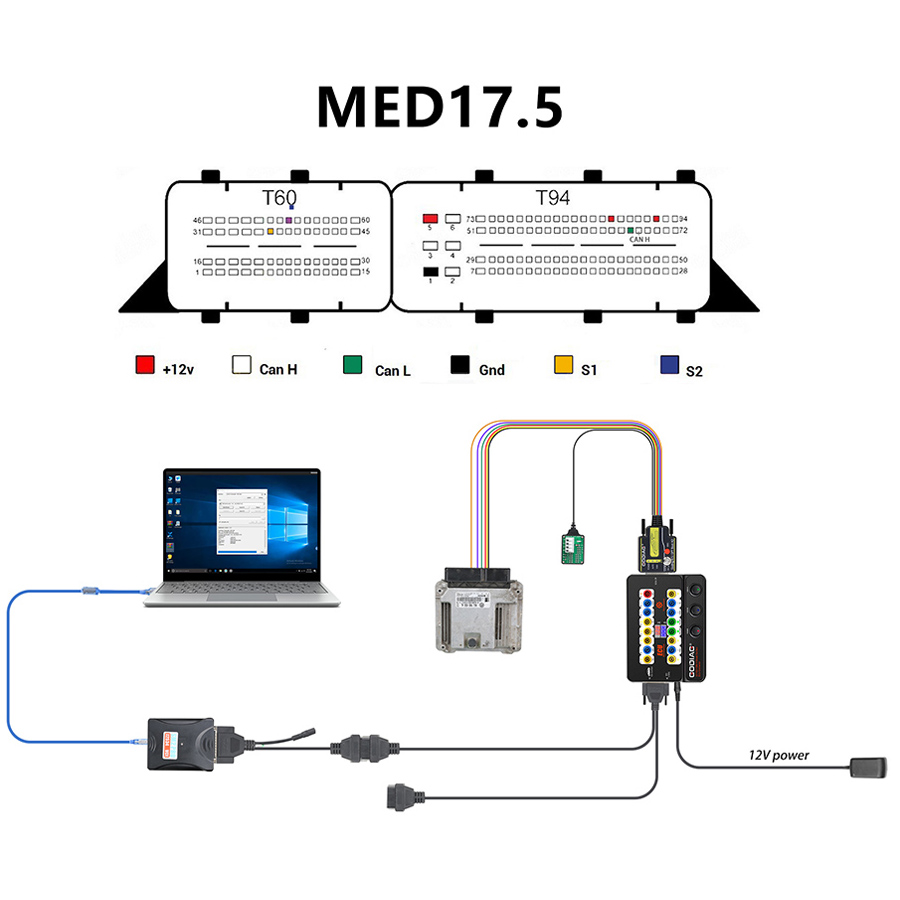

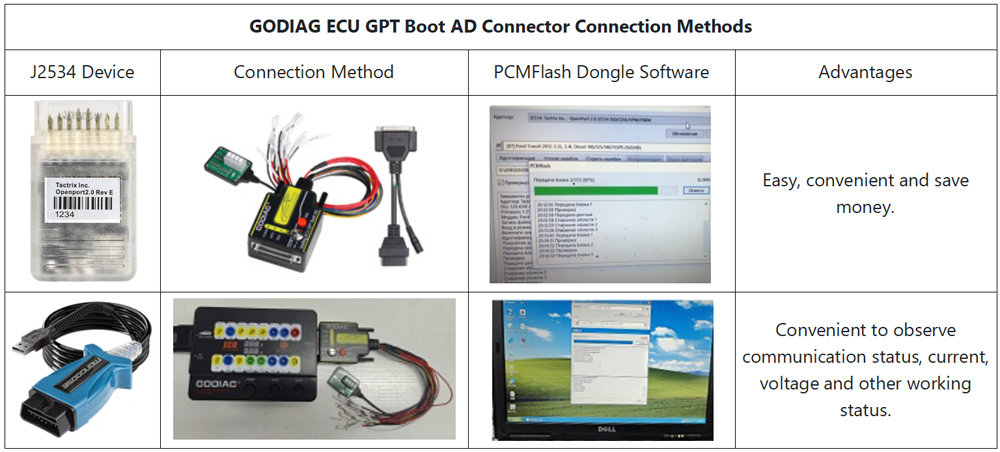

GODIAG ECU GPT Boot AD Programming Adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method.

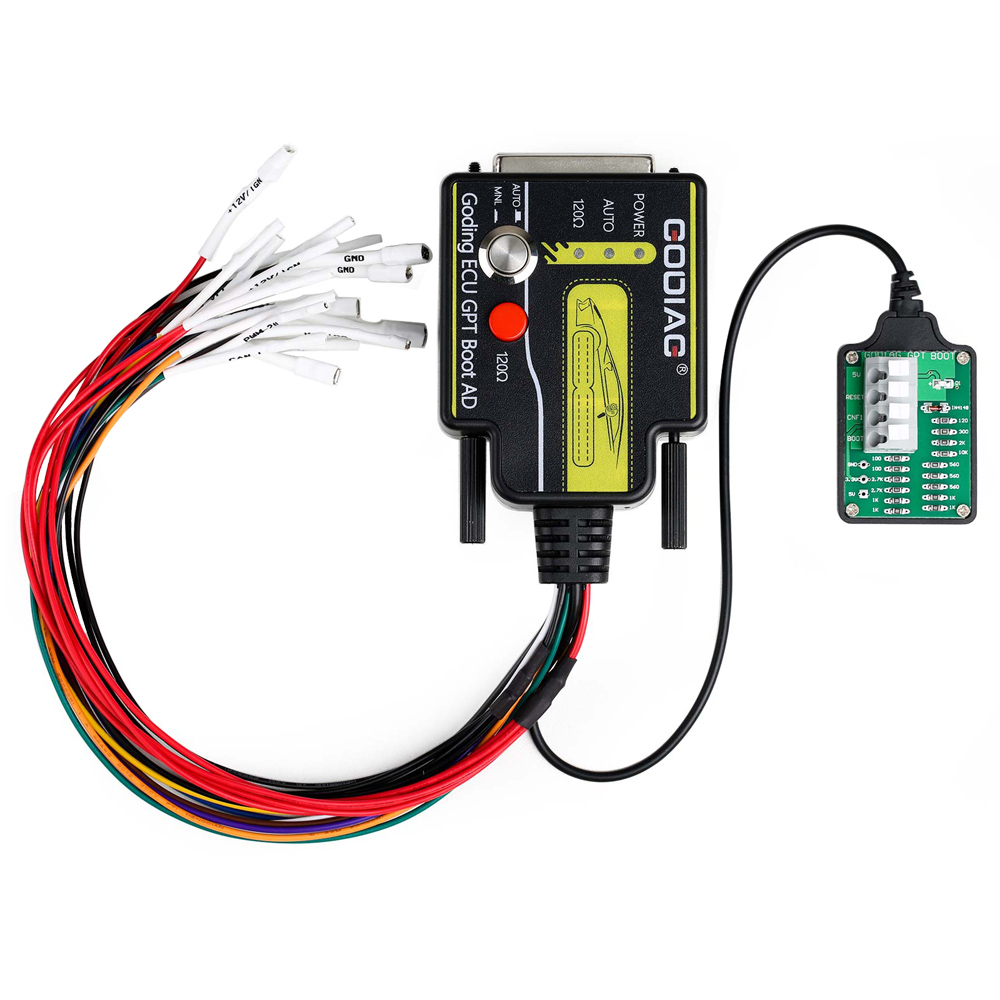

GODIAG ECU GPT Boot AD ECU Adapter is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFlash software.
Features:
1. ECU dedicated connection terminal.
2. Support manual ignition power control.
3. The ECU interface cable is labeled.
4. Support ECU conversion to OBD2 mode to read and write data.
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power supply.
7. Support ECU opening BOOT method to read and write data.
8. CANBUS is equipped with a switch to freely select the 120Ω resistor.
9. Support GPT to read and write data without disassembling the ECU.

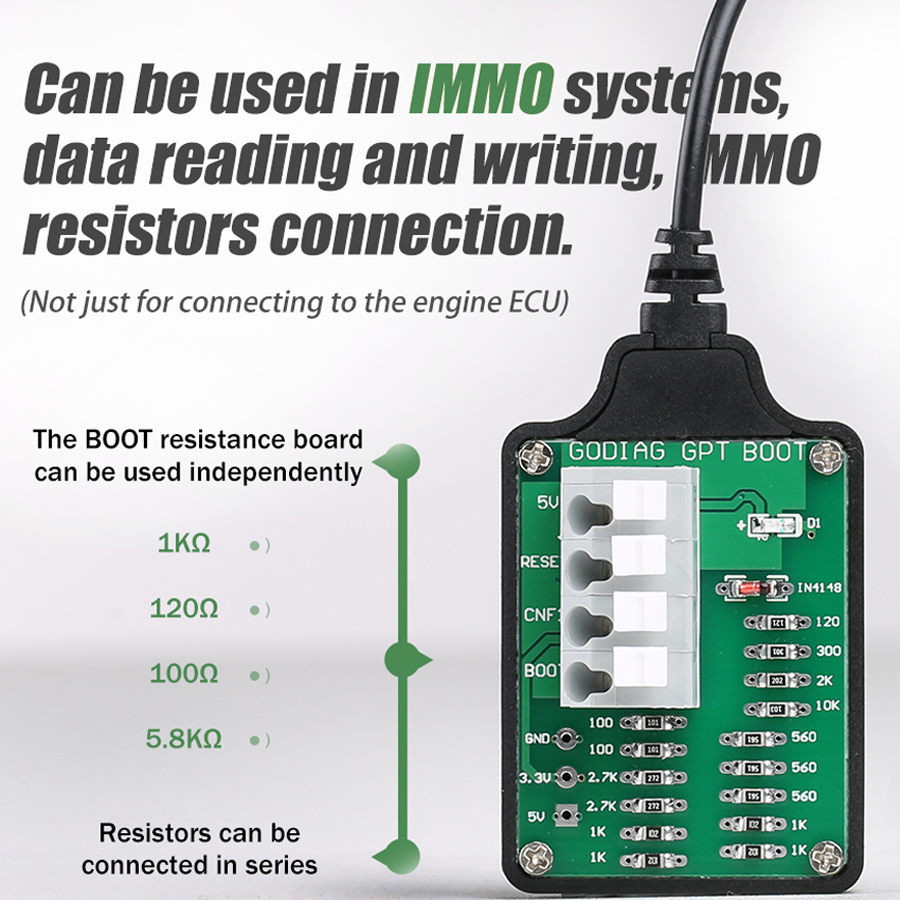

10. Equipped with BOOT resistance board connecting cable (anti-lost resistor design).
Functions:
1. Diagnostic function supports standard OBD2 protocol equipment.
2. Supports ECU reading and writing data, and supports J2534 devices.
3. Only Scanmatik 2 PRO for PCMFlash allows to form GPT1, GPT2 signals necessary to work with Module 71.
|
