Description:

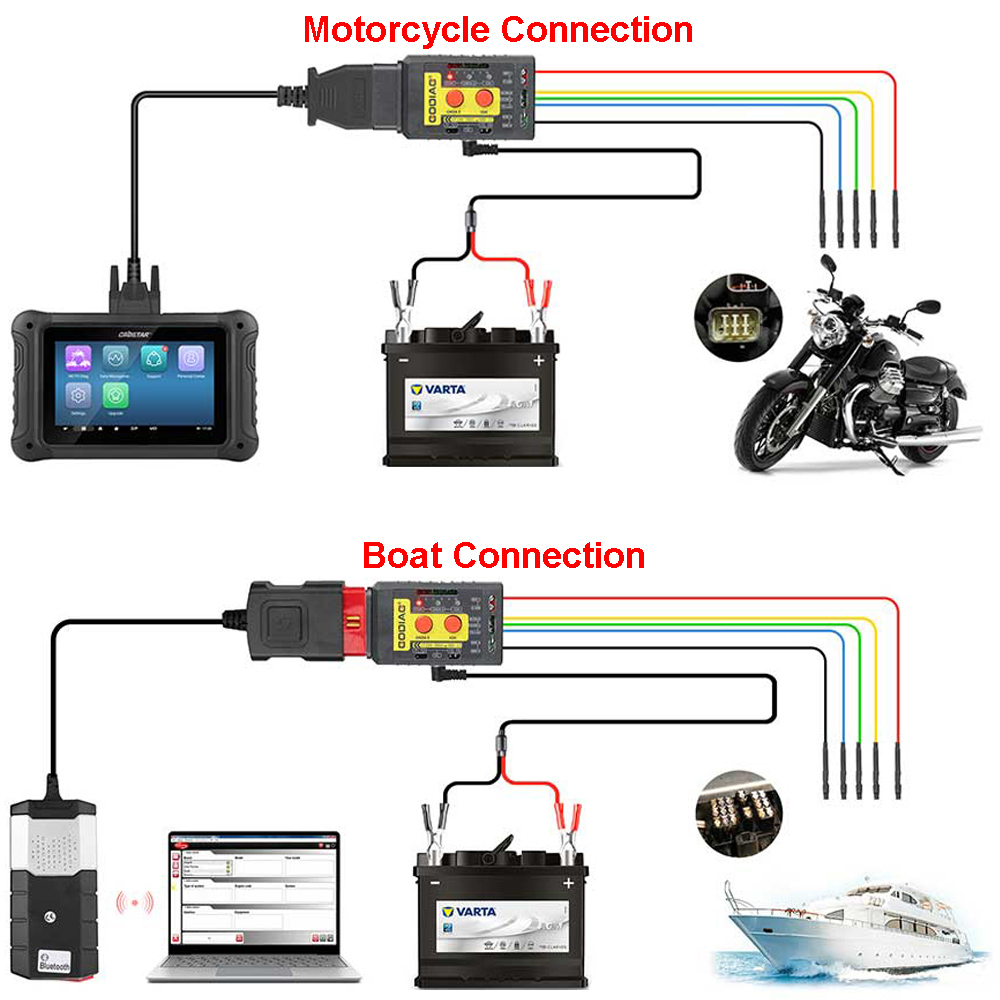

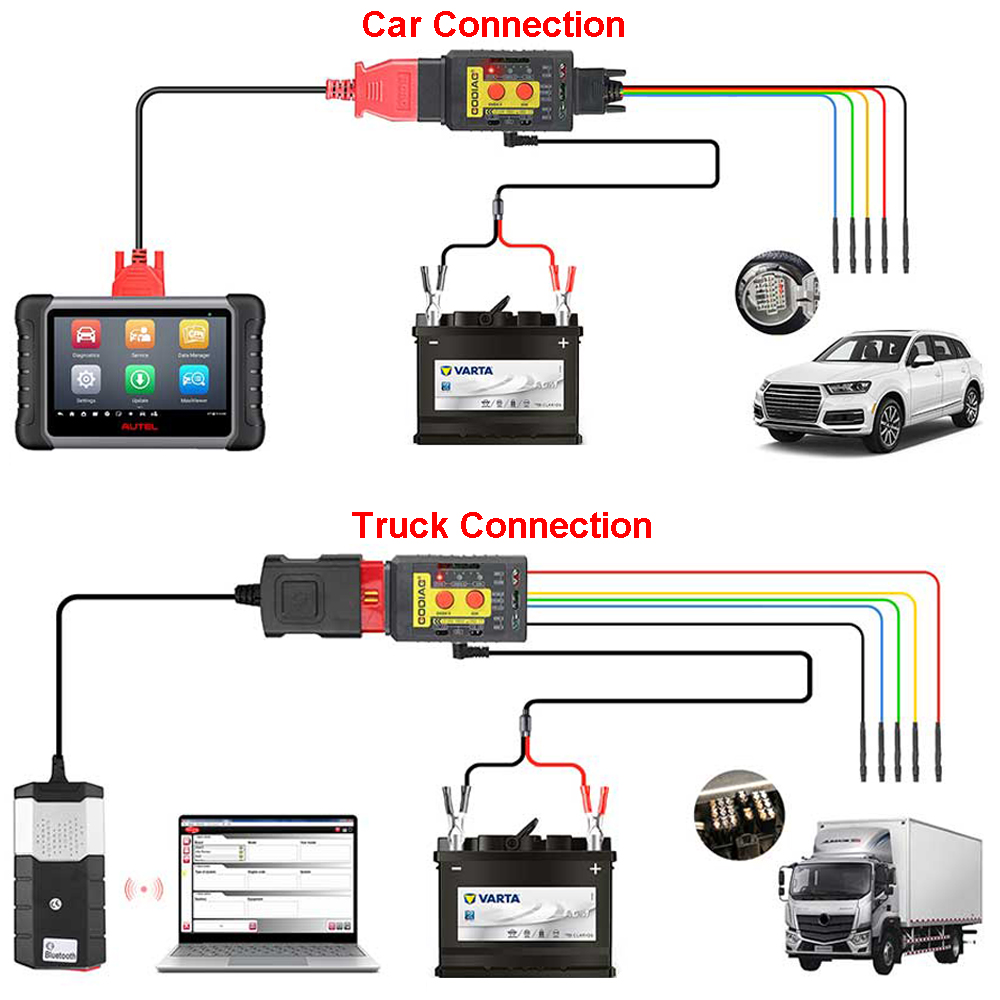

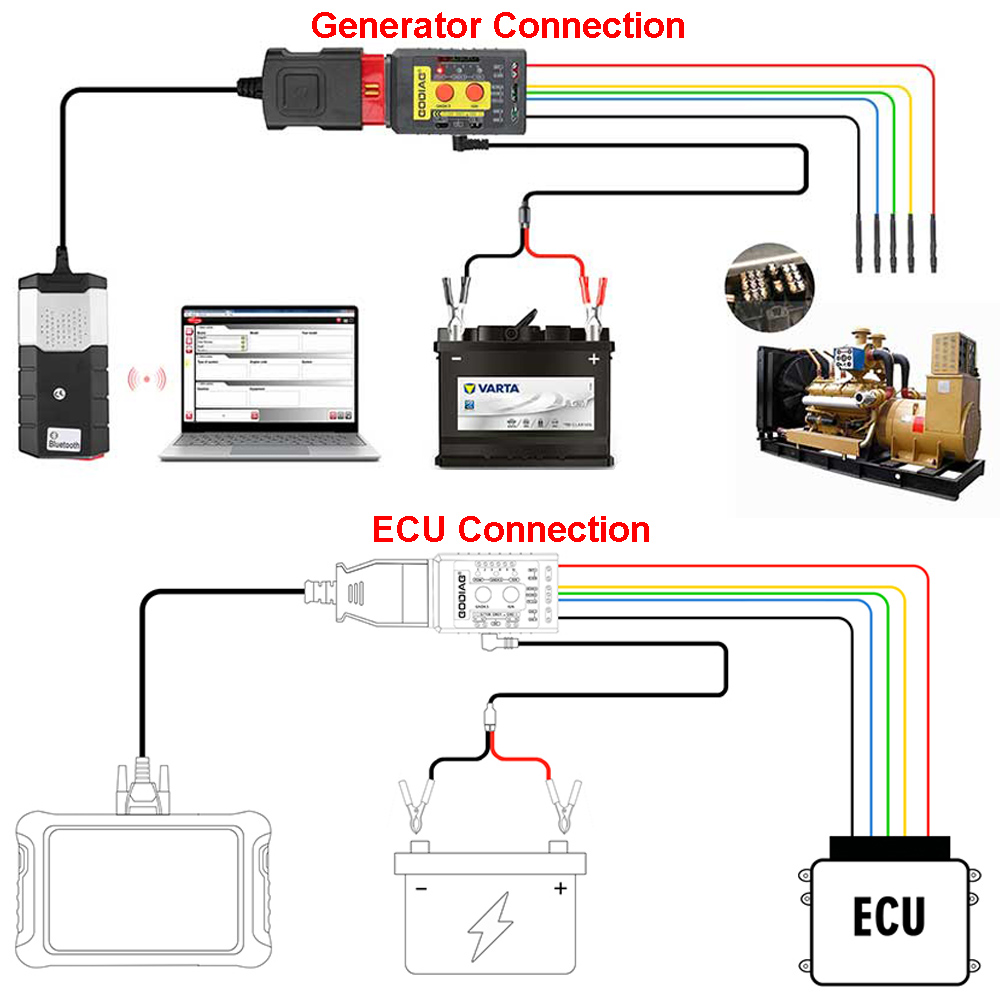

GODIAG GT108 Super OBD-I / OBD-II Universal Conversion Adapter for Cars, SUVs, Trucks, Tractors, Mining Vehicles, Generators, Boats, Motorcycles.



GODIAG GT108 Super Universal Conversion Adapter can convert the OBD-I diagnostic interface of cars, trucks, tractors, mining vehicles, generators, boats, motorcycles, individual ECU control units, etc. into standard OBD-II diagnostic interfaces through DIY wiring Interface, convenient for car maintenance personnel to connect to OBD-II diagnostic programming equipment for data streams reading, fault codes diagnosis, programming, activation and coding...



Features:



1. DIY wiring, it can be converted to OBD-II according to the car diagnostic interface. (Because the definitions of diagnostic interfaces in different regions are inconsistent, the popular conversion cables and adapters in the market cannot use different definitions of diagnostic interfaces. GODIAG GT108 Super OBDI - OBDII can be used by maintenance engineers to connect according to their own needs.)



2. GODIAG GT108 Conversion Adapter has reverse connection protection. (If the power supply is connected wrong, the device will not burn out, and it will not cause harm to the OBD-II diagnostic programming device.)



3. Independent GND4, GND5. (It is more suitable for judging the problem of poor grounding of some control units.)



4. Analog IGN switch. (Press the IGN switch, the corresponding port outputs ING VCC.)

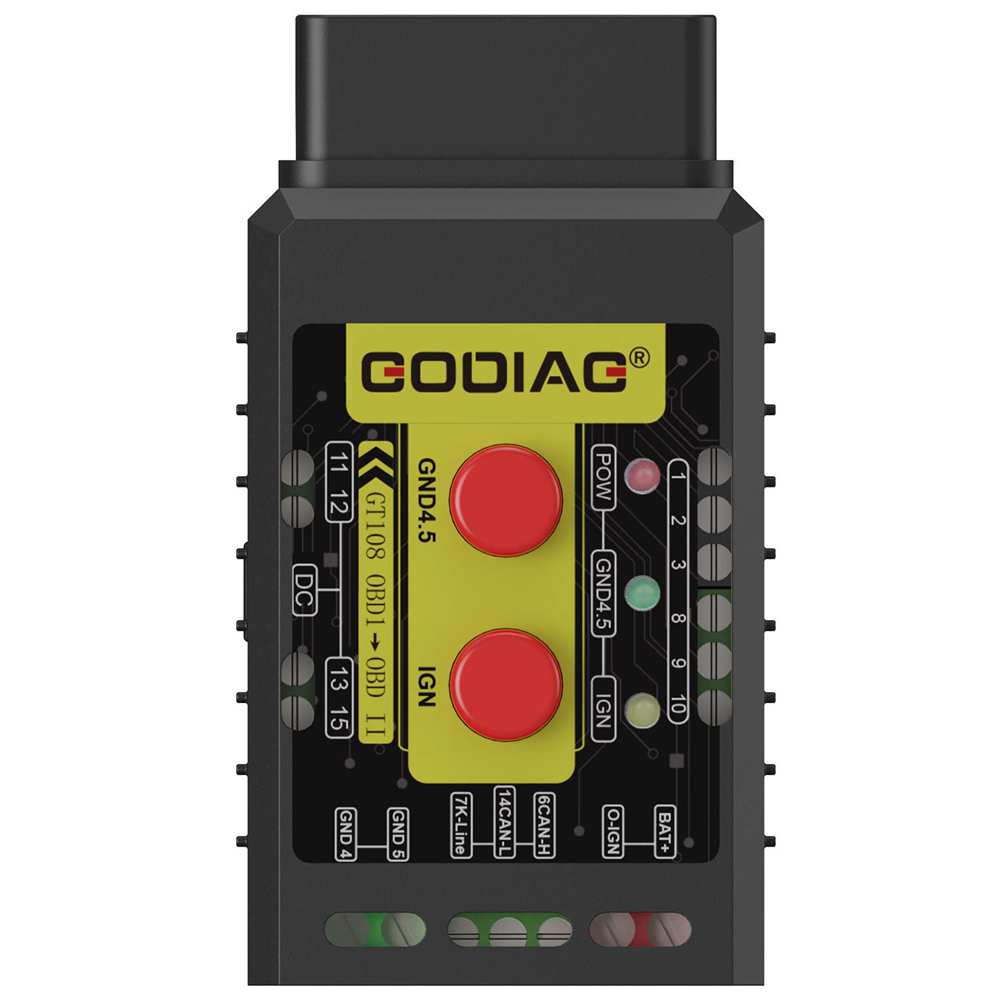

5. Power indicator, GND4, GND5 switching indicator, IGN switching indicator.



6. DIY the way to lock the wire. Equipped with different diagnostic interface cables, ECU cables, and locking screwdrivers.



7. Truck & Car Diagnostic Interface Connection Jumper Kit (Different configurations of wiring kits are different, please purchase according to maintenance needs.)



How to Use GT108?



1. Find the definition of the diagnostic interface (Find the maintenance manual of your own vehicle, or search online.), or see the definition diagram of the corresponding diagnostic interface of the GT108 manual.



2. According to the interface definition, find out the connection line needed by your car, and connect to the GT108 adapter according to the definition. (Use a screwdriver to lock the terminal.)



3. Connect the connected diagnostic cable to the vehicle OBD1 diagnostic interface according to the definition. (Connect GND 4 or GND5 first, and then connect BAT+. If the power cable is connected correctly, the POW light of the GT108 will light up. If the vehicle diagnostic interface does not have power, please connect the car battery to the DC power connector of GT108 with the battery cable. If the vehicle needs the ignition signal, connect the O-IGN line, and press the IGN switch, the corresponding IGN light will light up, and the O-IGN line will output the ignition power signal.)

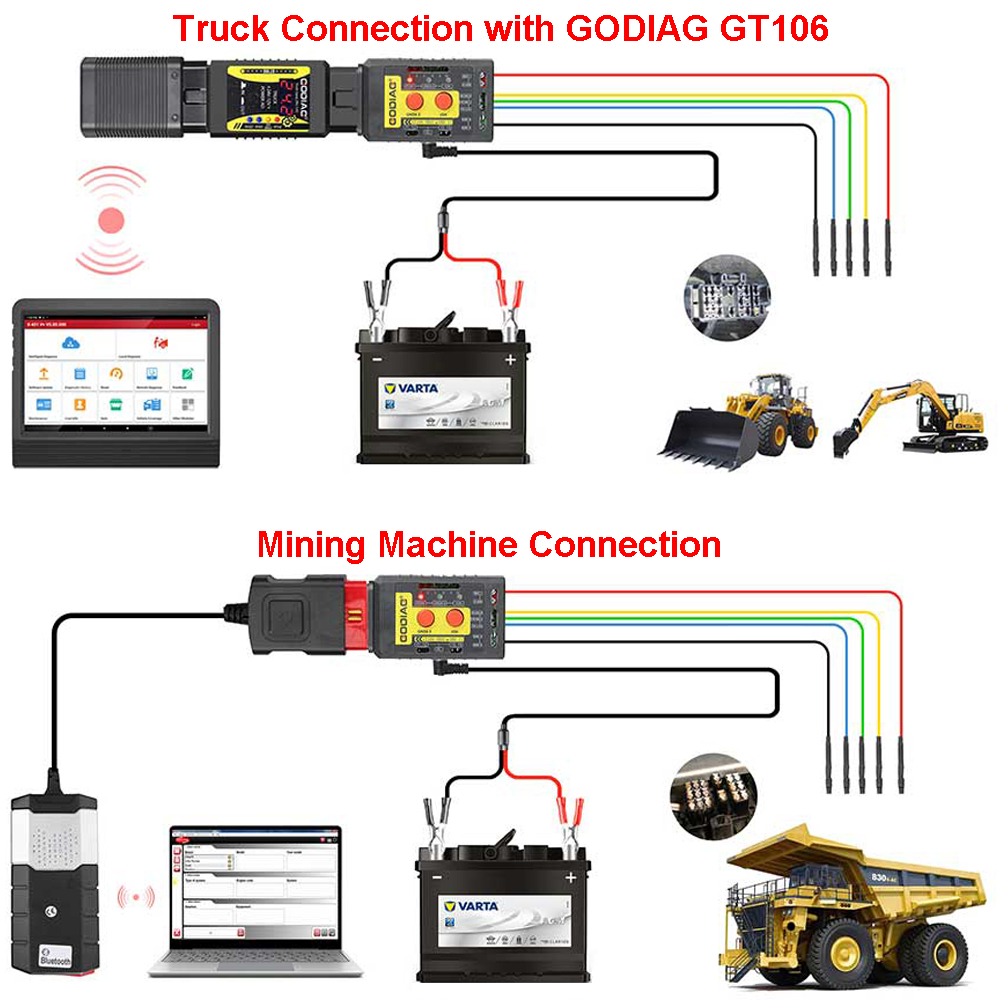

4. Connect the communication line CAN or K-line to the diagnostic interface. (Note: If it is truck diagnostic software added by the car diagnostic equipment, you may need GODIAG GT106 24V to 12V Heavy Duty Truck Adapter.)



5. Connect the diagnostic device to start vehicle diagnosis.



Note:



If you can not find the definition for your own vehicle diagnostic interface, you can first find out the power supply of the diagnostic interface. First use the black battery clip on the battery connection cable to connect the negative pole of the battery, and then use the BAT+ line to connect to the diagnostic interface to find the power supply. You can also use a multimeter to find the diagnostic interface power supply. The definition of the diagnostic interface can also be judged by GODIAG GT101 Pirt Power Probe.



Packing List:



GODIAG GT108 Super OBD-I to OBD-II Universal Conversion Adapter

Truck & Car Diagnostic Interface Connection Jumper Kit

Power Cable with Battery Clips

Screwdriver

User Manual

Packing Box
