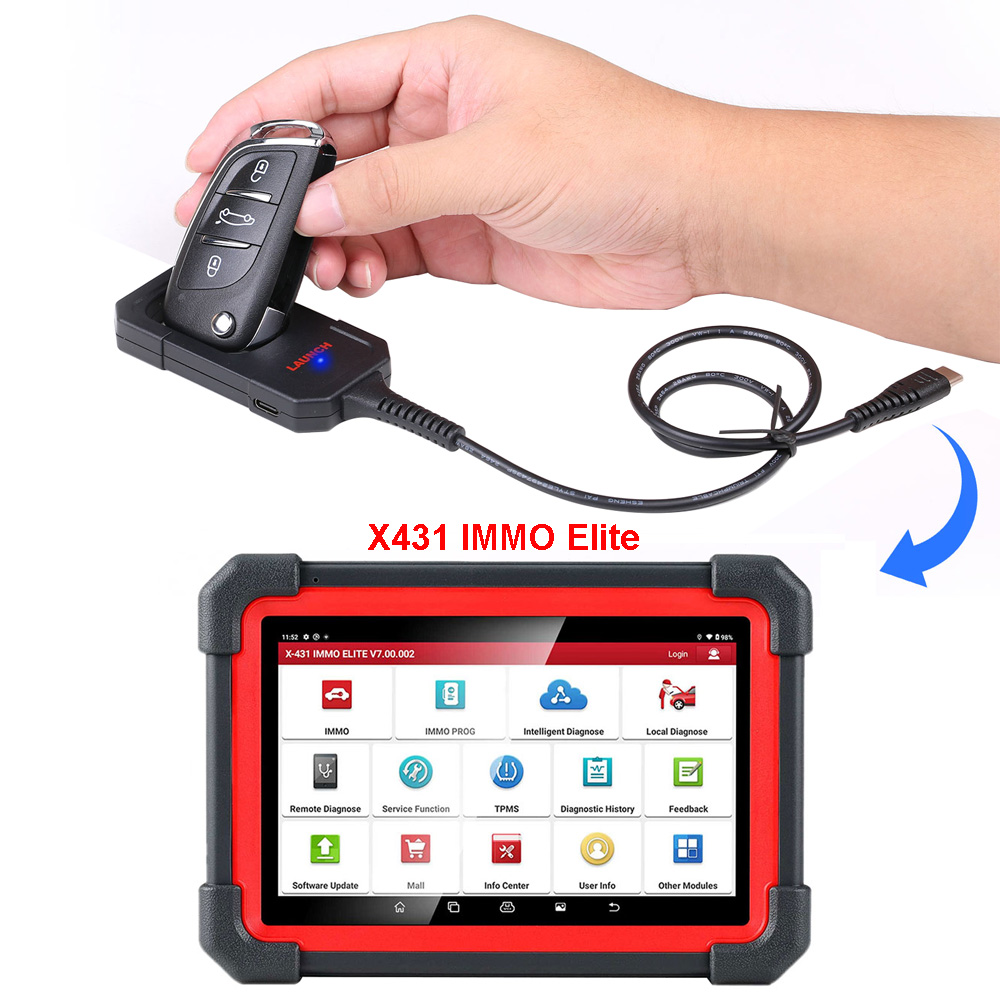

Name: Launch X431 Key Programmer Remote Maker
Description:
Launch X431 Key Programmer Remote Make is able to Read Transponder, Generate Transponder, Detect Frequency, Detect Ignition Switch Coil Signal, Generate Launch X431 Remote, Unlock Toyota Smart Key... functions.
Launch Key Programmer can identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for different car models from various types of super remotes.

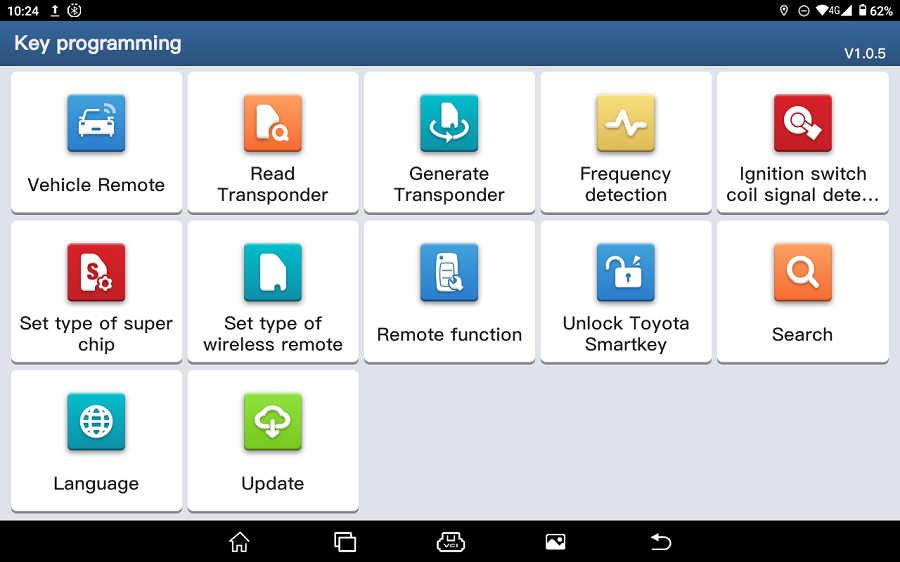

Functions:
Read Transponder
Generate Transponder
Detect Frequency
Detect Ignition Switch Coil Signal
Generate Remote (Launch X431 Remote)
Unlock Toyota Smart Key
Set Type of Super Chip
Set Type of Wireless Remote
Super Chip Function:

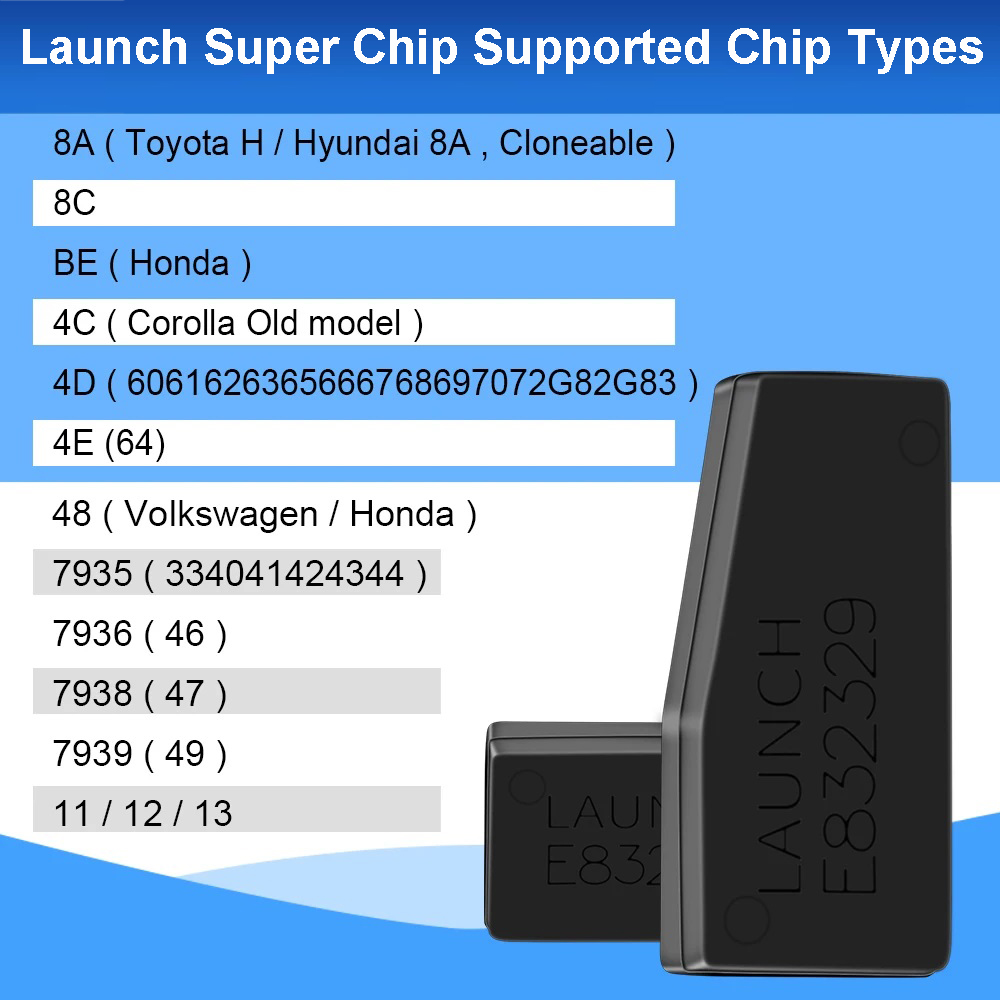

Support the conversion of most car model chip types, and support separate matching to achieve vehicle startup. Support chips of the 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11/12/13 types.
Super Remote Functions:
For one key start smart key models, use LS Series Nissan Super Remotes to generate corresponding keys.
For car models with electronic chip keys or the 11/12/13/7936/7937/7947/7946 chips, use LN Series DS Super Remote.
For models without electronic chip keys or models 46, 48, 4D/70, 83, 8A/H, G, 4E, 11/12/13/C, 42, 33, 47, 8C, and 8C, use the LE Series Volkswagen and Ford Super Remotes.

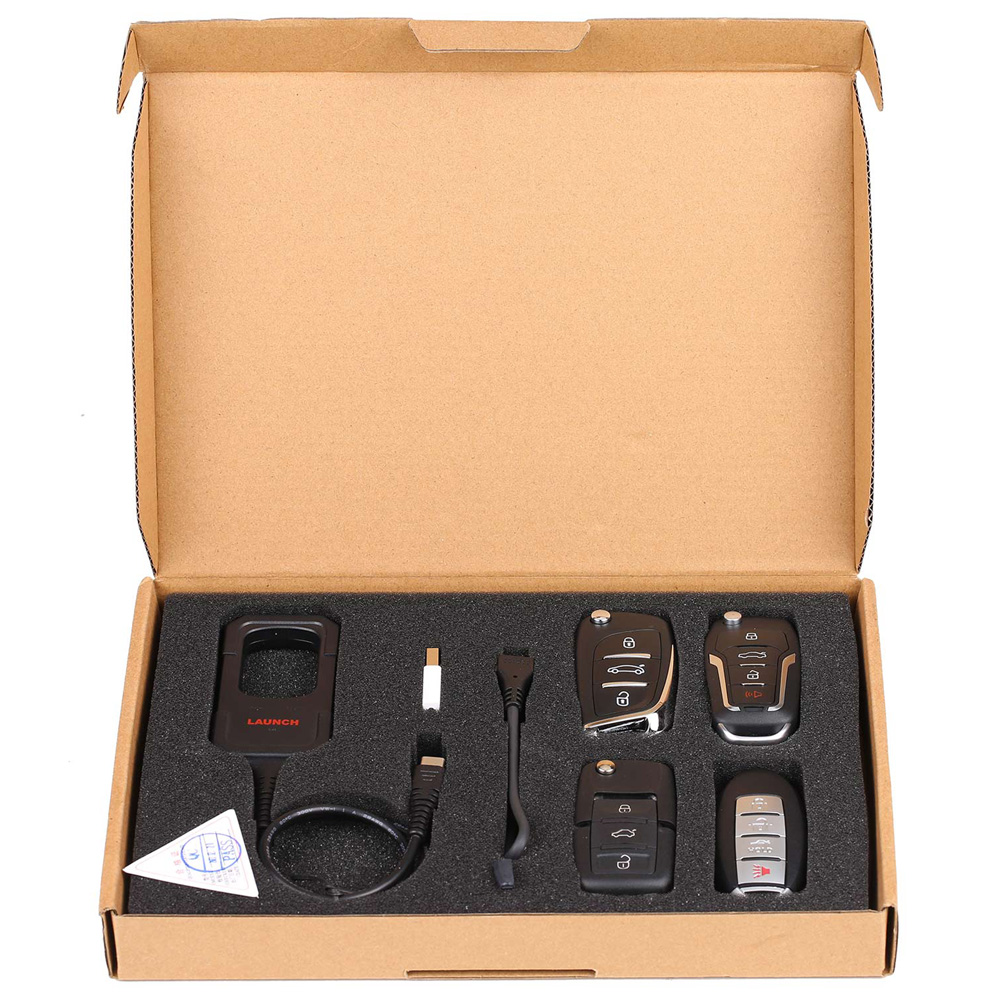

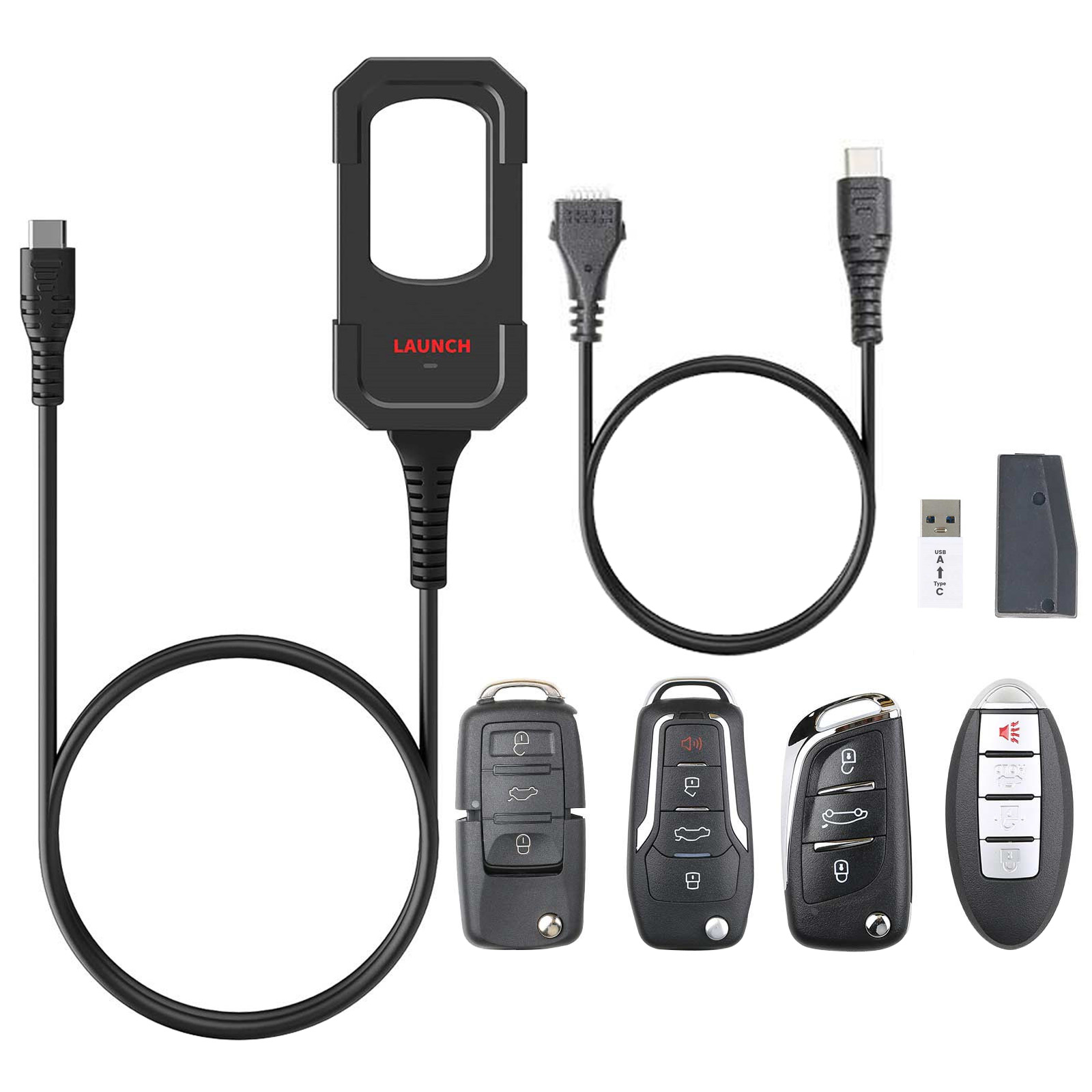

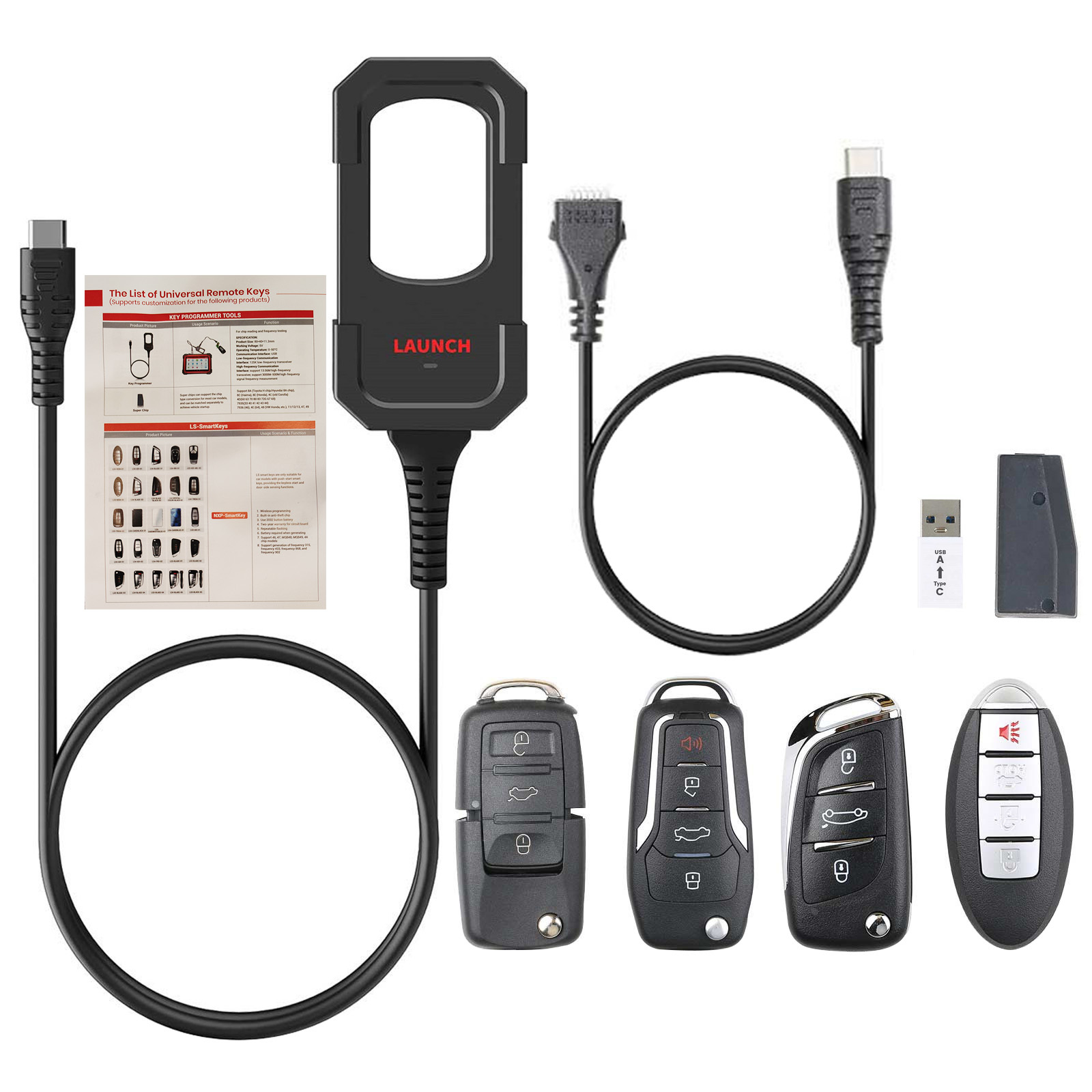

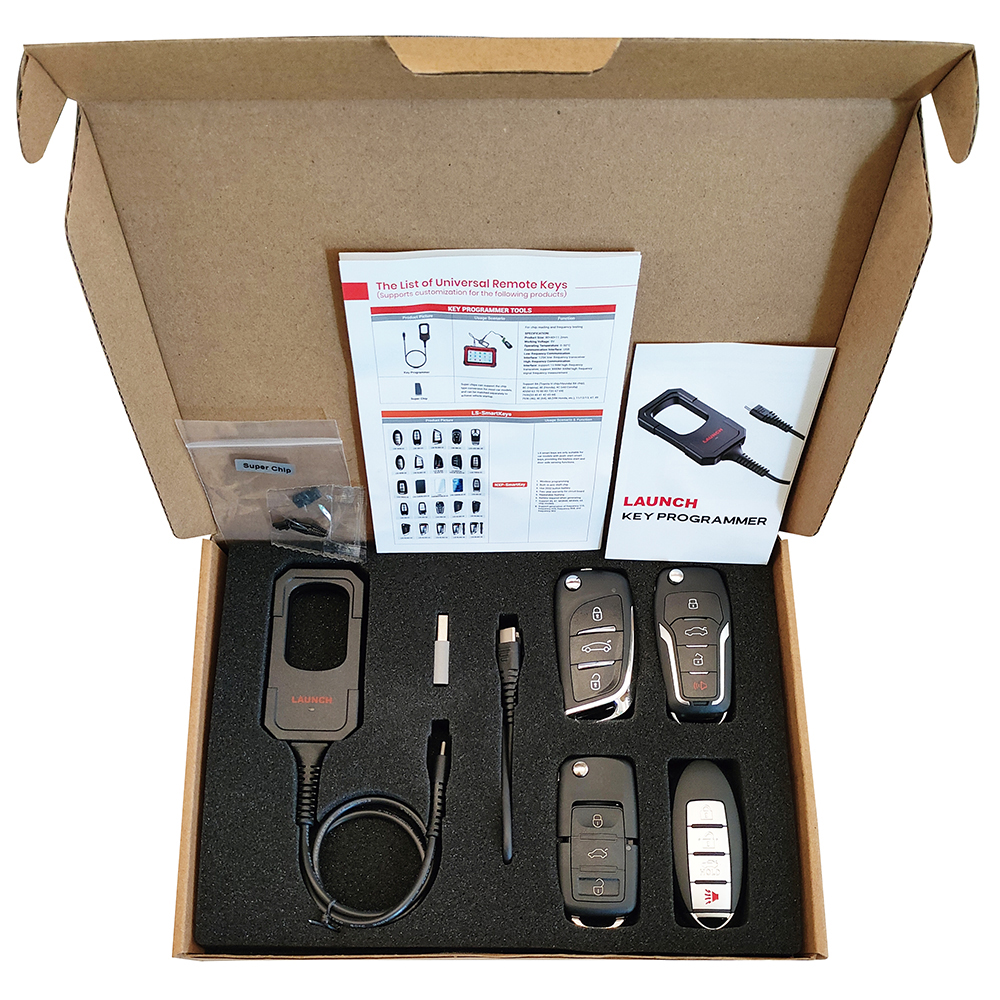

Packing List:

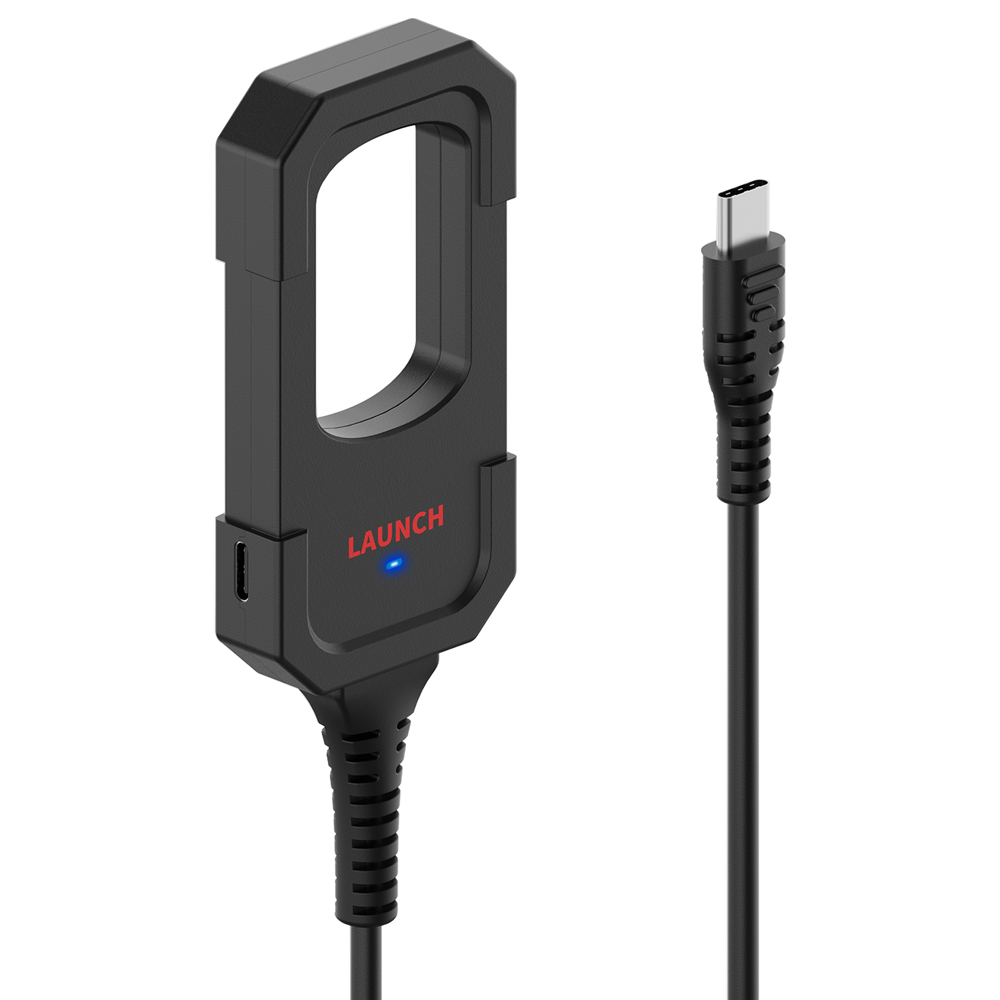

Launch X-431 Key Programmer Remote Maker
USB to USB Type C Cable
USB Type C to USB Converter

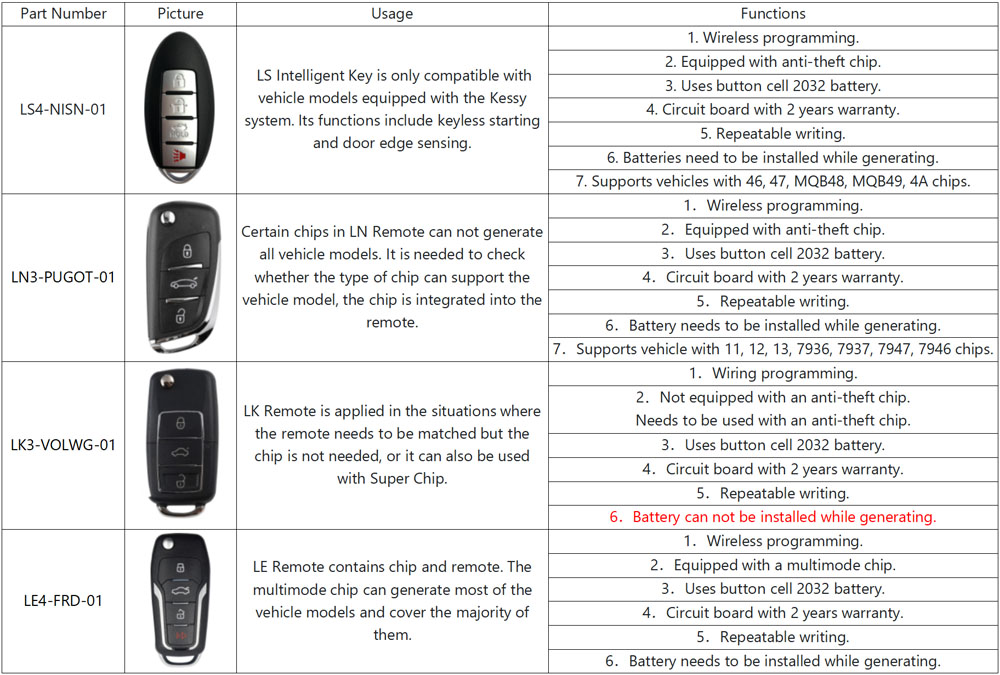

LE Ford Super Remote (4 Buttons Fold Remote)
LE Volkswagen Super Remote (3 Buttons Fold Remote)
LN Peugeot DS (3 Buttons Fold Remote)
LS Nissan (4 Buttons Smart Card)
Super Chip
Packing Box
Operation Instructions:

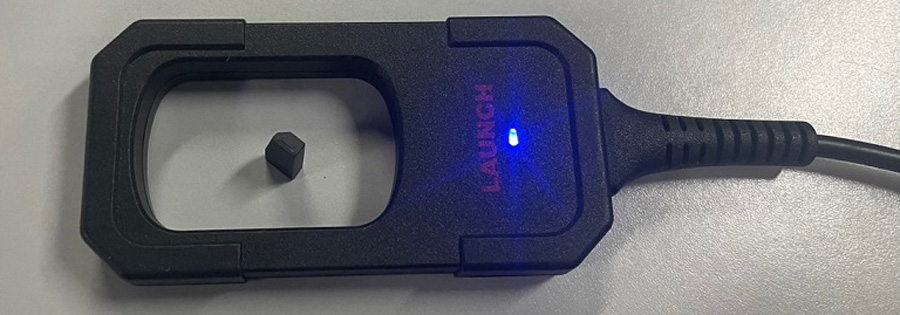

For Super Chips:

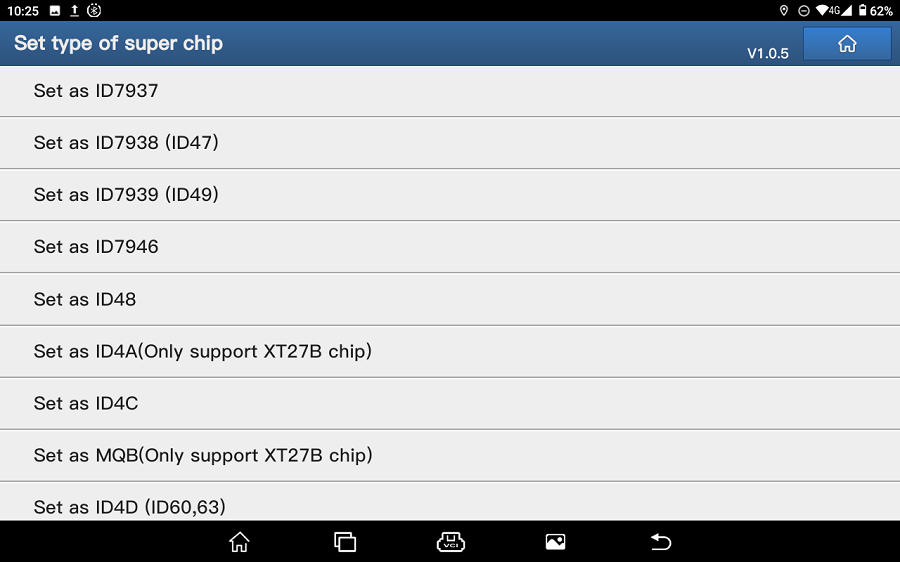

1. Enter the menu [Set type of super chip] to generate.
2. Select the corresponding key chip type and insert the super chip into the anti-theft induction coil.

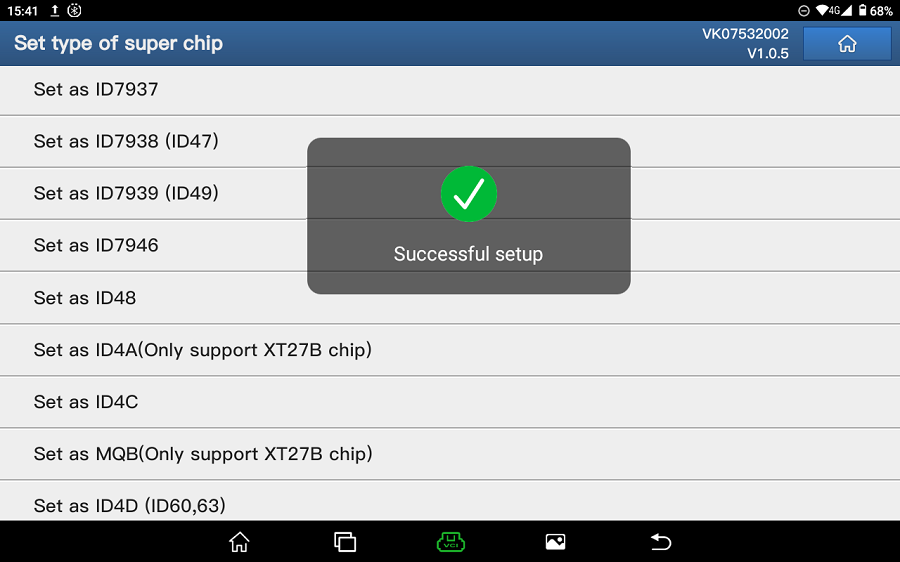

3. Once successfully generated, it can be used.

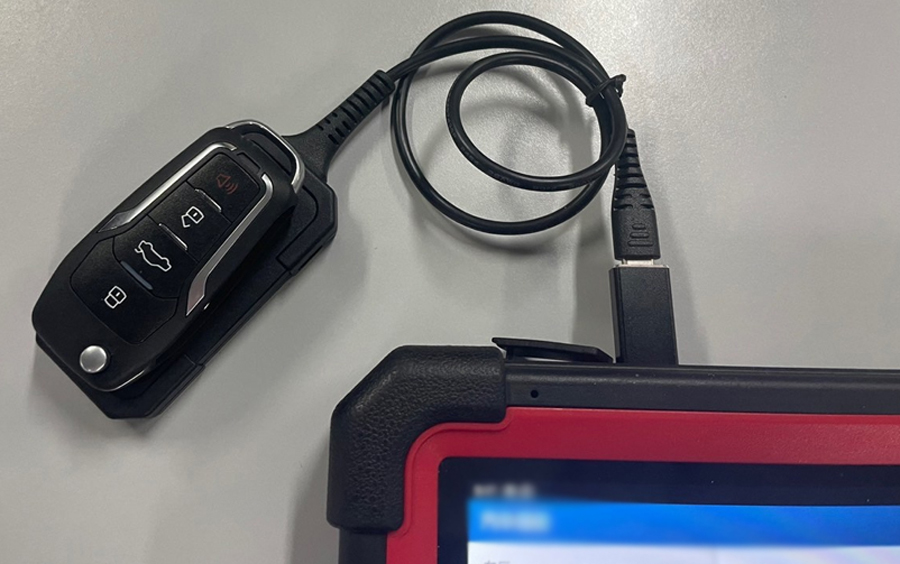

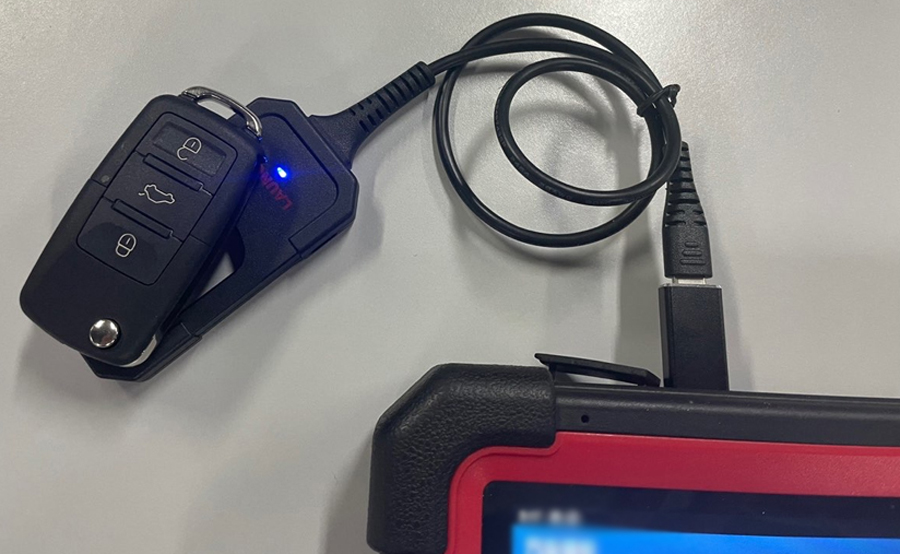

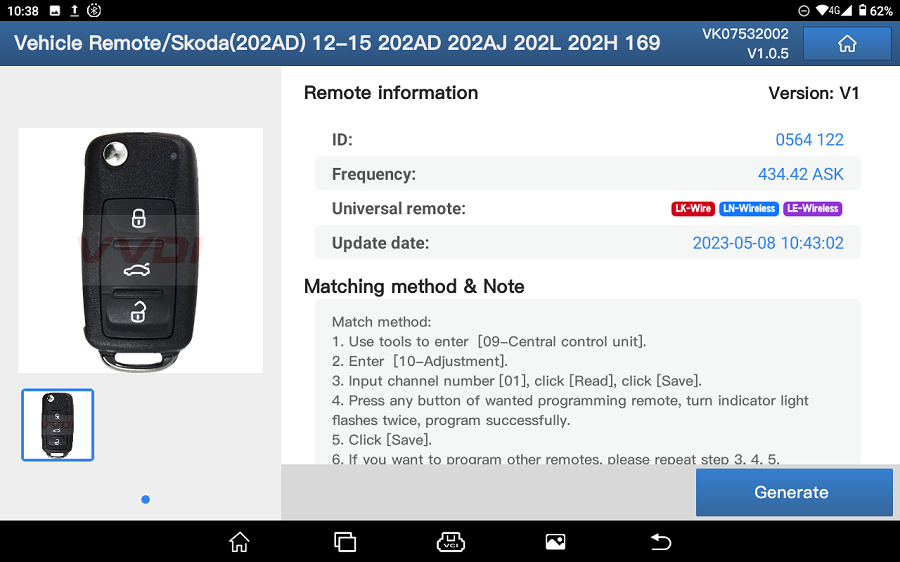

For LE Volkswagen and LE Ford Super Remotes:

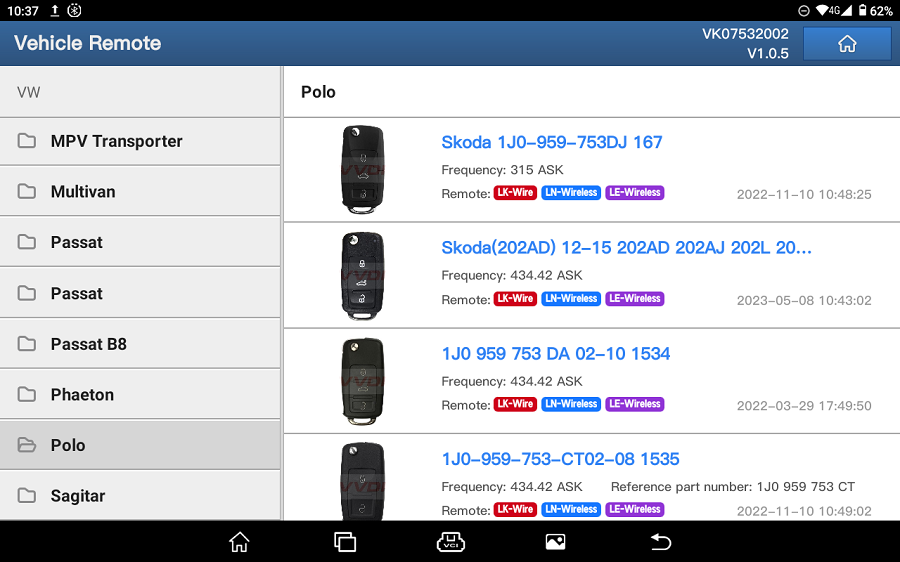

1. Enter the [Vehicle Remote] menu and select the corresponding available super remote to generate.
3. After the remote control is successfully generated, enter the [Set type of super chip] menu to generate the corresponding key chip.

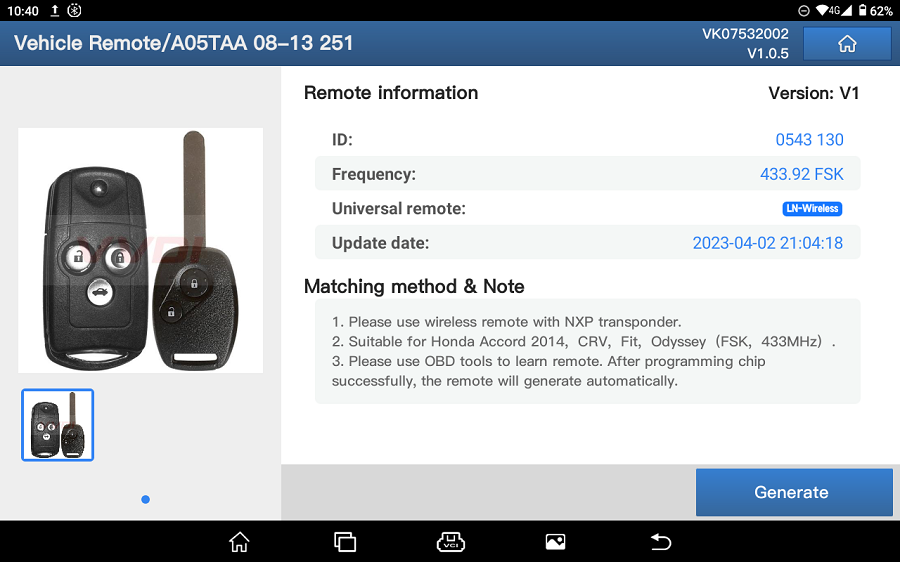

For LN Peugeot DS Super Remote:

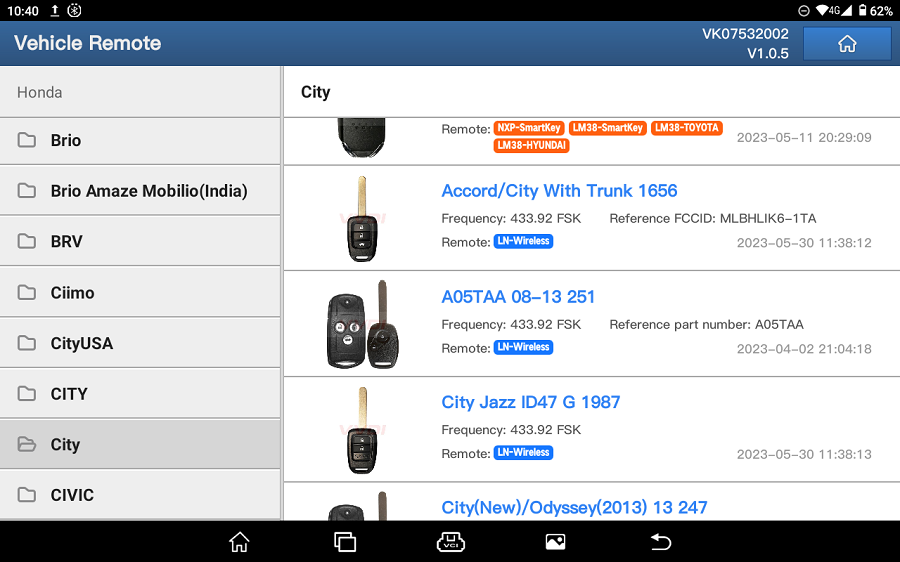

1. Enter the [Vehicle Remote] menu and select the corresponding electronic key model to generate.

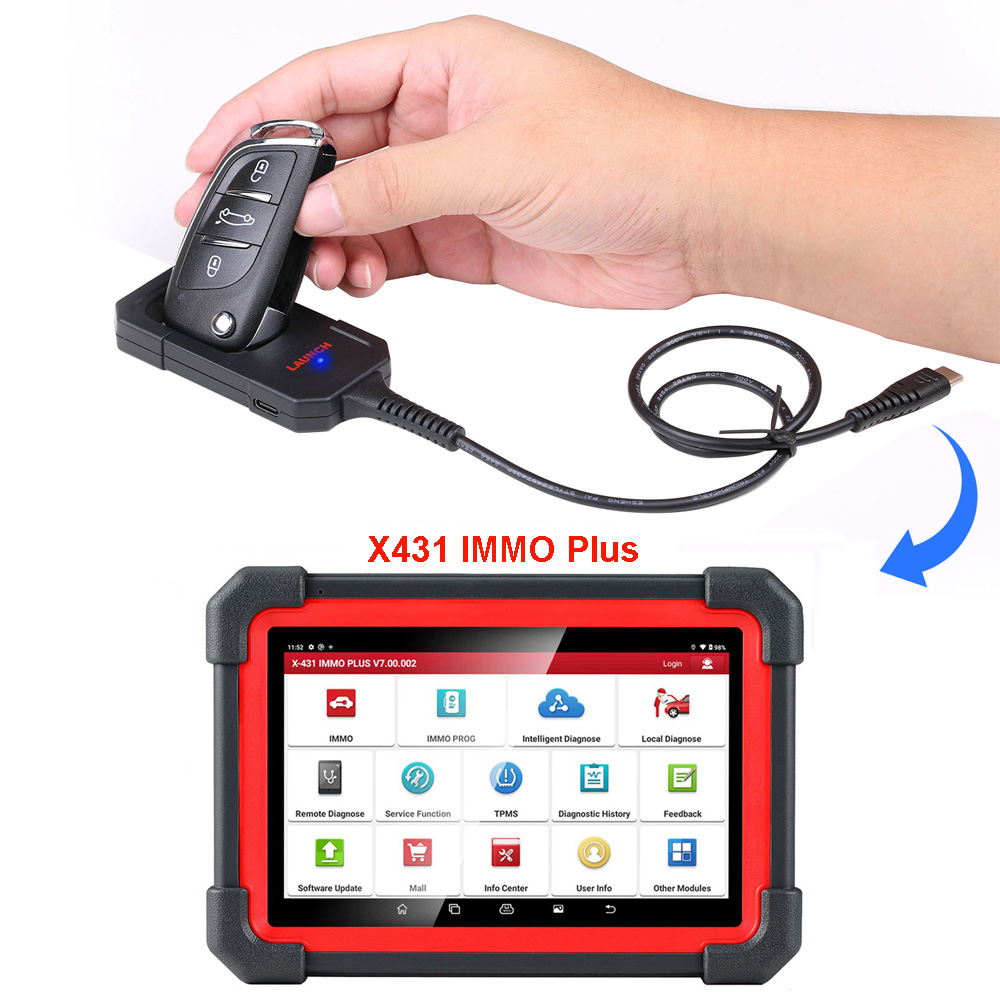

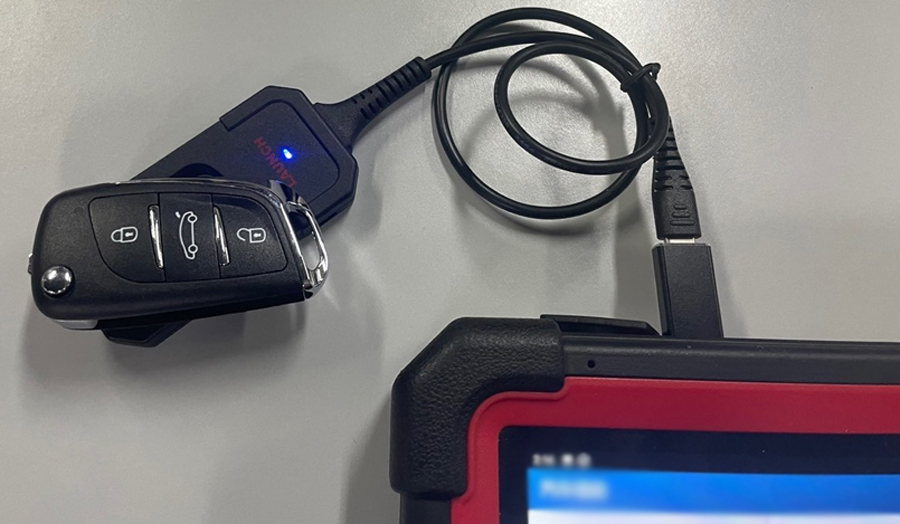

2. Place the electronic remote key in Launch X431 Key Programmer to generate.
3. For car models without electronic keys, enter [Set type of wireless remote] to generate the corresponding key.

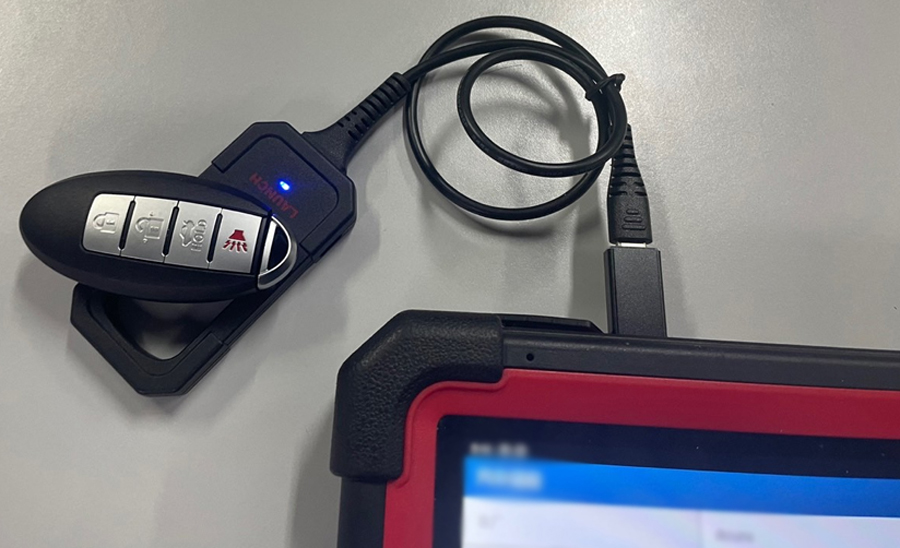

For LS Nissan Super Remote:

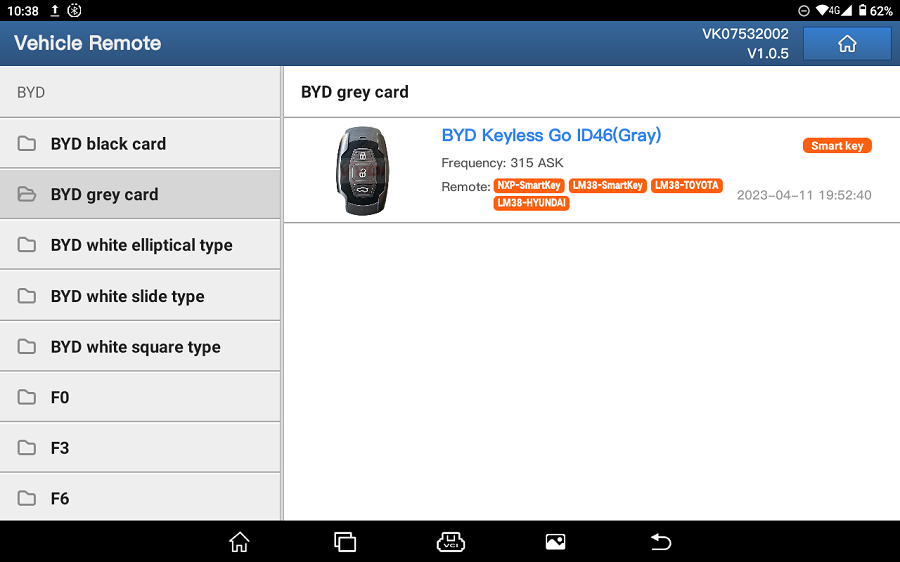

1. Enter the [Vehicle Remote] menu and select the corresponding smart key model to generate.
2. Place the smart remote key in Launch X431 Key Programmer to generate.
|
