Name: OBDSTAR MT102 Gear Lever Drive Test Tool
Description:

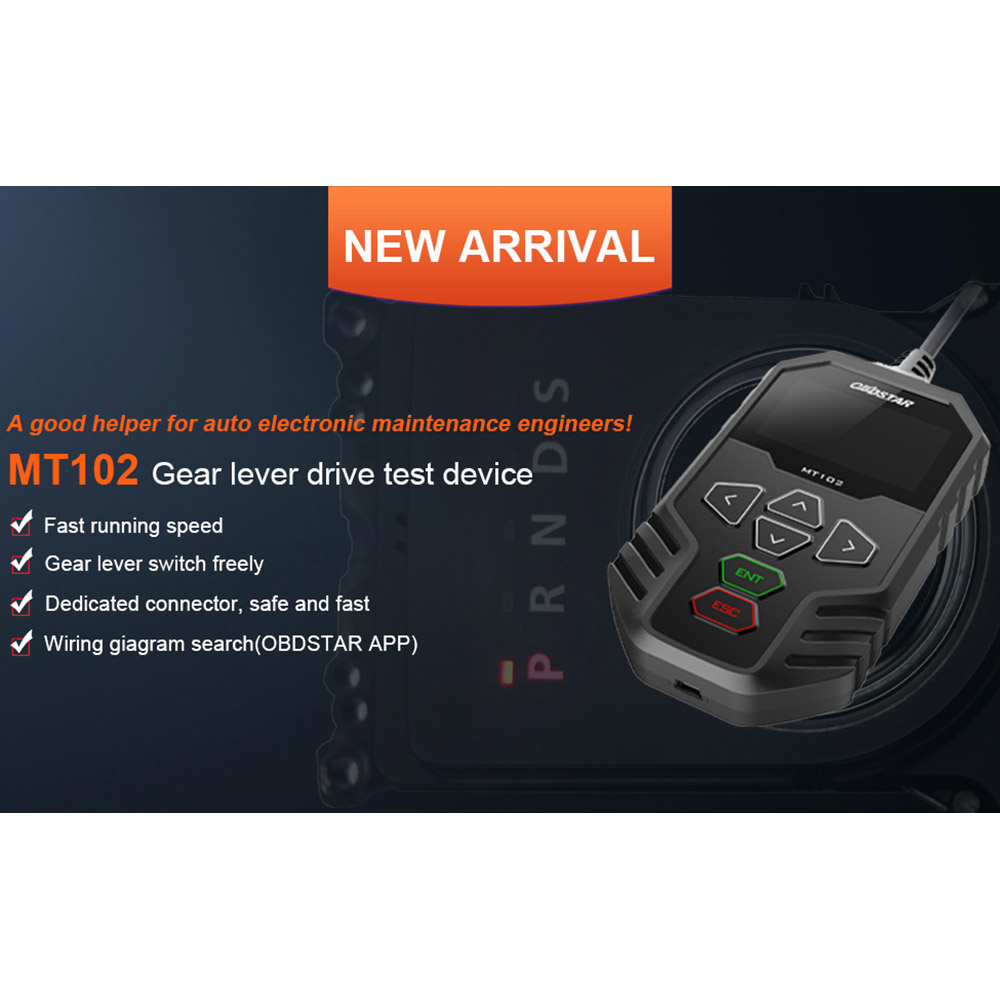

OBDSTAR MT102 is the latest Land Rover gear lever BENCH way drive test tool developed by OBDSTAR. MT102 supports many types of ECU versions with special connectors. MT102 is a good helper for auto electronic maintenance engineers!
Nowadays, many cars have dashboard, audio, gear lever, handbrake modules, etc., which are activated by CAN communication with the relevant modules in the car to bring the mainframe into the drive state. This function can simulate CAN communication to activate the secondary power supply and bring the main unit into drive, so that the main unit can be tested and verified. It also eliminates the need to purchase a large number of boot platforms and wiring harnesses for each vehicle model, saving a large amount of money for the automotive mechanic.
Features:
1. STM32 processor for fast running speed.
2. Supports Land Rover/Jaguar gear lever drive, which can perform all gears switching with each other on the workbench.
3. Using special connector for gear lever, safe and fast connection.
4. Easy and intuitive menu for you to quickly master the operation of the tool.

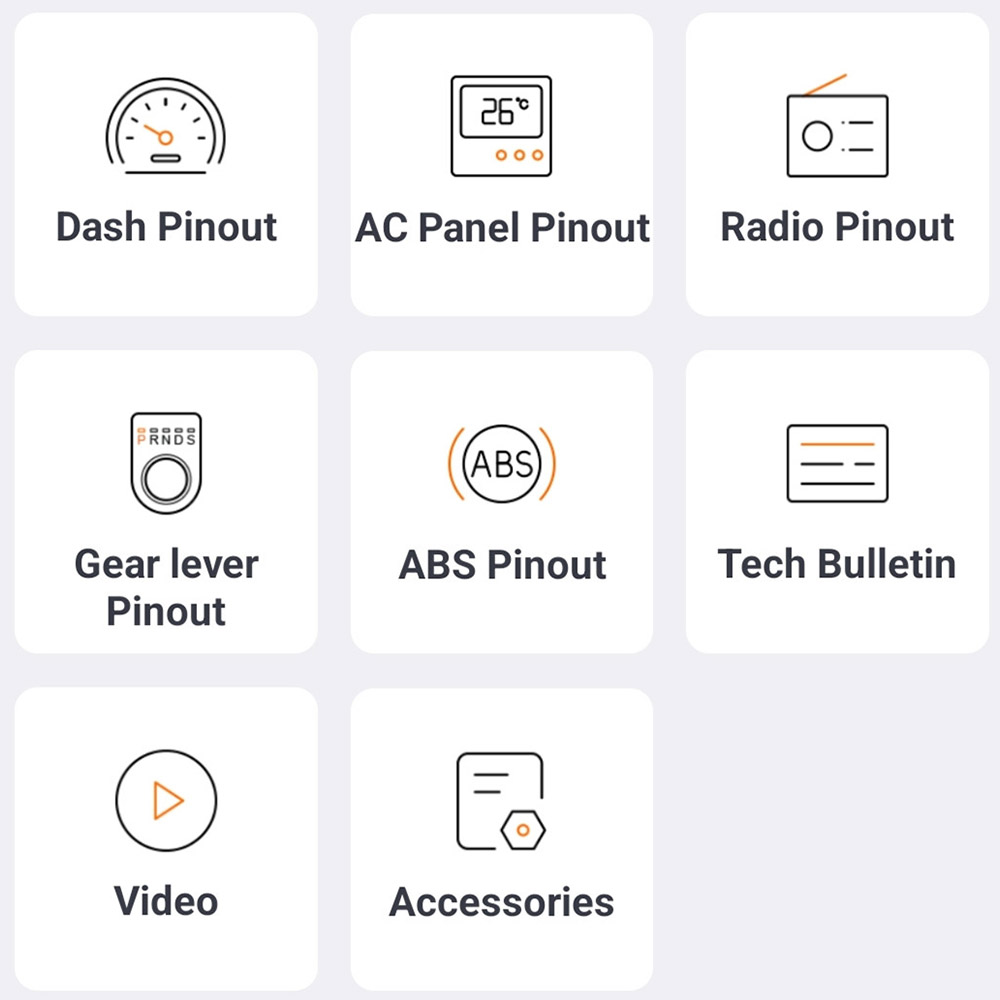

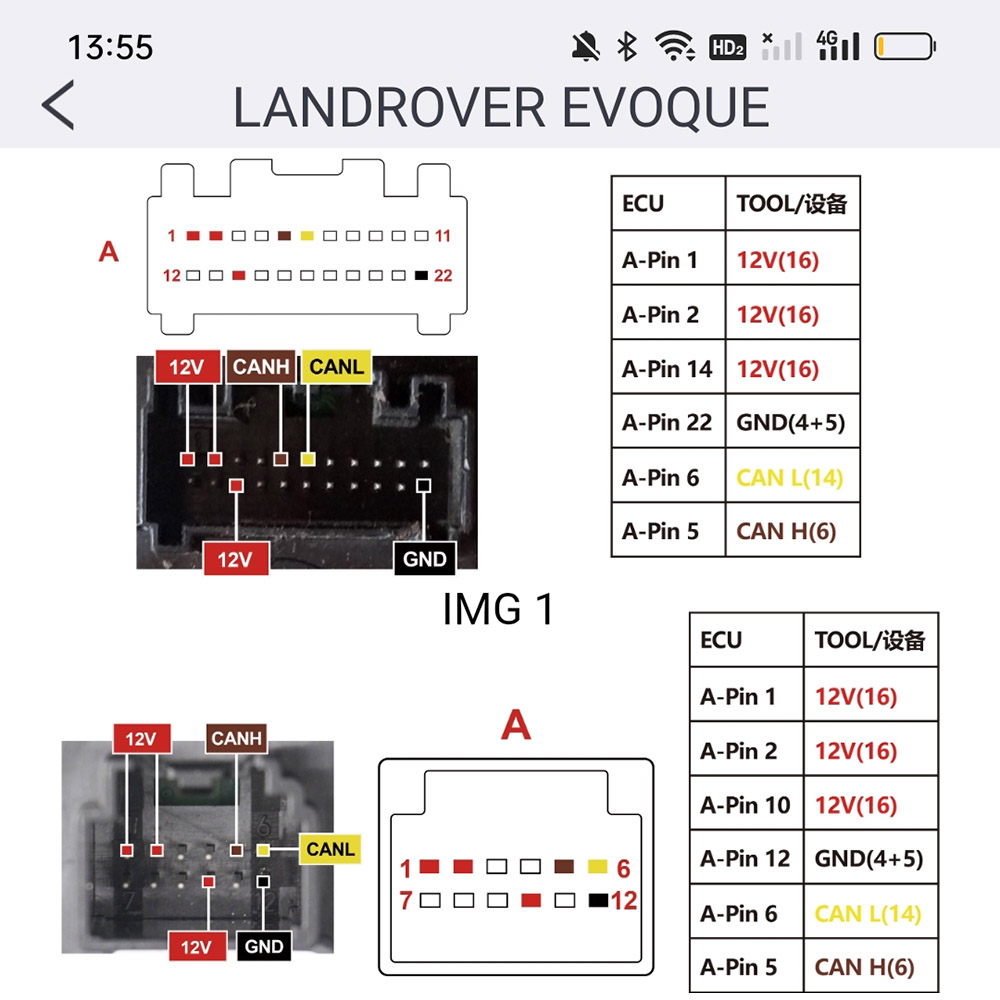

5. Wiring diagram can be accessed via OBDSTAR APP
6. Portable compact size and cost-effective.
7. Mini USB upgrade cable connects directly to the computer for one-click upgrade.
Supported Cars:
Land Rover / Jaguar
Evoque
...
Specifications:
Screen Type: LCD
USB Type: mini USB
Operating Voltage:12V
Operating Temperature: -20 to 55 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Weight: about 160g
External Dimensions: 120*70*21mm
Packing List:
OBDSTAR MT102
T006 Cable (Land Rover/Jaguar Gear Lever)
Mini USB Upgrade Cable
Packing Box
|
