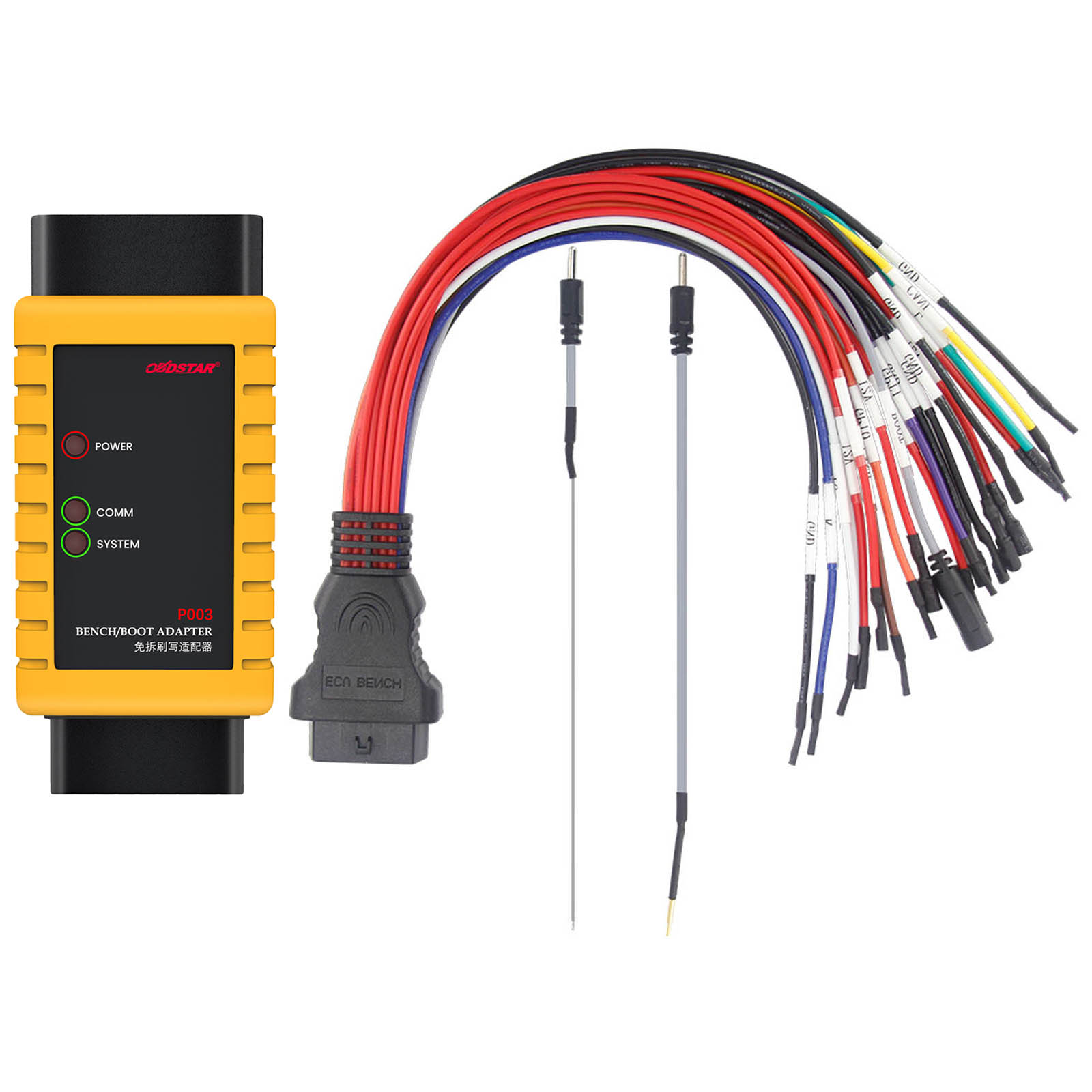

Name: OBDSTAR P003 Bench Boot Adapter with ECU Bench Cable
Description:
OBDSTAR P003 Kit P003 Adapter with ECU Bench Cables working with OBDSTAR X300 DP / X300 DP Plus / X300 PRO4 Key Master 5 / OBDSTAR DC706 ECU TCU Clone Tool.
OBDSTAR P003 Adapter is working with OBDSTAR IMMO series tablets, supports reading and writing ECU EEPROM & flash data and calculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra...
Notice:
New Version OBDSTAR P003 Kit (SE156) can work with only OBDSTAR DC706 ECU TCU Clone Tool.
Old Version (SE156-B) can work with OBDSTAR X300 DP / X300 DP Plus / X300 PRO4 Key Master 5.
Highlights:
1. Portable Design
2. Easy Operation
3. High Performance
Functions:
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading EEPROM, PinCode
3. Bosch EDC17C60 reading EEPROM, PinCode
4. Bosch MD1CS018 reading EEPROM, PinCode
5. Bosch MED17XX/EDC17XX reading EEPROM, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing EEPROM, flash
Supported ECU List:
BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

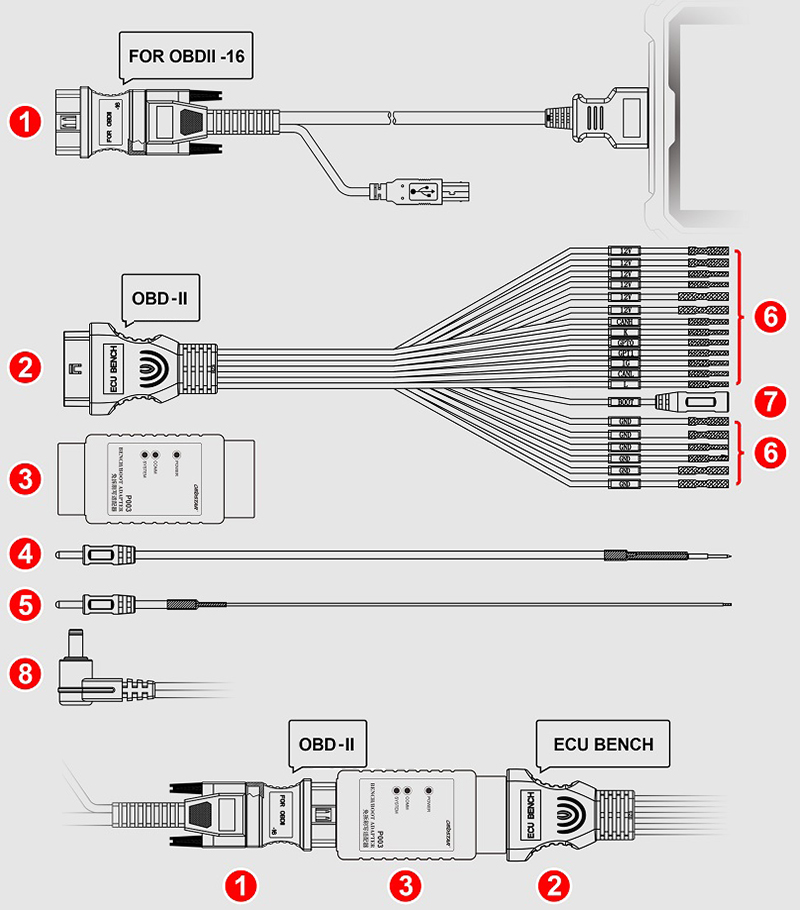

Connecting Methods:
1. Diagnostic Cable (male)

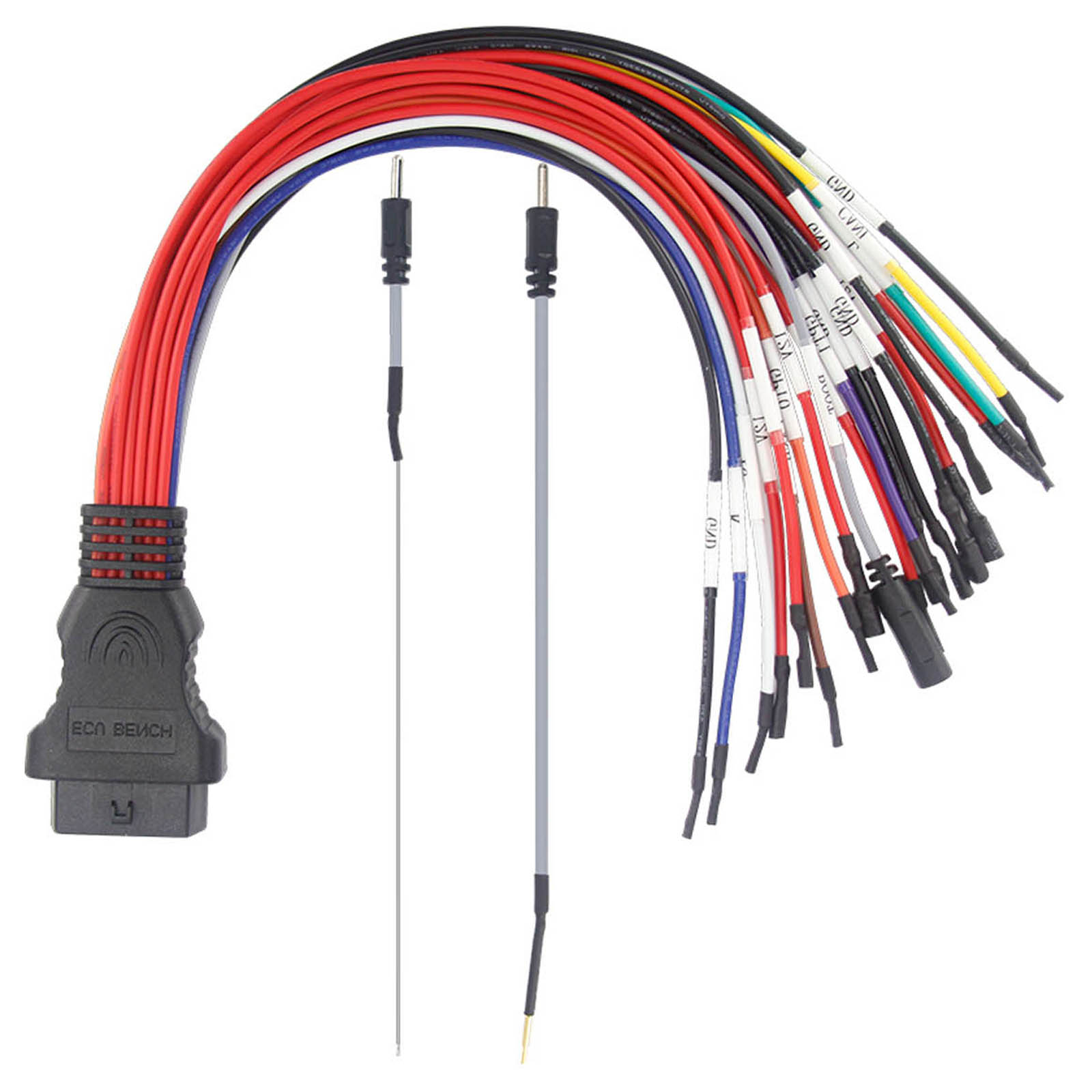

2. ECU Bench Cable (female)

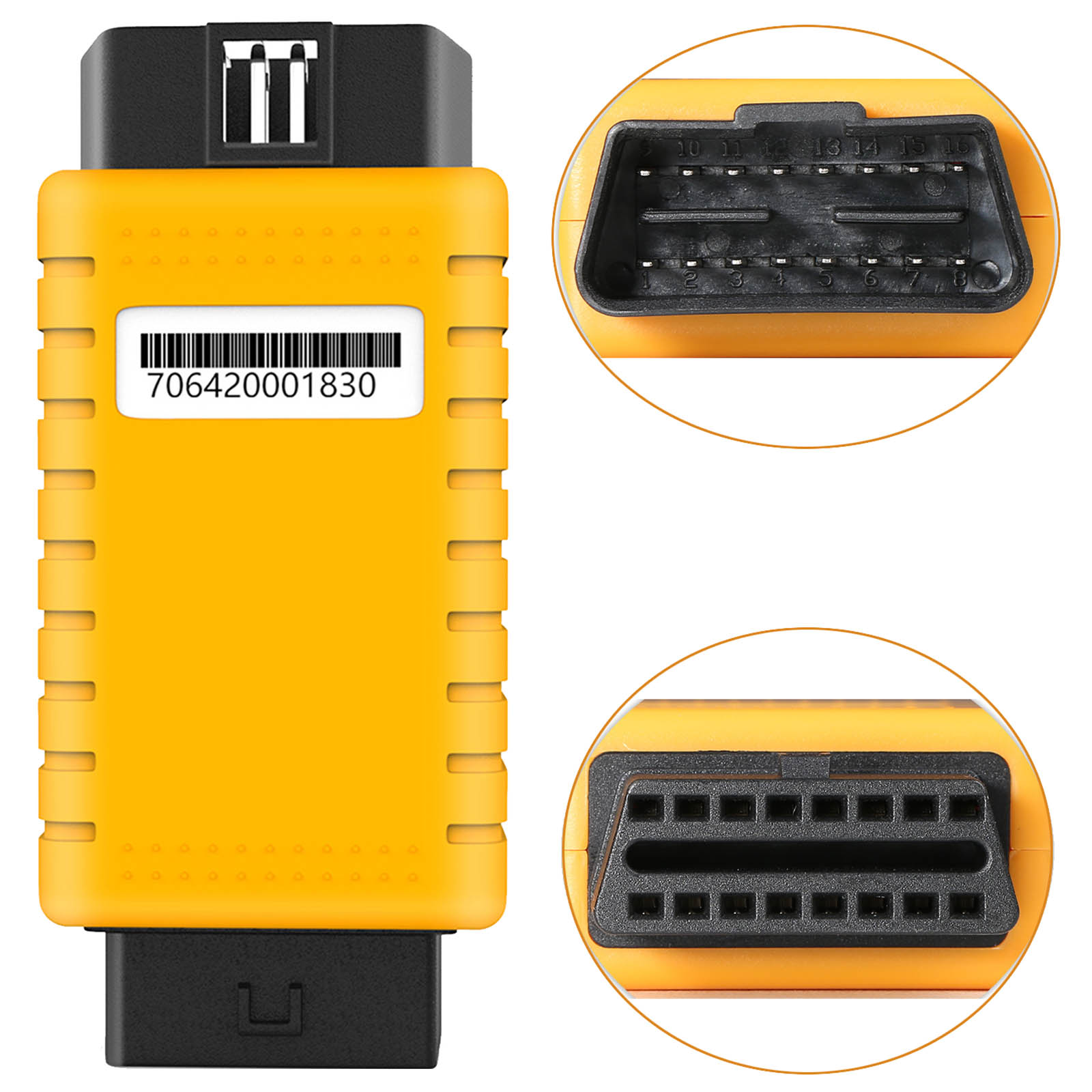

3. P003 Adapter
4. Boot Jumper(spring needle)
5. Boot Jumper(welding)
6. ECU Pin Connector
7. ECU Boot connector
8.12V Power Supply
Bench Mode
Step 1: Connect 1, 2, 3 together;
Step 2: Connect the ECU pin connector to the ECU according to the wiring diagram;
Step 3: Connect 12V power with diagnostic device;
Step 4: Read data on diagnostic device.
Boot Mode
Step 1: Connect 1, 2, 3 together;
Step 2: Connect the ECU pin connector to the ECU according to the wiring diagram;
Step 3: Connect 7 with 4 or 5 and connect it to ECU;
Step 4: Connect 12V power with diagnostic device;
Step 5: Read data on diagnostic device.
Specifications:
Voltage: 12V
Weight: 100g
Dimension: 113*75*31mm
Packing List:
OBDSTAR P003 Adapter
ECU Bench Cables
|
