Description:



Vgate Battery Assistant Bluetooth 4.0 Wireless Car Battery Monitor for Android & iOS is used to monitor the car battery, starting system and charging system. After being installed on the battery, you can monitor the starting status and charging status of the battery on mobile phone app in real time via the Bluetooth 4.0 connection.



Features:



Easy to install on battery

Real-time battery health monitor

Tests vehicle cranking system

Tests vehicle charging system

Stores and displays historical data

Save test records

Automatic synchronization

Free app (Android / iOS) download

Monitor multiple device on your phone

Alert notification



Functions:



1. Compatible with all 12V vehicle batteries and installed in the car battery real-time monitoring via mobile phone app.

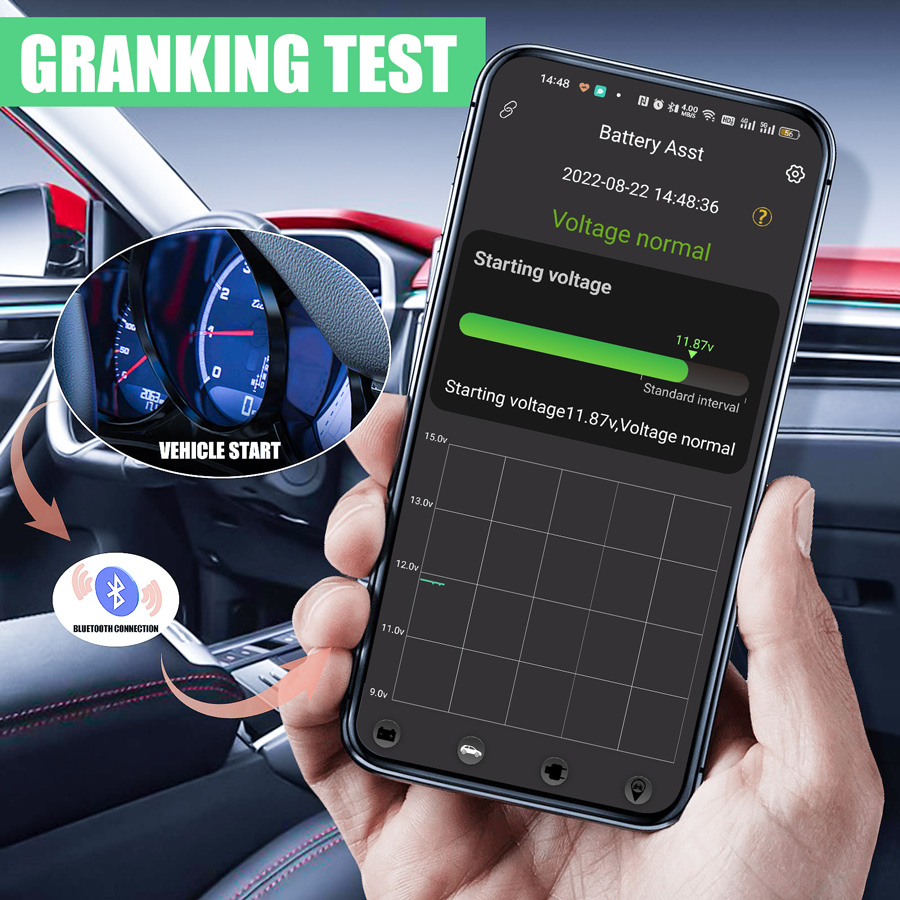

2. Check the starting system (cranking) at each engine start and check the starting voltage every hundredths of a second when the engine starts.



3. Engine start is automatically detected and check the charging and starting systems (alternator).



4. Receive battery condition notification when you enter Bluetooth range and notify mobile phone when some data is abnormal.



5. View short circuit and reverse connection protection and voltage and charge information. When the user is close to the vehicle, the app does not need to be opened.



6. Automatically syncs when entering Bluetooth range and data stored in battery monitor for up to 35 days if out of sync..



7. List the time of each trip and check historical data graphically.



How To Use It?

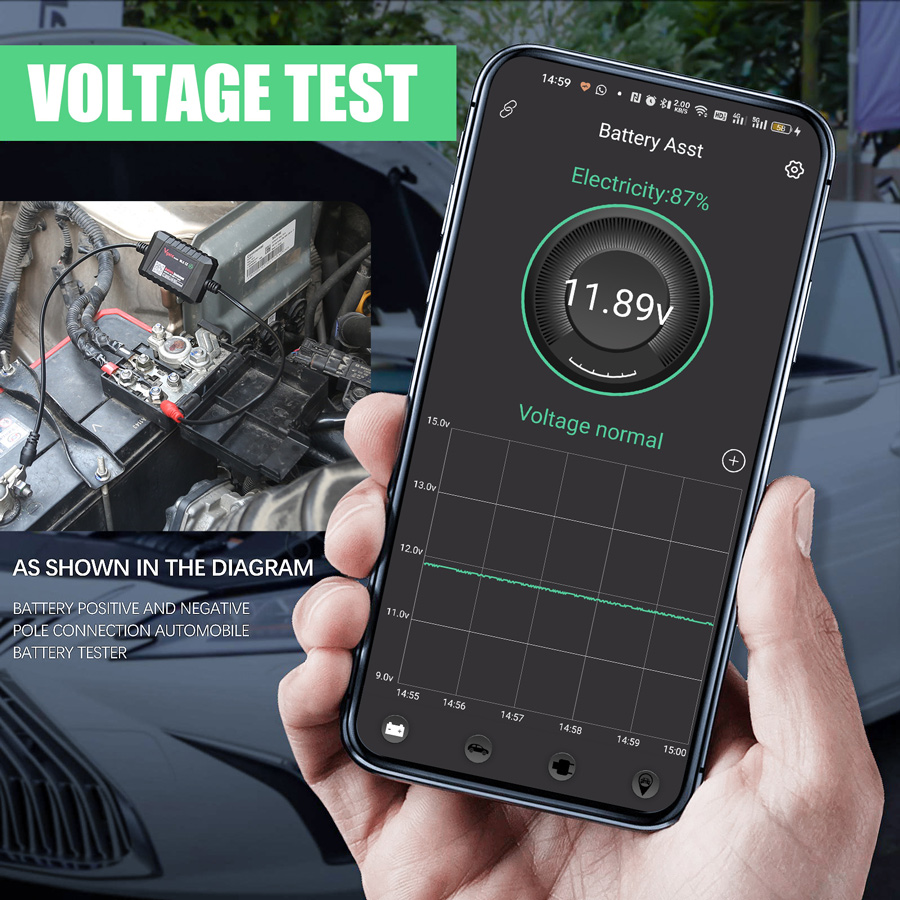

1. Open the car battery cover, find the battery positive pole and negative pole.



2. Loosen the screws on positive pole and negative pole, install the product's red and black connector to the positive pole and negative pole of the battery accordingly. Then tighten the screws.



3. Press the app on your phone, it should connect to the device. As it is Bluetooth (4.0), it does not need to pair and connect the automatic battery monitor automatically.



4. Allow all permissions while running the app(Battery-Asst).



5. Check the feature details.



6. When a red letter appears on the top left, please press to reconnect the Bluetooth 4.0.



7. Set system configuration.



8. Set notification bar message.



Specifications:



Average Current: 1mA

Input Voltage: 6 - 20V

Operating Temperature: -40 to 90 degree centigrade

Voltage Accuracy(9~16V): ±0.03V

Bluetooth: 4.0

Bluetooth Name: Battery Asst

App Name: Battery Asst

Short-Circuit Protection: supported

Reverse Connection Protection: supported

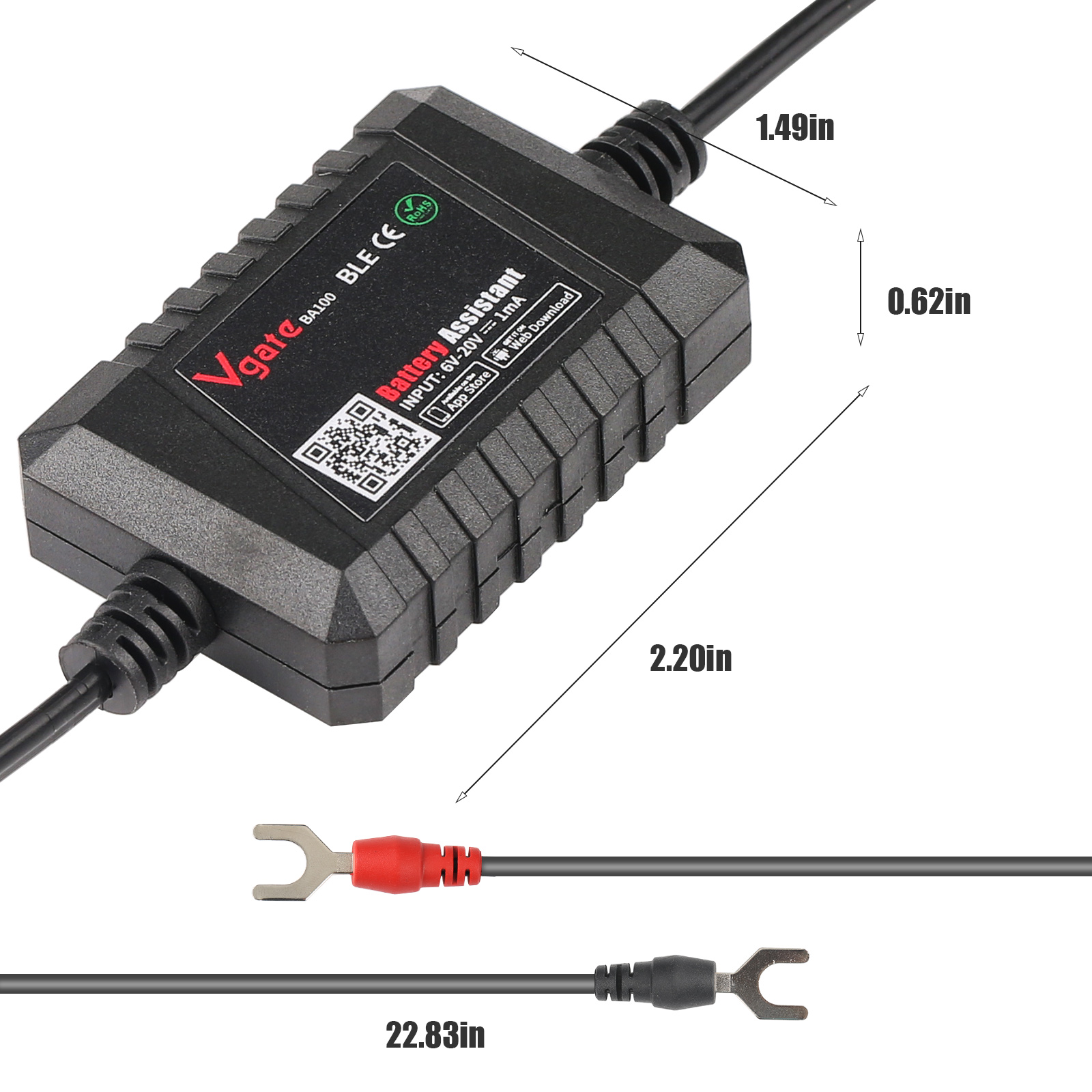

Dimensions: 5.6*4*1.6cm
