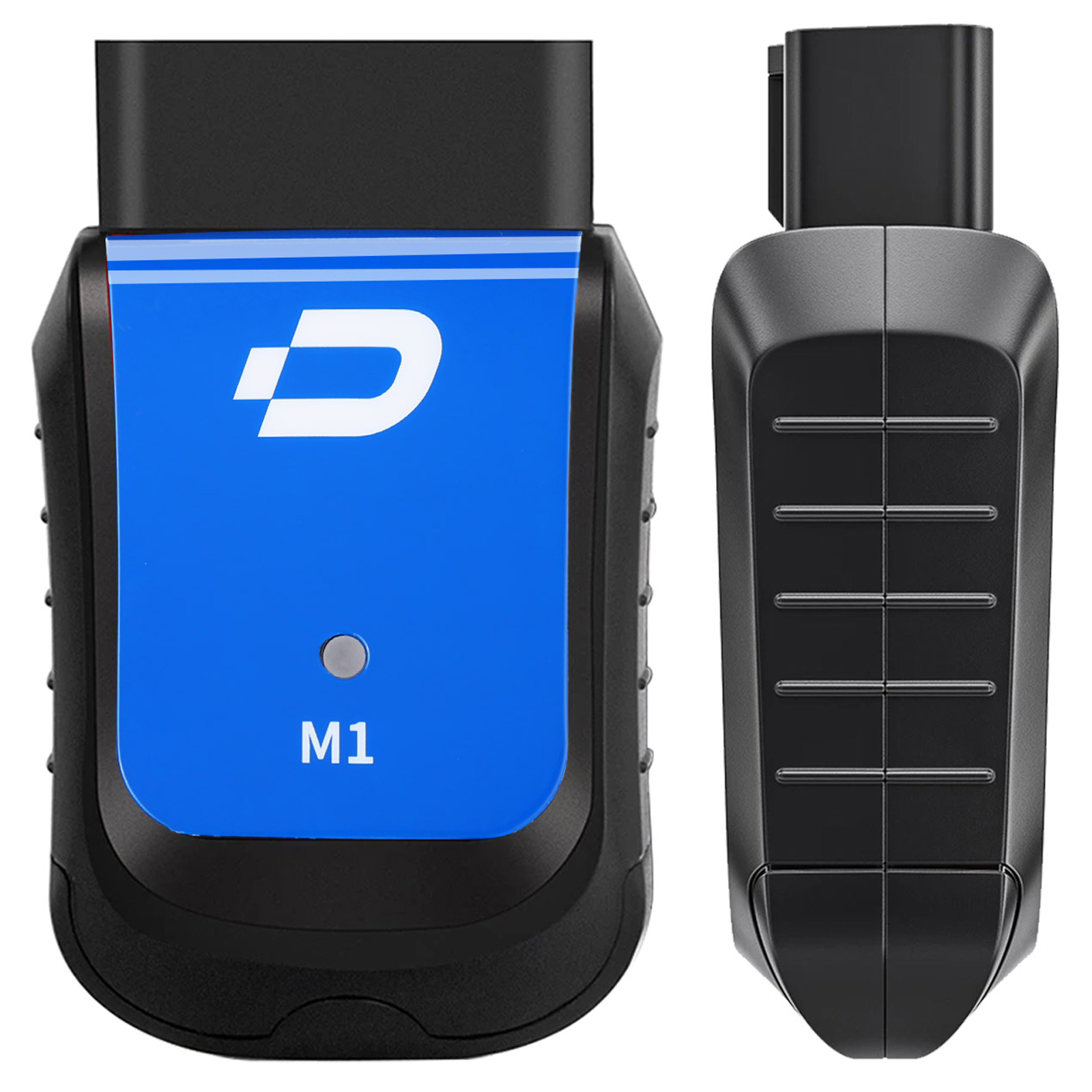

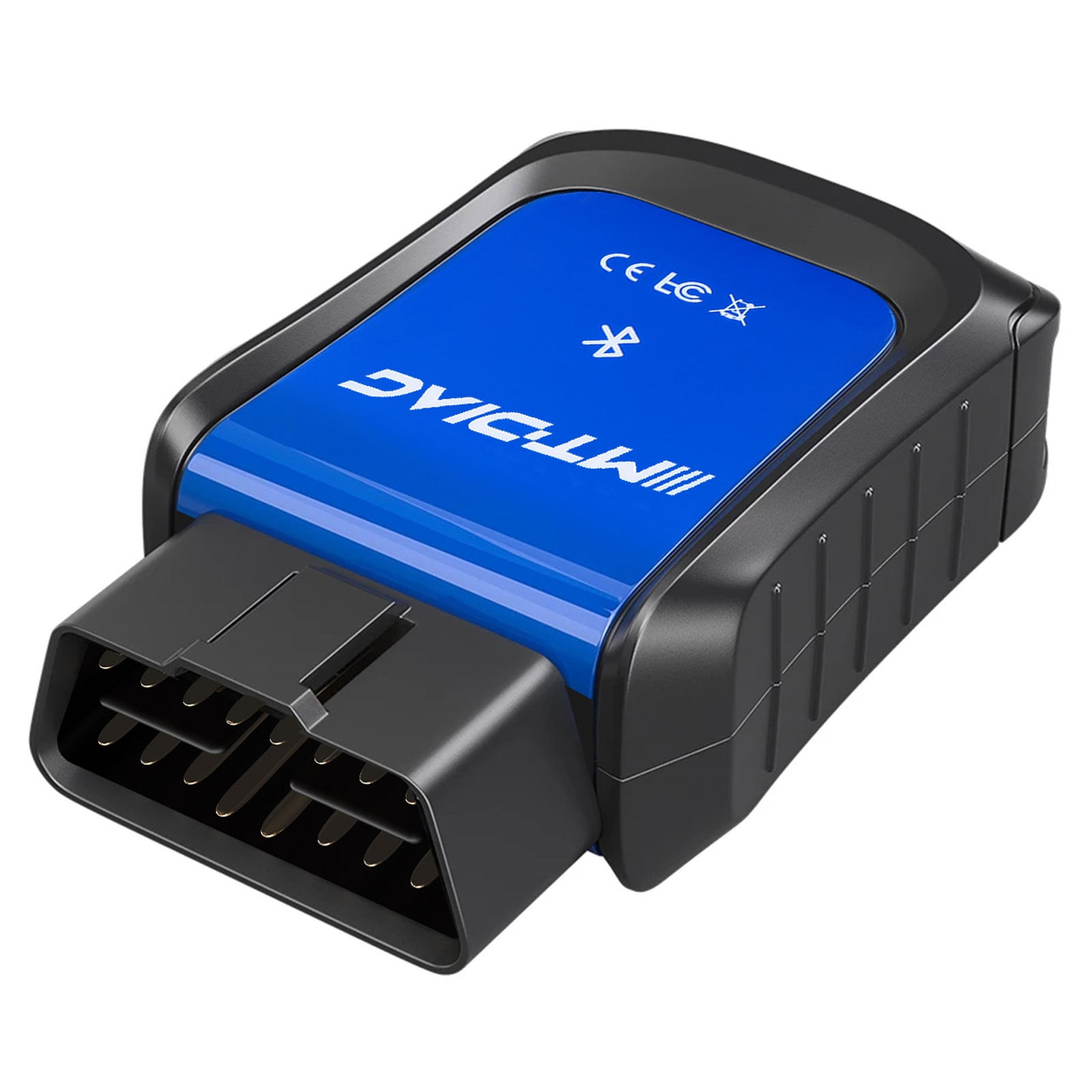

Name: MTDIAG M1 BMW Motorcycle Diagnostic Tool
Description:
MTDIAG M1 is a professional diagnostic scan tool for BMW motorcycles with Comprehensive Functions. It is a BMW motorcycle customized mobile diagnostic instrument. Users need to use it with Android phones or tablets to do diagnoses (App for Apple users is still in developing).
Features:
Convenient and fast to use, easy-to-understand operation;
Covers BMW motorcycles all series: C, E, F, G, K, R, S;
Covers BMW motorcycles all diagnostic functions and service;
Functions of all system;
Common Service Functions: Oil Reset, IMMO Key, Calibrate ESA, Calibrate SAF, Calibrate Headlight, Switch Off Transport Mode, etc.
Support standard OBD2 and BMW 10 Pin connector
Lifelong free upgrade online
Specifications:
Supported Operation System: Android above version 4.4
Processor: ARM 32 - bit Cortex processor
Communications: Bluetooth
Input Voltage: DC 8-16v
Supported Protocols: UDS, ISO 9141-2, K/L lines, SAE-J1850VPW, SAE-J1850 PWM, CAN ISO 11898 ISO15765-4, High Speed / Middle Speed / Low Speed / Single Wire CAN
Operating Temperature: -10 to 70 degree centigrade @ Relative Humidity<90%
Storage Temperature: - 30 to 120 degree centigrade @ Relative Humidity <90%
Dimension:150*94*40mm
Unit Weight: 0.166Kg
Packing List:

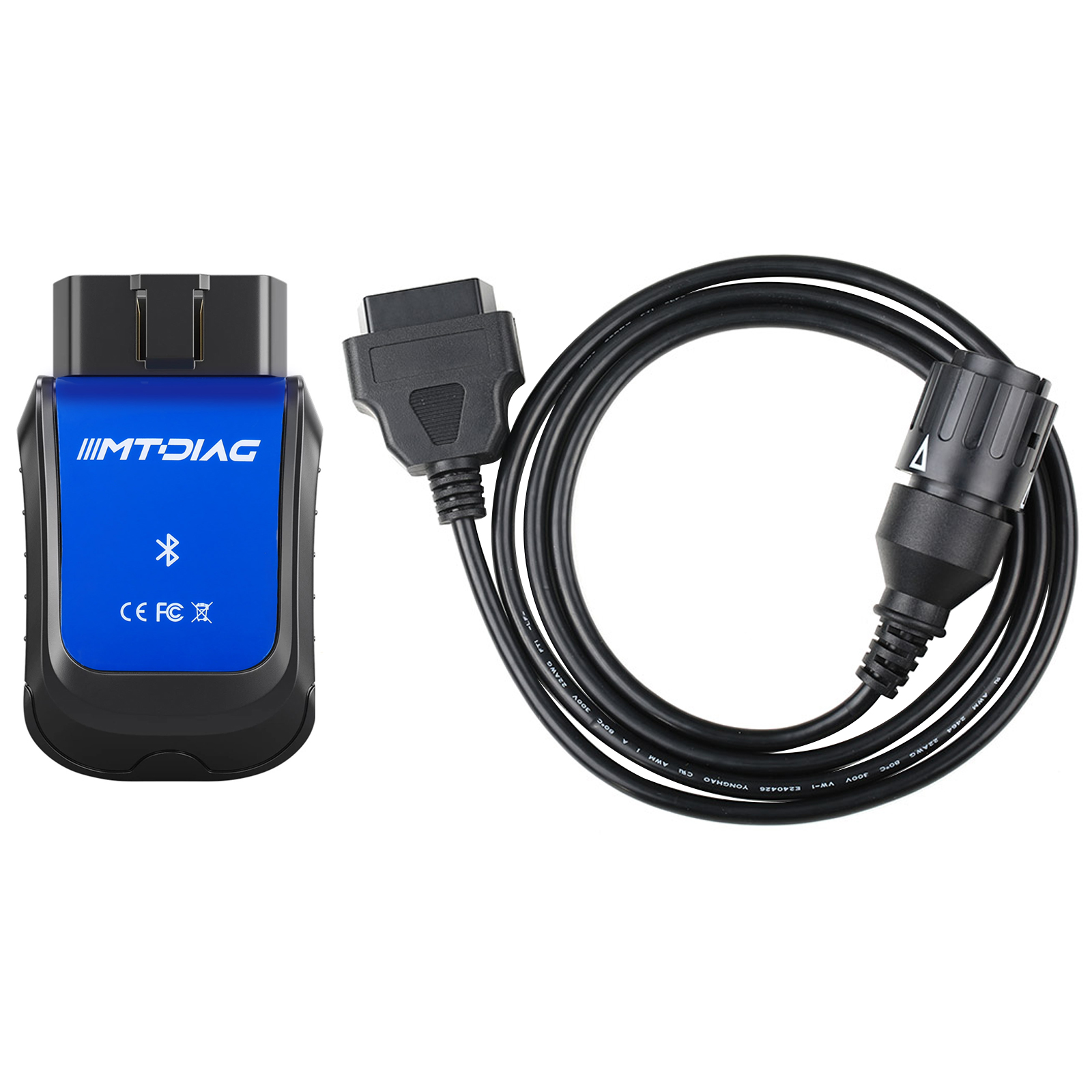

MTDIAG M1 BMW Motorcycle Scanner
OBD2 Female to BMW 10-Pin Cable
Packing Box
|
