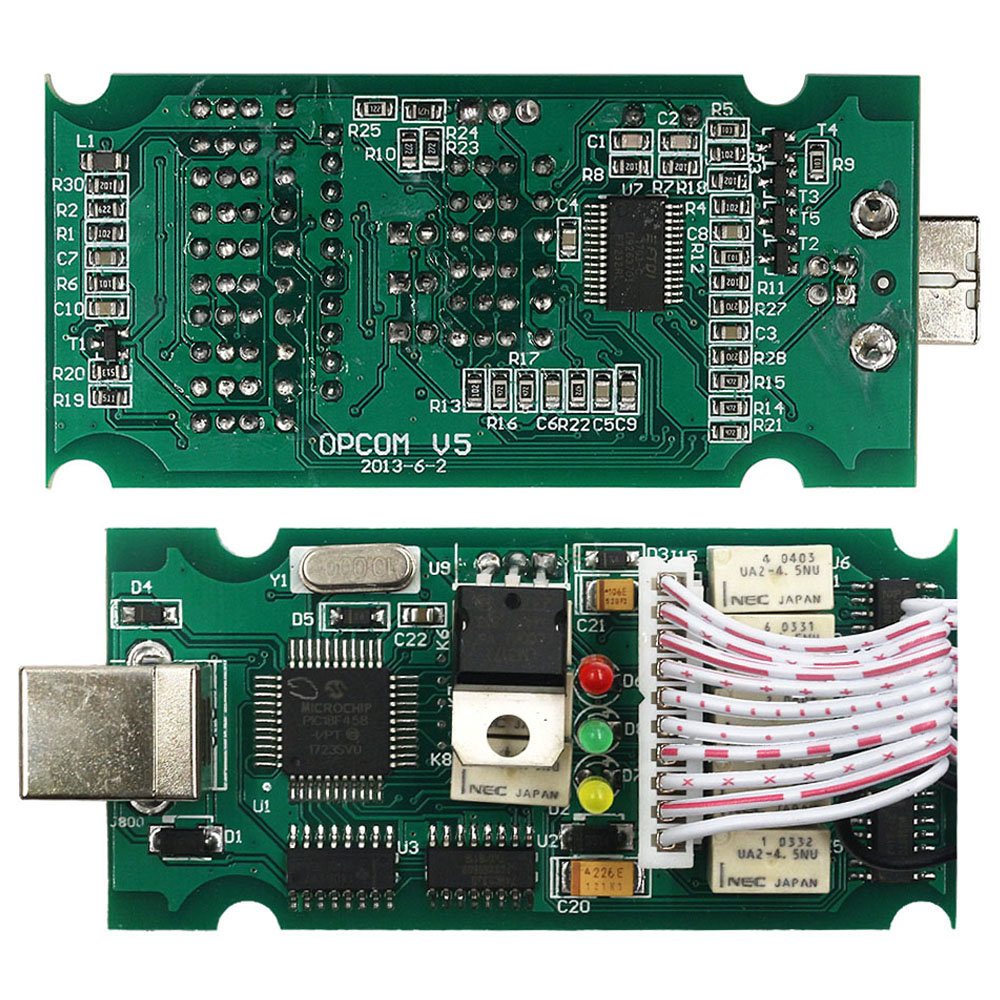

Name: 2021 Opel OP COM with PIC18F458 and FT232RQ
Description:
2021 Opel OP COM with with PIC18F458 and FT232RQ works perfect for Opel cars diagnosis, including new cars with CAN-BUS, such as Vectra-C, Astra-H,Zafira-B.

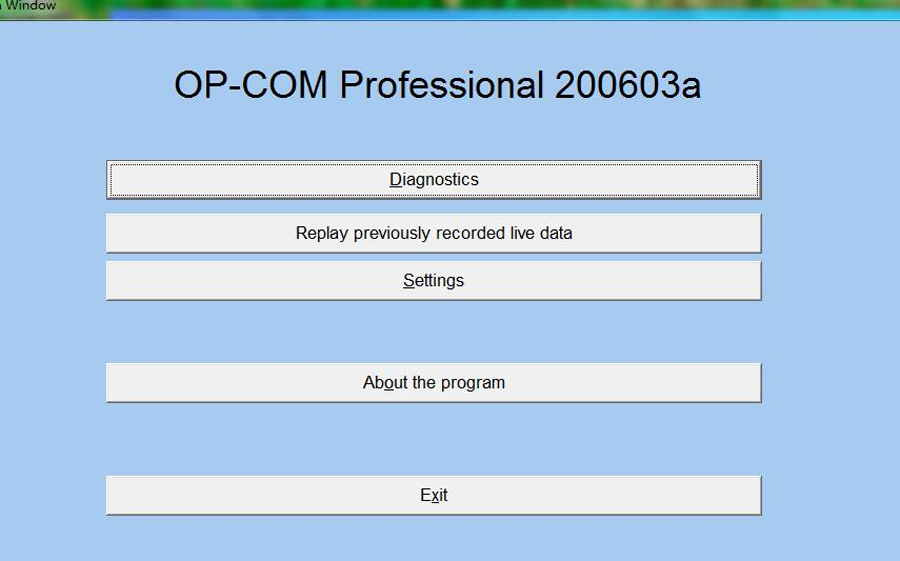

Software Version: 200603a
Firmware Version: 1.95
Supported OS: Windows 7

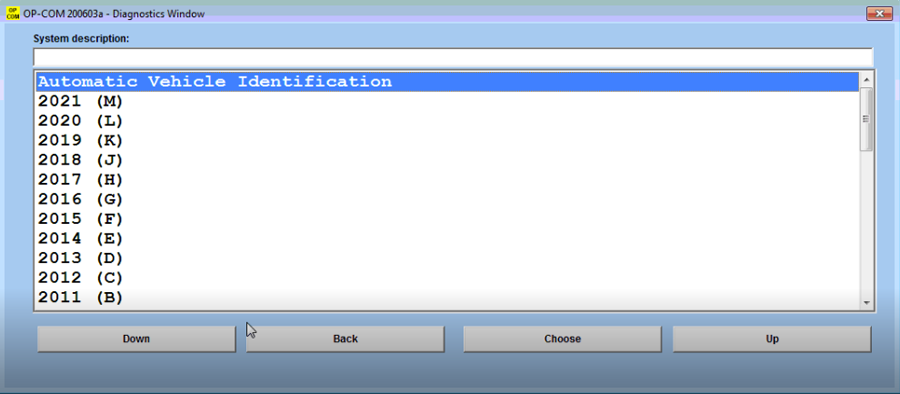

Supported Cars: Opel till 2021
Notice: DO NOT update OP COM online, otherwise, the device will be damaged!
Functions:

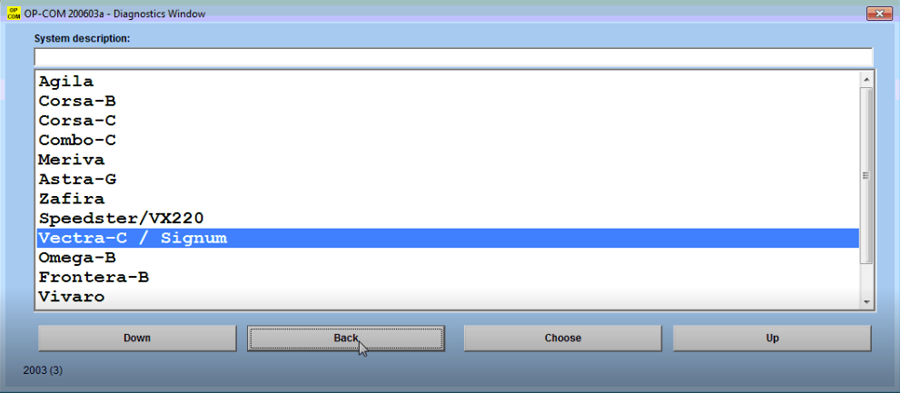

1. It covers almost all Opel cars, includes new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program allows users to read out and clear fault codes, shows you live data and perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.
4. Since Opel cars adopt many PINs in the OBD connector, the diagnostic interface works as a multiplexer, and users need select the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all information available:
Full fault code text description:
1) Full status information (Present, Not present, Intermittent)
2) Users can print out, save, or copy the fault codes to any other application. From the fault codes window, users can go directly to the measuring blocks window.
3) The program shows measuring block information on many control module, users can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol.
For example, the older system like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow during communication, while the newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

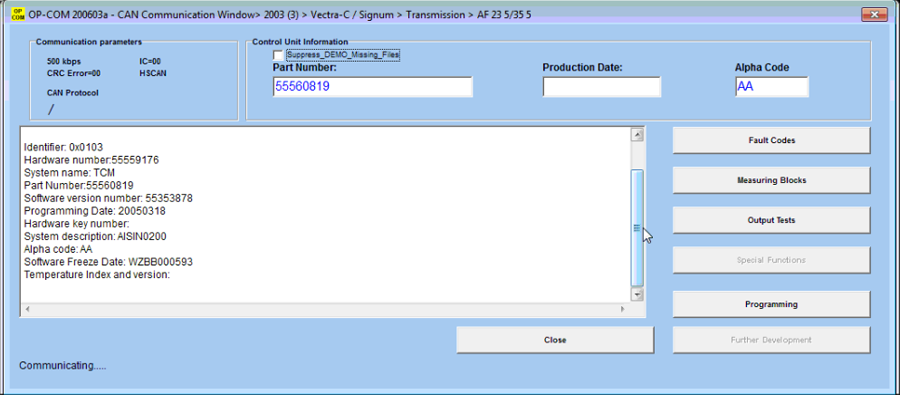

Users can also run output tests on many controllers:
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

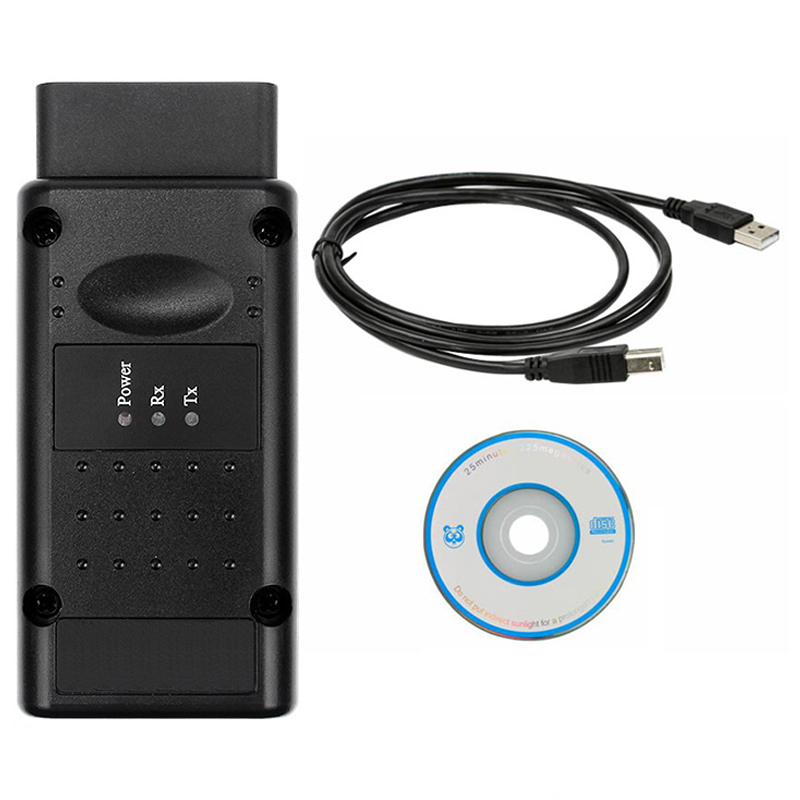

Packing List:
Opel OP COM
USB cable
|
