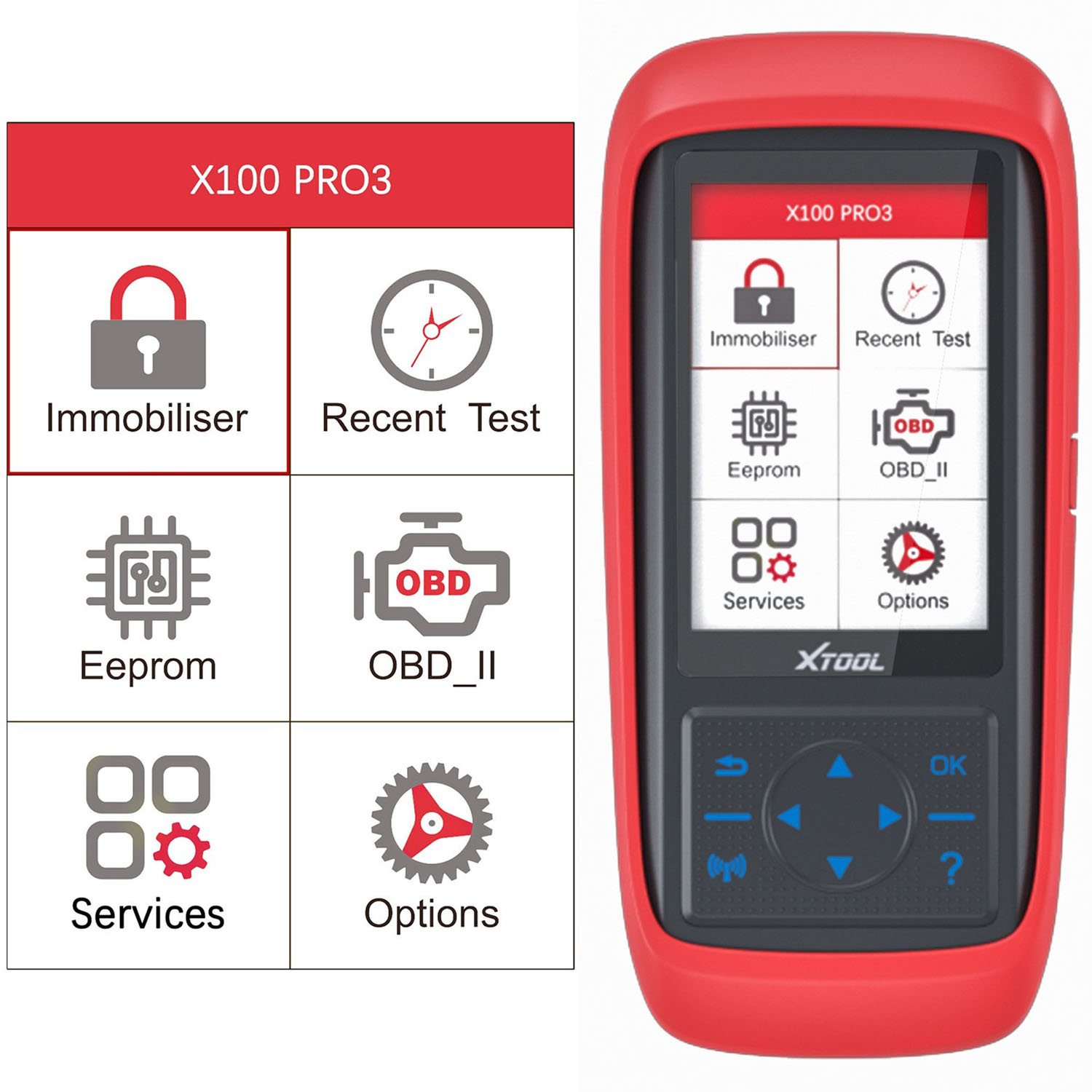

Name: XTool X100 PRO3 Key Programmer with 7 Special Functions
Description:
XTool X100 PRO3 is an upgraded version of XTool X100 PRO2, adds EPB, ABS, TPS Reset Functions.
Highlights:

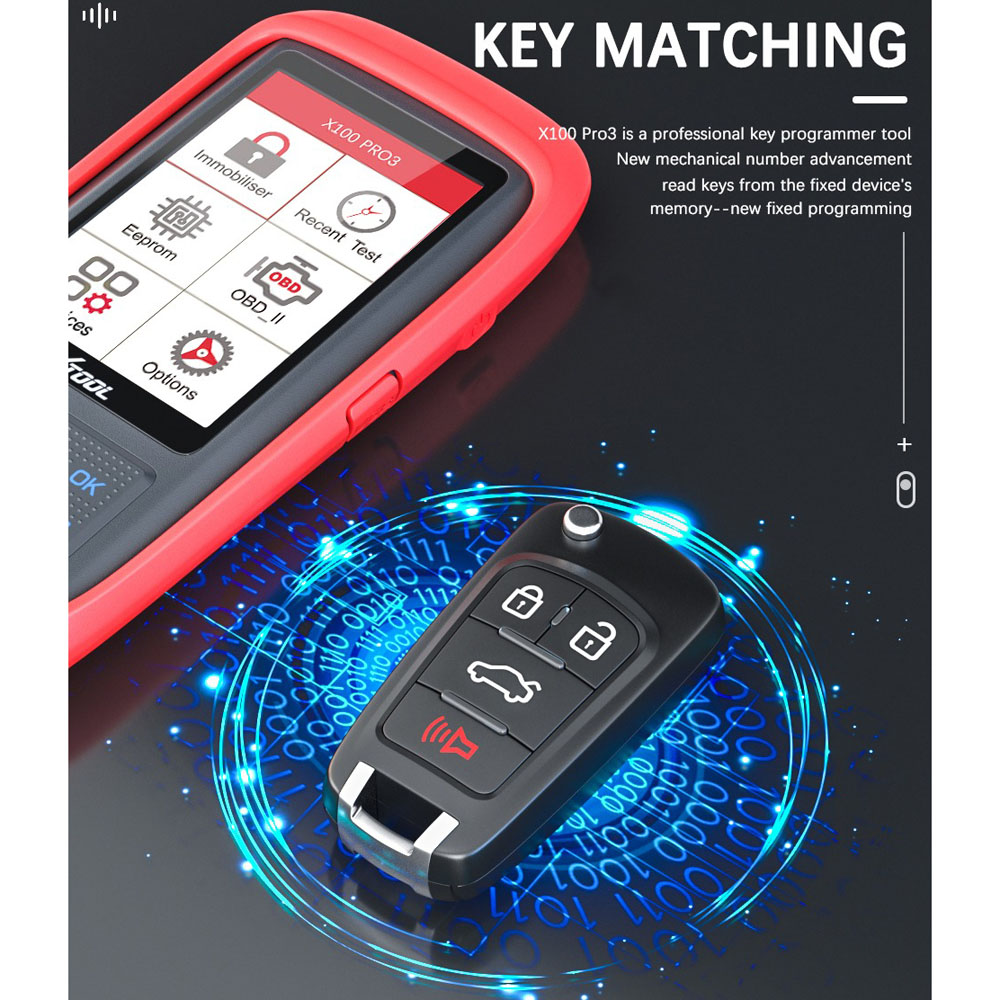

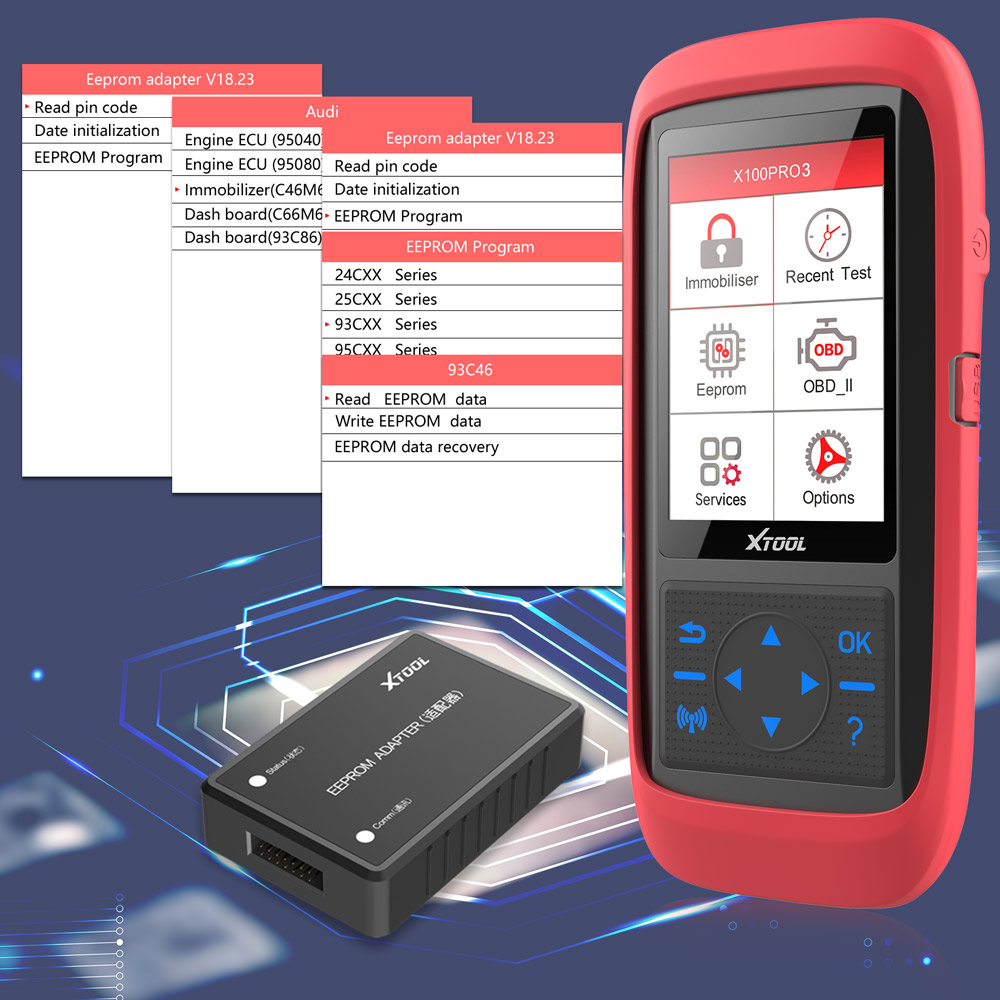

1. Professional key matching device support Pin Code Reading, ECU Initializing, Chip Programming.
2. Full OBD-II functions
3. Add "Recent Test" function. "Recent Test" can directly lead you to the menus you opened recently.
4. Compare with X100 Pro2, X100 Pro3 add EPB, ABS, TPS reset functions.
Supported Languages: English, French, German, Spanish, Portuguese, Italian, Polish, Russian
Functions:
1. Mainly works for most of Europe, Asia, America, Australia car models for key matching.

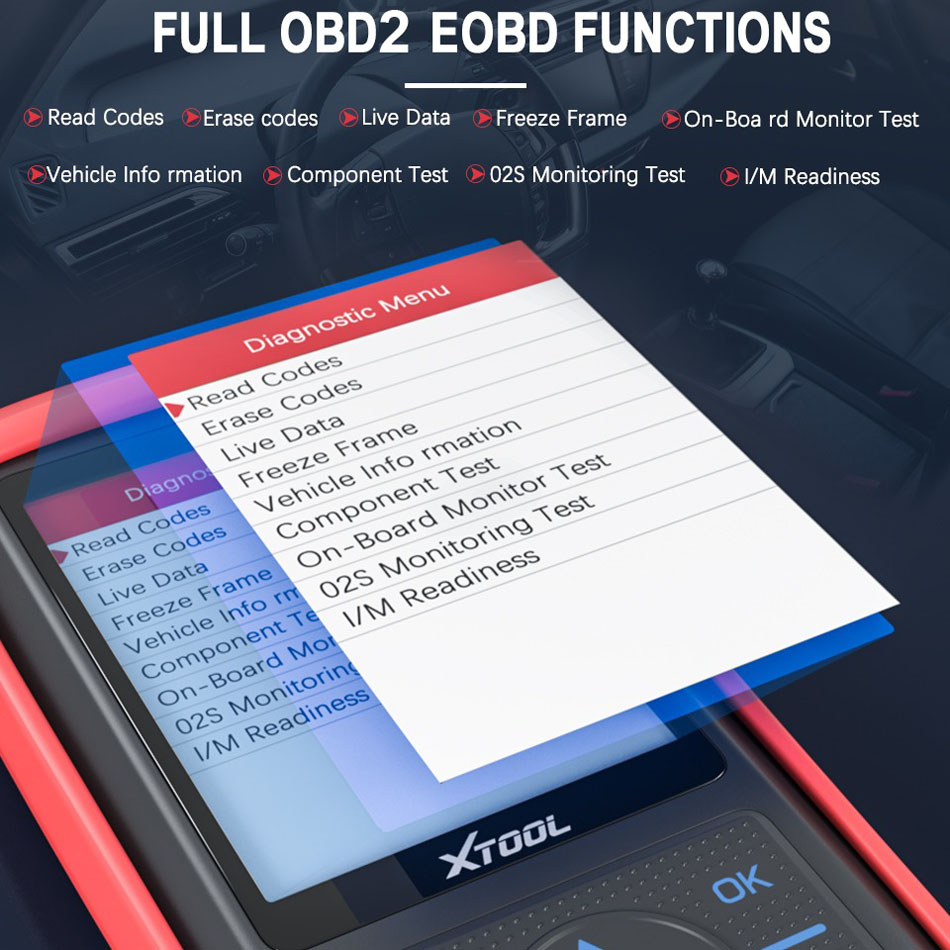

2.OBD2 Functions:
Reading Codes:
Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset:
Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream:
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream:
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data:
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test:
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test:
Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information:
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test:
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

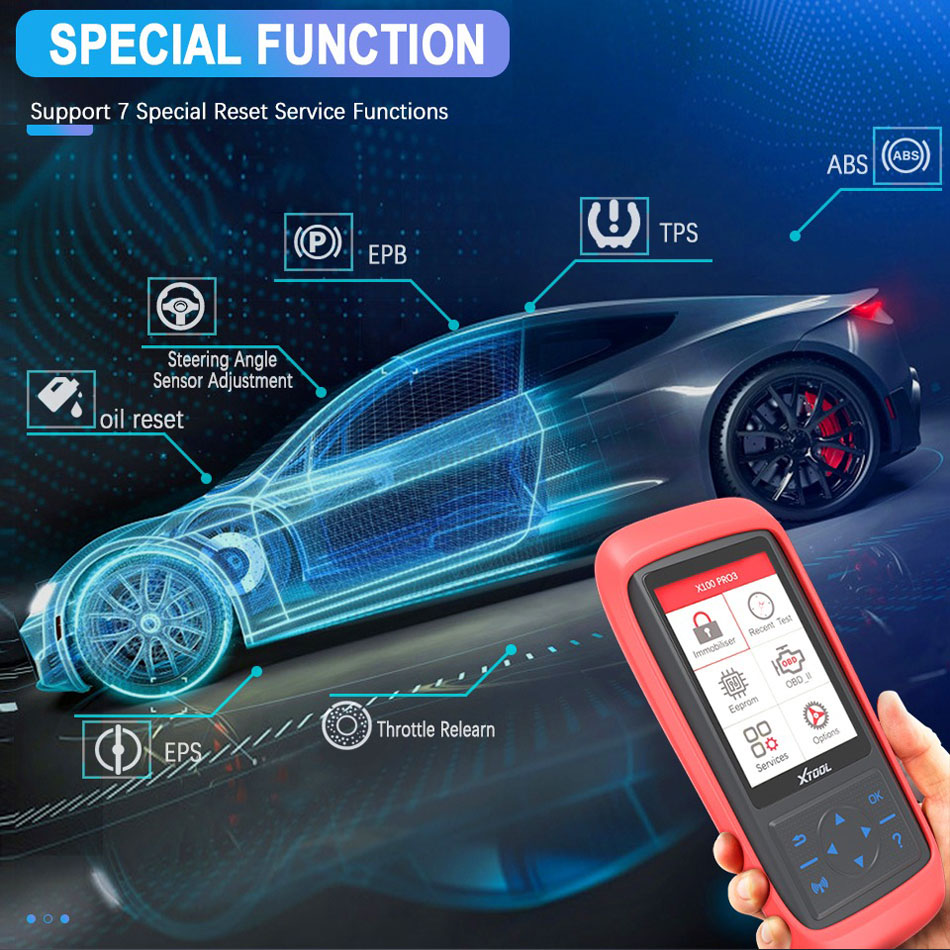

3. 7 Kinds of Special Reset Service Functions:
Oil Reset Service:
Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
Electronic Parking Brake (EPB) Service:
Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
Steering Angle Sensor (SAS) Service:
Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion.
TPS
EPS
Throttle Relearn
And many more ...
How to get back to normal when the device displays a white screen or no application?
Step 1: Connect XTool X100 PRO3 to a Windows PC, find the memory card, and format it.
Step 2: Log in the upgrade tool and click upgrade
Attention: During the upgrade, please do not operate any key of the machine or disconnect the data line. After the upgrade prompt is successful, unplug the data cable and reconnect it.

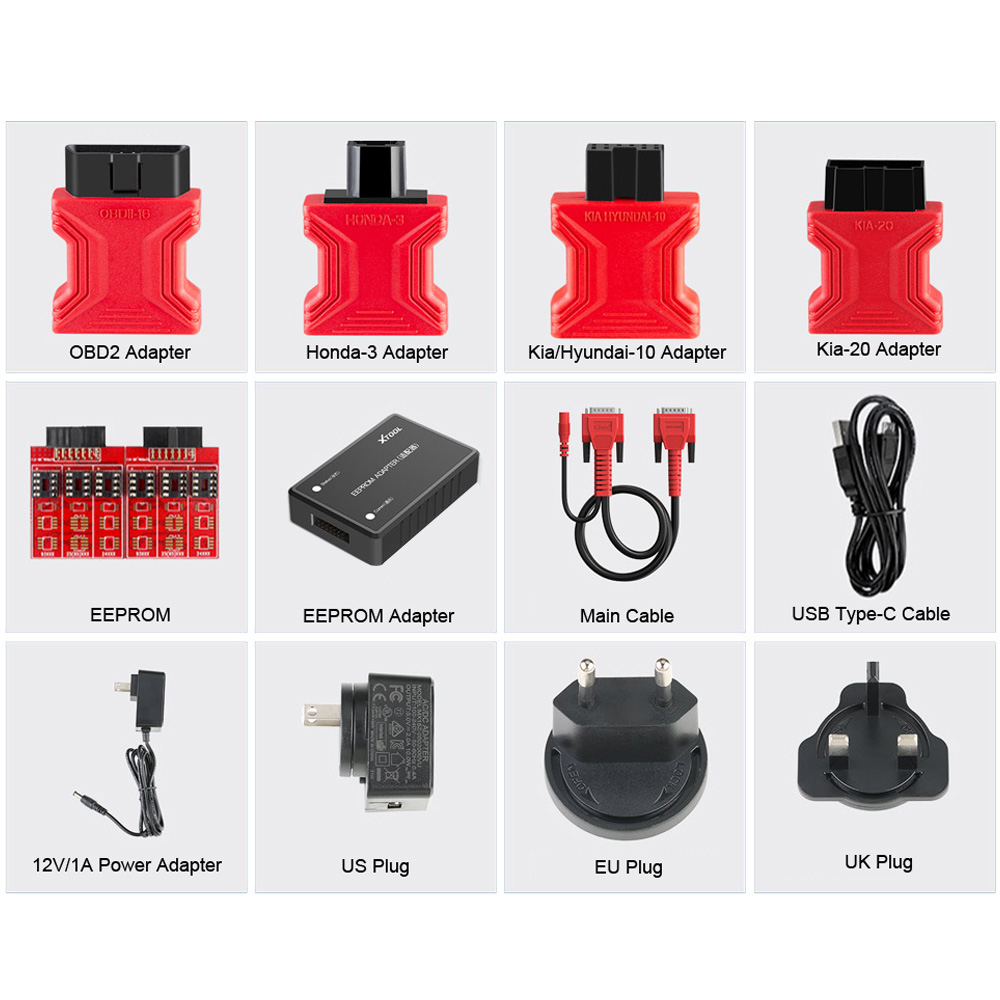

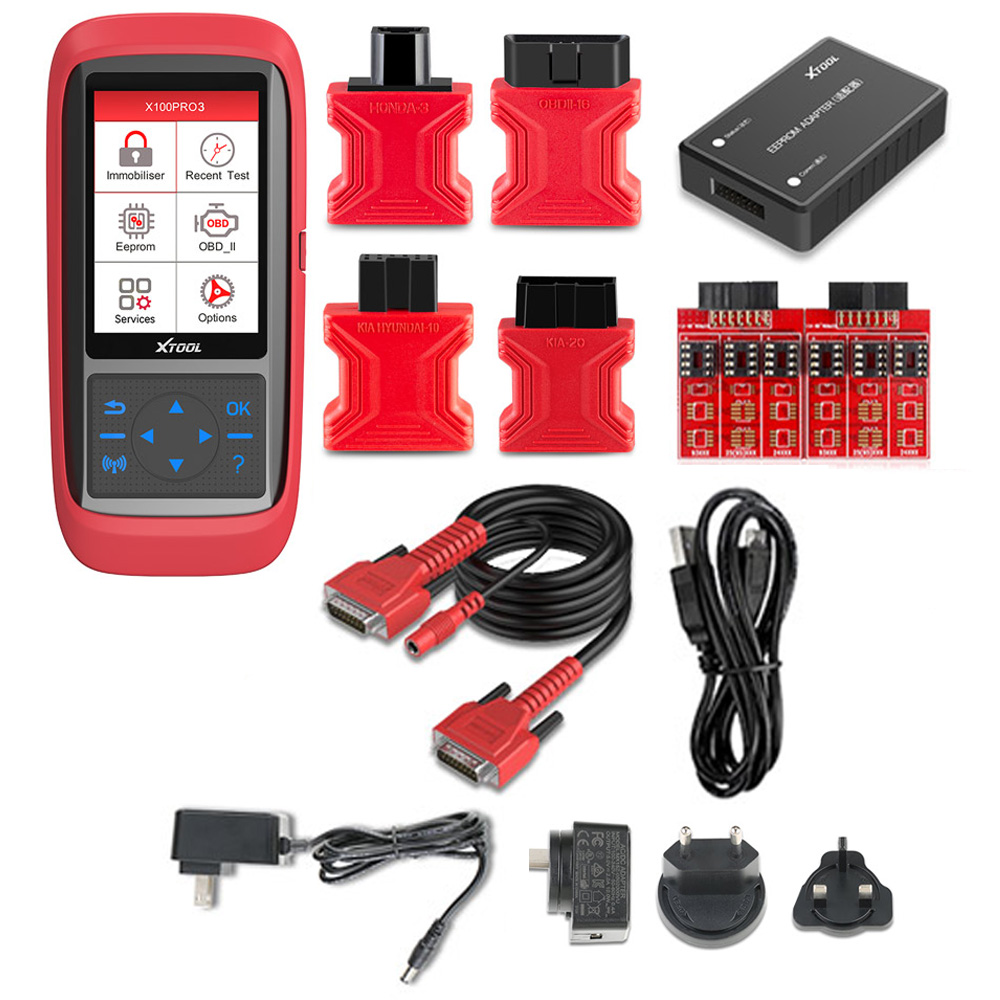

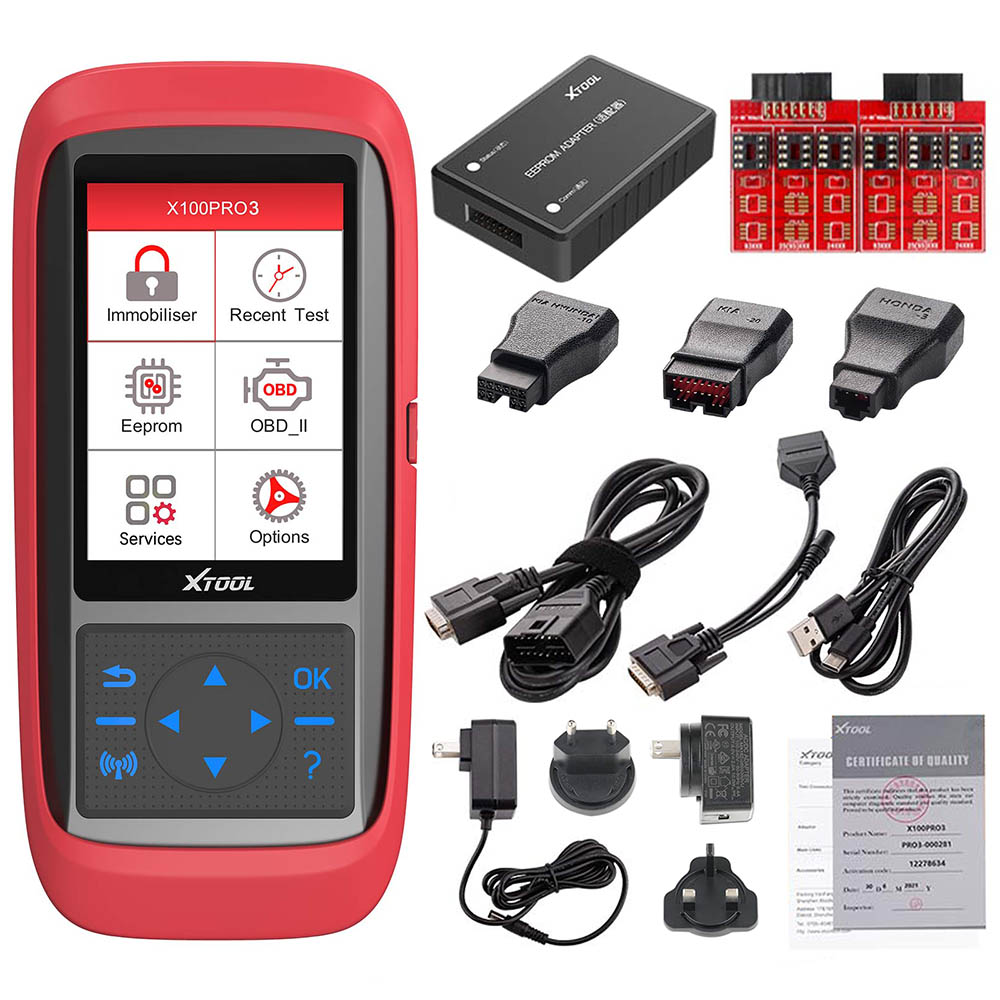

Packing List:
XTool X100 PRO3
EEPROM (2 pcs)
EEPROM Adapter
Main Cable
USB Type-C Cable
OBD Adapter
Honda-3 Adapter
Hyundai / Kia-10 Adapter
Kia-20 Adapter
12V/1A Power Adapter
US Plug
EU Plug
UK Plug
User Manual
Quality Certificate
Packing List

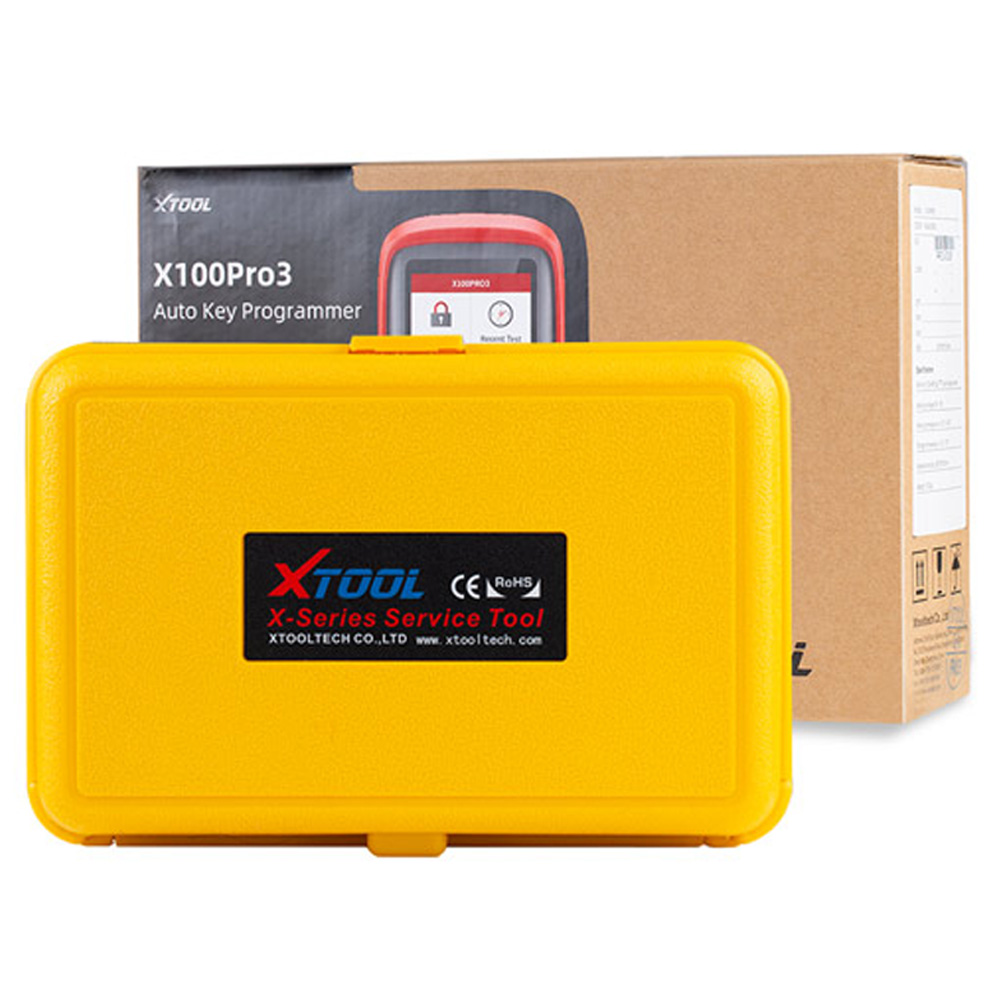

Packing Box
|
