Name: Autel MaxiLink ML619 CAN OBD2 Scanner
Description:
Autel MaxiLink ML619 CAN OBD2 Scanner ABS SRS AirBag Auto Diagnostic Scan Tool.
Autel MaxiLink ML619 is the perfect tool for detecting faults on vehicle Anti-Lock Brake (ABS) and Supplemental Restraint System (SRS) / Airbag Systems, in addition to performing OBD-II diagnostics.
Both visual and audible cues enhance the tools ability to aid in quick fault discovery, while on-screen troubleshooting tips speed repairs.
Highlights:
1. EXTENSIVE COVERAGE: The diagnostic tool works on most 1996 and newer US-vehicles and 2000 and newer EU-vehicles, like Ford, GM, Jeep, Honda, Toyota, etc. And feel free to contact us if you have any questions about compatibility with your vehicle.
2. ABS & SRS DIAGNOSES: Supports comprehensive check and the accurate diagnoses of SRS and ABS, which includes reading codes, clearing codes and retrieving live data. You can find and fix basic problems and turn off the warning lights.
3. FULL OBD2 FUNCTIONS: This scanner helps you retrieve and clear hard codes, turn off the check engine light, check I/M readiness status for monitoring emission, perform O2 sensor monitor test and on-board monitor test, and etc.

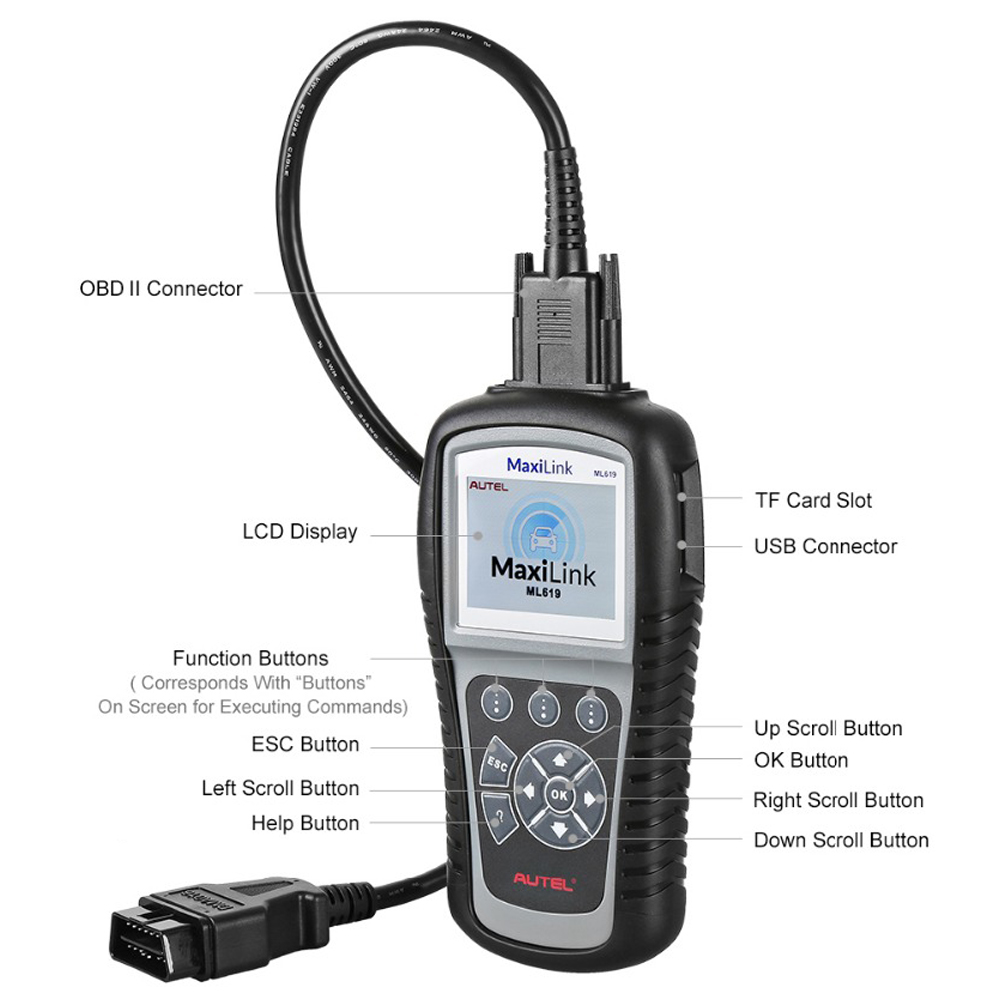

4. USER-FRIENDLY DESIGN: You can easily hold the scan tool with one hand for its considerate design. Rubber Anti-skid protector makes this scanner much more sturdy and durable. On-screen troubleshooting tips help a lot to repairs.
5. WARRANTY & UPDATE: 12-month warranty for any quality problems & lifetime free update on the internet for bug fixes, wider vehicle coverage, and enhanced software and functions.
Supported Languages:
English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Korean, Japanese, Traditional Chinese,
Features:
1. Diagnoses on ABS & SRS
1) Retrieves trouble codes in ABS/SRS to find the problem components that cause the MIL turning on and understand what has happened by the DTC definitions provided;
2) Clears the hard codes within ABS/SRS and turn off the troublesome warning light on the instrument board after fixes and repairs;
3). Reads data streams which can be displayed in color graphical form to facilitate your diagnostic analysis on ABS & SRS.
2. Complete OBD2 Diagnostic Functions
Model $01 - identify current powertrain diagnostic data
Model $02 - display freeze frame data
Model $03 - display emission-related diagnostic trouble codes
Model $04 - clear /reset DTCs and freeze frame data
Model $05 - perform O2 sensor test to check fuel efficiency and vehicle emissions
Model $06 - present minimum, maximum and current values to see whether the monitor is ok
Model $07- request emission-related diagnostic trouble codes detected during current or last completed driving cycle
Model $08 - request control of on-board system, test, or component
Model $09 - request the vehicle information(VIN numbers and calibration information stored in the vehicle engine control units)
Model $0A - request emission related DTCs with permanent status
Specifications:
Display: 320*240 dpi TFT color display
Operating Temperature: 0 to 60 degree centigrade
External Power: 8.0V to 18.0 V power provided via vehicle battery

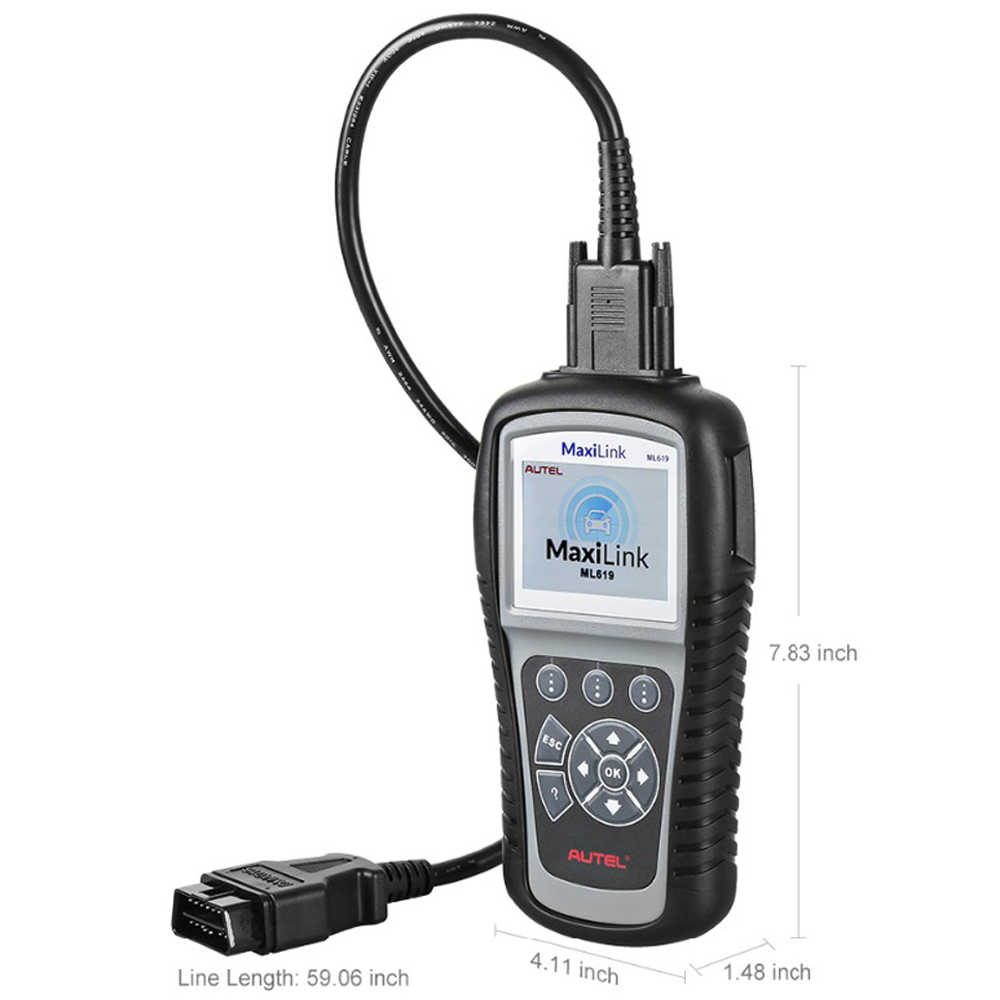

Size (L*W*H): 199*10.5*5mm
Weight: 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire)

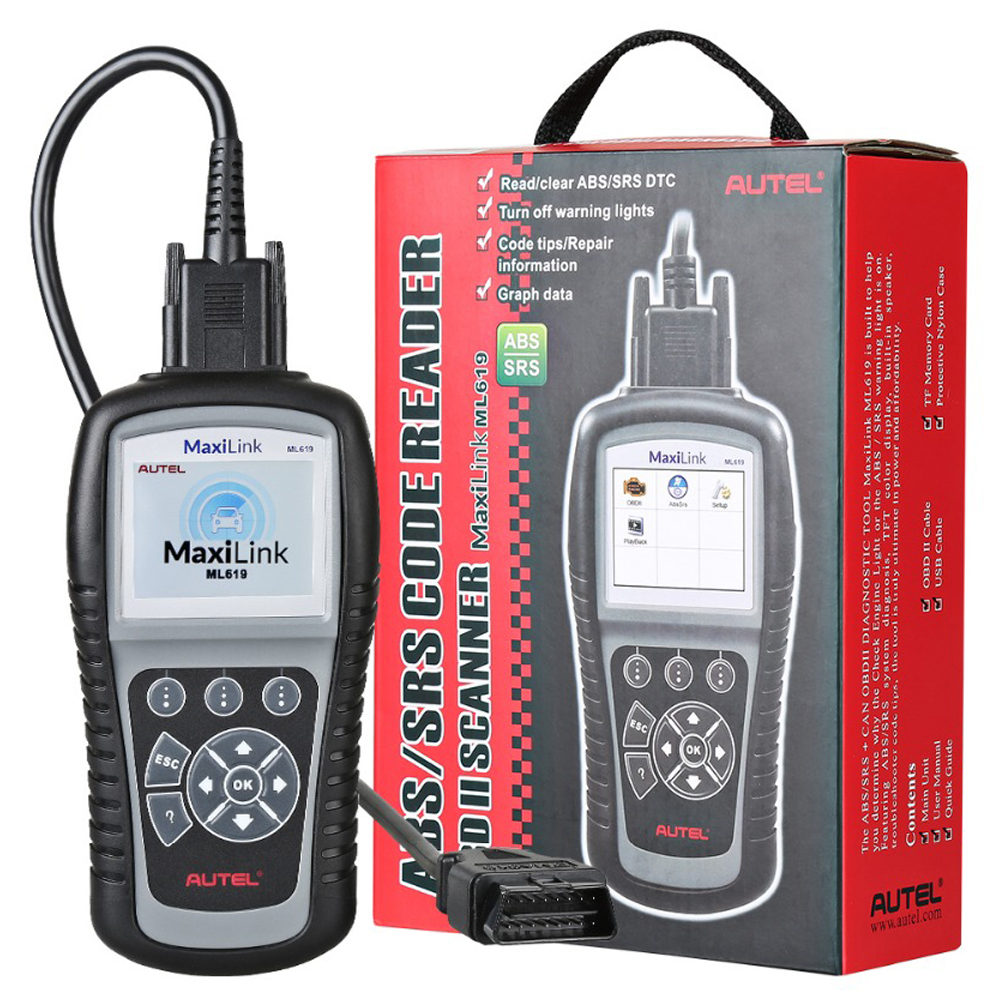

Packing List:
Autel MaxiLink ML619
OBD2 Cable
USB Cable
TF Card
Package List
User Manual
Protective Nylon Pouch
Packing Box
|
