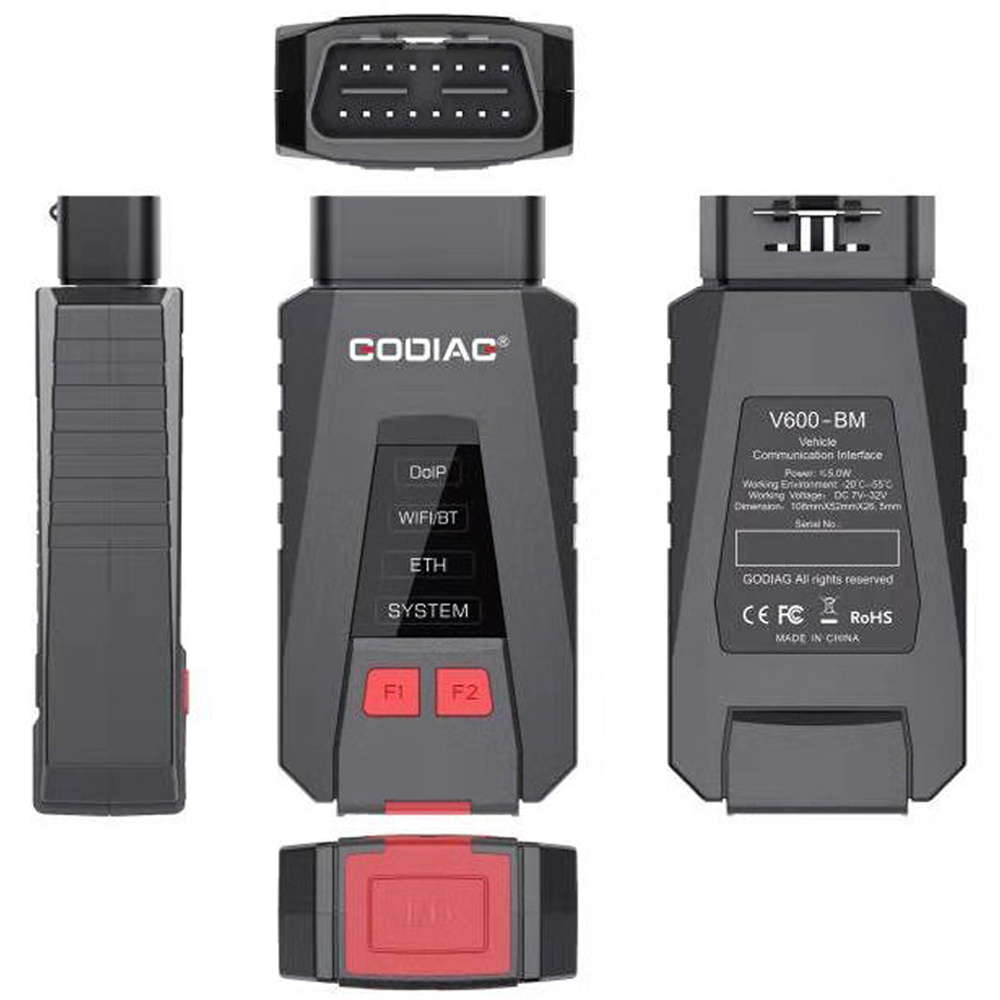

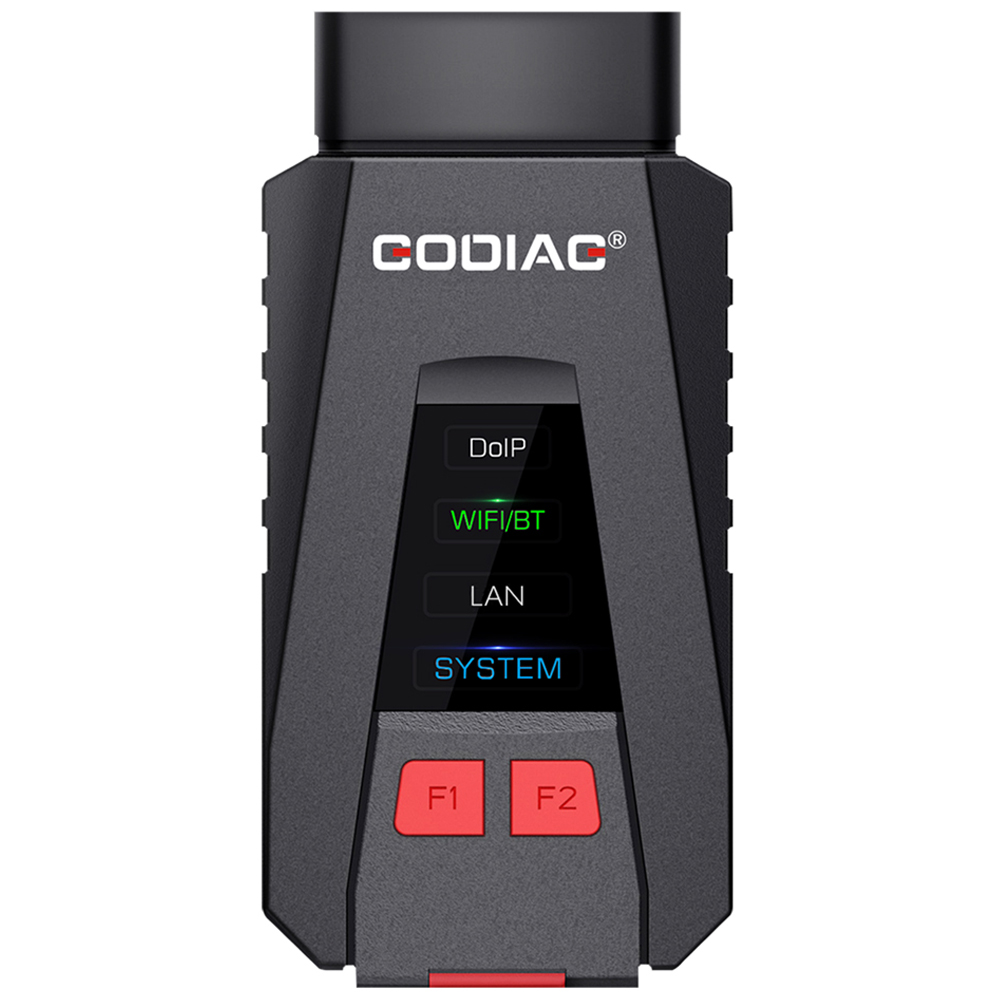

Name: GODIAG V600-BM BMW Diagnostic and Programming Tool
Description:
V600-BM is a professional BMW diagnostic and programming tool. It has the capabilities of intelligent vehicle diagnosis, ECU programming, calibration and some special functions. It supports all mainstream BMW diagnostic software on the market. It features in high-performance CPU, WiFi dual mode (STA/AP), Ethernet communication.
Functions:
1. It can perform vehicle intelligent diagnosis, all-system all-function fast diagnosis; can read & clear fault codes, read data stream, actuation test etc.
2. ECU programming and calibration. Fully compatible with official diagnostic software.
3. Multi-task diagnosis: based on the efficient architecture design of diagnosis service software.
4. Diagnostic Feedback: support one-key upload the device logs. If you encounter exceptional vehicle and abnormal function, you are allowed to report the problem to the manufacturer, then the technicians will track and handle your problem.
Features:
1. 108*52*27mm compact size, the pocket device is more portable.
2. Brand new industrial design, the shell is made of solid and stain-resistant material. It is more suitable for the automobile maintenance environment.
3. Supports WiFi wireless connection, high-speed transmission, long-distance transmission, stable signal and strong anti-interference; WiFi can be set as STA or AP mode at the same time, making users work in comfortable indoor
environment.
4. Support wired Ethernet connection, can freely switch between 2 modes WAN / LAN.
5. Support protocols for BMW diagnosis, including: ISO14230, ISO15765, IFH, DOIP, etc.
6. Cover a wide range of vehicles and support efficient and reliable diagnostic functions and a variety of special functions.
7. Ensure communication security and can encrypt communication data to ensure device and vehicle safety.
Compatible with the Following Diagnostic Software:
BMW ISTA-D
BMW ISTA-P
Tool32
BMW Coding (not tested yet)
BMW Group ISPI (not tested yet)
INPA (not tested yet)
E-SYS
Other versions are being tested, please wait for the update.
Button Definitions:
F1: Press it for more than 3 seconds to reset as factory setting
F2: Press it to restart system
Buzzer:
It will sound when V600-BM starts or if there is any abnormal operation.
Specifications:
Shell: made of polyamide
Size: 108*52*27mm
Power Supply: 7-32 V
Current Consumption: about 300mA @ 12V power
CPU: 580MHz MIPS
Memory: 32MB Flash; 128MB RA; built-in 32G TF card (optional)
Operating System: Linux
WiFi: 150Mbps Wi-Fi 1T1R 802.11bgn
Bluetooth: Bluetooth5.0 / 5.1
Interface: USB 2.0
Ethernet: 10/100Mbps

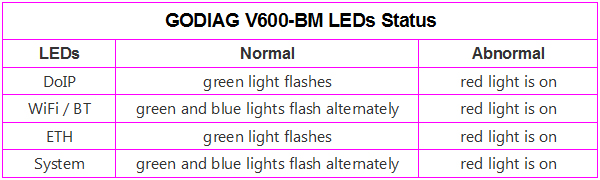

Indicator: DoIP indicator; WIFI/BT indicator; ETH indicator; system indicator
Buzzer Sound Pressure Level: minimum 80dB
Working Temperature: -20 to +55 degree centigrade
Storage Temperature: -20 to +85 degree centigrade
Protection Rating: dust prevention and water resistance conform to IP52
Conform to Electromagnetic Compatibility: Noise Emissions: EN 55011, EN 55022; Anti-interference: EN 61000-6-2, EN 61000-6-4
 |
