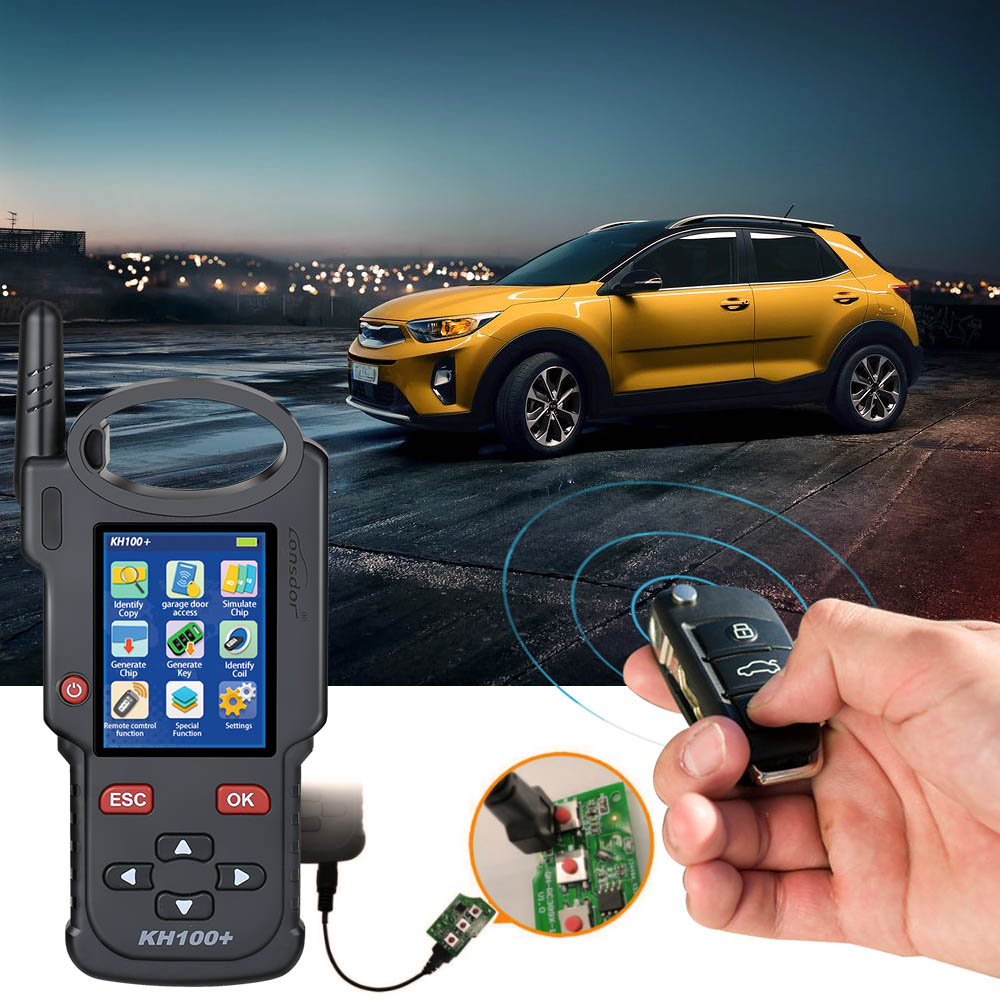

Name: Lonsdor KH100+ Remote Key Programmer
Description:
Lonsdor KH100+ Remote Key Programmer is the latest upgraded version of old Lonsdor KH100. It includes all KH100 functions. Besides, it is more superior in following:
1. 4-pack remotes & smart key involved
2. Handy chip holder integrated
3. 902MHZ supported
4. Longer distance data collection
5. More accuracy frequency detection
6. More user friendly
7. Faster running
8. Larger memory
9. Optimized power system (faster charge & heat protection)

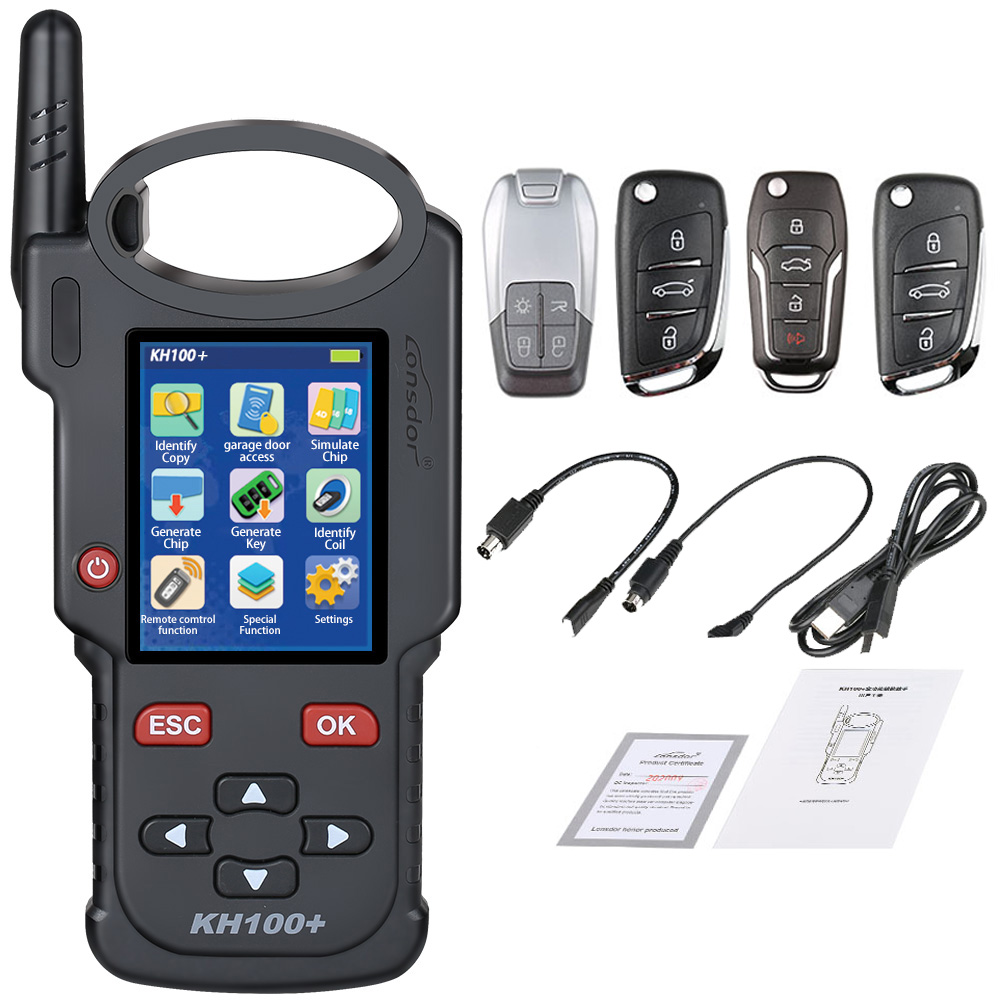

10. Upgraded package
Highlights:
1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A (H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. 4-pack remotes & smart key involved
8. Handy chip holder integrated, 902MHZ supported
9. Toyota 8A Smart Key Direct copy to Add key (Latest Update)

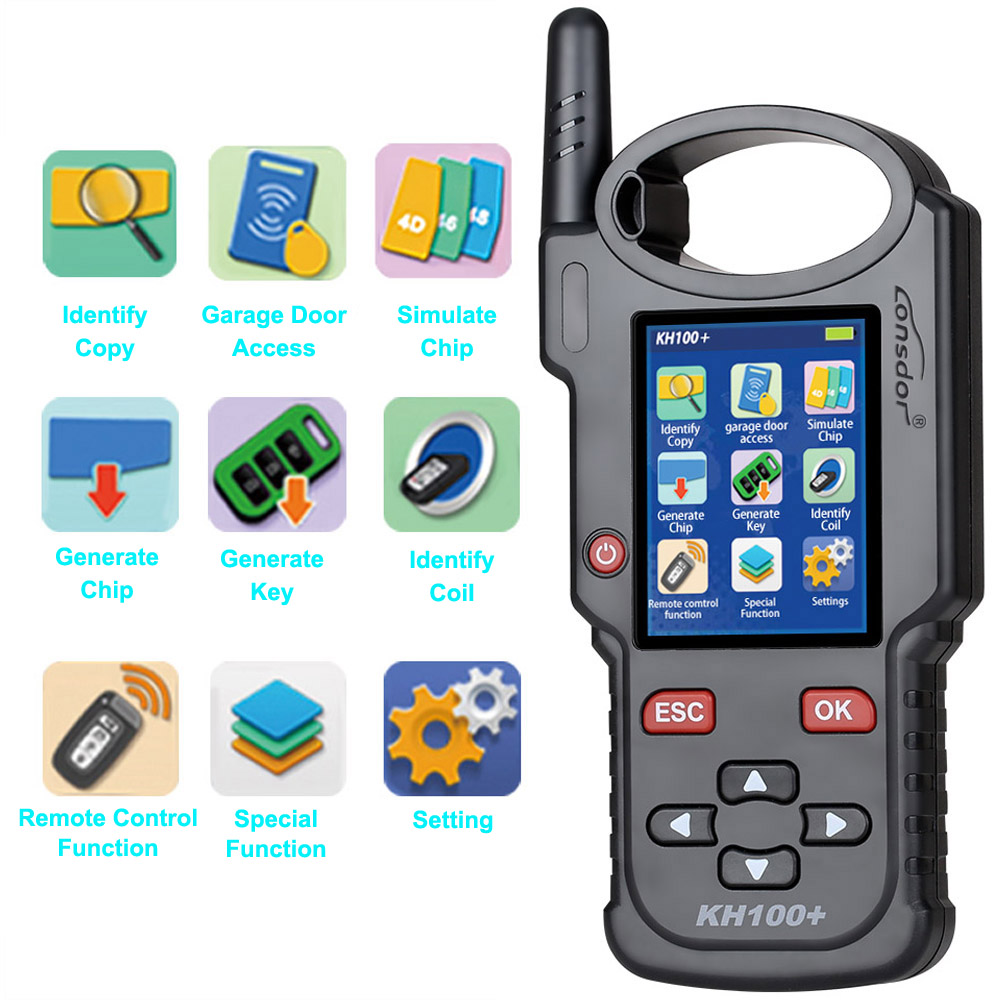

Function List:

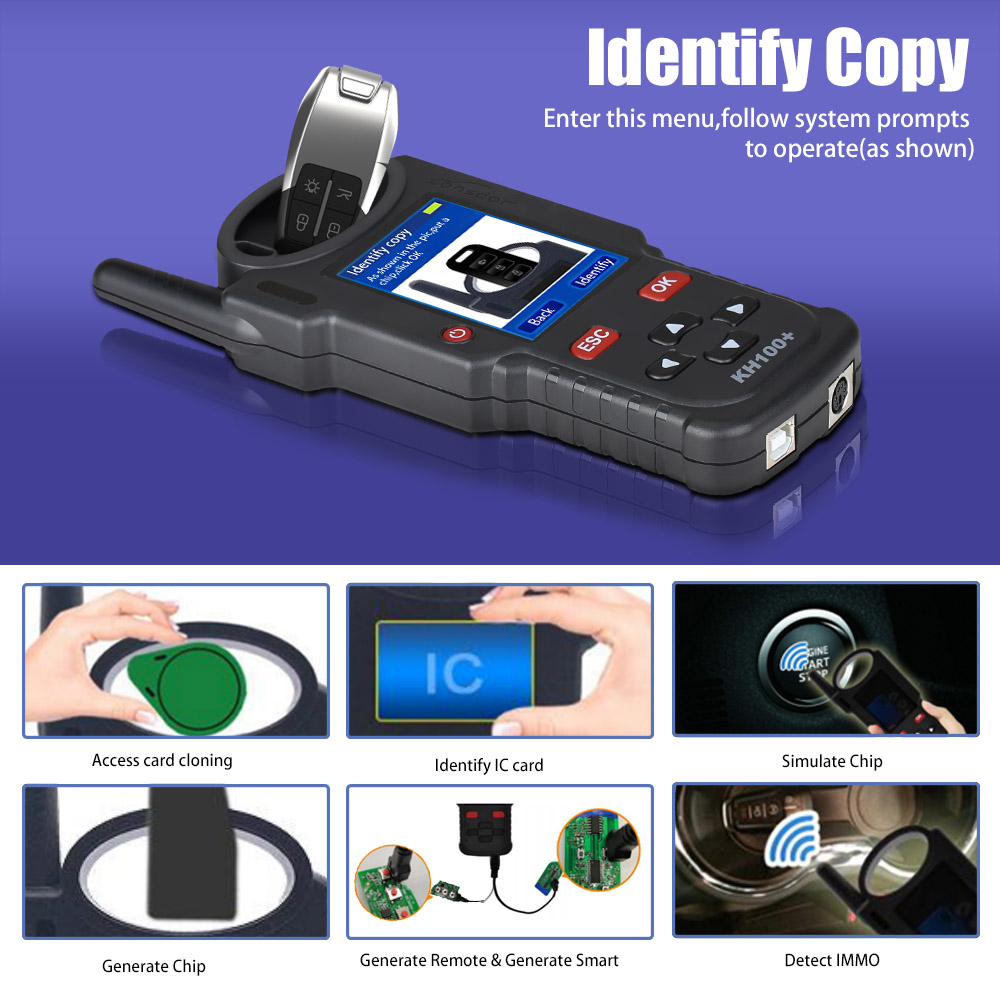

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function
Functions:

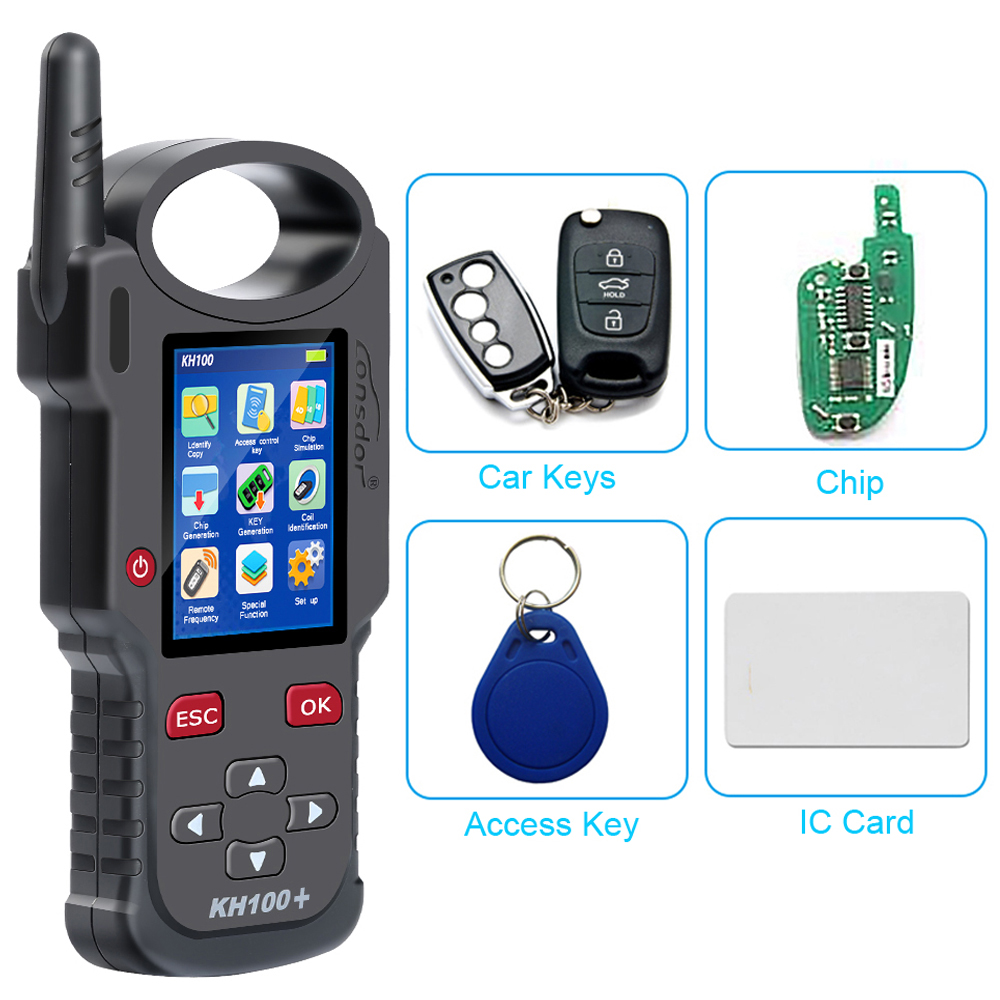

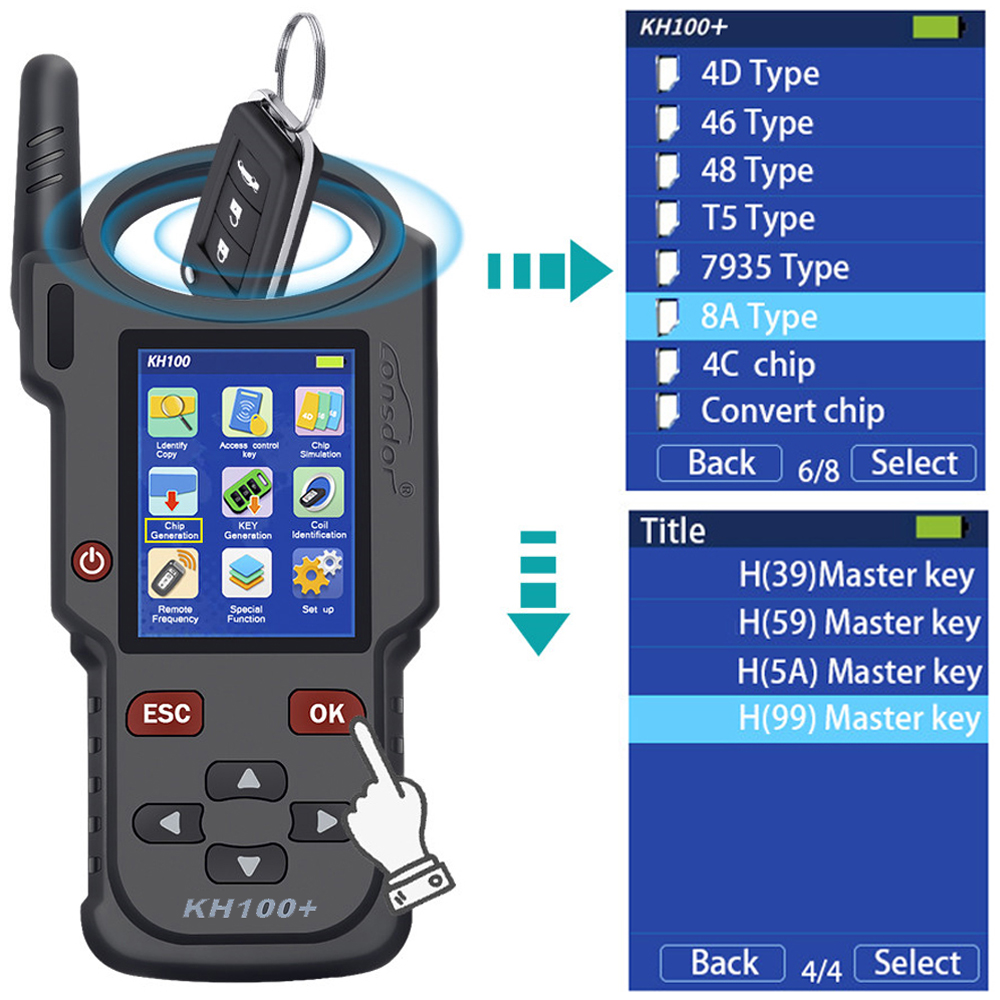

1. Identify/Copy/Generate Chip:
Multi-vendor chips supported. Especial predominance on Toyota 8A(H) chip.
2. Simulate Chip:
Able to simulate 4D/46/48 chips. With built-in super sensory data collector (no interference within 1 meter when collecting data).
3. Generate Remote/Smart key:
1). Dedicated connector to generate remote/smart key online update supported.
2). Remote generation diagram
4. Smart Key Generation Diagram

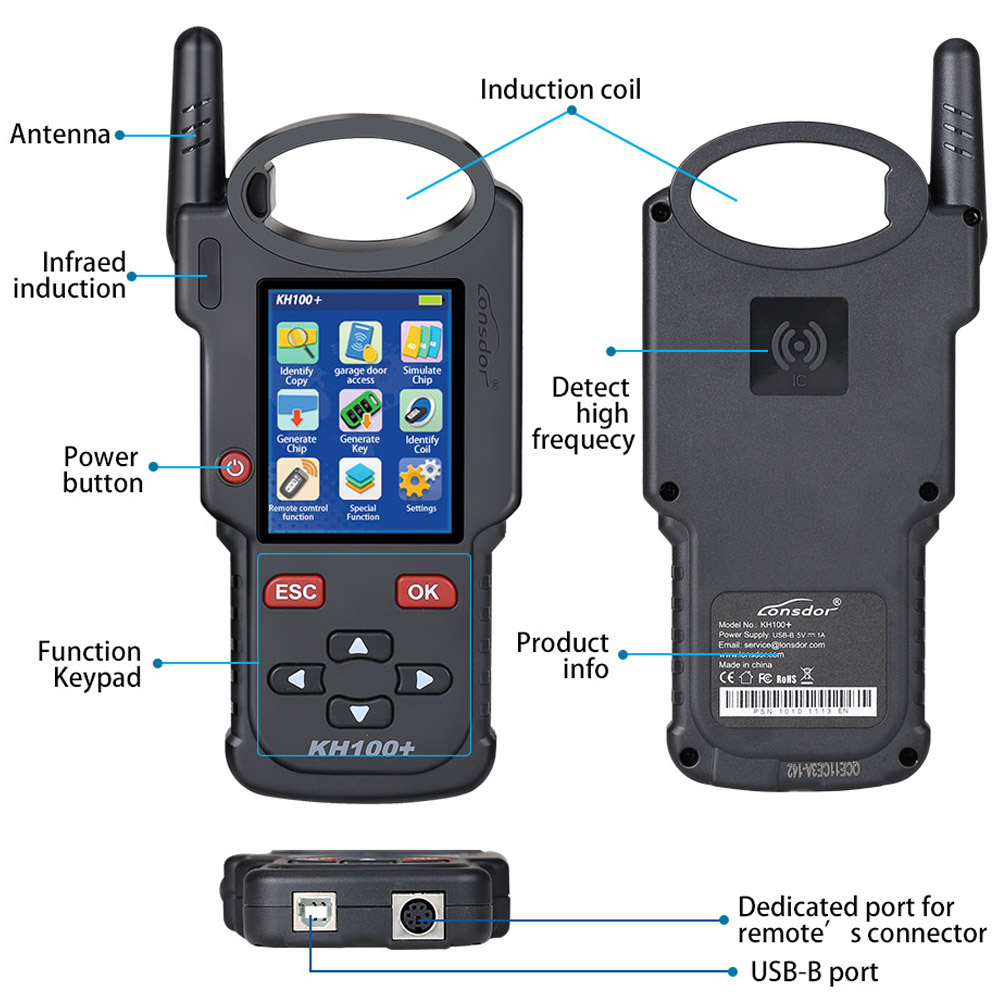

5. Dedicated Connector to Generate Remote Key: PS2-7Pin OD3.5
6. Access Control / Remote Frequency
1). One-click identify and copy IC/ID cards
2). Copy multi-vendor chops
3). Detect remote frequency bands with high accuracy
4). One click identify ID card, able to copy multi-vendor chps,at the back sensor area
7. Detect Super Frequency:
Detect multiple frequency brands with high accuracy
8. Identify Coil:
1) Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.
9. Remote Frequency:
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Special Functions:
Detect Infrared Signal, Unlock Toyota Smart Key and more functions to be continued...
1. Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
2. FT Smart Key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.
3. Unlock Toyota Smart Key / Detect Toyota Key Status
Put in the smart key, click OK to operate.
4. Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.
Registration Guide:
Note: After booting the device, please connect to WiFi and enter the following process.
New User:
1) For the first use, please prepare a common cell phone or Email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or Email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered cell phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or Email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
In addition, users who have already registered Lonsdor product can directly choose [registered user] to activate account.
How to update Lonsdor KH100+?
1. Enter settings menu
2. Connect the device to network
3. Then choose [check for updates]
4. One-click for online update!
Specifications:
Screen: 2.8 inch color screen
Display Resolution: 320*240
Battery: 3.7V 2000mA/H
Power: 5V 500MA
Working Temperature: -5 to 60 degree centigrade
USB: USB-B / charge-data transfer

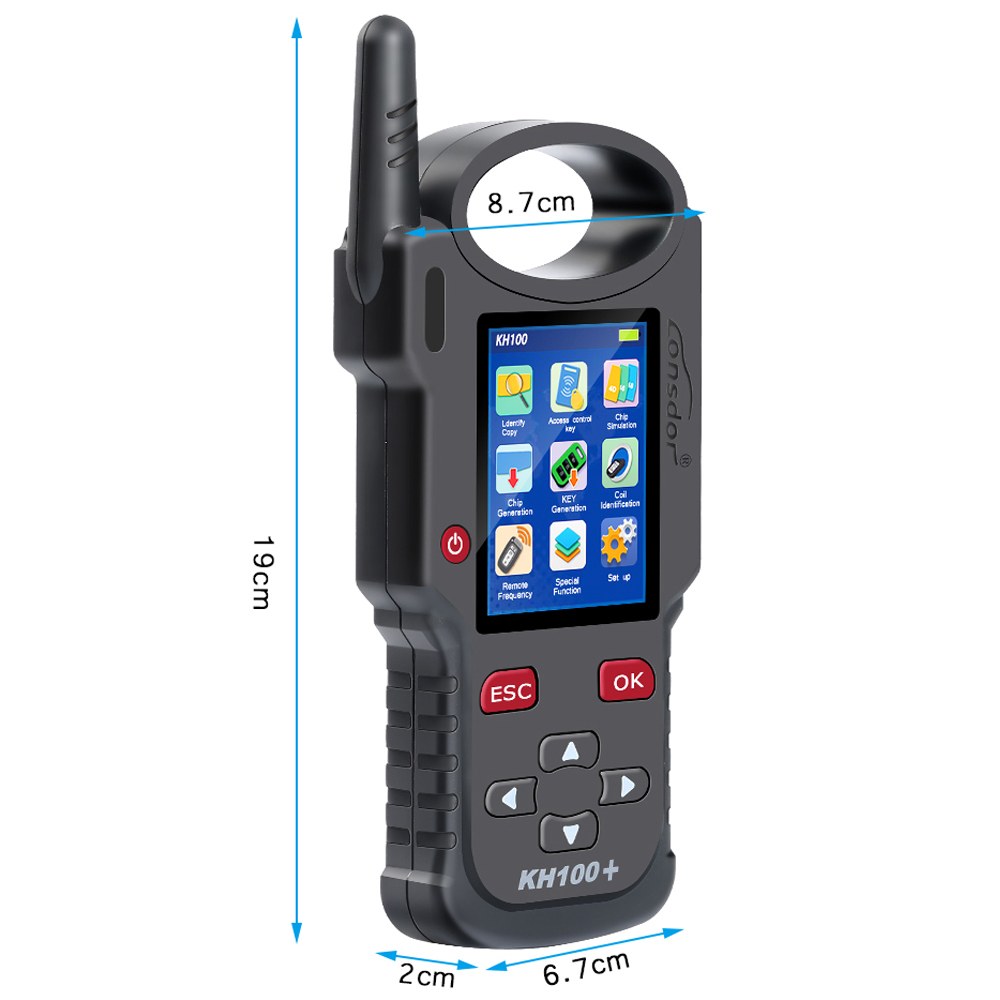

Size: 193mm*88mm*24mm
|
