Name: XTool KC501 Car Key Programmer for XTool X100 PAD3 / A80 / H6 Pro
Description:
Powerful in functions and fashionable in appearance, XTool KC501 Key & Chip Programmer is a professional key and chip Programmer which can read & write keys, read key remote frequency and generate dealer keys. It supports to read and write MCU / EEPROM chips, read and write Mercedes Infrared keys. Moreover, it supports PC connection which brings you better user experience.
KC501 is compatible with XTool X100 PAD 3 (X100 PAD Elite), H6 ELITE, H6 EB, NITRO LT, NITRO XT, NITRO GT, AUTPPAD S, A80, A80 PRO, A80 PRO MASTER, H6 PRO, HU6 PRO MASTER, AUTOPROPAD ELITE.
Functions:
Read and Write Keys
KC501 supports to read and write keys, support to read key remote frequency as well as generate dealers key.

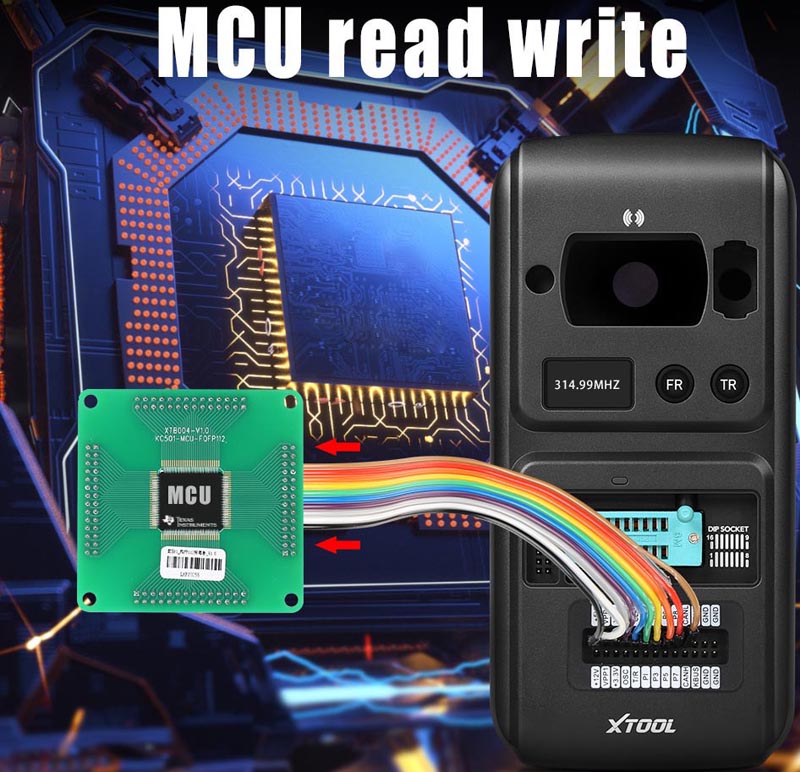

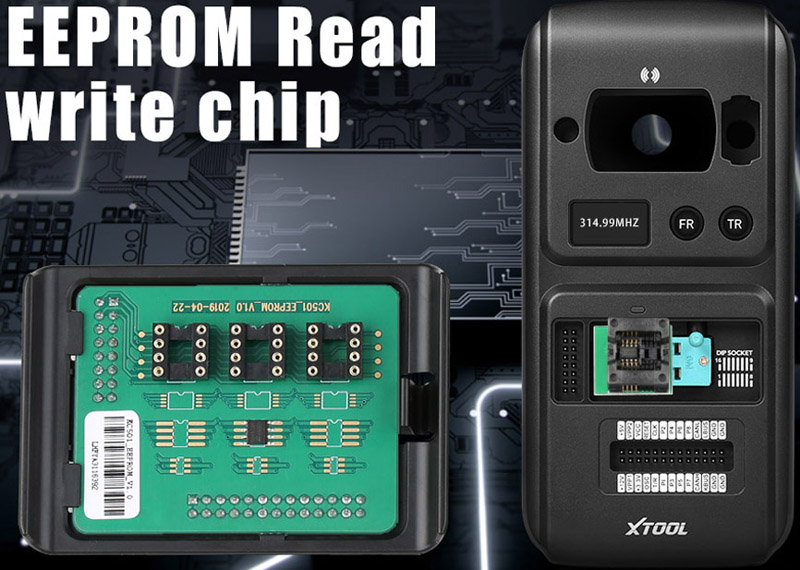

Read and Write MCU/EEPROM Chips
KC501 can read and write MCU / EEPROM chips
Read and Write Mercedes Infrared Keys
KC501 can read and write Mercedes Infrared Keys, is a perfect key programmer for Mercedes.
Support PC Connection
KC501 supports PC connection or tablet.
Update Information:
Add Infrared Key Function List (Jul. 30th., 2020)
Model Years
A Series 2005-2013
B Series 2005-2014
C/CLK Series 2006-2014
CLA Series 2013-2016
CL Series 2006-2013
CLS Series 2006-2013
E Series 2005-2015
G Series 2015
GL/CLG Series 2006-2014
GLC/GLK Series 2008-2015
M/ML Series 2006-2013
R Series 2006-2017
S Series 2006-2017
SLK/SLC Series 2006-2016
Parameters:
Display Screen: 320*480 dpi TFT colorful screen
Working Voltage: 9V-18V
Working Temperature: -10 to 60 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Power Supply: 12V DC

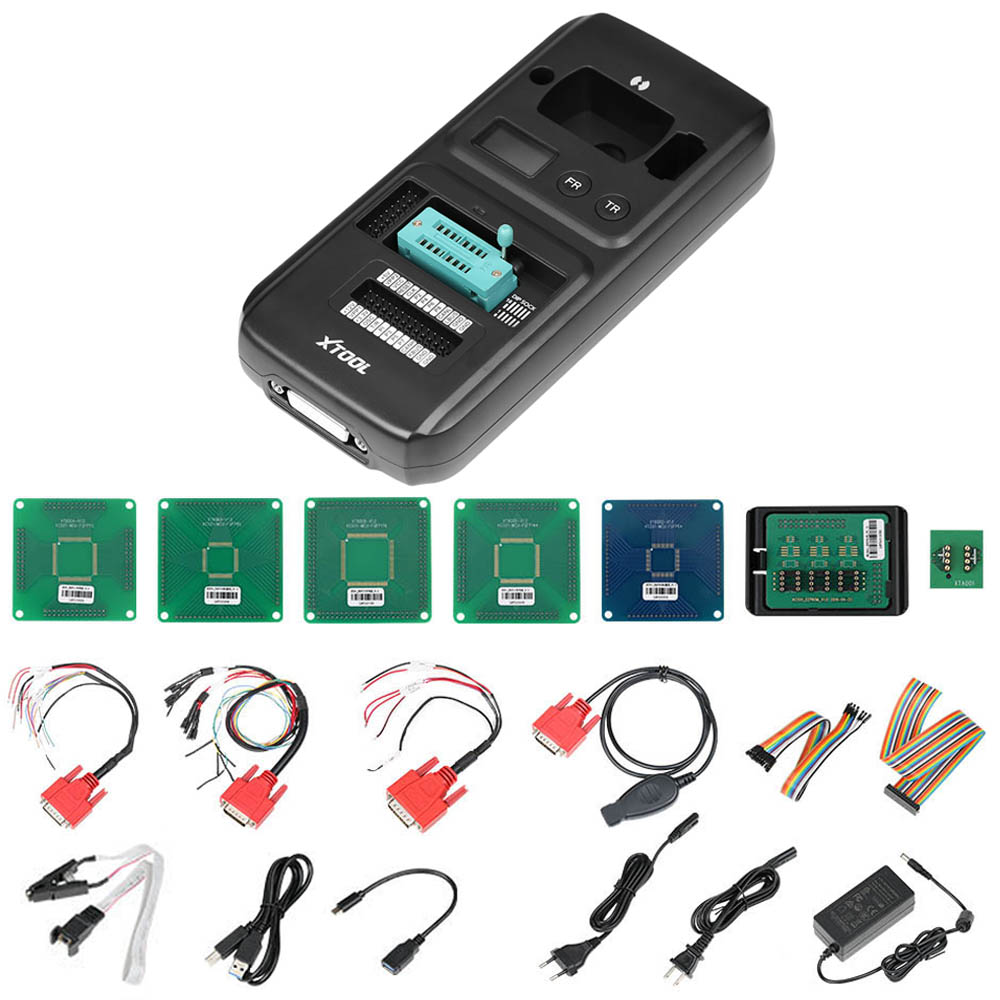

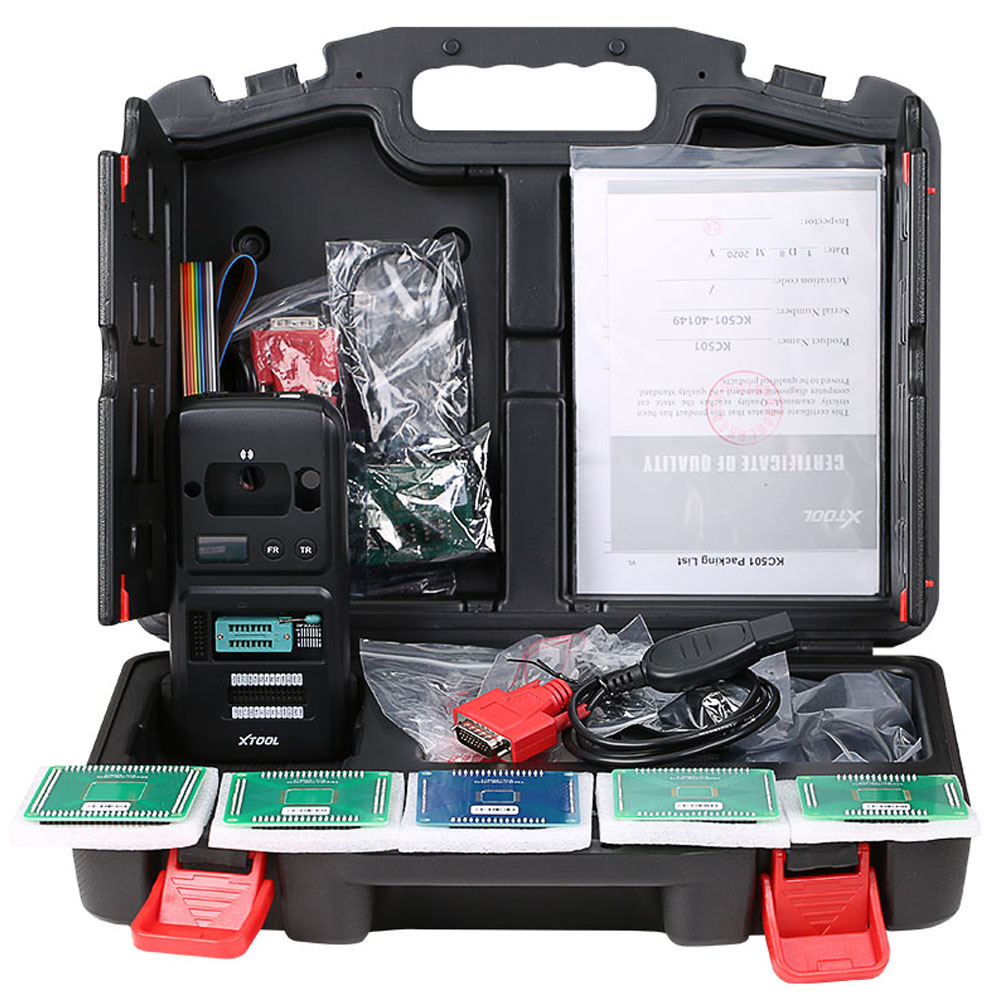

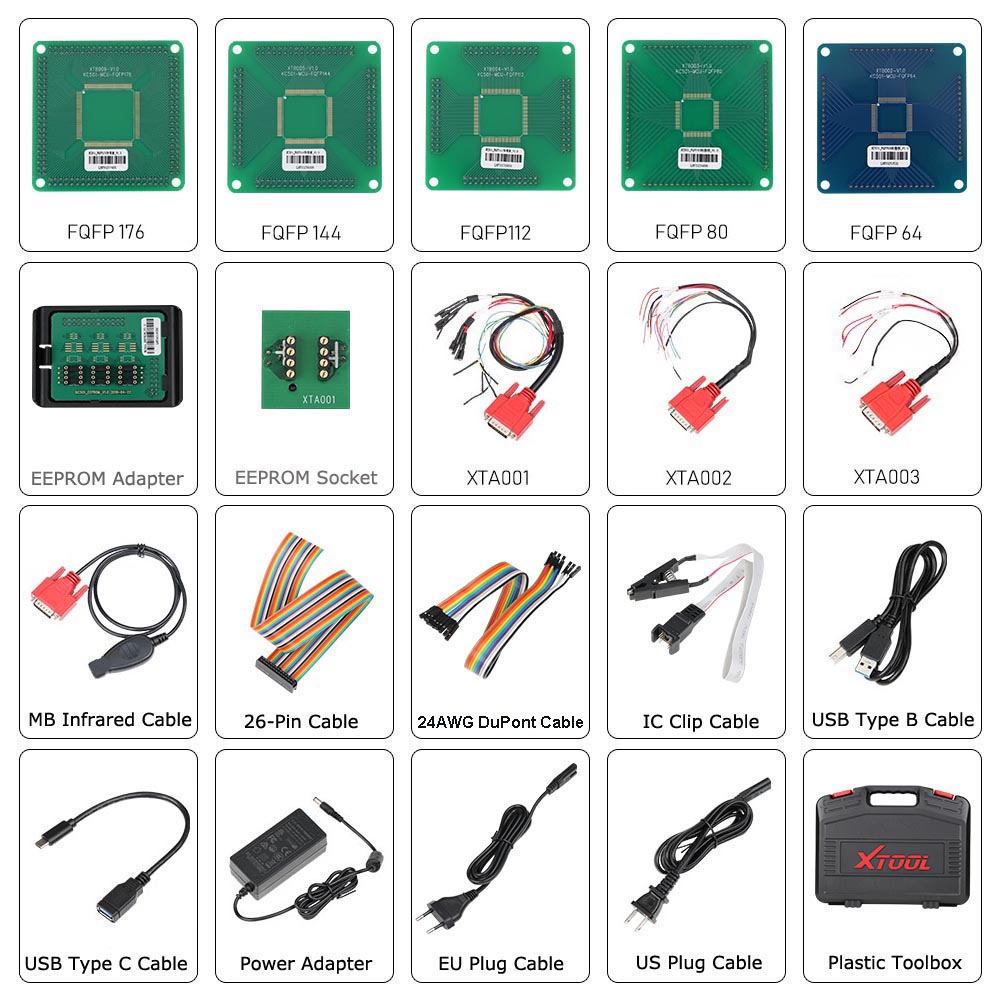

Packing List:
XTool KC501 Key & Chip Key Programmer
XTA001 Clamp
XTA002 Clamp
XTA003 Clamp
Benz Infrared Cable
26 Pin Cable
24AWG DuPont Cable
IC Clip Cable
EEPROM Adapter with Bracket
EEPROM Socket
MCU FQFP176
MCU FQFP144
MCU FQFP112
MCU FQFP80
MCU FQFP64
USB TYPE-B Cable
USB TYPE-C Cable
EU Plug Cable
US Plug Cable
Power Supply Charger
User Manual
Quality Certificate
Packing List

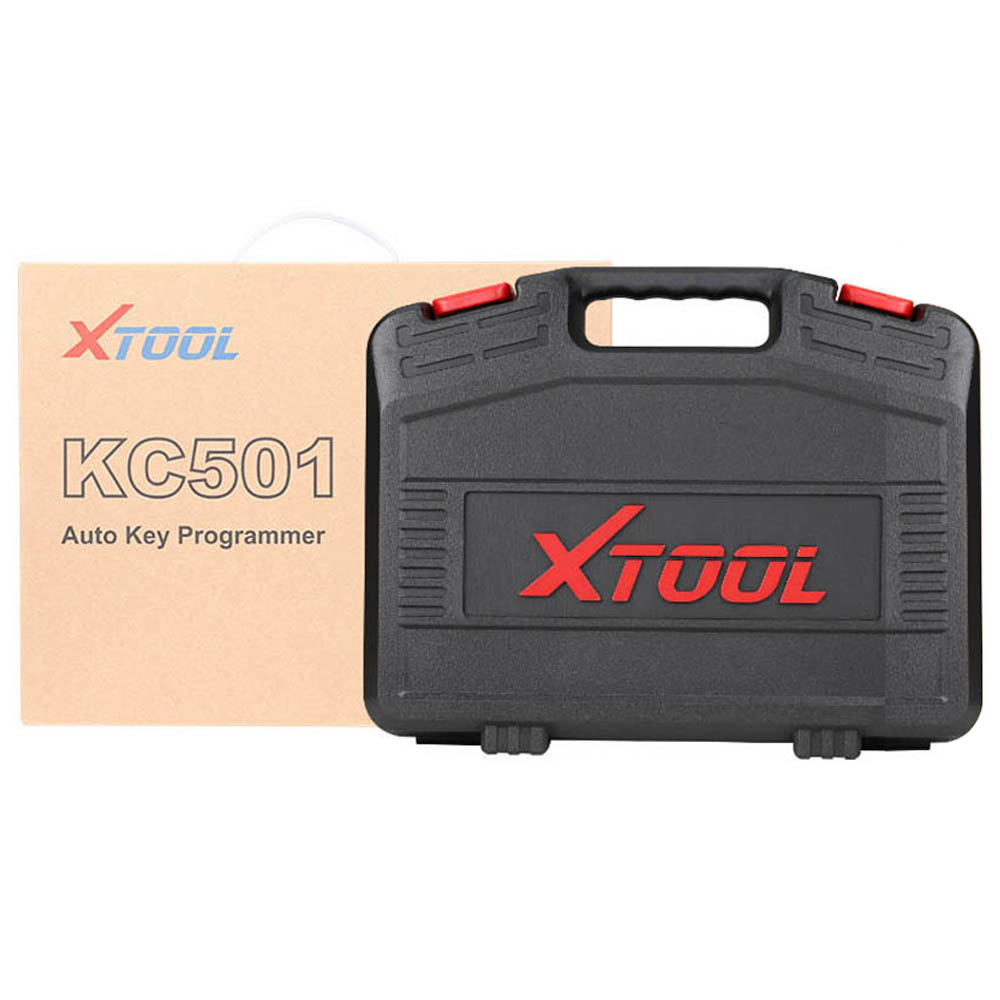

Plastic Toolbox
Packing Box

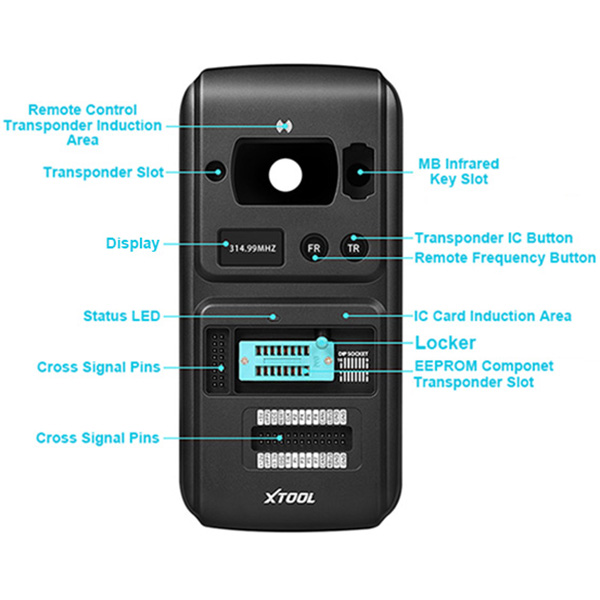

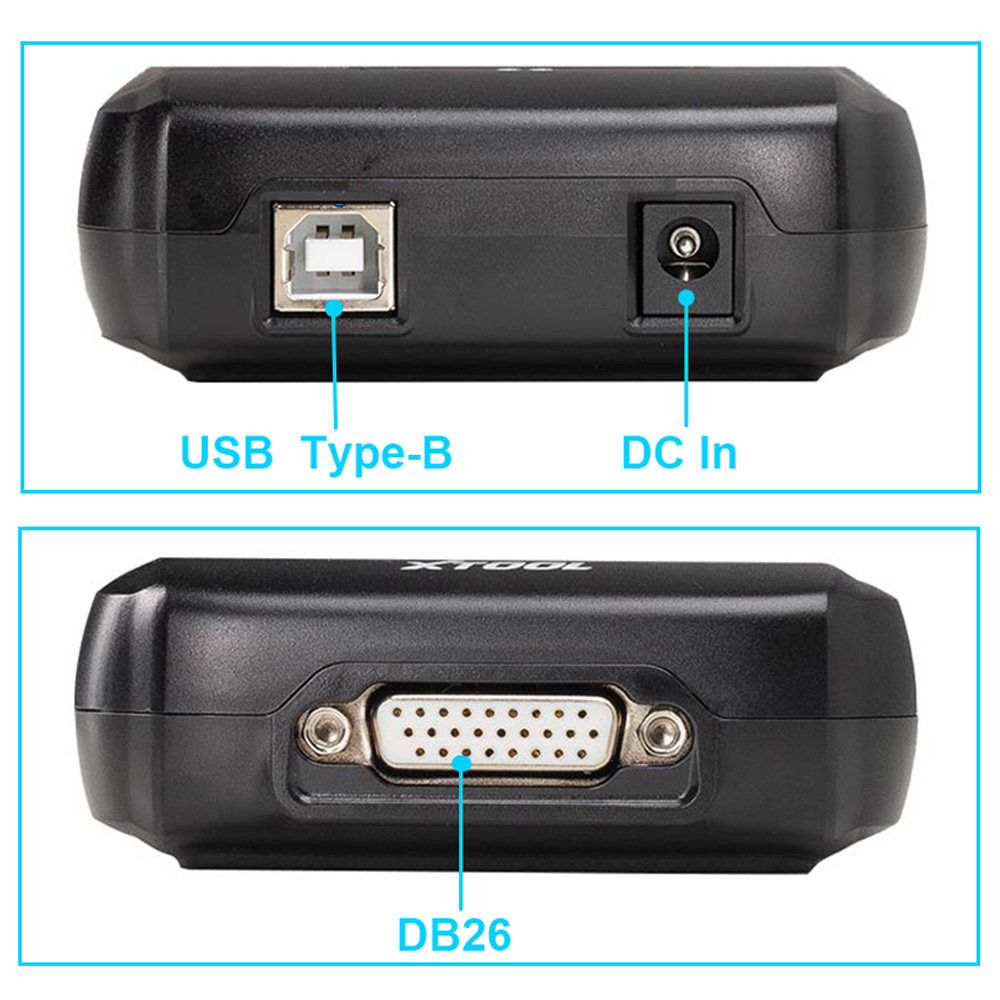

1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)

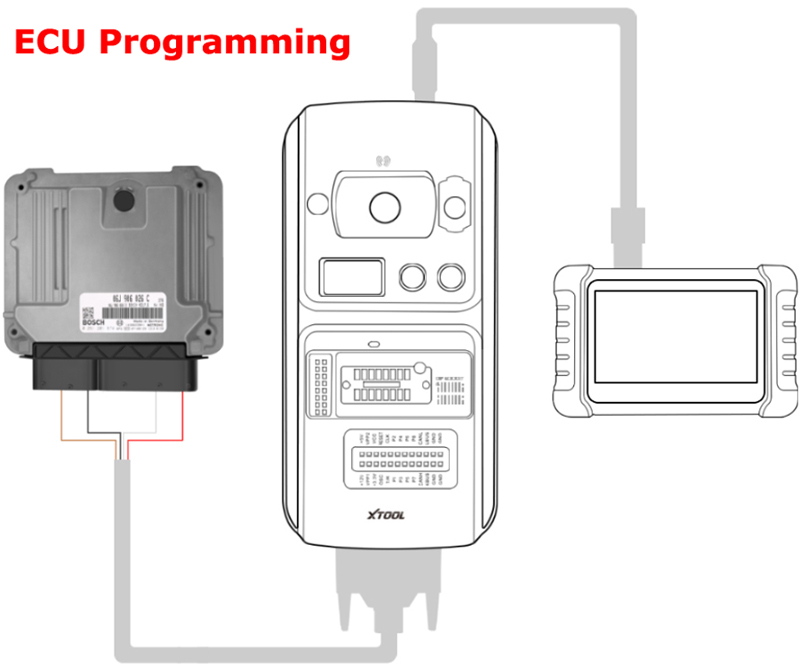

3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area: It is used to read and write IC card data.
9. Display Screen: It is used to show remote frequency or transponder ID.

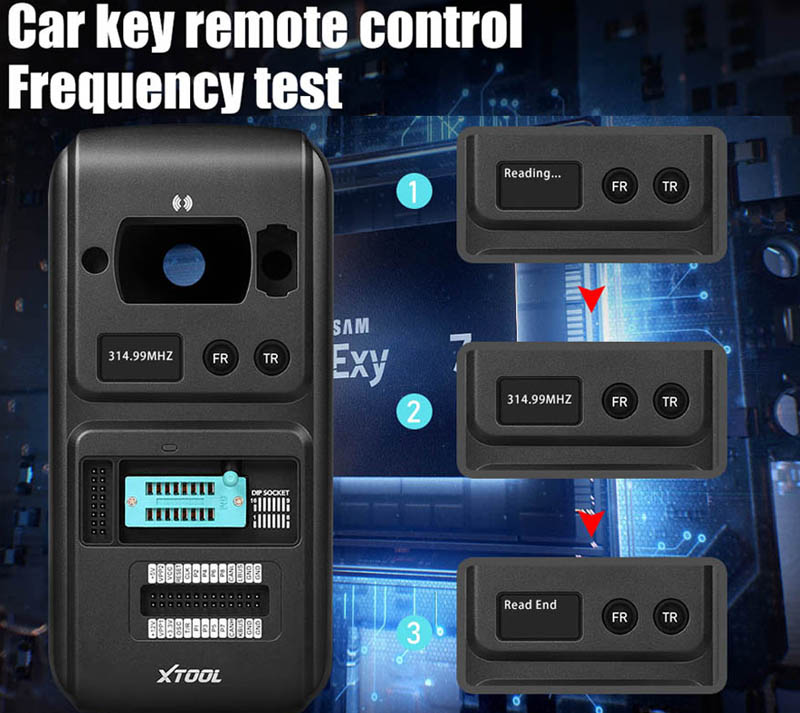

10. Remote Frequency Button: Press this button to show remote frequency in the display screen.
11. Transponder ID Button: Press this button to show transponder ID in the display screen.
12. Transponder Slot: It is used to hold the transponder to read or write transponder data.
13. Vehicle Key Slot: It is used to hold the vehicle key to read or write vehicle key data.
14. Remote Control Transponder Induction Area: It is used to read and write remote control transponder data.
15. Mercedes Infrared Key Slot: It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.
|
