Launch X431 Diagun V with 2 Years Free Update

LAUNCH X431 Diagun V Bi-Directional Full System Scan Tool with 2 Years Free Update is a diagnostic tool specially designed for automotive maintenance technicians. Tiny body, powerful diagnostic function, convenient online upgrade and integrated multifunctional connector are all the preferable choices for a technician.

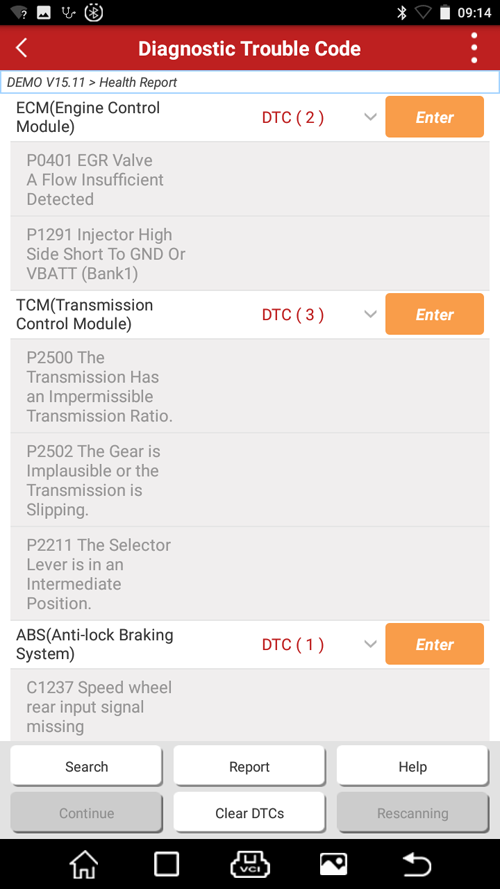

Launch X-431 Diagun V is a cost-effective product independently developed by Launch. It inherits many advantages of X-431 Diagun IV, such as wide coverage of car models, powerful diagnostic functions, and accurate test data. It supports the diagnostic functions including Read DTCs, Clear DTCs, Read Data Streams, Actuation Test, Special Functions, Coding, and Matching, realizing full car model and system fault diagnosis.

Software Update: 2 years free update online

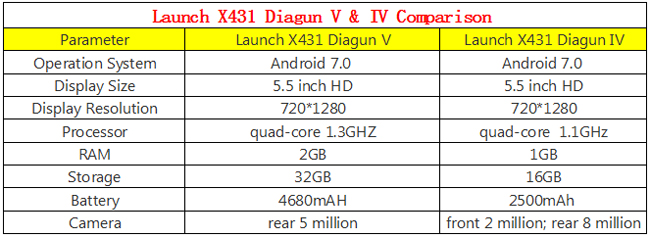

1. Upgrade Version of Diagun IV

2. 32GB large storage for smoother operation

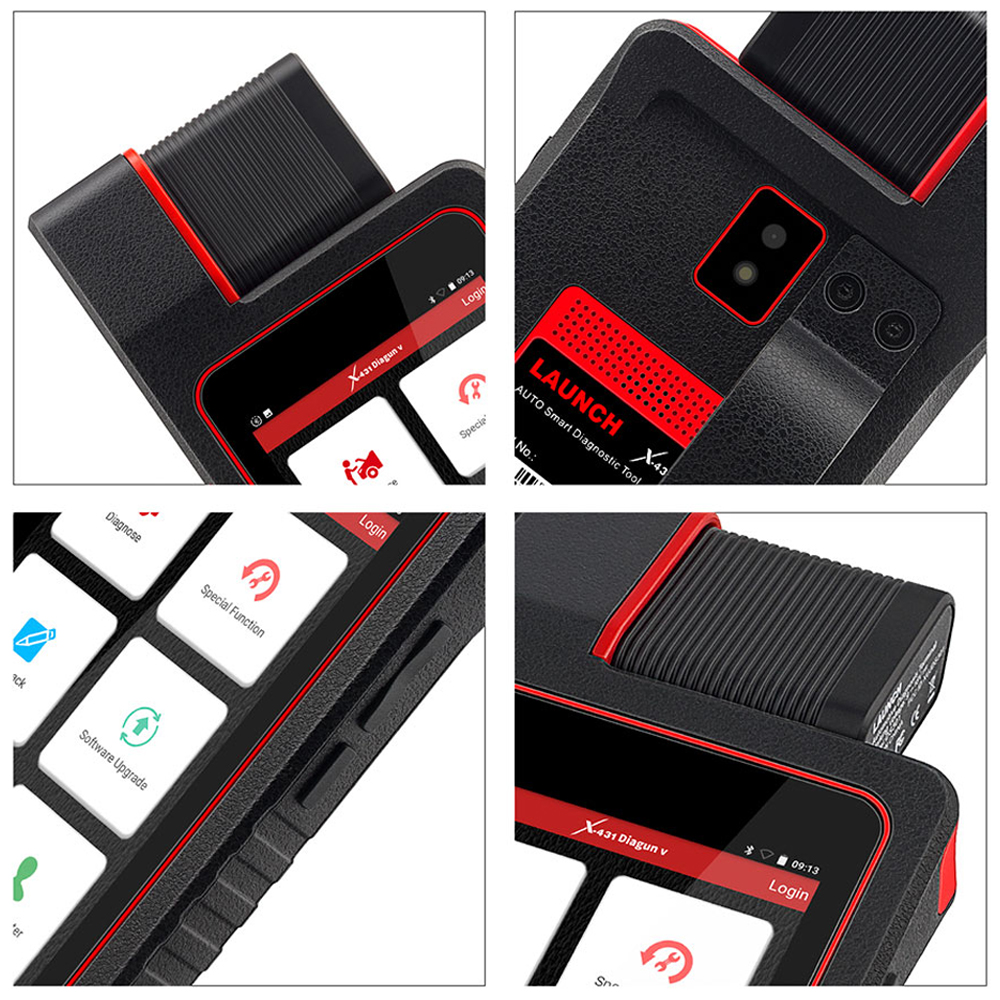

3. The connector can be inserted into the host, which is easy to use, and not easy to get lost.

4. Both the front and back of the connector can be inserted into TYPE C interface, making operations more convenient and charging more stable.

5. One-click Smart Upgrade: Support online one-click smart upgrade for car software. To enjoy better functions and upgrade services, upgrade software periodically.

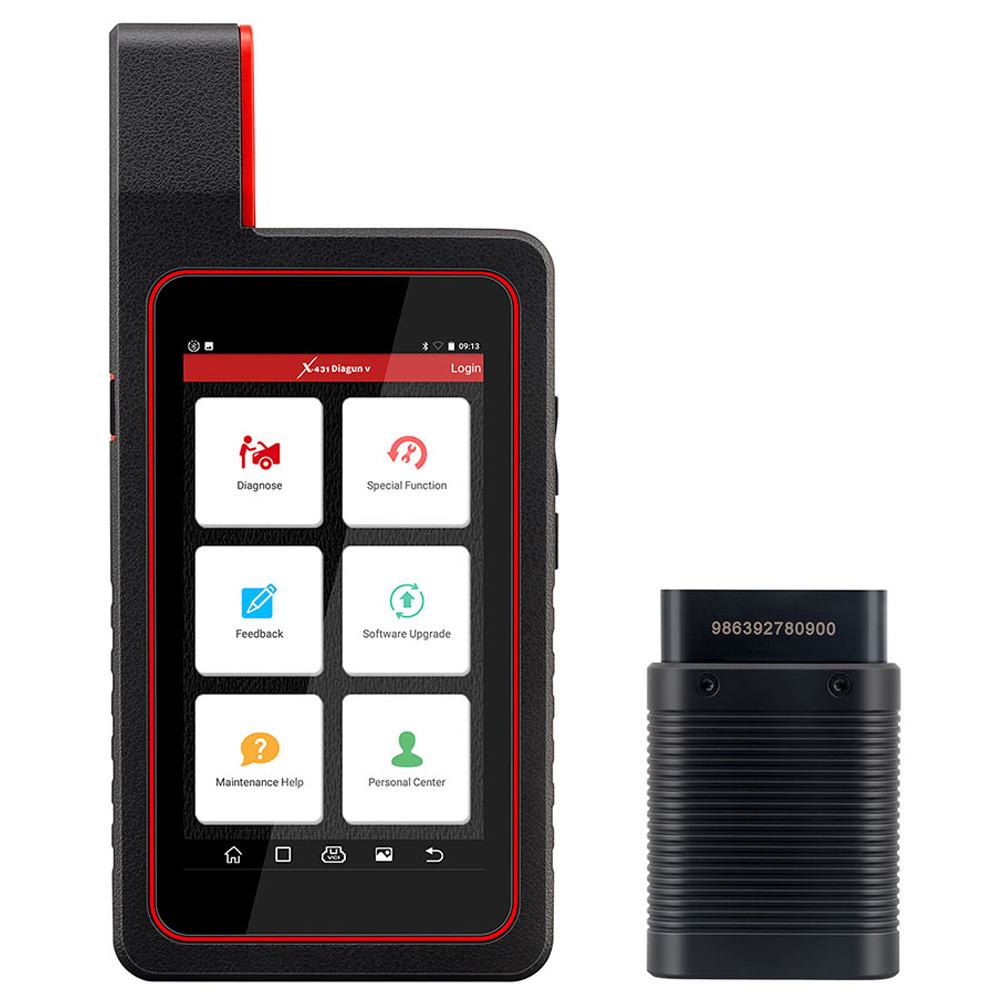

6. Launch X-431 Diagun V adopts a DBScar IV diagnostic connector with small size and high stability. The connector can be inserted into the host and is easy to use. The same connector is used for diagnosis and matching. The connector supports fault tolerance CAN diagnosis.

Wide Car Coverage:

Support all ECUs of 12V EFI car models, covering ten thousands of car models such as Maserati, Ferrari, Rolls-Royce, Bentley, Benz, BMW, Audi. Support fault detection for most Asian, European, American, and domestic car ECUs, to realize full car model and system fault diagnosis.

1. Full System Diagnostic Function – Precise Diagnosis

Launch's over 20-year car diagnosis technology and experience help develop original factory devices for most domestic brand car factories, enabling the product functions (such as Read DTCs, Read Data Streams, Actuation Test) to reach the level of original factories.

2. Diagnostic Function – Data Stream and Waveform Recoding and Playback

Data stream and waveform recoding and playback can analyze the faults that only reoccur during driving and can quickly rectify car faults.

3. ECU Coding:

Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. Launch Diagun V is equipped with advanced ECU coding function for addressing the following issues:

1). After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

2). ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

Note: ECU Coding and Key FOB Programming are not universally compatible with all vehicles!

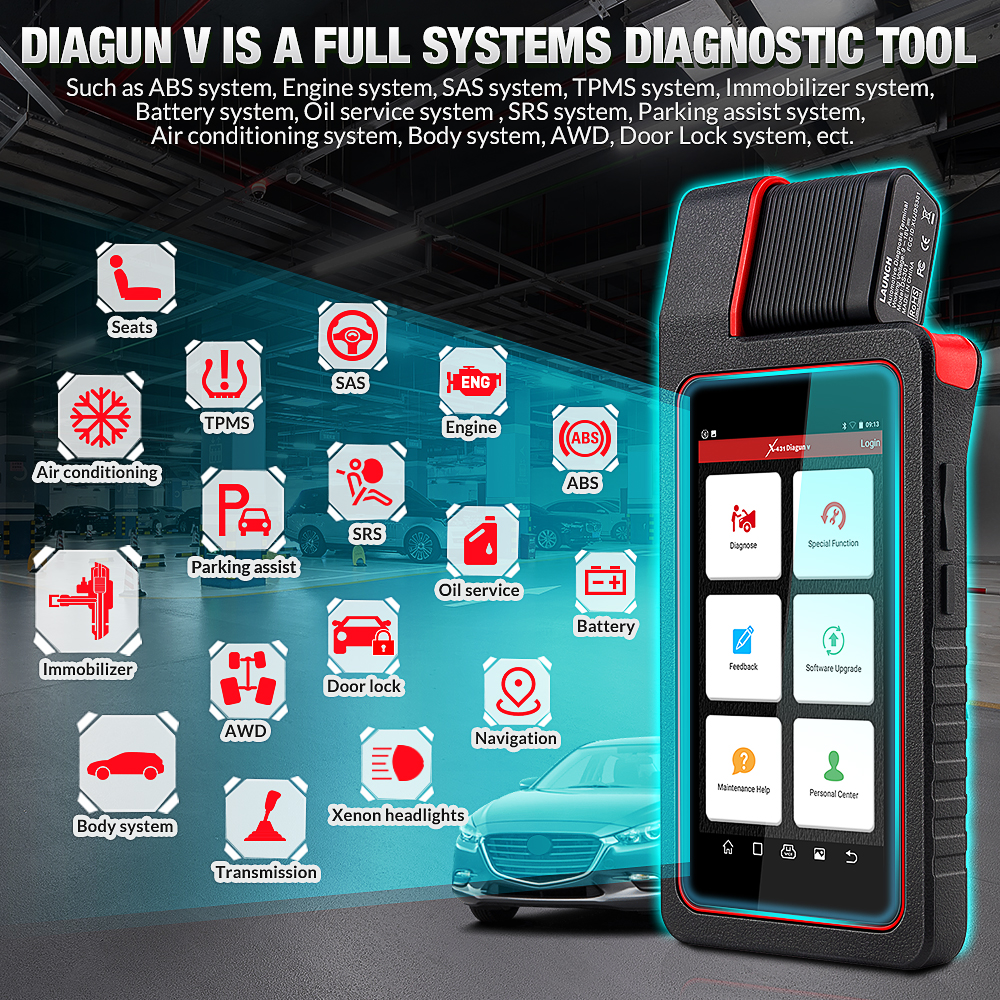

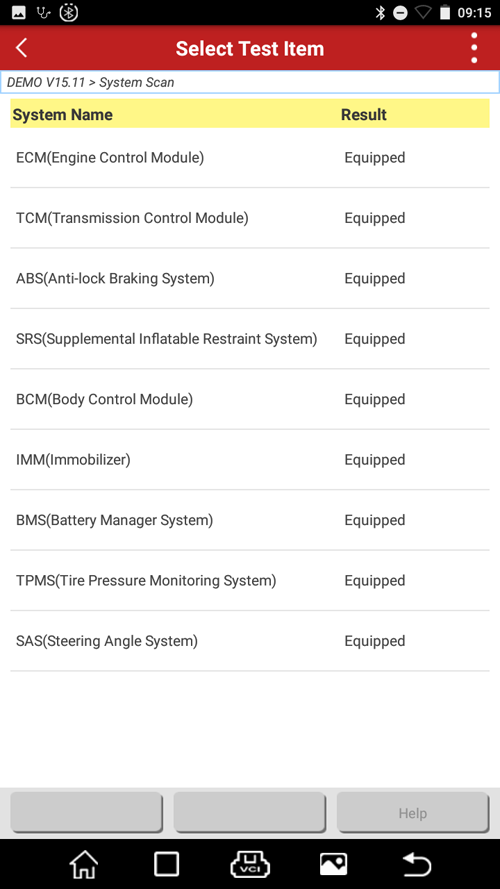

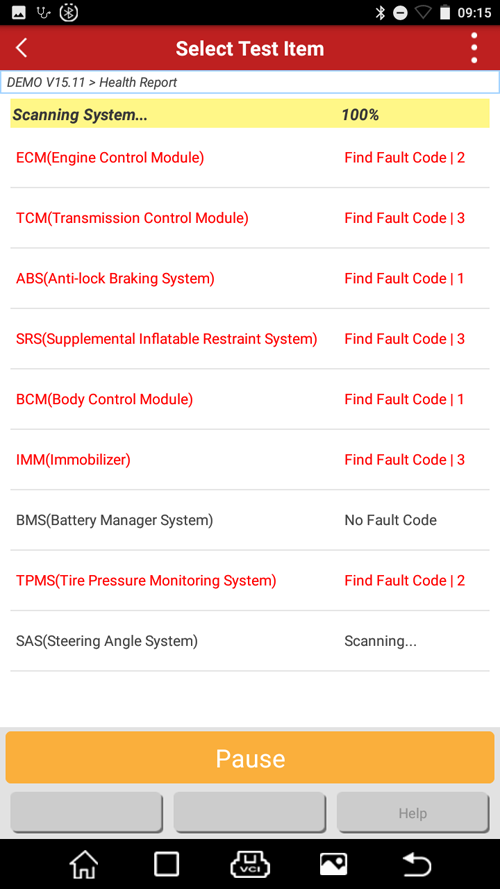

4. ALL System Diagnose Function:

X-431 Diagun V can diagnose the electronic control system of popular vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

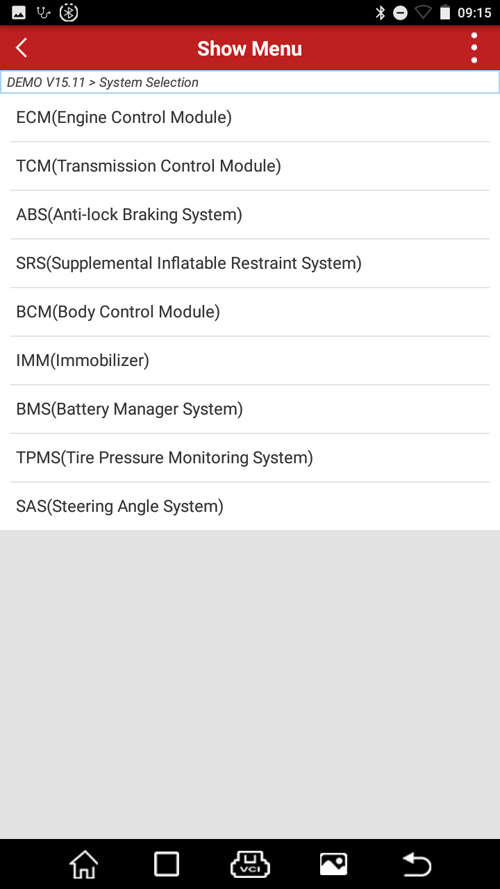

Supported Systems: ABS System, Engine System, SAS System , TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System，Air Conditioning System，Transmission System, ect...

Diagnosis Functions: Read DTCs, Clear DTCs, Read Datastream, Actuation Test, AF Adjustment, ECU Coding and 15+ Special Function ect...

5. 30+ Service Functions:

1). Oil Lamp Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

2). TPMS Reset: Makes TPMS sensor in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

3). Key Programming: Read pin code from vehicle security IMMO system, mainly used to disable the lost vehicle keys and program a new replacement key FOB.

4). Electronic Parking Brake Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement .

5). Steering Angle Calibration: To perform calibration for the Steering Angle Sensor, and clear fault memory

6). Battery Register / Battery Maintenance: Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle battery system

7). ABS Bleeding: The auto bleed procedure is used on brake pump equipped vehicles

8). Electronic Throttle Position Reset / Learn: Initialize the throttle actuators so that the "learned" values stored on ECU are returned to the default state;

9). Diesel Particulate Filter (DPF) Regeneration: It specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

10). Gear Learning: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;

11). Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

Updating Functions:

Accompany with continuous update of Launch X431 software and program, more functions has been added: Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars,) and more and more function will be improved and optimized ...

6. Full OBD2 Scanner for Full Systems:

Launch Diaugn V supports all 10 test modes for OBD-II cars which are great for daily repair work.

$01 - Request Current Powertrain Diagnostic Data

$02 - Request Powertrain Freeze Frame Data

$03 - Request Emission-Related Diagnostic Trouble Codes

$04 - Clear/Reset Emission-Related Diagnostic Information

$05 - Request Oxygen Sensor Monitoring Test Results

$06 - Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed riving Cycle

$08 - Request Control of On-Board System Test or Component

$09 - Request Vehicle Information

$0A - Request Emission-Related Diagnostic Trouble Codes with Permanent Status

7. Bluetooth / WiFi Connection

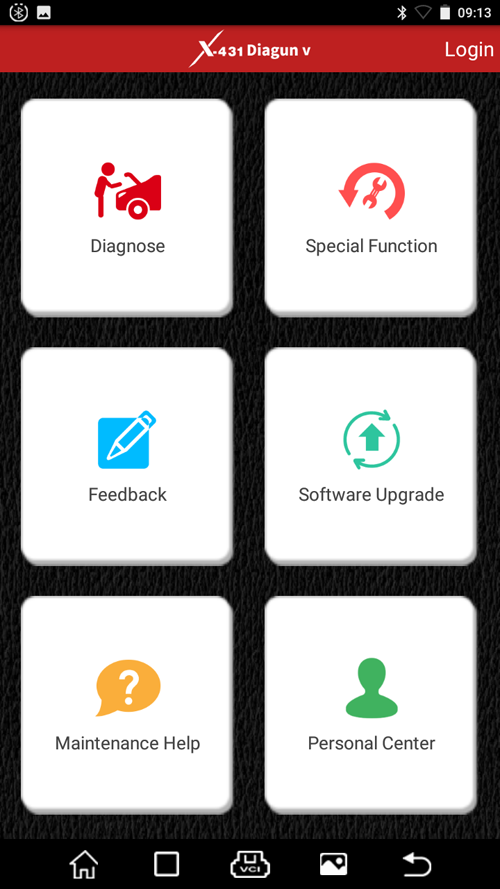

X-431 Diagun V communicates via Bluetooth. X-431 Diagun V Pad is specially designed for Android platform with clear and user-friendly interface. Built-in Wi-Fi module makes surfing on the Internet freely;

8. One-click Feedback of Diagnostic Problems

If the car model or a function is abnormal during use, you can provide the fault information to Launch through diagnostic feedback, and then a specialized technician will track and deal with the fault.

9. Massive Maintenance Help Materials

Provide a large number of detailed operation skills, maintenance materials, maintenance cases, training videos, and product manuals to help maintenance technicians quickly rectify faults and improve the diagnostic efficiency.

Personal Center includes My Report, My Connector, Firmware Fix, Diagnostic Feedback, Personal Information, Change Password, Settings and so on.

Supported Languages:

English, French, Spanish, Portuguese, German, Russian, Italian, Polish, Dutch, Hungarian, Finnish, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Korean, Japanese, Chinese Simplified, Chinese Traditional...

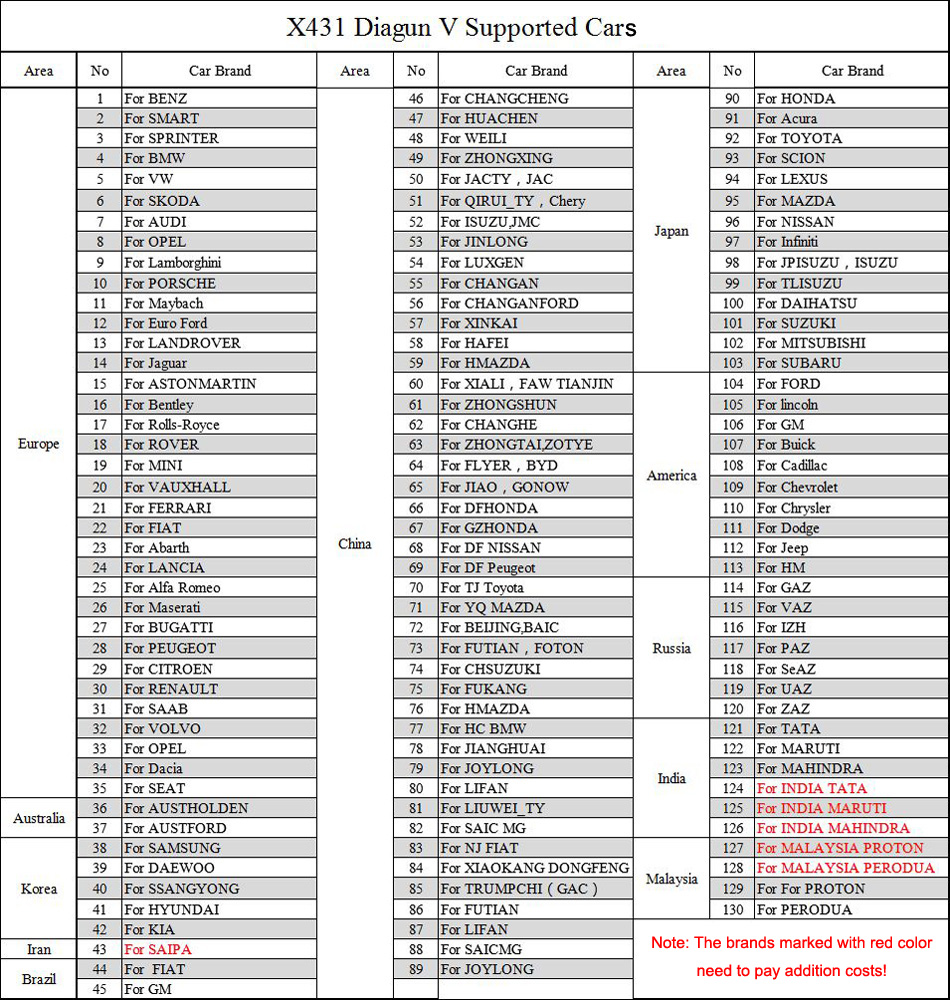

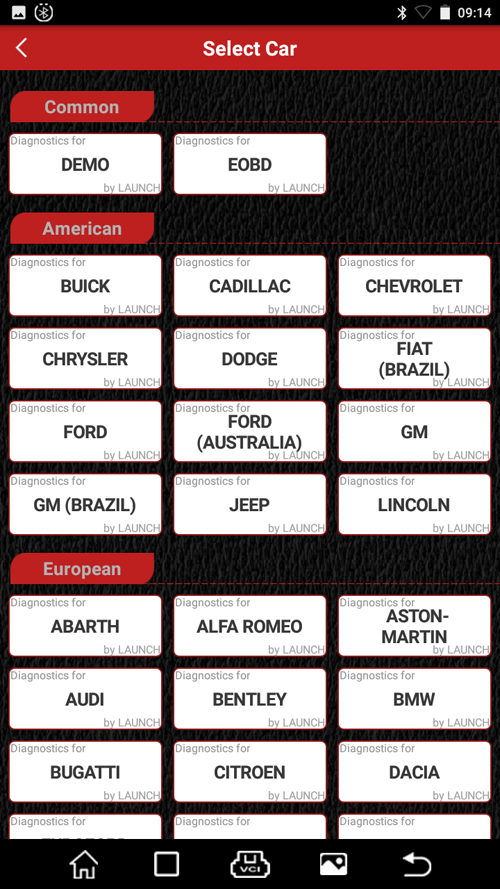

Launch X431 Diagun V supports 150 brands and more than 10000 models:

Ford, Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep, HM;

Benz, Smart, Sprinter, BMW, VW, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Euro Ford, Land Rover, DR, Bentley, Rolls-Royce, Rover, MINI, Vauxhall, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, Opel, Dacia, Seat.

Samsung, Daewoo, Ssanyyong, Hyundai, Kia, Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, JP Isuzu, TL Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, etc…

Malaysia: Perodua, Proton

India: Tata, Maruti, Mahindra

Australia: AUS Ford, AUS Holden

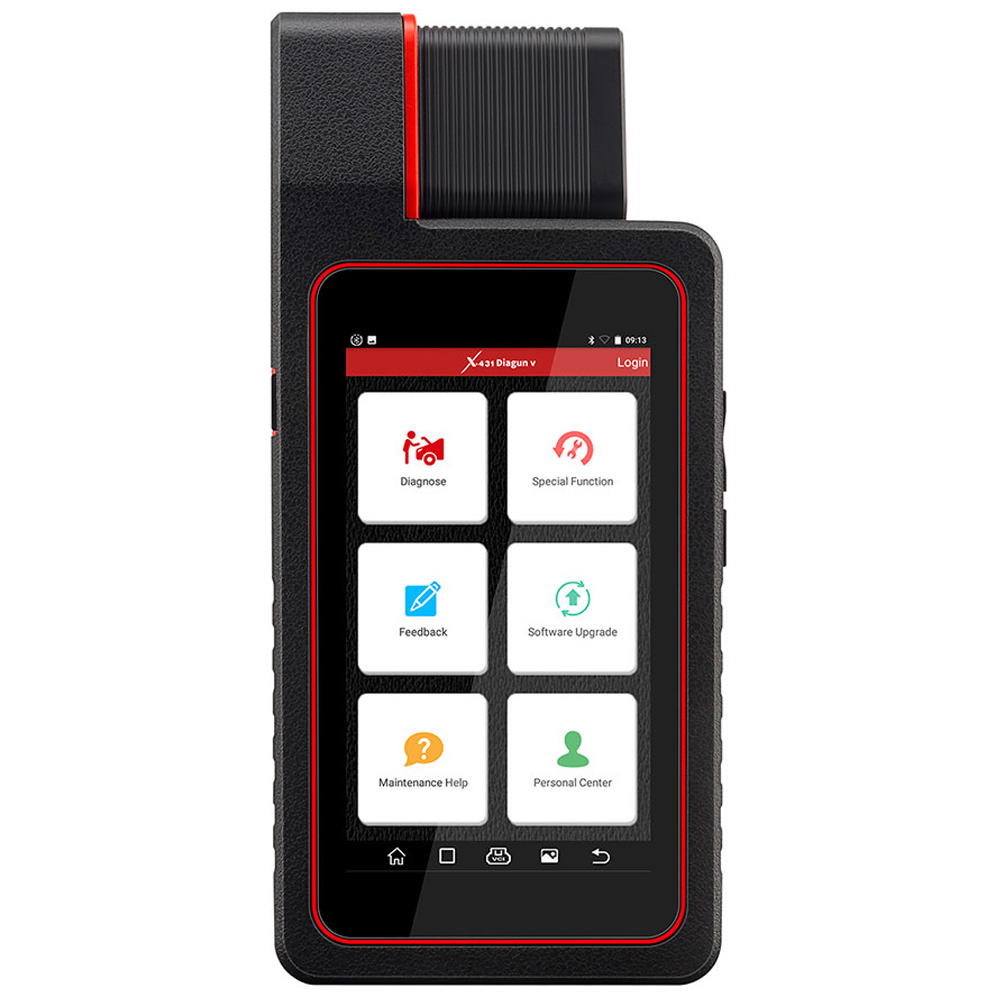

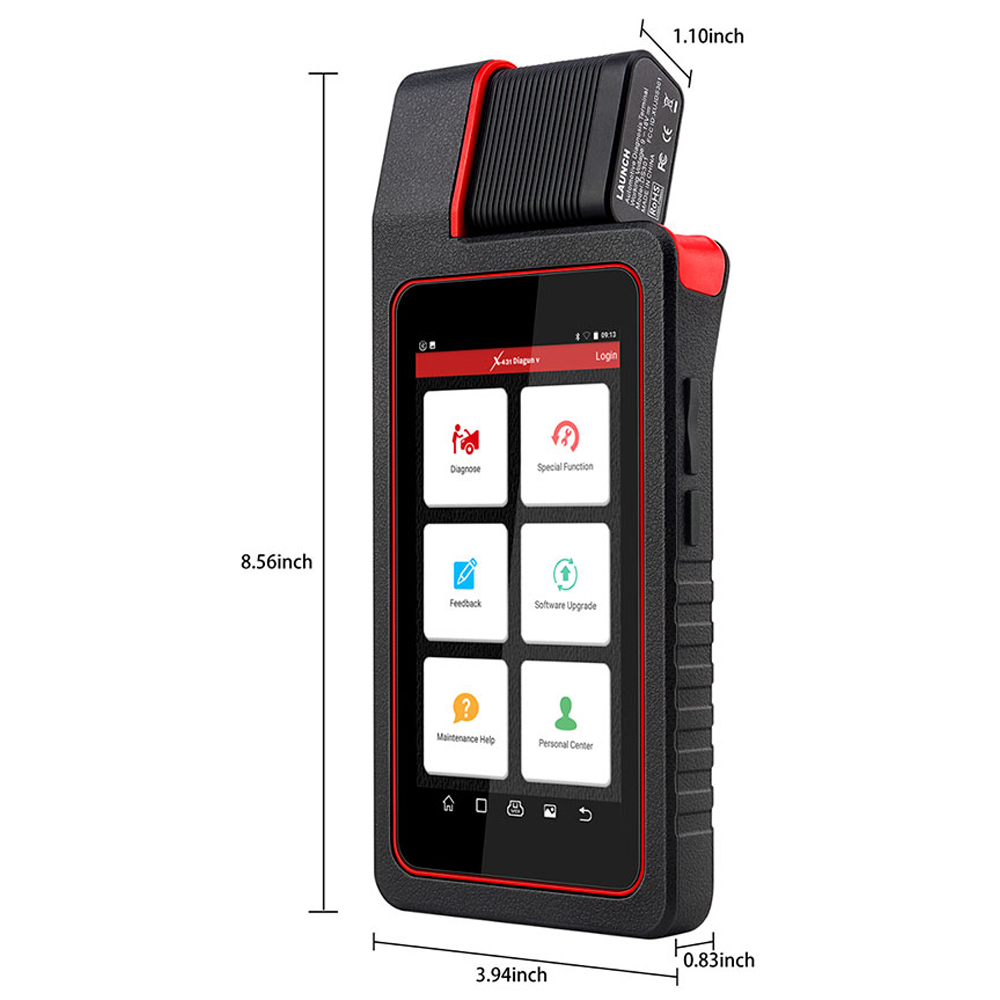

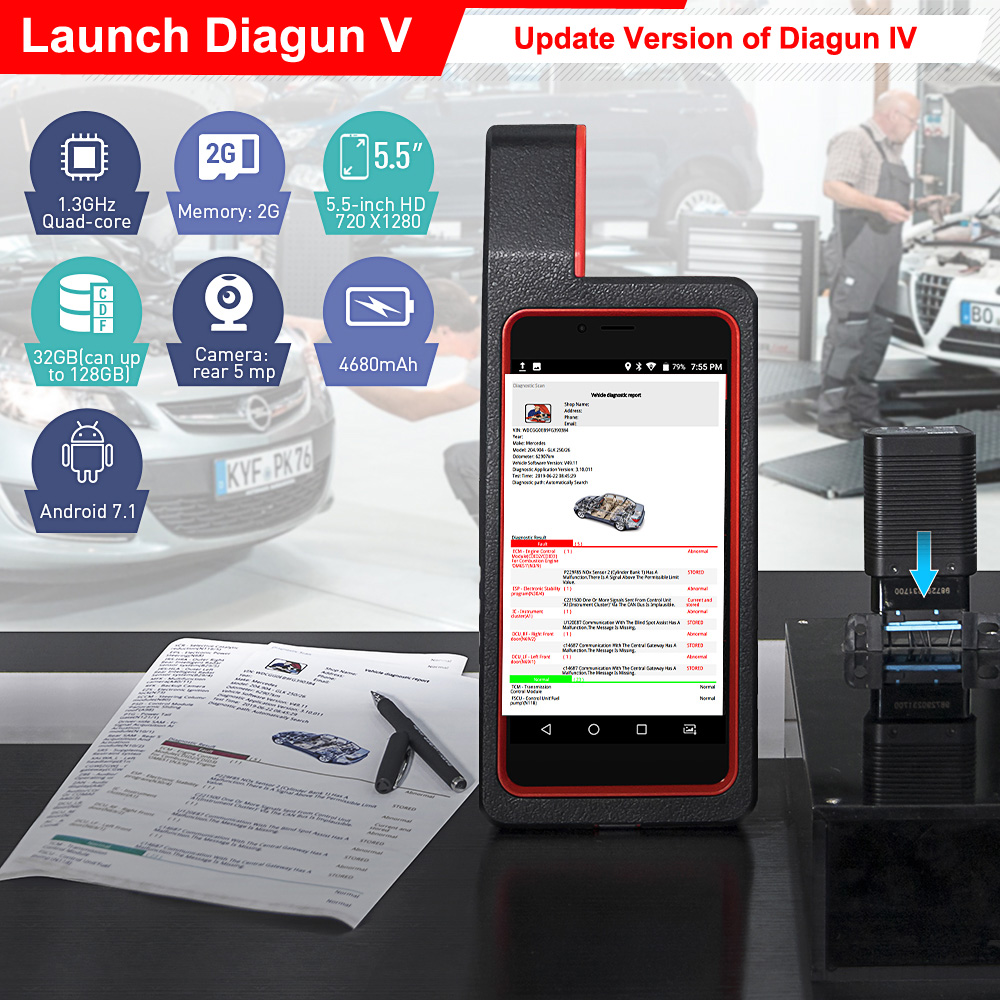

Diagun V Host Parameters:

Operating System: Android 7.0

CPU: 1.3GHz quad-core

Display: 5.5 inch HD 1280*720

RAM: 2GB

Storage: 32GB

Battery: 4680mAh

Camera: rear 5 mega pixel

Dimension(L*W*H): 218.4*100*36.7mm

Working temperature: 0 to 50 degree centigrade

DBScar IV Connector Parameters:

Working Voltage: DC 9V to 18V

Test Voltage: DC 12V

Typical Power Consumption: ≤2W

Connection Mode: Bluetooth

Red LED: power supply connected

Blue LED: wireless Bluetooth mode

Working Temperature: 0 to 50 degree centigrade

Dimension: 58*47*24mm

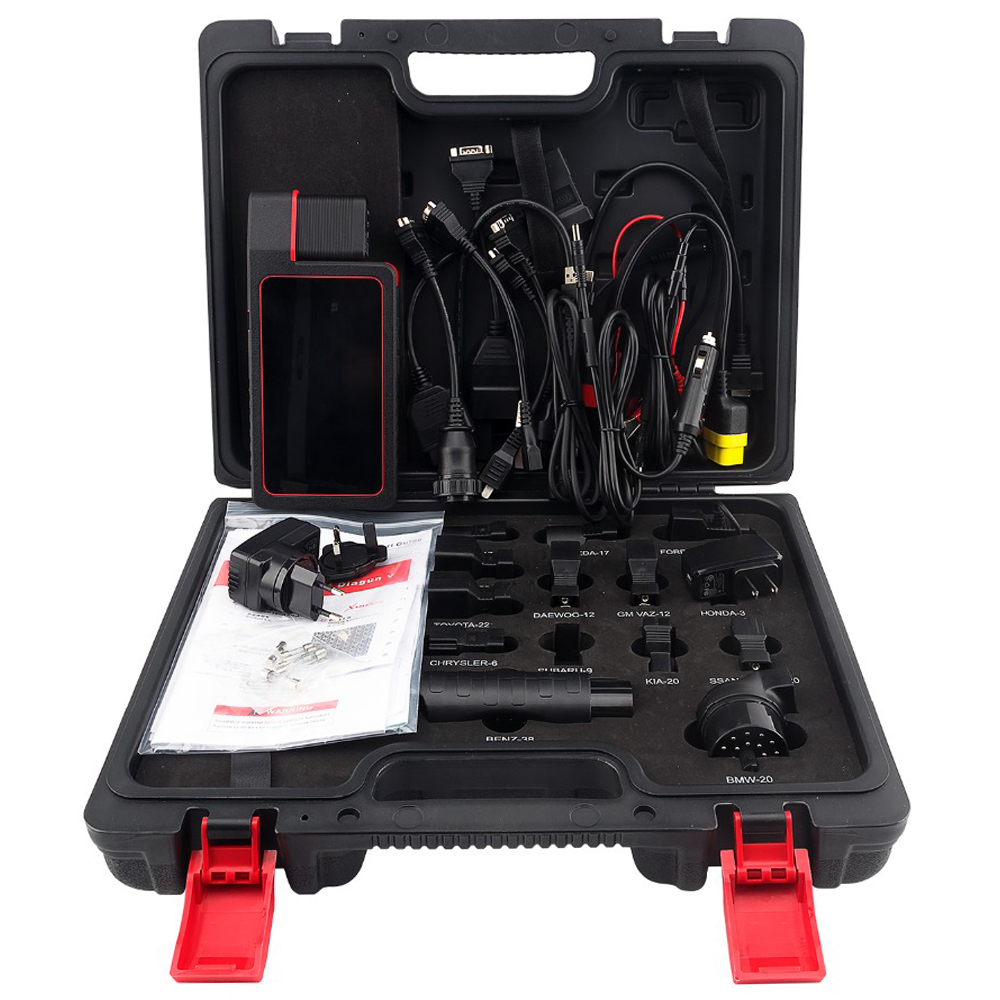

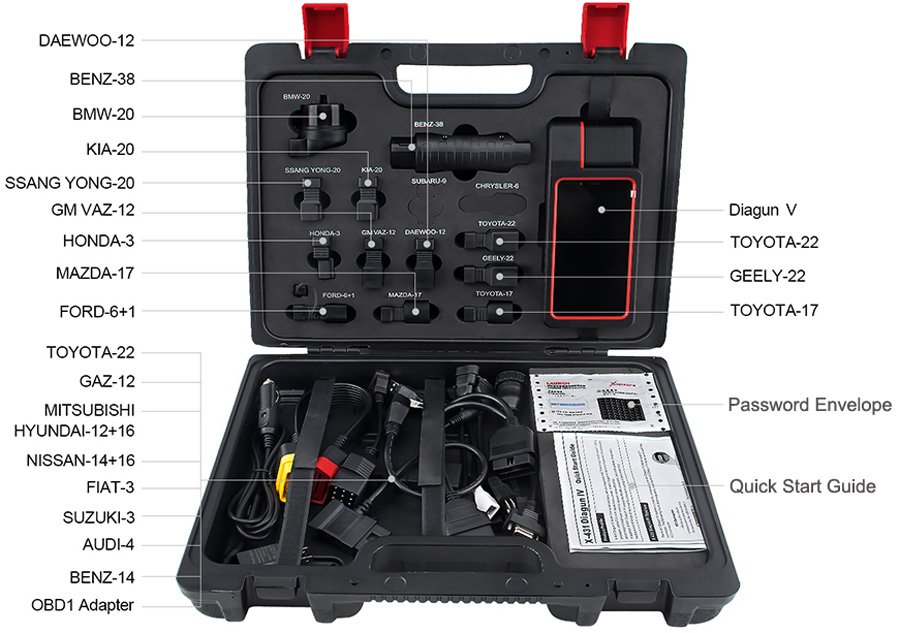

Packing List:

DBScar IV Bluetooth Diagnostic Connector

X431 OBD16 Extension Cable

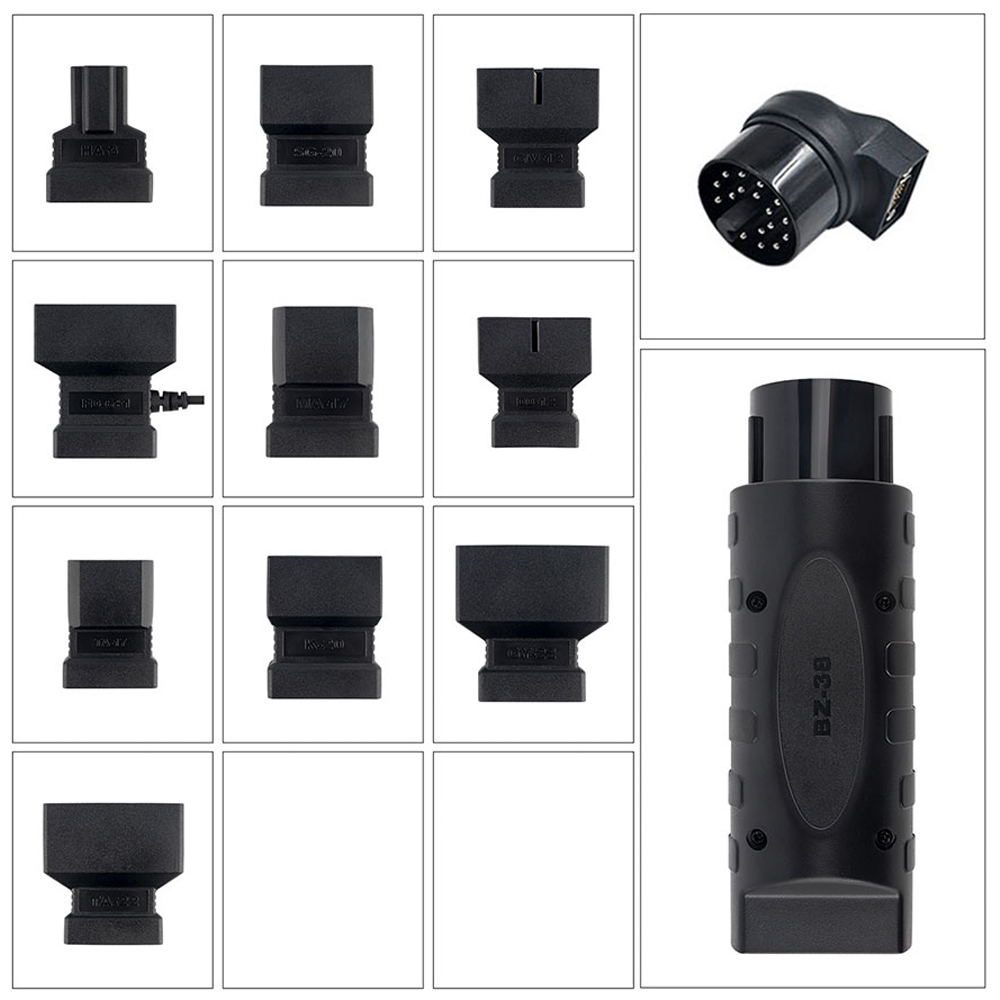

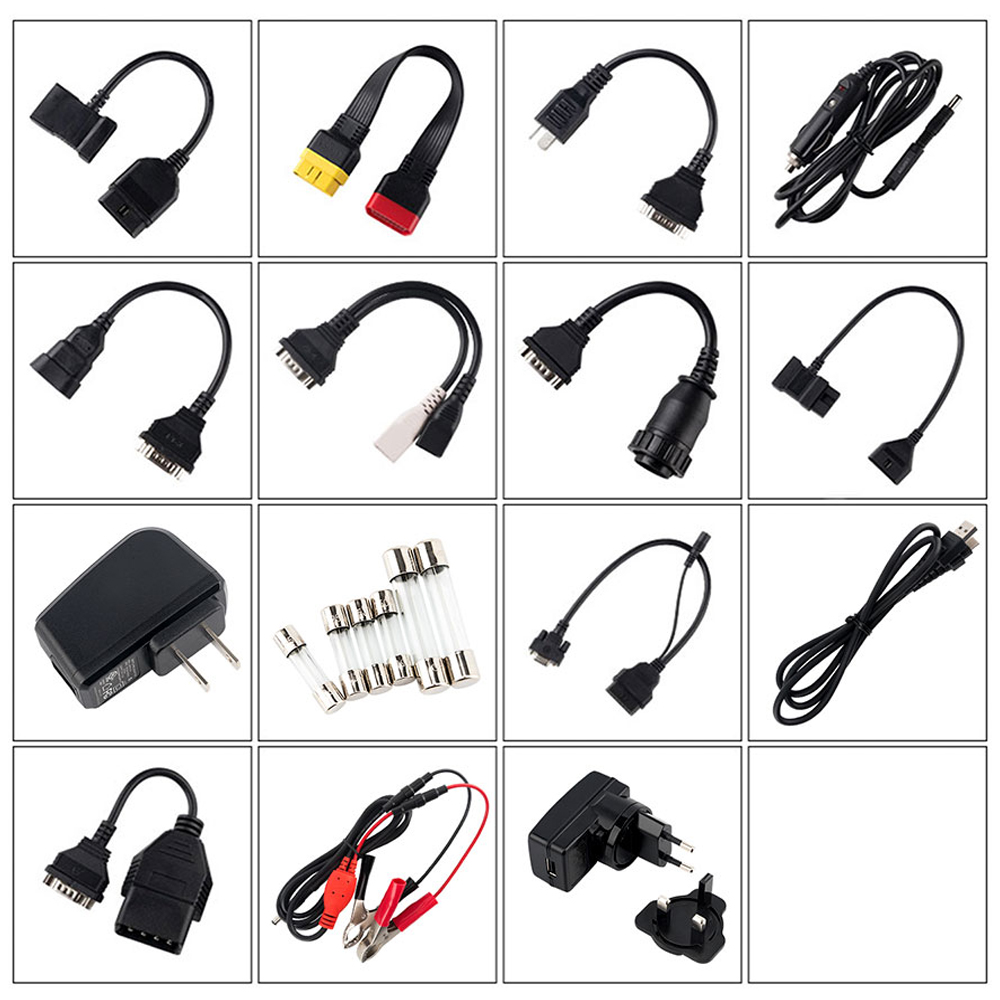

Launch X431 Connector Kit

Power Supply Charger
