Name: G-IDSS for Isuzu Truck Bus on-high Way Engine
Description:
G-IDSS for Isuzu Truck Bus on-high Way Engine Diagnostic Kit with hardware and Light-Truck pickup DPF diesel SUV D-max .
G-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, so it can not write data into ECM/ECU. Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions, such as adjustment functions.
Isuzu Global Diagnostic Services System (G-IDSS ) is software and USB-Link special edition is hardware. It can only test the Isuzu engine sensor, AdBlue and DPF of the Denso ECU/ECM
Supported Region: Australia, Asia, Europe, Spain, Canada, China
Supported Languages:
English, German, French, Spanish, Turkish, Ukrainian, Greek, Hungarian, Italian, Thai, Indonesian, Vietnamese, Japanese, Chinese,
Supported OS: Windows 7 / 10 x64 & x86,
Data of Update: 2/2018
NOTE:
1. Supports ALL REGION trucks except North America. It is complete kit, ready to use.
2. Service Information is not available on all models!!!
Isuzu G-IDSS Export 2018:
G-IDSS is exclusive software for Isuzu vehicles. With each new release of the G-IDSS program, additional vehicle engine configurations and controller systems may be supported. Controller Programming allows you to update and reprogram various vehicle controllers based on part numbers and/or new available calibration files. You can program the following types of controllers by selecting Controller Programming from the TOC:
Functions:
Service Information;
Diagnostics (Engine, Transmission, Chassis, Body);
Controller Programming
Select OEM, Model Year, Engine Model and Engine Type drop down menus
Enter Engine Serial Number window
ISUZU_G-MC: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L
Heavy-duty ISUZU 6HK1 Engine 6WG1 6WF1.
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine

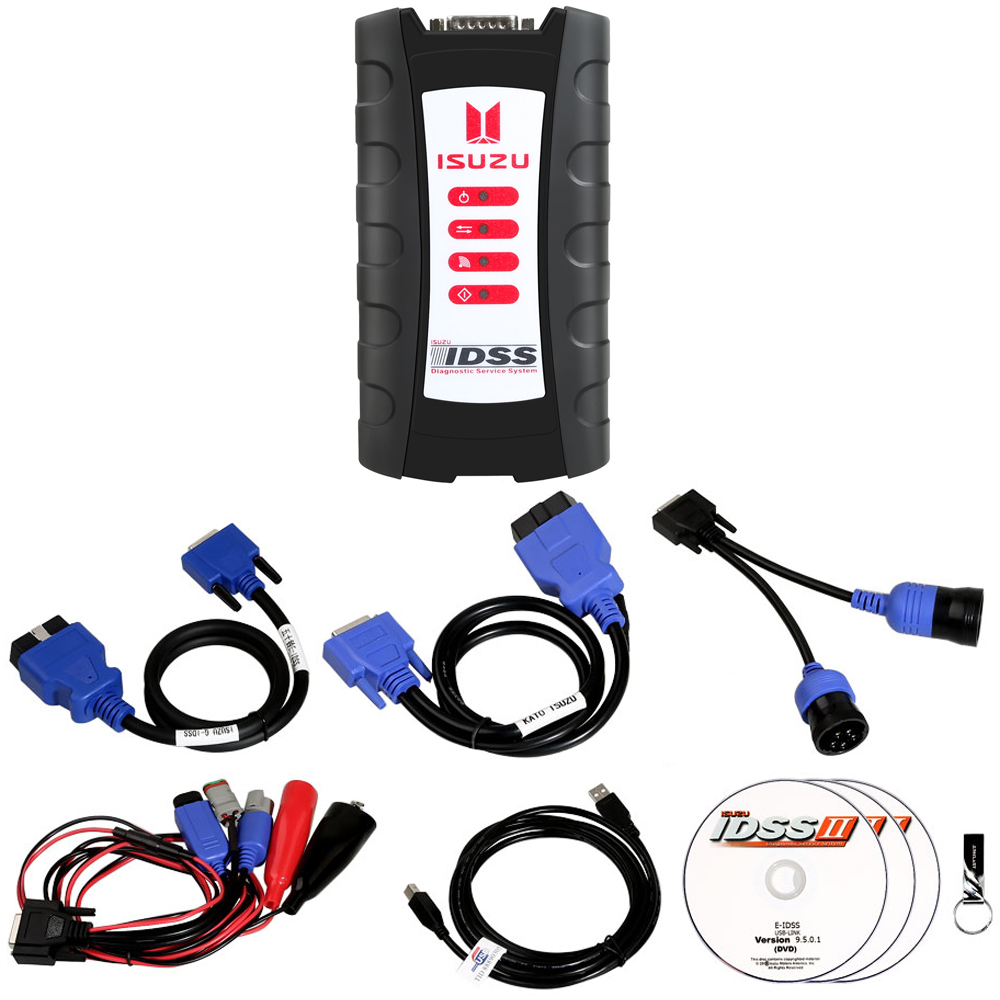

Packing List:

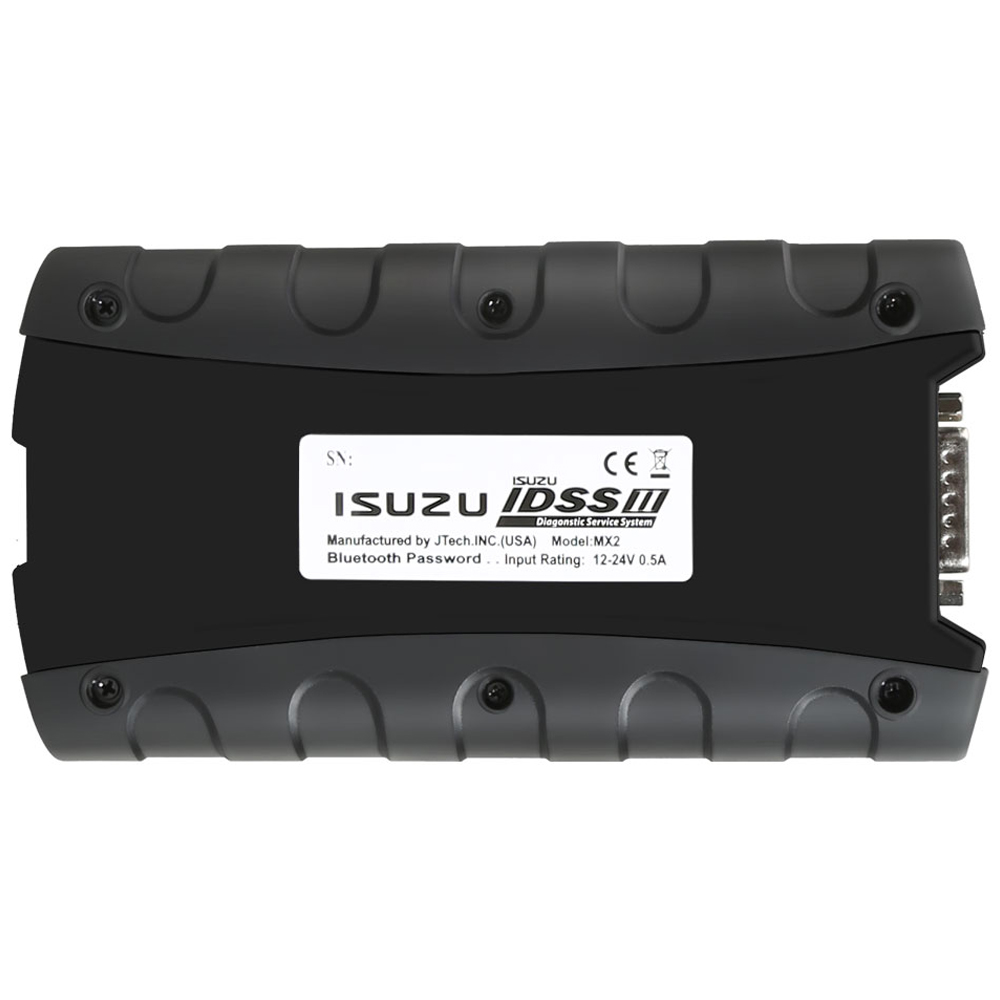

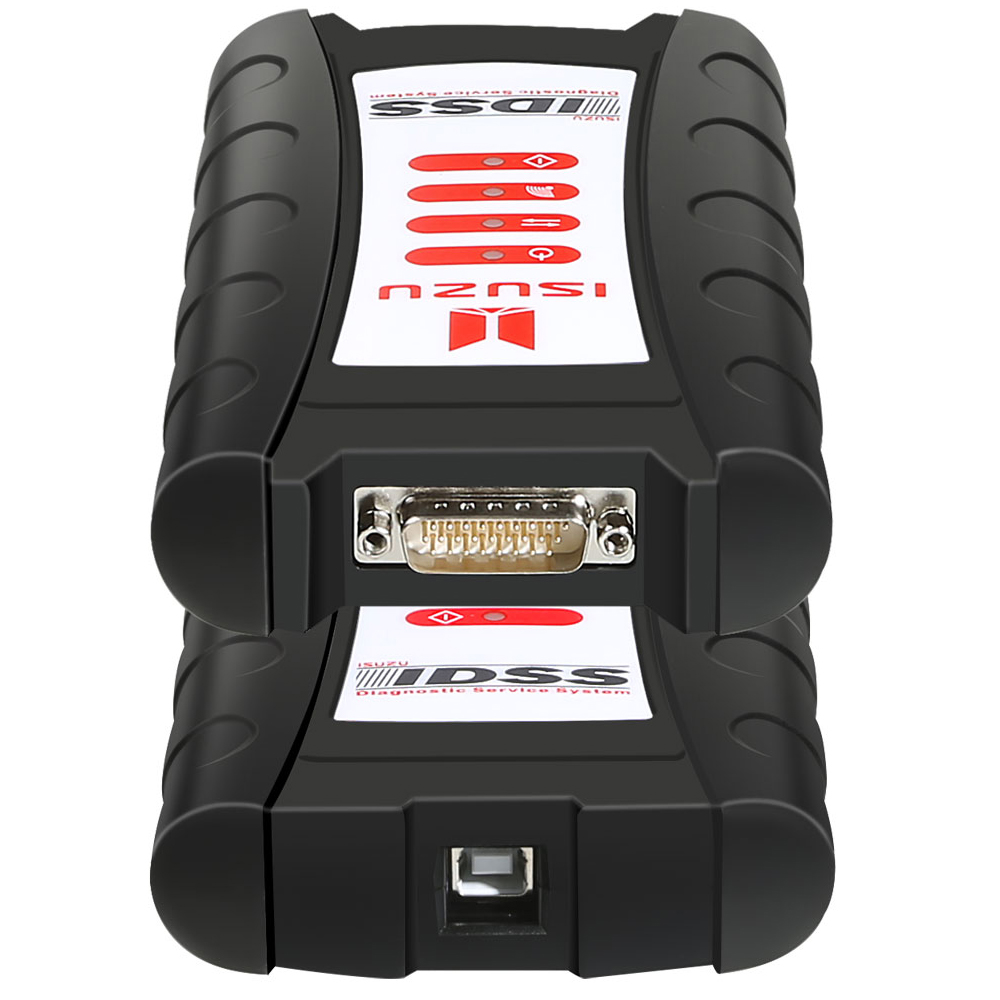

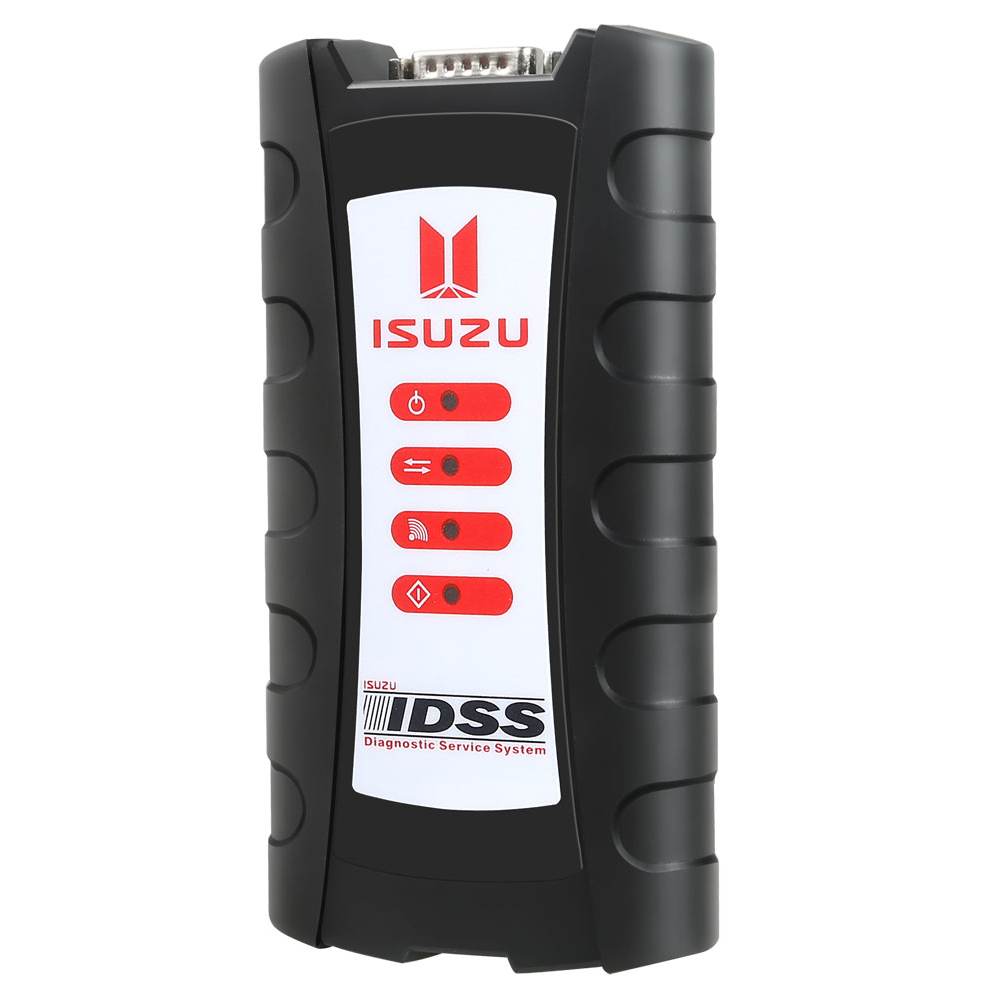

IDSS USB-Link 1 Adapter
G-IDSS program(diagnostics is activated; reflash is not activated)
G-IDSS OBD2 cable
6-pin/9-pin American cable
Isuzu cable with DC 2.1 Female
CAN BUS 3pin cable
USB cable

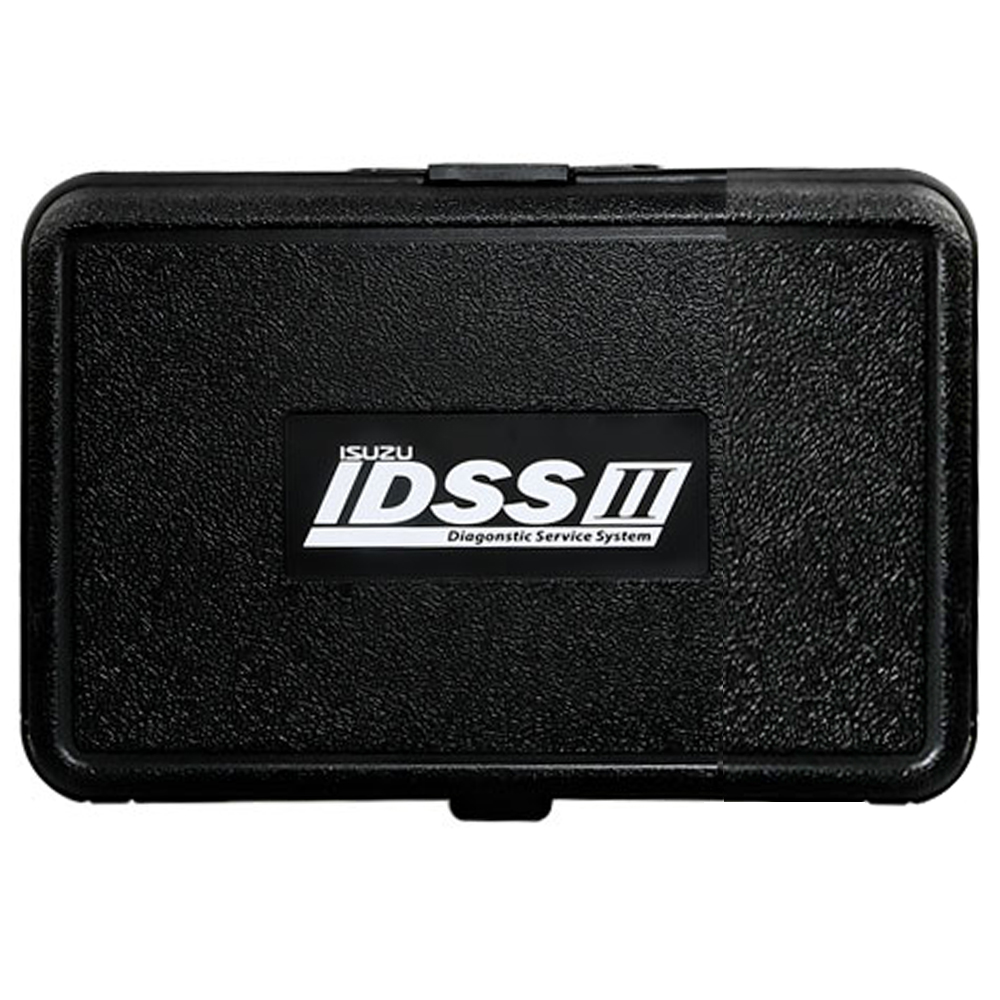

Plastic Toolbox
Packing box
|
