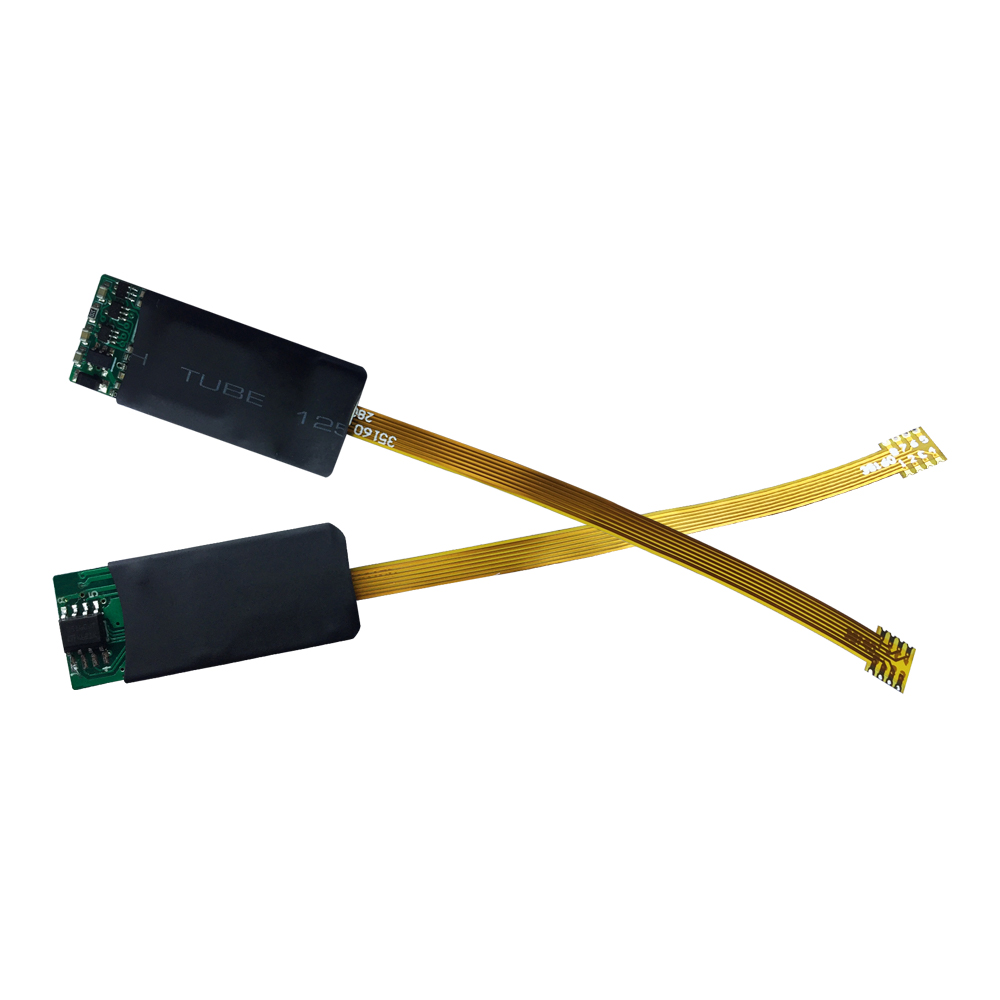

Name: 35160/35080 Programming Emulator for Mileage Correction
Description:
Yanhua 35160 35080 Programming Emulator comes with an independent program which can adjust mileage directly.
Supported EEPROM:
M35080
M35080-3
M35080-6
M35080V6
M35080VP
080DOWQ
080DOWT
160DOWQ
160DOWT
35160WT
Operating Instructions:
1. Chip Soldering
Solder the 35XX chip on the meter to the specified location of the simulator. Please pay attention to the chip direction.
2. Create New Folder
Create a new folder on your desktop. For example, named the new folder as "mileage modification"
3. Simulator Connection
Connect 35160/35080 Programming Emulator to computer via mini USB cable. Then a USB flash drive with named “35xxx memory” will be recognized by computer.
4. Decompress Modification Tool
Open 35xxx memory USB flash disk, copy the compressed "35xx mileage modification tool.rar" file and paste to “mileage modification” folder on desktop. Decompress it to the current folder to get the setup file named "35xx mileage modification tool.exe".
5. Copy the original data file to the "mileage modification" folder on the desktop. According to the original car chip model, select the corresponding original data and copy it to “mileage modification” folder on the desktop. (For example: If the original car chip is 35080, choose 35080 raw data bin file; if the original car chip is 35160, choose 35160 raw data bin file)
6. Open the mileage modification tool
Drag the original data file to the modification tool or double-click to open the “35XX mileage modification tool”, drag the original data file into the tool interface and press Enter key to confirm.
7. Modify Mileage
Enter the mileage data you want to modify as prompted (Note: please enter unit after the value like XXXkm or XXXmi), then press Enter to confirm, then a new file 35xxx raw data _yyyy.bin file will be automatically generated.
8. Copy the modified data to the "35XX memory" USB flash drive
Open the "35XX Memory" USB flash drive, delete the 35xxx simulated data bin file of the corresponding chip (note the "simulated" data file), and then copy the 35xxx original data _yyyy.bin file generated in the "mileage modification" folder to the "35XX memory" U flash driver.
9. Data comparison
Unplug 35160/35080 Programming Emulator and plug it again, open the "35XX memory" USB flash driver, compare the newly-generated simulated data of the corresponding chip with the modified data in the "mileage modification" folder. If the data is the same, means operation is successful. Solder 35160/35080 Programming Emulator to car instrument chip location.
Notice:
Please save the copied raw data bin file on your computer, so that the data can be recovered when the operation is wrong. If the operation is failed, do not be nervous, unplug the USB cable and plug it again to restore normally.
|
