Name: Hantek 6022BE Digital USB Oscilloscope 2 Channels

Description:

Hantek 6022BE Laptop Digital USB Oscilloscope 2 Channels 20MHz 48MS/s virtual handheld portable Oscilloscope Diagnostic Tool.

Features:

1. Cost-effectiveness and excellent industrial design. The same anodised aluminum casing as Apple iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

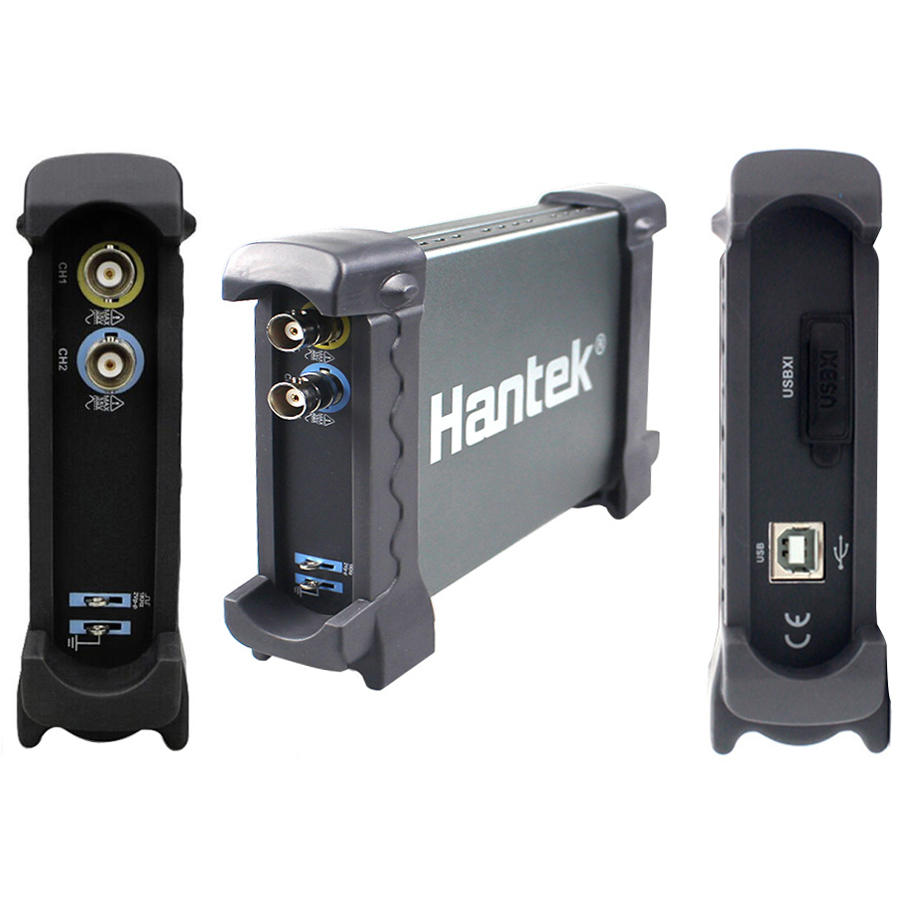

2. Standard USBXI interface, easily inserts into USBXI housing to make up a combination instrument.

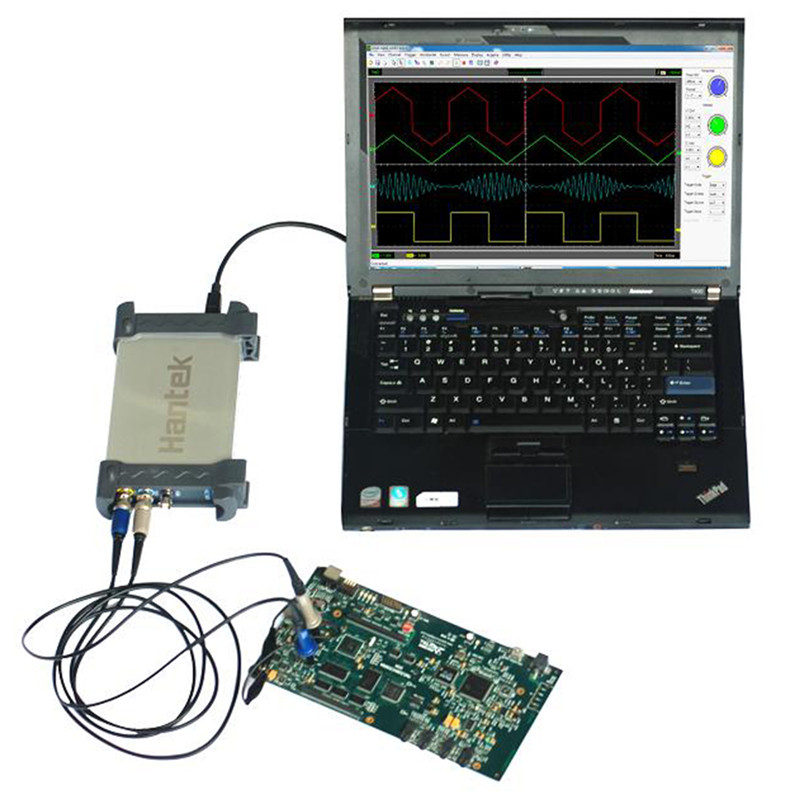

3. USB 2.0 interface used together with notebook computer, no external power source required, easy to use.

4. Compact Dimension(L*W*H): 205*120*35mm

5. High performance, 48MS/s real-time sampling speed, 20MHz Bandwidth,

6. 23 measurement functions, PASS/FAIL Check, be suitable for engineering application.

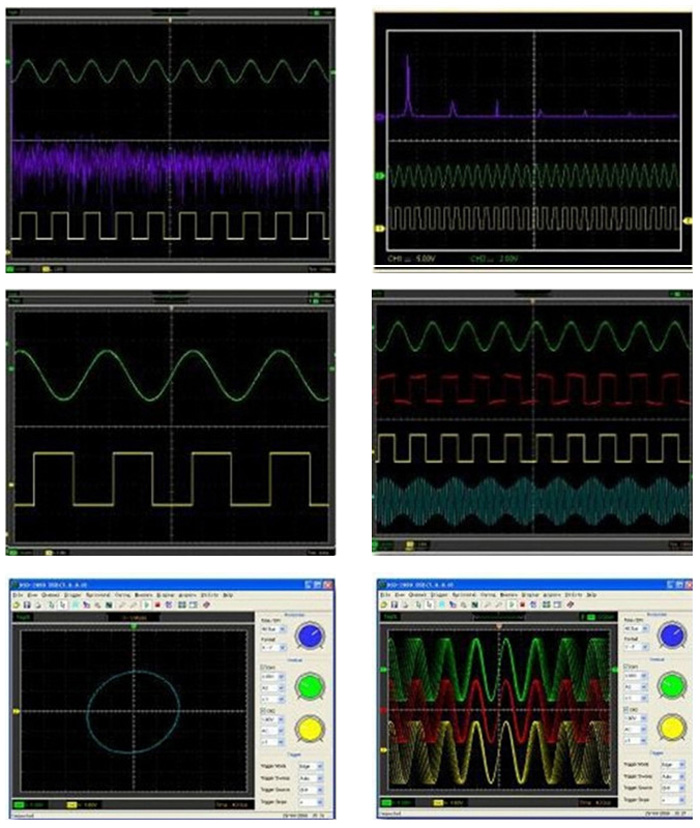

7. Waveform average, persistence, light adjustment, reverse, add, minus, multiply, divide, X-Y display.

9. Save waveform in the following file format: text file, jpg/bmp graphic file, Microsoft Excel/Word file.

10. Built-in FFT

11. One computer can connect many oscilloscopes, extend more channels easily.

12. Offer Labview/VB/VC demo code for second development.

Software Supported OS: Windows 7/VISTA/2000/NT/XP

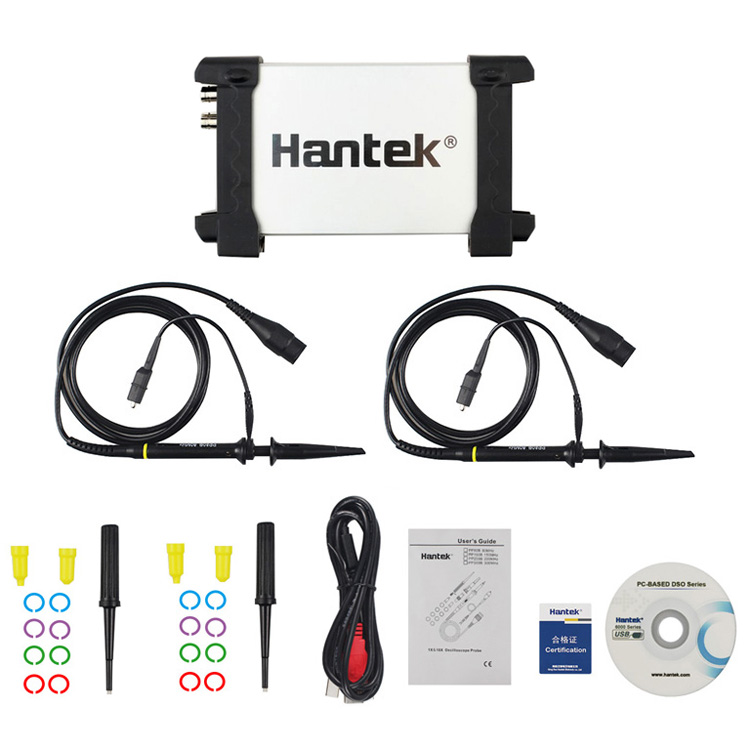

Packing List:

Hantek 6002BE USB Oscilloscope
Probes
USB Cable
Software CD
User Manual
Carrying Case
