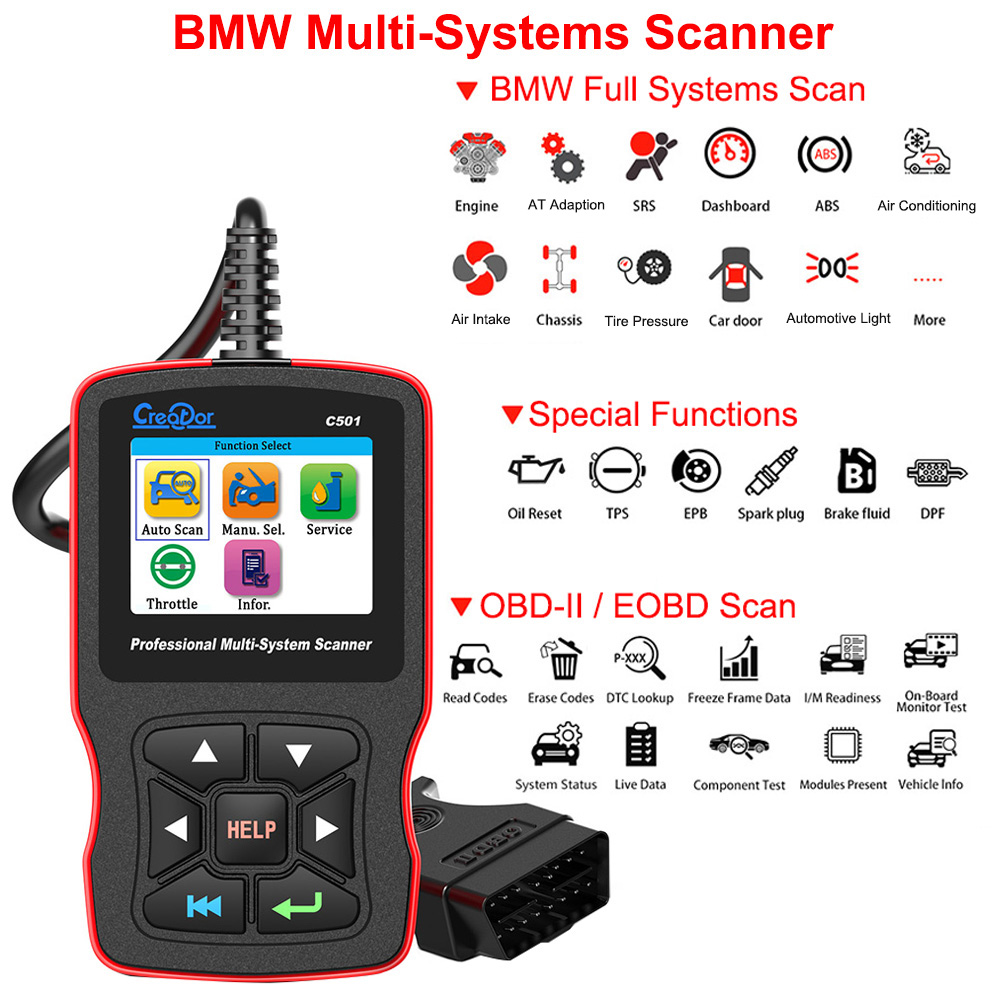

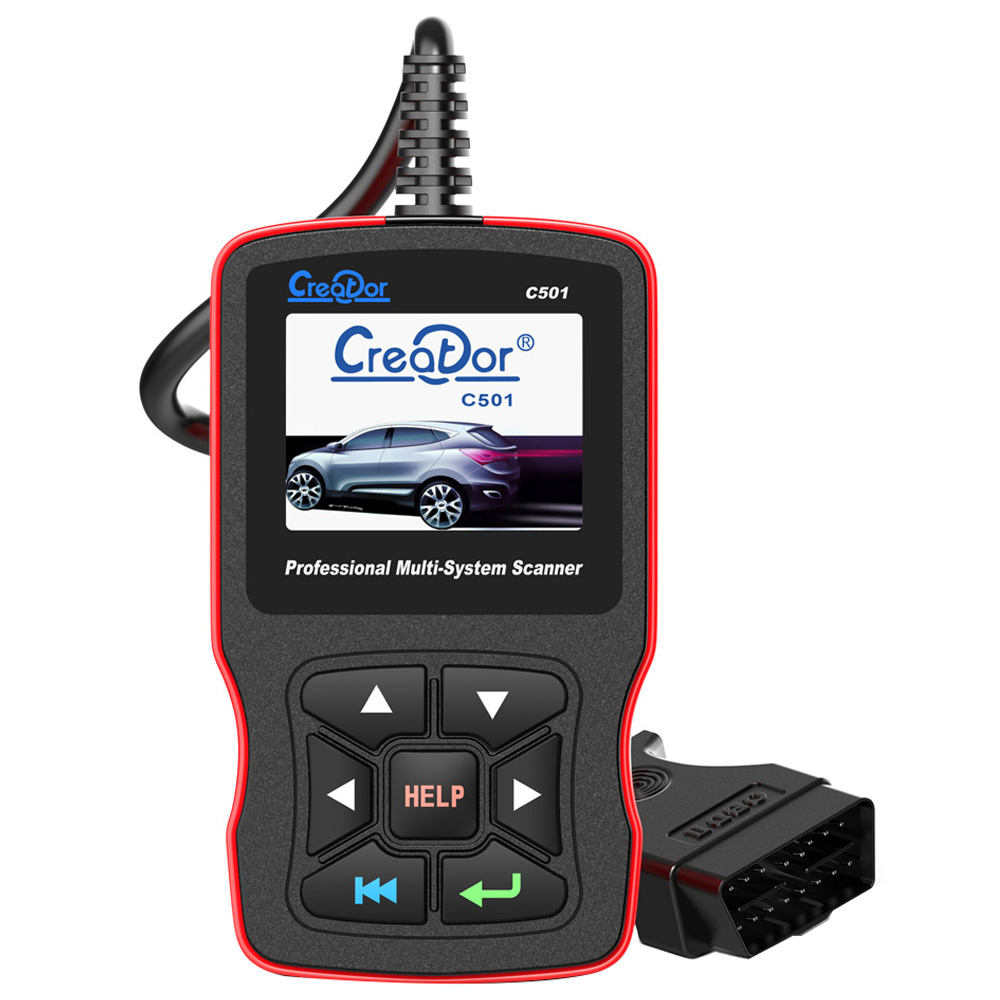

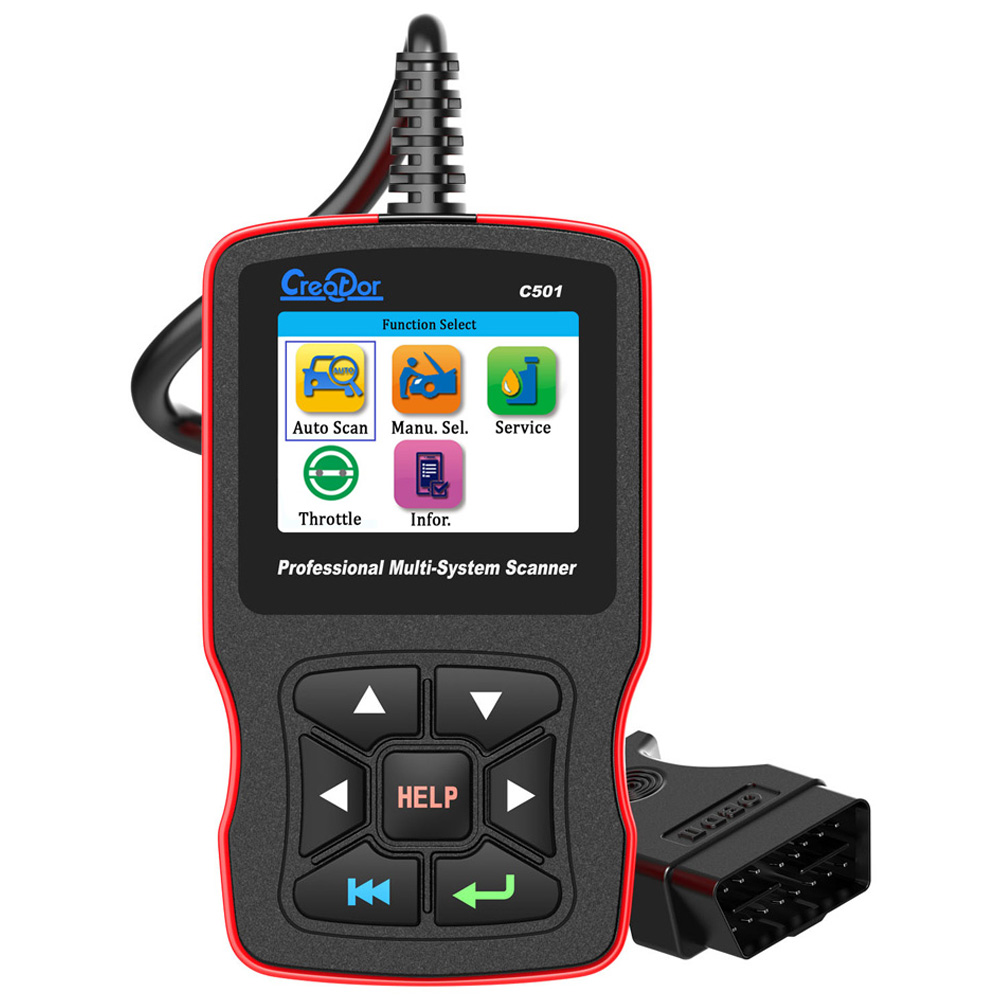

Name: Creator C501 BMW OBD2 EOBD Scanner
Description:
Creator C501 BMW & OBD-II/EOBD Scanner.
OBD Software Supported Languages: English, Spanish, German, Vietnamese, Traditional Chinese
BMW Software Supported Languages: English, German, Traditional Chinese
BMW Software:
Supports BMW 2001 to 2016
1 Series: 1'_E81/E81/E87/E88,1'_F20/F21
2 Series: 2'_F22/F23,2'_F45/F46,2'_F87
3 Series: 3'_Z3_E36,3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 Series: 4'_F32/F33/F36,4'_F82/F83
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F06/F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71, X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I'_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56

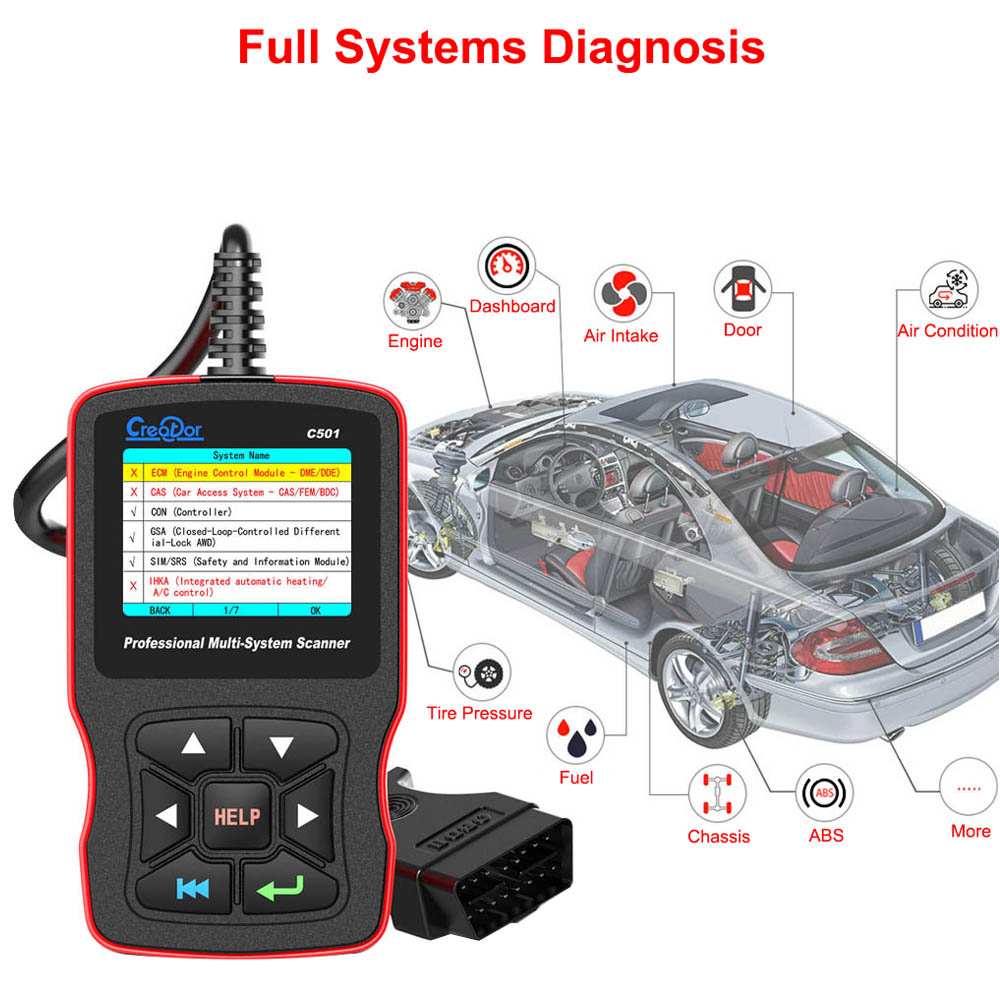

Supported Systems : Drive, Chassis and Body all system

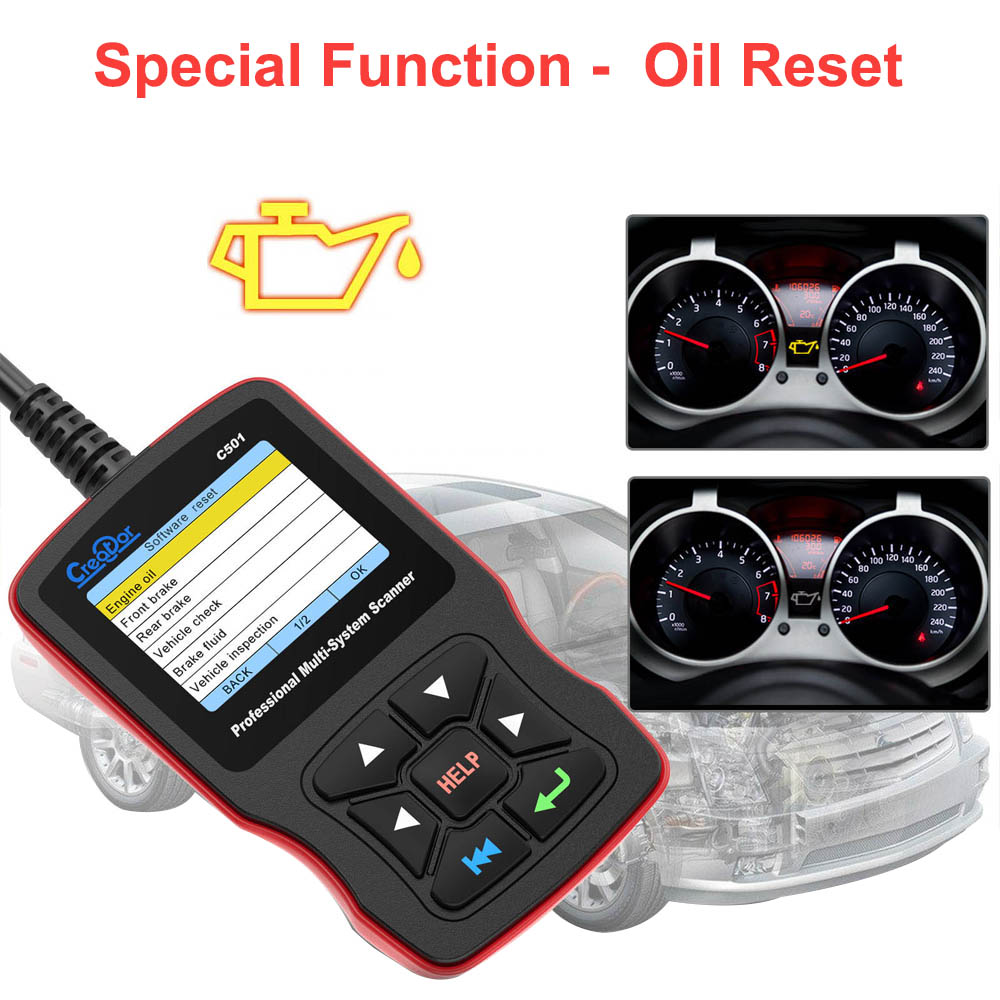

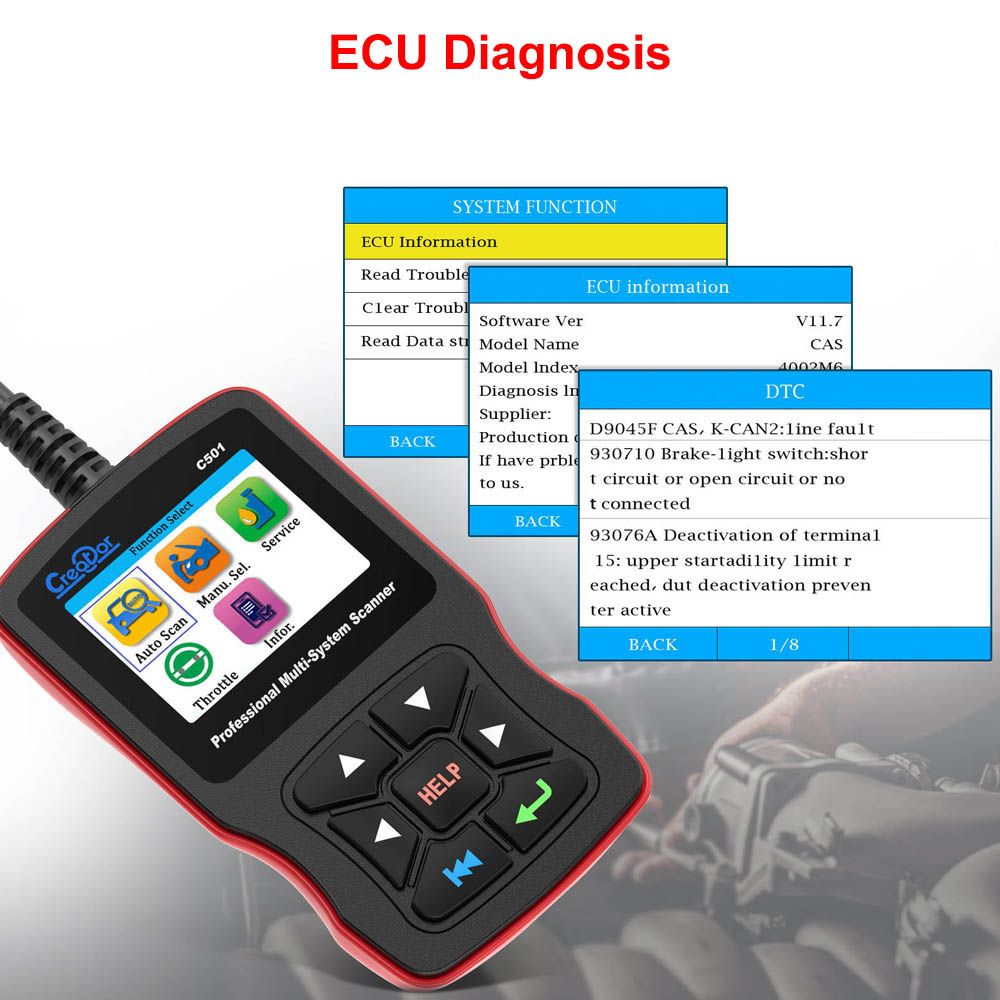

Functions: Read Trouble Codes, Clear Trouble Codes, Displays Live Data Stream and Graph Display, Vehicle Version Information, Clear Adaptation, Engine Oil Reset...

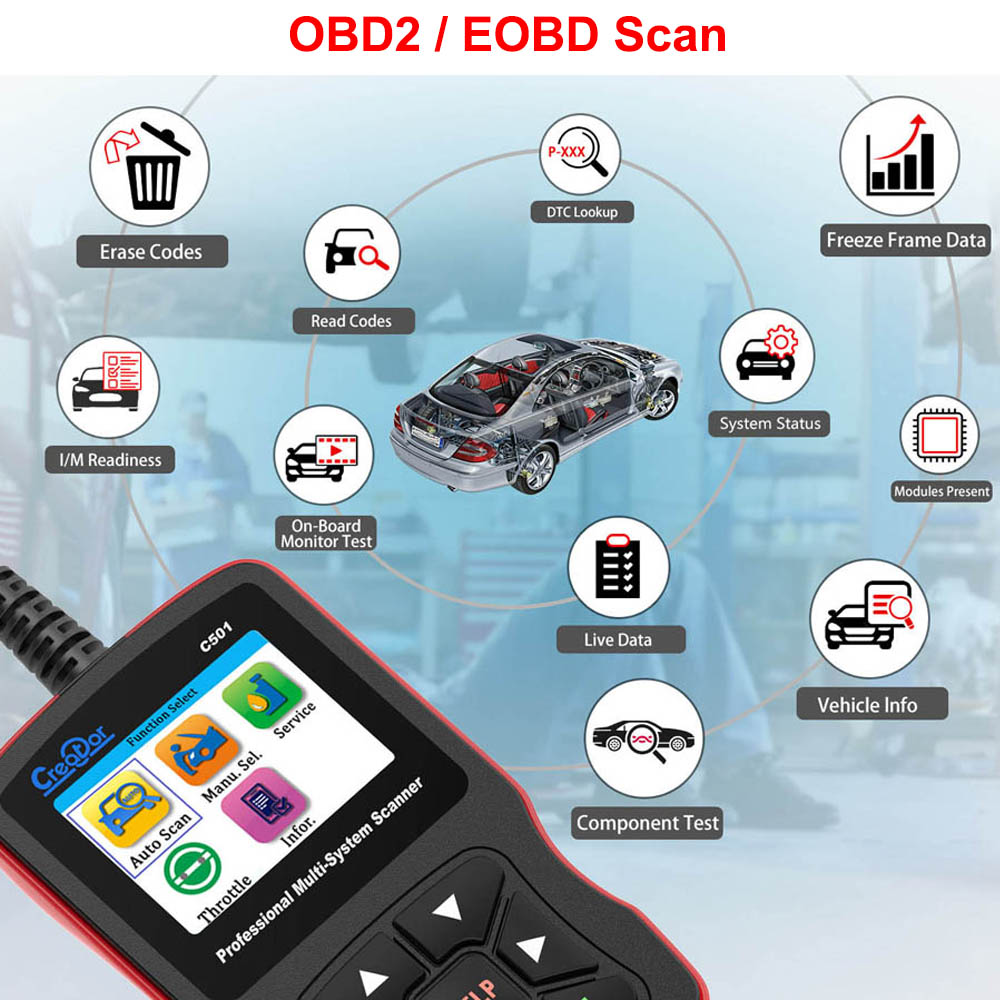

OBD2 & EOBD Software:
Works on all 2001 and later OBD2 compliant PETROL European vehicles
Works on all 2004 and later OBD2 compliant DIESEL European vehicles
Works on all 1996 and later OBD2 compliant US and Asian vehicles
Easily determines the cause of the “Check Engine Light ( MIL)”
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Read I/M Readiness Status
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols

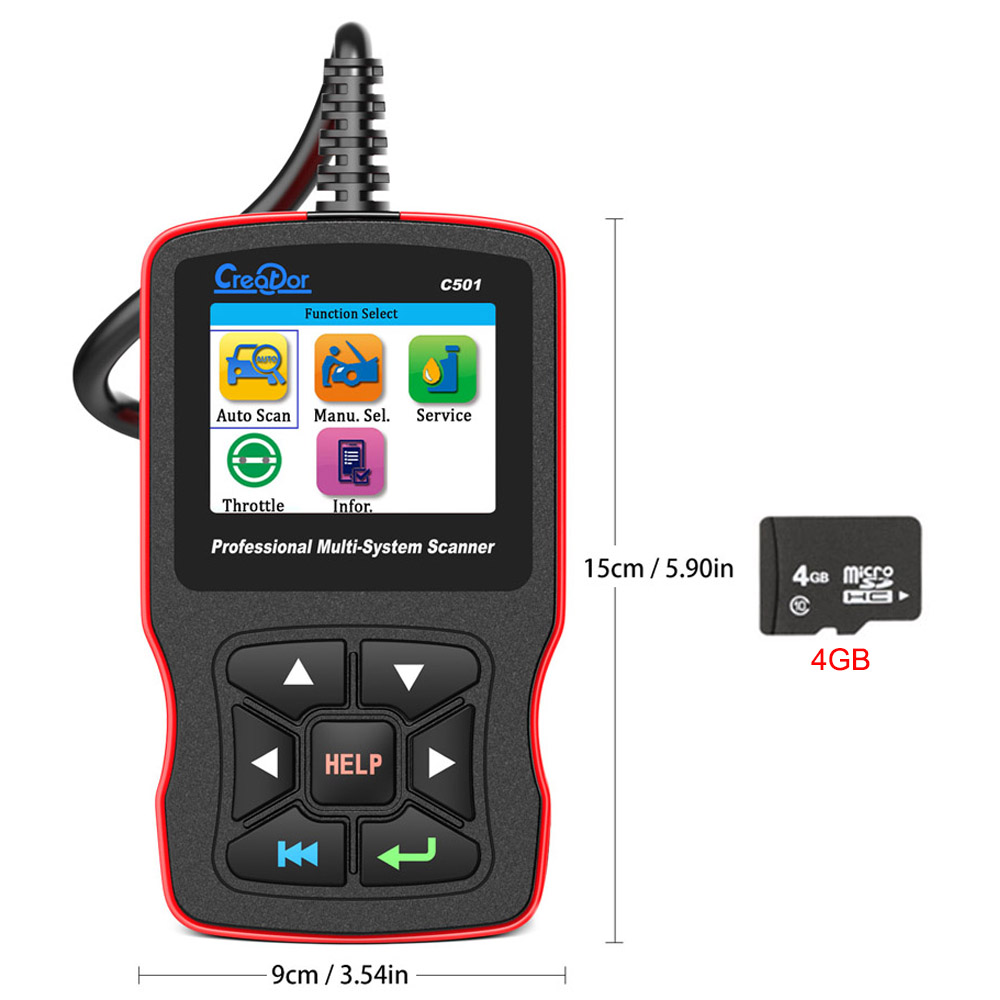

Specifications:
Display: 320*240 pixel color display with contrast adjustment
Operation Temperature: - 20 to 75 degree centigrade
Storage Temperature: -40 to 120 degree centigrade
Power: 8 to 24V
Troubleshooting:
1. Vehicle Linking Error
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).
You need to do the following to check up:
A). Verify that the ignition is ON;
B). Check if the scan tool OBD-II connector is securely connected to the vehicle DLC;
C). Verify that the vehicle is OBD2 compliant;
D). Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
E). Verify the control module is not defective
2. Scan tool does not power up
If the scan tool does not power up or operates incorrectly in any other way, you need to do the following to check up:
A). Check if the scan tool OBD-II connector is securely connected to the vehicle DLC;
B). Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C). Check vehicle battery to make sure it is still good with at least 8.0 volts.
Packing List:
Creator C501 BMW & OBD-II/EOBD Scanner
User Manual
|
