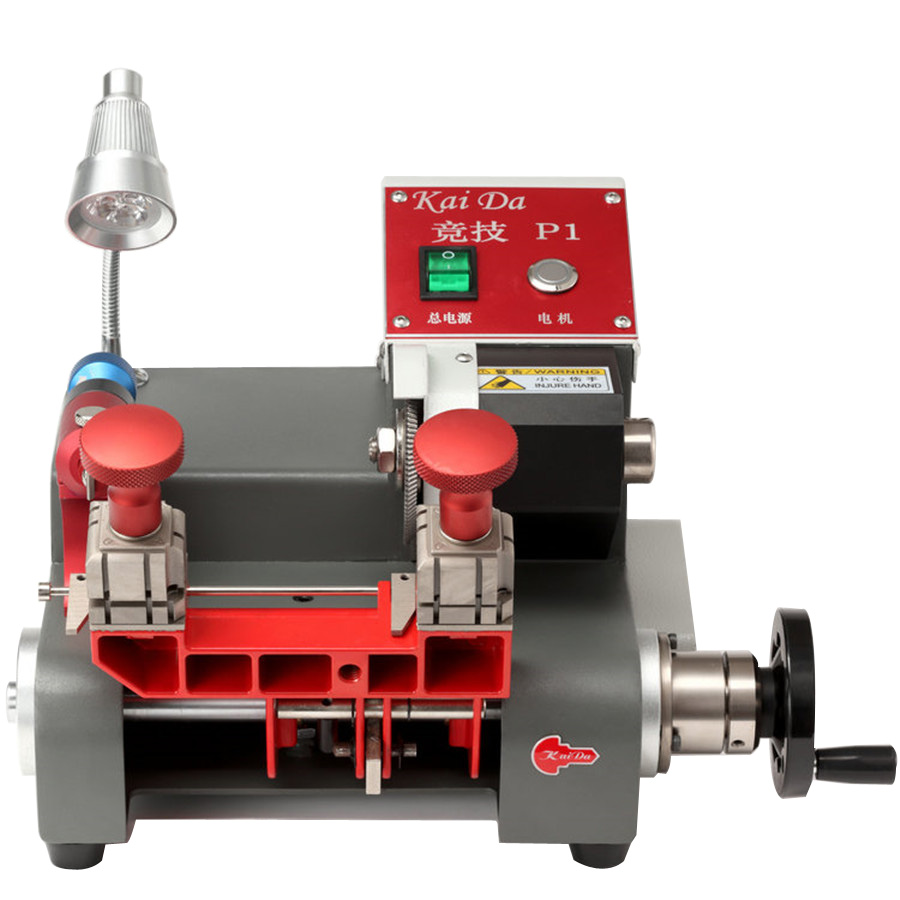

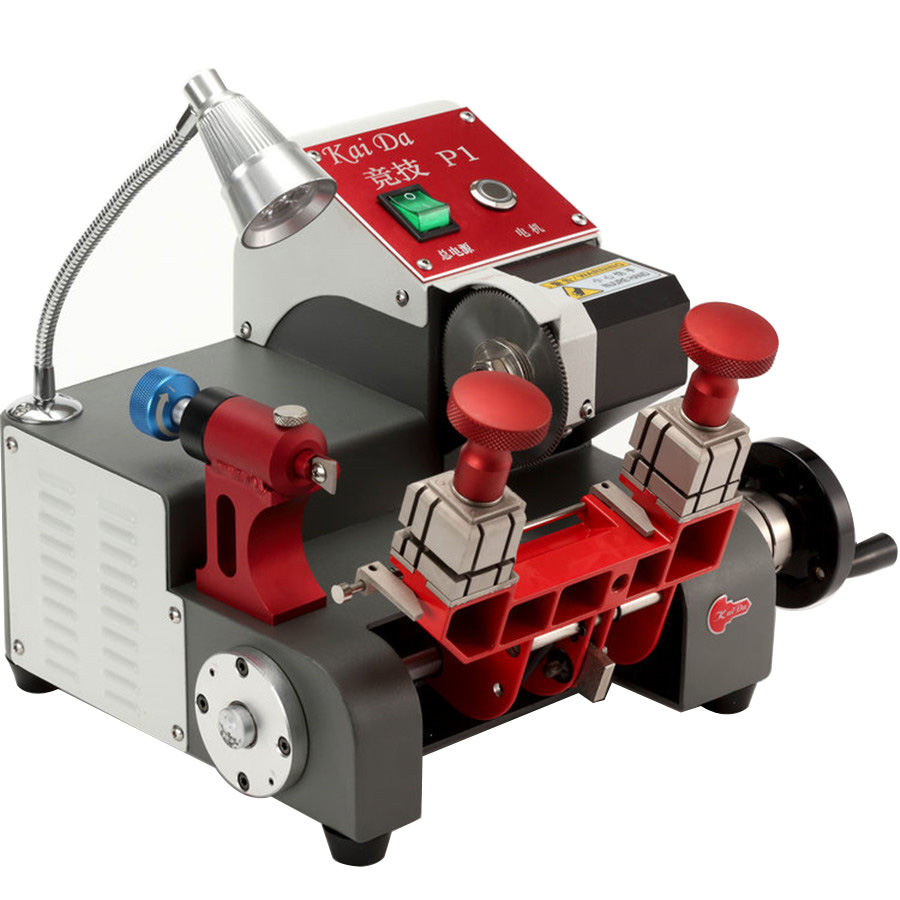

Name: JINGJI P1 Flat Key Cutting Machine

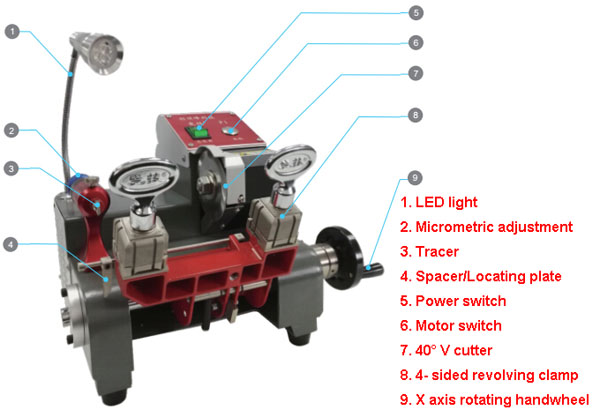

Description:

1. Sheet metal stamping welding structure is durable and long-lasting.
2. 40° V cutter with strong power driven by brushless motor.
3. Micrometric (Patent) tracer adjustment mechanism for precise calibration with the cutter.
4. 4-sided revolving clamp cut a large variety of keys more easily.
5. Y axis ballscrew.
6. Cutter is separated with the motor so no vibration when cutting.
7. Compact and portable.

Specifications:

Working Method: manual
Error Scope: ≤0.02mm
Keys: cylinder and cruciform keys
Jaw: 4-sided reversible jaw
Revolution: 1800rpm/min
Voltage: AC 220V
Current: 10A
Power: 120W 50-60Hz
Voice: nearly voiceless
Material: sheet metal stamping welding
Dimension(L*W*H): 355*250*240mm
G.W.: 16Kg
N.W.: 15Kg
