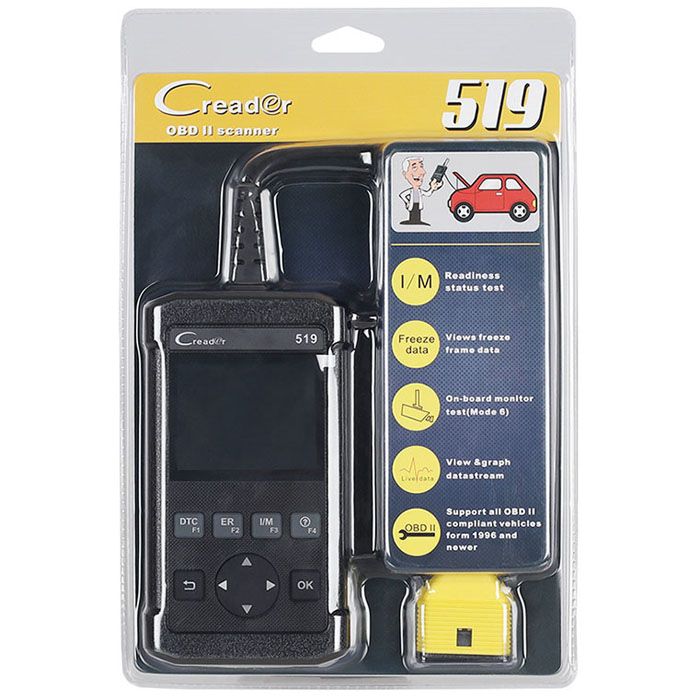

Name: Launch CReader 519 OBD2 Code Reader

Description:

Launch CReader 519 provides full OBD-II / EOBD diagnostic features and complies with protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, and USB interface internet update, which facilitates auto maintenance.

Highlights:

2.8 inch color LCD display; View freeze frame data; View graphical and numeric data streams; Sensor tests; Monitored systems tests; No batteries, power supply through OBD2 cable.

All-in-one screen and easy-to-use hotkeys make the CReader 519 an ideal tool for the DIYer and professional technicians alike.

English and Spanish instructions.

Update via USB cable.

Functions:

Full OBD-II/EOBD Diagnostic Functions. Read & Clear DTCs, I/M Readiness Status, Read Freeze Frame, Read Datastream, Read Vehicle Information, O2 Sensor Test, Onboard Monitored Systems Test (mode 6), Read Pending DTCs, Read Permanent DTCs, Turns Off Malfunction Indicator Light (MIL).

Supported Languages:  English, Spanish, French, German, Portuguese, Russian, Japanese, Chinese

Features:

1. OBD Full Features:
  1) Read dynamic data streams and MIL
  2) Check readiness status
  3) Query freeze frame data
  4) Read current DTC
  5) Clear DTC
  6) O2 sensor test
  7) On-board Monitor Test (Mode 6)
  8) Read awaiting DTC
  9) Read vehicle information
  10) Read permanent DTC
2. Color and graphical display of data streams
3. Query DTC

Specifications:

Screen: 2.8 inch TFT 320*240 dpi
Voltage Range: 9 to 18V
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Dimension: 142* 85*30mm
Weight: 320g

Register & Update:

1. Go to www.dbscar.com and download the update tool to the computer.
2. Decompress and install it on your computer (compatible with Windows XP, Windows7, Windows 8 & Windows10)
3. After installation, connect one end of the USB cable to the USB port of PC, and the other end to the tool.
4. If a newer version is found, it will give message.
5.  Launch the update tool on your PC, [Device upgrade] box will appear.
6. Choose the desired interface language and then click [Device Update] to enter update center.
7. Choose the software version and then click [Update] to start updating.
8. Once update is complete, a ‘Upgrade success’ message box will pop up.

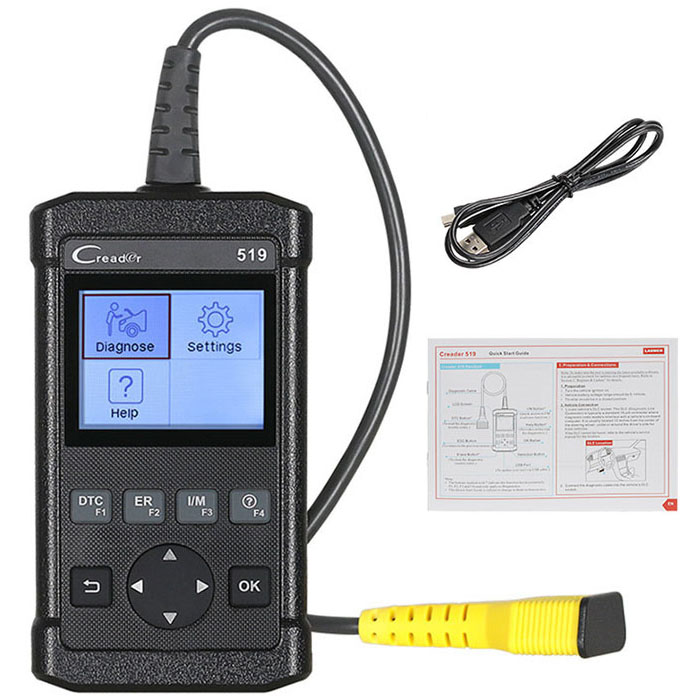

Packing List:

Launch DIY Scanner CReader 519
USB Cable
Quick Start Guide
