Name: ENIGMA Tool Odometer Programmer

Description:

ENIGMA Tool is a portable mileage correction tool that can be used for diagnosis and repair of electronic systems of many known vehicles. Enigma Tool has very compact design.

ENIGMA Tool is constructed using the latest technologies. This is professional and user friendly mileage programming device with high functionality.

ENIGMA Tool is well known for its range of supported vehicles and for the ability to program mileage through OBD diagnostic socket with no need to remove dashboard or do some soldering job.

ENIGMA Tool is a small size device powered by 12V which can work stand-alone without PC, so you can use it on sight anywhere outdoors.

Features:

Works with newest models of cars;
Safe for tested/repaired electronic systems;
Reliable mode of operation;
Exceptionally simple, intuitive use;
Frequent software updates;
User can read and write the settings via the diagnostic connector (where available);
Professional construction;
Software updates available, activation of the software via Internet;
Works with a PC via USB cable;
User can backup data;
User has option to receive software on demand, client-requested;
12 V power supply, available in any car;
Small size (210*130*40mm);

Technical Specifications:

Power Required: +12V;

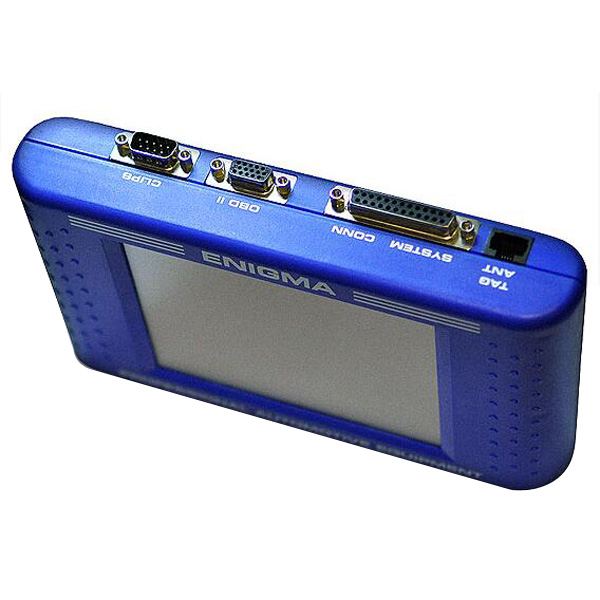

Tester Connectors: power +12V, system DB25, clip DB9, USB, ANT TAG, OBD2, DB15;
8 input/output lines, 2 interfaces CAN-BUS, 2 transceivers 82C250, 2 transceivers TJA1054;
2 interfaces K-Line, interface CCD-BUS, interface BDLC (J1850), interface SPI (master slave), serial port, PWM;
Integrated reader for transponders PCF7991, integrated reader for transponders Texas Instruments;
Analog input port, integrated multiplexer OBD2;
+12V output controlled with an electronic relay, adjustable +1.2V to 5.5V output controlled by an electronic relay;

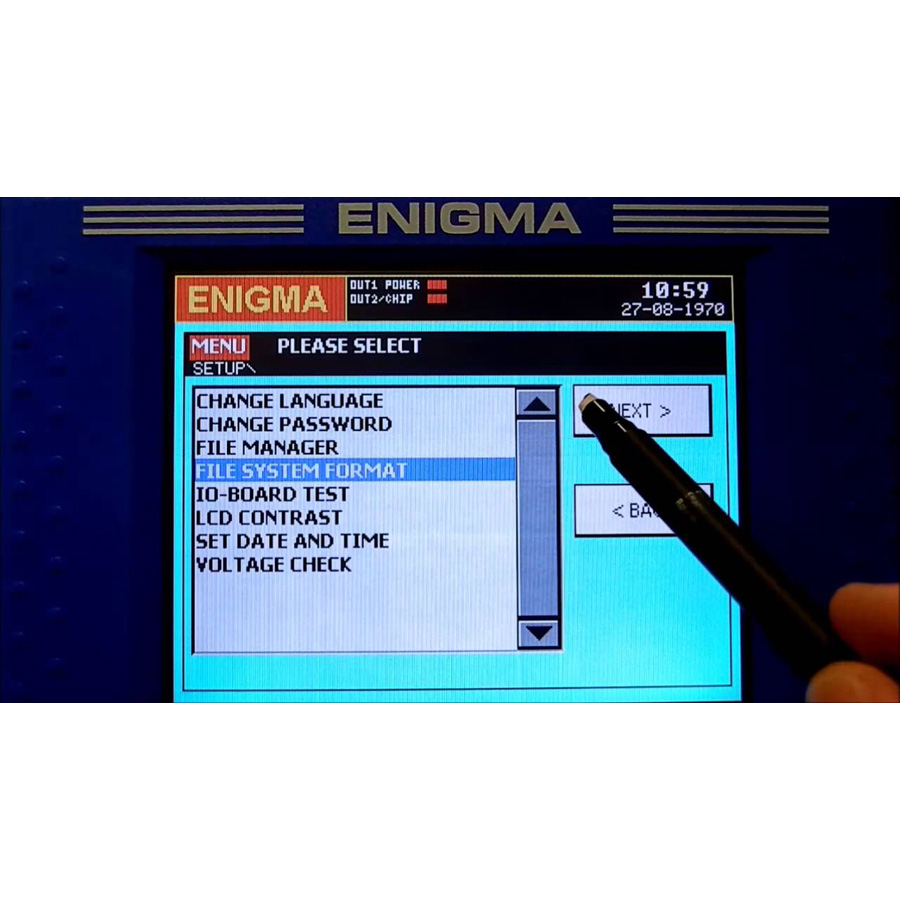

Very easy to read, color graphical 320*240 5.7 inch touch screen display
10MB flash memory, 4 MB flash memory for user files; Interface USB 2.0 full speed;
Wide tolerance of work temperature;
