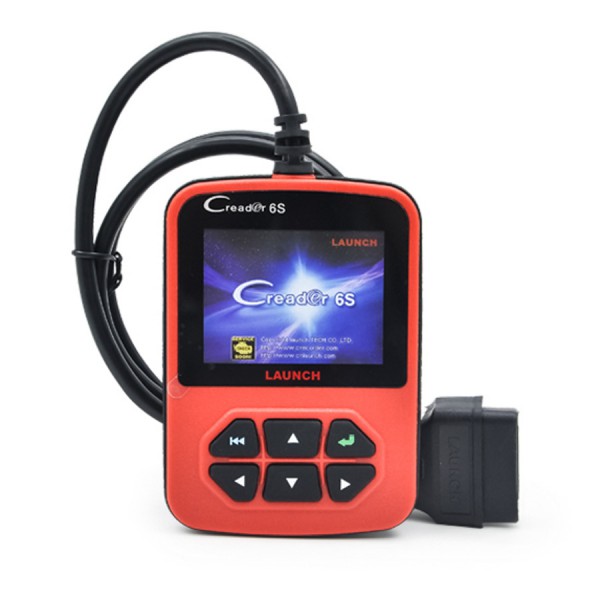

Name: Launch X431 Creader 6S Code Reader
Description:
Launch X-431 Creader 6S is update version of Launch Creader VI.
Free online update.

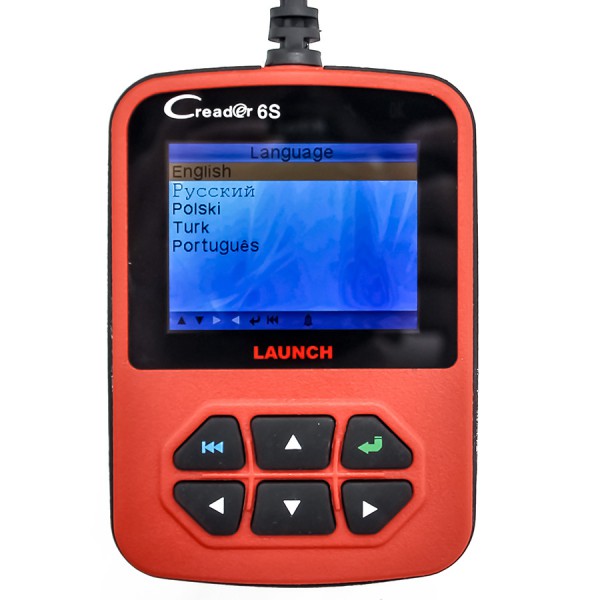

Supported Languages:
Asian Version: English/Russian/Polish/Turkish/Portuguese
EU & American Version: English/French/German/Italian/Spanish

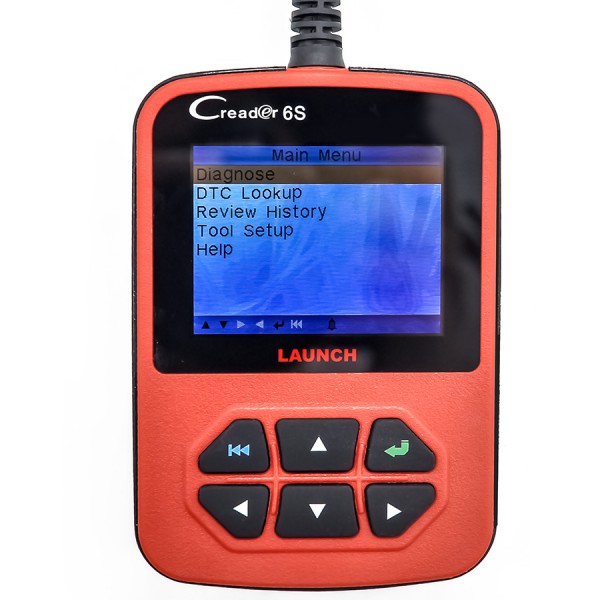

Functions:
Read dynamic datastream
MIL indicator
Readiness status test
Search freeze frame data
Read current DTCs
Clear DTCs
O2 sensor detection test
Specified monitoring system on-board monitor test
Read pending DTCs
Read on-board systems or components control
Read vehicle information
Read permanent DTCs
DTCs search
Tested data playback
Specifications:
1. Screen: 2.8 inch 262K true color 320*240 LCD
2. Input Voltage Range: 8~36V
3. Operating Current: typically <100mA
4. Typical Power Consumption: <1.2W
5. Wire Connection: 16-pin diagnostic connector
6. Environmental Temperature: 0 to 50 degree centigrade
7. Storage Temperature and Humidity: -20 to 70 degree centigrade @ RH 60%
8. External Dimension: 121*82*26mm
9. Weight: <600g
Set Includes:

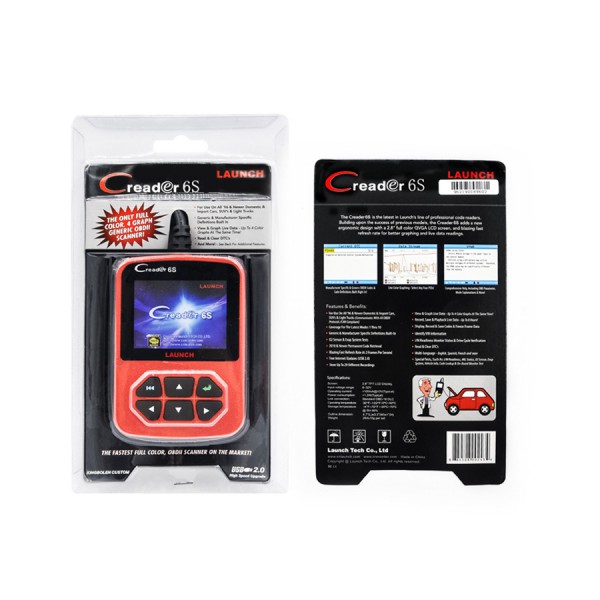

Launch Creader 6S
USB cable
User manual
|
