Name: AUGOCOM MICRO-468 Battery Conductance & Electrical System Analyzer
Description:
AUGOCOM MICRO-468 Battery Tester adopts currently the world most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
Software Supported Languages:
Korean Version: English, Korean
Asia-Pacific Version: English, Chinese Simplified, Chinese Traditional, Japanese, Russian
European and American Version: English, Spanish, French, German, Italian
Features:
1. Simple, secure, fast, and accurate display test results (the test takes about 3 seconds).
2. Eight lines with backlight LCD display and humane language prompted interface.
3. Does not emit light, no heat, no discharge, no spark, no operation danger.
4. Automatic temperature compensation function with ripple voltage test function Multi- language menu display.
5. Removable replacement test line.
6. Dedicated Kelvin test clip.
Functions:
Applicable to a variety of models, all kinds of batteries, and a variety of system mode
Directly detected in the car, do not need to remove the battery
Directly test the battery of the loss of electricity, bad cell battery
Battery test results include the State of Health %, State of Charge % and actual CCA capacity.
Scope: suitable for 6V & 12V battery and 12V & 24V starting and charging system detects

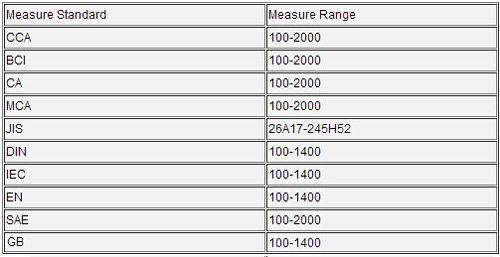

Test Range:
Specifications:
1) Voltage Measure Range: 6-30DCV.
2) Temperature Measure Range: -18 - +70 degree centigrade
3) Cable Length: 120cm (3M optional)
4) Housing Material: Acid-resistant ABS plastic

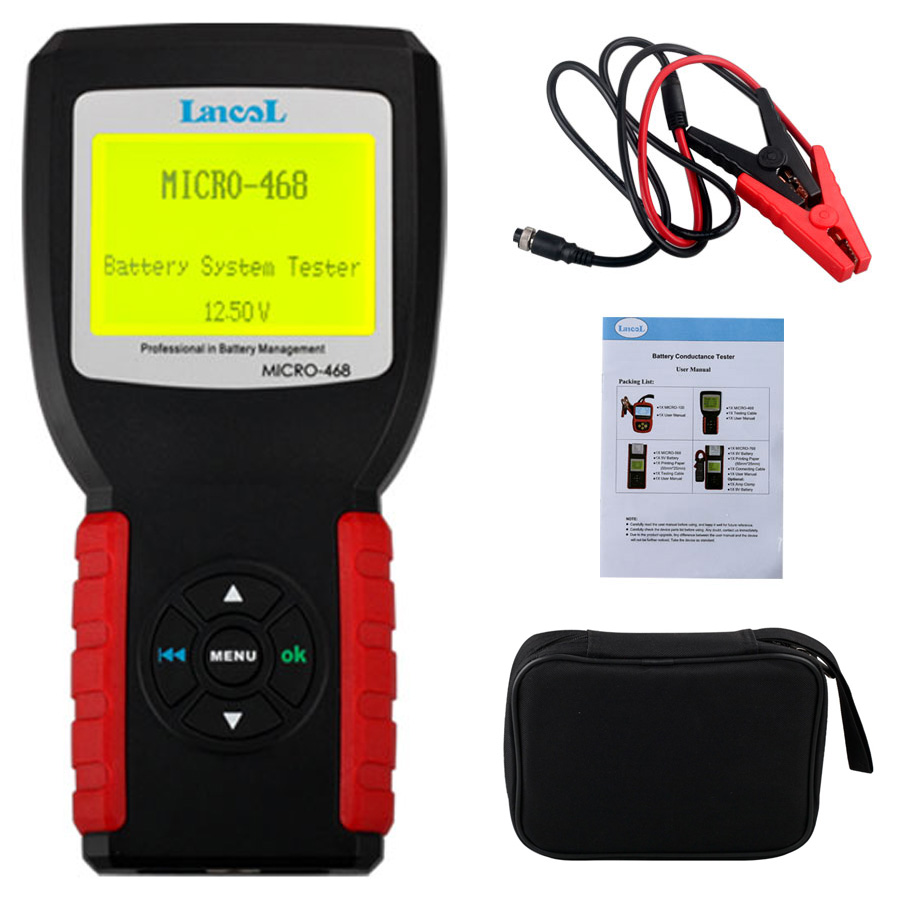

Packing List:
MICRO-468 Battery Tester
Clip
User Manual
Carrying Bag
|
