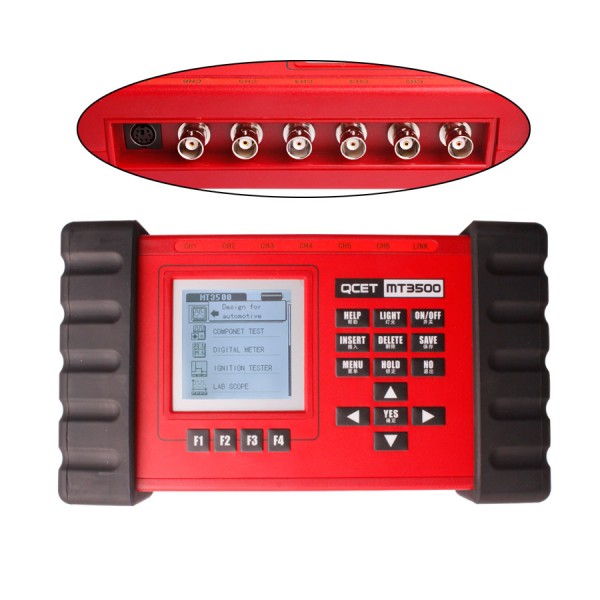

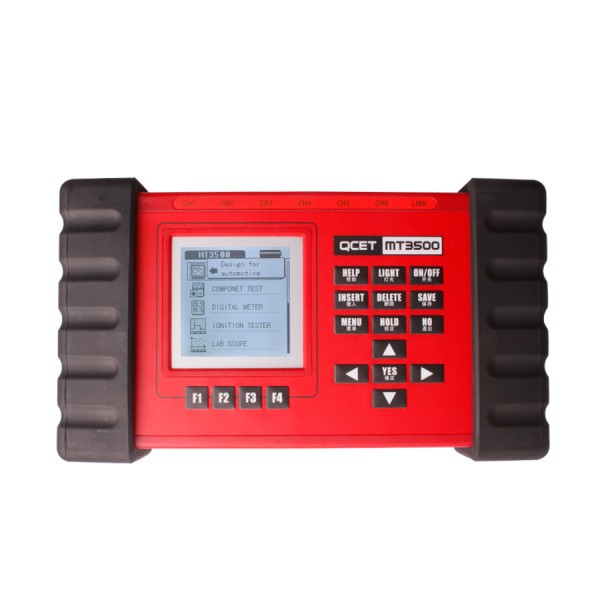

Name: MT3500 Hand-held Auto Engine Analyzer
Description:
MT-3500 Handheld Auto Engine Analyzer with powerful functions supplies serial testing items, and meets serial testing demands.
Features:
Advanced 32 digit main control CPU and 16 digit assistant processor, LCD display, 16 grades, 160*160, easy to show the details of the signal waveforms.
Large capacity memory to upgrade and store hundreds of testing data and waveform data.
Designed with low consumed components, 3 pcs of common batteries can deal with testing work for over 10 hours without heating, energy saving.
High speed interface, it is convenient for data management, software upgrade and data output.
Advanced circuit design, disturbing signals are reduced to the lowest level.
Platform with open high-function operation system, software installation and documents management are as easy as PC.
Functions:

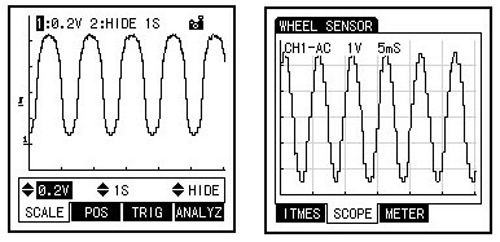

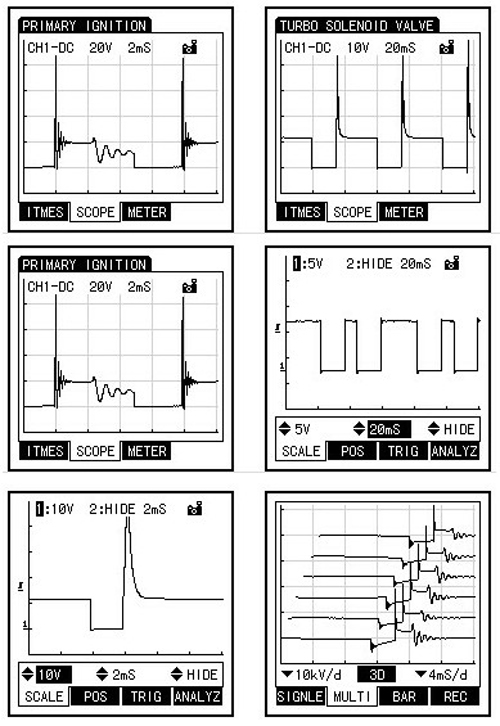

Dual-track oscilloscope can directly test the signal waveforms and data, AC and DC voltage, frequency, Pulse-Width and duty cycle.

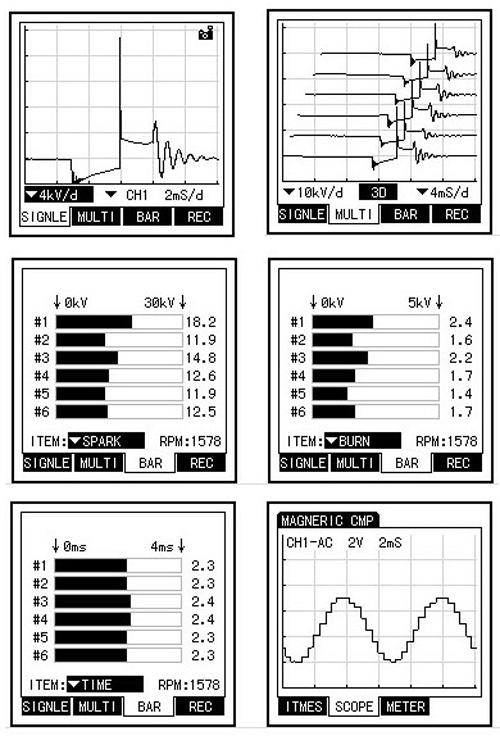

There are six testing channels that can test the secondary ignition of the six cylinders at the same time.
The accuracy of Time Base Display is up to 125 uS/DIV.
Functions of digital meter.
Intelligent testing functions, no need set up data by manual work, test components at a high speed.
|
