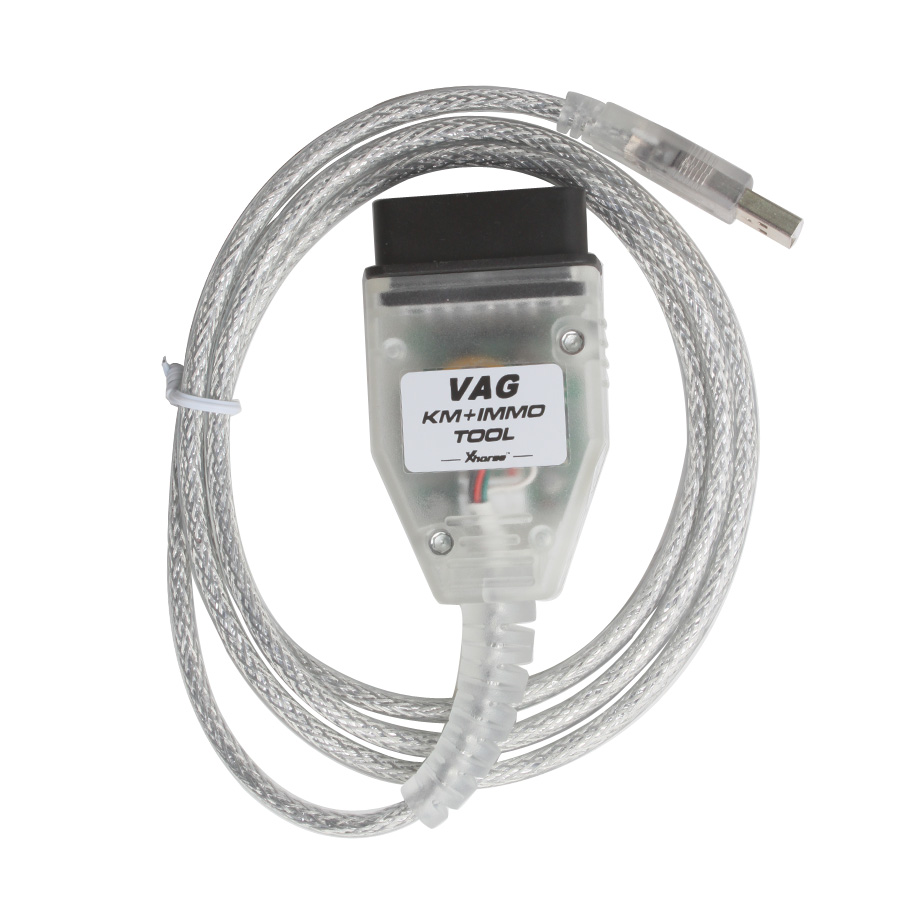

Name: VAG KM+IMMO Tool By OBD2
Description:
VAG KM+IMMO Tool by OBD2 can program Volkswagen, Seat and Skoda cars from year 2006.06 by OBD-II diagnostic. You can do odometer correction, PIN code read, EEPROM read/write with VAG KM+IMMO tool by OBD2.
Notice:
Require Firmware V2.0.5 or Above. Please Update Firmware to V2.0.5 before using it
Software Supported Languages: English, Spanish, Chinese
New Update Version: V1.8.2
Add NEC24c32 & NEC24c64 Algos (some algos for Amarok)
Fix bug of km correction on A4/Q5
Add 95320 IMMO function.
Update Version: V1.7.9
Add Passat B7 Color TFT Dash immo and key function support.
(Free for customers who have NEC24C64 authorization)
Update Version: V1.7.7
Add NEC95320 support. (11' Golf, 11' Tiguan)
Update Version: V1.7.4
Fix bug of change km on A3/TT
Update Version:: V1.7.3
Fix bug of change km on A4.
Fix bug of communication with car.
Update Version: V1.6.9
Add Algo for NEC24c64
Update Version: V1.6.8
Add Change IMMO State function for RB8.
Fix a problem of change km on A3/TT.
Update Version: V1.6.7
Requires firmware V2.0.3 or above
Fix a problem of change km on some RB8 dash. RB8 authorization is free for those customesr who purchase VAG KM+IMMO tool.
Update Version: V1.6.6
Add function: AUDI A3,TT
Fixed the problem of can't change km with A5,Q5,A4. You need purchase authorization for it, and it can do audi only after 2008.
Free RB8 Authorization for VAG KM+IMMO Tool Customers:

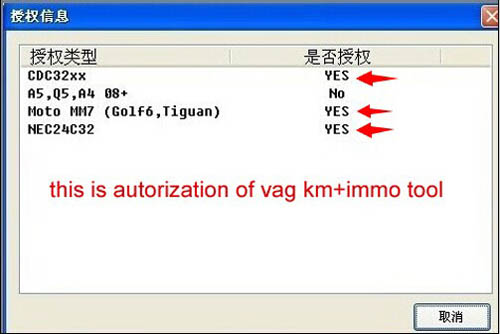

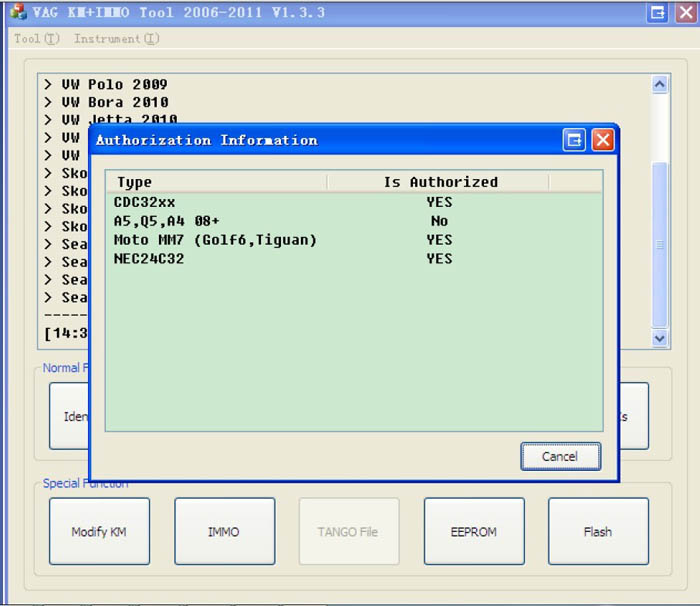

Thanks for your support, we will authorize RB8 for free to customers who has purchased CDC32 & Moto & NEC24c32 modules. If following 3 items are all "Yes" in your "Device Info", you will get RB8 authorization for free.
CDC32xx : Yes
Moto MM7 (Golf6,Tiguan) : Yes
NEC24C32 : Yes
Please update your device to get the authorization.
Notice:
There is a problem in HID driver code of original VAG IMMO K+CAN Tool and CDC32xx cables, when you upgrade the device, may cause data loss to device, and resulting device not work. We have released a new version to solve this problem, we add 4th generation key functions to show our regret. we suggest you to upgrade as soon as possible to solve this problem. If damage occurs during the upgrade process, please send the product back to the original manufacturers for repair and send back to you, but we do not bear the freight.
Newest Added Function: VAG KM+IMMO Tool Process of Adding Dealer Key with Tango
1. Condition 1: At least one key can be used.
1) Connect "VAG KM+IMMO TOOL" to both PC and car.

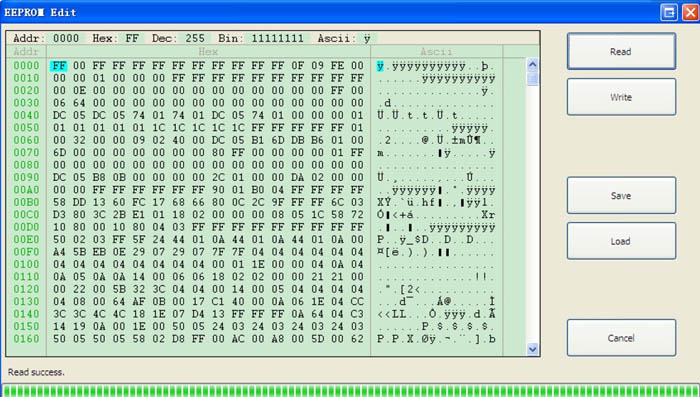

2) Click "EEPROM" button, read EEPROM and save it for backup.

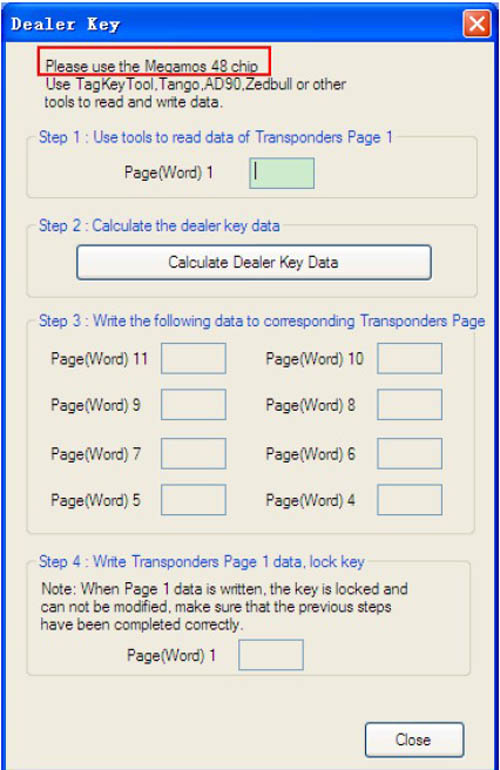

3) Click "Dealer Key" button, opel "Dealer key" Dialog.
4) Use the prompt key chip to make key.
NEC24C32 and NEC24C64; Megamos 48
CDC VW: TP23
CDC AUDI: TP25
CDC SKODA: TP24
CDC SEAT: TP22

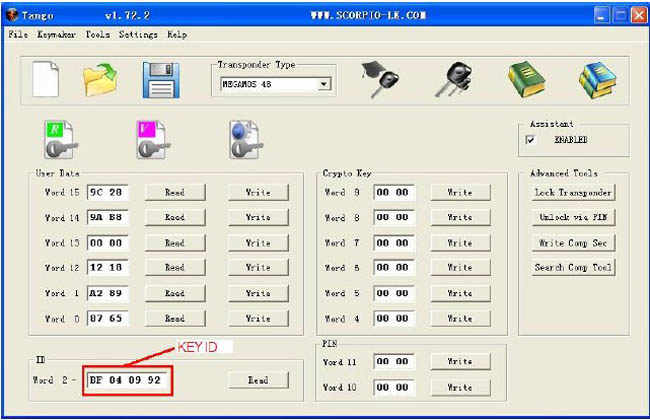

5) Switch to Tango, read "Word 1" data and "Key ID" data.
CDC32xx Module Options
Supported Cars:
Golf, Golf+ from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Passat B6 from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
EEPROM read/write;
Bora, Jetta from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Touran from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Caddy from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Tiguan, Eos from year 2008+: odometer correction, PIN code read, EEPROM read/write;
Octavia (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write
NEC 24C32 Module Options
Supported Cars:
VW Golf 6 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Passat , Passat CC - 2009+ with NEC and 24C32 EEPROM - odometer programming by OBDII;
VW Tiguan - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW T5 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Polo - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Octavia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda SuperB - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Roomster, Yeti - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Seat Ibiza - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Multivan - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW EOS - 2009+ with NEC and 24C32 EEPROM - odometer programming by OBDII;
VW Caddy - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Scirocco - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Bora - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Jetta - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Fabia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Yeti - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Exeo - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
GOLF6 MM7 Module Options
Suppoted Cars:
VW Golf 6 - 2010 with MM7 (9S12) EEPROM - odometer programming and immobiliser data read by OBD-II;
VW Tiguan - 2010+ with MM7 (9S12) EEPROM - odometer programming and immobiliser data read by OBD-II;
FAQ:

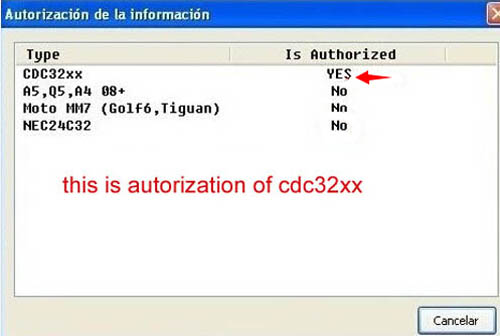

Q: What is the difference between VAG KM+IMMO Tool by OBD2 and Micronas OBD Tool (CDC32XX)?
A: Following 2 pictures show you the difference.

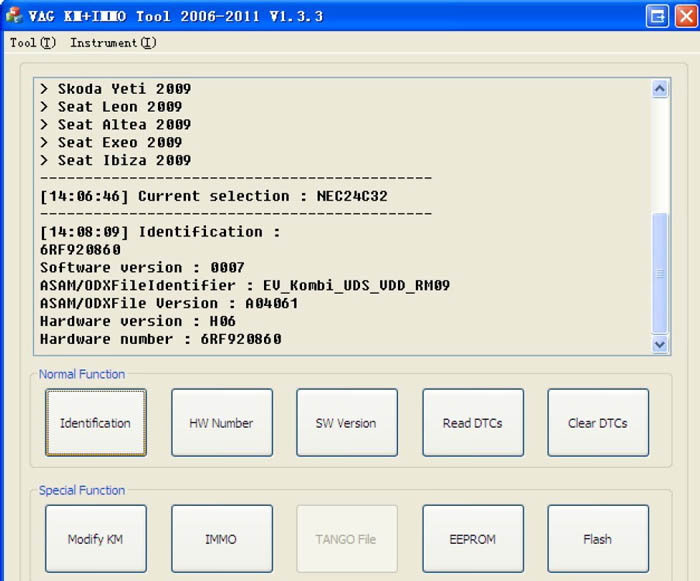

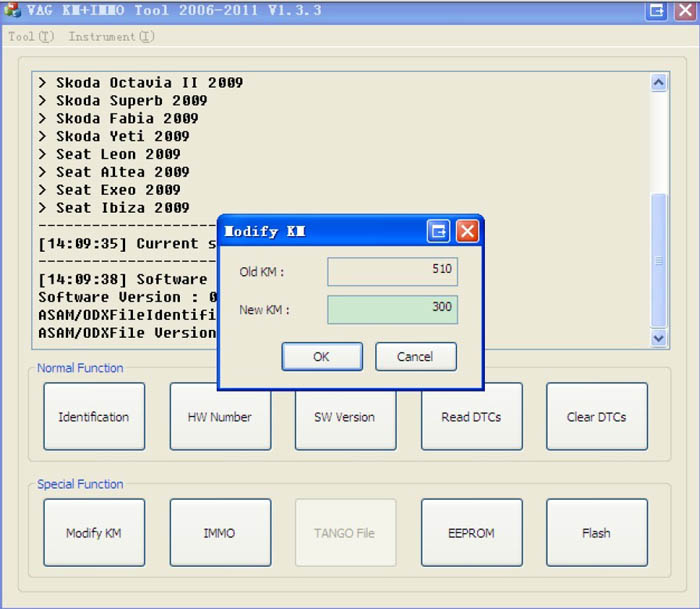

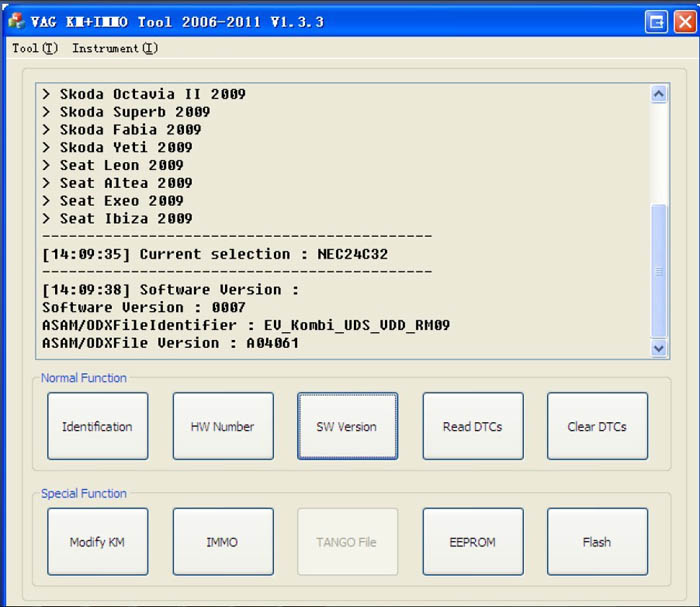

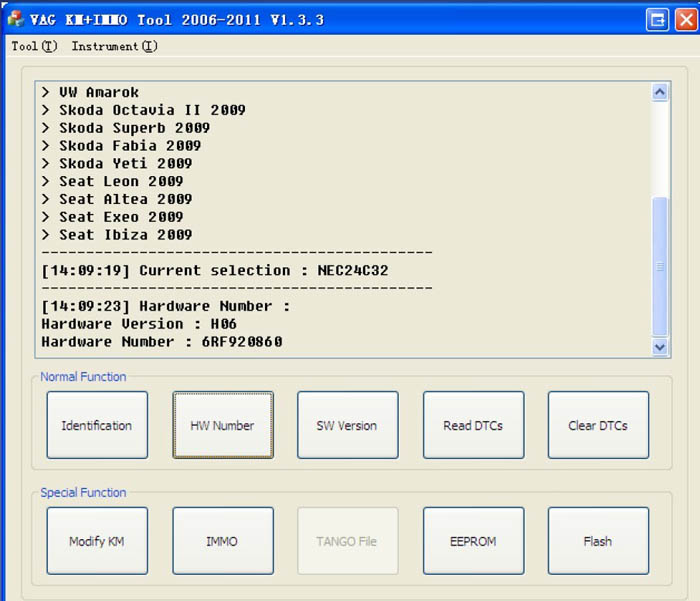

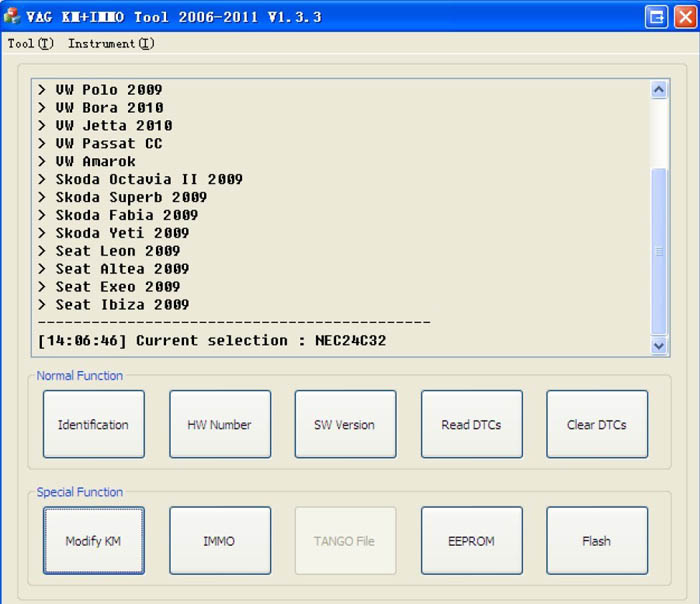

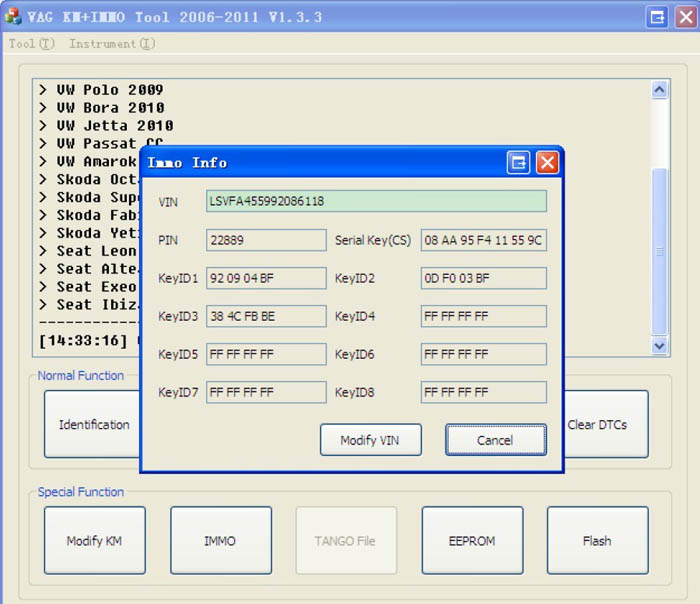

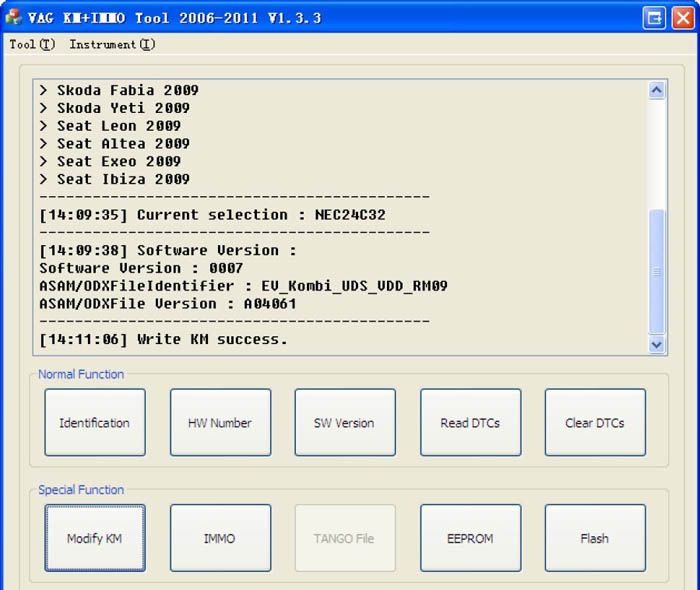

Screenshots:
|
