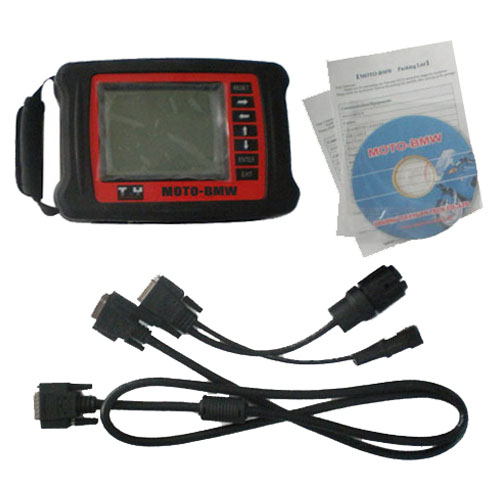

Name: MOTO-BMW Motorcycle Specific Diagnostic Scanner

Description:

MOTO-BMW Motorcycle diagnostic scanner is a special purpose scanner aimed at motorcycles manufactured by BMW Company. It is used for the fault diagnosis of BMW motorcycle electronic control system.

Software Supported Language: English
Software Update: Online Update on official website
Supported Protocols: J1979, KWP2000, J1939, IS09141-2, ISO14230, ISO15765 etc

Feature:

1. It covers BMW C, F, G, H, K and R series motorcycles.
2. It supports the test of engine, ABS, instrument, and body system of motorcycle.
3. Its main function including: reading PC version, reading fault codes, motorcycle fault codes, component test, and data stream analysis and adjustment, etc.

Supported Motorcycle and ECS (Electric Control System):

BMW Engine ECS: BMS COMPACT, BMS COMPACT 2, BMS K CAN-BUS, MOTRONIC MA 2.2, MOTRONIC MA 2.4.
ABS Support ECS: ABS-N, FTE CAN-BUS, FTE INTERAL, TEVES CAN-BUS, ABS 2(3), ABS 2 (10),
Dashboard System: KOMBI CAN-BUS
Body System: ZFE CAN-BUS

Technical Parameter:

Mainframe I/O: standard serial / parallel port
Mainframe Power Supply: DC12V
Mainframe Power: about 9W
Display Screen: large LCD with touch screen, with backlight
Ambient Temperature: 0-50 degree centigrade
Relative Humidity: <90%

Supported Models:

C Serials:
C1 125 ABS
C1 125 Executive ABS
C1 125 Family's Friend ABS
C1 200 ABS
C1 200 Executive ABS
C1 200 Family's Friend ABS

F Serials
F 650 CS Scarver ABS [02-03]
F 650 CS Scarver ABS [04-05]
F 650 GS ABS [00-03]
F 650 GS ABS [04-..]
F 650 GS Daker ABS [00-03]
F 650 GS Daker ABS [04-..]

G Serials
G 650 Xchanllange ABS

K Serials
K 1100 LT ABS [94-99]
K 1100 LT Highline
K 1100 LT Special Edition
K 1100 LT RS ABS [94-97]
K 1200 GT [03-05]
K 1200 GT [06-..]
K 1200 LT [99-01]
K 1200 LT [01-..]
K 1200 R ABS [05-06]
K 1200 R ABS [06..]
K 1200 R Power Cup
K 1200 R Sport  ABS
K 1200 RS [97-01]
K 1200 RS [01-05]
K 1200 S [04-06]
K 1200 S [06..]

R Serials
R 1100 GS ABS
R 1100 R ABS
R 1100 RS ABS
R 1100 RT ABS
R 1100 S ABS [99-01]
R 1100 S ABS [01-06]
R 1150 GS ABS [00-02]
R 1150 GS ABS [03-05]
R 1150 GS Adv 25 Jahre
R 1150 GS Adventure ABS [02]
R 1150 GS Adventure ABS [03-05]
R 1150 R ABS
R 1150 R Rockster ABS
R 1150 RS ABS
R 1150 RT
R 1200 C ABS
R 1200 C Advantgarde ABS
R 1200 C Classic ABS
R 1200 C Independent ABS
R 1200 C Montauk ABS
R 1200 CL ABS
R 1200 GS ABS [04-06]
R 1200 GS ABS [06..]
R 1200 GS Adventure ABS [06]
R 1200 GS Adventure ABS [06..]
R 1200 R ABS [06..]
R 1200 RT [05-06]
R 1200 RT [06..]
R 1200 ST ABS [05-06]
R 1200 ST ABS [06..]
R 850 C Avantgadre ABS
R 850 C Classic ABS
R 850 GS ABS
R 850 R ABS [94-02]
R 850 R ABS [02-06]
R 850 R Comfort ABS
R 850 RT ABS [98-02]
R 850 RT ABS [02-05]
