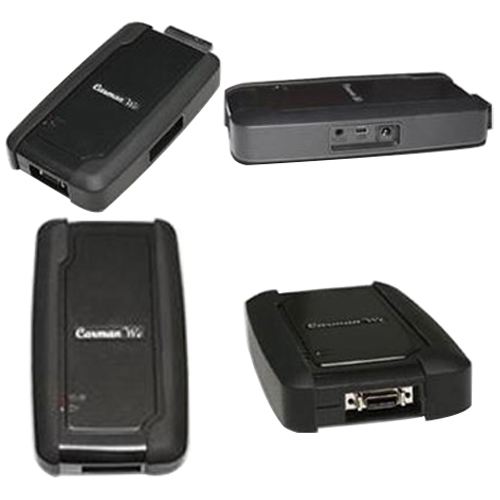

Name: CARMAN WI

Description:

Now, you are welcome to experience the smart and compact universal scanner CARMAN WI with advanced wireless technology with your own PC.

Features:

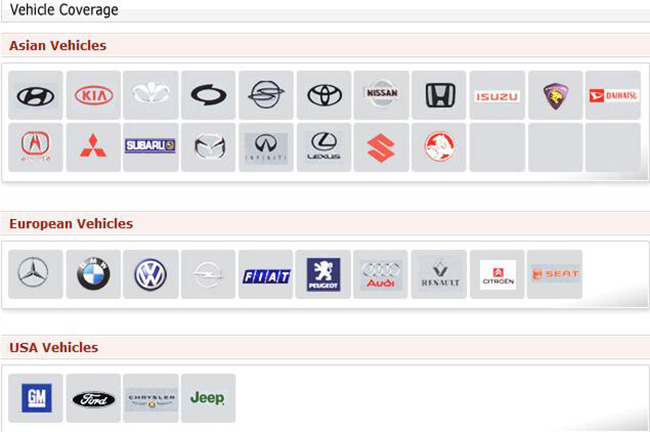

Diagnostic function for Korean, Japanese, European, American, Australian cars
Vehicle communication function by wireless LAN & USB
Self-diagnostic with your current laptop or PC
Work efficiently with your current laptop or PC
Saved data searchable

Specifications:

Memory: 32M internal flash memory
Operation Voltage: DC 8-36V
Power: 4.5W
Protocol: J1850(LPW,PWM), KWP2000, ISO9141-2, CAN
PC Hardware configuration: CPU - Minimum Pentium 4 / USB - Minimum 2.0
PC O/S: Minimum Windows 2000 (Windows XP)
Dimension: 185*95*25mm
Weight(main unit): 0.32Kg

Supported Languages:

English, Chinese, French, German, Russian, Spanish, Italian, Portuguese, Greek, Turkish, Polish, Hungarian, Taiwanese

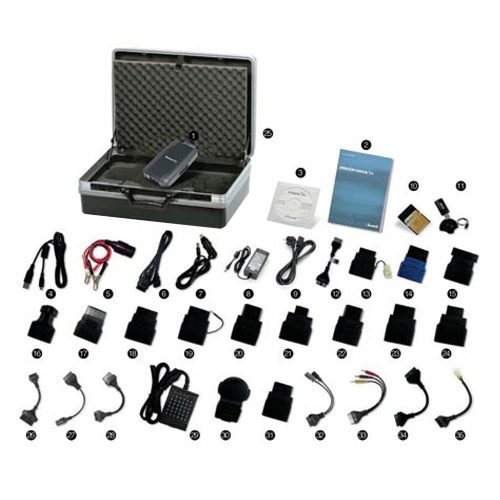

Set Includes:

CARMANWI main unit
DLC main cable 16-pin
USB cable
Power adapter
Cigarette lighter power cable
LAN car(WL-54G)
AC/DC power adapter
Power extension cable
AC power cable
Manual CD
Operation manual
Carrying case

Adapters & Cables:

Asia Cars:
Daewoo/GM adapter 14-pin
Ssangyong adapter 12-pin
Ssangyong adapter 20-pin
Samsung/Nissan Adapter 14-pin
Toyota/Lexus adapter 17-pin "R"
Toyota/Lexus adapter 17-pin "C"
Honda adapter 3-pin
Mazda "C" adapter 17-pin
Subaru adapter 9-pin
Honda adapter 5-pin
Hyundai/Mitsubishi cable 12-pin
Kia/Mazda adapter 6+1 pin
Kia adapter 20-pin
Mitsubishi cable 12-pin + 16-pin

Europe Cars:
PSA cable 30-pin
PSA cable 2-pin
Renault cable12-pin
Benz 38-pin board
BMW adapter 20-pin
Opel adapter 10-pin
Audi/VW cable 2+2-pin
Benz cable 3-line

USA/Australia Cars:
Ford cable 20-pin
Holden adapter 6-pin
Fiat adapter 3-pin
Opel adapter 10-pin
Benz cable 3-line
